Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine is suitable for producing PET plastic containers and bottles in all shapes.
| Machine Model: DZD-420B | |
|---|---|
| Application | Particle/Powder |
| Production Capacity | 5-20 bag/min |
| Packaging Weight | 10-999g |
| Packaging Length | 1-26cm |
| Packaging Width | 7-20cm (Film 16-42cm) |
| Packaging Accuracy | 1-2g |
| Voltage | 220V 50Hz 600W |
| Machine Weight | 90kg |

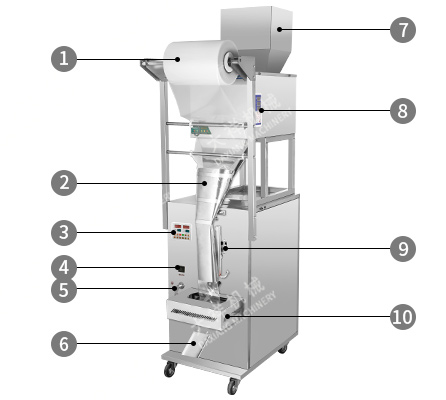

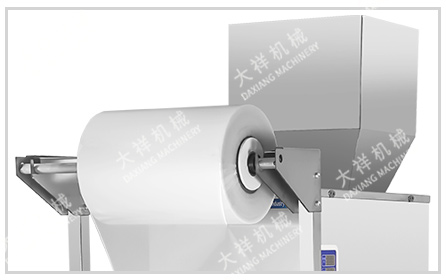

Big volume hopper, made of stainless steel, easy to maintain. Various heat sealing film materials can be used in the machine.

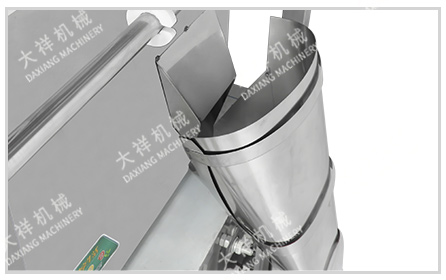

Materials come out from the feeder after weighing. The former size can be customized. It determines the width of the final product.

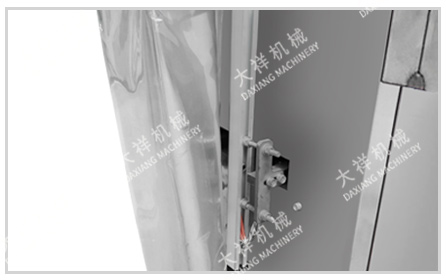

Heat seal the side of the pouch automatically. Temperature can be adjusted according to different materials.

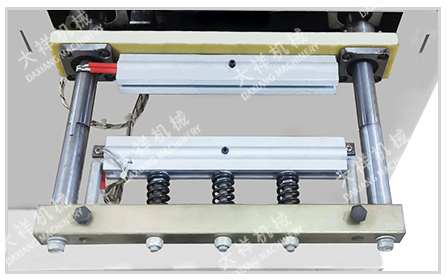

Heat seal the top and bottom side of the pouch automatically. Temperature can be adjusted according to different materials. Then cut pouches one by one.

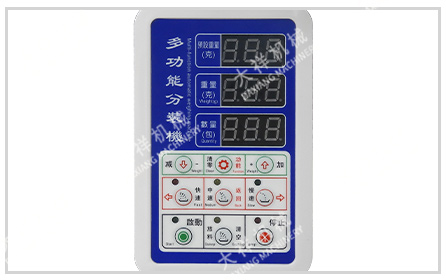

Control the weight of the pouch automatically and accurately. Easily adjust the packing speed between slow, medium, and fast.

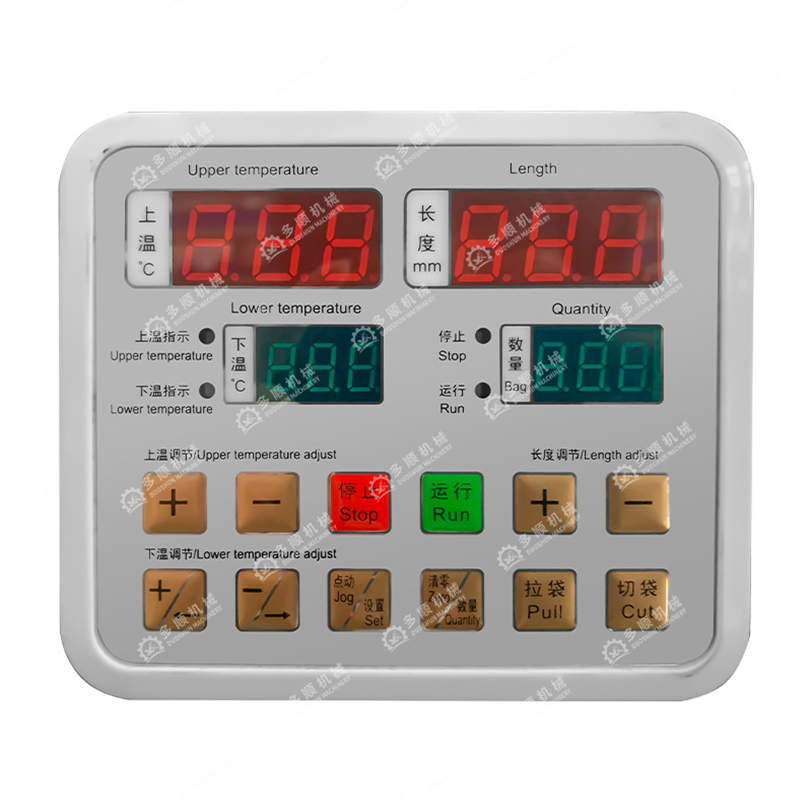

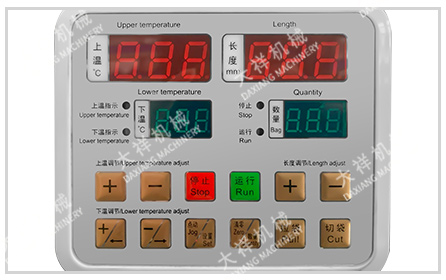

Adjust the length of the pouch. Control the temperature of the sealing mechanism according to the specific properties of the packaging film.

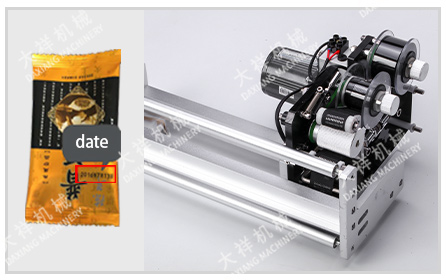

Print date and batch number automatically. Printing content can be customized according to actual packaging requirements.

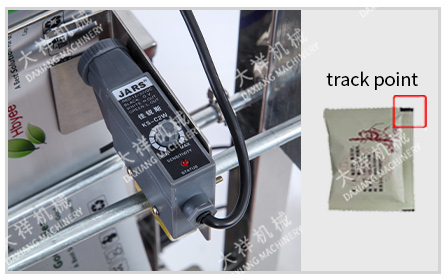

If the film is blank, no cursor is needed. If the film is pre-printed, the cursor helps locate the track point so each picture stays in the correct position.
| Product Model | DZD-220B | DZD-320B | DZD-420B |
|---|---|---|---|
| Application | Particle/Powder | Particle/Powder | Particle/Powder |
| Production Capacity | 5-20 bag/min | 5-20 bag/min | 5-20 bag/min |
| Packaging Weight | 1-20g / 1-50g / 1-100g | 10-500g | 10-999g |

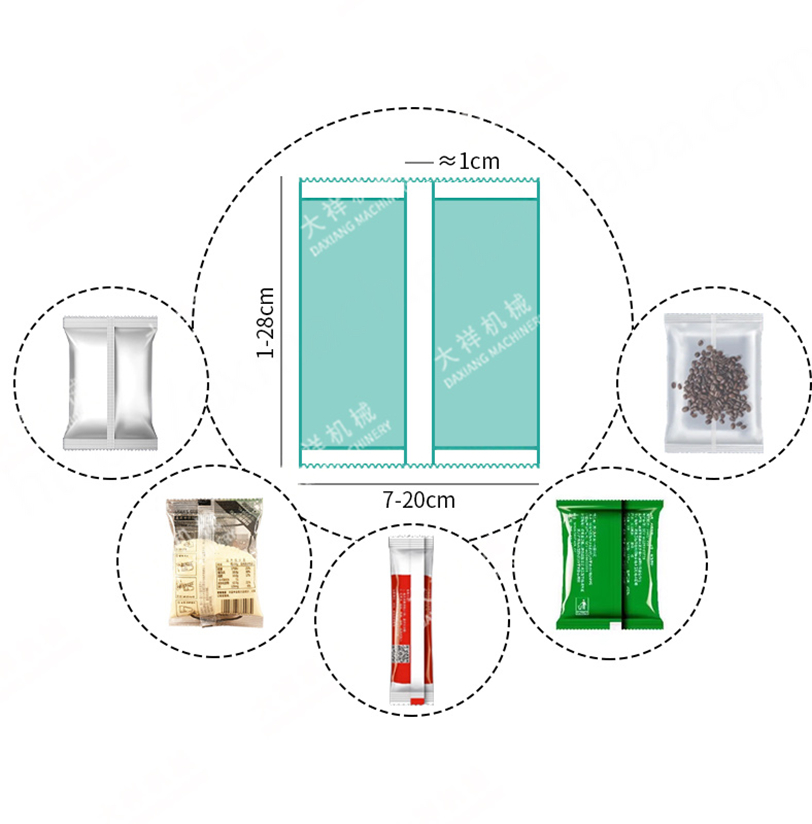

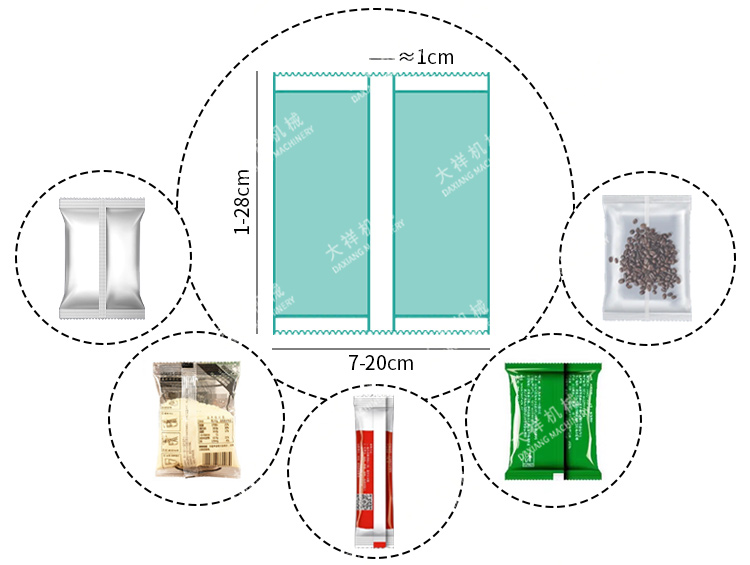

| Packaging Length | 1-15cm | 1-21cm | 1-26cm |
| Packaging Width | 2.25-10cm (Film 6-22cm) | 7-15cm (Film 16-32cm) | 7-20cm (Film 16-42cm) |
| Packaging Accuracy | 0.1-0.3g | 1-2g | 1-2g |
| Voltage | 220V 50Hz 500W | 220V 50Hz 550W | 220V 50Hz 600W |

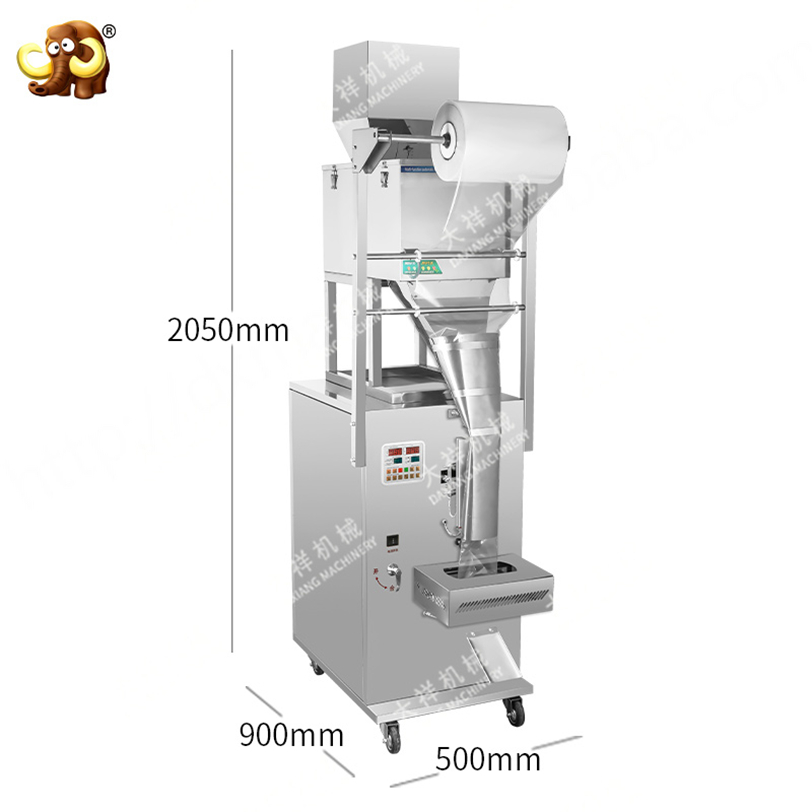

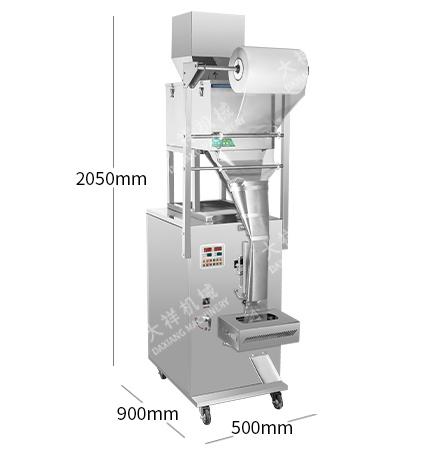

| Machine Dimensions | 420*520*1600mm | 480*680*1730mm | 500*900*2050mm |
| Machine Weight | 50kg | 70kg | 90kg |
| Optional Specs | Cursor/Coder | Cursor/Coder | Cursor/Coder |
