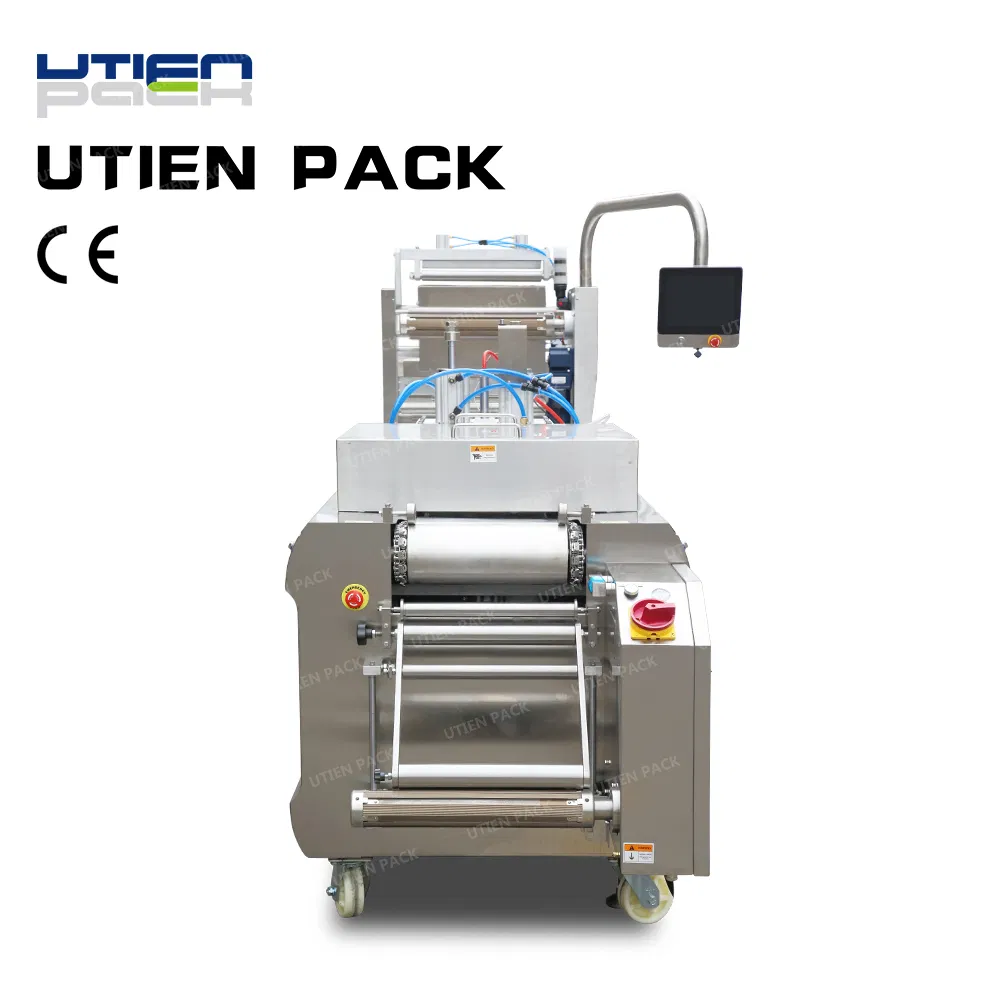

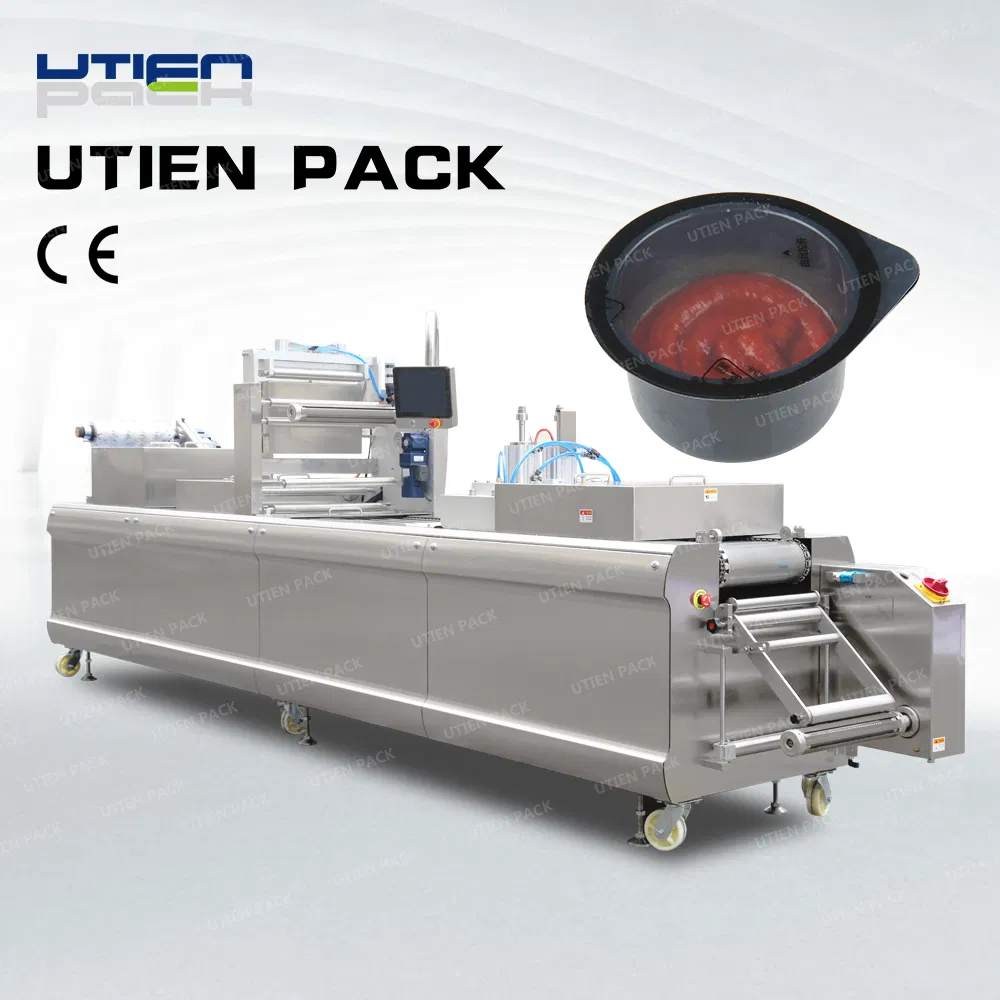

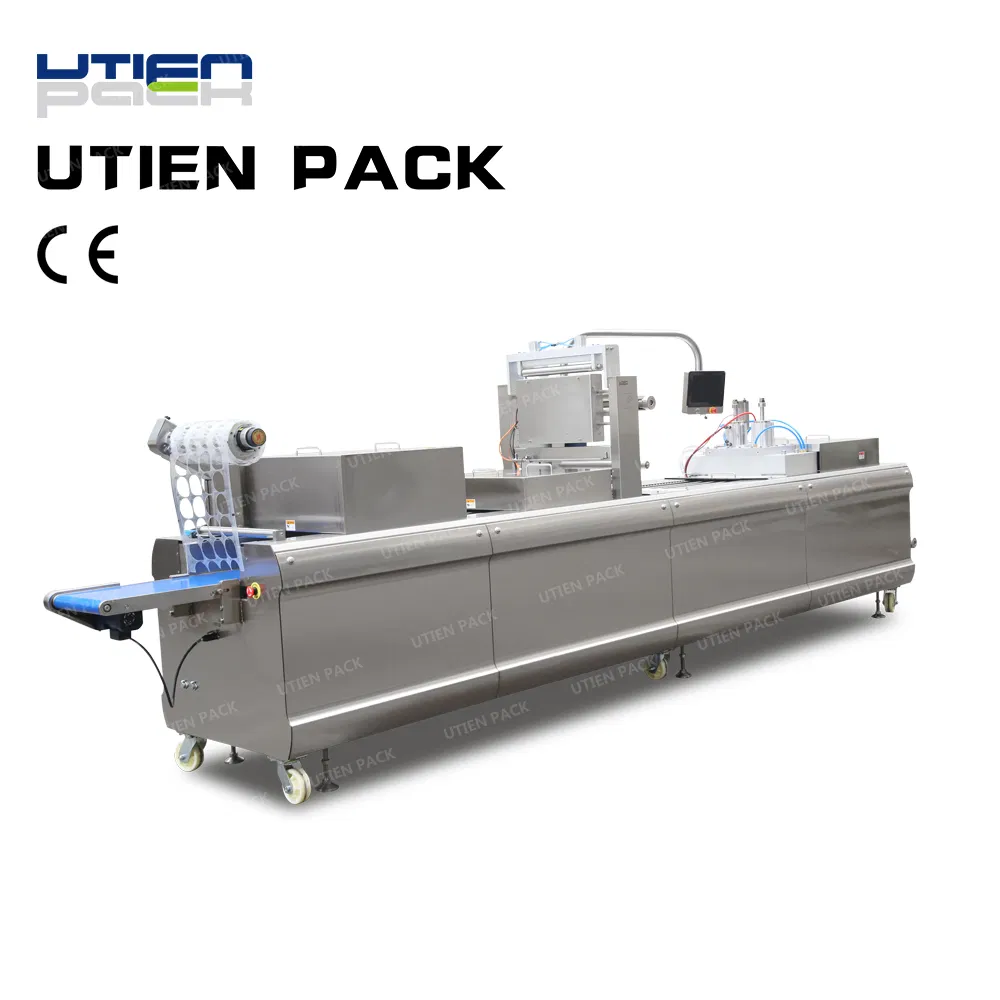

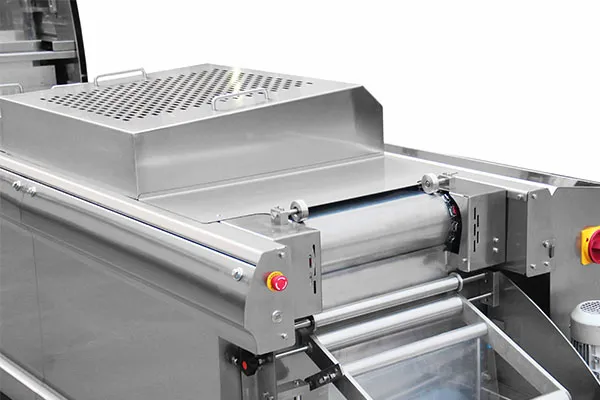

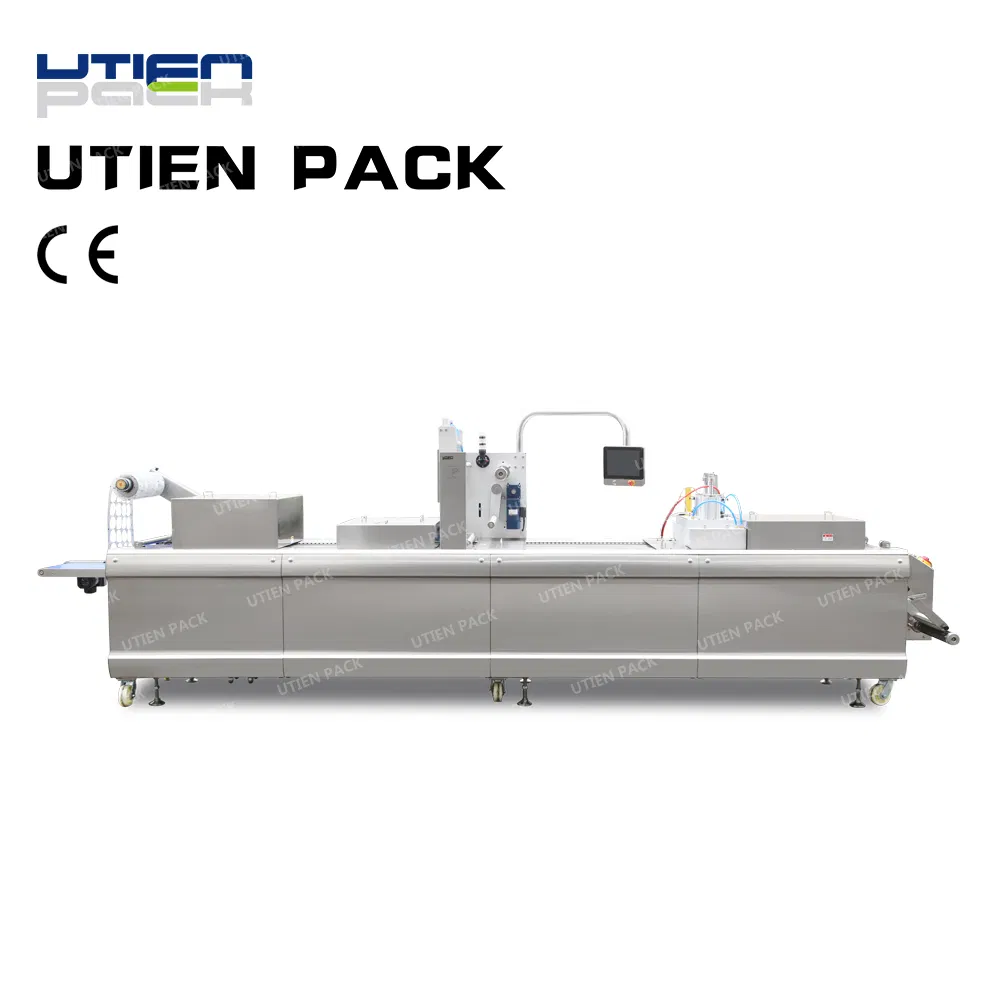

Automatic Sauce/Tomato Sauce/Chili sauce Cup Thermoforming Filling and Sealing Machine

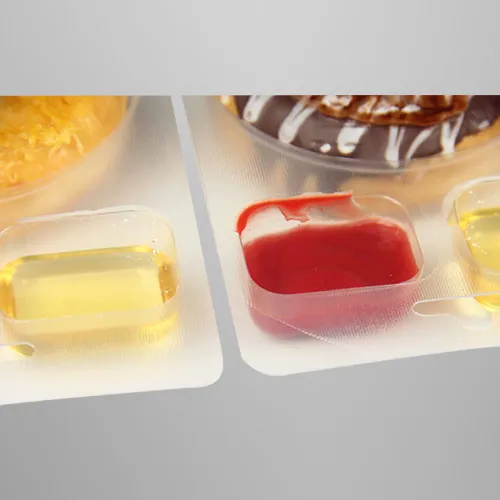

Currently, the machine is widely applied to pack various liquids, such as sauce, ketchup, butter, and more. It offers an unparalleled combination of freshness and retail presentation, enabling processors and retailers to offer customers the highest quality product available.
Our machine is able to do the whole process from package forming, vacuum-sealing, cutting to final output.
With innovative technology, it's helpful to increase your capacity, lower your cost, and make your product more fresh and appealing.
Safety is our top concern in machine design. To ensure the security of workers and machines, many sensors are installed under the cover, inside the door and other removable parts to make sure the machine can auto-stop while the covers and doors are open.
The machine is fully automatic from package forming to final product output. And it can be fully controlled by 10'' PLC touch screen.

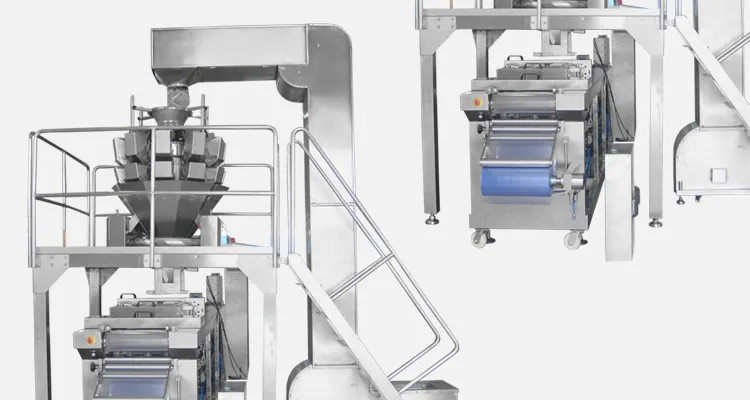

We have a team of engineers to design every machine detail for customers' satisfaction. Also, we're capable to apply other third-party equipment to make a better auto packaging line.
| Machine Parameters | |
|---|---|
| Speed | 6-8 Cycles/min |
| Forming Depth | ≤150mm |
| Film widths | ≤520mm |
| Advance Length | ≤500mm |
| Bottom Film | |
| Material | Sealable PE/PA Multi-layer Co-extruded Plastic Film |
| Unprinted Color Bottom Film or Transparent Film | |
| Roll Diameter | 500mm |
| Thickness | ≥300um |
| Top Film | |
| Material | Sealable PE/PA Multi-layer Co-extruded Plastic Film |
| Pre-printed Top Film or Transparent Top Film | |
| Roll Diameter | 250mm at most |
| Thickness | ≤200um |
| Components | |
| Vacuum Pump | BUSCH (Germany) |
| Electrical Components | Schneider (France) |
| Pneumatic Components | SMC (Japan) |
| PLC Touch Screen & Servo Motor | DELTA (Taiwan) |
| Machine Dimensions & Weight | |
| Dimensions | 6000mm*1100mm*1900mm |
| Weight | 2000kg |
| Working Height | 1000mm |
| Loading Area Length | 2000mm (Customizable) |
The parameter in this sheet is for reference only, some of the data may be different with different cases.
1) The whole machine has 12 months warranty exclude wearable parts such as silicone plate, film, heating elements and so on.
2) Special overseas engineering service is not included in the warranty.
3) Other items or service require can be negotiated.
1) We offer information about packages and machinery before making a special offer.
2) We have multiple after-sale services include online guiding, engineering service, install & tuning service, and so on.
1) We can provide package design service at the request of the customer.
2) We can customize machine function, appearance, and special requests within a reasonable range.
3) We can make a certain design of the package under request.
