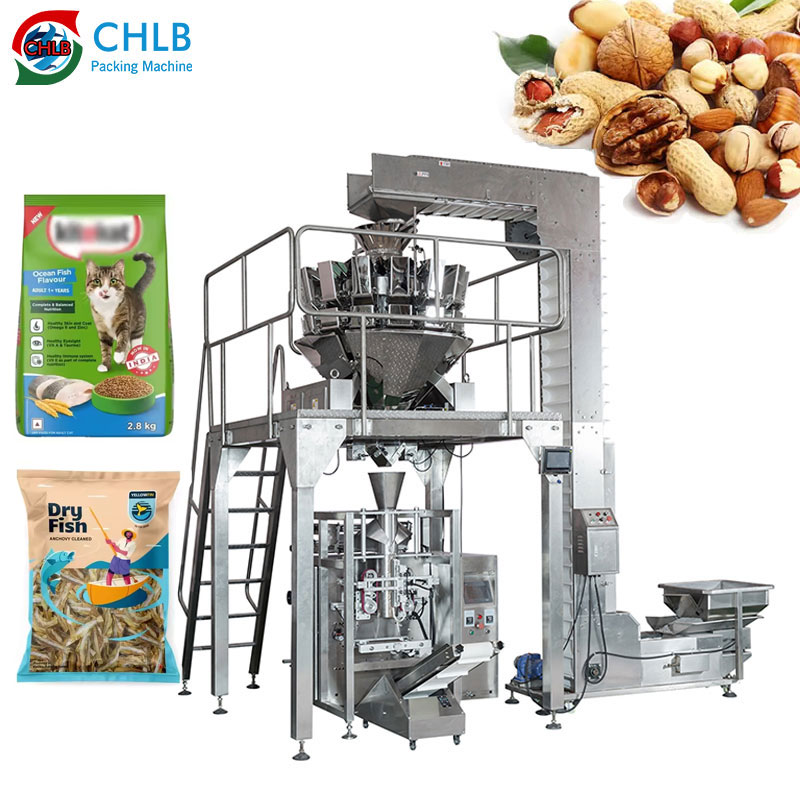

Automatic Snacks Fries Potato Chips Puffed Food Filling Packing Machine Vertical Multi-head Weighing Packaging Machine
| Parameter |
Specification Details |
| Model |
CB-520PM |
| Max width of roll film |
≤520mm |
| Bag sizes |
L(100-400)mm / W(100-250)mm |
| Packing speed |
5-55 bags/min |
| Packing material |
OPP/CPP, OPP/PE, PET/PE, PE |
| Consumption |
6-8kgf/cm², 0.15m³/min |
| Power and voltage |
AC200V, single phase 50-60Hz, 3.5KW |
| Total weight |
720KG |
| Dimension |
L(4105) * W(2457) * H(3750)mm |
Product Features
The equipment is made of 304 stainless steel that meets food QS and pharmaceutical GMP hygiene standards, and is equipped with safety features in line with enterprise safety requirements.
The independent temperature control system ensures accurate temperature control, resulting in beautiful and smooth sealing.
Uses servo motor film pulling, PLC control, and touch screen interface for automatic control, ensuring high reliability, speed, and efficiency.
The double-belt film pulling system and color code control system can be automatically adjusted through the touch screen to simplify deviation correction.
Stores various packaging process parameters for different products, allowing for easy switching without manual adjustment.
Can be tailored to meet the specific needs of different food and pharmaceutical products, making it highly adaptable.

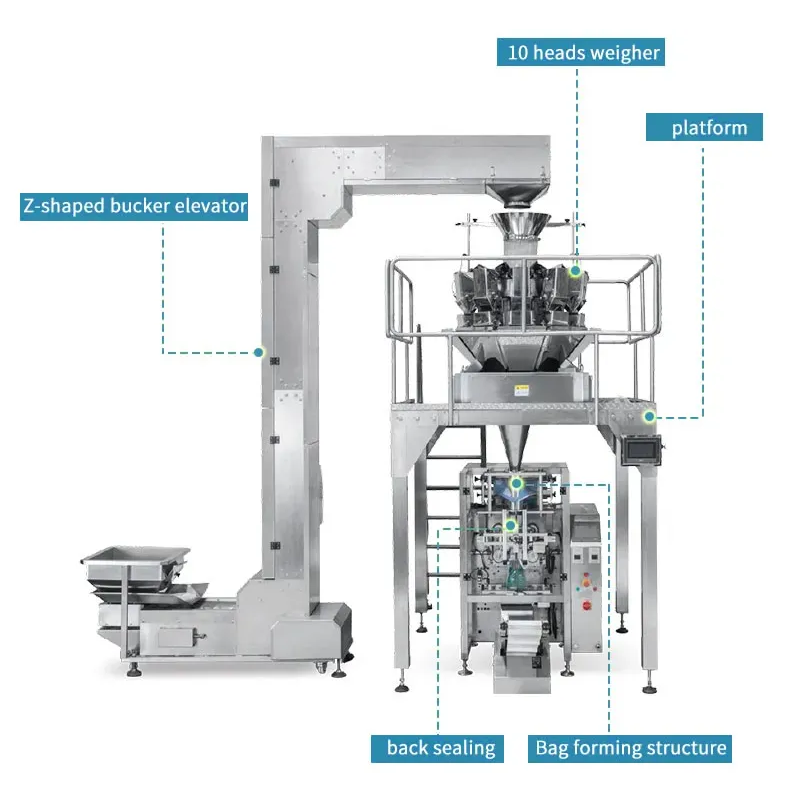

Product Details
Applications
Production Facility
Production Process
Certificate
Exhibition & Customer Photos
Packaging & Shipping
Frequently Asked Questions
Q1: Are you a factory?
A1: Yes, we established in 1998 as a manufacturing supplier with 25 years experience. We can provide you with professional product packaging solutions.
Q2: What info do you need before confirming the machine?
A2: Your product picture, your product size (length, width, height, weight etc.), packing type (Back seal / quad seal / 3-side seal / 4-side seal etc.), and your product samples (for testing).
Q3: What is the material of contact food/material parts?
A3: The contact food/material parts are made of 304# stainless steel. The machine body can be 304# stainless steel or carbon steel.
Q4: Can this machine make different bag sizes?
A4: One former can make one bag width, and the bag length can be adjustable within a range. It should be ordered an extra former if you want to make the other bag width.
Q5: How about your warranty?
A5: We provide 13 months warranty, starts from the issue date of bill of lading.
Q6: What can you provide for after-sales service?
A6: We can provide machine testing video and pictures before delivery, English manual, some free spare parts, installation in clients' factory, and technical training.
