DQ320L-E Semi-Automatic Electric 380V Plastic Bags Heat Sealing Modified Atmosphere Packing Machine Easy Operate for Chemical

Product Description

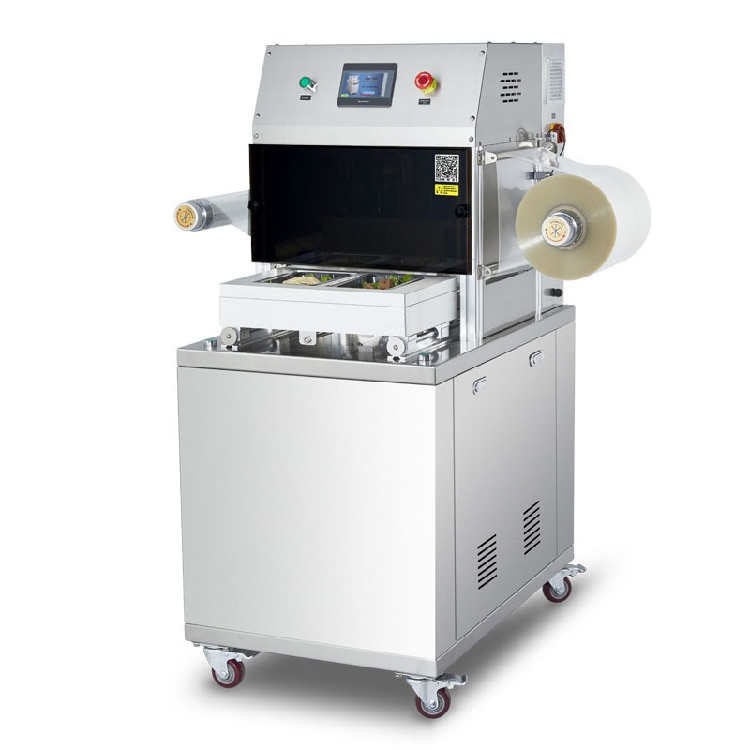

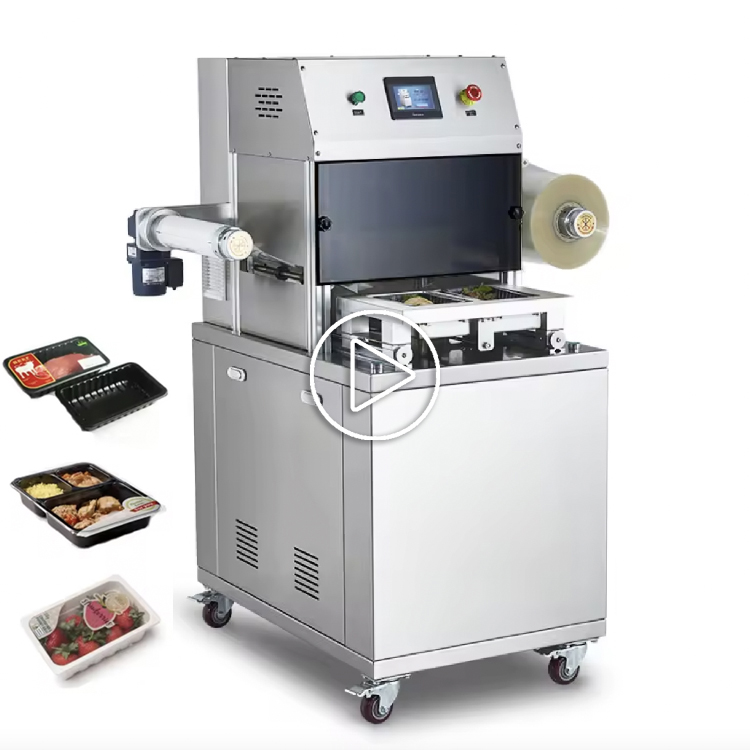

DQ320L-E Automatic Tray Modified Atmosphere Packing Machine

Product Description
DQ320L-E Automatic Tray Modified Atmosphere Packing Machine

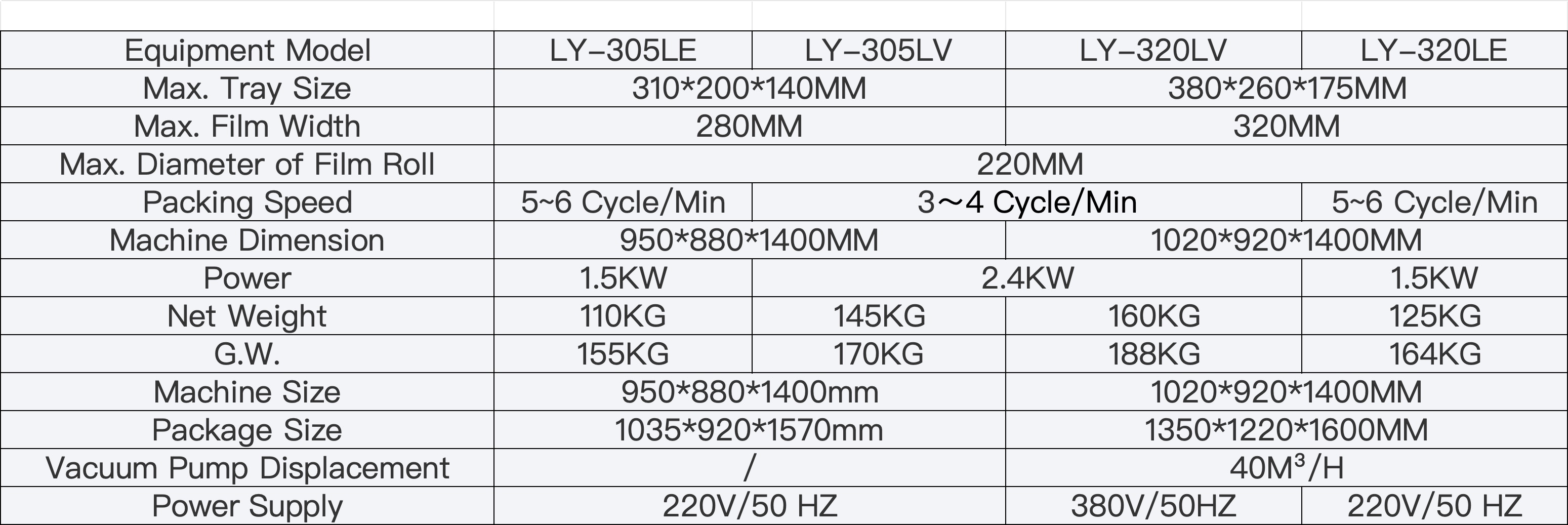

Equipment Model LY-305LE LY-305LV LY-320LV LY-320LE
Max. Tray Size 310*200*140MM 310*200*140MM 380*260*175MM 380*260*175MM
Max. Film Width 280MM 280MM 320MM 320MM
Max. Diameter of Film Roll 220MM 220MM 220MM 220MM
Packing Speed 5~6 Cycle/Min 3~4 Cycle/Min 3~4 Cycle/Min 5~6 Cycle/Min
Machine Dimension 950*880*1400MM 950*880*1400MM 1020*920*1400MM 1020*920*1400MM
Power 1.5KW 2.4KW 2.4KW 1.5KW
Net Weight 110KG 145KG 160KG 125KG
G.W. 155KG 170KG 188KG 164KG
Machine Size 950*880*1400mm 950*880*1400mm 1020*920*1400MM 1020*920*1400MM
Package Size 1035*920*1570mm 1035*920*1570mm 1350*1220*1600MM 1350*1220*1600MM
Vacuum Pump Displacement / / 40M³/H 40M³/H
Power Supply 220V/50 HZ 220V/50 HZ 380V/50HZ 220V/50 HZ
2025 Hot Sale Price Automatic Modified atmosphere packaging machine is also known as: vacuum air-conditioned packaging machine, modified atmosphere box vacuum packaging machine, modified atmosphere bowl vacuum machine, etc. It is to put the food into the prefabricated box, discharge the air in the prefabricated box through the positive pressure system, and fill it into the prefabricated box according to the gas ratio (mainly nitrogen, carbon dioxide, oxygen) through the mixer, and then seal it. Modified atmosphere fresh-keeping packaging can mainly keep the color, color and taste of food unchanged, so that the food inside is in a sleep state. Nitrogen and carbon dioxide can inhibit some bacteria, and oxygen can play a role in preservation, so as to keep the food in a state of sleep. The original taste of the product, and the appearance of the modified atmosphere packaging is very beautiful, and the product will not be squeezed and deformed like vacuum packaging, and the appearance will not shrink. The packaging effect is good, and the product packaging can be easily opened without tools.
Working Process:
Put the product in the prefabricated box, and then put the box into the mold of the equipment. The box enters the sealing area with the movement of the mold, the mold is closed, and the upper film is attached to the sealing surface of the box in the sealing mold. According to the user's product packaging requirements, on the basis of vacuuming, fill with nitrogen or mixed gas for packaging) sealing, (the upper film and the box are sealed together) punching, post exhaust, mold separation, and the packaged product comes out with the mold , remove the product manually.

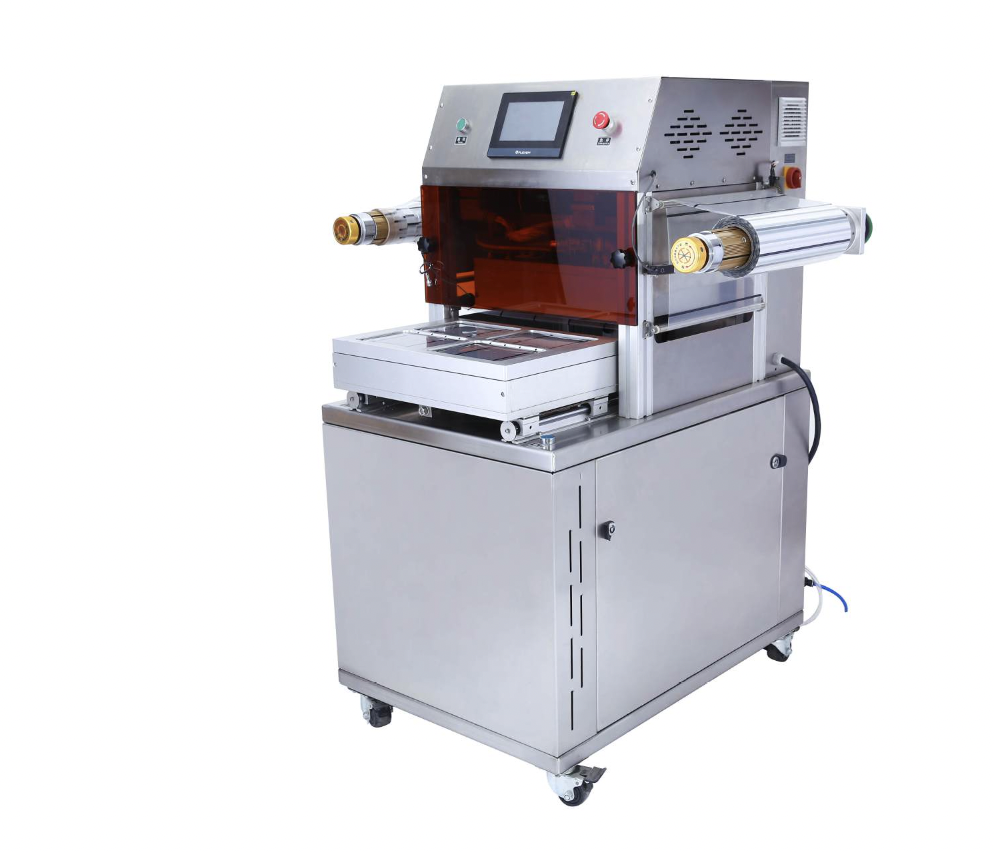

Working Mechanism Flow

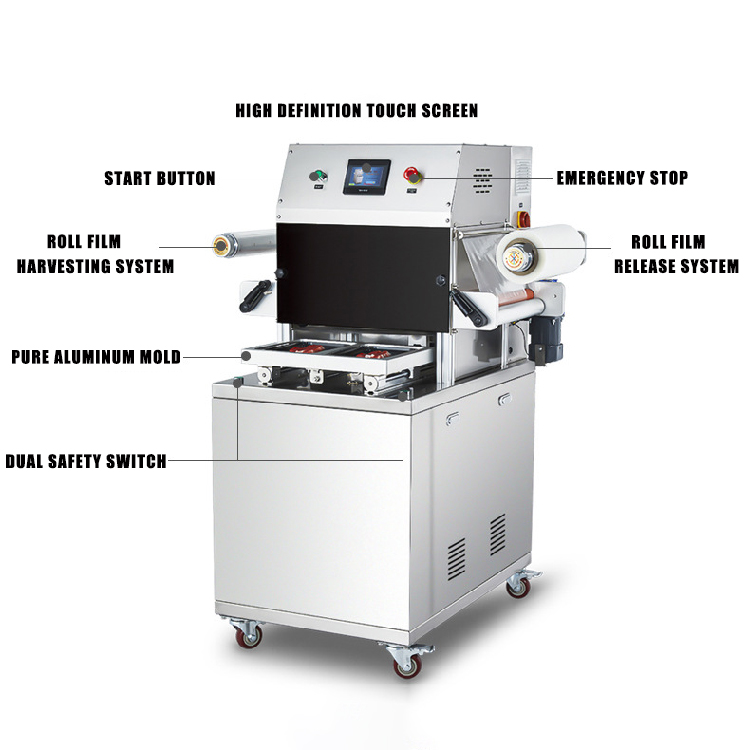

Key Features & Technical Highlights

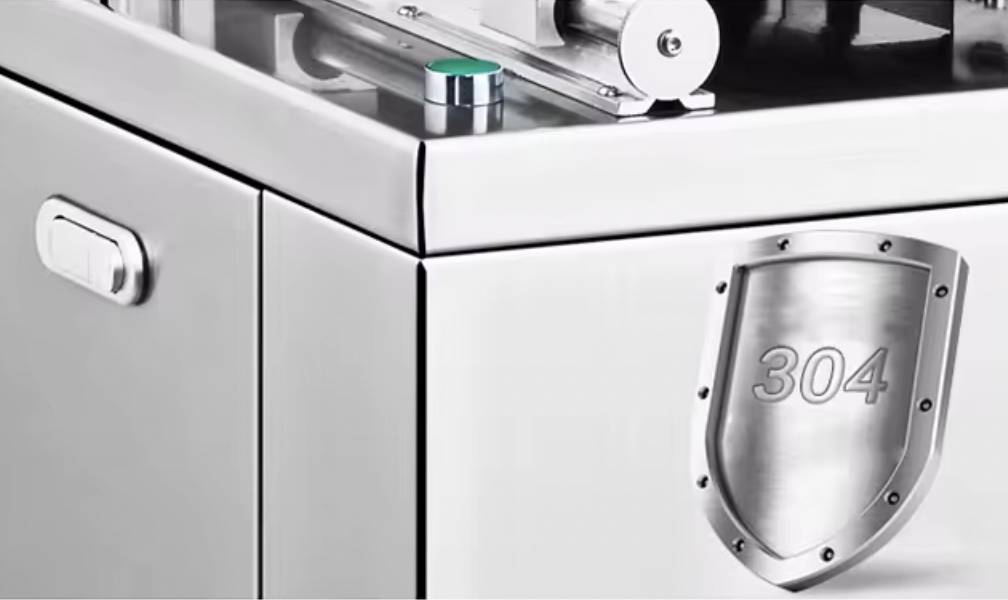

Food grade 304 stainless steel body
1. Food grade 304 stainless steel body

Corrosion-resistant, rust-resistant and durable, it ensures the stable operation of the machine in various environments and prolongs the service life of the machine.

Food grade mold 6061 anodized aluminum

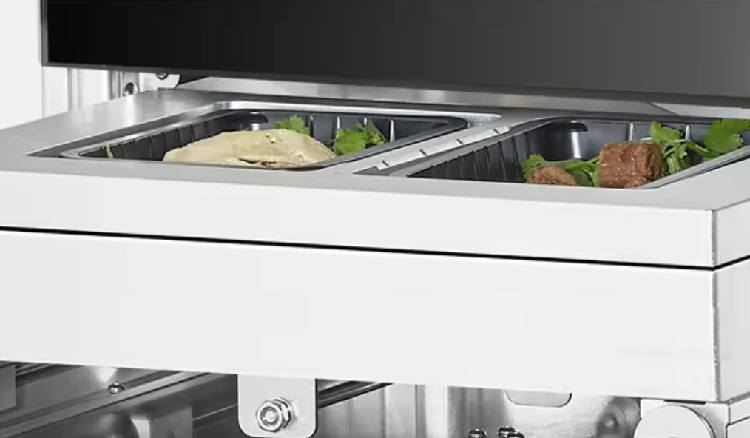

2. Food grade mold 6061 anodized aluminum

Corrosion resistance, impact resistance, no deformation, no rust, ensure food safety and prolong the service life of the mold.

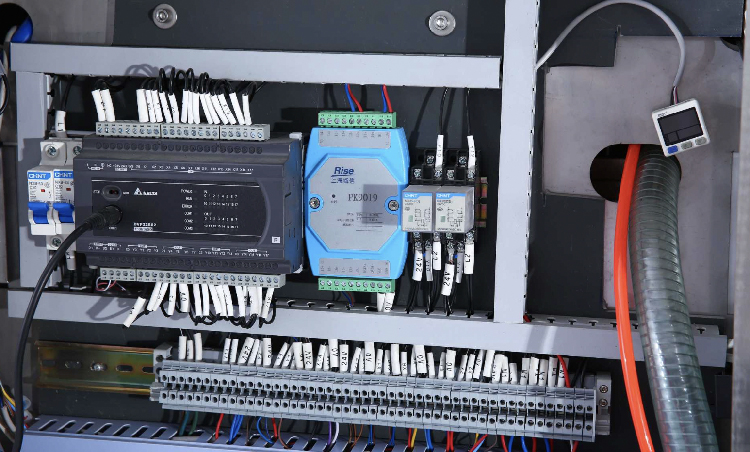

Highly integrated control system

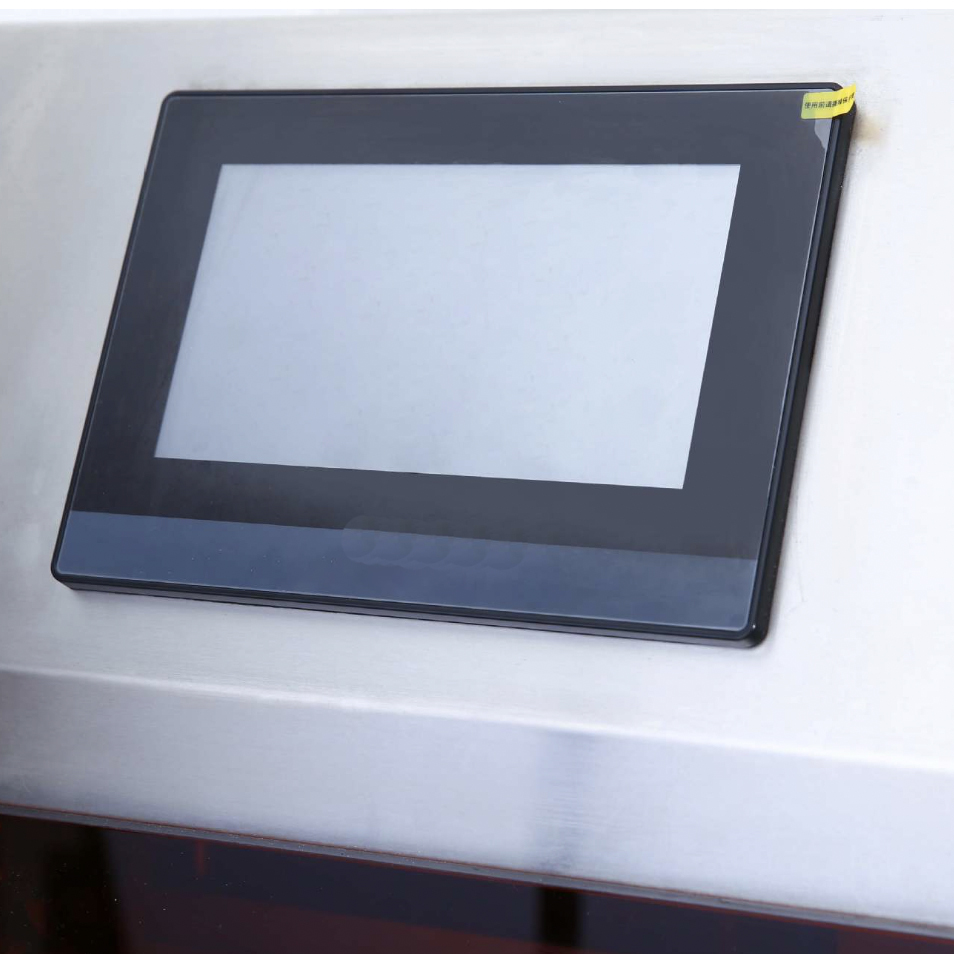

3. Highly integrated control system easy to operate

Simple, intuitive operator interface provides comprehensive parameters monitoring and control logic adjustments.

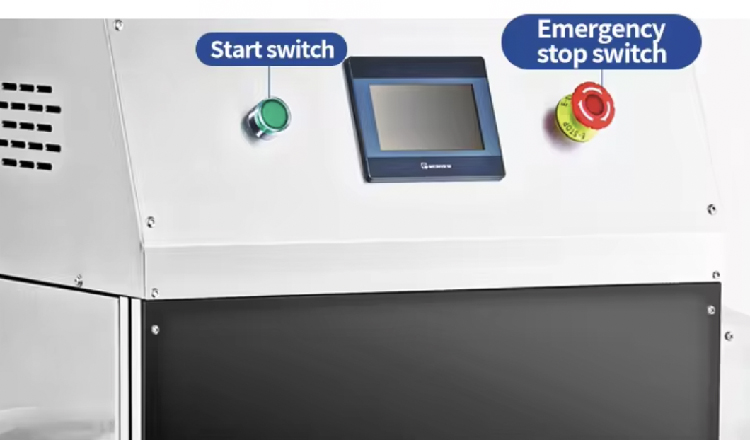

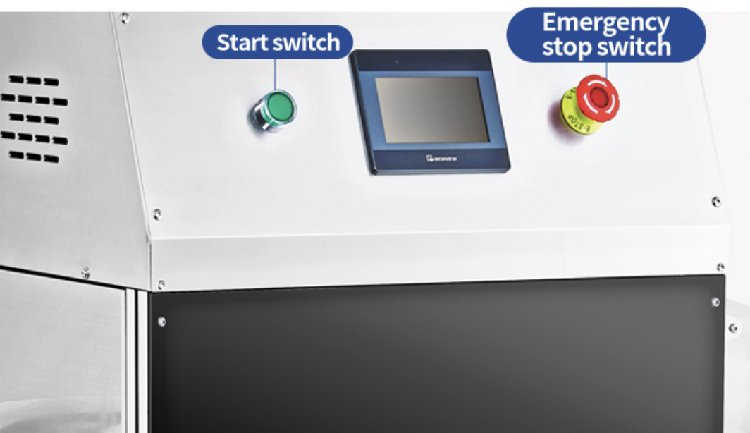

Dual safety start button

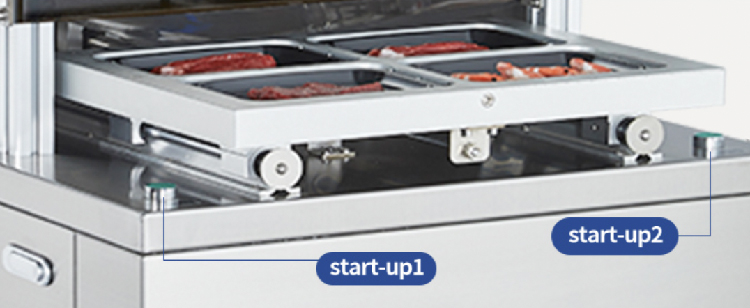

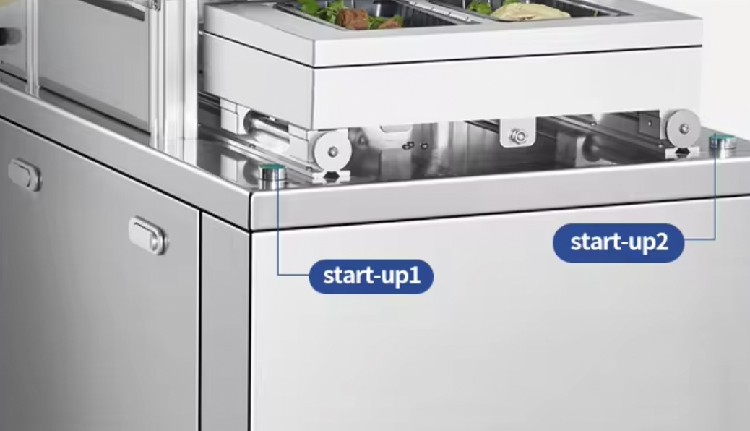

4. Dual safety start button Double preservation

The machine can be started only when the two buttons are operated at the same time, which can prevent safety accidents caused by improper operation in the production process.

high quality vacuum pump

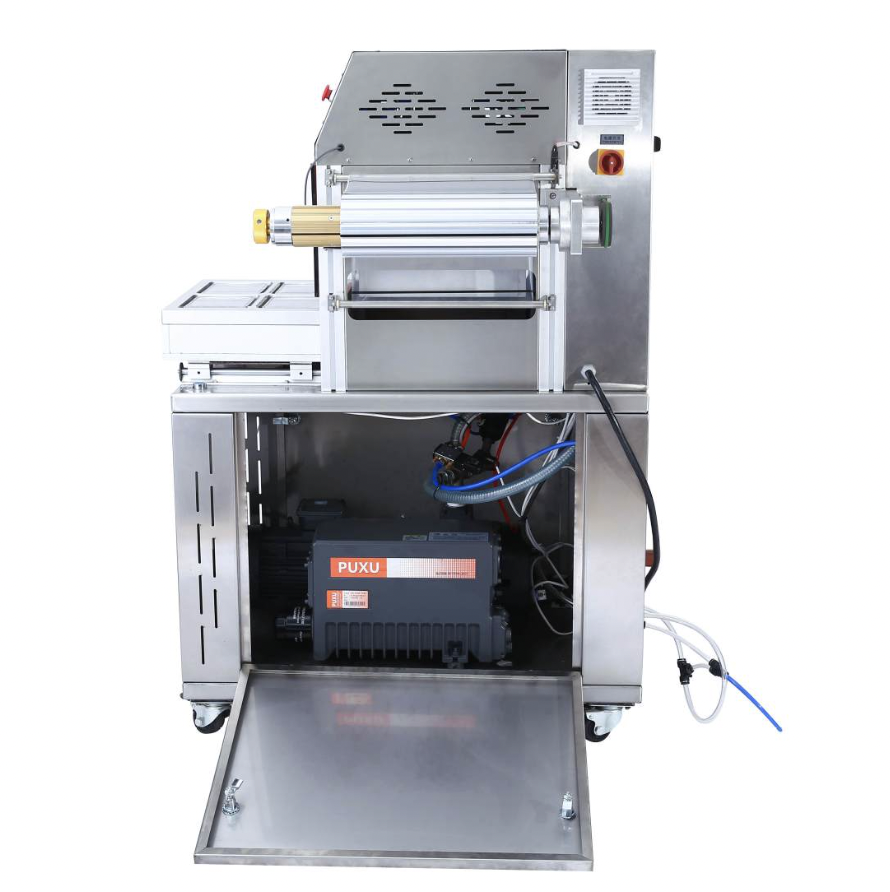

5. High quality vacuum pump

High quality and high-power brand vacuum pump, pure copper coil, strong power, better vacuum effect, and longer service life.

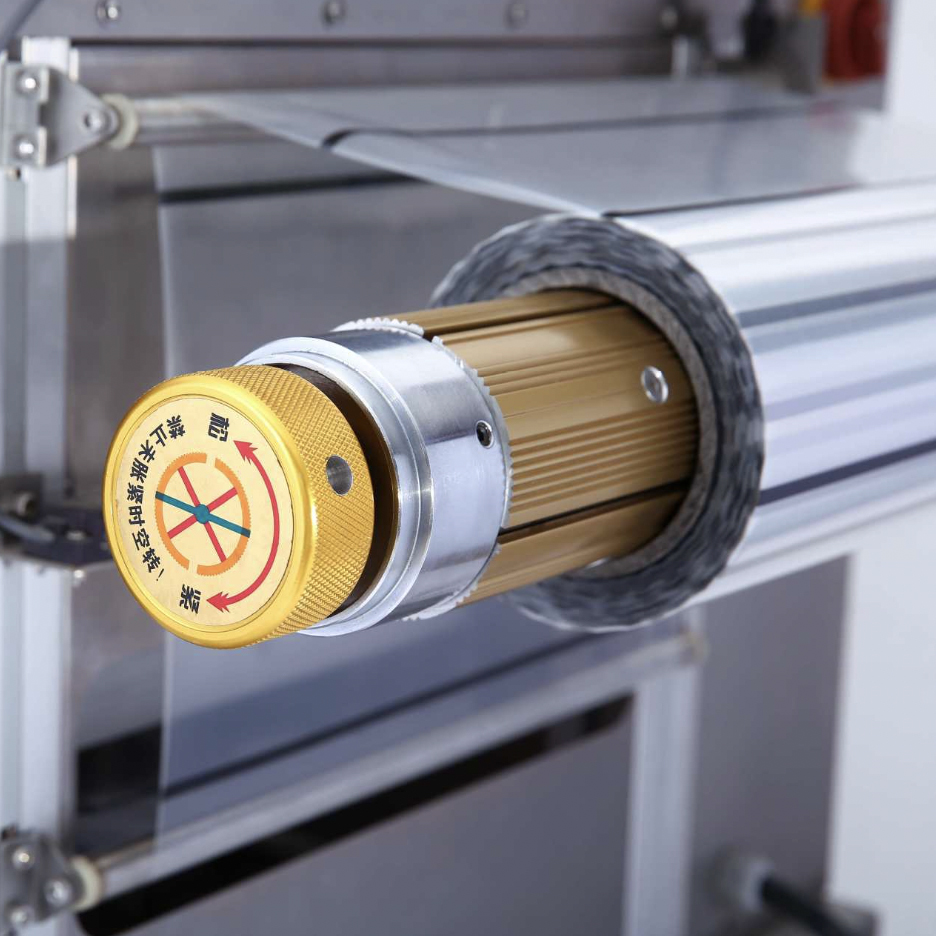

Double hand swelling axis film collection
6. Double hand swelling axis film collection and precise film moving system

The brand new dual hand expansion axis film collection system maintains the horizontal stability of the film, and the film replacement is simple, convenient, and precise.

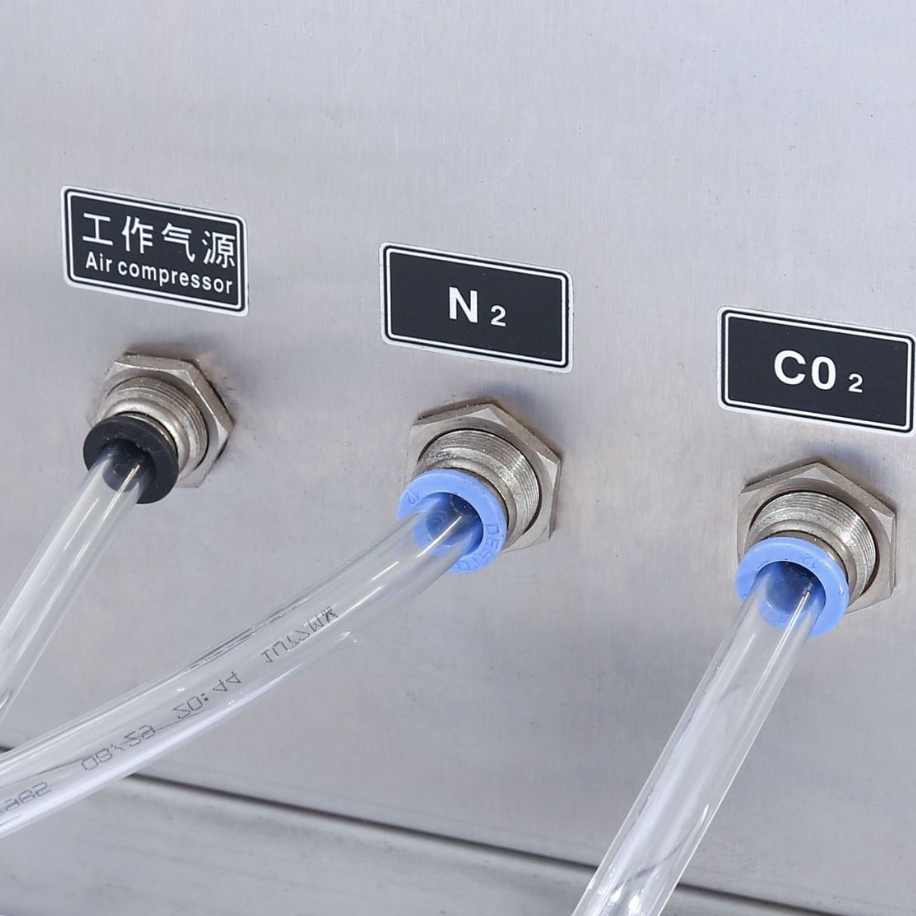

Packaging Application 1
Packaging Application 2
Packaging Application 3
Company Profile
As a modernized enterprise business, we specialize in the supply, service, and support of a select range of packaging machinery. With over 10 years of experience in manufacturing packing machines, we pride ourselves on our quality of service and attribute our success in finding solutions to our customers' specific needs. We offer a wide range of packing machinery. Our experience working closely with customers helped us develop proven packaging solutions for the food, medical, chemical, and bioscience industries. We also customize machine specs, conveyor lines, and a lot more for your specific application. We are committed to listening to our customer's needs and providing timely customer service to keep your packaging operation running smoothly and cost-effectively.
Factory Facility

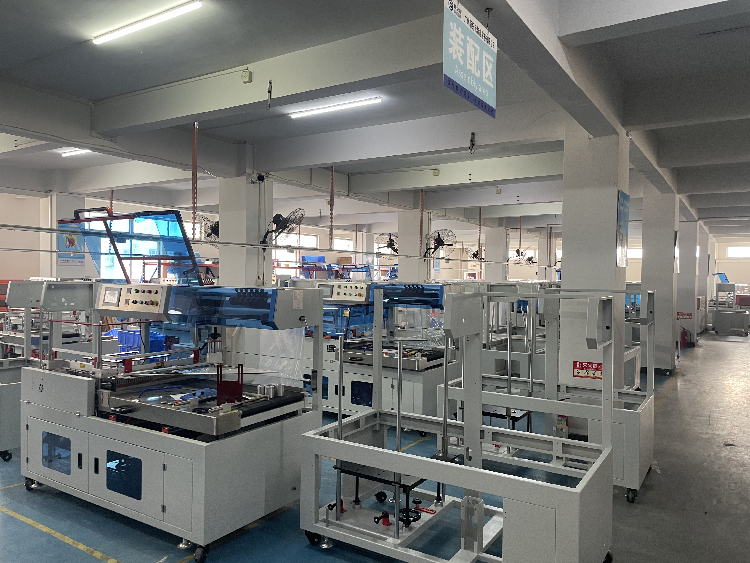

Workshop

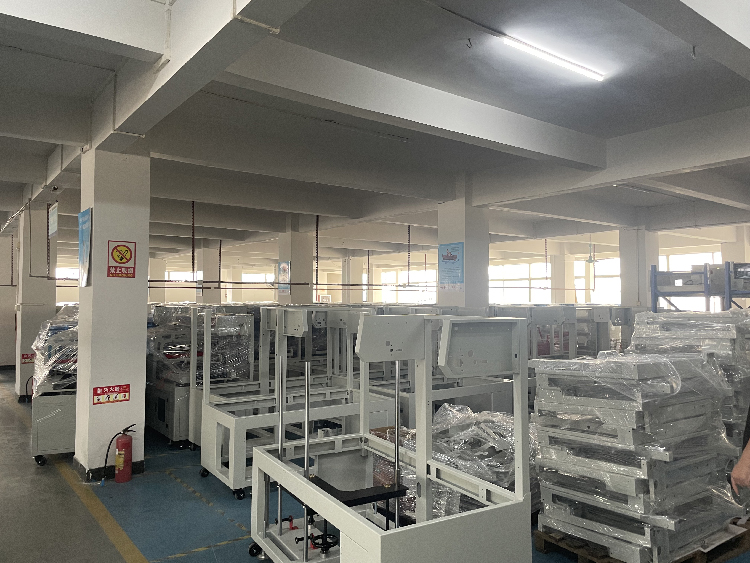

Production Line 1

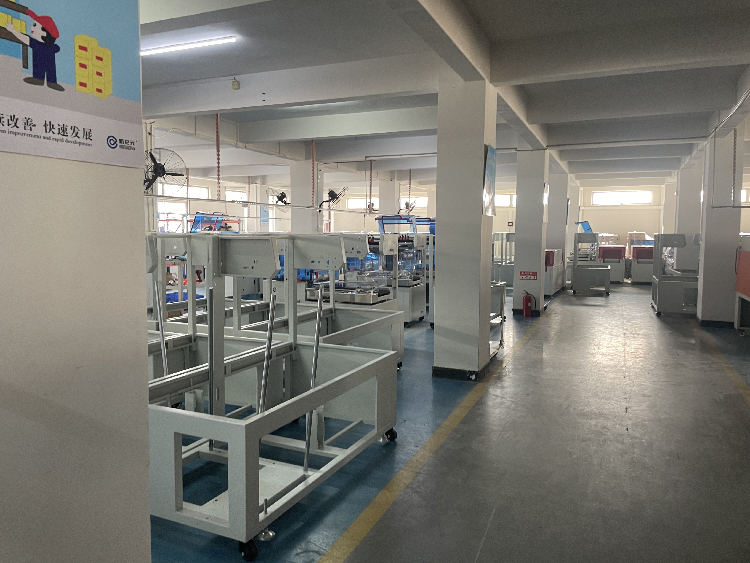

Production Line 2

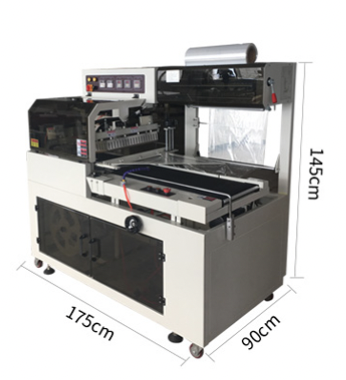

Equipment Detailing 1

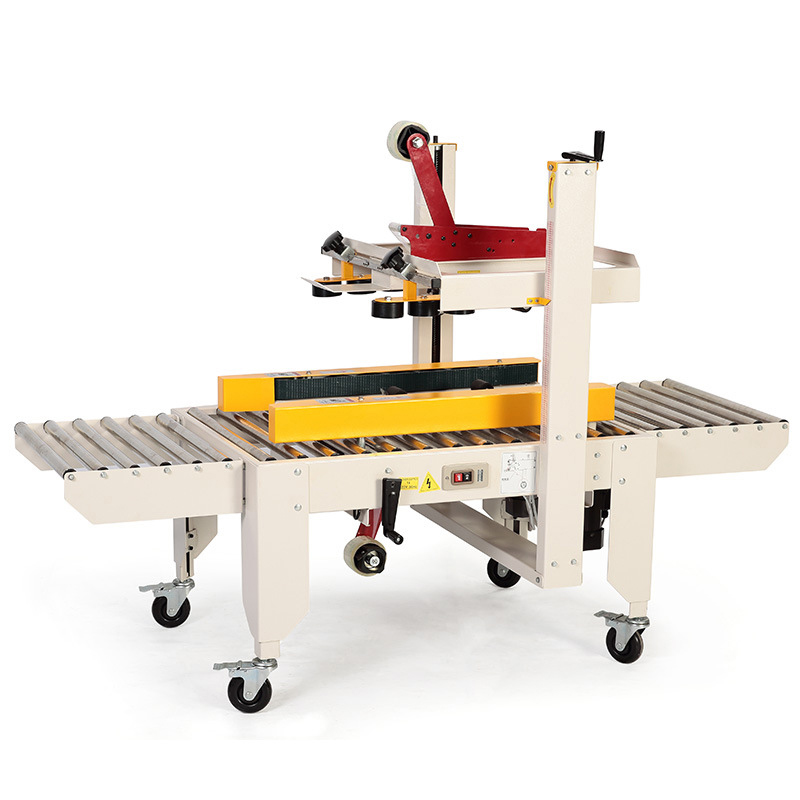

Equipment Detailing 2
Equipment Detailing 3
Finished Machine Stock 1

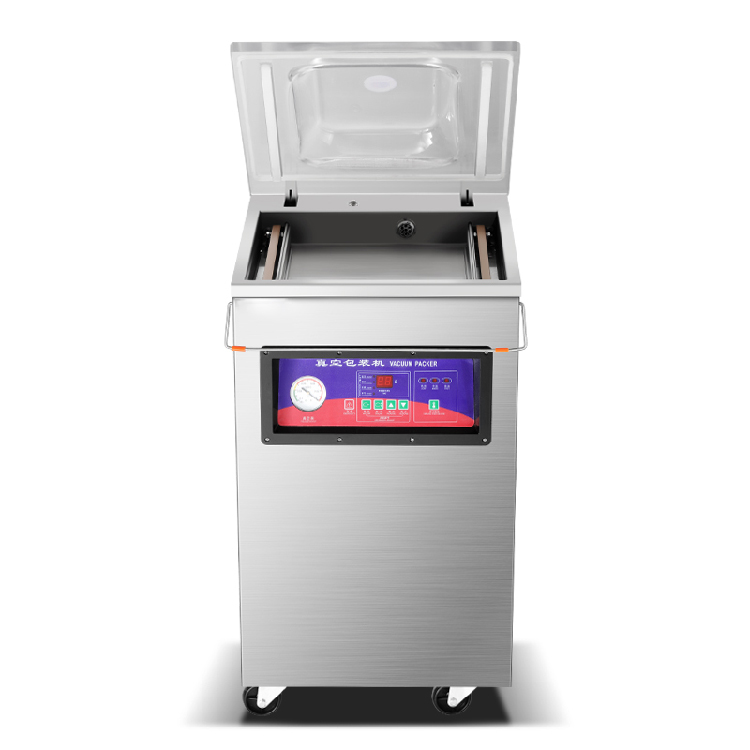

Finished Machine Stock 2

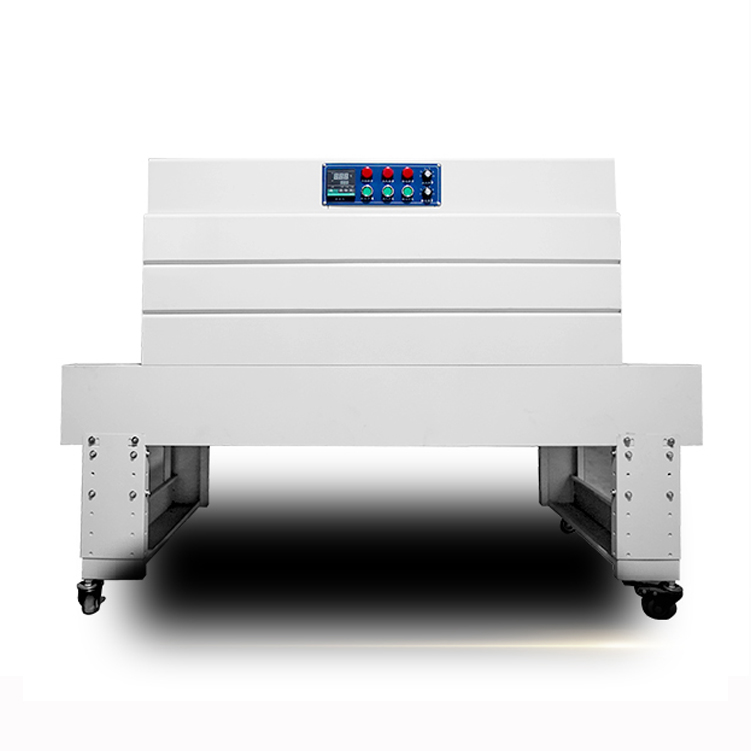

Finished Machine Stock 3
Packing & Delivery
Due to the large volume and weight of our company's products, DDP and CIF trade terms are generally used, and the transportation time is about 50-60 days. For lighter items, express delivery can be used, and they can be delivered within 7-10 days.
Packing and Shipping Methods
Certifications
Compliance Certifications
Frequently Asked Questions (FAQ)
Q1: How to ensure the quality of the machine as you mentioned, especially considering that I cannot inspect the goods on site?
Quality is our culture. Please note that all of our machines have passed CE and SGS certification. Meanwhile, we will sign a quality assurance contract with you, providing a full refund in case of bad quality. Before the machine is sent to you, we will send detailed videos and photos for your inspection until you are satisfied. Also, you are able to ask your Chinese friend or a professional inspection company for on-site inspection.
Q2: How can I trust you for the first-time business?
We are pleased to accept trade assurance services. It will not only guarantee that your money is safe but also ensure the machine is delivered on time and conforms to your quality expectations.
Q3: How about your after-sales service? For example, if the machine arrives and we cannot install it or if it fails, how do you solve it?
Actually, all of our machines come with a manual book, and we will provide detailed videos related to machine installation, commissioning, and troubleshooting of common machine problems.
Q4: How long is the machine guarantee? If the spare parts break, are you able to provide them?
The machine guarantee is 1 year. During the guarantee period, all spare parts except easily broken parts or artificial damage will be replaced for free. When the machine is delivered to you, it comes with free wearing parts and toolboxes to ensure no additional wearing parts need to be purchased within one year.
Q5: Are your engineers available to serve overseas?
Yes, but the travel fees are covered by you. However, as usual, clients prefer to get the detailed videos on how to install and debug, which saves time and cost.
Q6: Will you provide door-to-door service?
Yes. Please provide a detailed shipping address and we will check with our agent to see if it is available in your region.
