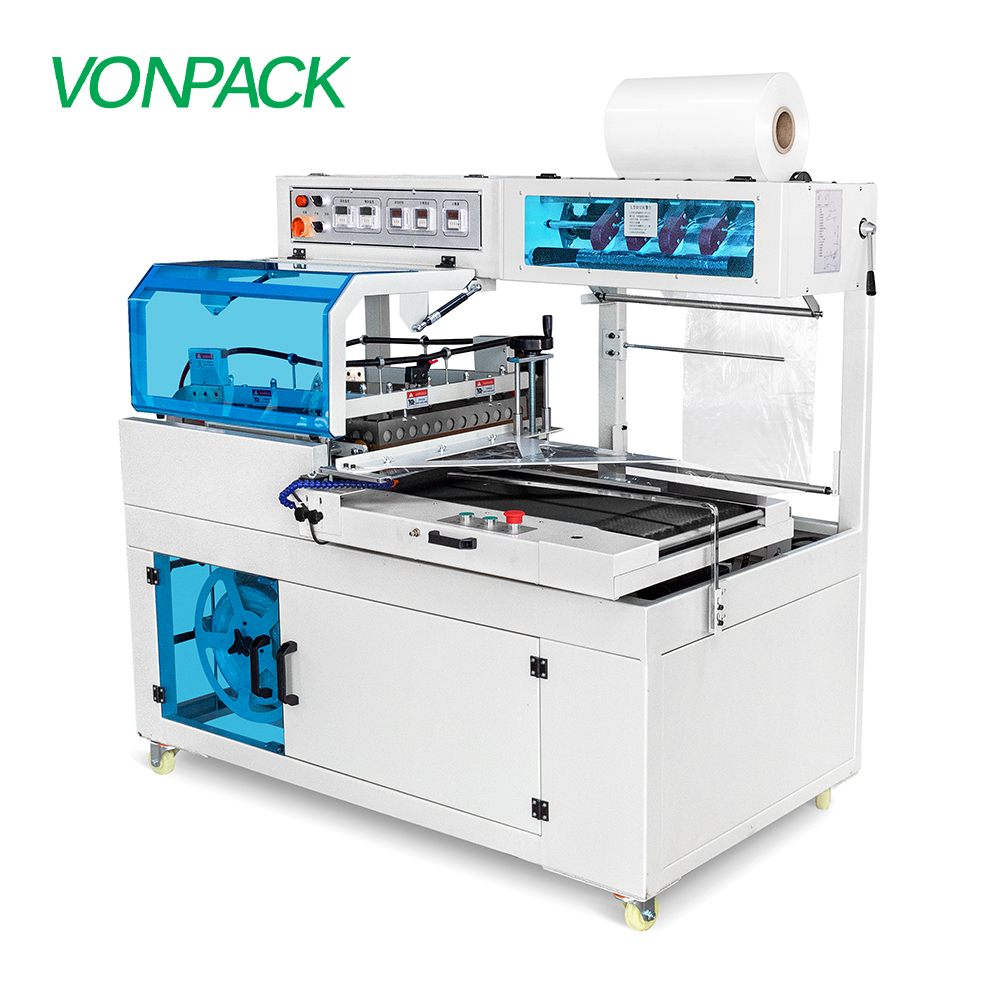

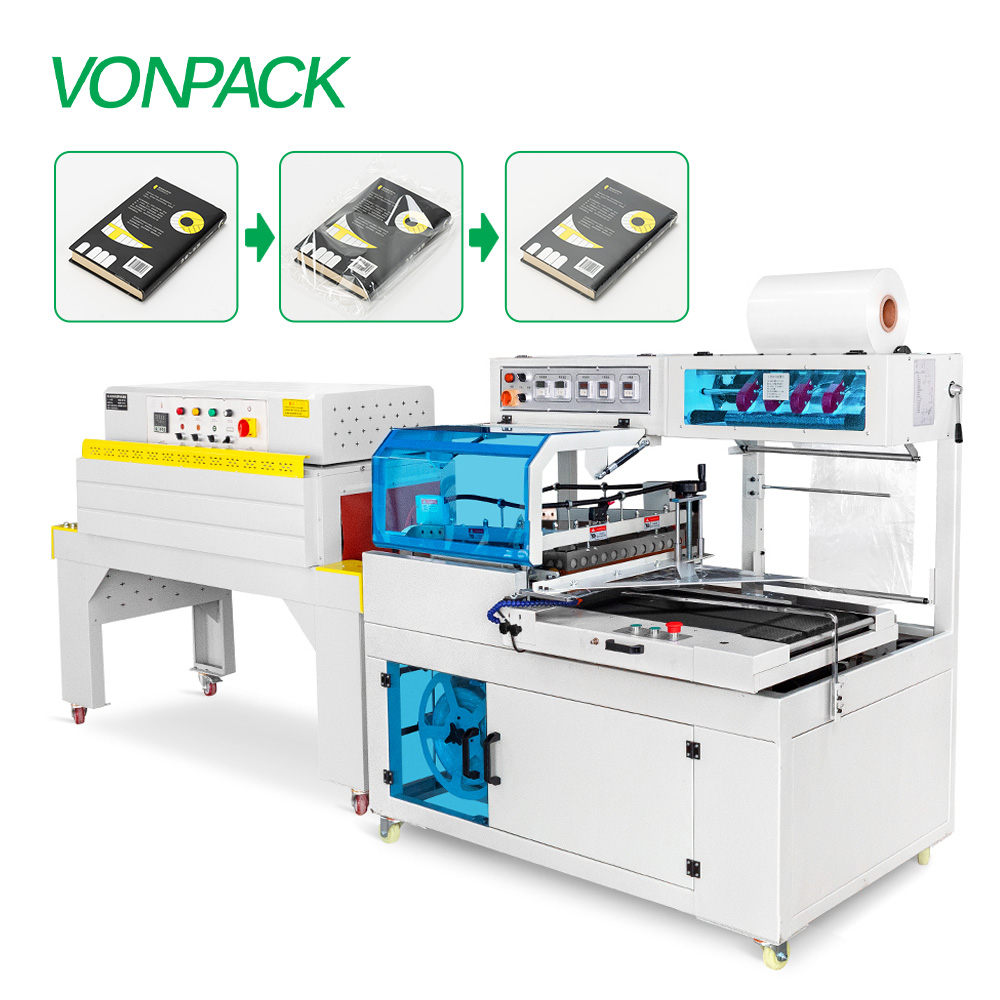

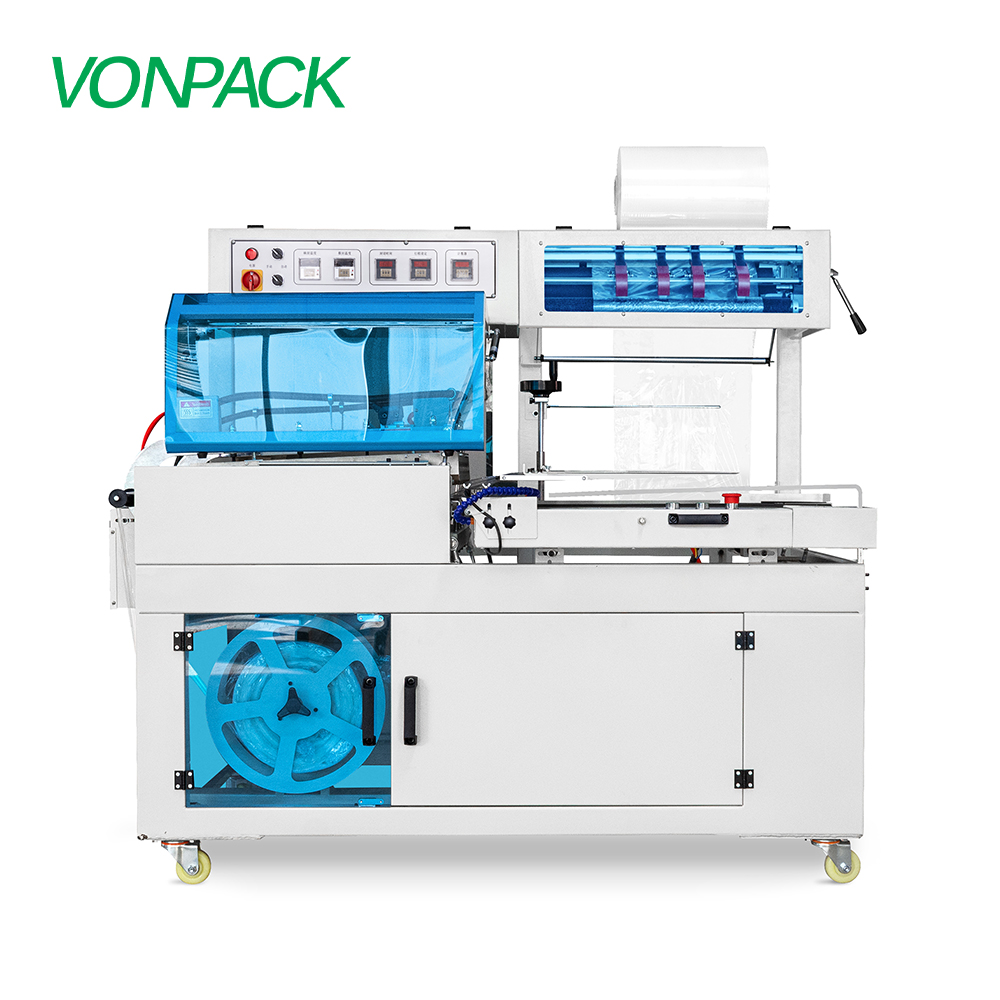

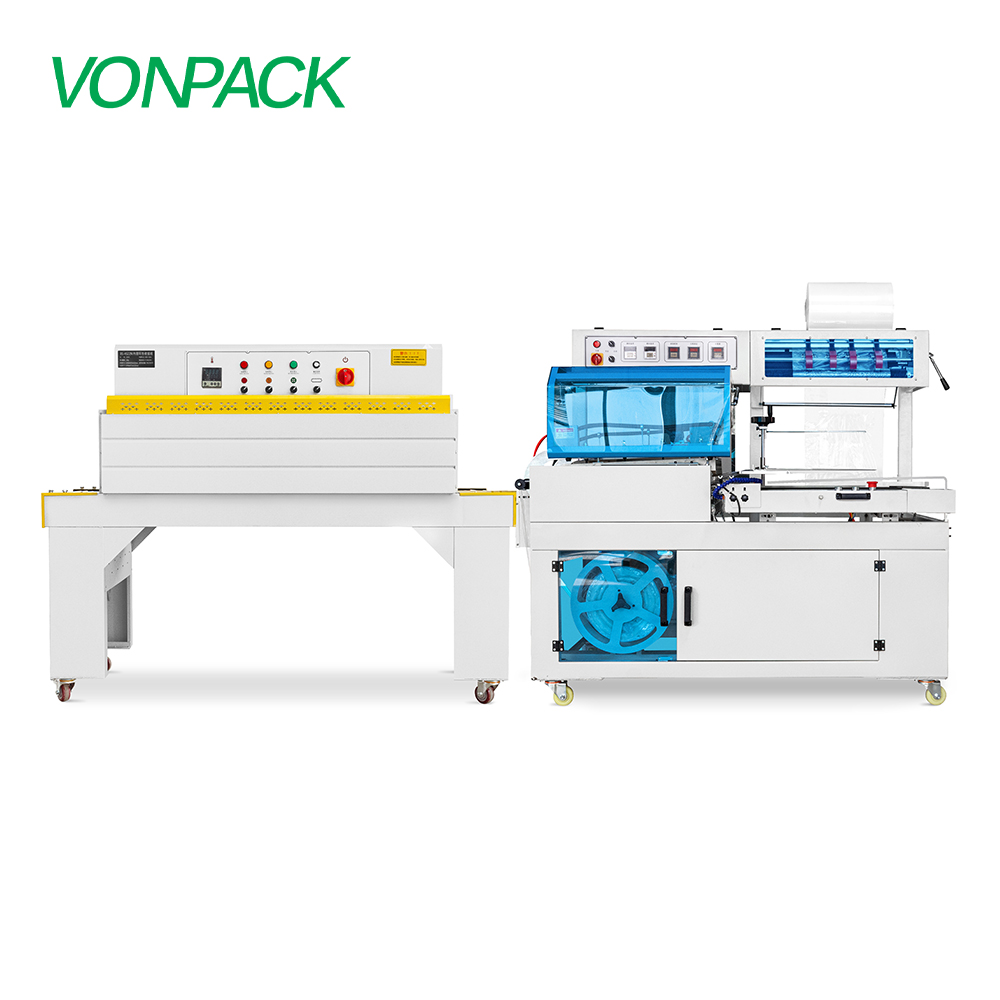

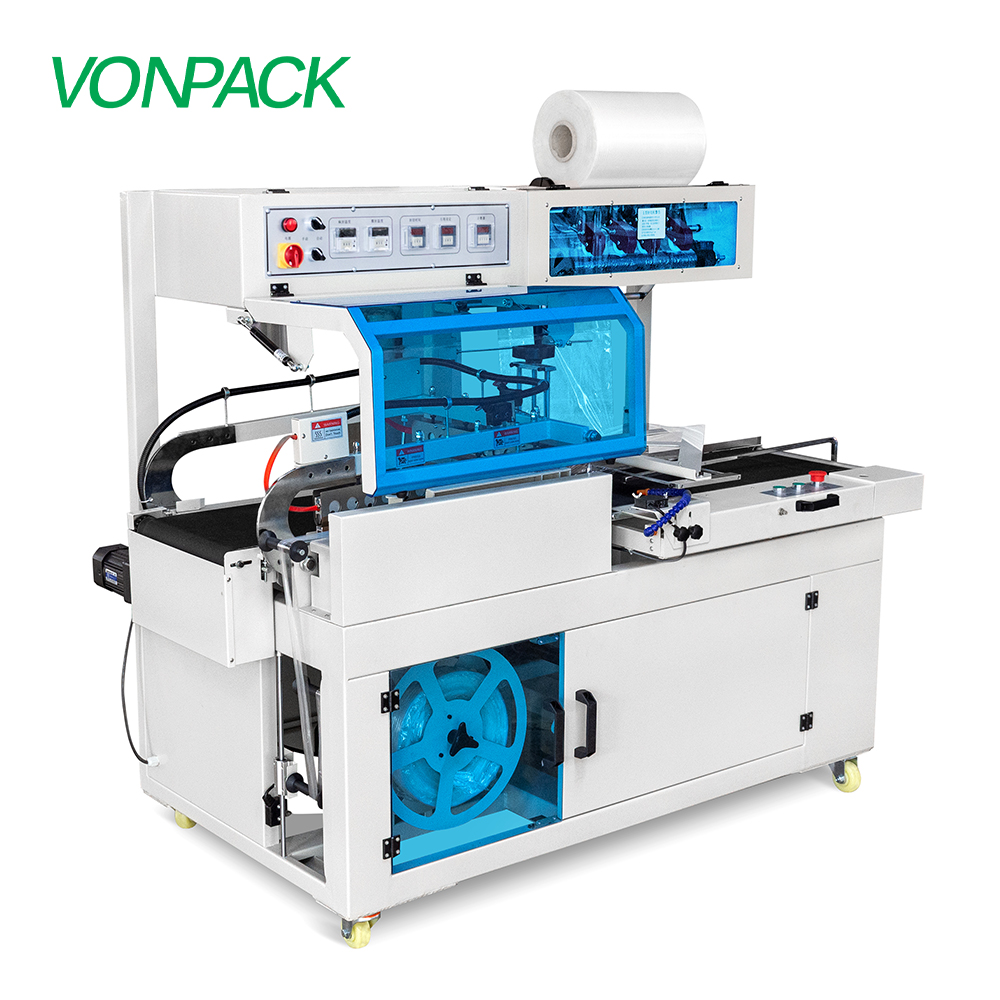

FQL450 Industrial Automatic L Bar Sealer Cheap Price Plastic Bag Heat Sealing Wrapping Machine Vertical Packing Machine For Box
FQL450 Industrial Automatic L Bar Sealer Cheap Price Plastic Bag Heat Sealing Wrapping Machine Vertical Packing Machine For Box
FQL450 Industrial Automatic L Bar Sealer Cheap Price Plastic Bag Heat Sealing Wrapping Machine Vertical Packing Machine For Box
FQL450 Industrial Automatic L Bar Sealer Cheap Price Plastic Bag Heat Sealing Wrapping Machine Vertical Packing Machine For Box
FQL450 Industrial Automatic L Bar Sealer Cheap Price Plastic Bag Heat Sealing Wrapping Machine Vertical Packing Machine For Box
1 / 5
FQL450 Industrial Automatic L Bar Sealer Cheap Price Plastic Bag Heat Sealing Wrapping Machine Vertical Packing Machine For Box
FQL450 Industrial Automatic L Bar Sealer Cheap Price Plastic Bag Heat Sealing Wrapping Machine Vertical Packing Machine For Box
FQL450 Industrial Automatic L Bar Sealer Cheap Price Plastic Bag Heat Sealing Wrapping Machine Vertical Packing Machine For Box
FQL450 Industrial Automatic L Bar Sealer Cheap Price Plastic Bag Heat Sealing Wrapping Machine Vertical Packing Machine For Box
FQL450 Industrial Automatic L Bar Sealer Cheap Price Plastic Bag Heat Sealing Wrapping Machine Vertical Packing Machine For Box

FQL450 Industrial Automatic L Bar Sealer Cheap Price Plastic Bag Heat Sealing Wrapping Machine Vertical Packing Machine For Box

Send Inquiry

Product Description

Product Description

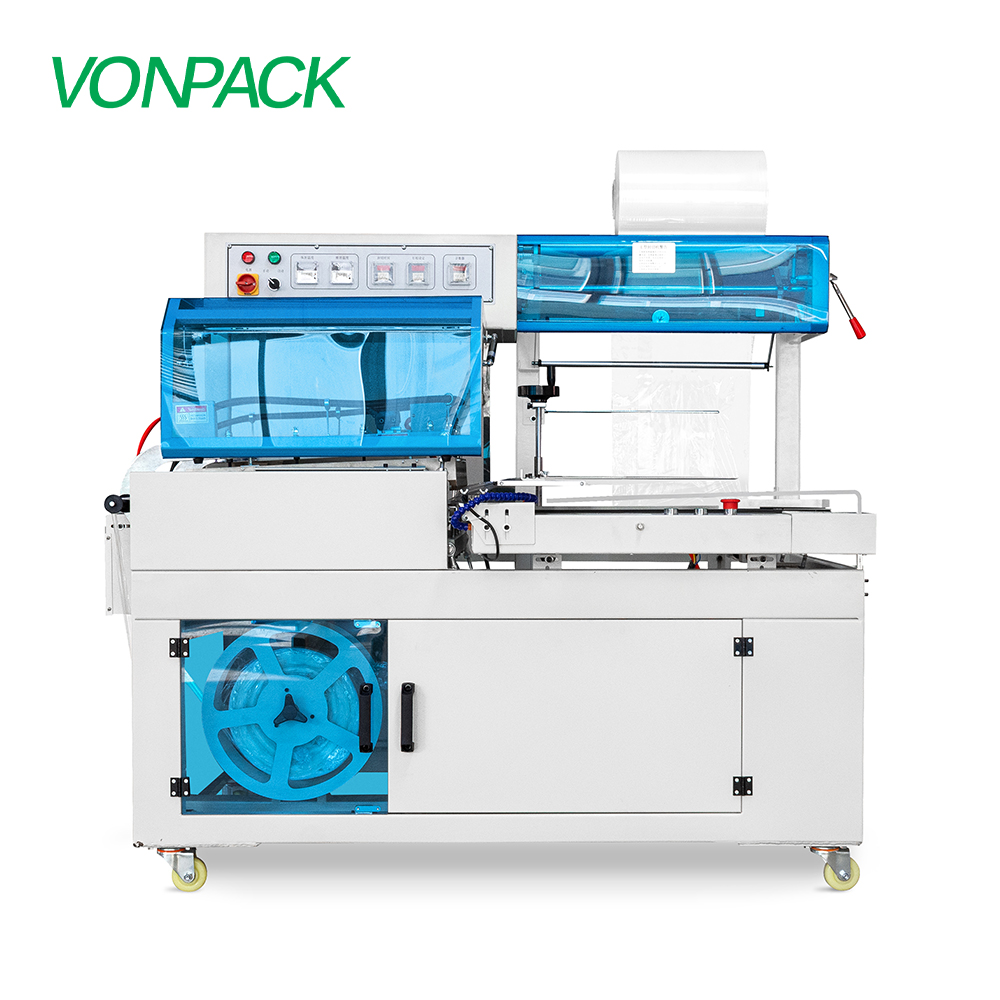

Plastic Wrapping Machine - Front View

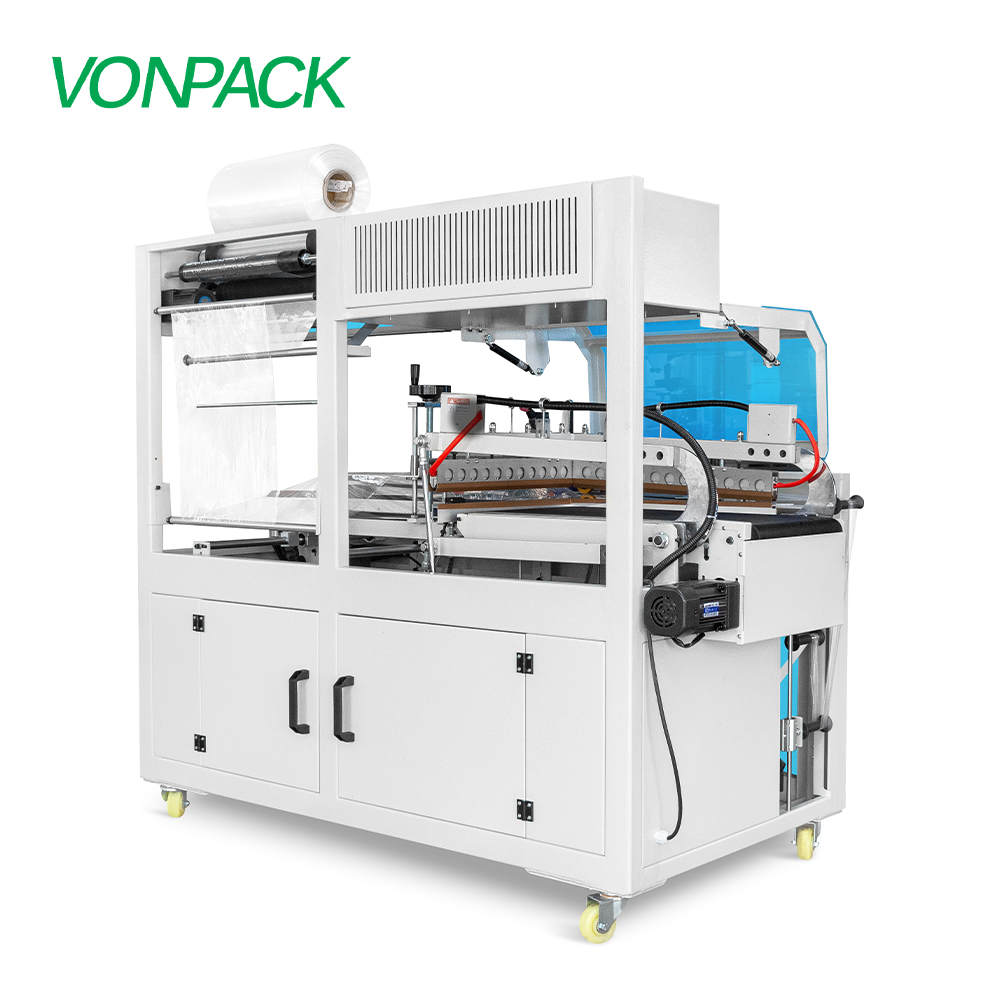

Plastic Wrapping Machine - Side View

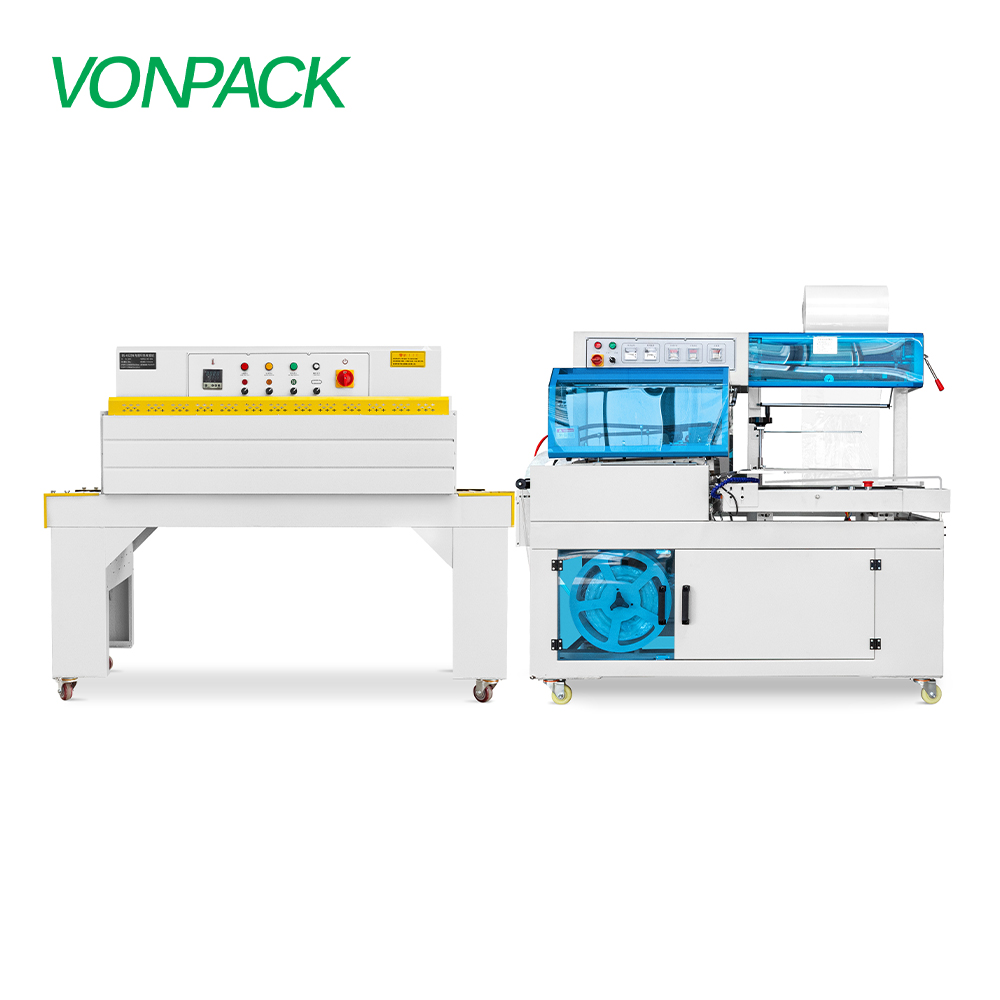

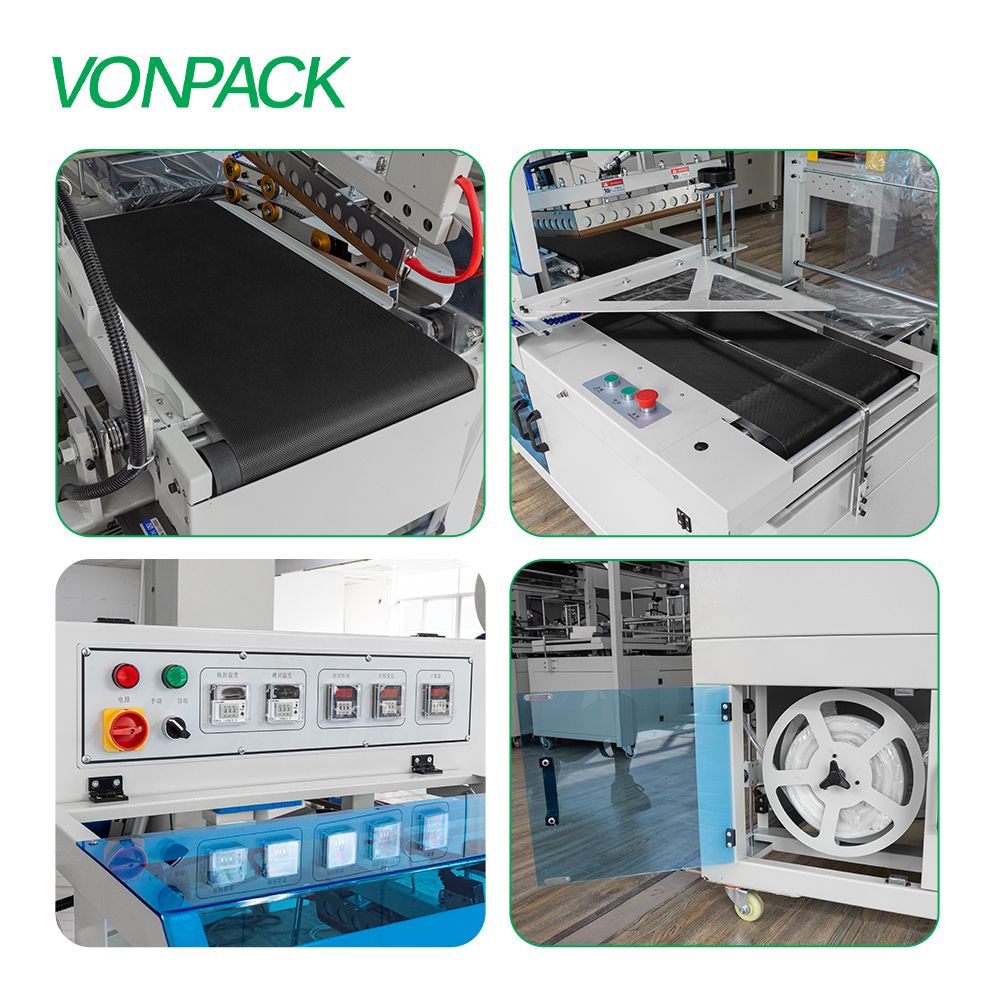

Plastic Wrapping Machine - Detail View

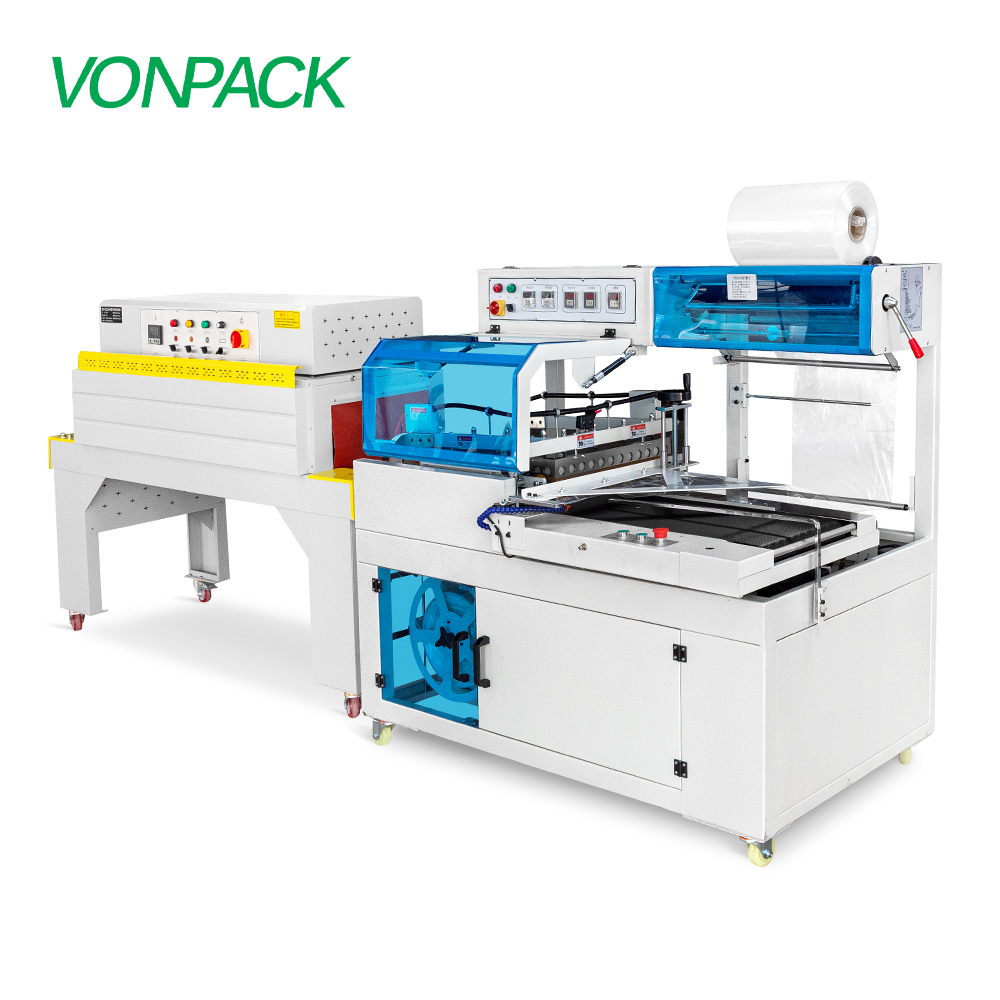

Plastic Wrapping Machine - Control Panel

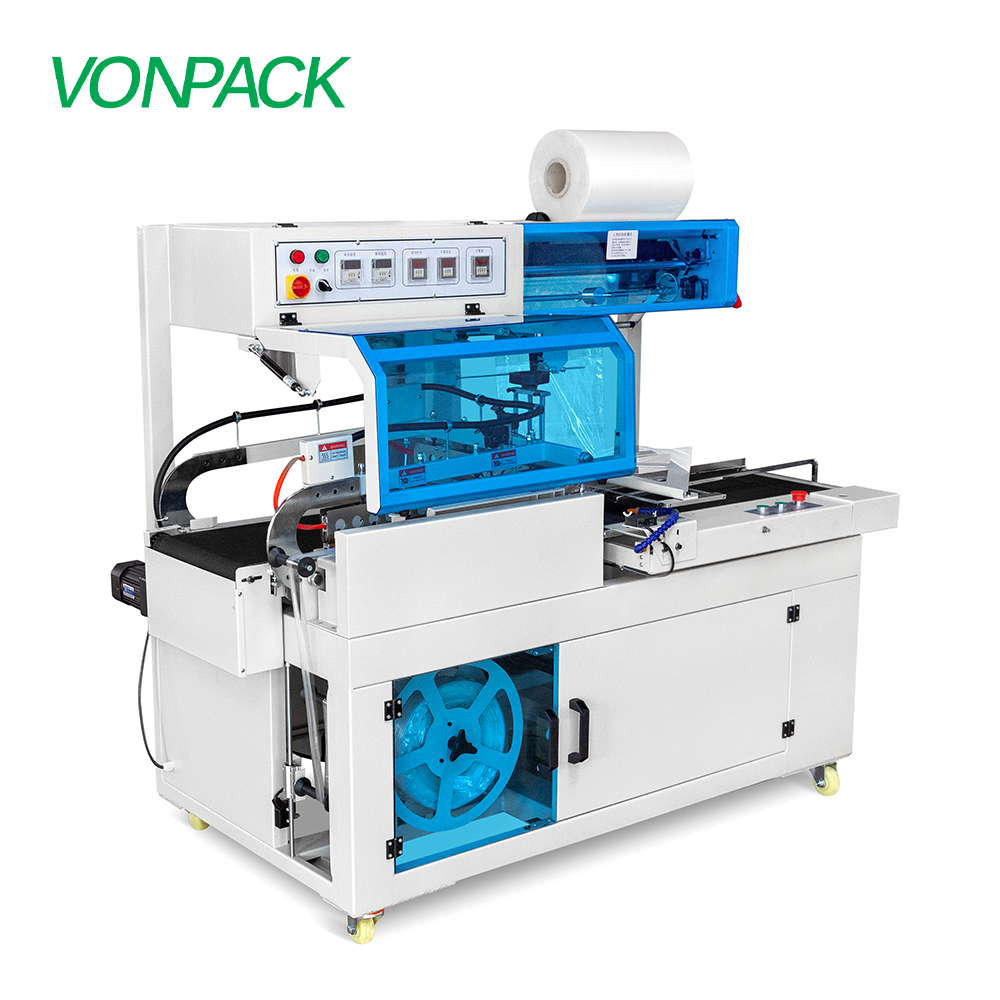

Plastic Wrapping Machine - Conveyor system

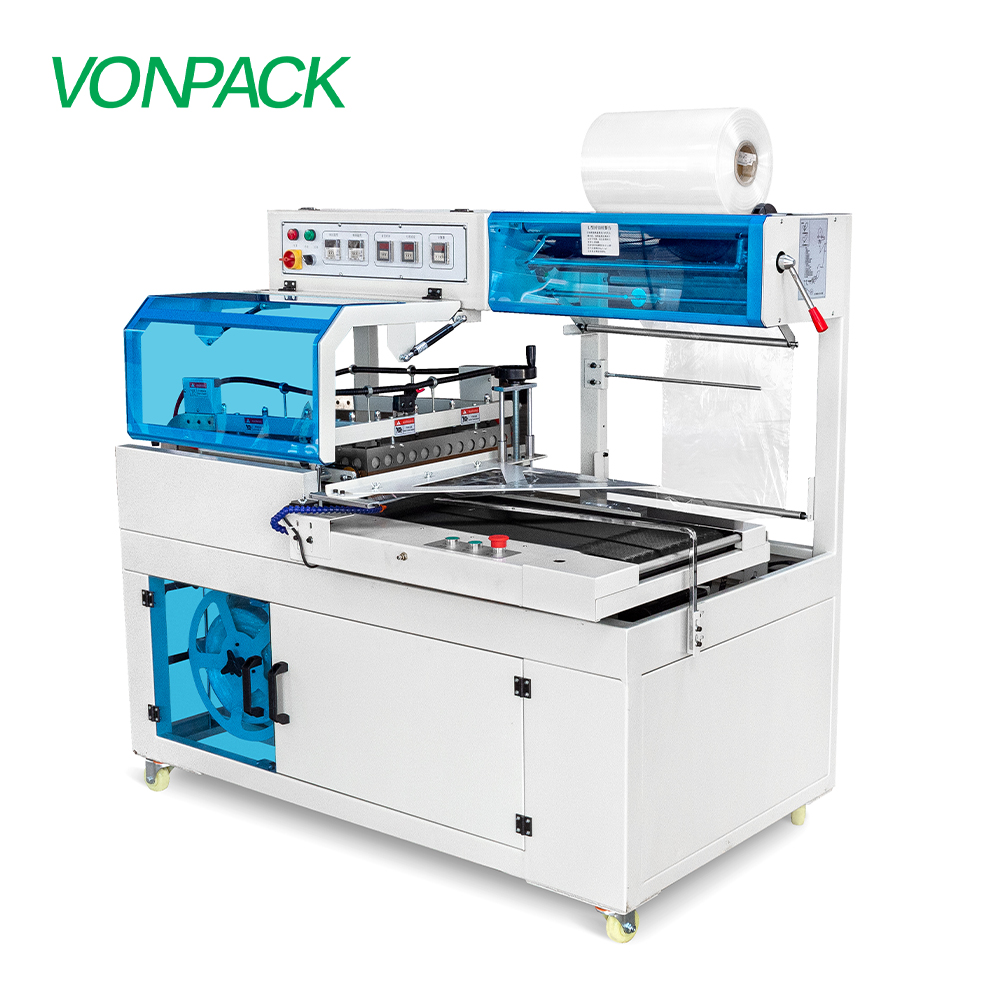

Plastic Wrapping Machine - Sealing parts
Plastic Wrapping Machine - Internal structure
Plastic Wrapping Machine - Packaging process
Specification
Model No FQL450
Product Name Plastic Wrapping Machine
Voltage 220V 50/60Hz
Power 1.6KW
Conveyor belt width 330mm
Maximum packaging size L≤450 W≤330 H≤140mm L+H≤500 W+H≤350
Maximum membrane width ≤W450×H320(mm)
Packing Speed 20/min
Working air pressure 0.5Mpa
Maximum payload 15-20kgs
Knife size 570 x 470mm
Machine size L1737 x W922 x H1442mm
Package Size L2100 x W1200 x H1800mm
Weight 350kgs
Manufacturing & Facility Showcase

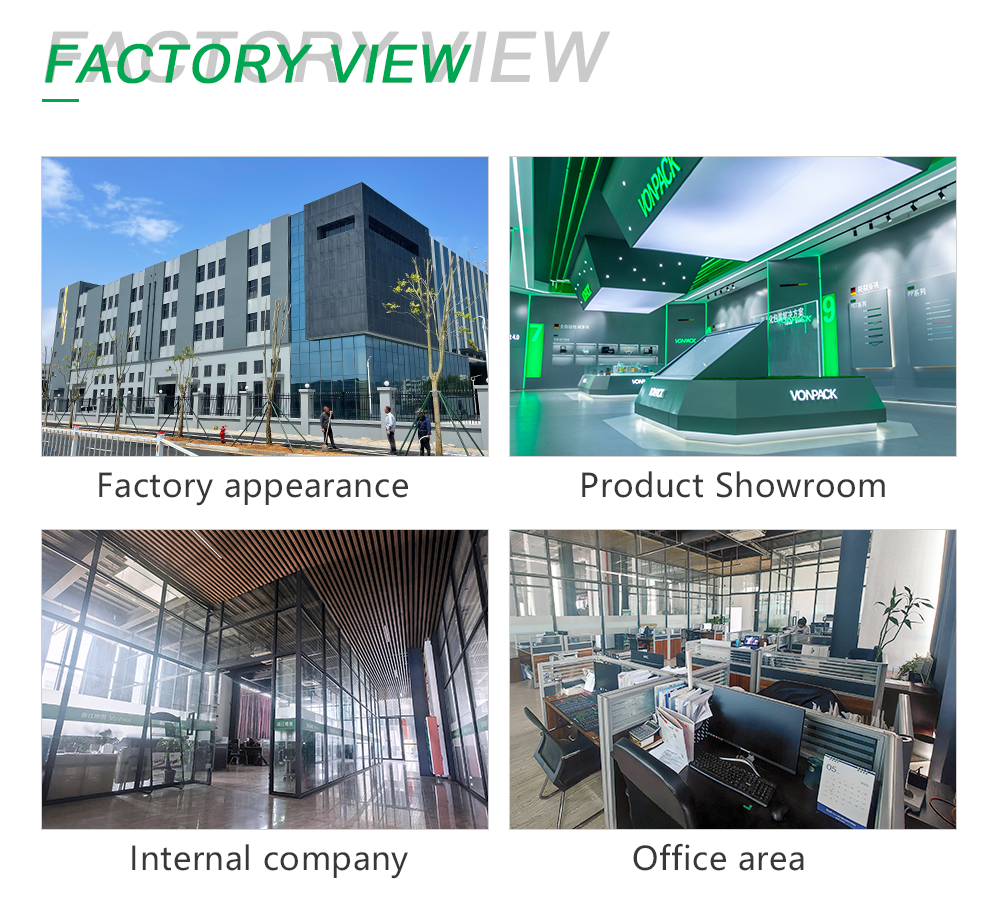

Production Workshop

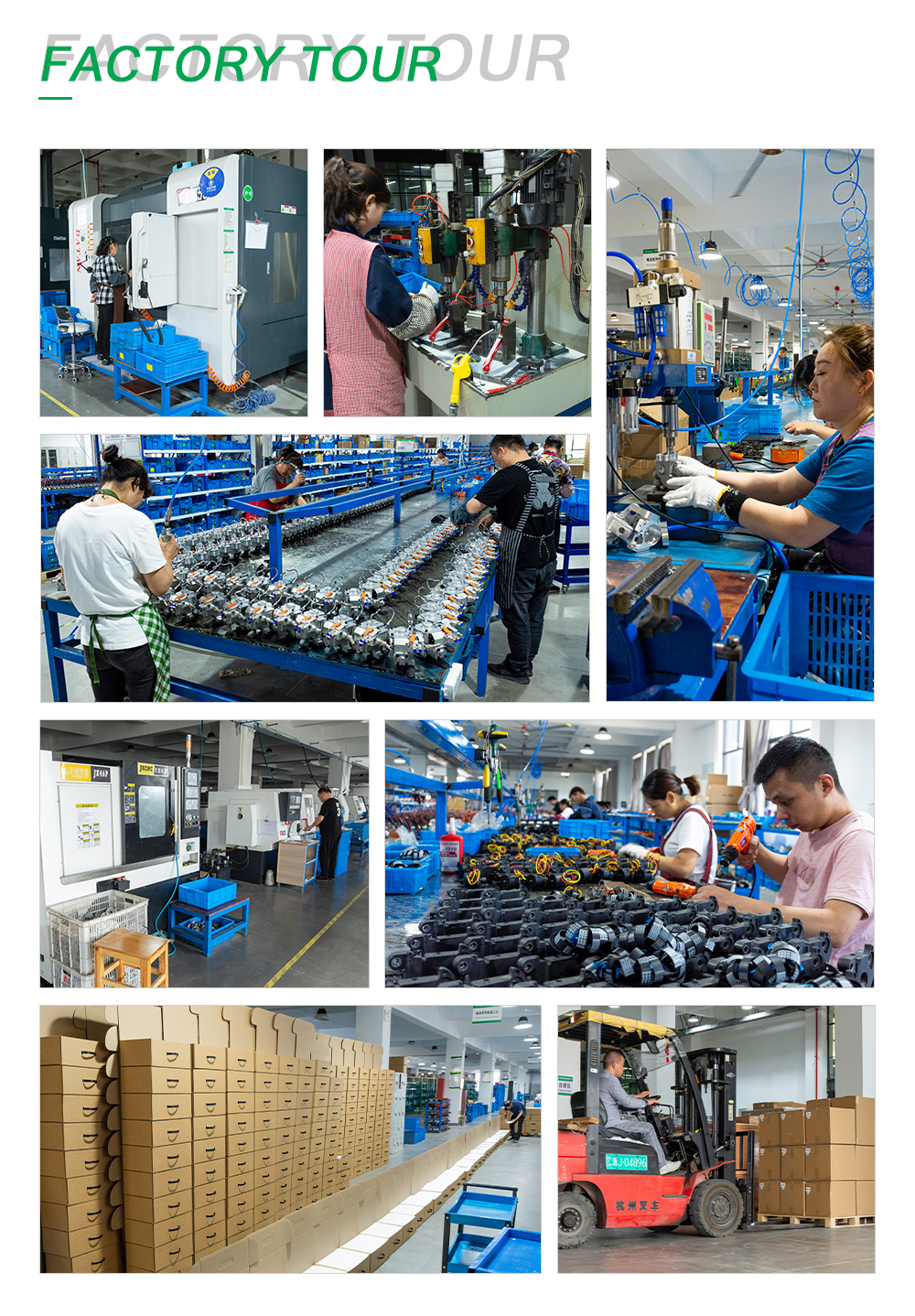

Manufacturing Line
Quality Inspection
Assembly Process
Warehouse and Shipping
Frequently Asked Questions
What is the maximum packaging size supported by the FQL450?
The FQL450 supports a maximum packaging size where the Length is ≤ 450mm, Width ≤ 330mm, and Height ≤ 140mm. Additionally, the dimensional limits L+H must be ≤ 500mm and W+H must be ≤ 350mm.
What are the electrical power requirements for this machine?
The machine operates on a voltage of 220V with a frequency of 50/60Hz. It has a total power rating of 1.6KW, making it highly energy-efficient for industrial applications.
What is the packing speed of the FQL450 wrapping machine?
The FQL450 is designed to run efficiently with a speed of up to 20 packaging cycles per minute, optimizing your manufacturing throughput.
Does this machine require compressed air to function?
Yes, this system integrates pneumatic operations and requires a consistent working air pressure of 0.5Mpa to perform optimal sealing and cutting tasks.
What is the maximum payload capacity of the conveyor system?
The integrated conveyor system is built to handle heavy-duty packaging with a maximum payload capacity ranging from 15 to 20 kgs.
What are the physical dimensions and weight of the FQL450 machine?
The physical dimensions of the machine are L1737 x W922 x H1442mm, and it has a robust net weight of approximately 350kgs, ensuring excellent stability during high-speed operations.
