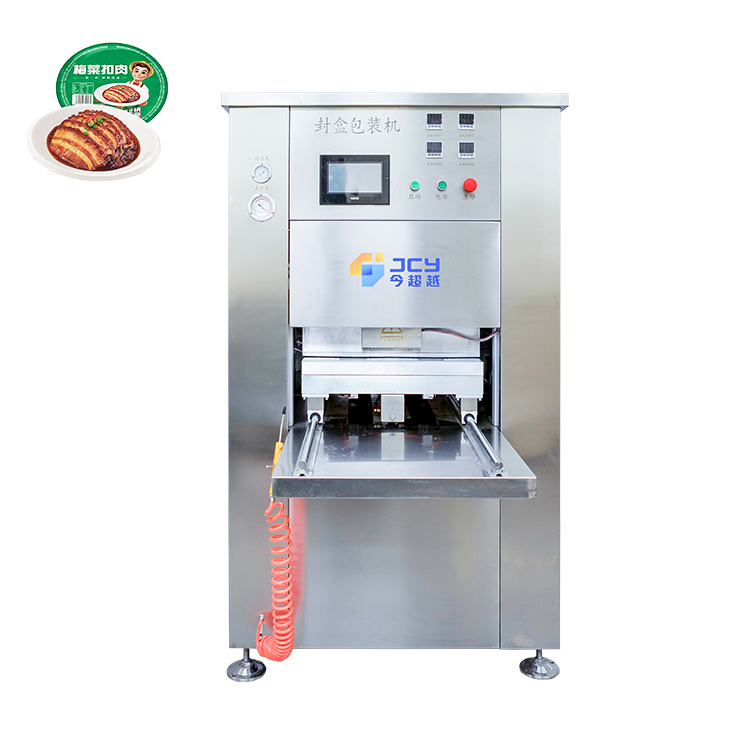

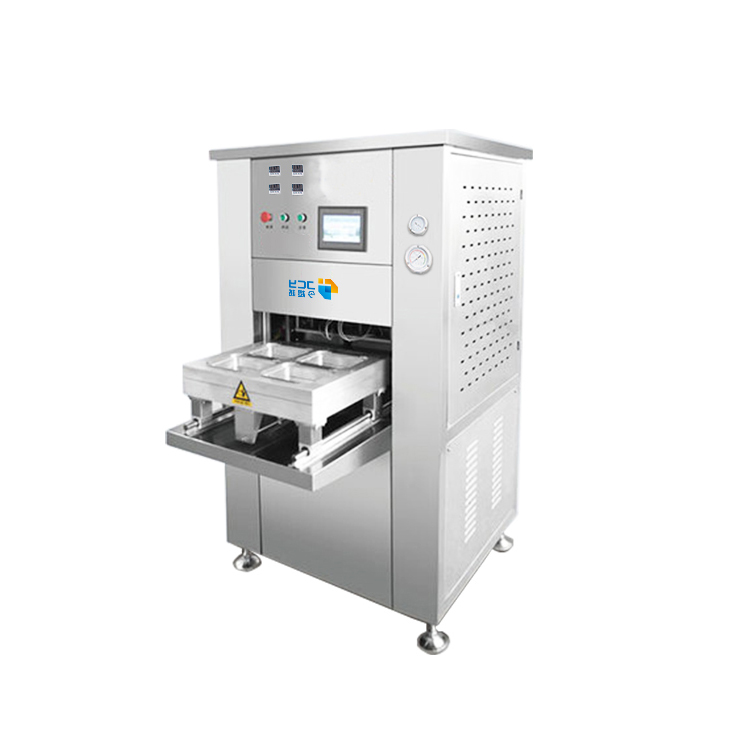

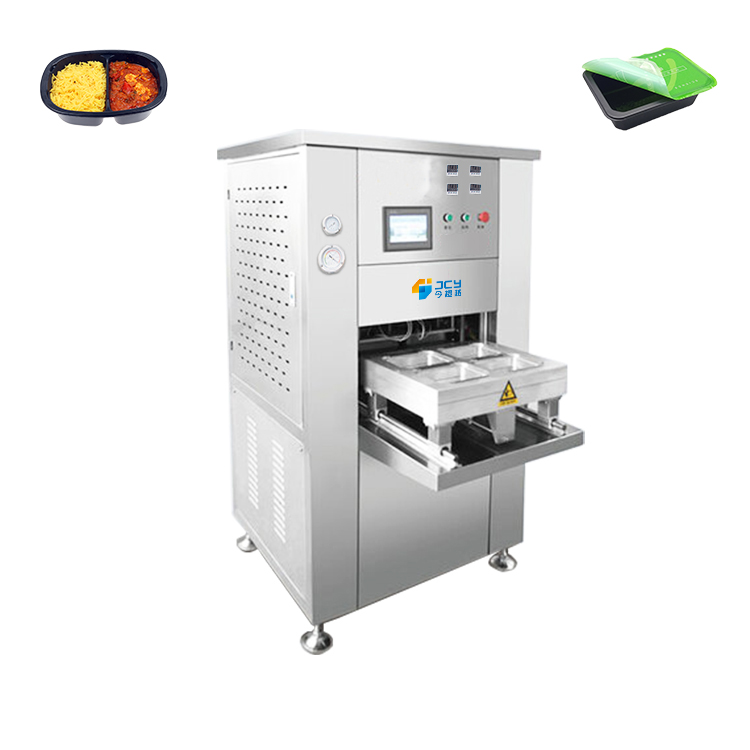

Mixed Gas N2 O2 CO2 Modified Atmosphere Food Keep Fresh Box Sealing Packaging Machine
Mixed Gas N2 O2 CO2 Modified Atmosphere Food Keep Fresh Box Sealing Packaging Machine
Mixed Gas N2 O2 CO2 Modified Atmosphere Food Keep Fresh Box Sealing Packaging Machine
Mixed Gas N2 O2 CO2 Modified Atmosphere Food Keep Fresh Box Sealing Packaging Machine
Mixed Gas N2 O2 CO2 Modified Atmosphere Food Keep Fresh Box Sealing Packaging Machine
1 / 5
Mixed Gas N2 O2 CO2 Modified Atmosphere Food Keep Fresh Box Sealing Packaging Machine
Mixed Gas N2 O2 CO2 Modified Atmosphere Food Keep Fresh Box Sealing Packaging Machine
Mixed Gas N2 O2 CO2 Modified Atmosphere Food Keep Fresh Box Sealing Packaging Machine
Mixed Gas N2 O2 CO2 Modified Atmosphere Food Keep Fresh Box Sealing Packaging Machine
Mixed Gas N2 O2 CO2 Modified Atmosphere Food Keep Fresh Box Sealing Packaging Machine

Mixed Gas N2 O2 CO2 Modified Atmosphere Food Keep Fresh Box Sealing Packaging Machine

Send Inquiry

Product Description

Products Description
Products Description Image 1 Products Description Image 2 Products Description Image 3
The multifunctional modified atmosphere packaging machine is a box sealing and packaging machine, suitable for box packaging of various foods, automatically filling N2, O2, CO2, sealing packaging, cutting, packaging finished products and other steps.
Parameters such as heat sealing temperature and time can be precisely controlled to ensure the desired sealing effect of the finished product. The mold shape can be customized according to the packaging box style selected by the customer.

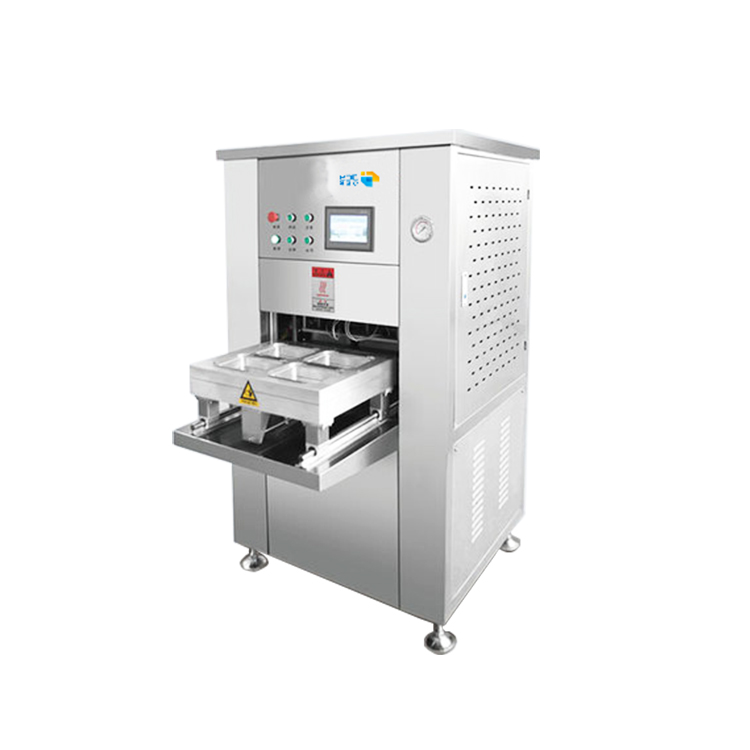

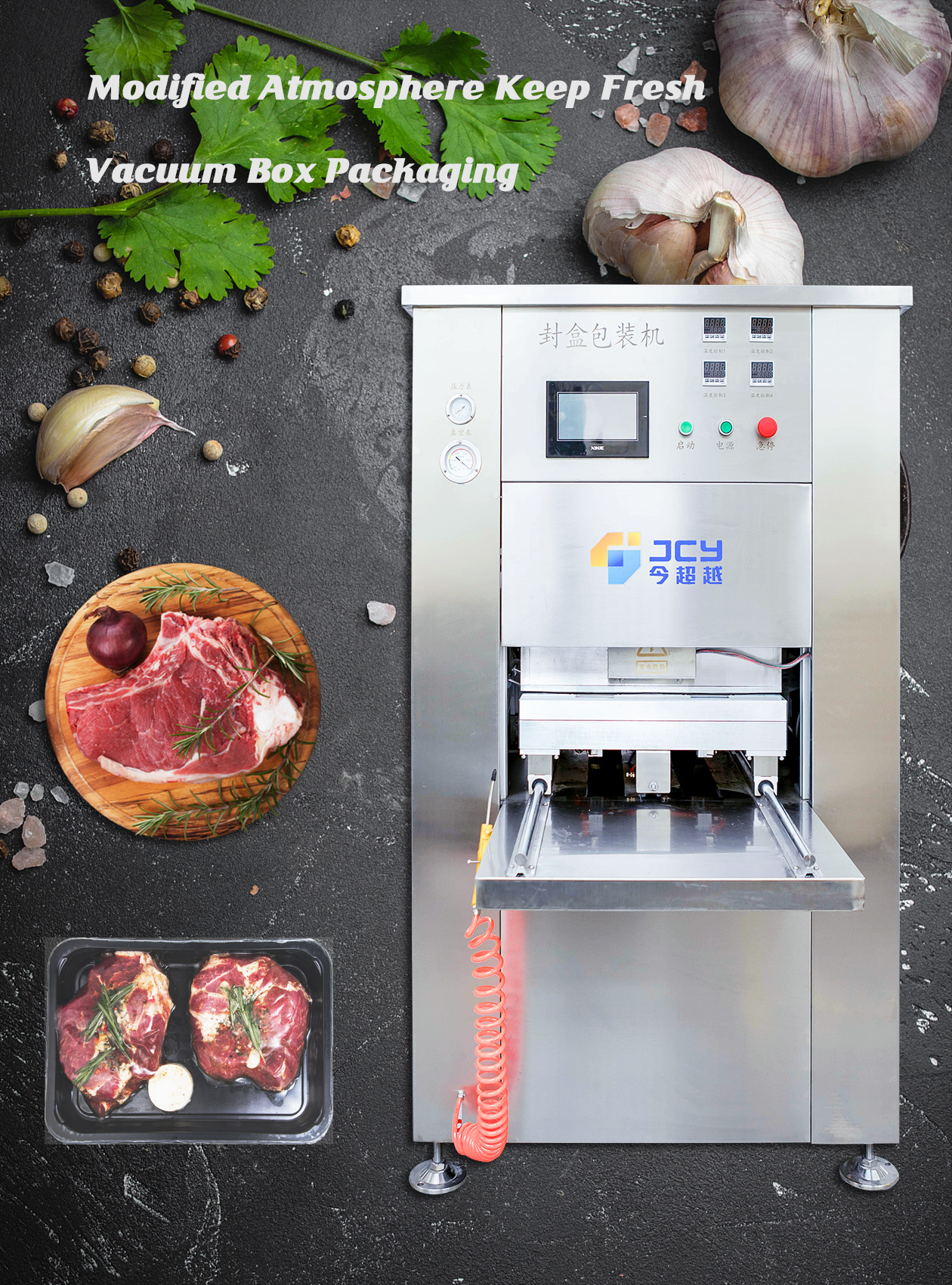

Products Description Image 4 Products Description Image 5

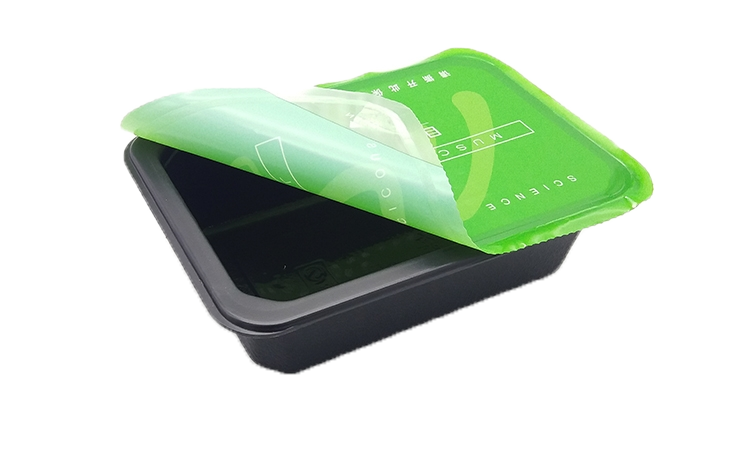

Products Description Image 6 Products Description Image 7

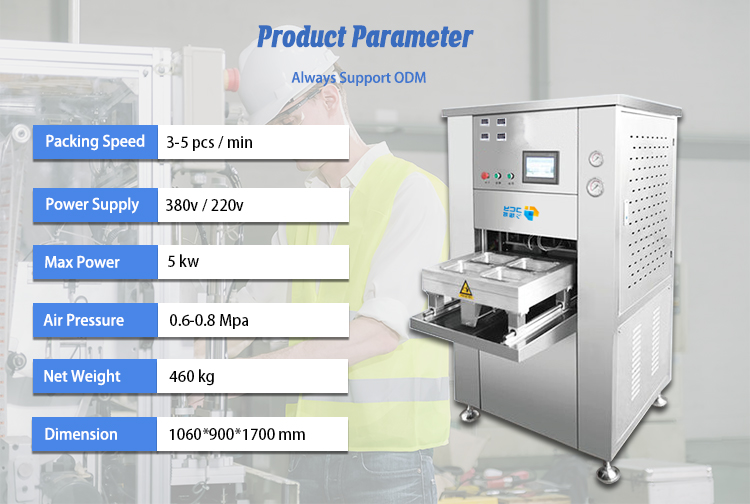

Product Parameters
Model JCY-QT-4
Vacuum Pump Pumping Rate: 20 M³/H / 40 M³/H / 63 M³/H
Power Supply 380 V / 50-60 HZ
Max Power 5 KW
Working Air Pressure 0.6-0.8 Mpa
Air Compressor Exhaust pressure 0.8Mpa, flow rate > 0.25 M³/Min
Air Conditioning Package Speed 3-5 Pcs/Min
Whole Machine Weight 460 KG
Overall Dimensions (L*W*H) 1060 * 900 * 1700 MM
Gas Mixing Number one or three or other gases
Product Parameters Overview
Function & Features
  • 1. The mold shape can be customized according to the packaging box style selected by the customer.
  • 2. Parameters such as sealing pressure, temperature and time can be accurately controlled to ensure ideal sealing results for products of different packaging materials.
  • 3. This machine is suitable for box-type packaging of various foods. It can continuously and automatically complete vacuuming, filling with mixed fresh-keeping gas, sealing and packaging, cutting, and discharging the packaged products.
  • 4. The entire machine is made of SUS304 food-grade stainless steel material and acid-proof aluminum alloy. The surface of the equipment is easy to clean; it complies with food hygiene equipment selection standards.
Details Images

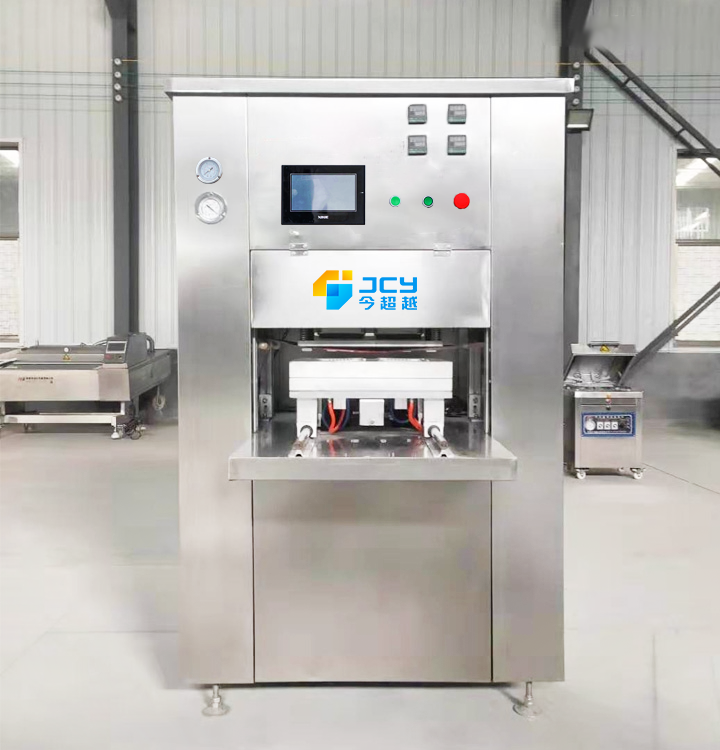

Detail Image 1
The box-type modified atmosphere packaging machine equipment uses a fully enclosed vacuum replacement method to inflate and fresh-keeping packaging of food. That is, when the vacuum chamber is fully enclosed, a vacuum pump is used to evacuate the vacuum chamber to form a high vacuum in the vacuum chamber, and then it is filled with Gas suitable for extended food preservation. It is helpful to control the proportion of various fresh-keeping gases.
This machine is suitable for modified atmosphere preservation packaging of cold fresh meat, cooked meat products, fast food, pastries, rice noodles, cheese, soy products, aquatic products, poultry, etc.

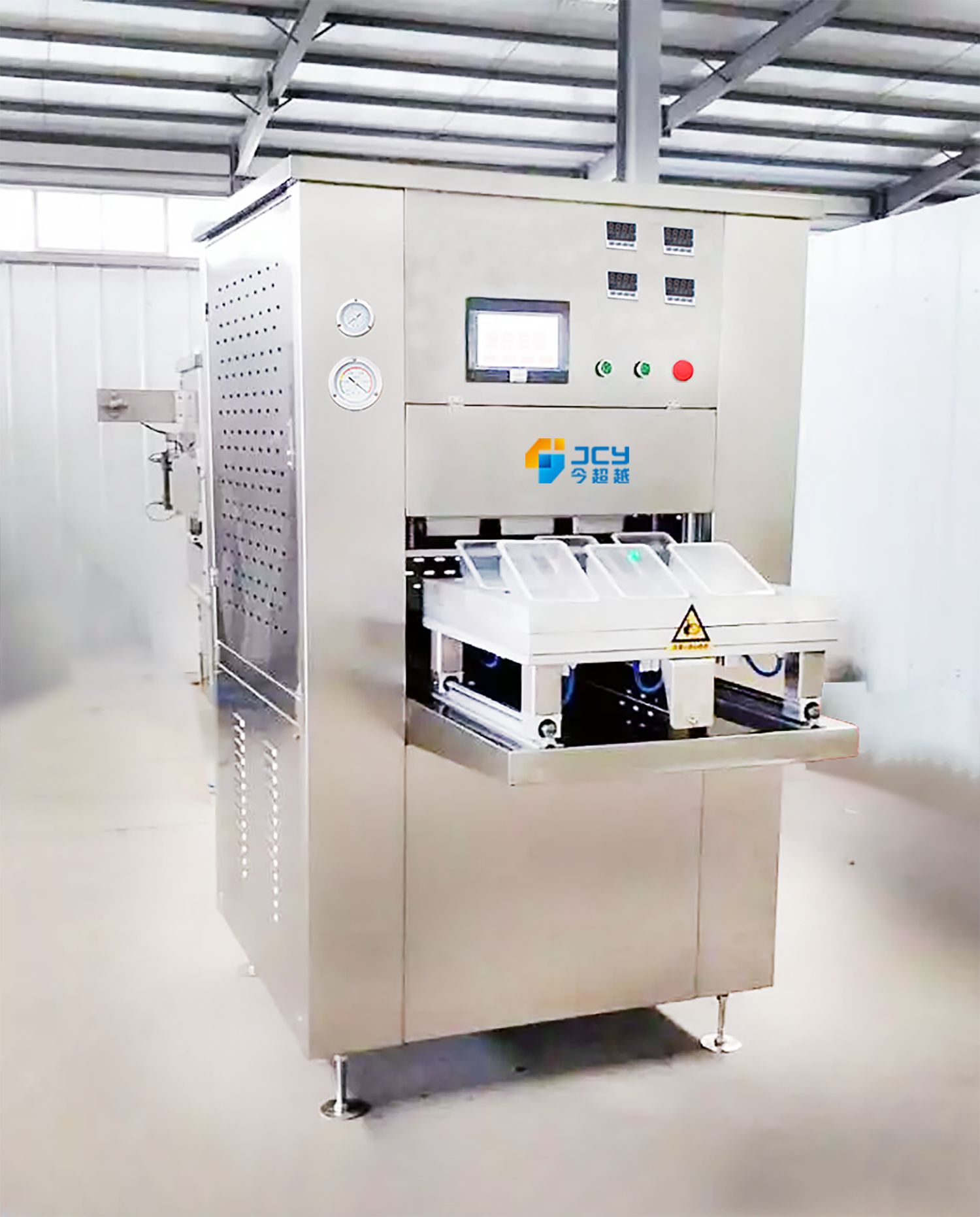

Detail Image 2

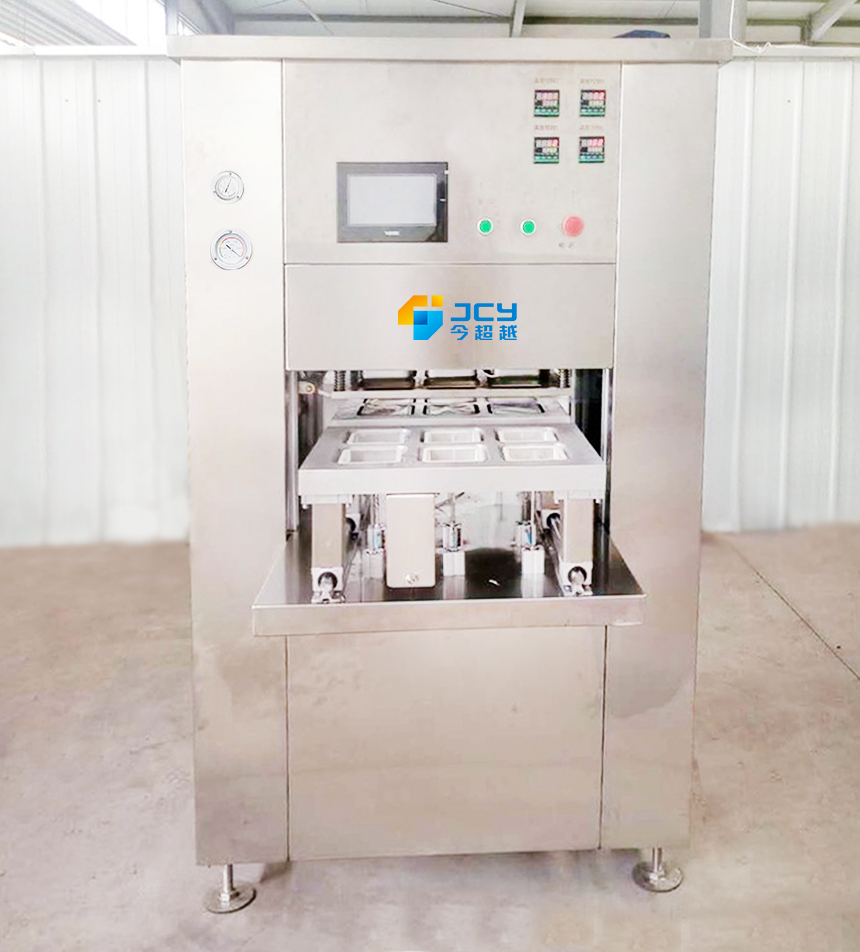

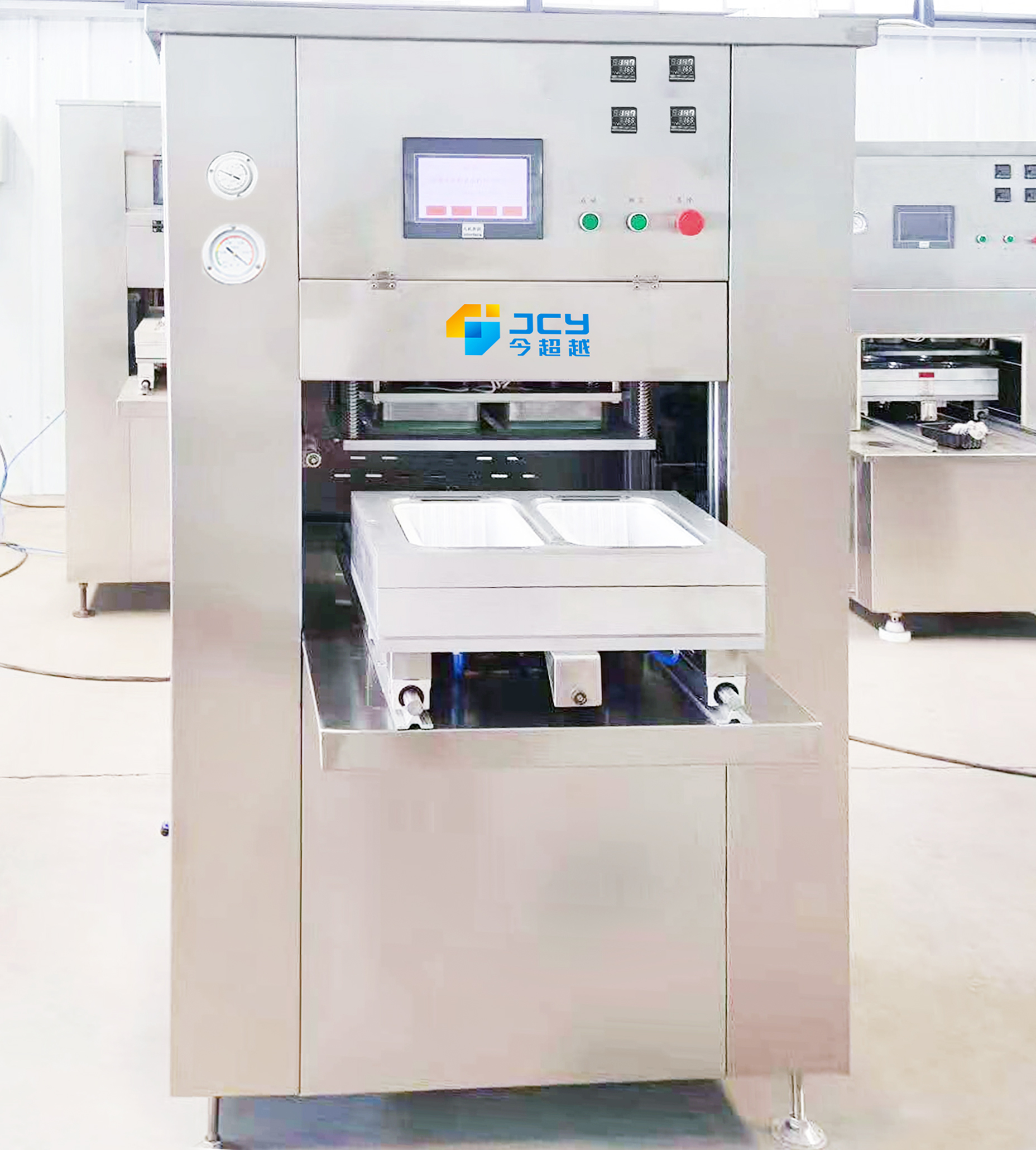

Detail Image 3 Detail Image 4
Production Process
Production Process Flow
Production Equipment Array
Company Profile
Company Facility Image 1 Company Facility Image 2
Certifications
Factory Certificates
Partners
Partner Logo Grid 1 Partner Logo Grid 2 Partner Logo Grid 3
Frequently Asked Questions
What is a Modified Atmosphere Packaging (MAP) machine?
A MAP machine replaces the natural atmospheric air inside a tray or package with a customized protective gas mixture (such as Nitrogen, Carbon Dioxide, and Oxygen). This gas mixture significantly slows down food spoilage and maintains the product's quality and freshness.
Can the sealing mold be customized for different tray shapes?
Yes, the sealing and cutting mold can be fully customized according to your specific packaging boxes or tray dimensions and shapes to ensure a perfect sealing edge and high aesthetic appeal.
What parameters can be adjusted on the machine?
The machine allows precise control over parameters such as heat sealing temperature, sealing time, vacuum replacement depth, and gas injection ratios to suit different types of food and packaging materials.
What structural materials are used in the construction?
The entire frame and body of the machine are built using SUS304 food-grade stainless steel and acid-proof aluminum alloy. This ensures corrosion resistance, high durability, and compatibility with strict food hygiene standards.
How does the vacuum replacement packaging cycle operate?
Once the tray enters the vacuum chamber, the chamber closes completely. The vacuum pump evacuates the air to create a high vacuum. Subsequently, the chamber is flushed with the fresh-keeping gas mixture, and the film is immediately heat-sealed and trimmed.
