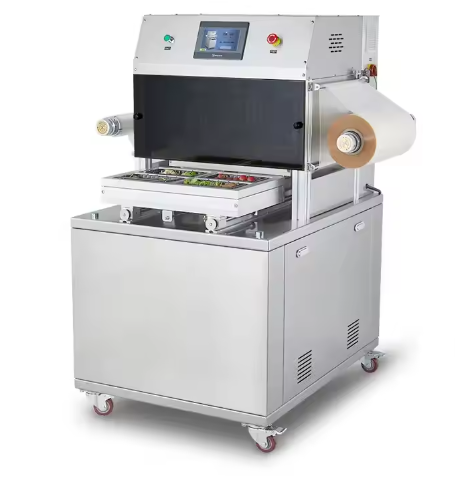

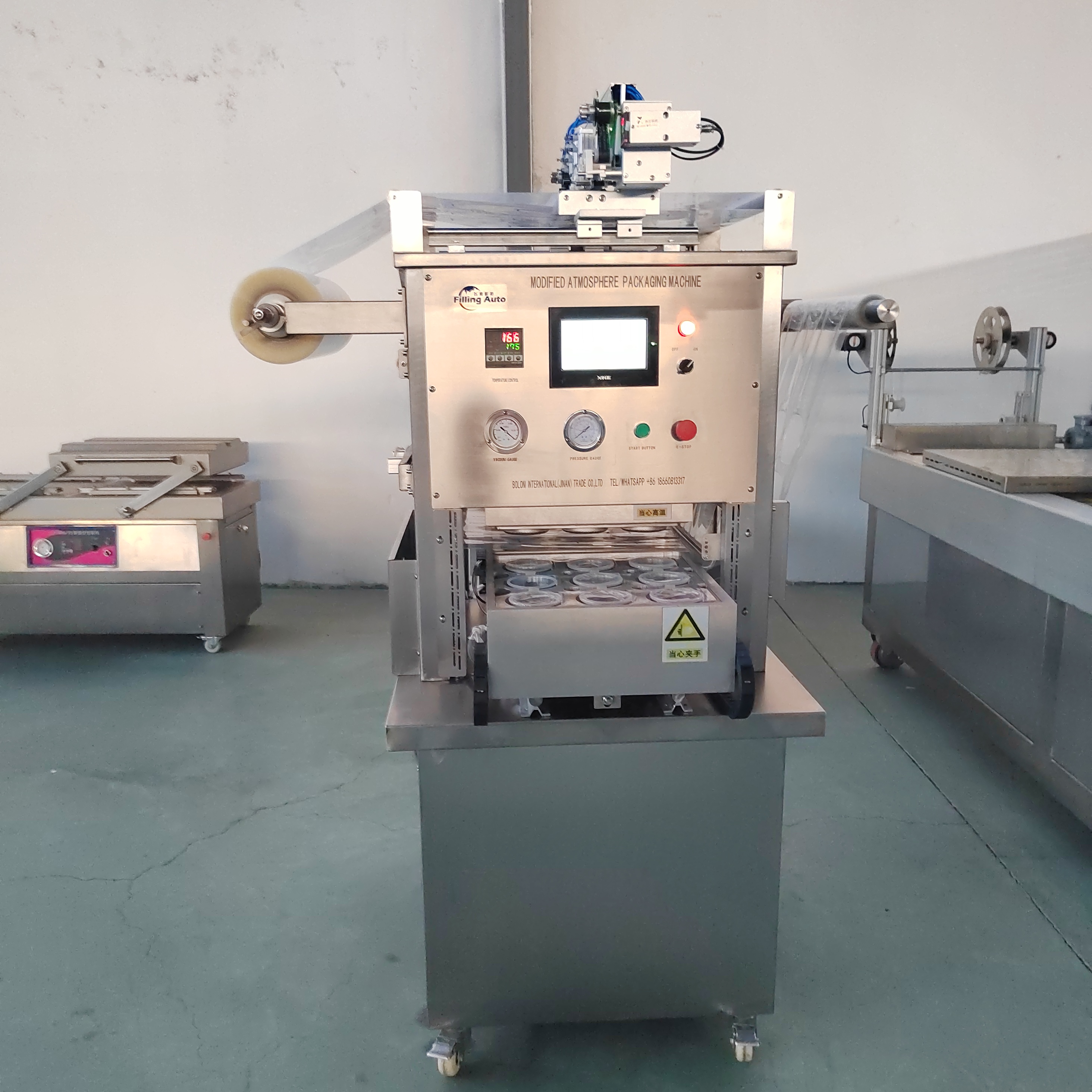

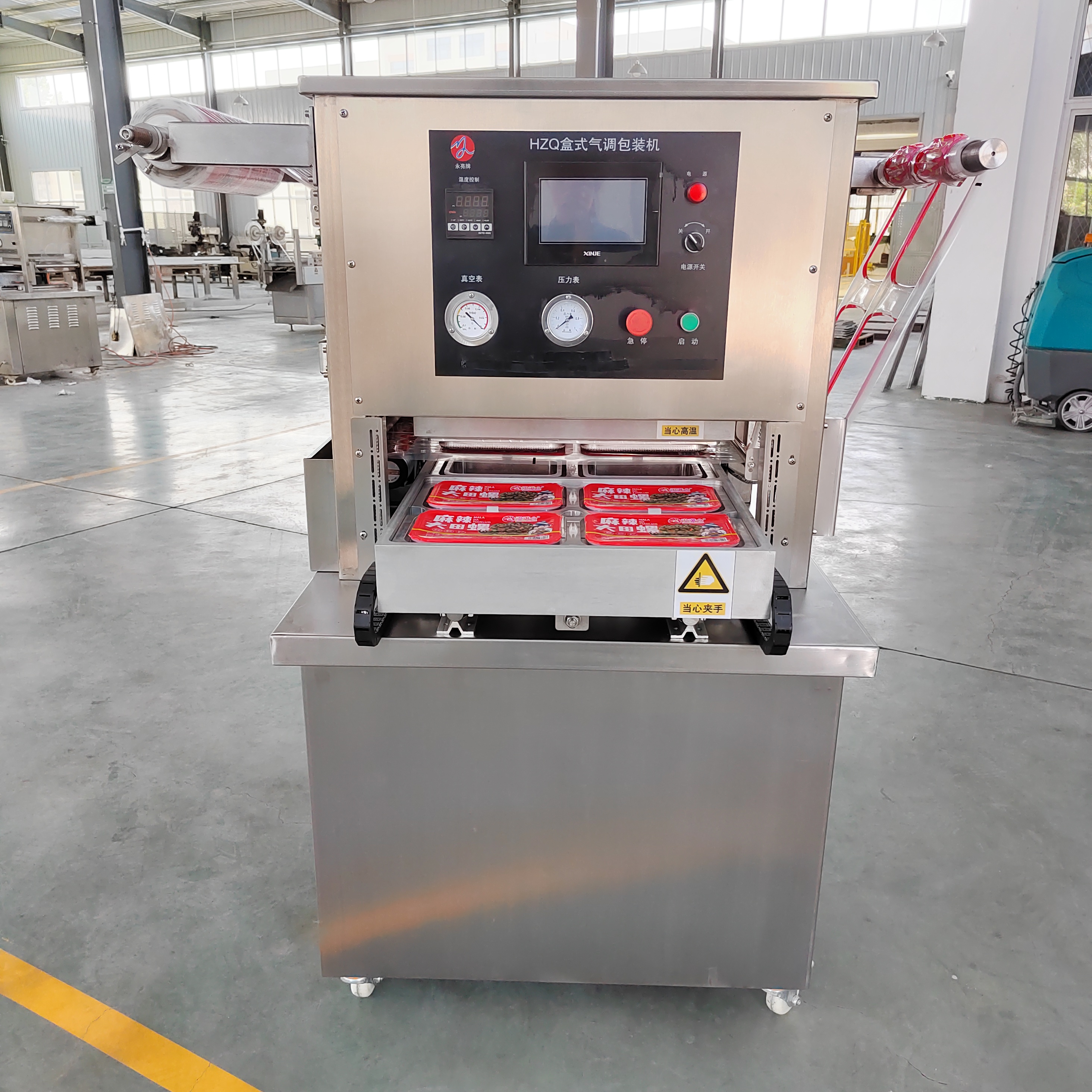

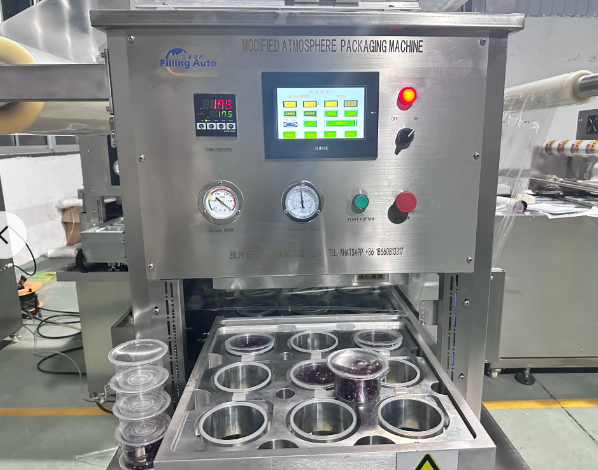

Modified Atmosphere Vacuum Tray Sealer Map Packaging Machine for Food Ready Meal Meat Fish Salad With Film

Product Description

Modified Atmosphere Packaging Banner
Product Description

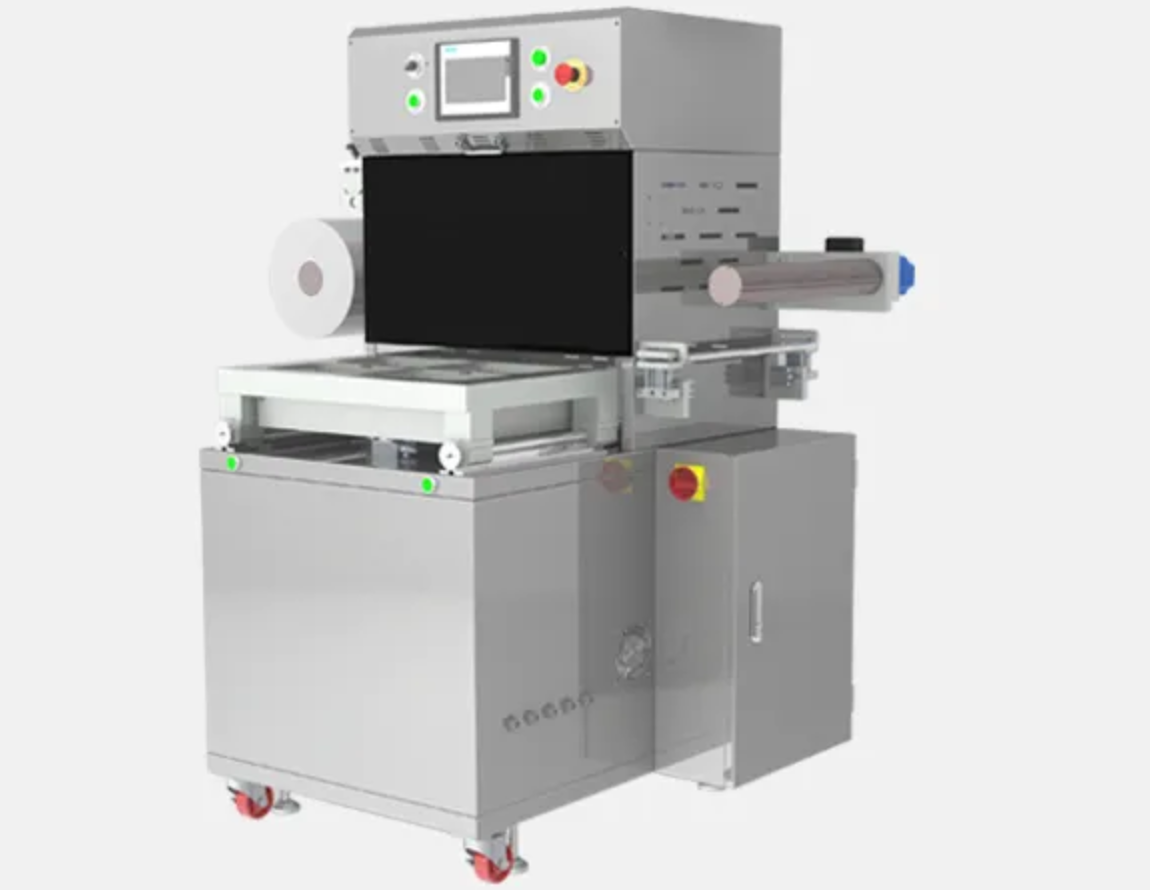

Modified Atmosphere Packaging Machine

Modified atmosphere packaging machine is also known as: vacuum air-conditioned packaging machine, modified atmosphere box vacuum packaging machine, modified atmosphere bowl vacuum machine, etc.

It is to put the food into the prefabricated box, discharge the air in the prefabricated box through the positive pressure system, and fill it into the prefabricated box according to the gas ratio (mainly nitrogen, carbon dioxide, oxygen) through the mixer, and then seal it.

Modified atmosphere fresh-keeping packaging can mainly keep the color, color and taste of food unchanged, so that the food inside is in a sleep state. Nitrogen and carbon dioxide can inhibit some bacteria, and oxygen can play a role in preservation, so as to keep the food in a state of sleep. The original taste of the product, and the appearance of the modified atmosphere packaging is very beautiful, and the product will not be squeezed and deformed like vacuum packaging, and the appearance will not shrink. The packaging effect is good, and the product packaging can be easily opened without tools.

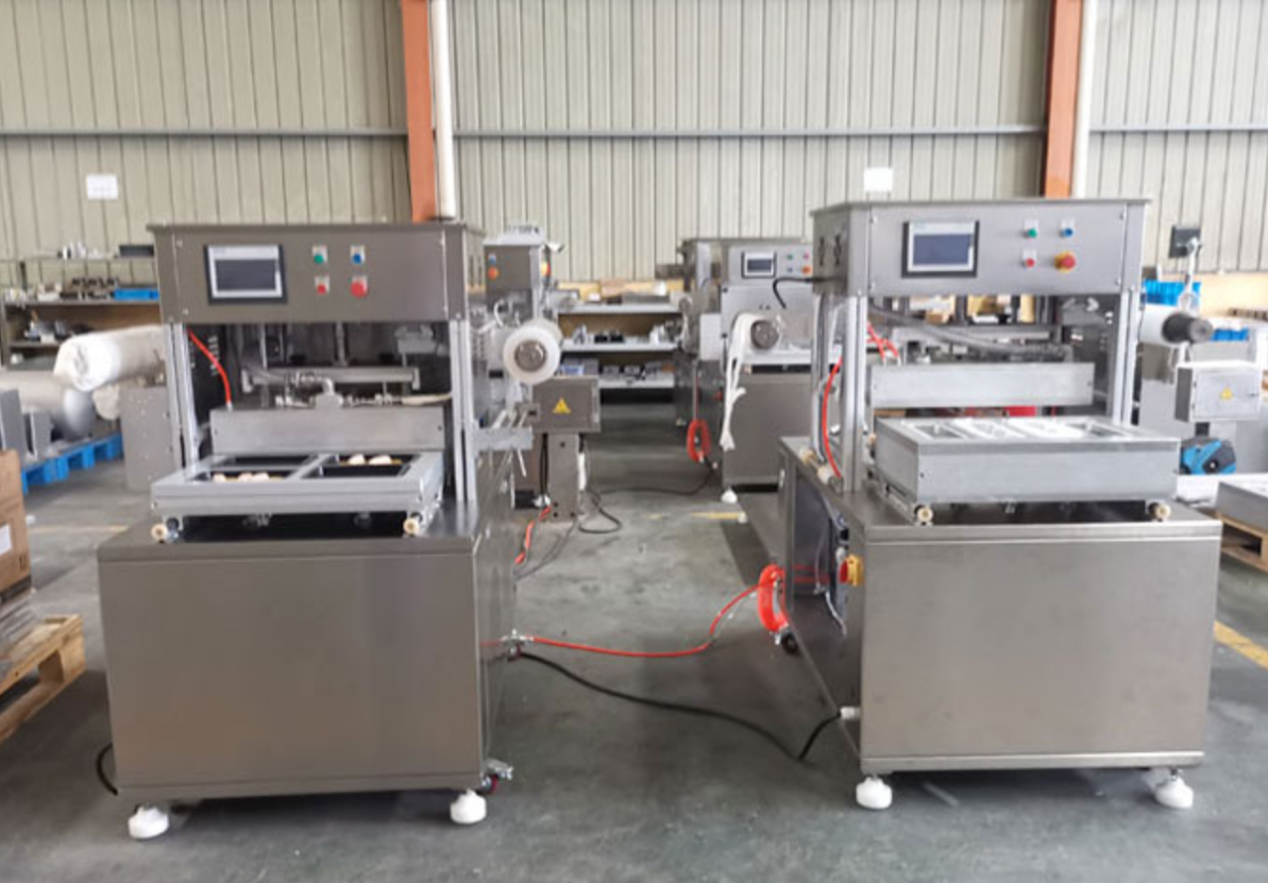

Working process: Put the product in the prefabricated box, and then put the box into the mold of the equipment. The box enters the sealing area with the movement of the mold, the mold is closed, and the upper film is attached to the sealing surface of the box in the sealing mold. According to the user's product packaging requirements, on the basis of vacuuming, fill with nitrogen or mixed gas for packaging) sealing, (the upper film and the box are sealed together) punching, post exhaust, mold separation, and the packaged product comes out with the mold, remove the product manually.
Key Features & Components

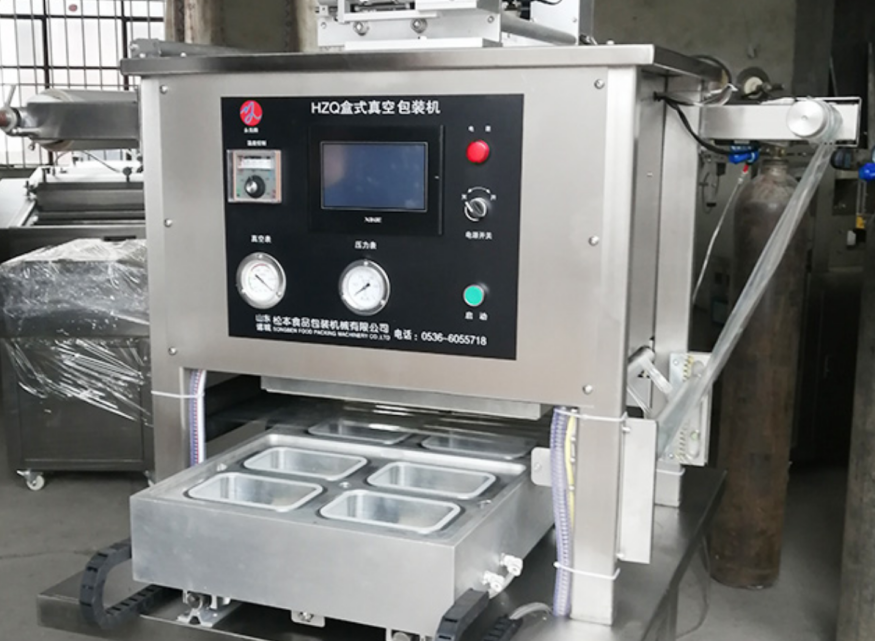

Food Grade 304 Stainless Steel
Food Grade 304 Stainless Steel
It has the characteristics of corrosion resistance, high temperature resistance and low temperature resistance, good hot workability for stamping and bending, and no heat treatment hardening (applicable temperature -196℃ to 800℃).

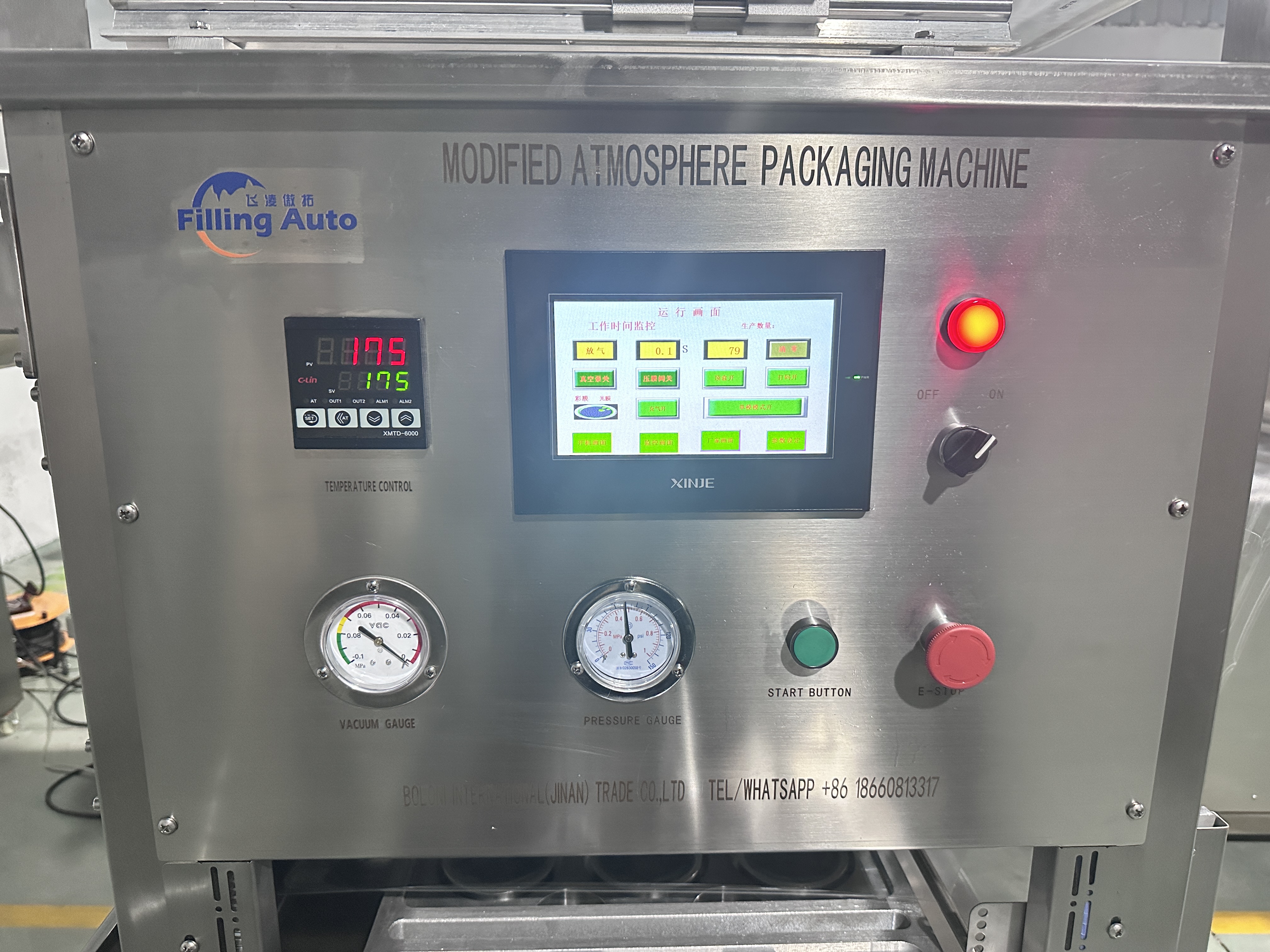

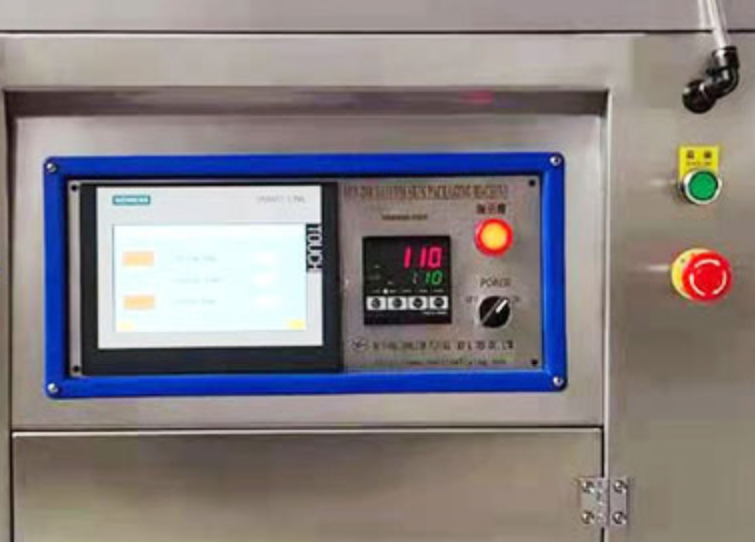

Siemens Microcomputer Control System
Siemens Microcomputer Control System
Simple and convenient operation, accurate fit, small error, and worry-free after-sales service.

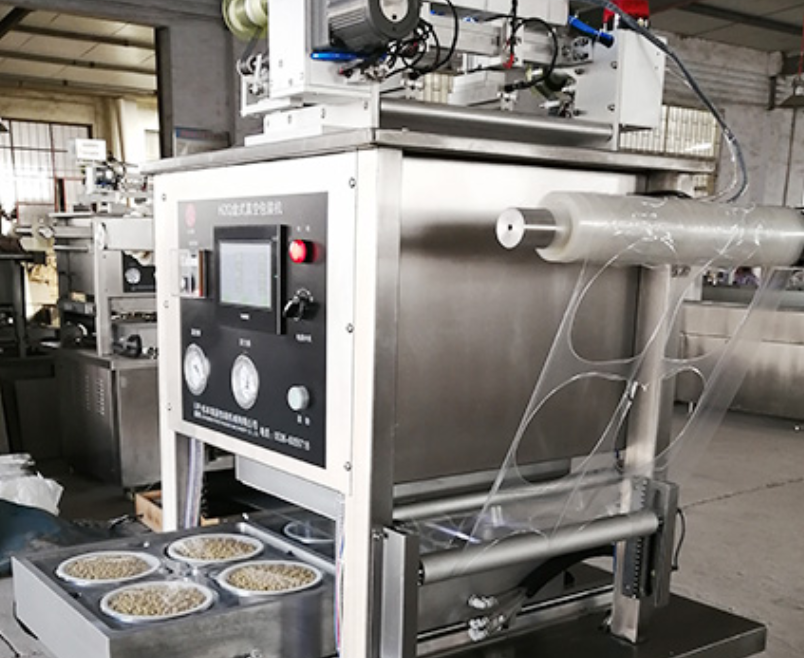

Roller Film System
Roller Film System
High-speed and high-precision positioning and filming system is adopted, and OMRON sensor is used for photoelectricity, which can control the error to 0.1mm for color film.

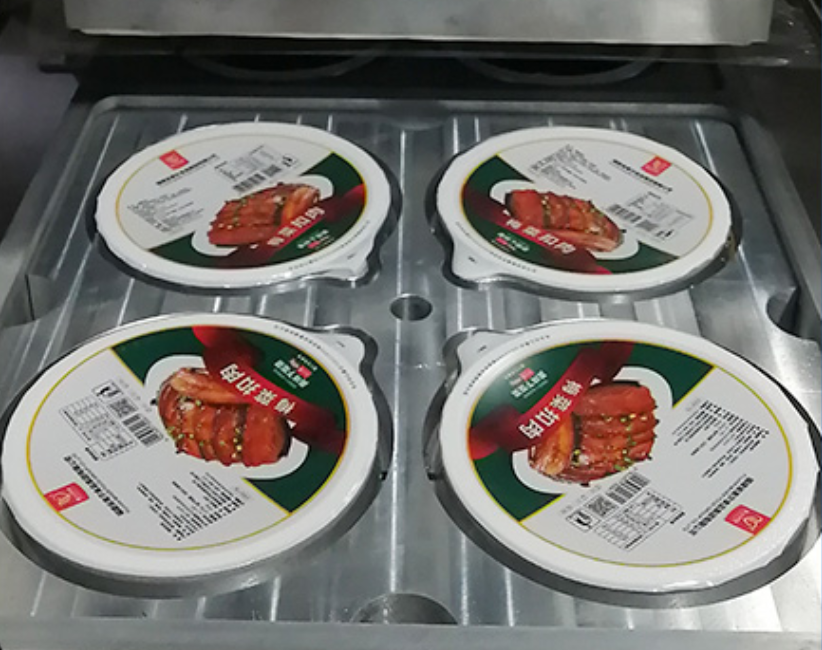

Customized Service
Customized Service
The size, shape and quantity of the mold are customized according to the customer's requirements, and the material is food-grade aluminum alloy with an oxidized surface.

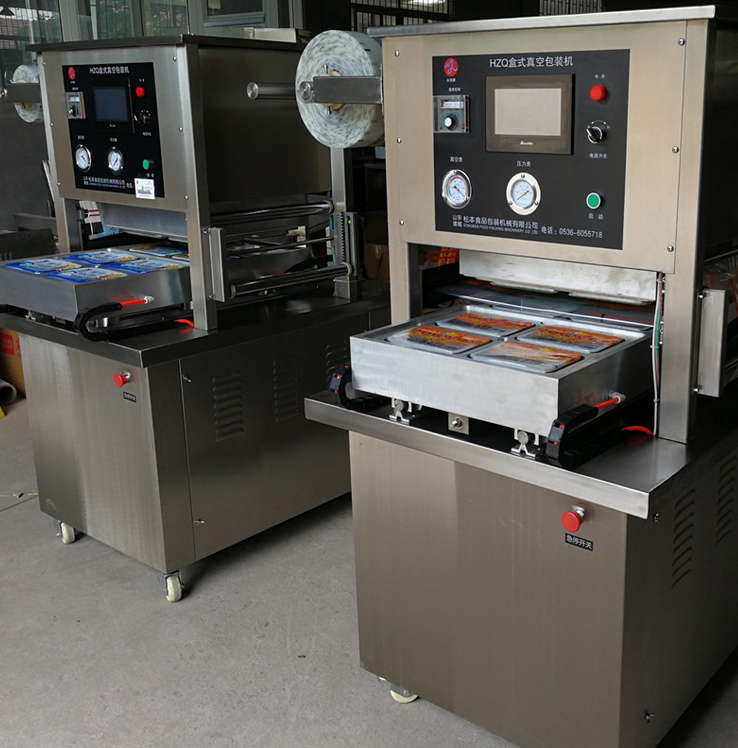

Operating mode
Operating Mode Options
A: Vacuum - Inflate - Seal
B: Vacuum - Seal
C: Seal
Technical Parameters
Parameter Value / Detail
Model HZQ
Voltage (customized) 380V/50HZ
Power 3KW
Mould size (customized) Customized
Air pressure 0.6Mpa
Machine size 1200*1100*1620mm
Machine weight 460kg
Packing speed 2-3 times/min
Vacuum pump 100m³/h
Roller film width 630mm

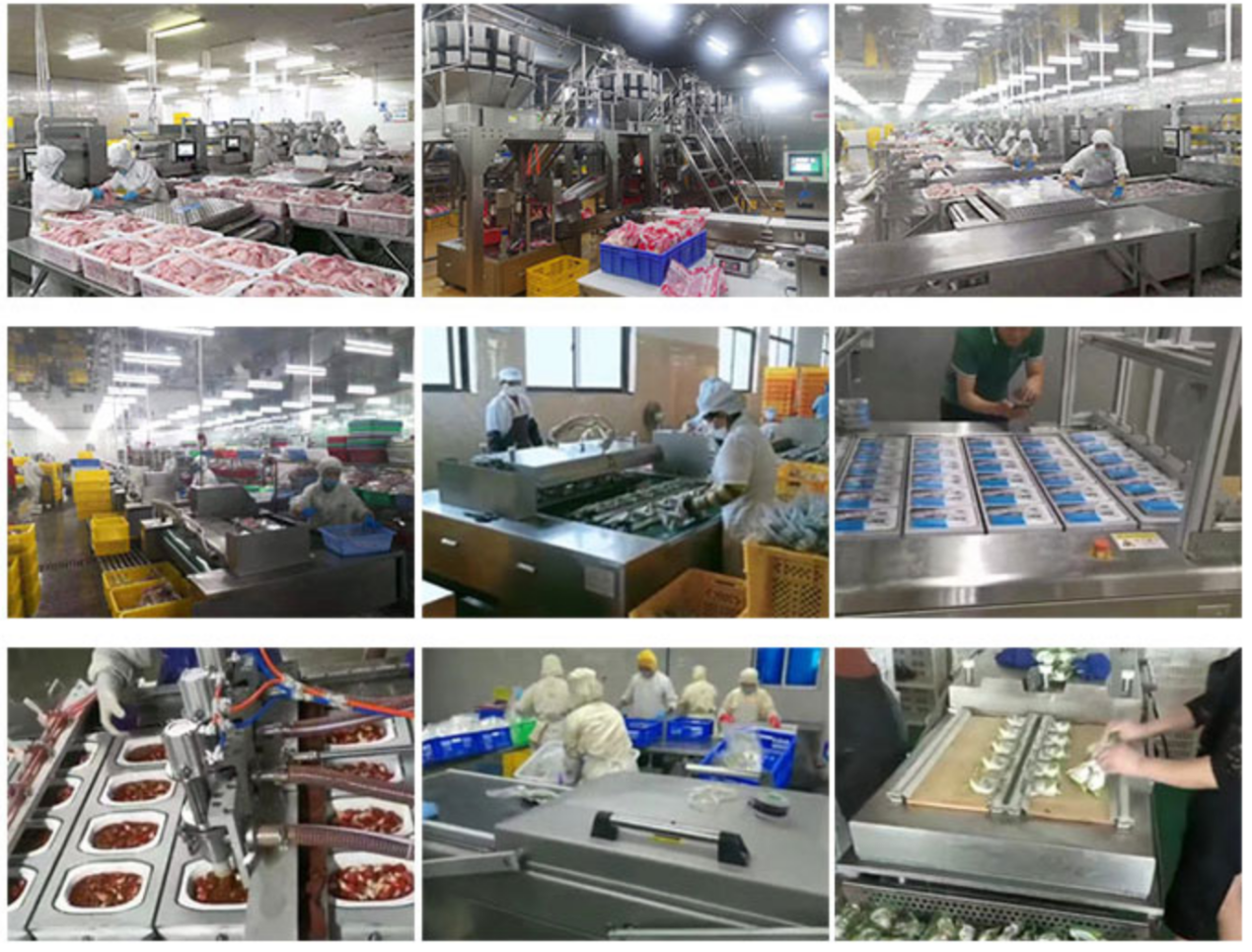

Widely Used
Widely Used Applications
Frequently Asked Questions (FAQ)
What is a modified atmosphere packaging machine?
Also known as a vacuum air-conditioned packaging machine, it places food into a prefabricated box, evacuates the air, and injects a specific gas ratio (nitrogen, carbon dioxide, oxygen) before sealing to keep the product fresh.
How does MAP packaging maintain food quality?
By replacing the oxygen with tailored gas mixtures, it keeps the color, taste, and freshness of the food unchanged. The gases put the food in a sleep state, inhibiting bacterial growth without causing deformation or shrinkage.
What materials are used for machine construction and molds?
The main body is constructed of food-grade 304 stainless steel, which is corrosion and temperature-resistant. The customized molds are made from food-grade aluminum alloy with an oxidized surface.
What are the available operating modes?
The machine offers three operation options: A (Vacuum - Inflate - Seal) for full MAP preservation, B (Vacuum - Seal) for standard vacuuming, and C (Seal) for direct heat-sealing.
How accurate is the film positioning system?
It utilizes a high-speed roller film system equipped with OMRON photoelectric sensors, controlling alignment and positioning errors to within 0.1mm for printed color films.
Can the machine's voltage and mold sizes be customized?
Yes, we provide fully customized services. Mold shapes, sizes, quantities, and operational voltages (such as standard 380V/50HZ or other regional specifications) can be tailored to meet your product requirements.
