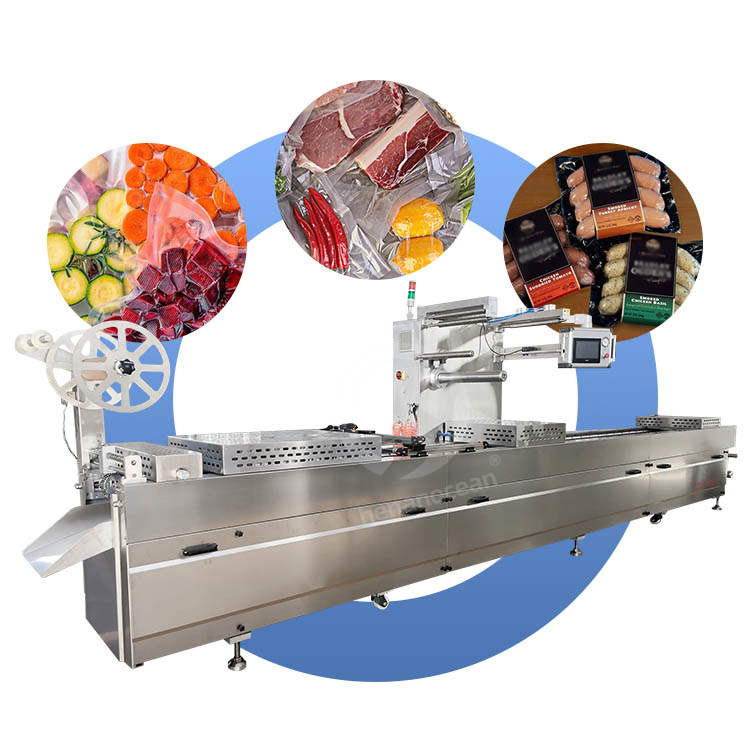

OCEAN Automatic Pump Sausage Date Seal Jerky Beef Food Thermoformer Pack Form Machine Thermoform Vacuum Package Machine

Product Description

Vacuum Packaging Solutions

Product Description

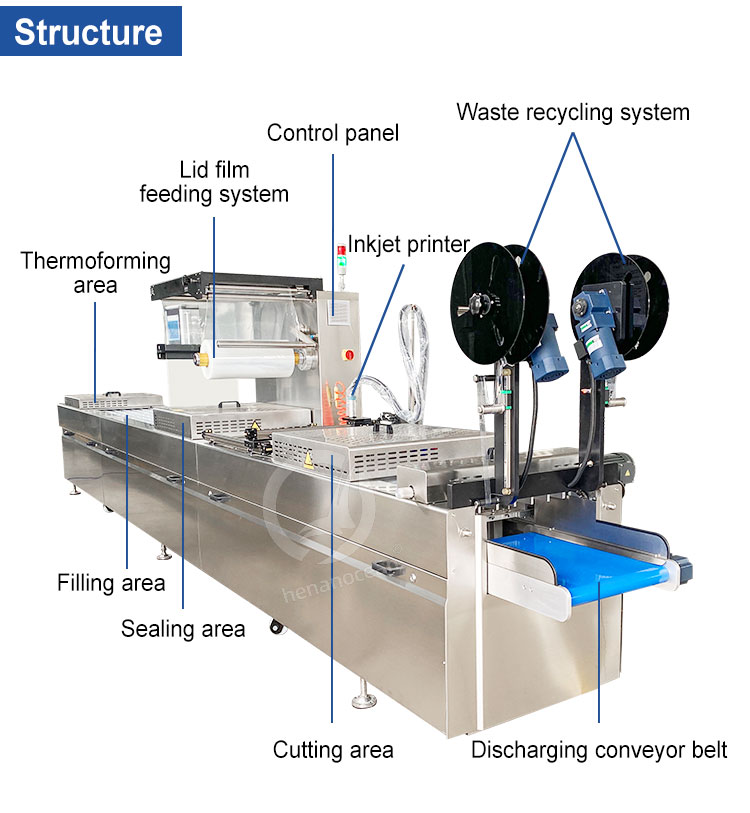

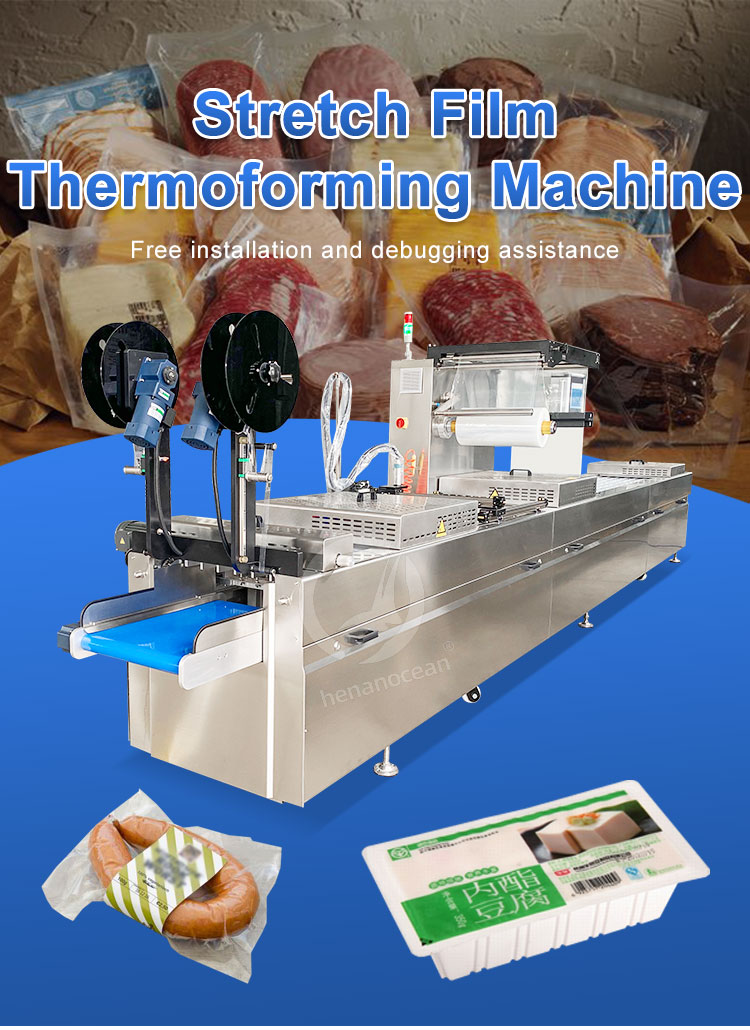

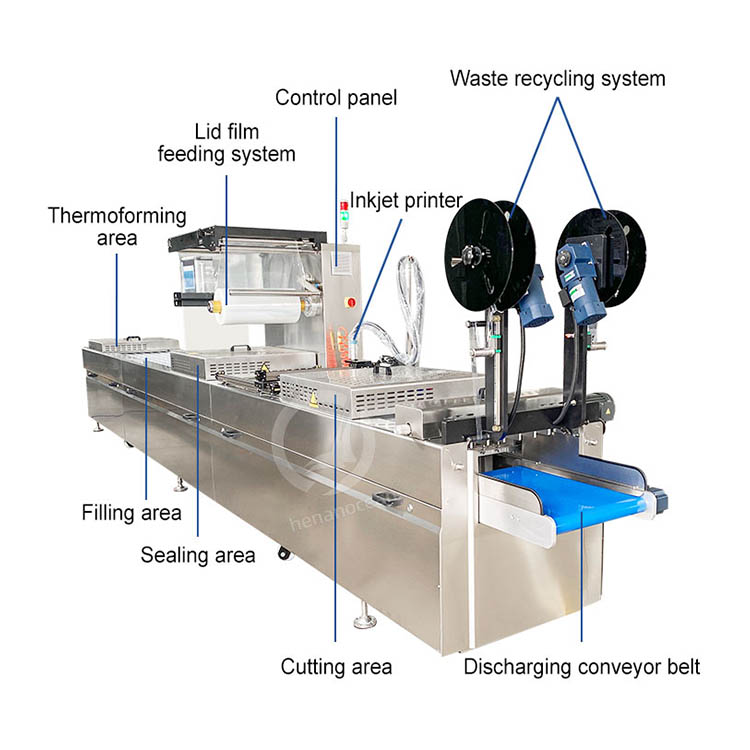

Stretch Film Vacuum Packaging Machine Details

Introduction

The stretch film vacuum packaging machine is a highly efficient, fully automated device widely used for food and other packaging. It features a renowned PLC and touchscreen for easy operation. The machine uses combination molds for multi-spec packaging and can fill with nitrogen or mixed gases. Made from food-grade 304 stainless steel and hard alloy, it is durable and corrosion-resistant. It includes remote fault handling, waste recycling, and safety protection systems, significantly enhancing production efficiency and reducing labor costs.

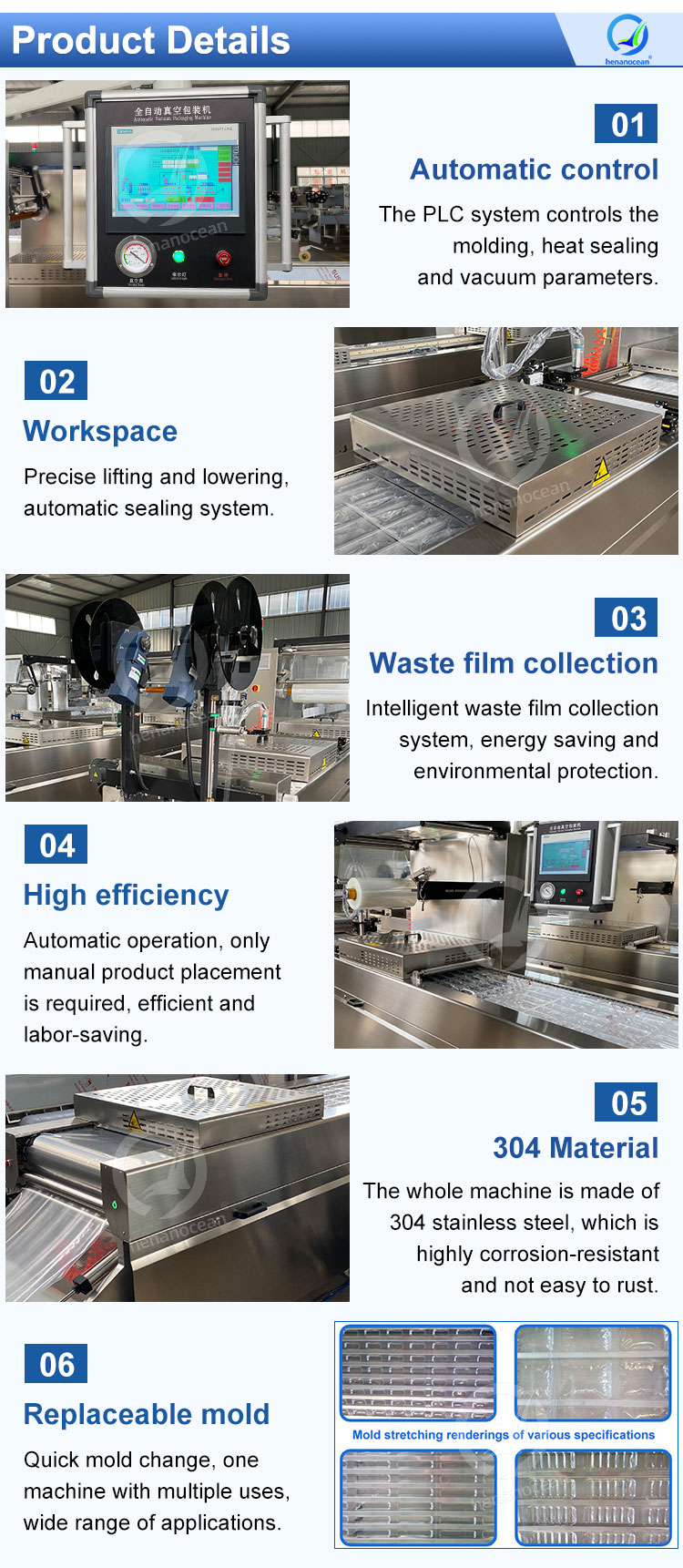

Key Features

1
High Efficiency Automation Fully automated operation with manual loading, saving labor and increasing efficiency.
2
Multi-Functional Molds Uses combination molds, allowing for easy specification changes.
3
Multi-Gas Packaging Capable of nitrogen or mixed gas filling to meet various packaging needs.
4
Intelligent Control Equipped with famous brand PLC and touch screen, offering easy operation with multilingual menus.
5
Durable Materials Made from food-grade 304 stainless steel and hard alloy tracks, ensuring corrosion resistance and easy cleaning.
6
Remote Maintenance Features computer remote fault handling and alarm systems.
7
Waste Recycling Powerful waste recycling system for convenience.
8
Safety Protection Protective covers for forming, sealing, and cutting areas to ensure safety.
9
Automatic Feeding Optional automatic feeding system to protect the sealing area.
10
Efficient Vacuum German eco-friendly vacuum pump with a vacuum level up to 0.1mbar, equipped with a vacuum tank.
11
Status Indicators Machine status indicator lights for easy monitoring.
12
Mobility Equipped with wheels and legs for easy movement and positioning.
13
Stable Printing Includes a stable coding system.
14
Air Filtration Equipped with compressed air oil-water separators for cleaner air.
Packaging Gallery Detail 1
Packaging Gallery Detail 2

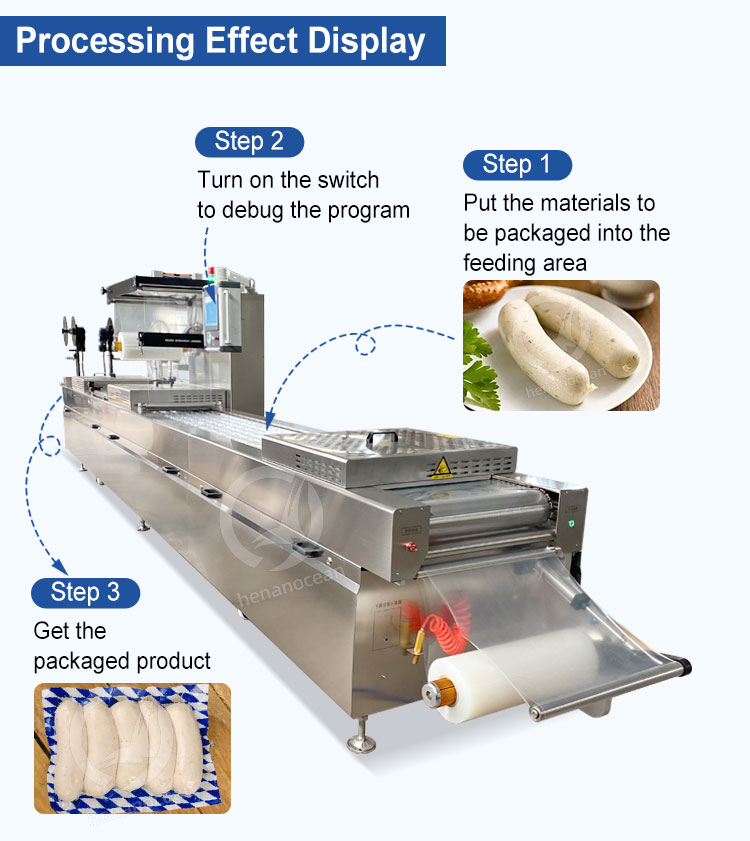

Packaging Gallery Detail 3
Packaging Gallery Detail 4

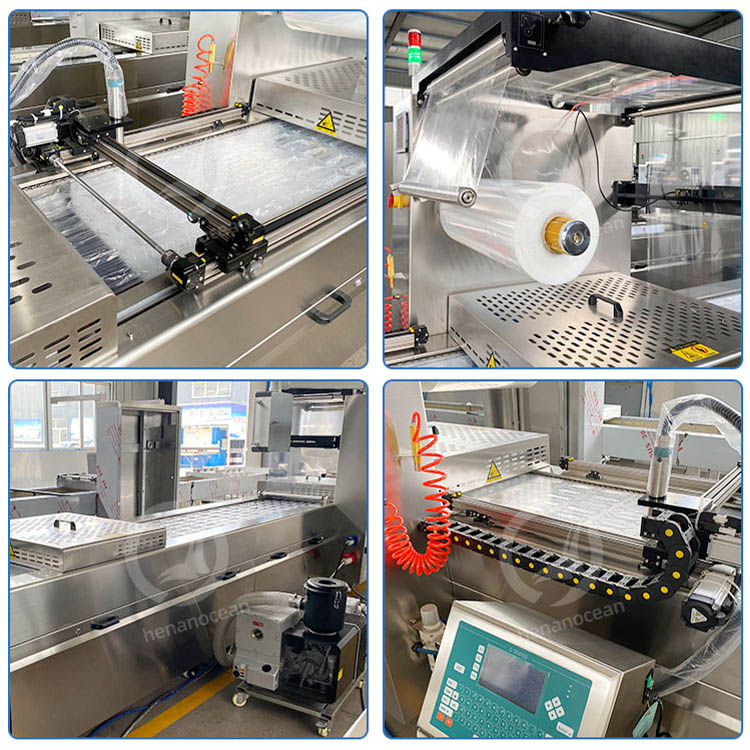

Internal Machine Structure 1
Internal Machine Structure 2

Technical Parameters

Machine Dimensions and Blueprint
Model OCEAN-LSM-420 OCEAN-LSM-520
Voltage 380V 50HZ (Customized) 380V 50HZ (Customized)
Upper film width 393mm 493mm
Bottom film width 422mm 522mm
Air pressure 0.6Mpa > 1.0MPa 0.6Mpa > 1.0MPa
Max power 18KW 18KW
Average power 10KW 10KW
Dimension 6800*1000*1900mm 7680*11000*1900mm
Weight 2100Kg 2300Kg

Production Details

Production Details Workshop View

Recommend Products

Related Recommend Packaging Machines

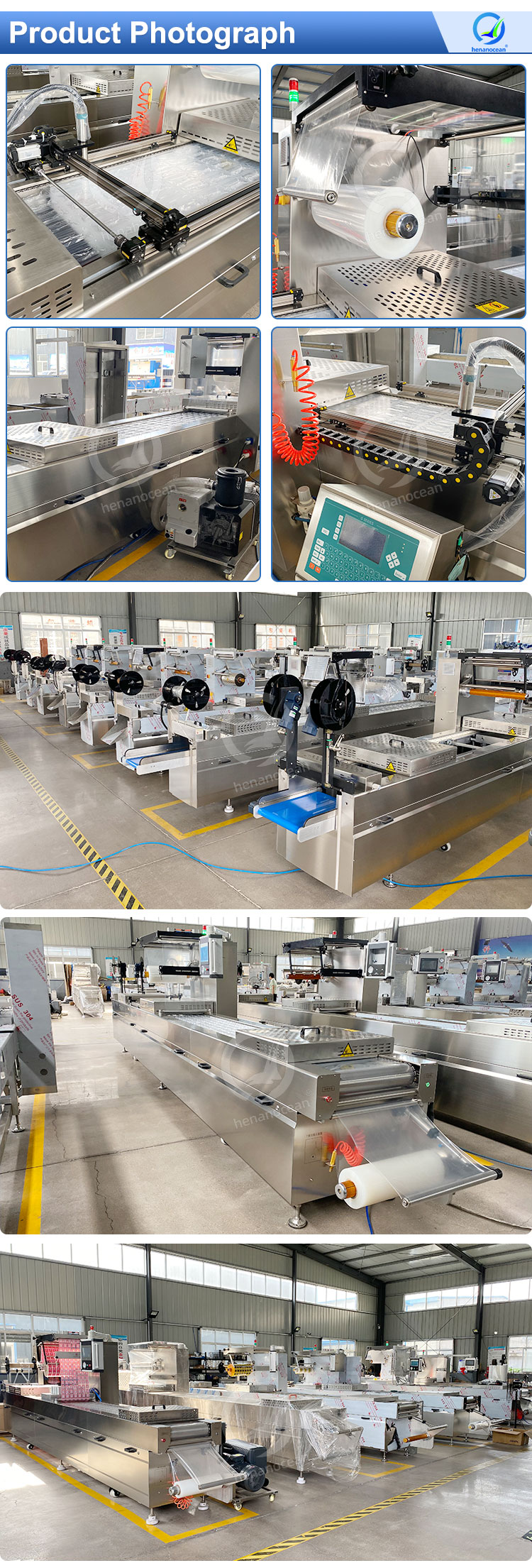

Product Photograph

Actual Product View 1
Actual Product View 2
Actual Product View 3

Manufacturer Advantages

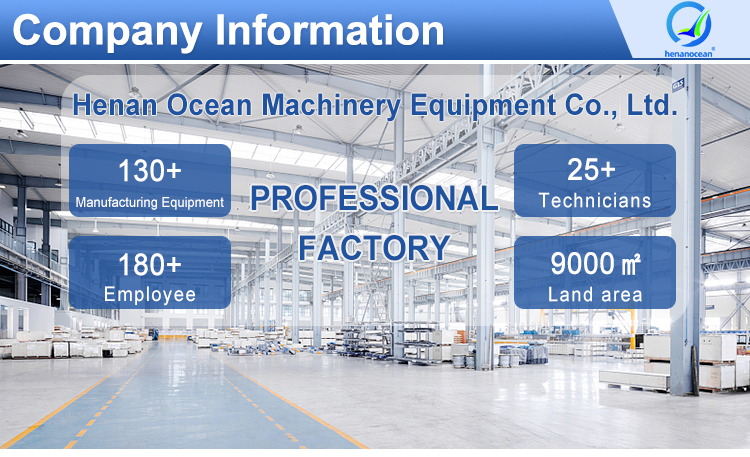

Manufacturing Factory Facility
1. Rich Industry Experience More than 20 years of professional mechanical equipment manufacturing history.
2. Strong R&D Capacity Dedicated R&D team maintaining continuous technology improvement and development.
3. Strict Quality Control Strict quality control and complete process monitoring management systems in place.
4. International Certification ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL certified. Comprehensive OEM/ODM services.
5. Independent Facilities Self-owned professional R&D capacity, advanced laboratories, and QC capabilities.

Certification and Approvals

Corporate Certifications Showcase

Our Services

Customer Support and Service
1. 24-Hour Communication Continuous communication channel for urgent queries and supports.
2. Flexible Logistics Support Fast logistics for smooth delivery. Optional door-to-door delivery services (DDU & DDP).
3. Long-term Warranty & Support One-year warranty with lifetime technical support and free operator training.
4. Product Innovations Periodic recommendations for new designs and products.
5. Face-to-Face Negotiation Regular participation in international exhibitions for direct client communication.
6. Visit Invitation Support Official invitation letters provided for customers visiting our production lines.
7. Concierge Front Desk Support Support with accommodation and local arrangements during visits.
8. Localized After-Sales Assistance On-site service support coordinated through local service networks.

Frequently Asked Questions

Frequently Asked Questions Overview
What's your after-sales service policy?

Our machine will be checked three times before shipment to ensure optimal operation. If issues occur:

1. For usage/operation issues, we resolve them immediately via video call support.

2. For hardware replacement requirements, we send required accessories to guarantee operation continuity.

3. Our technicians make regular international service trips to handle complicated on-site problems.

Do you provide any warranty for your equipment?

We provide a one-year warranty. The machinery is fully pre-tested before leaving the factory. To prevent user errors, we supply complete English manuals and configuration troubleshooting videos. Standard replacement spares are included in the toolset, and courier delivery via UPS takes 5-7 days for urgent items.

How can I handle transportation without customs clearance experience?

We have long-term cooperative forwarding networks to deliver the equipment directly to your premises by air, sea, or express delivery services. We assist you in selecting the most reliable delivery terms.

Do you provide training support for the operators?

Yes, we provide standard instructional videos and after-sales support resources. Support materials are available in English, Spanish, French, Chinese, and Arabic.

What makes your machines different from other manufacturers?

We prioritize after-sales service and long-term operating support. We believe user recommendations are key to branding, and we aim to facilitate commercial scaling for our customers through reliable engineering.

Can the machine's voltage options be configured to local standards?

Yes, the input power specifications (including voltage and frequency) can be customized according to your regional industrial power standards (e.g., 220V, 380V, 440V, 50Hz, or 60Hz).
