Products Description
Welcome to visit our professional manufacturing factory.
Are you looking for?
1. Horizontal flow wrapping machines/HFFS
2. Filling and sealing machine?
3. Vertical packing machines/VFFS
Whatever you want to pack, we always have the best machine to offer! Solution from Here!

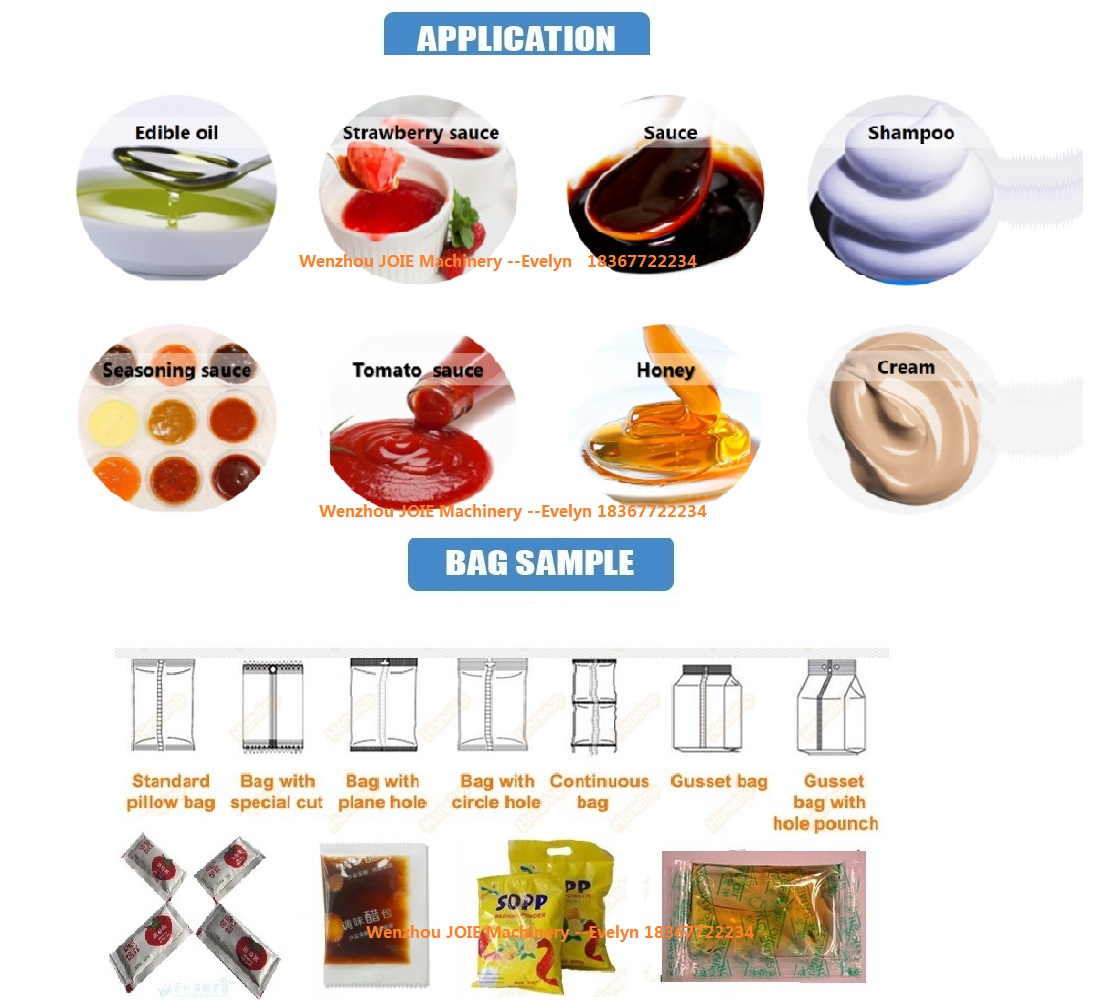

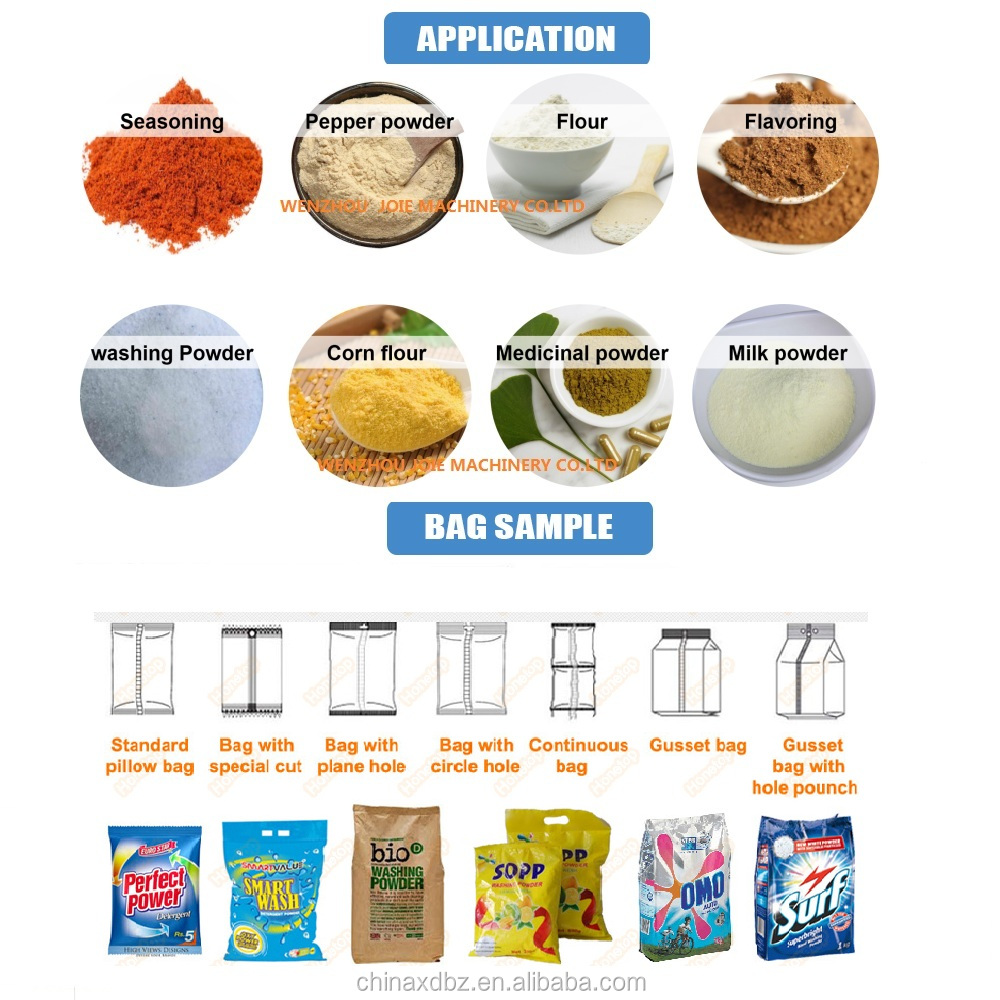

Product Application

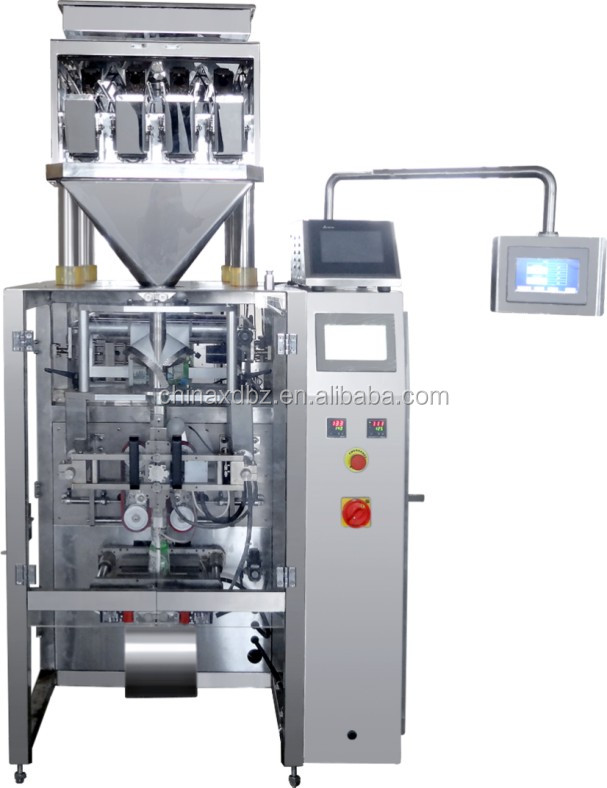

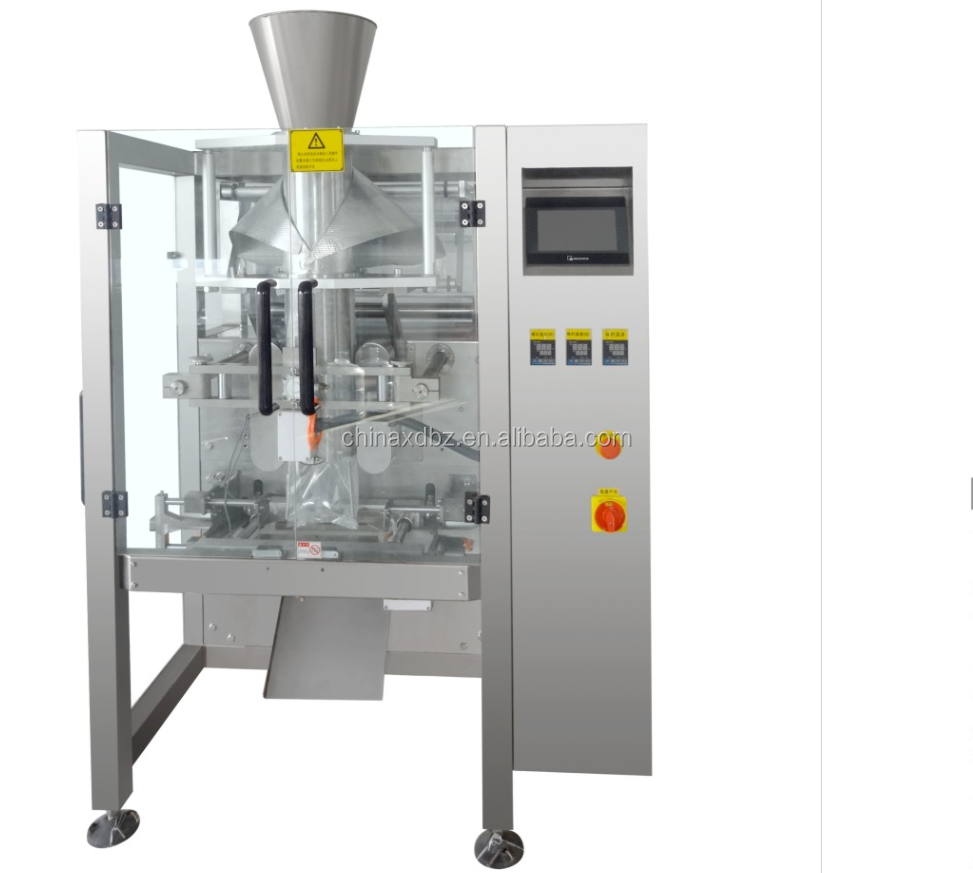

Automatic vertical filling and packaging machine (VFFS) is an automatic filling, weighting, bag making, and sealing machine which is widely used for various kinds of:
- Granule products: like sugar, salt, peanut, round candy, popcorn, snacks, chips, rice, dry fruit etc.
- Powder products: like milk powder, flour, coffee powder, soybean powder, medicine powder etc.
- Paste / Liquid products: like honey, tomato sauce, wine, water, shampoo, cream, detergent, liquid, chili sauce, milk, cooking oil, juice, cosmetic liquid, yogurt, wasabi, jelly etc.
More Details About Bag Samples

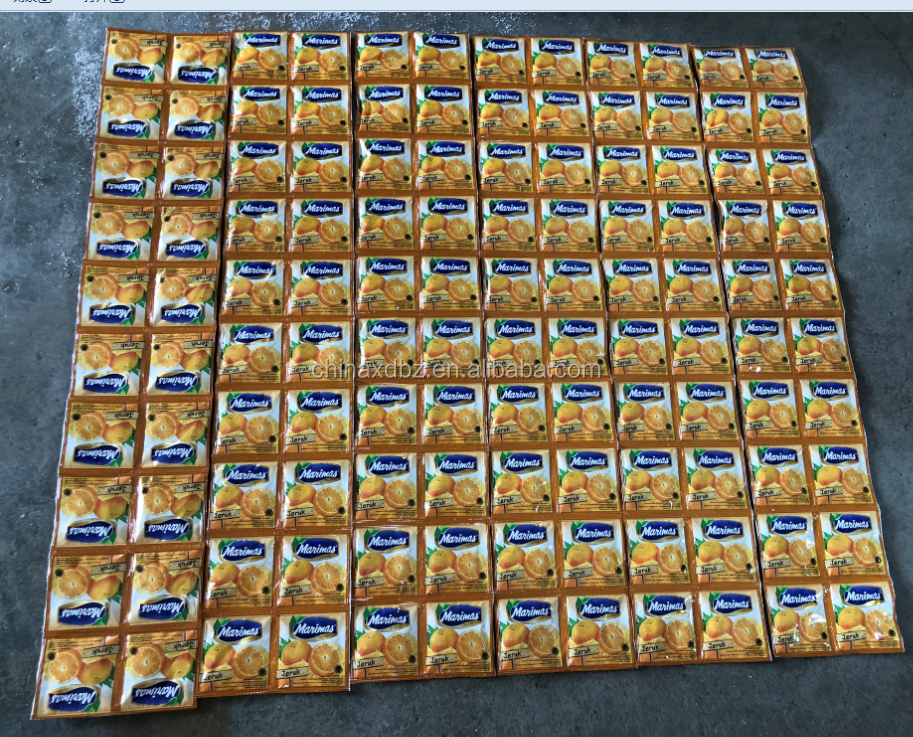

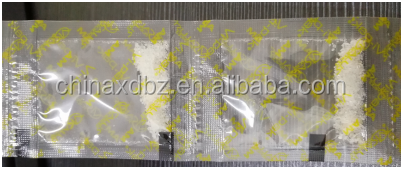

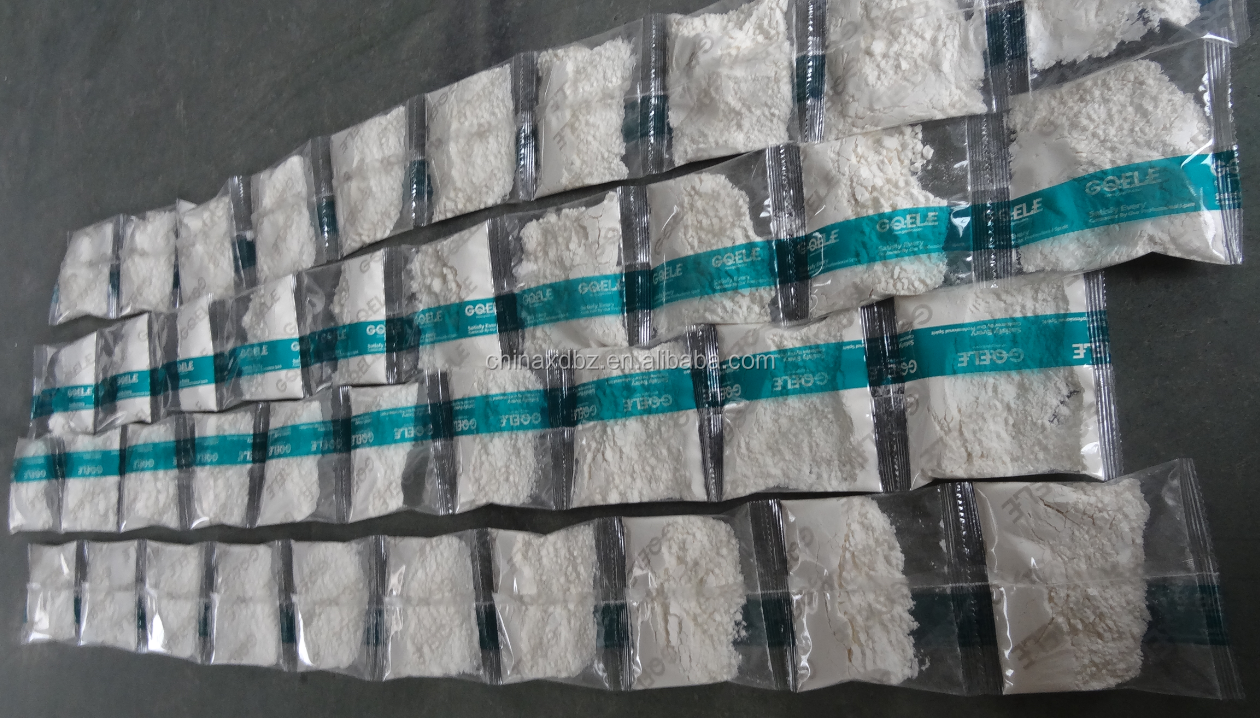

1. Linking Bag

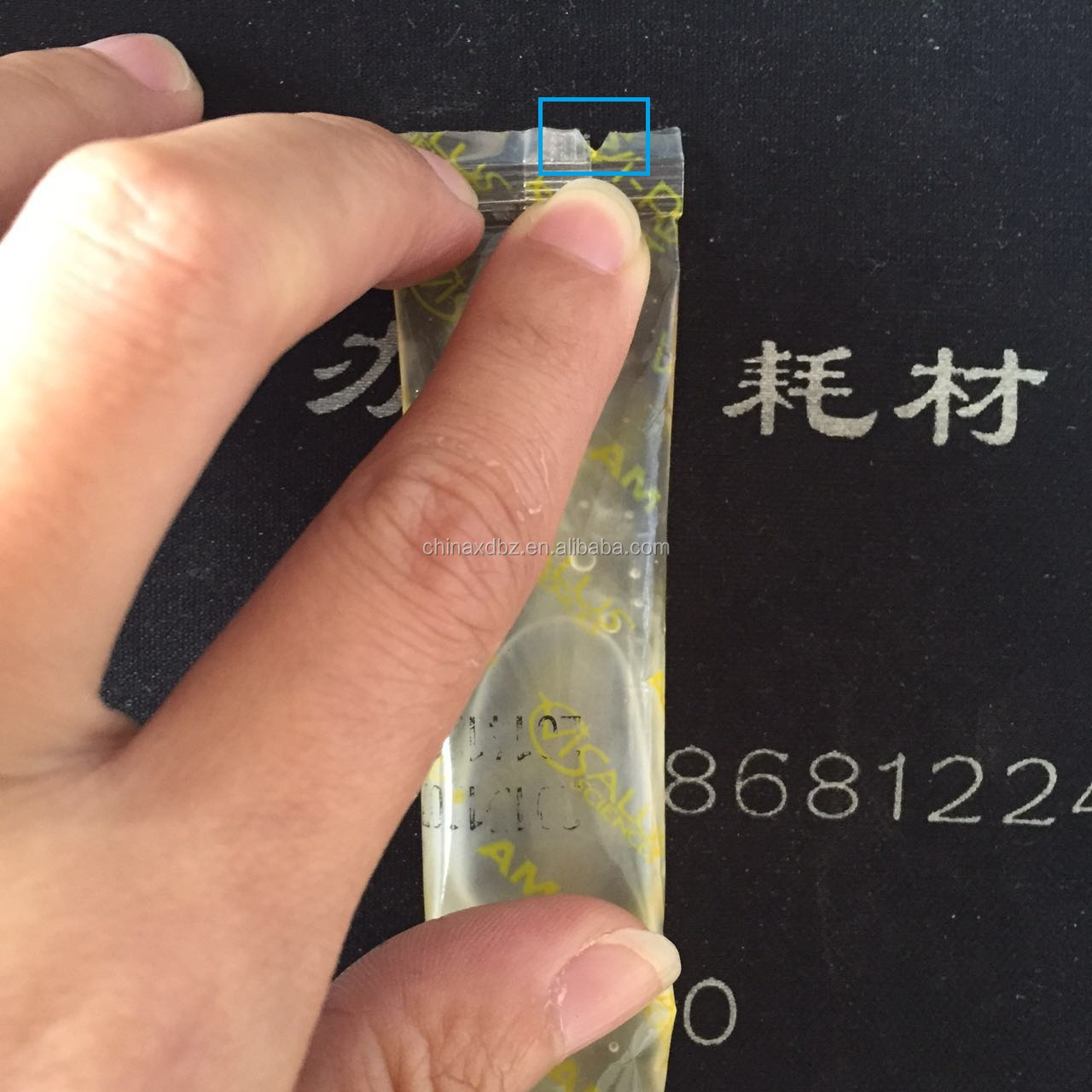

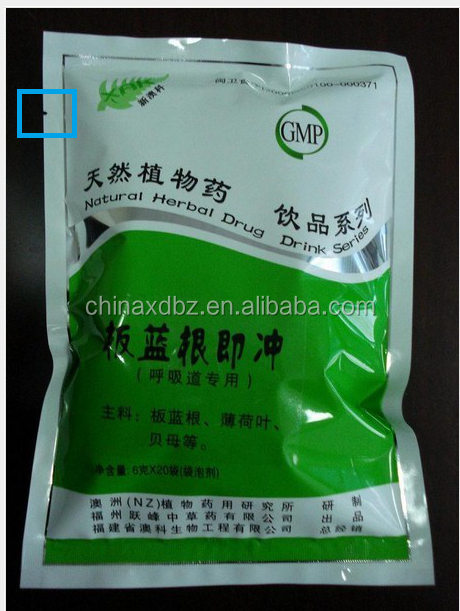

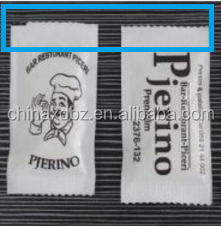

2. Easy Notch Samples

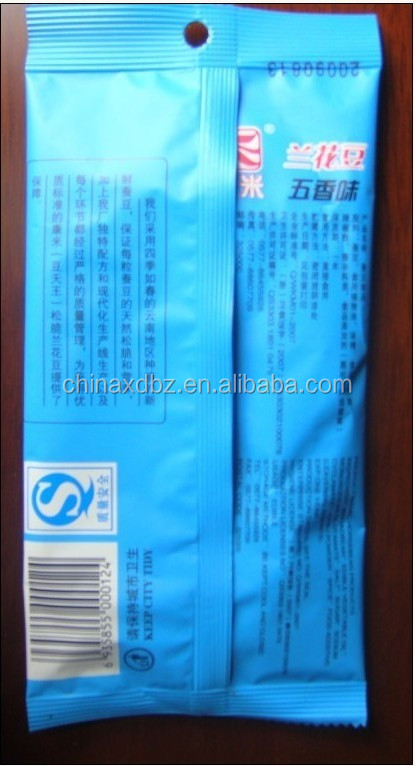

3. Pouching Hole Bag Samples (Euro-slot & round hole)
Product Parameters
| Model |
JEV-300G |
JEV-300L |
JEV-300P |
JEV-400G |
JEV-400P |
JEV-420G/420P |
JEV-520G/520P |
| Control system |
PLC control + servo motor control |
| Product range |
Granule |
Liquid/paste |
Powder |
Granule |
Powder |
Granule/Powder |
Granule/Powder |
| Filling system |

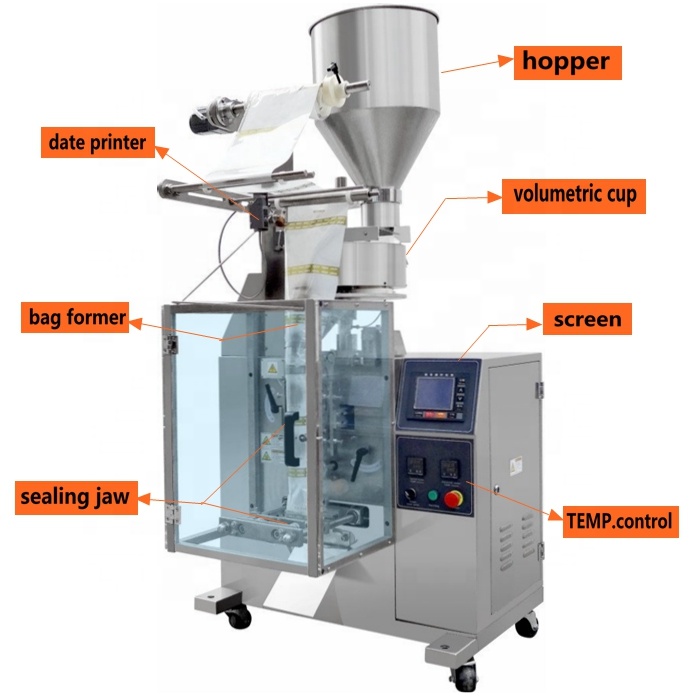

Volume cup |

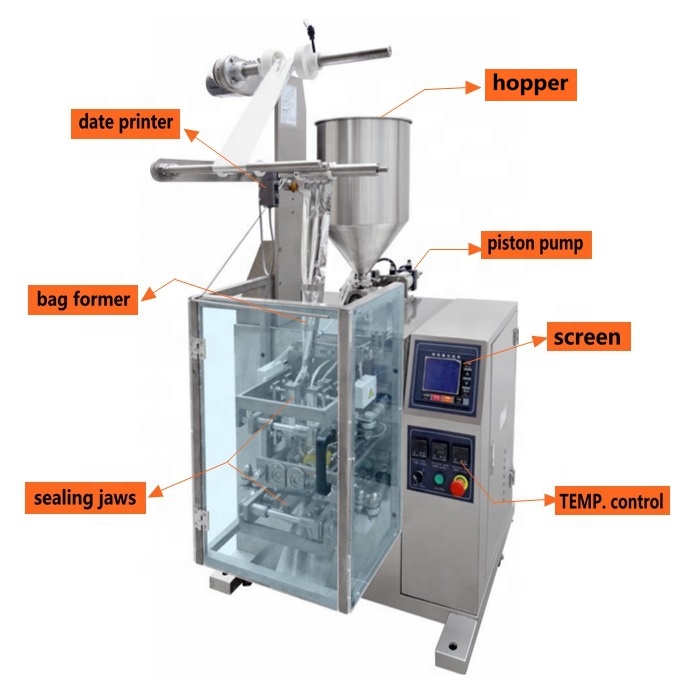

Piston pump |

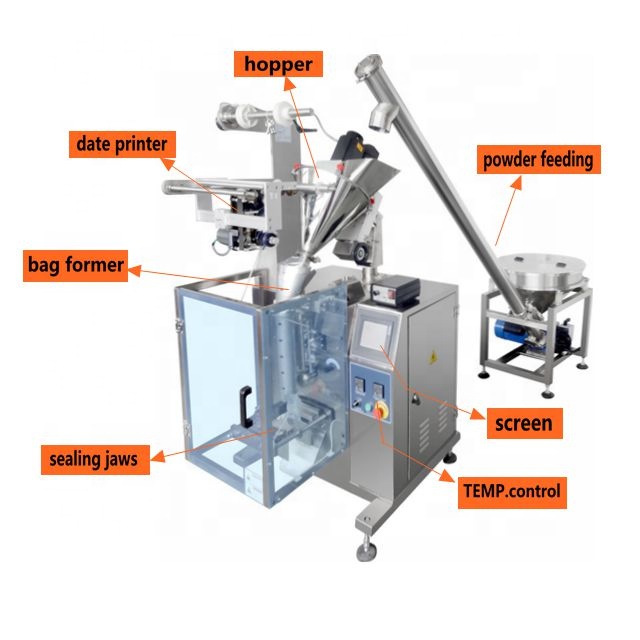

Auger feed |
Volume cup / Multi weigher |
Auger feed |
Volume cup/Auger feed |
Volume cup/Auger feed |
| Weight range |
5-250g |
5-250ml |
5-250g |
10-1000g |
10-1000g |
2500g |
2500g |
| Max. Film Width |
30mm |
300mm |
300mm |
400mm |
400mm |
420mm |
520mm |
| Bag making length |
40-250 mm |
40-250 mm |
40-250 mm |
40-300mm |
40-300mm |
300mm |
400mm |
| Bag making width |
20-150mm |
20-150mm |
20-150mm |
20-195mm |
20-195mm |
20-210mm |
50-260mm |
| Packing speed |
30-50pcs/min |
| Machine construction |
Stainless steel 304 |
| Quality standard |
CE Certificate/Food standard |
Why Choose Our VFFS Packing Machine?
- Equipped with SIEMENS TOUCH SCREEN & SIEMENS PLC control system;
- Full stainless steel 304 machine construction for Food standard/GMP standard;
- Smart HMI program; can store a variety of different product packaging process parameters, which can be used at any time without resetting;
- Different shape of bag sealing such as back sealing/3 or 4 side sealing sachet;
- High accuracy filling and weighting system for different products;
- High precision bag making size (error is less than 1mm) with Adjustable bag former;
- Adjustable packaging speed and specified range, flexible packing;
- Automatically bag making — code printing — measuring — filling — sealing — cutting — counting — conveying finished products — sorting finished products;
- Digital and separate PID temperature controllers, suitable for various packing materials;
- Photoelectric color mark tracking and orientation, digital input, sealing and cutting more accurate;
- Low noise, quiet working condition.

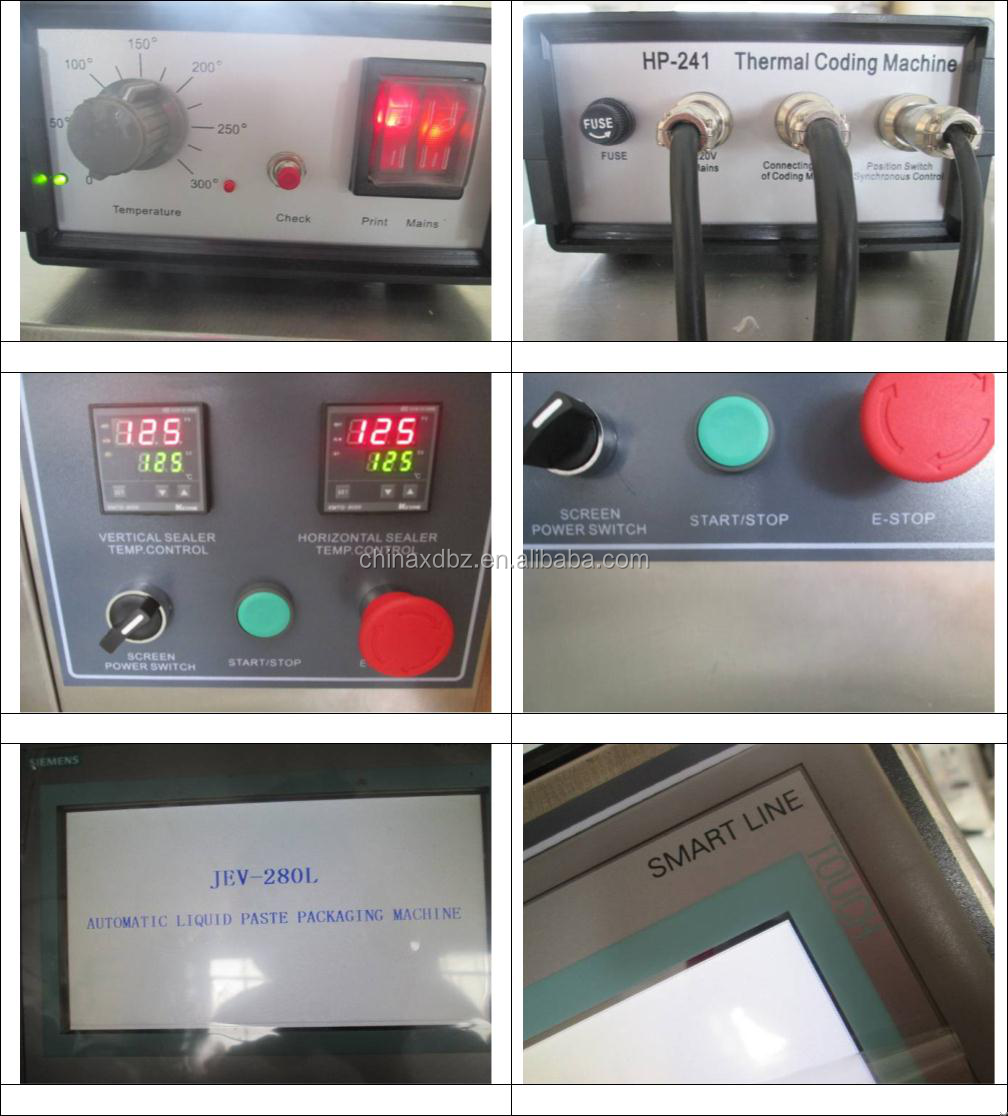

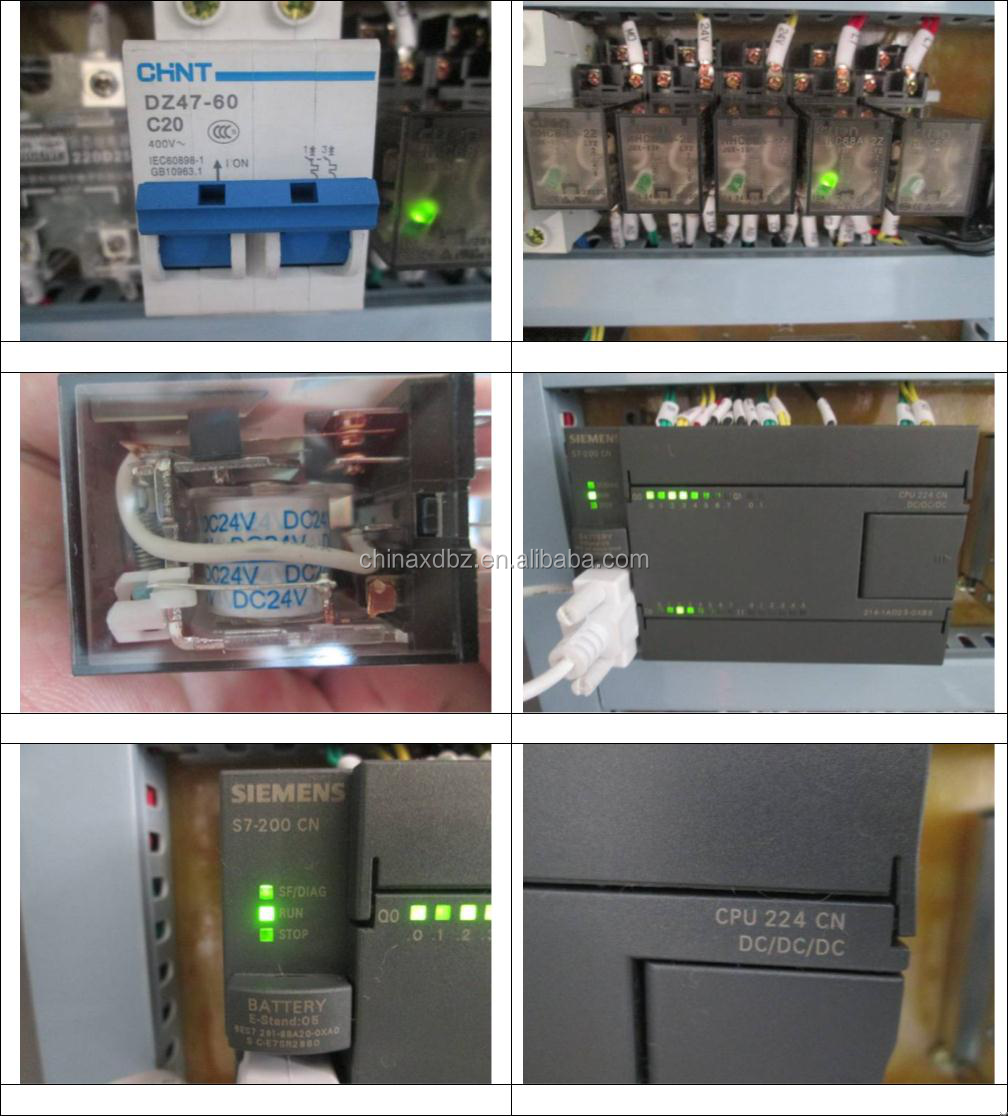

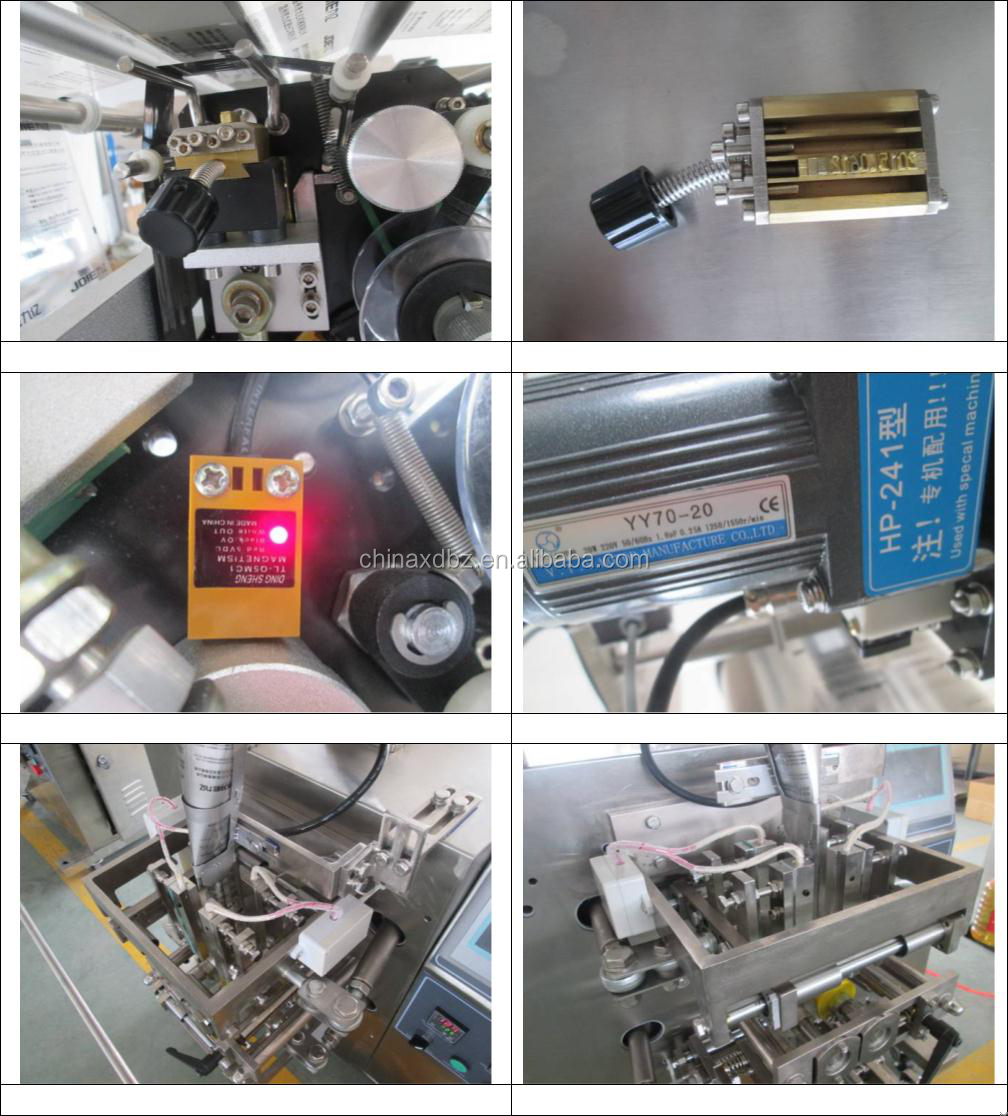

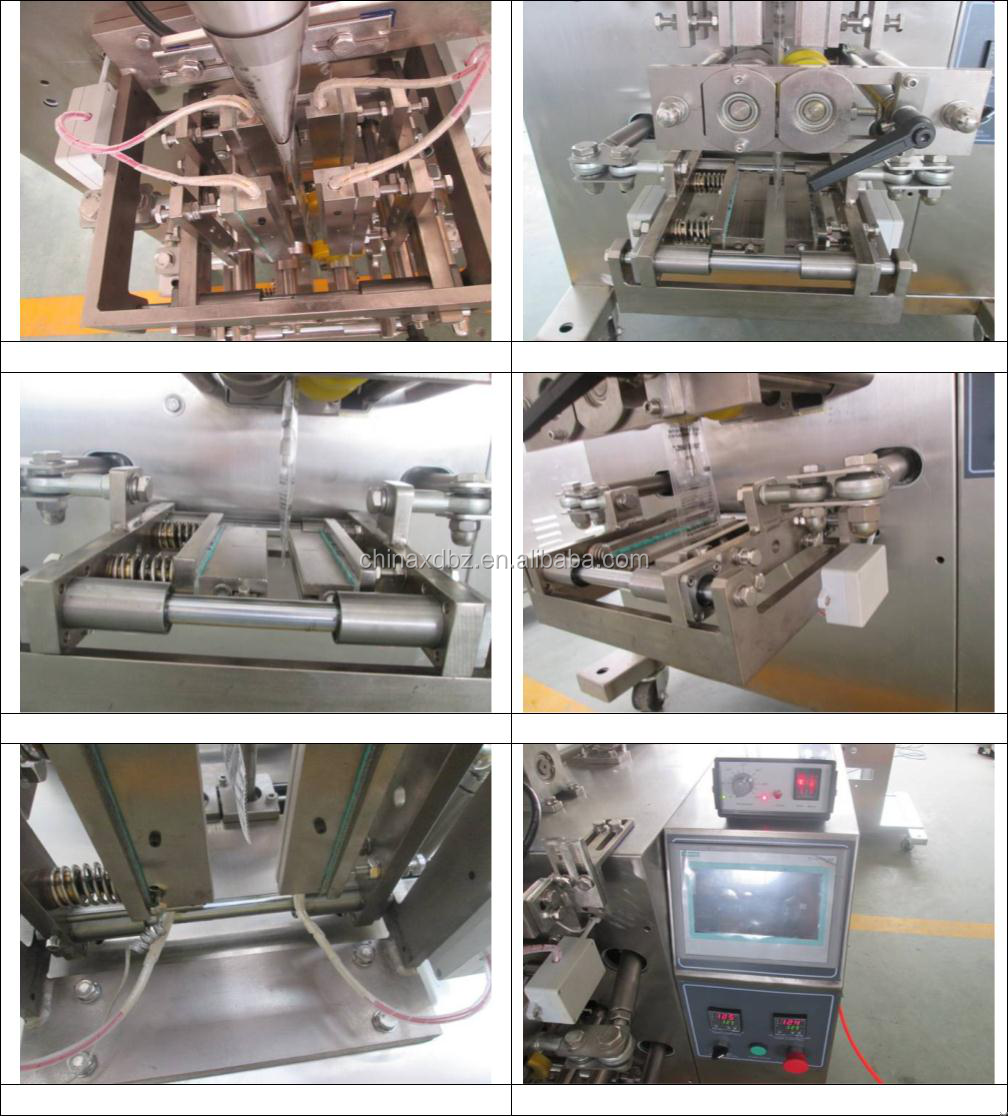

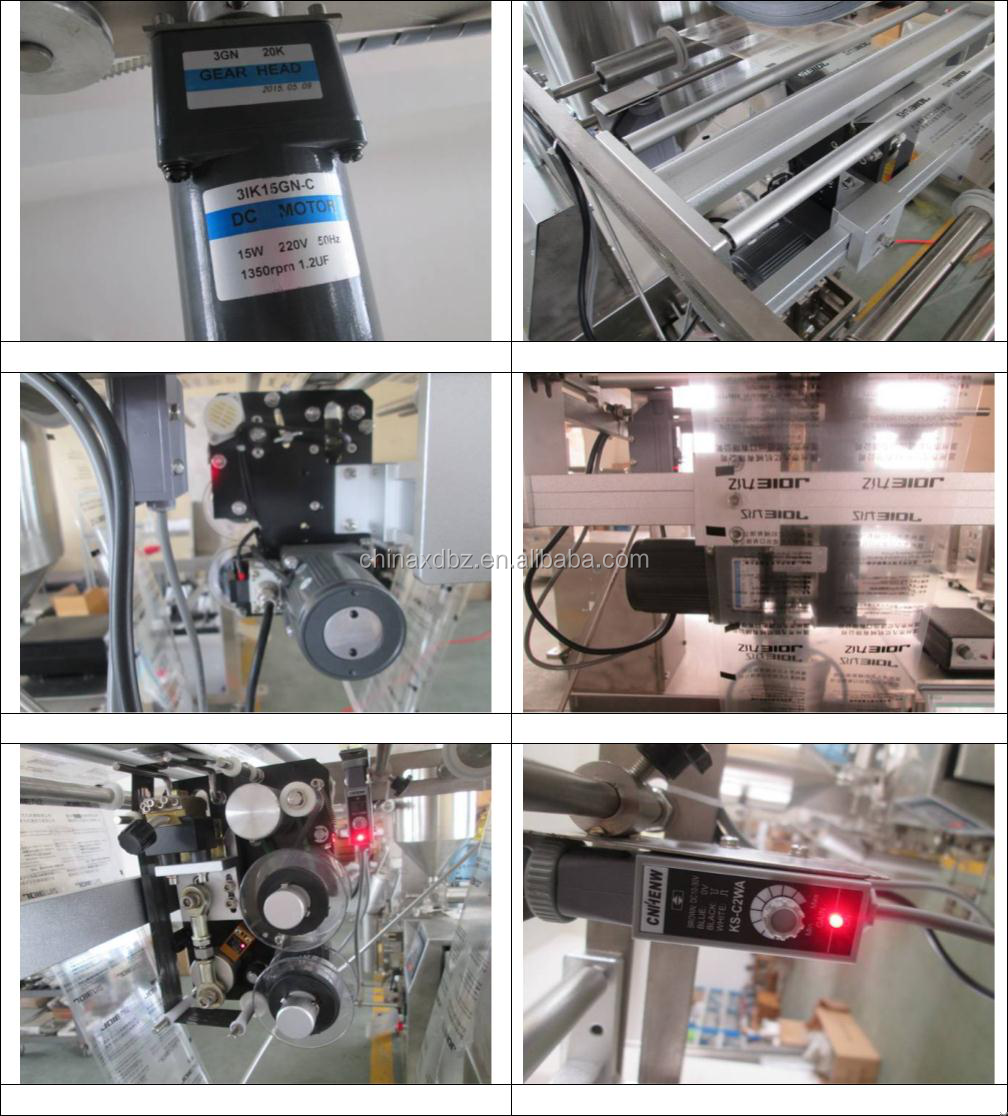

Detailed Images

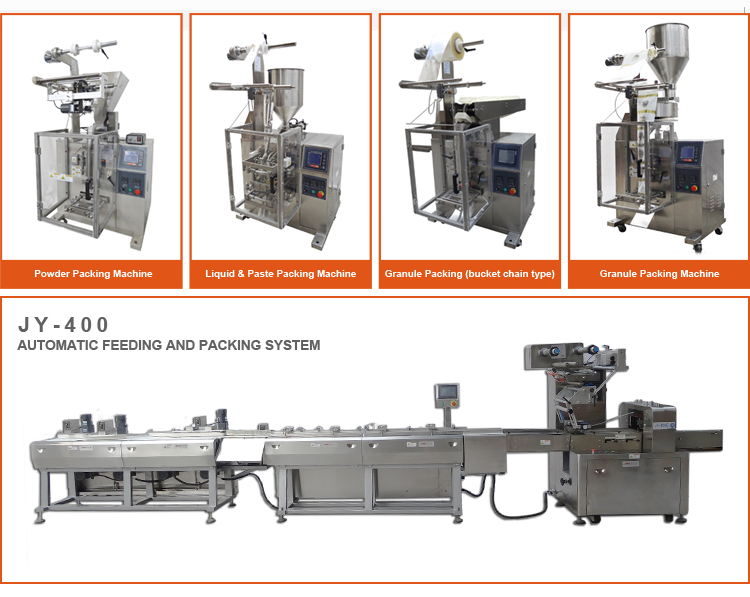

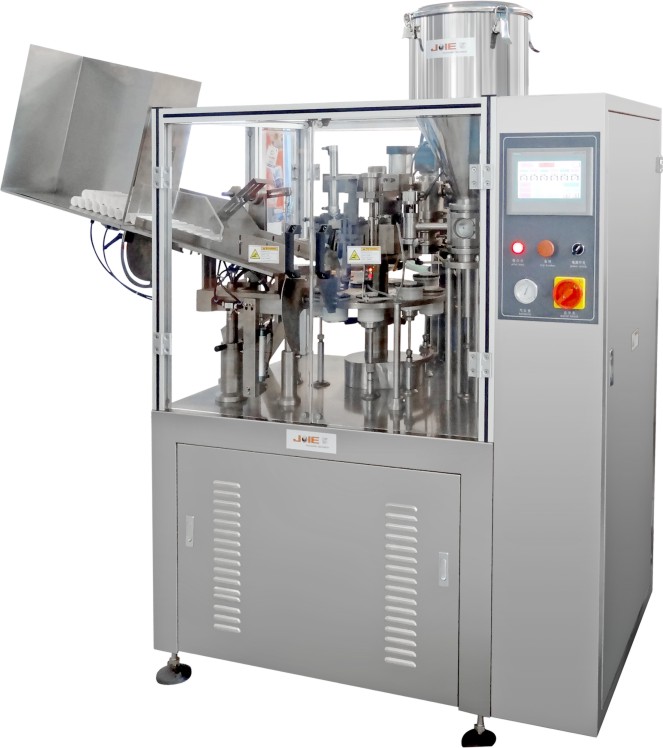

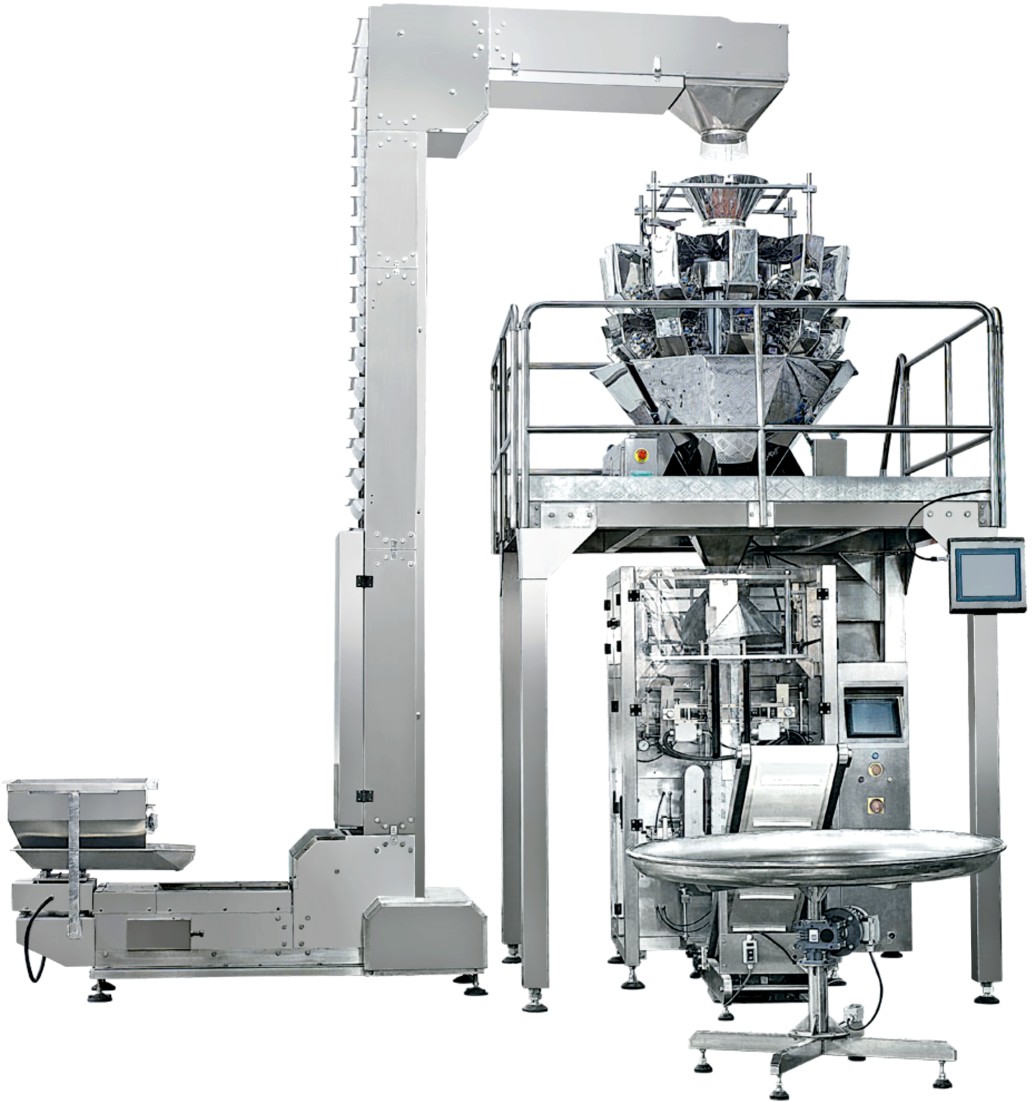

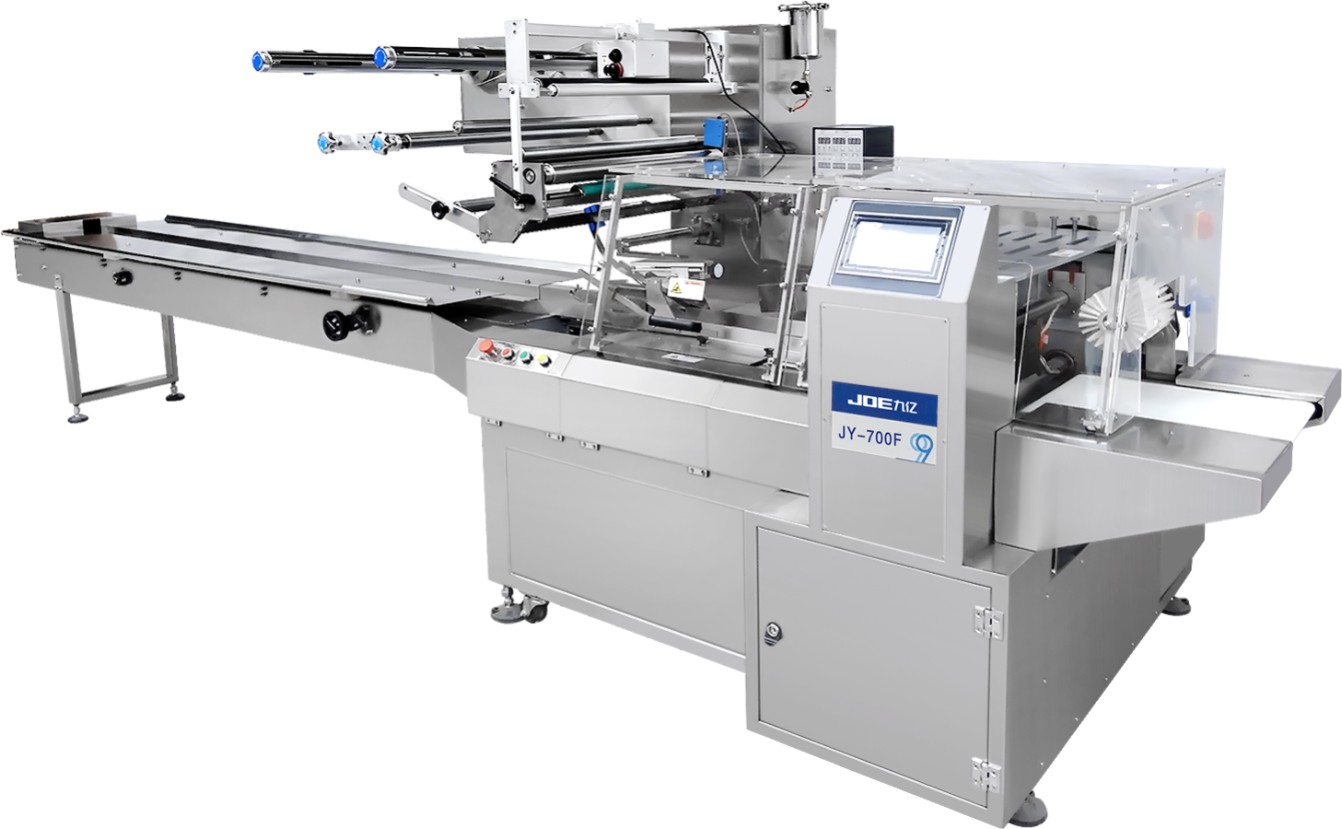

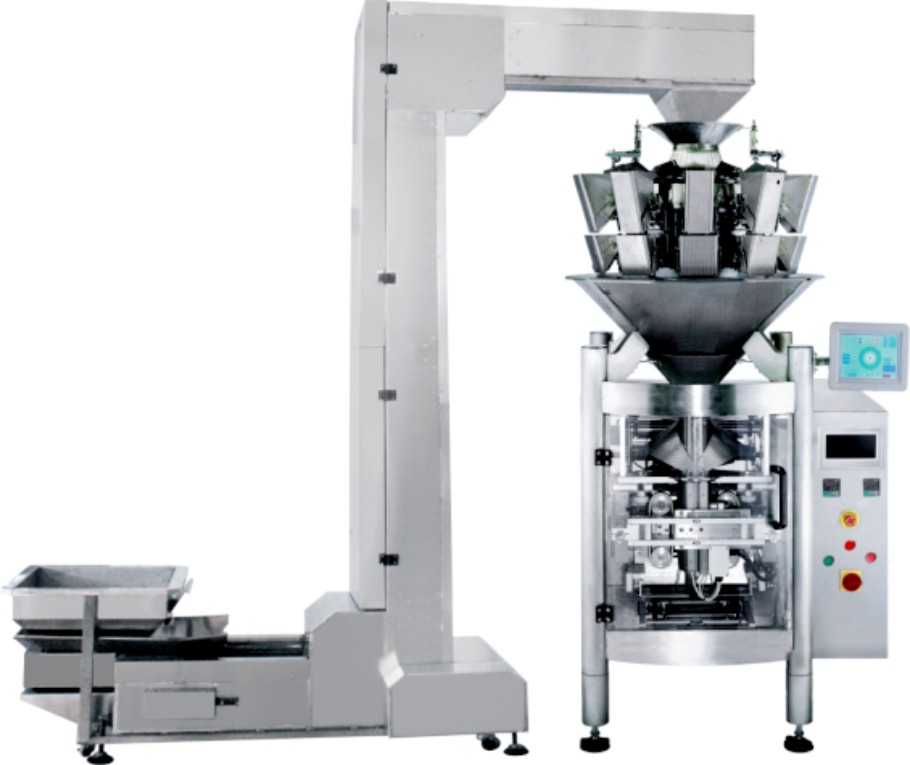

Recommend Products
Packing & Delivery

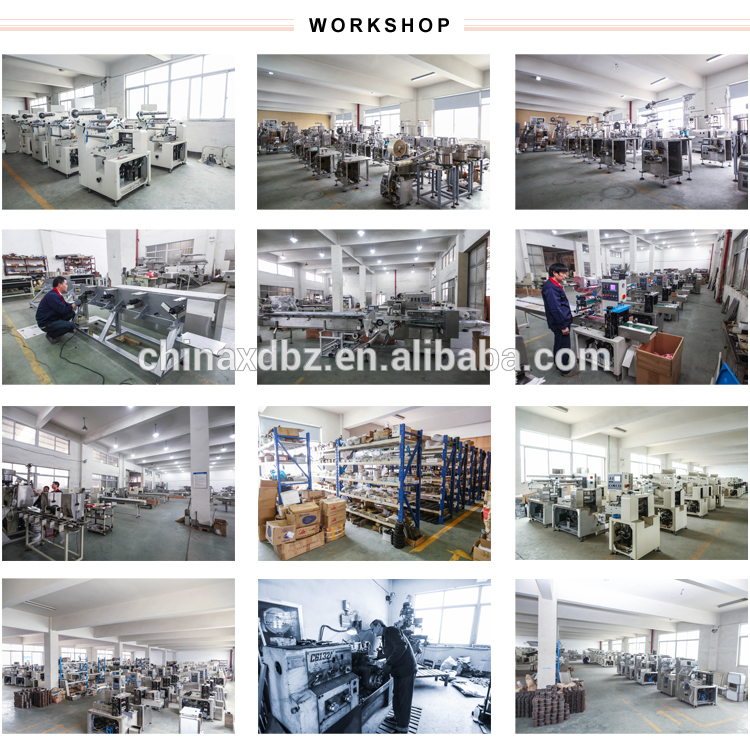

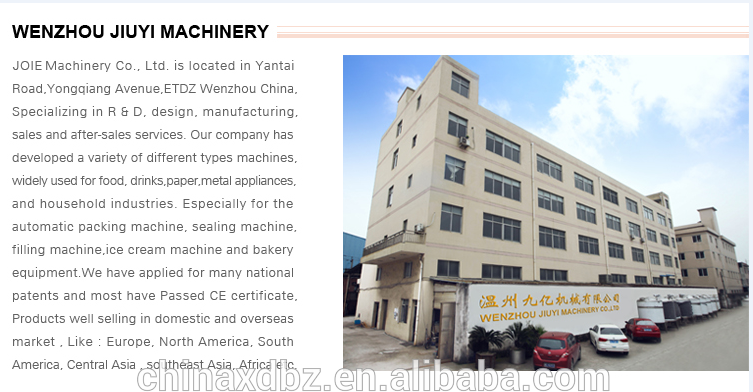

Our Company
Frequently Asked Questions (FAQ)
What types of products can this VFFS machine pack?
This vertical filling and packaging machine is highly versatile. It can handle granule products (like sugar, salt, snacks, and rice), powder products (like flour, coffee, and medicine powder), and liquid/paste products (like honey, tomato sauce, detergent, and oil).
What are the available bag sealing styles?
The machine supports multiple bag sealing options, including standard back sealing, as well as 3-side or 4-side sealing sachets to suit your specific packaging requirements.
What control systems are integrated into the machine?
Our VFFS machines are equipped with a high-performance Siemens Touch Screen and Siemens PLC control system, combined with a precise servo motor control system.
Is the packaging speed adjustable?
Yes, the packaging speed is adjustable. The standard configurations operate at a speed of 30 to 50 pieces per minute, depending on the material and filling parameters.
What materials is the packaging machine constructed from?
The machine is constructed from high-quality stainless steel 304, meeting stringent food standards and GMP requirements. It also holds a CE Certificate.
