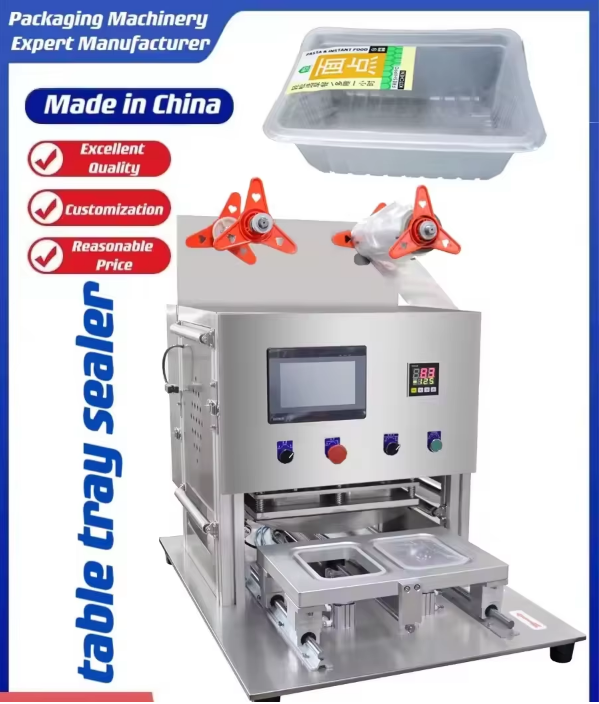

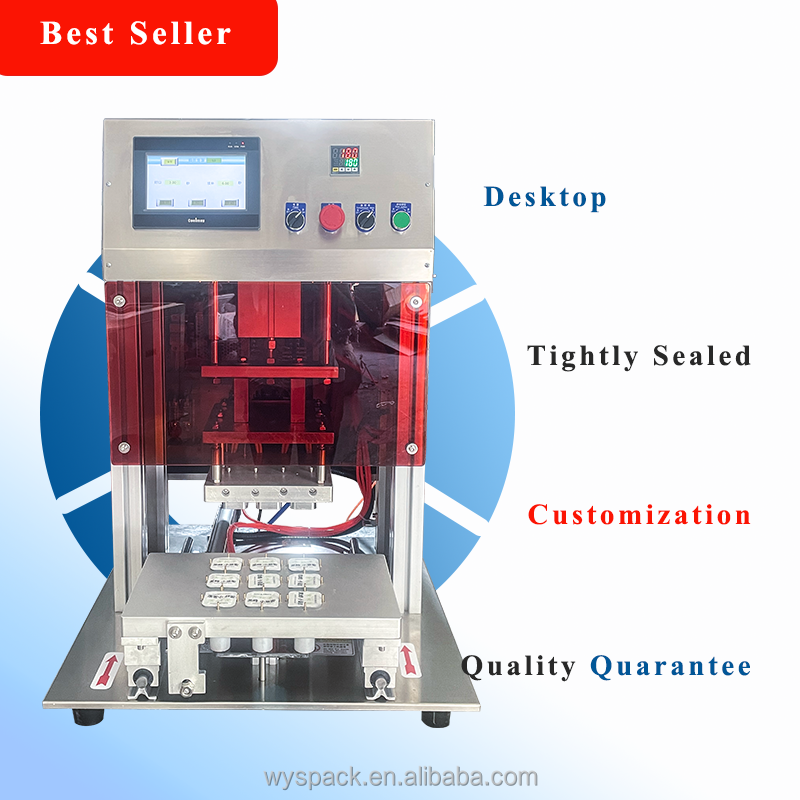

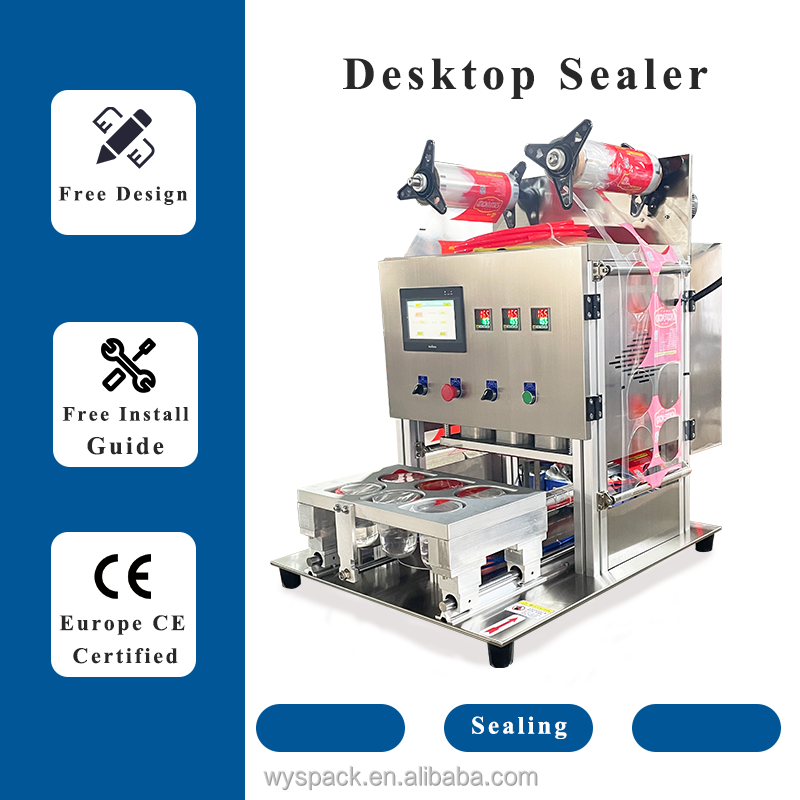

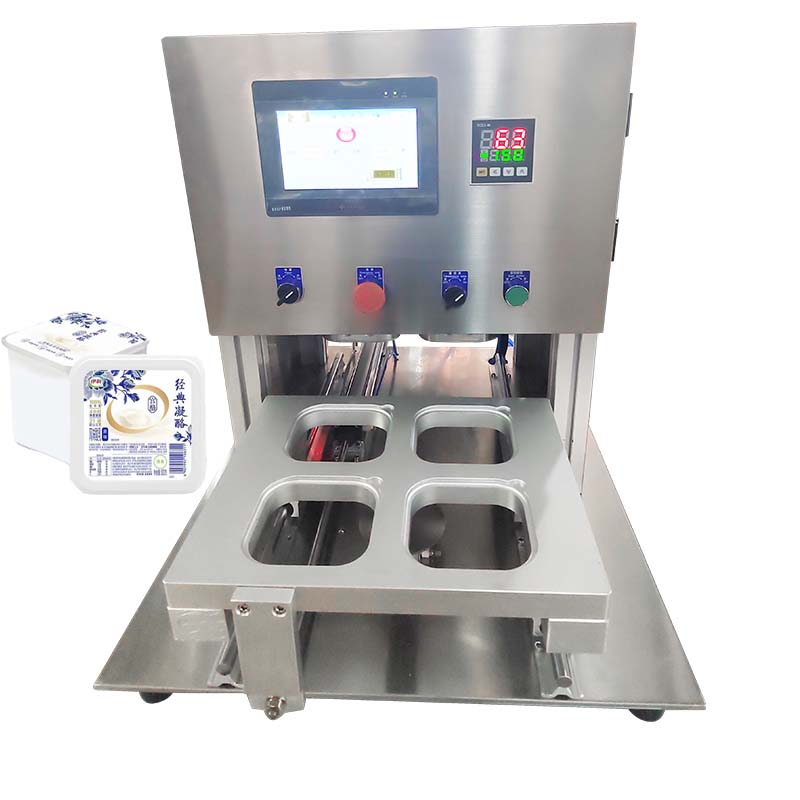

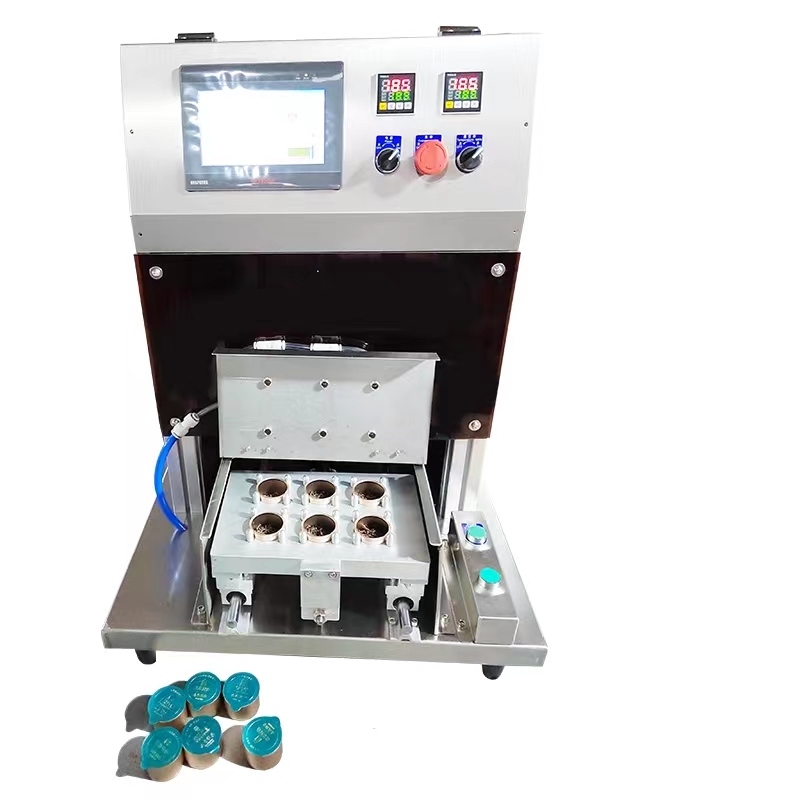

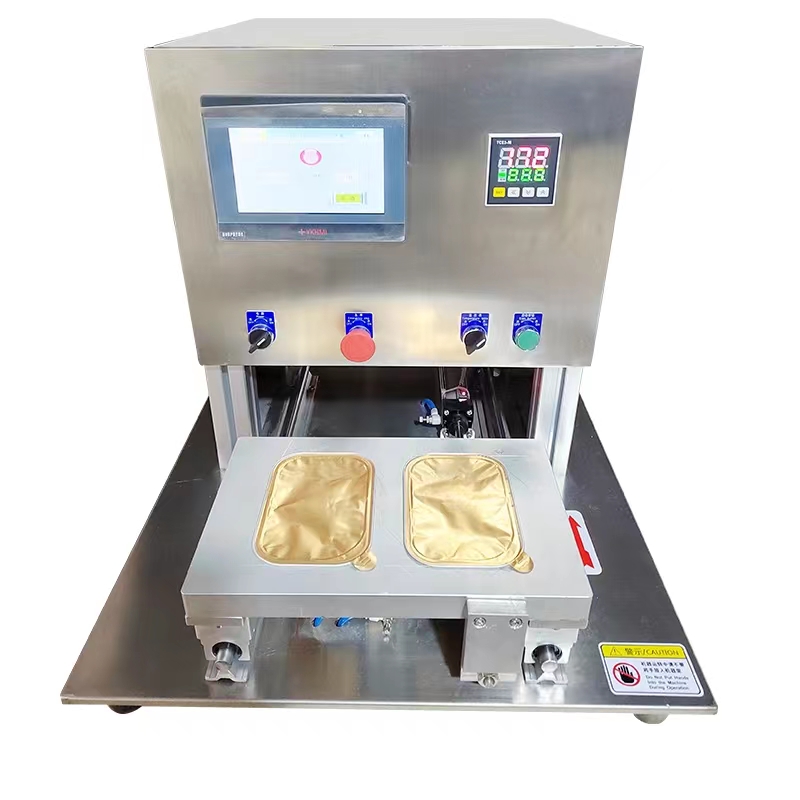

1. KS series semi-auto tray sealing machine is the perfect equipment for sealing food.
2. The machine adopts Japan's Omron PLC, intelligence digital temperature controller, Omron relay, Taiwan Airtac cylinder, etc.
3. The machine is stable and durable equipment, and takes little space.
5. The machine is with emergency stop button.
6. The machine is with 304 stainless steel cover and aluminum plate mould.
4. The machine's working process:
a
Manual feed in
b
pattern calibration photpelectric control device to ensure the patterns will be complete and beautiful.
c
Auto pick and place lid
d
Auto sealing
e
Manual take out
Technical Specifications
Product Parameter
Details
Product Name
Semi-auto Tray Sealing Machine
Material
304 stainless steel
Output
600-1800 pcs/h
Temperature range
0-300℃
Power supply
220v 50hz, 650w
Air source
0.6-0.7mpa
Air consumption
0.8m³/min
Demension
800x800x1000mm
Weight
120kgs

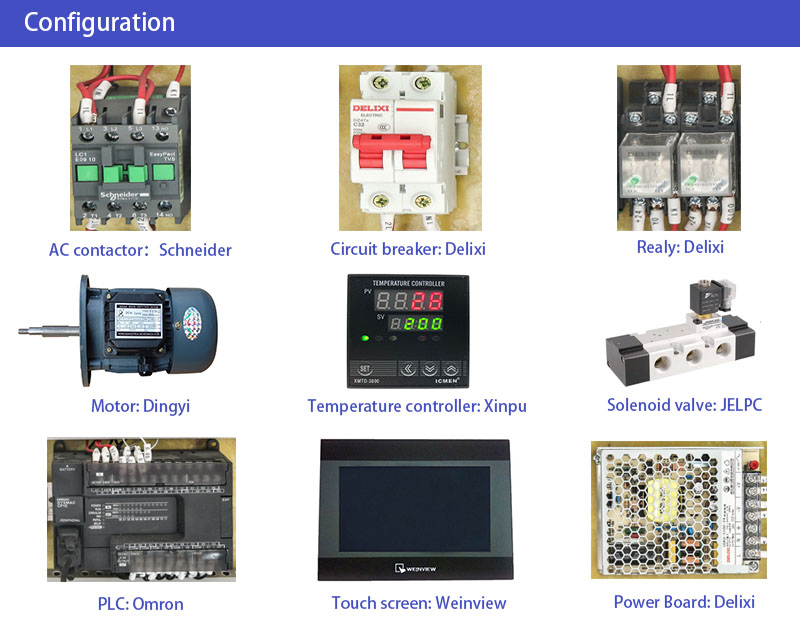

Equipment Lists
Name
Brand
PLC
OMRON
TOUCH SCREEN
WEINVIEW
Motor
Dingyi
Solenoid valve
JELPC
A.C contactor
Schneider
temperature controller
Xinpu
Relay
Delixi
Breaker
Delixi
Pneumatic element
Aix
Frequently Asked Questions (FAQ)
What are the primary applications of this semi-auto tray sealing machine?
The KS series semi-auto tray sealing machine is perfect for sealing food in square plastic and aluminum containers, commonly used by fast food outlets and small businesses.
Which major component brands are integrated into the machine?
The system features high-end components including Japan's Omron PLC and relays, a Weinview touch screen, Schneider AC contactors, and Airtac / Delixi components.
What is the production capacity and temperature limit of this equipment?
This machine outputs between 600 and 1800 pieces per hour, operating within an adjustable temperature range of 0 to 300℃ controlled by an intelligent digital regulator.
What utility and power connections are required for installation?
It requires a standard 220V 50Hz power supply with a power draw of 650W. A stable pneumatic air source of 0.6-0.7mpa and consumption of 0.8m³/min is also required.
What safety and structural features does the machine possess?
The machine is built with a durable 304 stainless steel cover and an aluminum plate mould. It is designed to take up minimal space and includes an emergency stop button for operator safety.

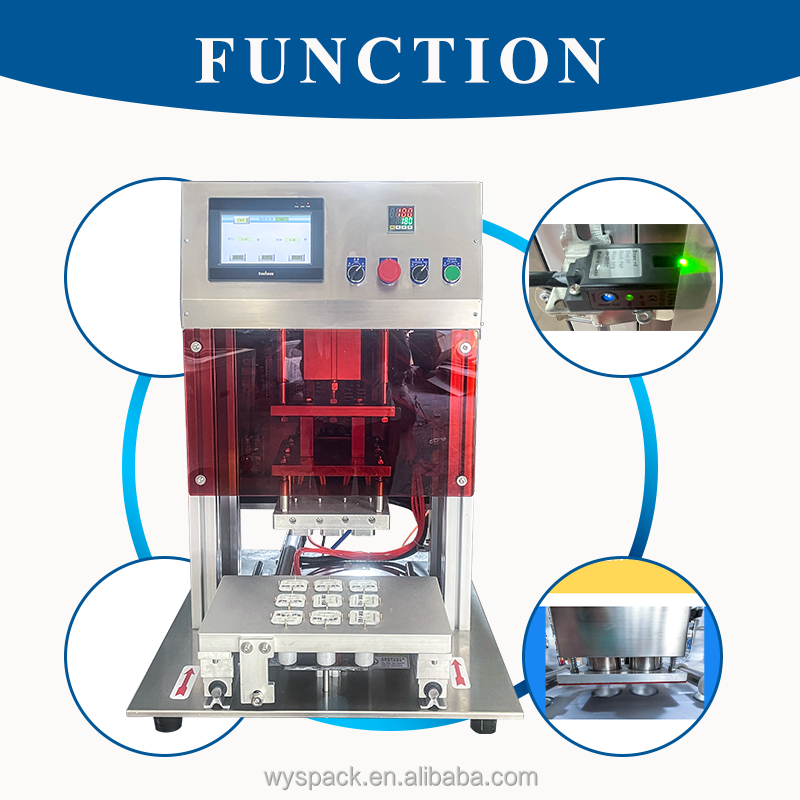

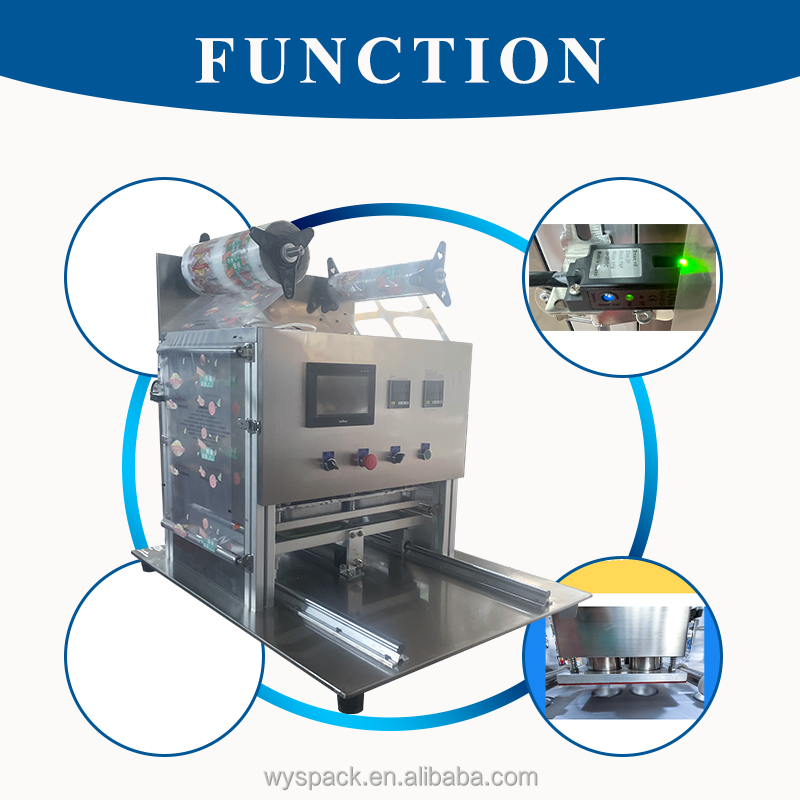

How is film pattern alignment achieved during operation?
The machine utilizes a pattern calibration photoelectric control device during the working process to ensure the film patterns are aligned properly, resulting in complete and beautiful seals.
