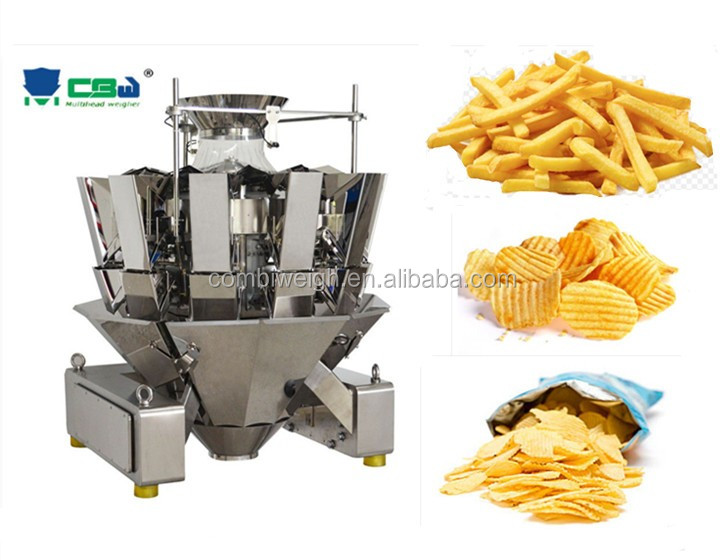

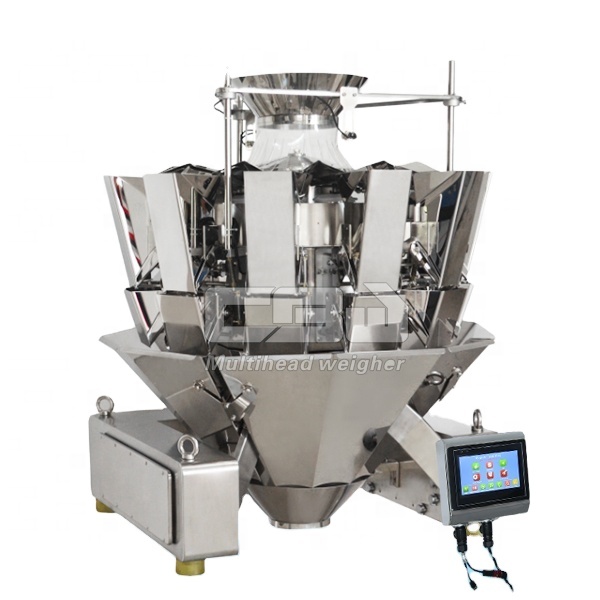

Multihead Weigher is suitable for weighing of granule, slice, roll or irregular shape materials such as candy, seed, jelly, fries, coffee granule, peanut, puffy food, biscuit, chocolate, nut, yogurt, pet food, frozen foods, etc. It is also suitable for weighing small hardware and plastic component.
| Specification Parameters | Details / Capabilities |
|---|---|
| Model | 1A14 |
| Single Weighing range | 10-2000 gr |
| Avg. Accuracy | 0.5~2 gr |
| Max.Production wpm | 120 wpm |

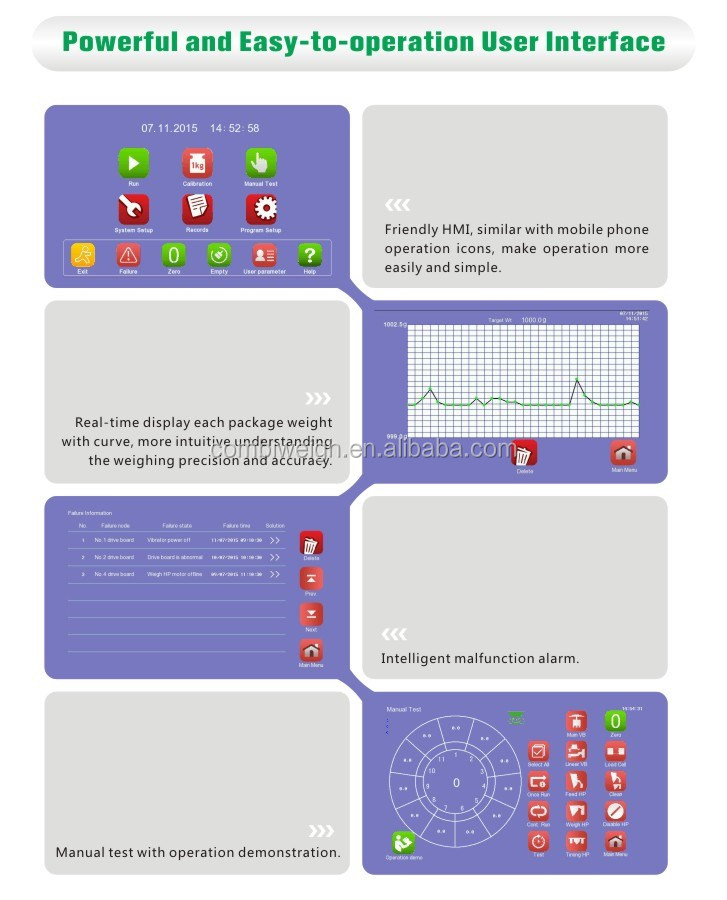

| Control panel | 7 inch color touch screen |
| Hoppers Volume | 1.6L (single door), plain plate |
| Construction material | 304 Stainless Steel |
| Driving system | Step Motor |

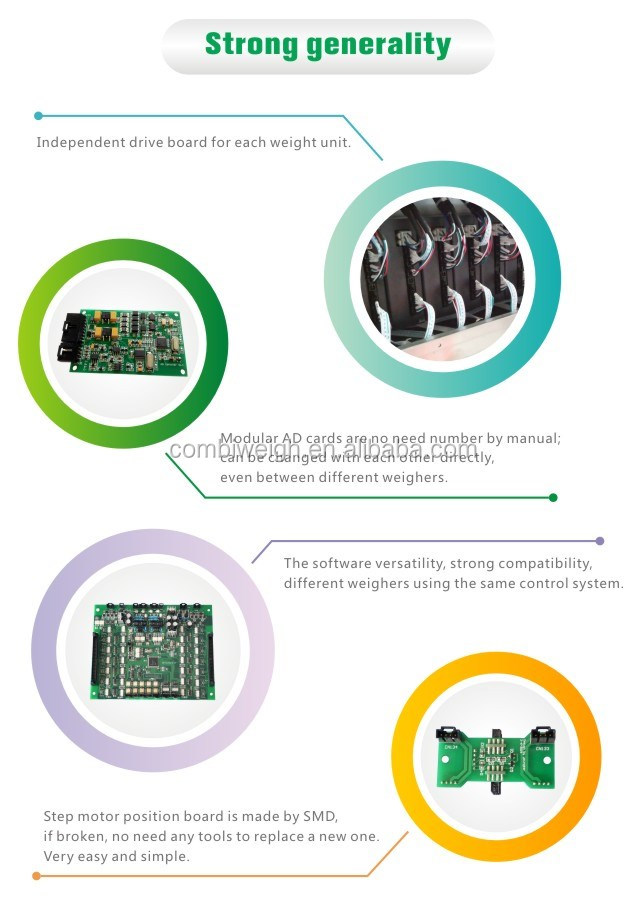

| Control system | Modular control system |
| Power requirement | AC 220V/110V ±10% 50Hz (60Hz) 1400W |

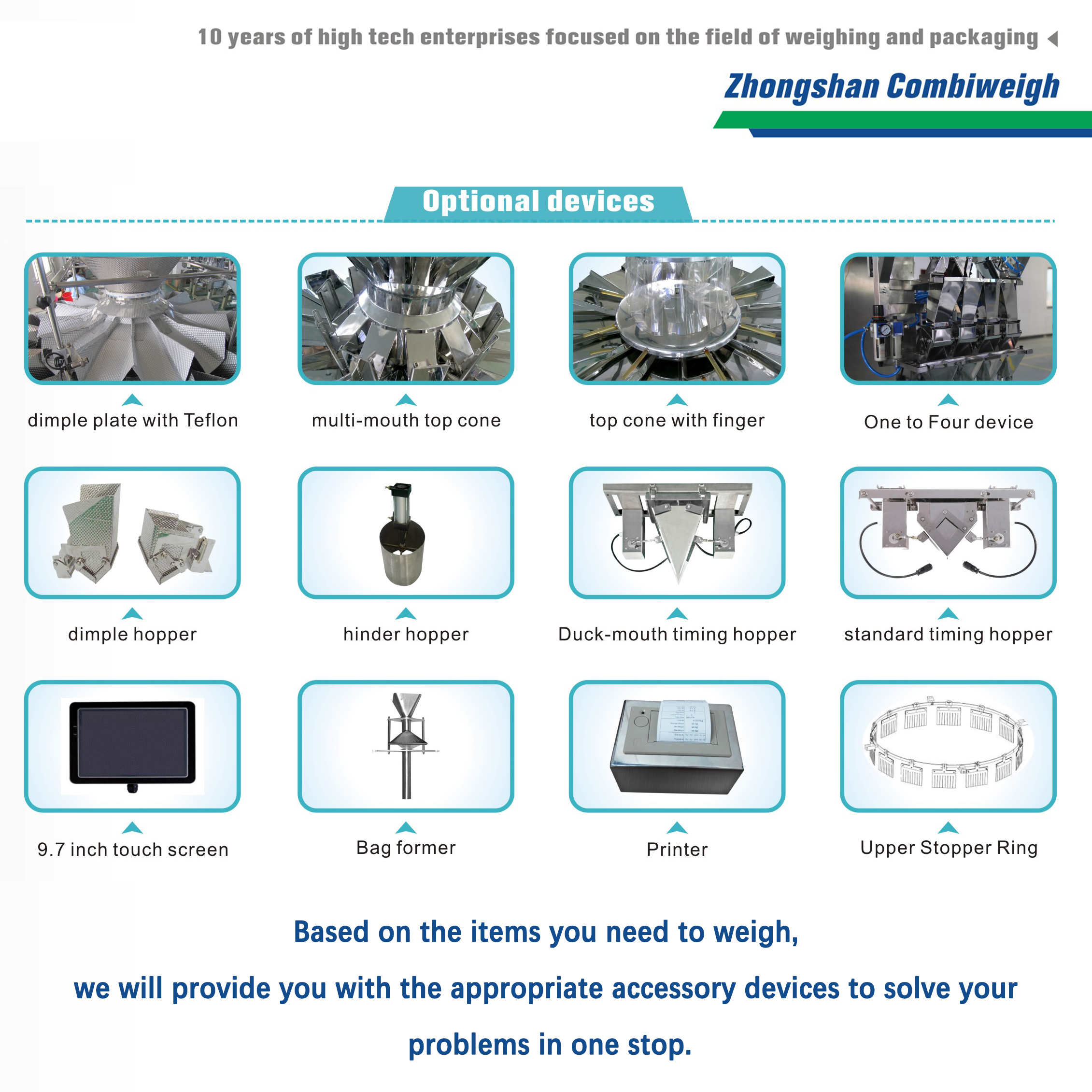

| Options | Dimple plate/timing hopper/printer/rotary top cone/multi-mouth top cone/reject device |

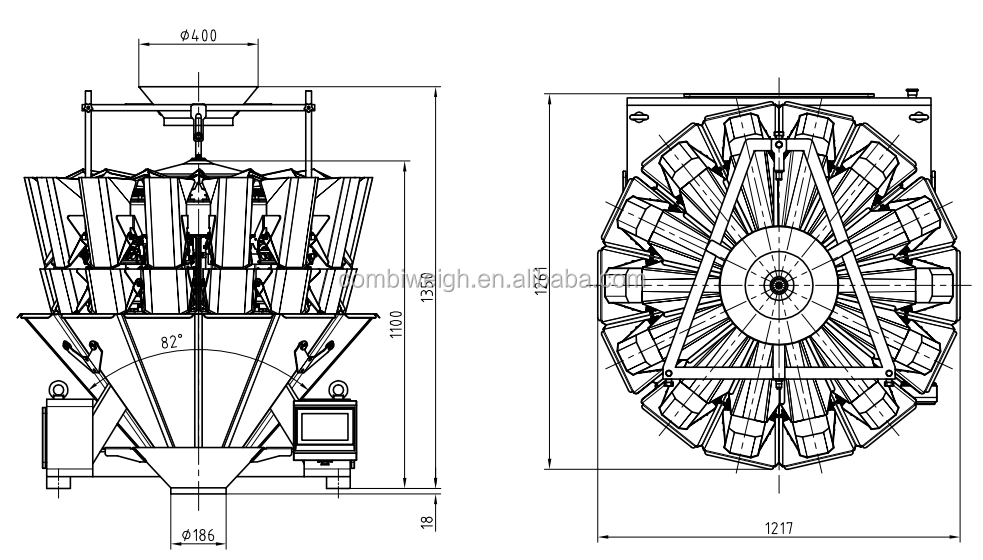

| Packaging dimension (mm) | L1720*W1100*H1130mm |
| Gross weight | 500kg |
Thanks for visiting our homepage, which is updated and improved step by step. We welcome any suggestion and feedback to us at any time.
Most of our machines are made to order, please contact and check with our sales representatives online regarding the packaging material, weight range, bag type, and size, etc.
Welcome to send us sample material, packing film, or pouches for our testing. We will feedback to you with the testing report and suitable packaging solution.
We will confirm customers' requirement clearly before giving suggestions to customers to make sure the suggestion we give matches your requirement. Then we will provide a comprehensive quotation.
After placing order to our production department, we will closely track your order and inform you of the production status. We will also supply you with updated production photos.
The multihead weigher is ideal for weighing granular, sliced, rolled, or irregular shape items like seeds, jelly, candies, frozen foods, pet foods, chips, nuts, chocolates, and even small plastic or hardware components.
The single weighing range is 10 to 2000 grams, with an average weighing accuracy of 0.5 to 2 grams depending on the product characteristics.
For sticky or challenging products, we offer dimple plate configurations, specialized V-shape/U-shape/narrow feeder trays, timing hoppers, and dual-open hopper designs.
We accept standard trade terms including FOB, EXW, and CIF. Payment terms involve a 40% advance deposit and the remaining 60% balance paid prior to shipping via T/T or L/C.
We offer comprehensive technical support, including self-diagnostic guides, online support, training programs for your technicians, and the option to utilize local service agents or send company service technicians for commissioning and training.
Within the 12-month warranty period, mechanical and electronic components can be replaced free of charge (excluding fragile parts and damage from improper use). Defective parts must be returned within one month.
