ZSG-1000G Series Full-automatic High Speed Bag Placer is an automatic empty bag feeding and filling machine, which has the advantages of superior functions, convenient maintenance, easy operation and wide application.
FBK series Automatic bag closing system of Heavy-Duty Bag can not only seal thick PE and PP bag, but also seal paper-plastic bag and aluminum-plastic composite bag with high performance and efficiency, widely used in fields of chemical raw material, pharmaceutical raw material, foodstuff, pet food, feed stuff and grocery etc.

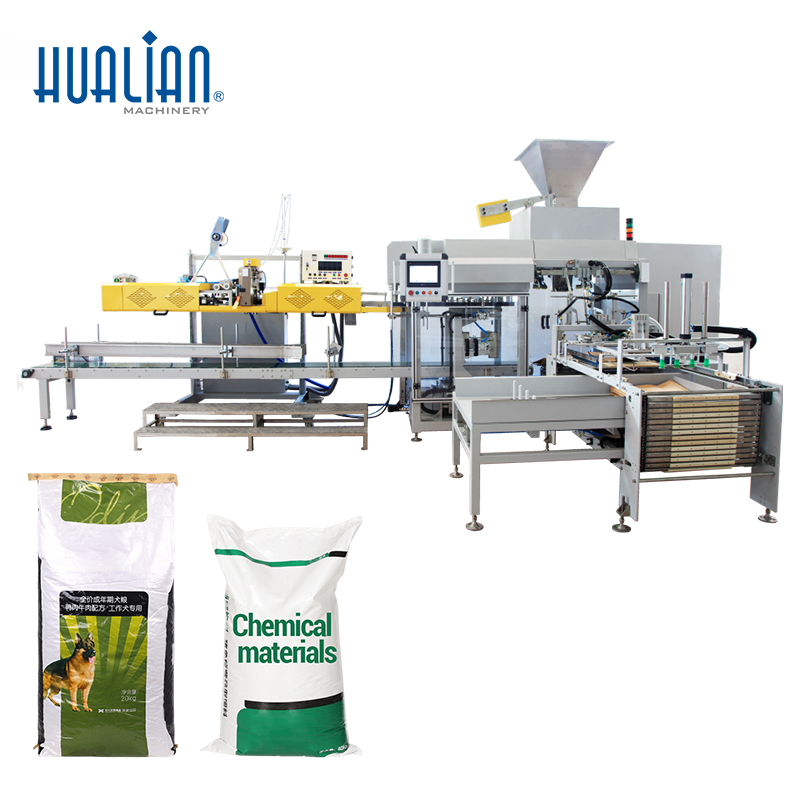

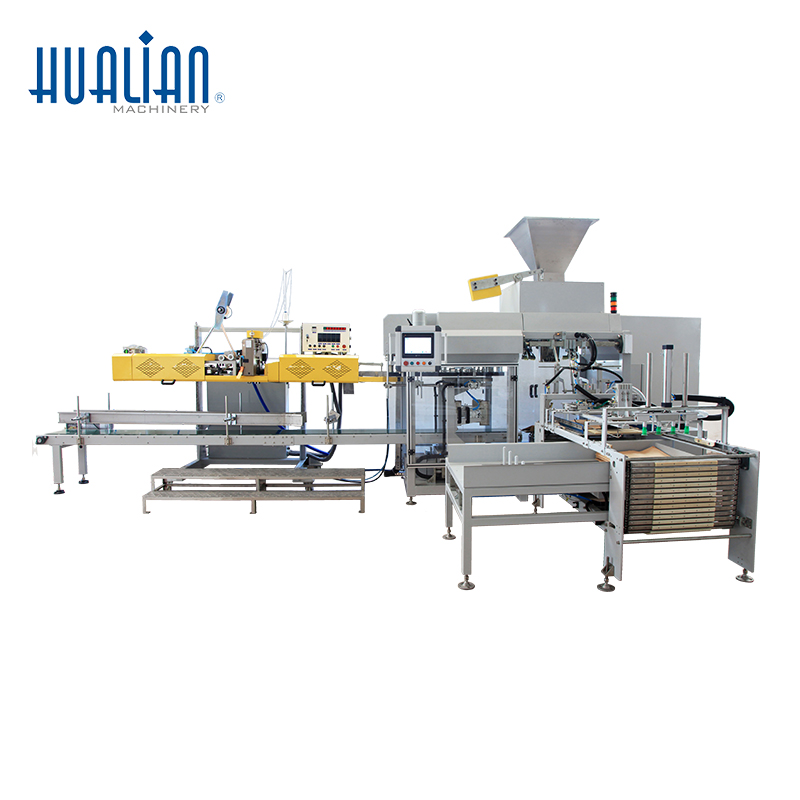

ZSG-1000A high speed bag placer is high efficient fully auto empty bag supplying for filling machines. And differs with ZSG-300B series, ZSG-600DS series: it is higher efficiency, accurate in bag supplying. The capacity is 800-1000 bags/h. There are four servo motors for ZSG-1000A auto bag taking machine, which are for bag taking, opening, hopper lifting and bag feeding, controlled by these motors, all the process is accurate and high efficiency. The whole machine is PLC controlled to fulfill bag feeding, taking and filling processes.
After placing the bag in the bag storage platform, start the machine, the bag taking mechanism would abstract the bag, the taking action is fulfilled by the bag is swinged 90 degree. Then, the process would be bag opening, sleeving and filling, in the end, the bag would be sent to the conveyor, and the bag mouth.

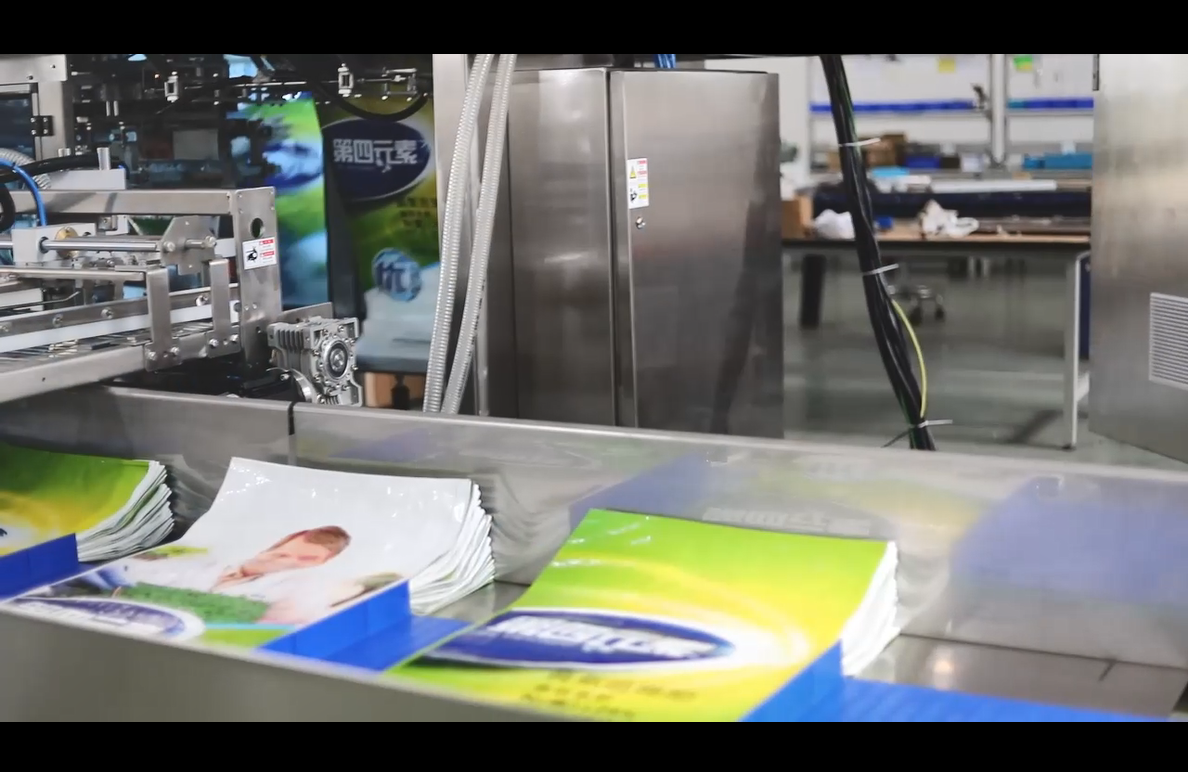

After placing bags on the bag storage platform and starting the machine.

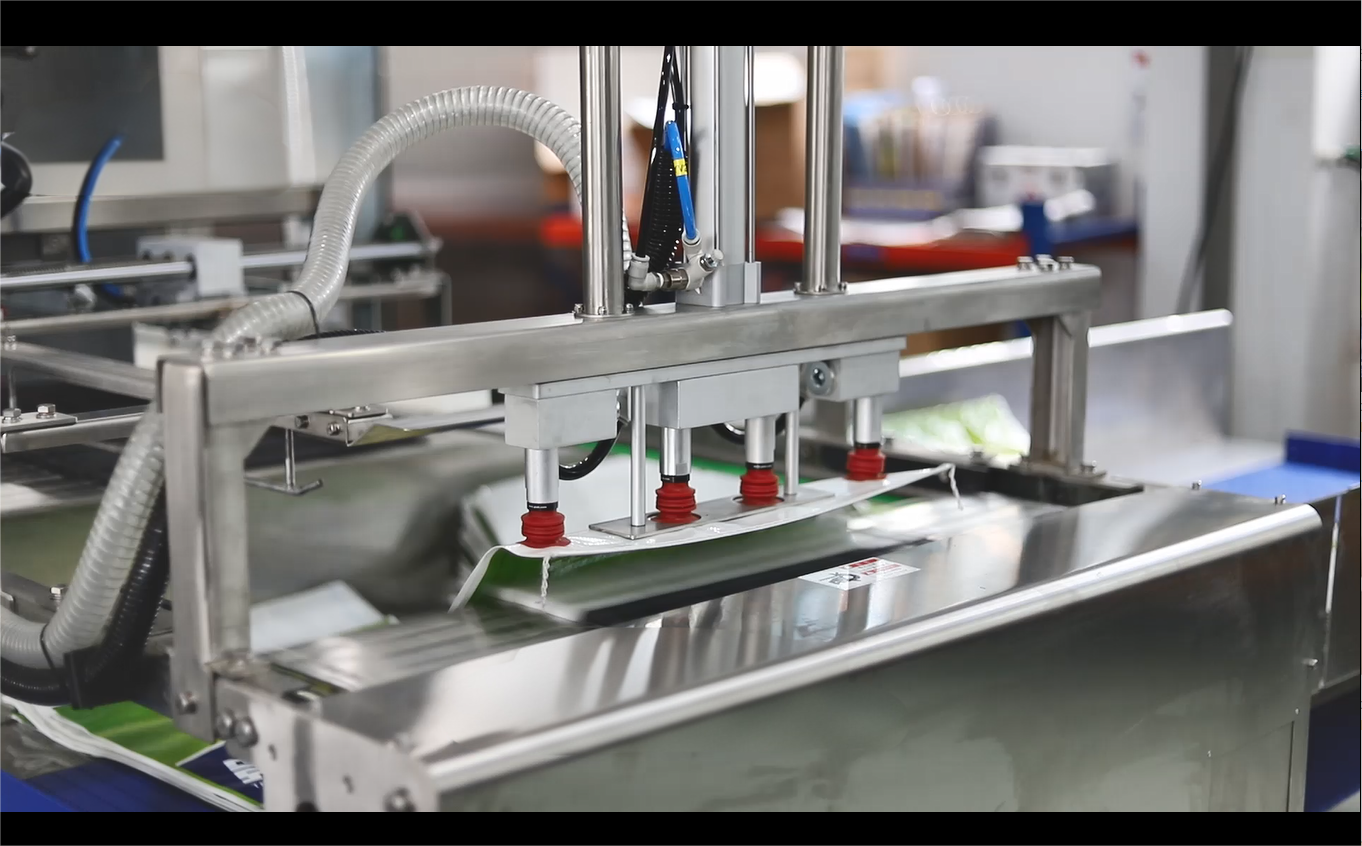

The push rod pushes the bags from bag supplying unit to the bag working unit, then the bag separating mechanism separates the bags individually and feed the bag to bag taking position by bag feeding mechanism.

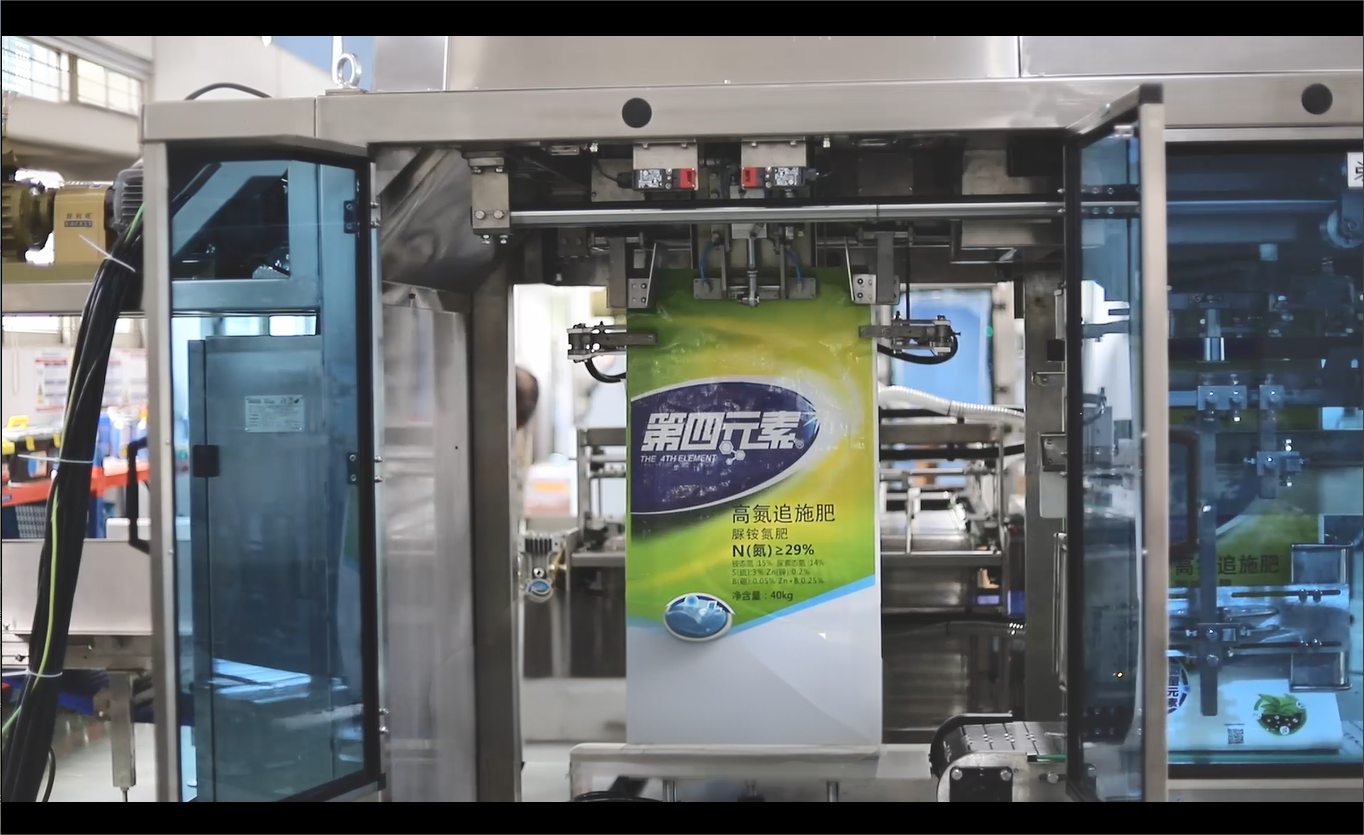

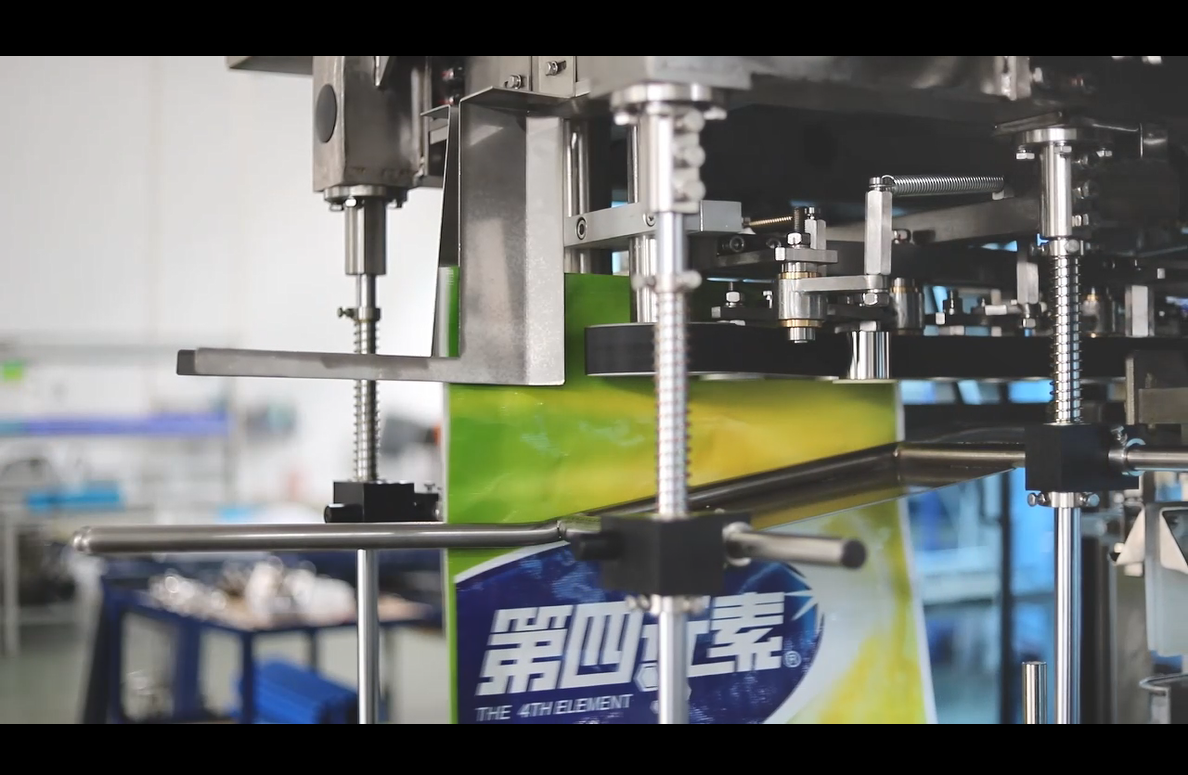

The bag taking coordinates with the bag opening mechanism and bagging mechanism to make the bag ready for filing. Meanwhile, the automatic electronic scale weigh the materials and fills inside the bag by lower hopper, the bag vibrating mechanism vibrates to make the materials tight.
After the filing process, the bag is moved out to conveyors with air exhausted by clamping mechanism, and sealed by automatic Nedge-binding stitching packaging machine or other automatic packaging machines for sealing.
| ZSG-1000G Specification Parameters | |
|---|---|
| Model | ZSG-1000G |
| Voltage (V/Hz) | (3 Phases) AC380/50 |
| Capacity (bag/h) | 800-1000 |
| Overall power (KW) | 13 |
| Air supply pressure (Mpa) | 0.4-0.6 |
| Air extracting speed (m³/h) | 22.5 |
| Weight to fill (kg) | 20-50 |
| FBK-332C Specification Parameters | |
|---|---|
| Model | FBK-332C |
| Voltage(V/Hz) | AC 380/50 |
| Gross Power (KW) | 6.5 |
| Transmission Power (KW) | 0.75 |
| Motor Power of Sewing Machine (KW) | 0.37 |
| Heating Power (KW) | 0.5×10 |
| Deduster Power (KW) | - |
| Sealing Speed(m/min) | 8.5 (Customized upper limit 11) |
| Height From Sealing Center to the Floor(mm) | 750-1450 |
| The minimum distance between the top of bag (mm) | 180 |
| Temperature Range(℃) | 0-400 |
| Air Source Pressure(Mpa) | 0.6 |
| Paper tape | o |
| Deduster | × |
| Application | Multi-layer paper bag, paper-PE compound bag, 2 in 1 or 3 in 1 bag, AL-PE inner liner bag or PE bag, etc. |
| External Dimension (L×W×H)(mm) | 3030×950×1800 |
| Net Weight (kg) | 600 |
