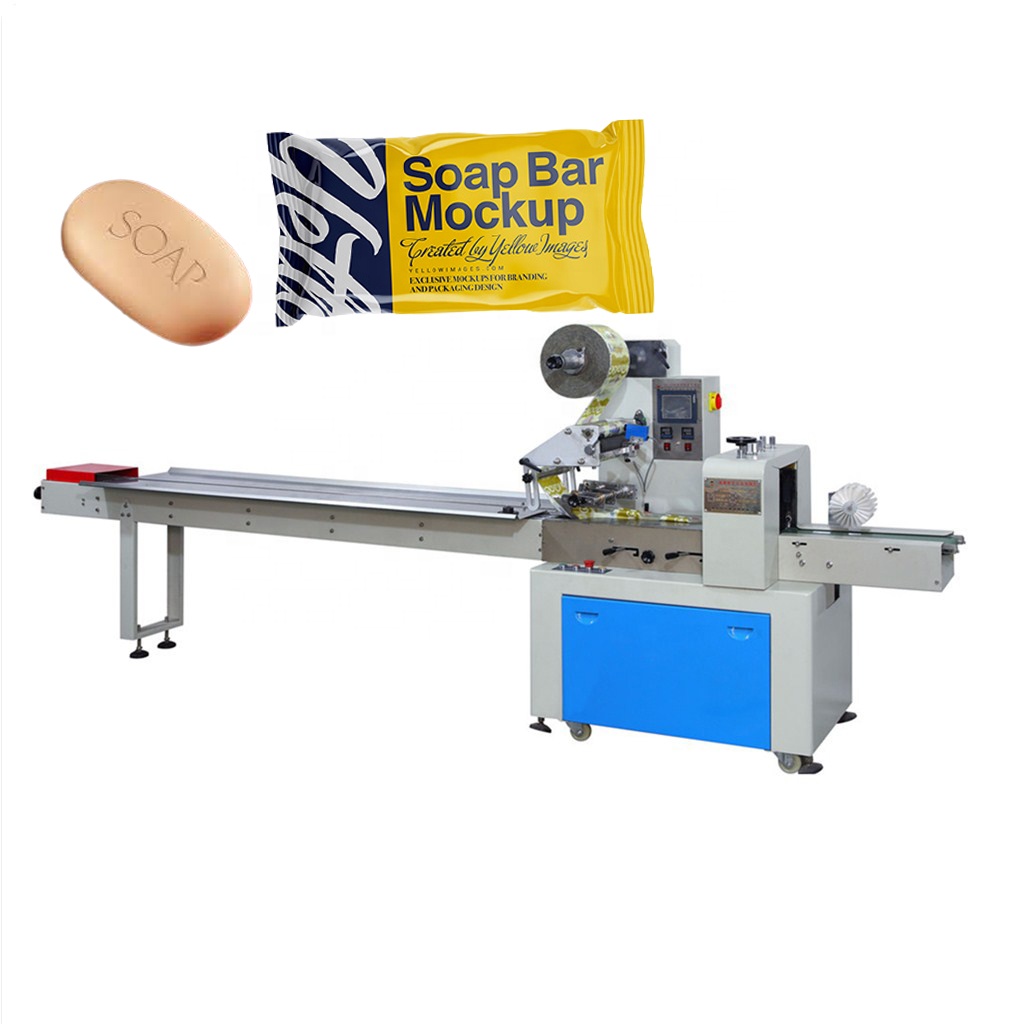

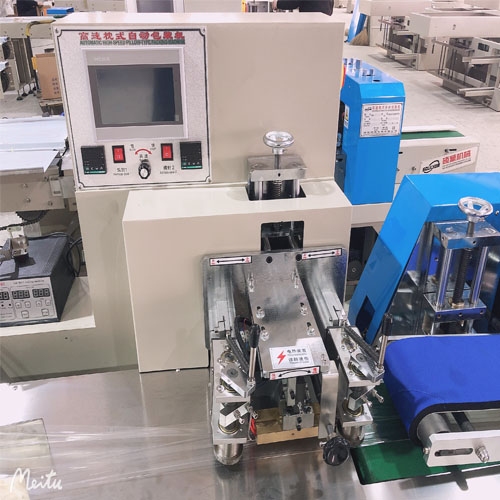

Horizontal Multi-function Automatic Pillow Flow Film Pouch Paper Facial Lundry Hotel Toilet Small Scale Soap Bar Wrapping

Specification

Model	KD-260	KD-350	KD-450	KD-590	KD-720
Max Film Width	260mm	350mm	450mm	590mm	720mm
Product Length	40-330mm	40-400mm	40-450mm	40-500mm	40-600mm
Product Width	30-110mm	40-160mm	50-215mm	60-280mm	60-320mm
Product Height	50mm	80mm	80mm	120mm	150mm
Intensity of Seal	>15N/mm²
Packing Speed	40-250 packages/minute
Packing Material	BOPP/PE, CPP/PE, CPP/PA, BOPP, CPP Anti-Fog Film, OPP Film, Color Film, and so on.
Thickness of Film	0.03-0.06mm
Power	2.4KW 220V	2.4KW 220V	2.4KW 220V	2.8KW 220V	3.6KW 220V
Overall Dimension (mm)	4100x950x1500	4100x1000x1500	4100x1050x1500	5100x1050x1700	5100x1300x1700
Weight	550KGS	600KGS	680KGS	800KGS	1000KGS

Main Features

⚙ 3 Servo Motor control, flexible bag length cutting. Save time and film.

⚙ 7 inch touch screen, easy operation and multiple language for choice.

⚙ Smart PLC system, machine performance is stable, convenient for change parameter.

⚙ Self diagnosis failure function, machine error can be clearly displayed in the touch screen.

⚙ Separate PID temperature controller, suitable for various packing materials.

⚙ High sensitivity optical photocell for eye mark tracking, digital input for cutting position.

⚙ Position stop function, no adhesive and no waste of membrane and protect cutter.

⚙ Simple driving system, stable performance and convenient maintenance.

⚙ According to different product, the input conveyor can use pusher, belt or film for transportation.

⚙ High sensitive sensor to track the color mark, so the position of sealing and cutting will be more accuracy.

⚙ Automatic Detect the products, if no product feeding into the film, the machine will stop, no empty bag and no cutting the products.

⚙ No limit for product length.

Product Description

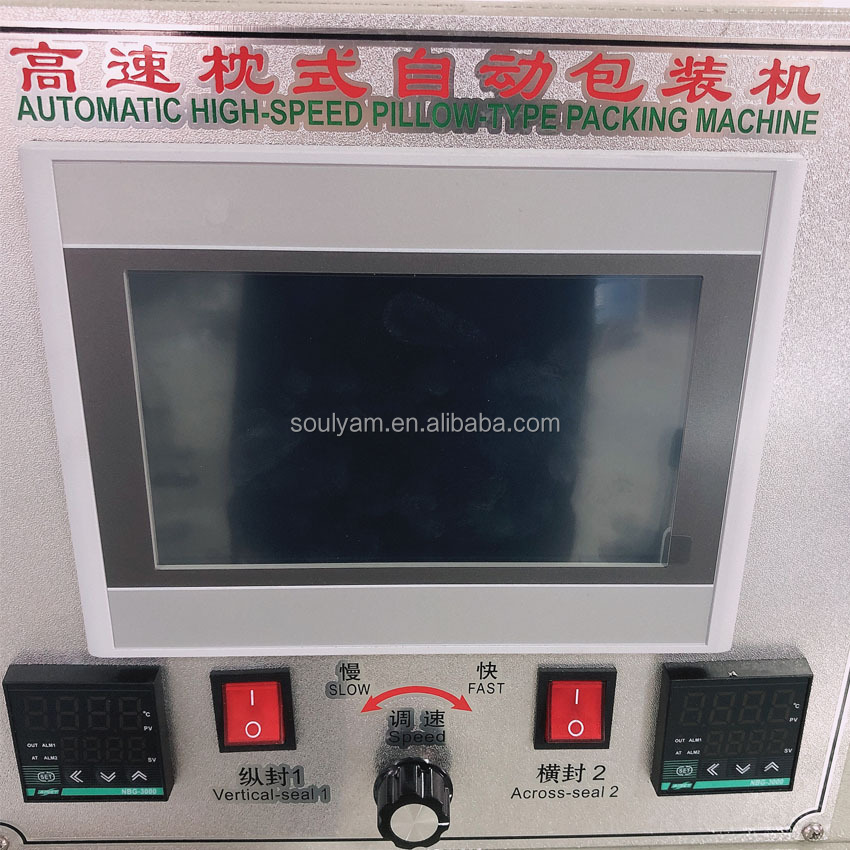

Touch Screen

Easy Control Touch Screen, it can be set up the relevant language according to customer's requirement. Simple page, easy operation, automatic fault diagnosis function, so the fault can be seen and understood more clearly, easier to maintenance. Memory function, save debugging time for packing different products and save the packing film.

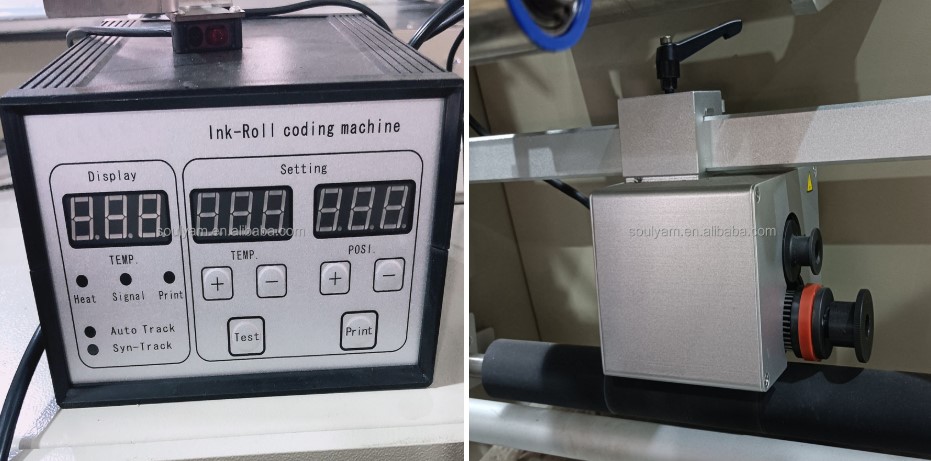

Ink Wheel Printer

It can printing production date and batch number.

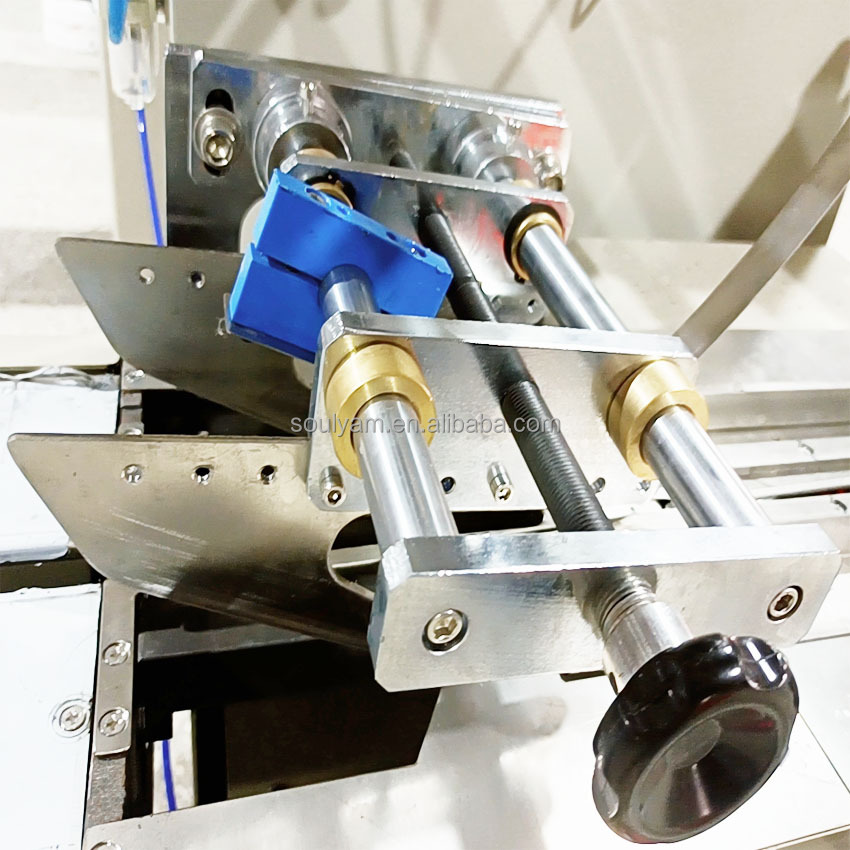

Bag Former

Adjustable bag former suitable for packing different width of products.

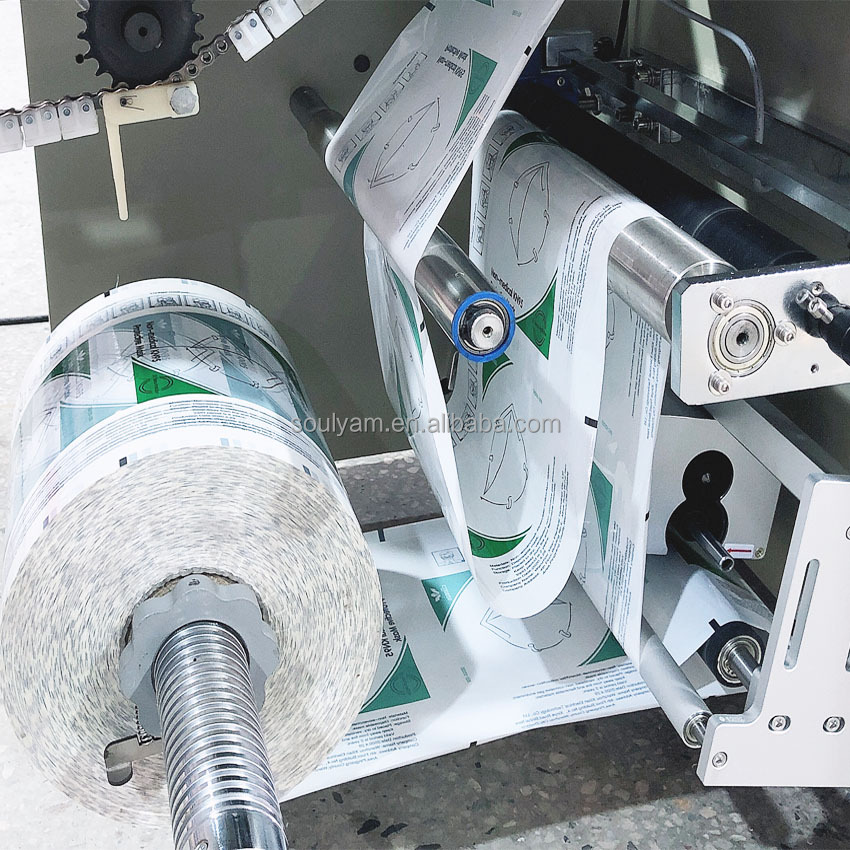

Strong Film Roll Holder

It make sure the film feeding in steady, max diameter of film roll can be 35-45cm.

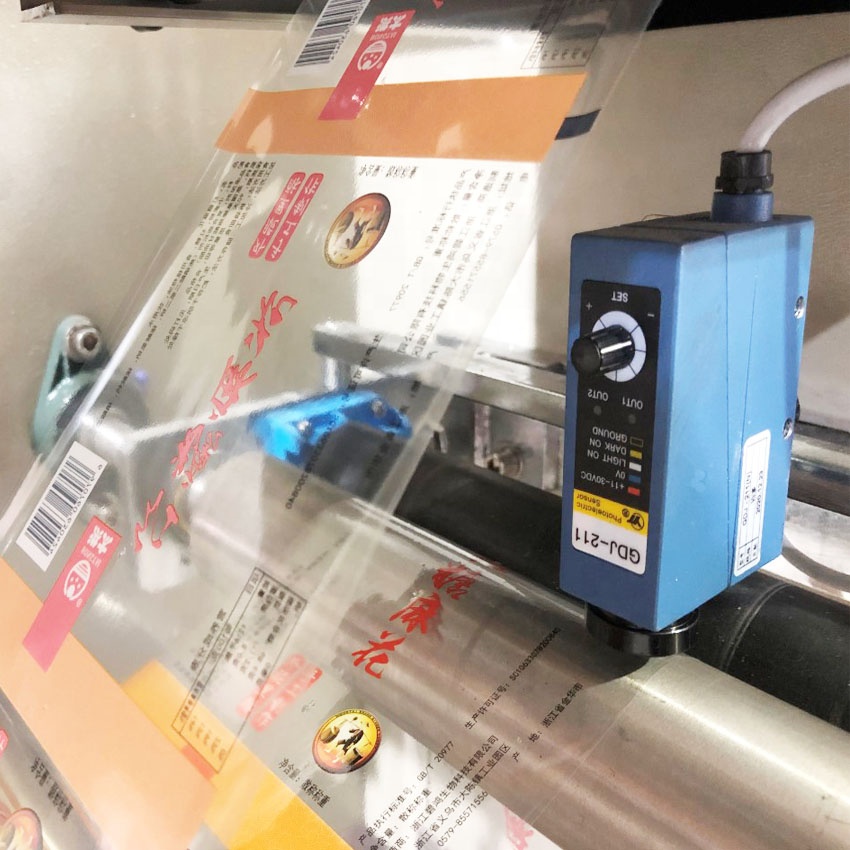

Cursor Position Sensor

Cursor position Sensor Make sure bag forming more accurate.

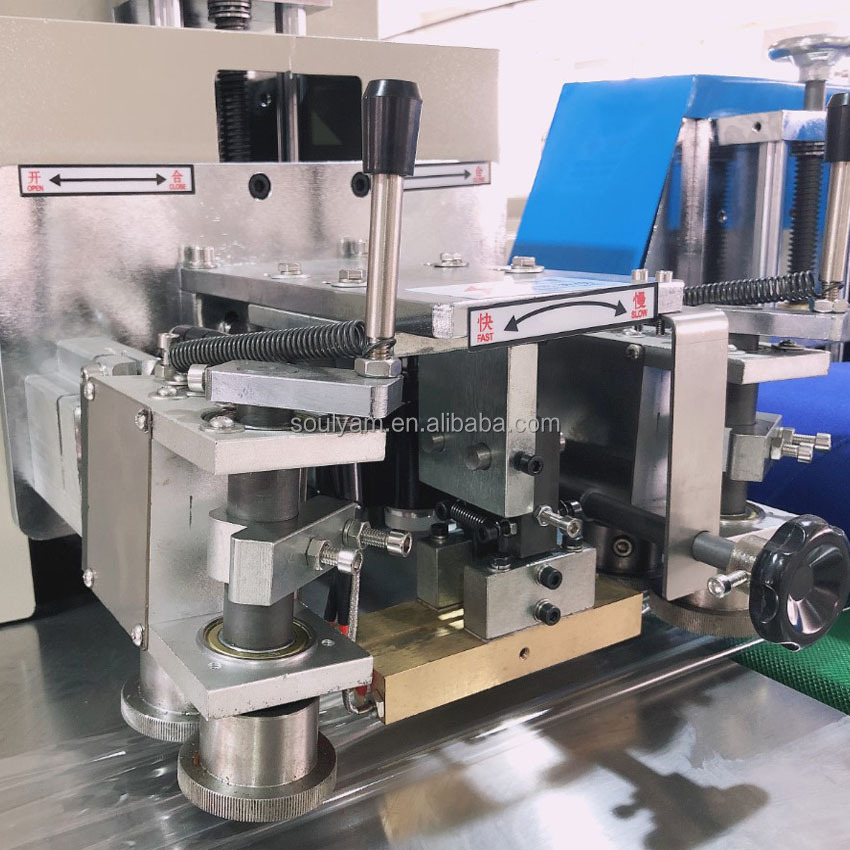

Verticle Back Sealing

Separate PID temperature controller, good sealing performance, suitable for various packing materials.

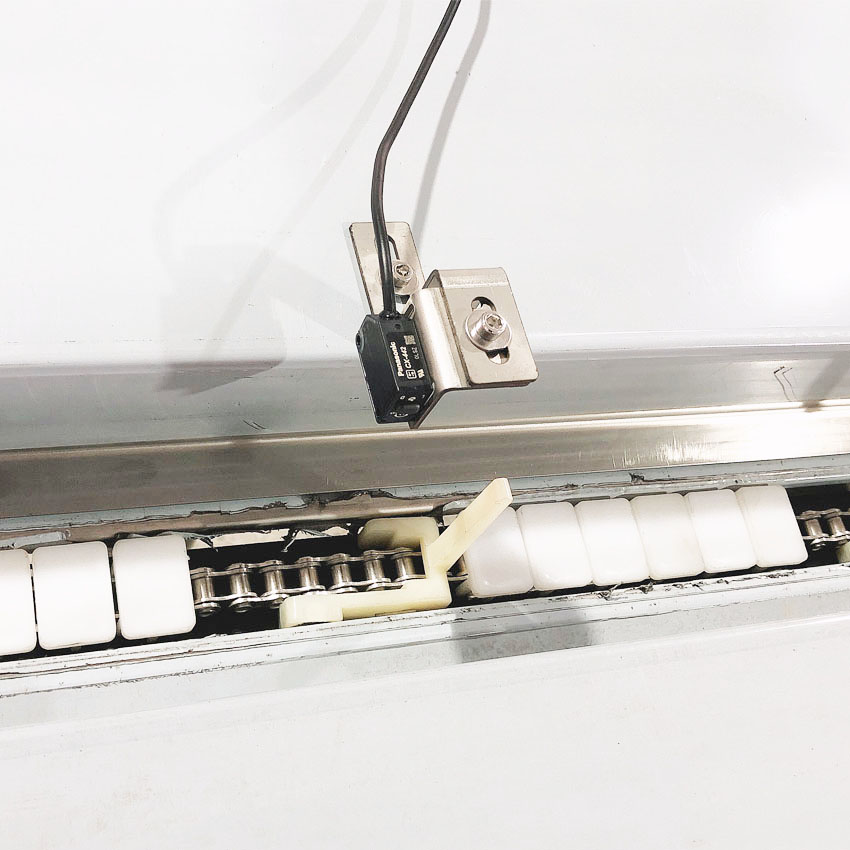

Anti Empty Bag Sensor

Sensor: Prevent Empty Bag Forming: No product feeding no bag forming. Save the packing films and production cost.

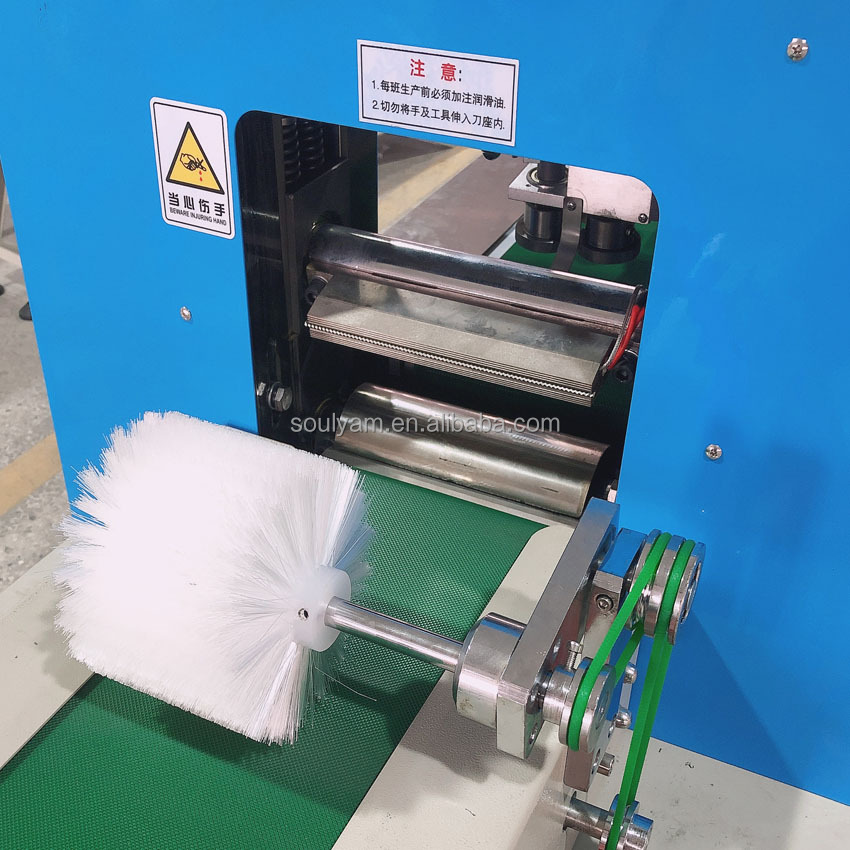

Horizontal Sealing Blade

Single/double/triple blade can be optional, Prevent cutting product, the Blade will reversing rotation and stop once its cutting the product.

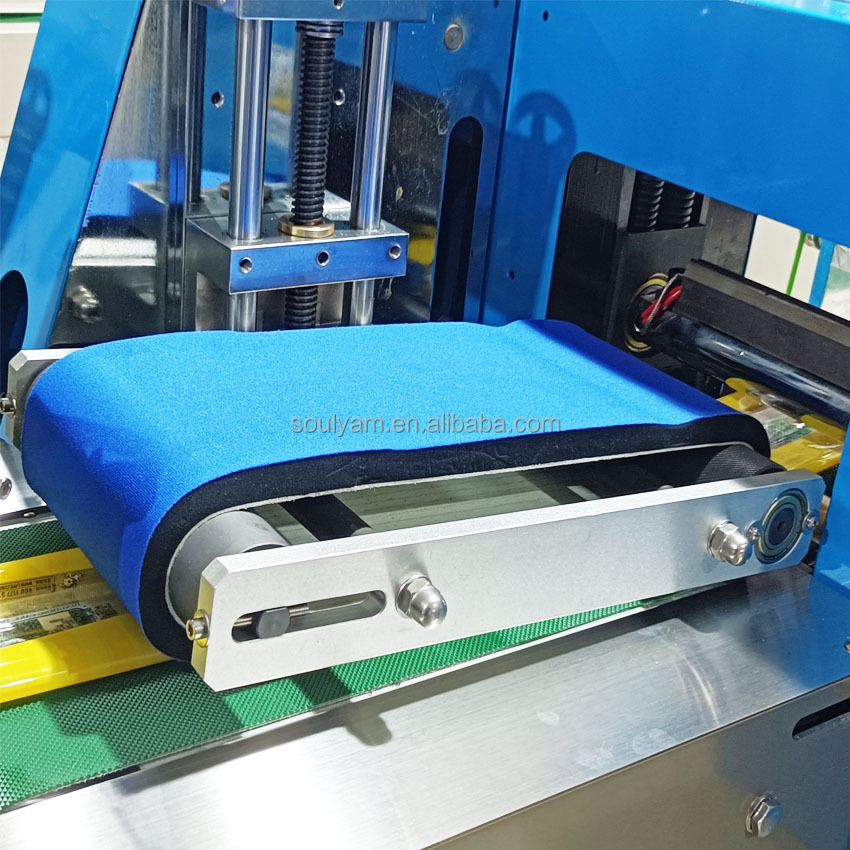

Exhaust Belt

It can packing flat products(face mask/rubber gloves) almost no air inside of bag.

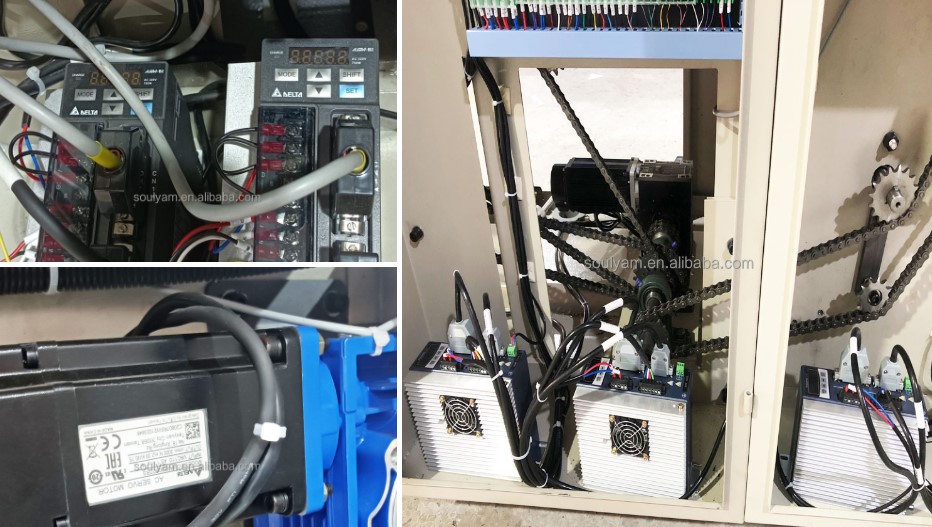

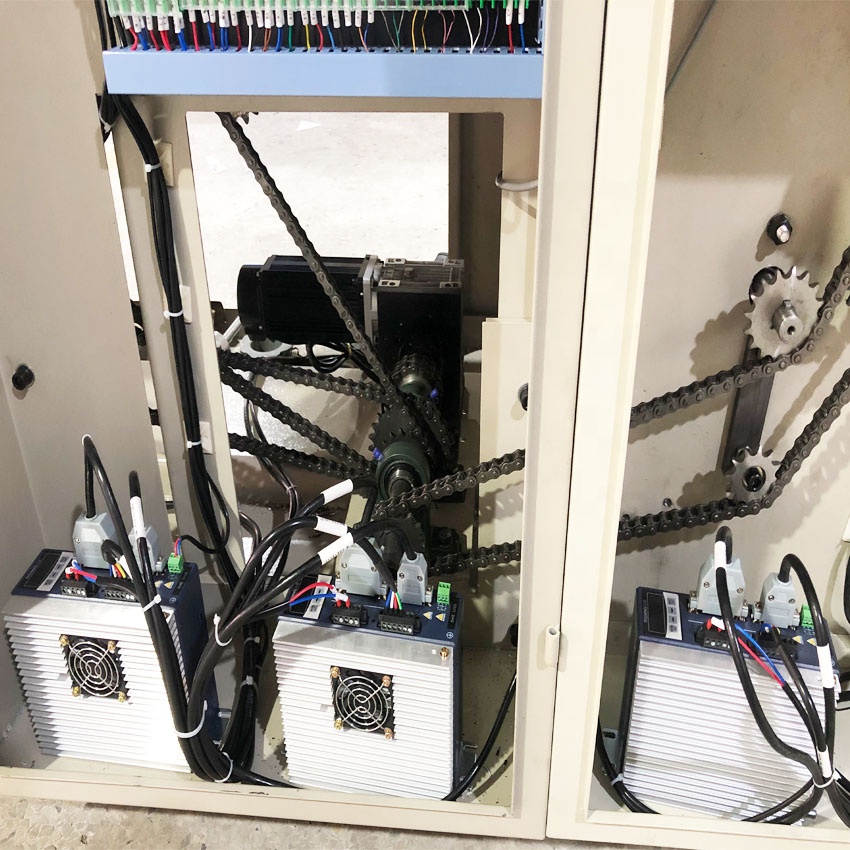

3 Servo Drive System

Compared with the general frequency conversion control model, reduces the adjustment of mechanical transmission parts, and improves the accuracy of the motion.

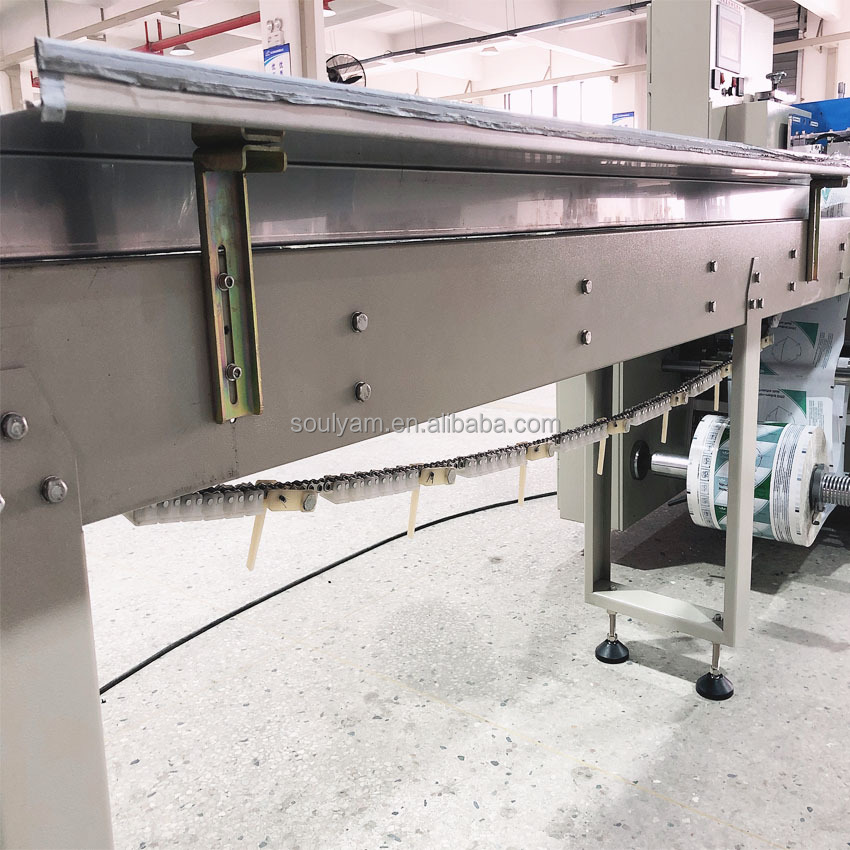

Strong Conveyor Structure

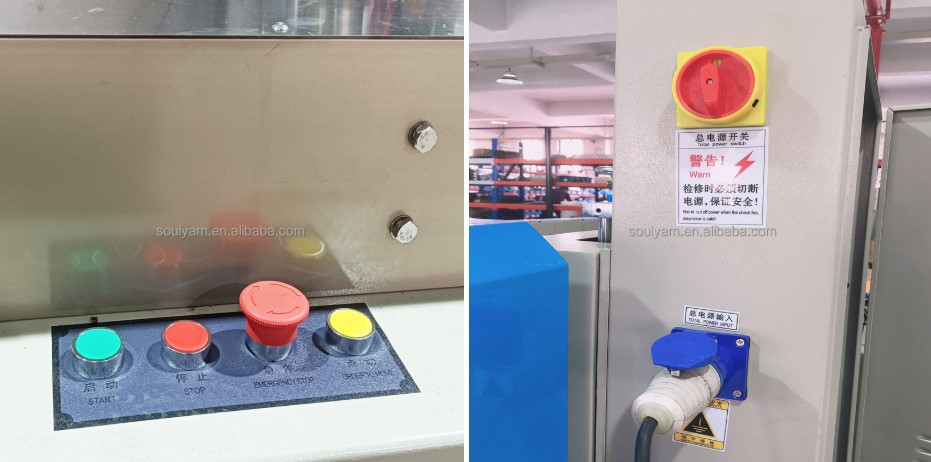

Good Quality Buttons

Easy connect with power.

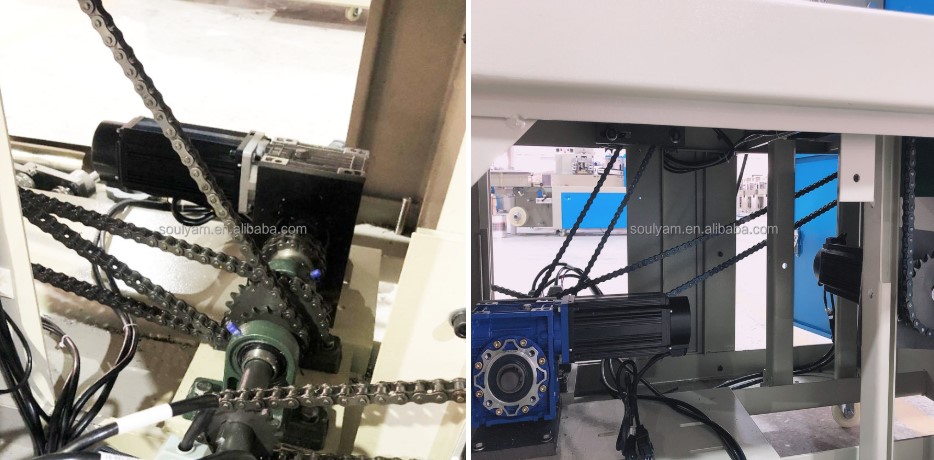

Simple Driving System

Reliable working, convenient maintenance.

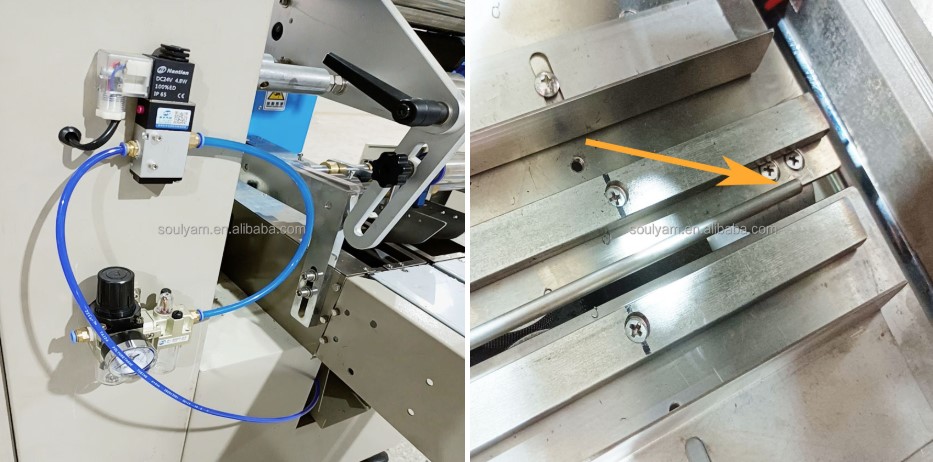

Nitrogen Filling Connector

Why filling Nitrogen: It can effectively prevent food oxidation, mildew, moth-eaten, corruption, can achieve moisture-proof,quality preservation, preservation, prolong the storage period of food.

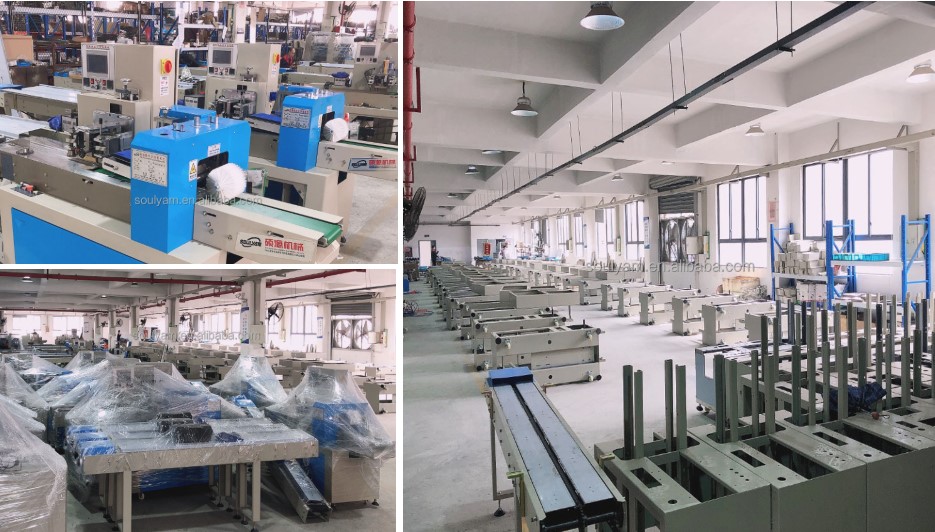

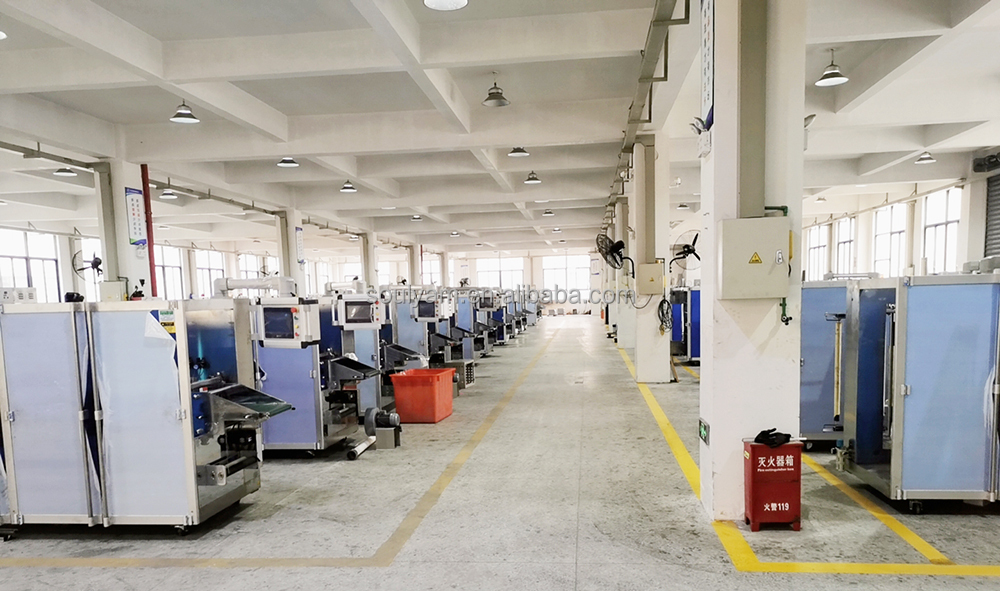

Production Machines In Bulk

Make sure we delivery plenty of machines to customers in time.

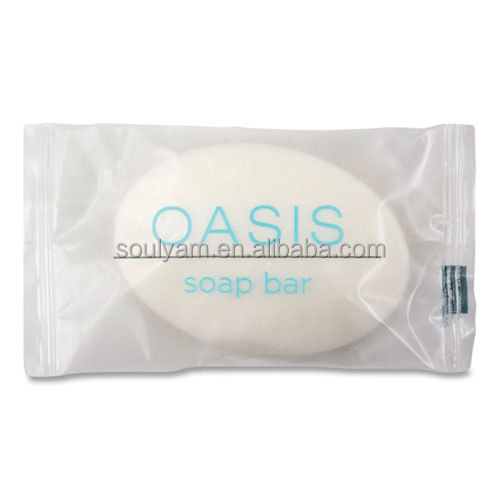

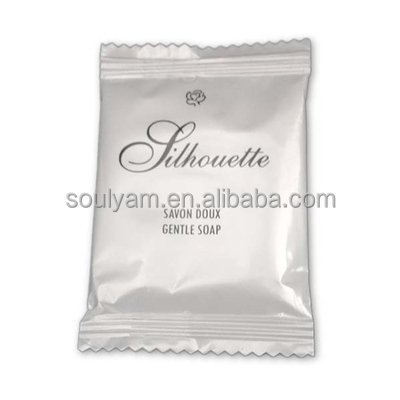

Sample Display

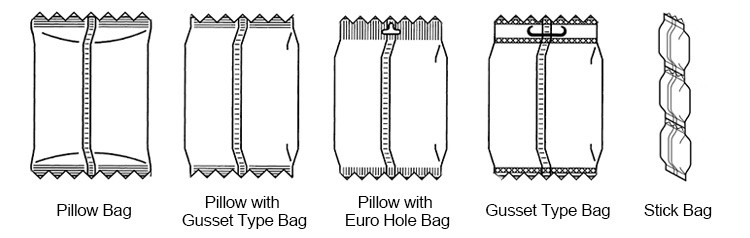

Bag Type Display

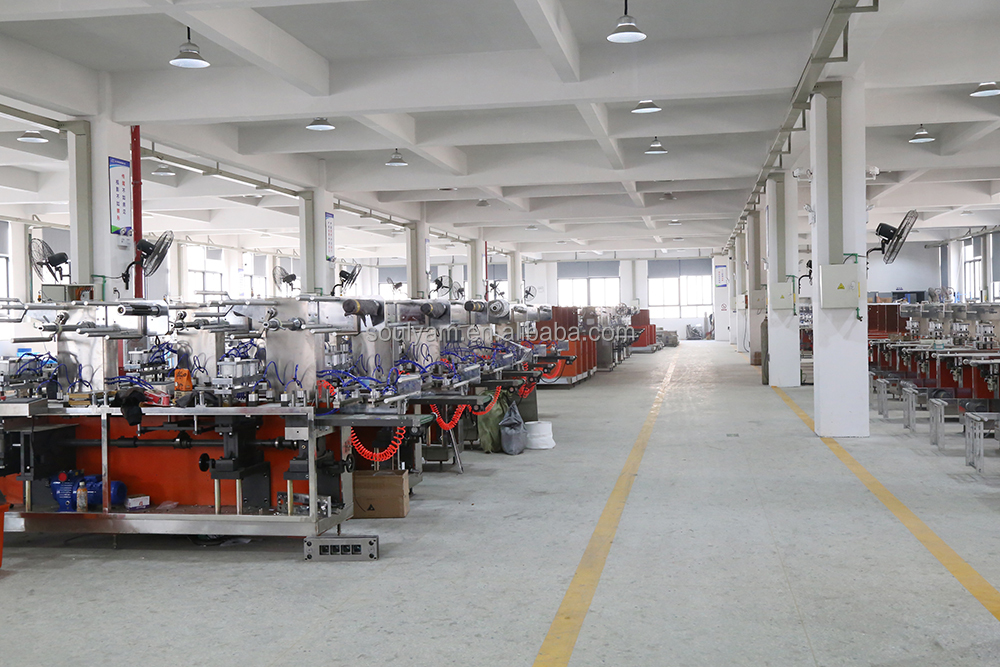

Production Capability

Top manufacturer of packaging Machines in China, Focus on packaging Machines research and development for more than 23 years, provide one-stop customized packaging machines solution for customers.

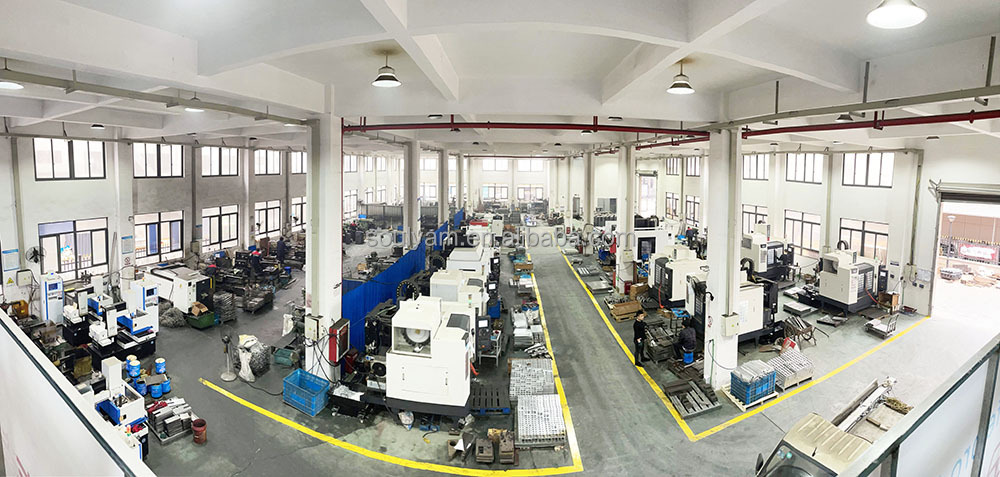

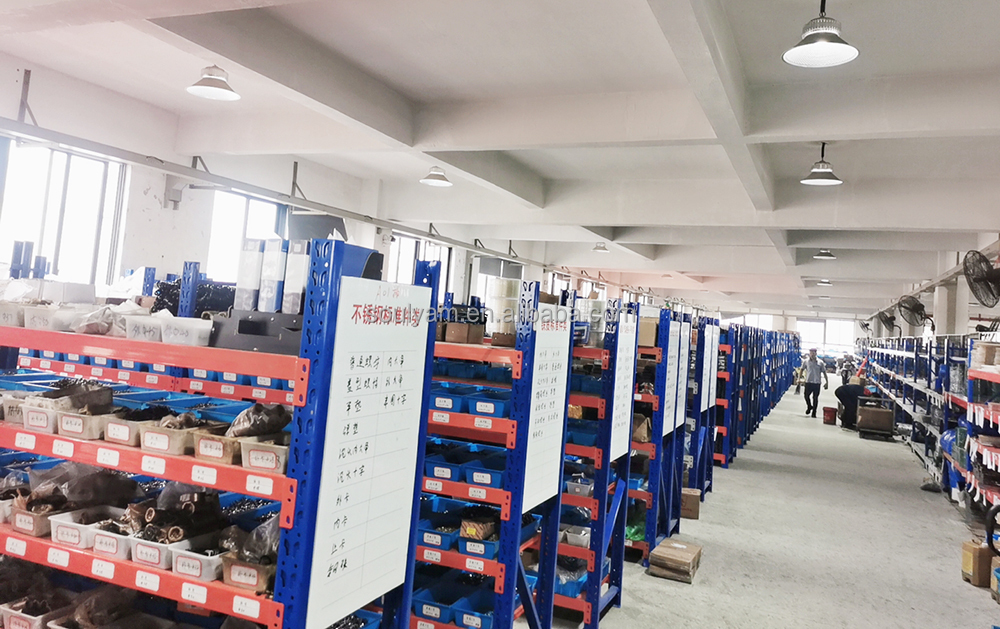

✔ Own Large Scale Spare Parts Workshop: With many Advanced CNC machines, Lathes, Wire cutting, grinding machines & milling machines, which ensure our spare parts long life, high precision and low noise.

✔ 20,000+ sqm Standard Workshops: Equipped with more than 200 experienced production technicians, ensuring large-scale production and fast delivery times.

✔ R&D Design, Customized on Demand: Has obtained a number of national patent technologies. Customizes machines according to packaging materials and usage scenarios with a dedicated R&D team of over 60 people.

✔ Strict Quality Control Testing: Perfect quality inspection through the whole manufacturing process. Standardized quality systems manage assembly, debugging, acceptance, and delivery.

✔ Certifications: Fully certified to meet ISO9001, CE, TUV, and SGS standards.

★ Support for 3D Showroom / Video Call to see real factory setups and machines.

Why Choose Us

Advantages:

23 years of packaging machines R&D experience
More than 60 professional engineer and Service teams
More than 200 professional staff teams
Specialize in more than 60 kinds of packing machines
Annual output of 3,000 sets of machines
We promise 100% REFUND if any unsatisfied with the machines

The Face Behind The Machine

Mr Zhu

Director Of Production Department

Dr. Ye

Research And Development Department (R&D)

Mr Ye

The 1st Workshop Manager

Mr Ye

The 2nd Workshop Manager

Mr Chen

The 3rd Workshop Manager

Mr Zhou

The 4th Workshop Manager

Mr Ren

The 1st Quality Inspection Department

Mr Tang

The 2nd Quality Inspection Department

Mr Ye

Delivery Department Manager

Packaging & Delivery

Good Quality Wooden Box For Machines

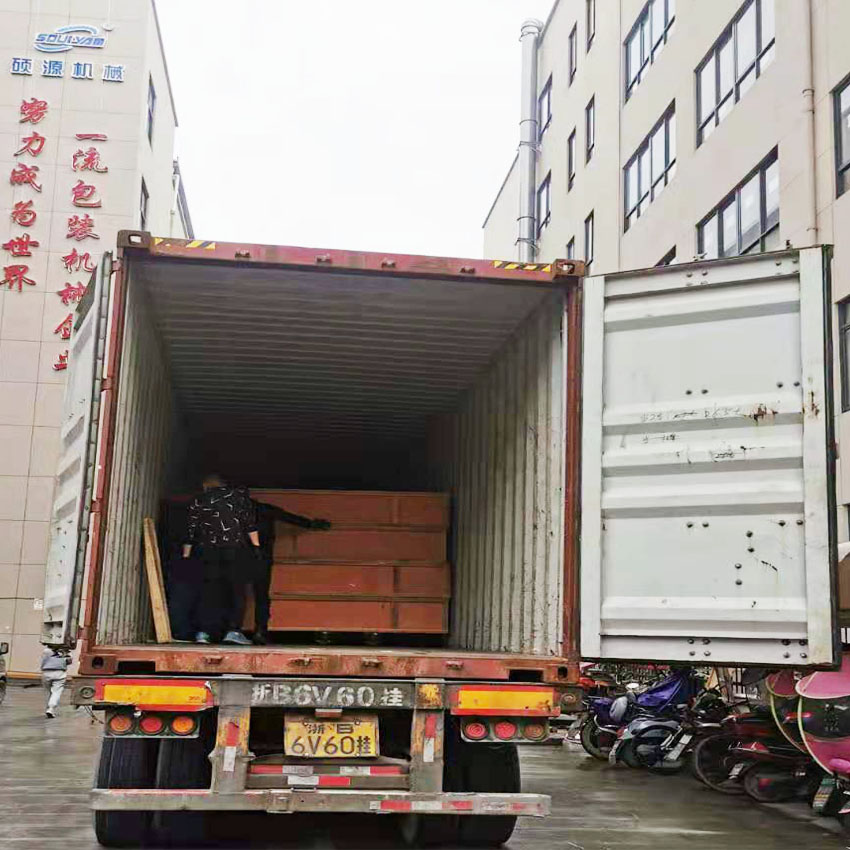

Loading Into Container

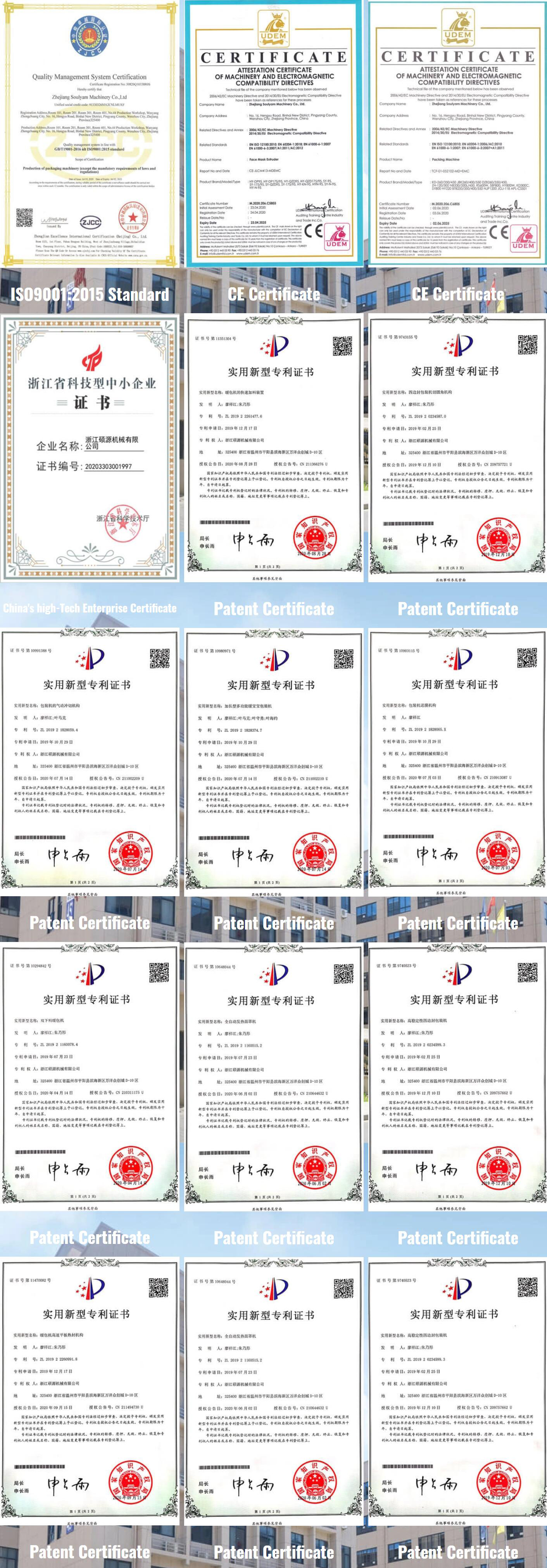

Certifications

Always Keep In Touch With Our Customers

Electronic Parts Brands We Use For Our Machines

Frequently Asked Questions

❓ How can I trust the transaction for my first order?

We support and recommend payment methods such as Trade Assurance. This secure framework guarantees your funds, on-time delivery, and the quality of the machinery.

❓ What installation services do you provide?

We provide detailed user manuals and video guides to assist with the installation, debugging, and operation of the machine. Additionally, professional engineering services are available if required (subject to daily service charges and travel expenses).

❓ What is the warranty policy on your machines?

We provide a 2-year warranty on core components. Parts that fail under normal operation (excluding intentional damage) will be replaced free of charge during the warranty period.

❓ Can you customize the machine according to our specific requirements?

Yes, our experienced mechanical engineering and R&D design team can customize machinery configurations and features according to your unique packaging materials and production setups.

❓ How do I choose the correct packaging machine for my product?

Simply share your product details with us, including: the type of product you need to pack, and the dimensions of the final pouch or bag (length, width, and height). We will guide you to the perfect match.

❓ Do you supply the wrapping film?

Yes. We supply plastic roll film and non-woven fabric raw materials at competitive rates through our established raw material supply networks.
