| Specification Parameter | Details |
|---|---|

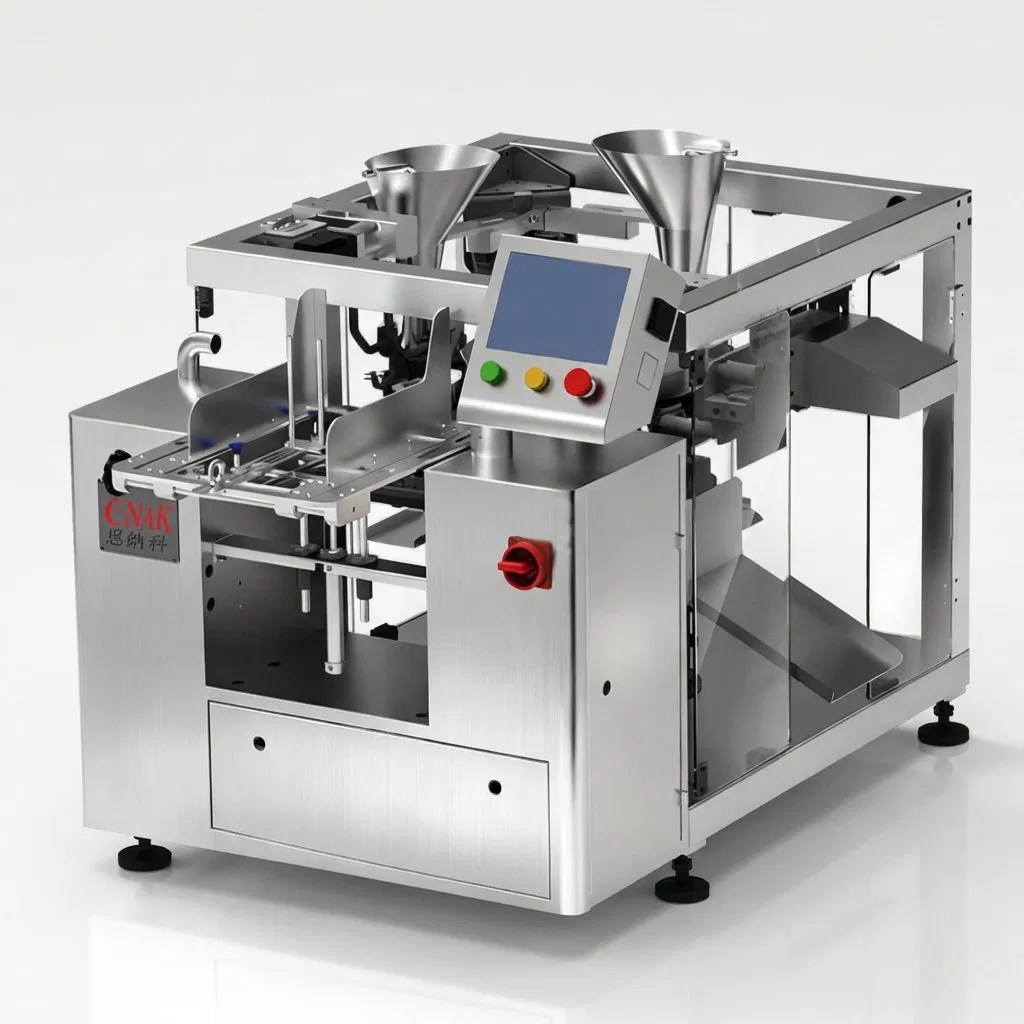

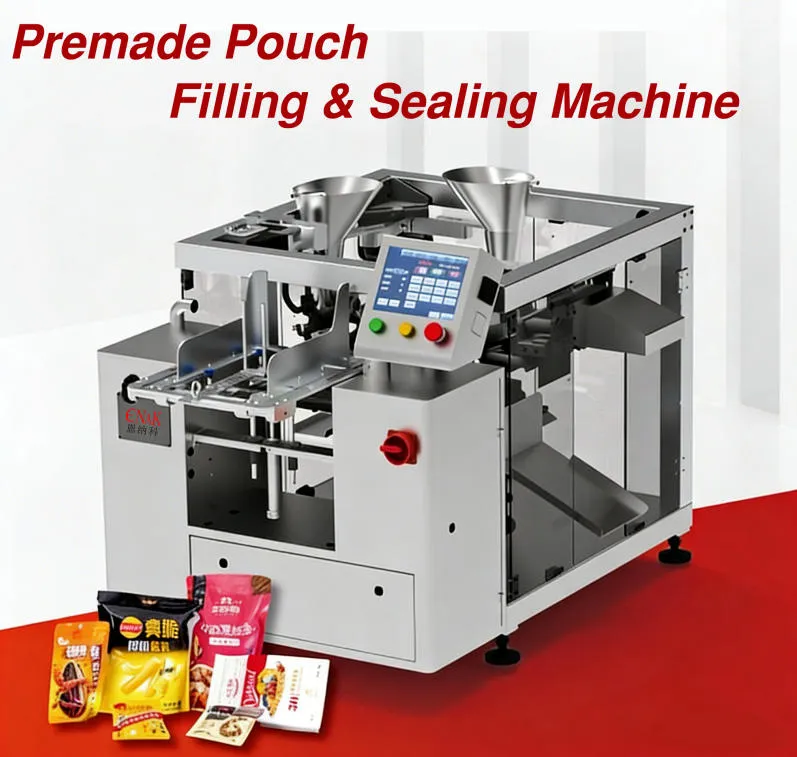

| Product Name | Preformed bag packaging machine |

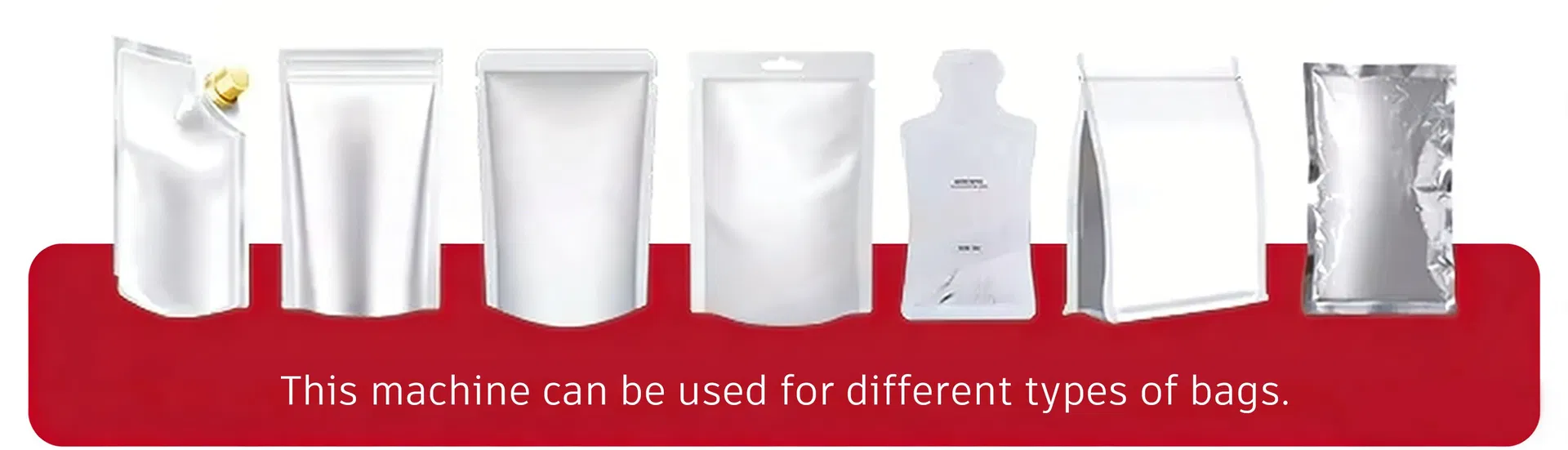

| Applicable products | Flat pouches, stand-up pouches, and other pre-made pouches |
| Speed | ≤ 40 packages per minute |
| Packaging specifications | Length: ≤ 380mm Width: 80 - 200mm |

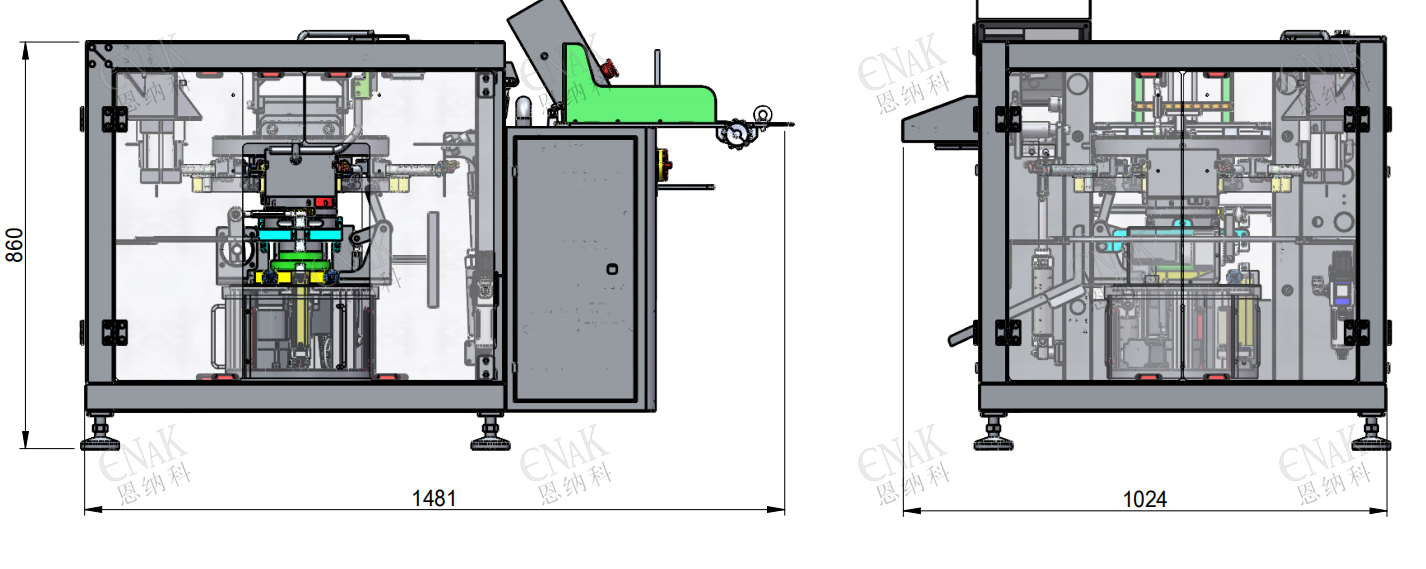

| Machine dimensions | 1500*1030*860 (mm) |
| Machine net weight | 300kg |
| Total power | 3kw |
| Air source pressure | 5-7kg/cm2, 0.3m3/min |
| Negative pressure | 60-80kPa |

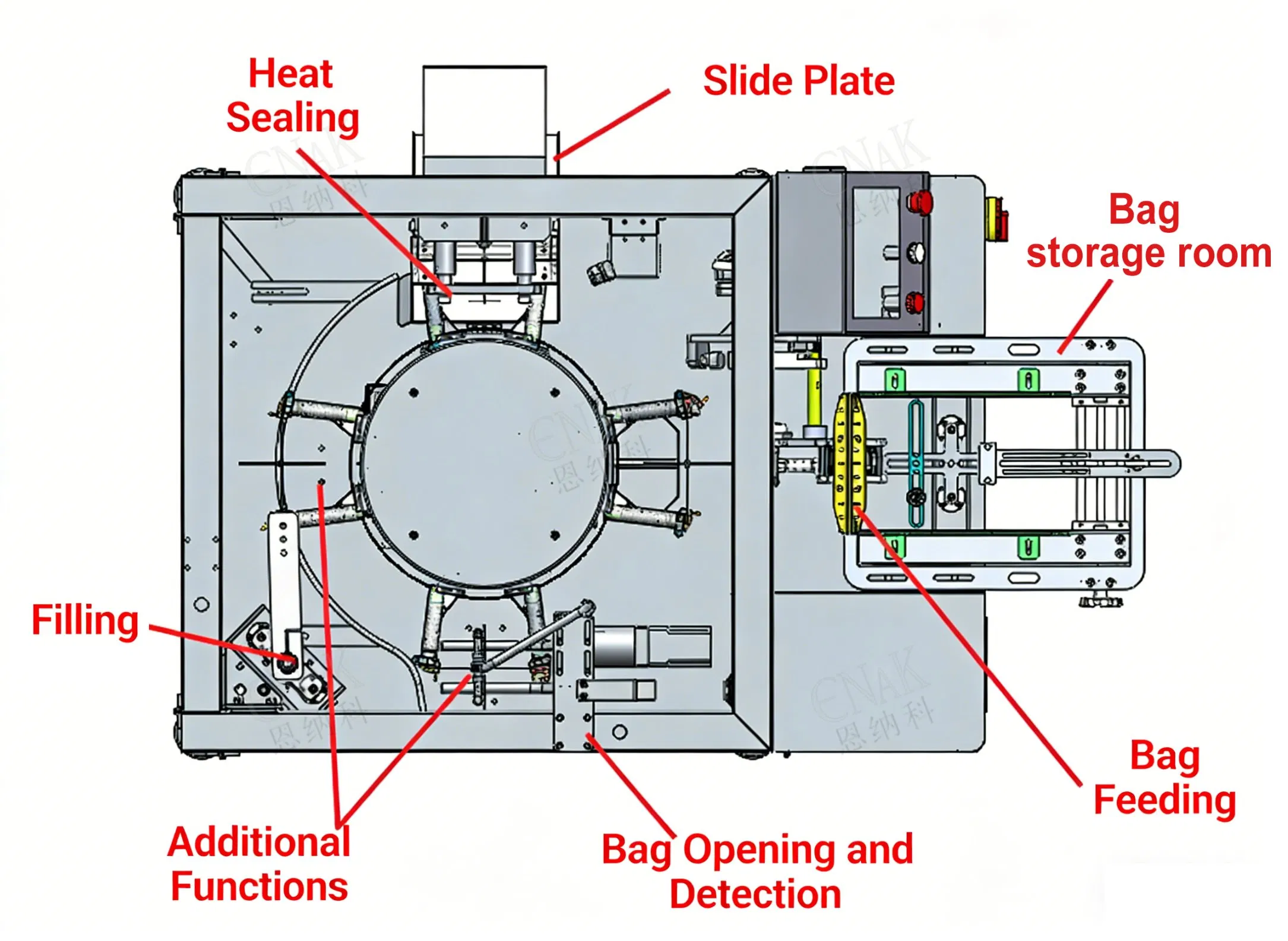

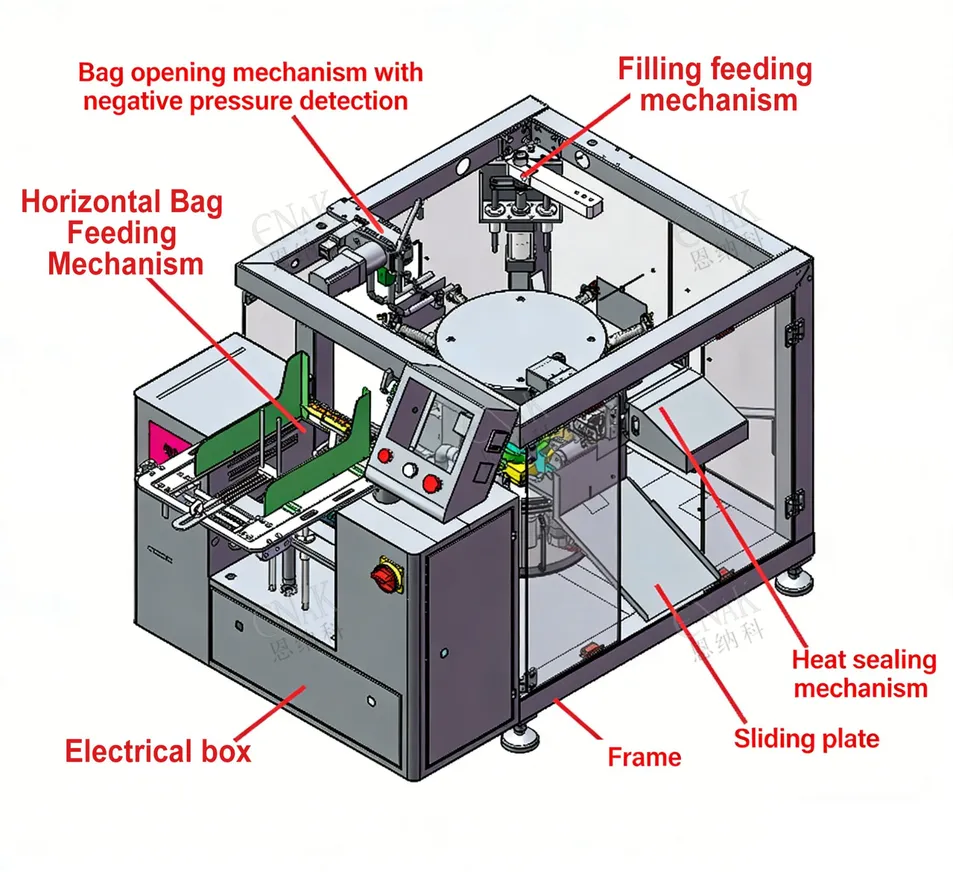

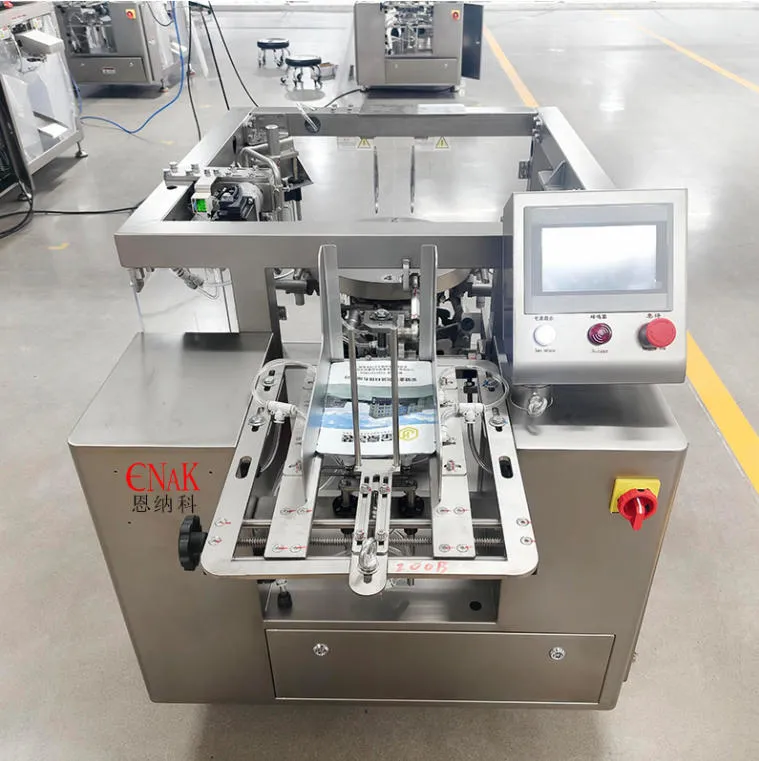

Pre-made packaging bags are placed in the bag magazine, fed to the bag feeding station by the bag feeding mechanism, and gripped by mechanical grippers.
The motor rotates to transfer the packaging bag to the next station, where a coding machine can be installed for printing codes.
After coding, the bag enters the bag opening station. The bag opening mechanism uses suction generated by two air nozzles on both sides of the bag mouth to open the bag.
This machine is equipped with a bag opening detection function, which detects the bag opening status via negative pressure. If the bag is not properly opened, no filling will be performed.

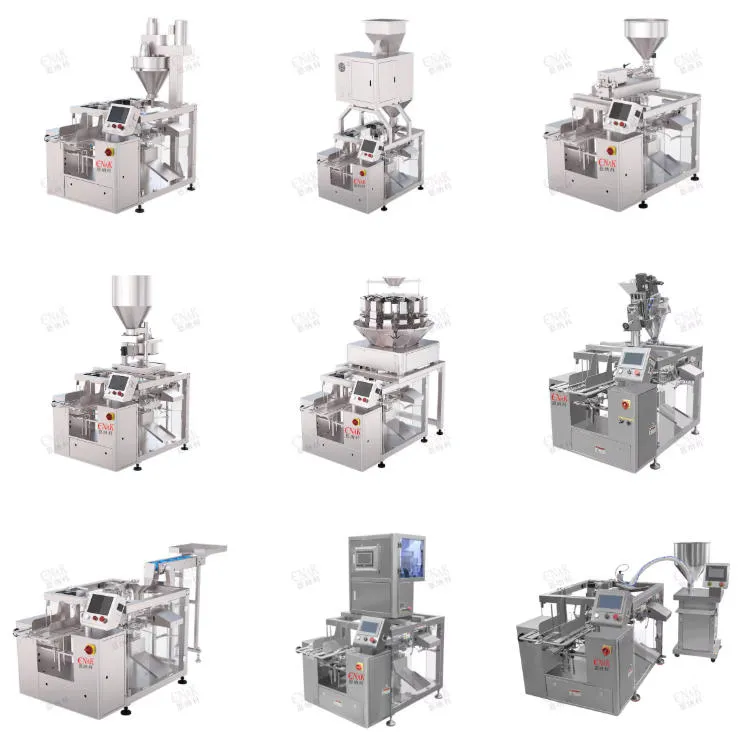

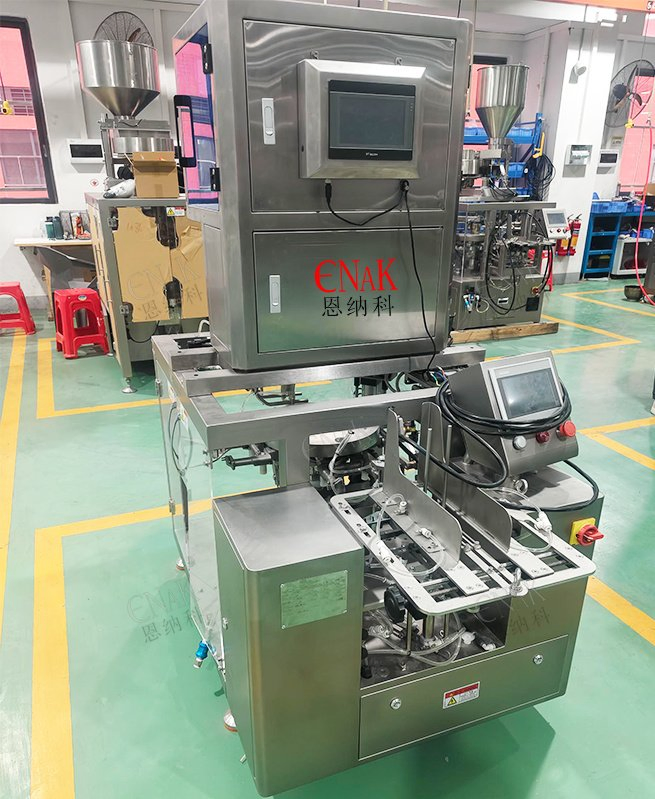

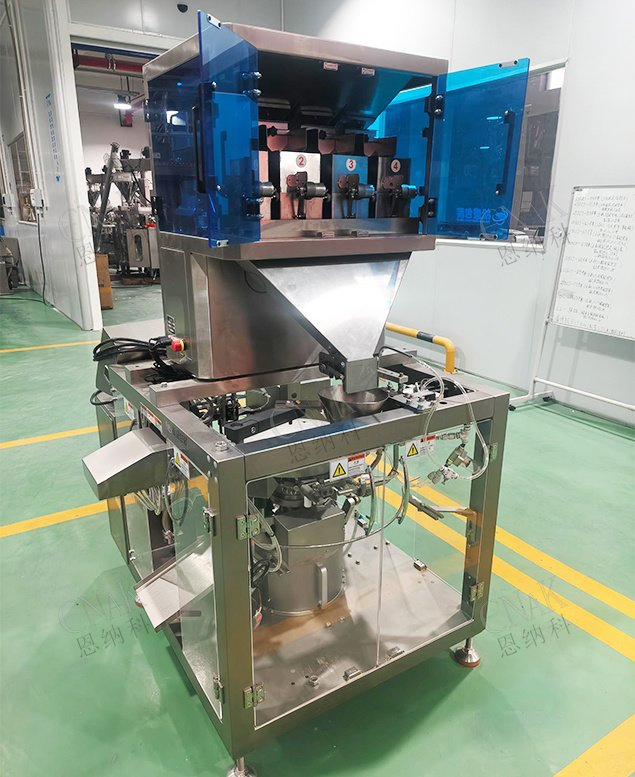

Filling and discharging: Materials enter the packaging bag through the hopper to complete the filling process (dust removal, vibration, and other actions can be added according to different material characteristics). The filling weight is ensured by a multi-head weigher (or other metering methods).
After filling, the bag passes through a vibrating station at the lower part to compact the materials for convenient sealing.

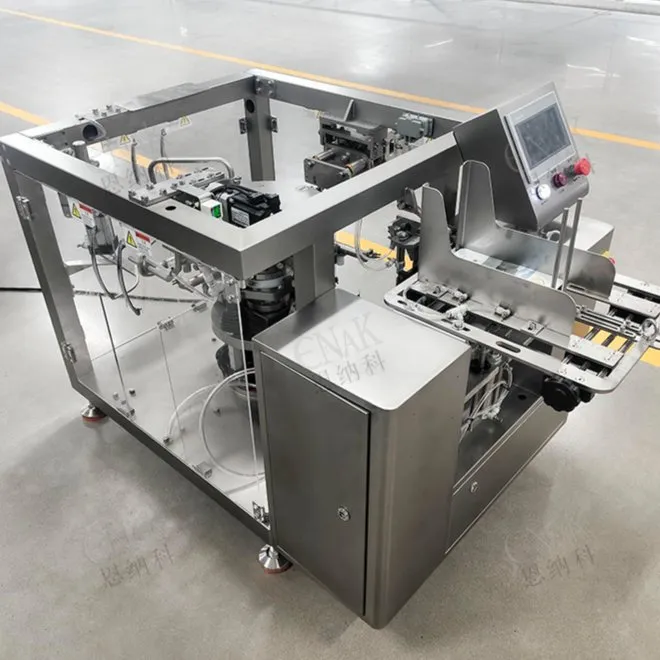

Durable Frame Construction: The frame is made of SUS304 stainless steel with sandblasting and food-grade nano-finishing, which is fingerprint-proof, dust-proof, and oil-proof. It features a simple, compact, and attractive appearance and saves overall installation space.
Servo Motor Drive: The main drive and bag opening station adopt servo motors, ensuring more reliable operation, reducing wear of mechanical parts, and making maintenance more convenient.
Precision Control: Each station is equipped with a servo driver for its servo motor, enabling quick adjustment of station components with simple and easy commissioning and operation.
Smart Touch Screen HMI: Offers more convenient operation. It supports one-key full machine reset, allows control of each station via the touch screen, and the working speed can be freely adjusted within the specified range.
Intelligent Detection: It can intelligently detect bag opening status. It will not fill or seal the bag if opening is improper, avoiding bag waste and reducing costs.
Overload Protection & Diagnostics: The system is equipped with automatic alarm, positioning stop, overload protection, safety devices, and automatic fault diagnosis with clear display for easier and safer operation.
High Hygiene Standards: High speed, good stability, and high control accuracy. There is no contact with the packaged products, ensuring cleanliness of materials and extending the service life of the machine.
Rotary Design Efficiency: Multi-station rotary packaging is adopted, which effectively saves time and improves packaging efficiency.
