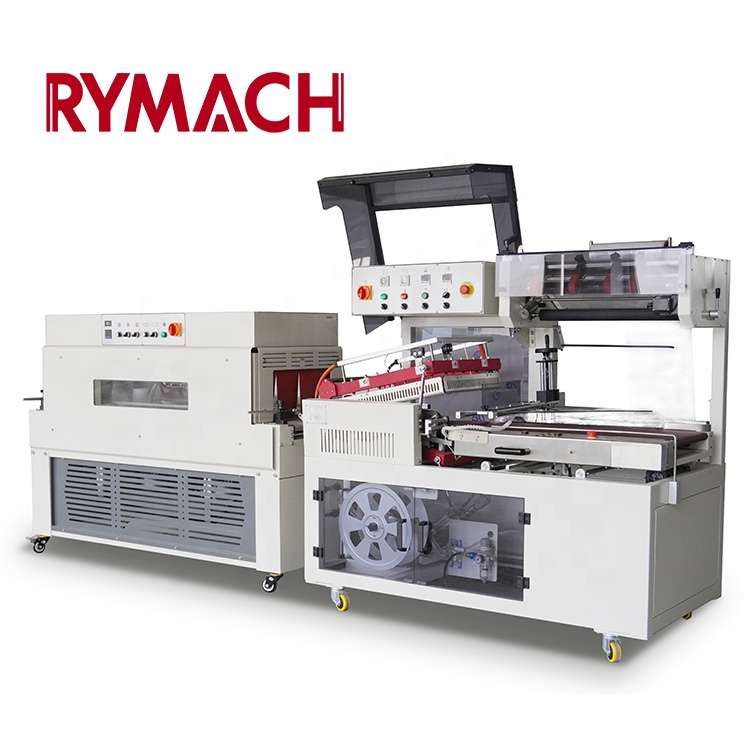

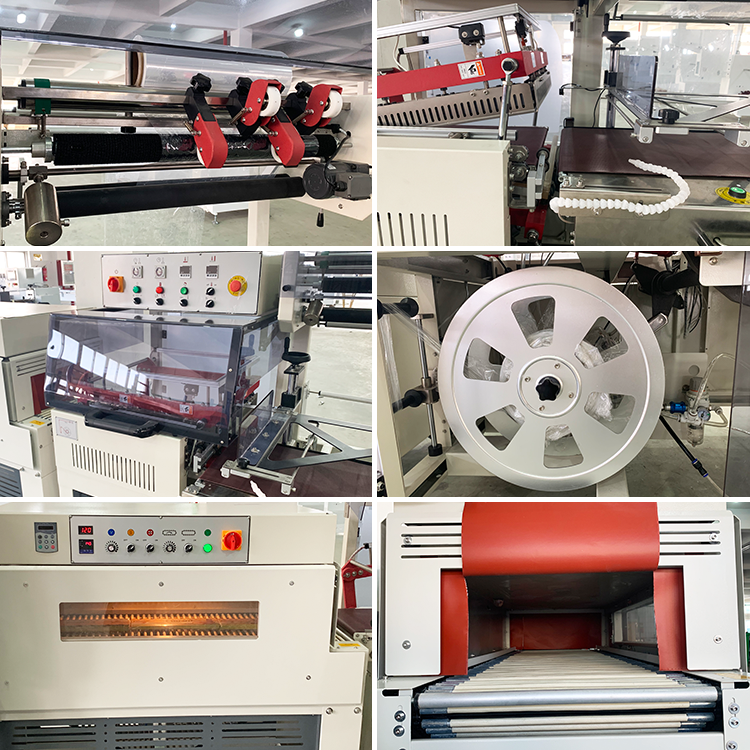

RL-400 is a fully automatic shrink packaging machine including l sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. it is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.
| MODEL | RL-400 (L-Sealer) |
| Sealing Type | L-Sealing |
| Installed Power | 380V/50-60HZ/3Phase |
| Packing Capacity | Max. 35 packs per minute (depends on product size) |
| Sealing Height | 150MM |
| Packing Width | 350MM |
| Conveyor Speed | Variable, 26M/Min |
| Film Thickness | 12-30 Micron (Minimum-Maximum) |
| Packing Size | Width + Height < 400mm, Length + Height < 480mm |
| Film Type | Center Folded POF/ PVC Film |
| Max Film Roll Size | 530MM (Width) X 280MM (Outer Diameter) |
| Power Consumption | 1.5 KW |
| Working Height | 780-850 MM |
| Air Pressure | 0.5MPA (5 BAR) |

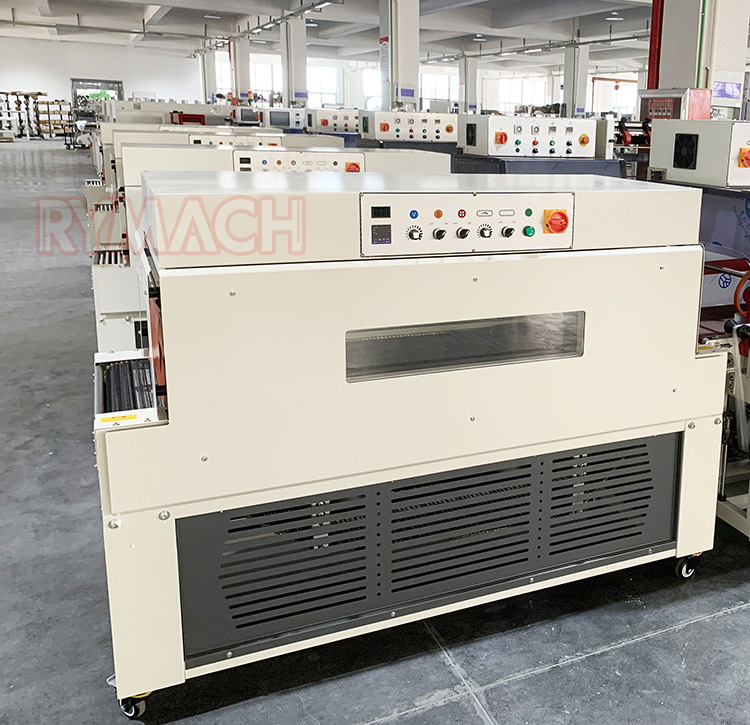

| MODEL | RYT-4020 (Shrink Tunnel) |
| Power Supply | 380V/50-60HZ/3Phase |
| Oven Size | 1200MM (L), Entrance 450(W) X 250(H) MM |
| Conveyor Speed | Variable, 40 M/Min |
| Conveyor | Chains with Rotating Silicon Coated Rods |
| Rated Power Consumption | Max. 7 KW |
| Working Height | 780 - 850 MM |
| Machine Material | Carbon Steel |

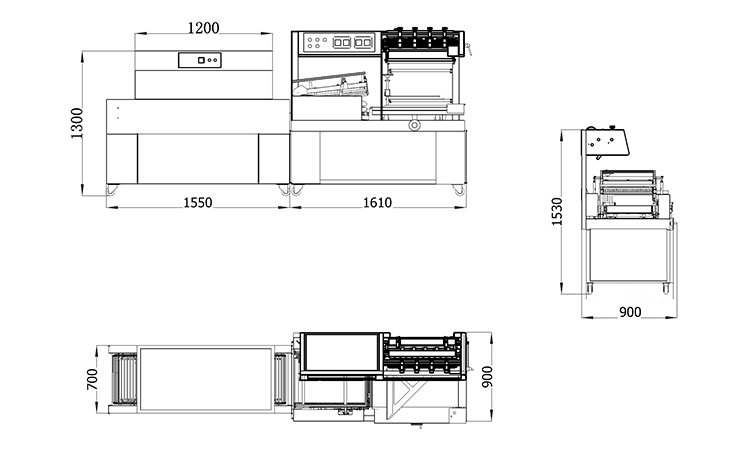

| Tunnel Machine Dimensions | 1550 X 700 X 1300 MM |
| Weight (Net/ Gross) | 490KGS/ 540KGS (For Reference Only, Including Sealer and Tunnel) |
We are a technology-based enterprise and a professional manufacturer of automatic heat shrink packing machinery. In the shrink wrapping industry, we have always been a pioneer in structural improvements, constantly targeting high-quality packaging machines without compromise in performance or design.
We are well known for providing the highest quality in packaging appearance, machine availability and efficiency. Many of our machines accompany our customers throughout their working life. Our ISO and CE certified shrink packing equipment includes automatic L sealer, automatic continuous sealer, automatic horizontal flow sealer, automatic sleeve sealer, shrink tunnel, and more.
The broad scope of expertise of our engineers has led us to develop an equally wide range of machinery, capable of solving virtually any shrink packaging problem. Besides the complete shrink wrapping systems, we also produce customized projects on infeed and discharge automation such as products package grouping, automatic feeding, paper inserting, product aligning, rotating and labeling etc. No matter where you are, we have a suitable shrink packaging solution for your products!
