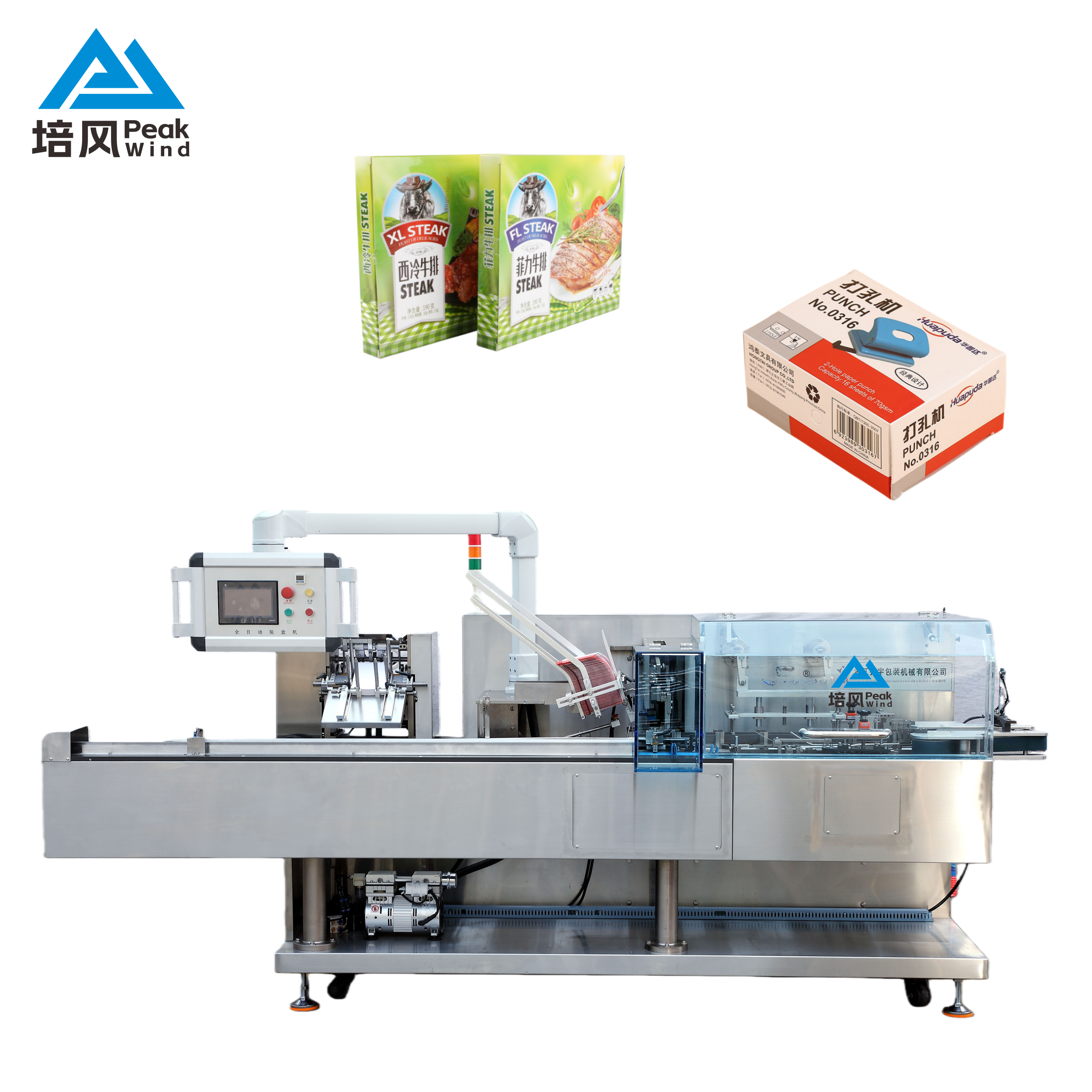

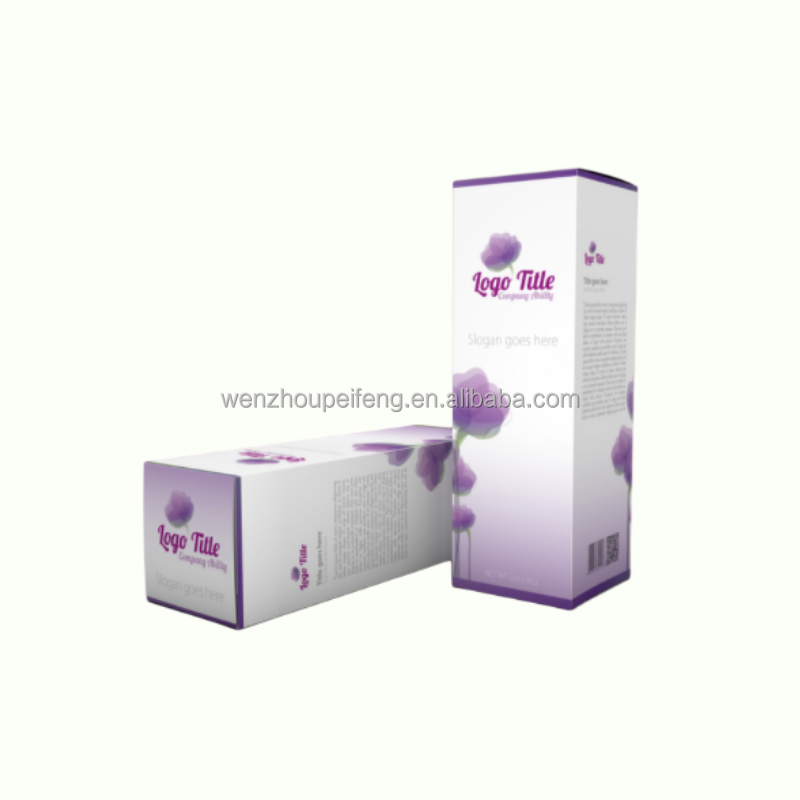

factory sales high speed Automatic Cartooning Machine for multi sachets, tea bags packaging into cartons

Product Description

Company Profile

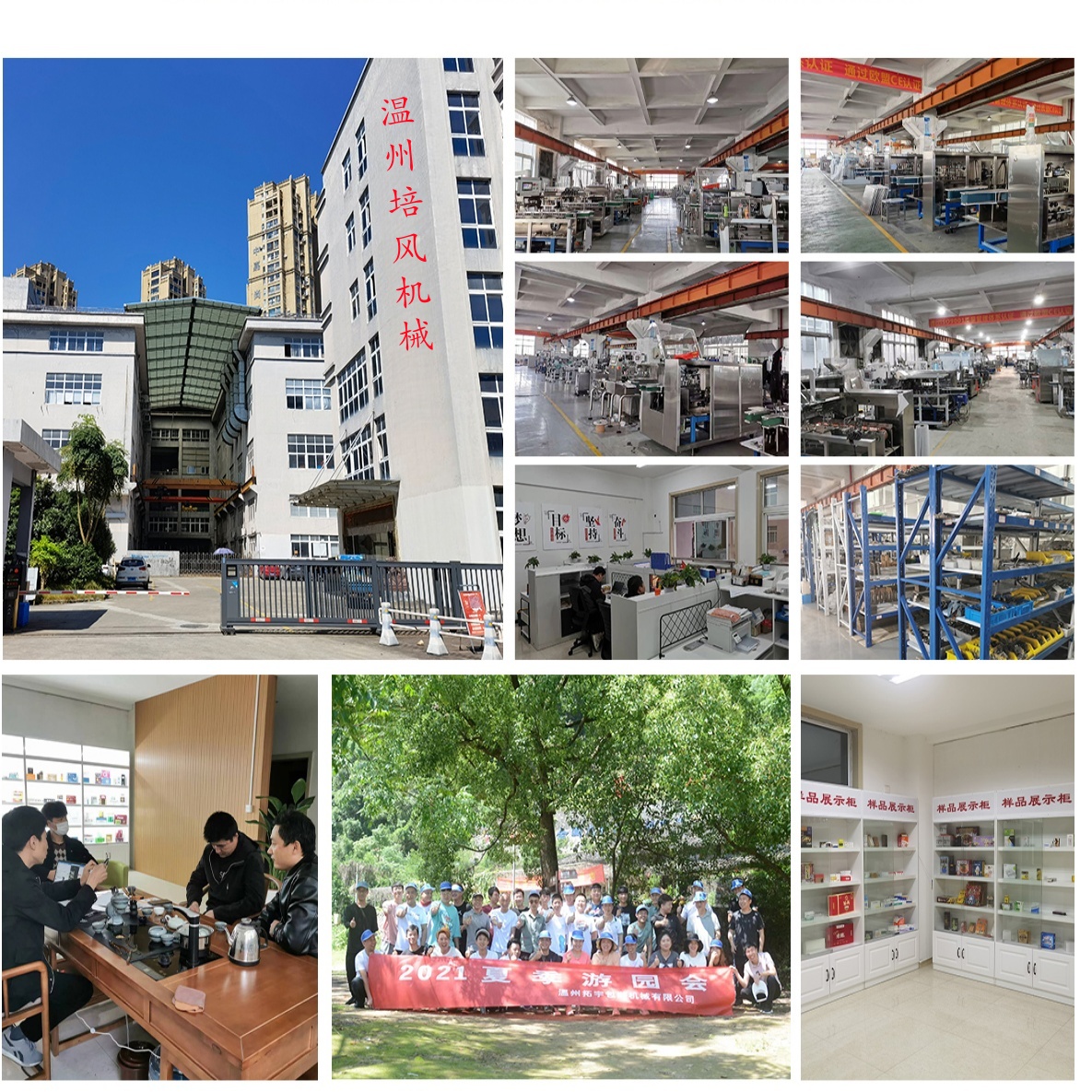

Company Facility

We are a scientific and technological joint-stock enterprise located in the historic "Famous City in Southern Zhejiang", the production base of packaging machinery in China. We specialize in the research and development, manufacturing, sales, and good after-sales service of carton packaging machines (cartoning machines).

Our main products include automatic cartoning machines, automatic bag filling machines, liquid filling machines, carton packing machines, and folding carton machines. We have many technical elites in mechanical design and processing, backed by a solid technical force, reliable product quality, and excellent after-sales support.

Products Description

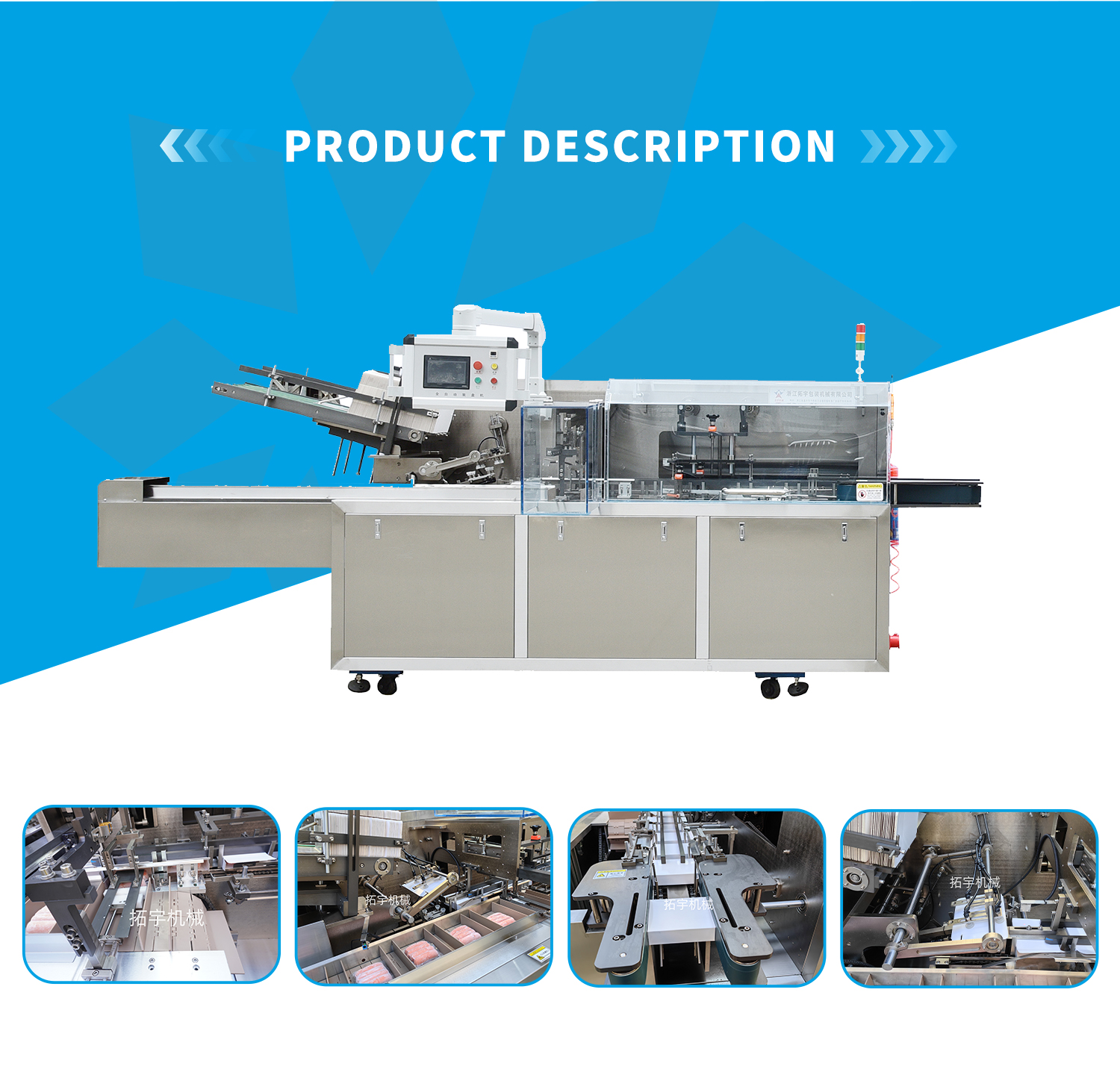

Product View 1

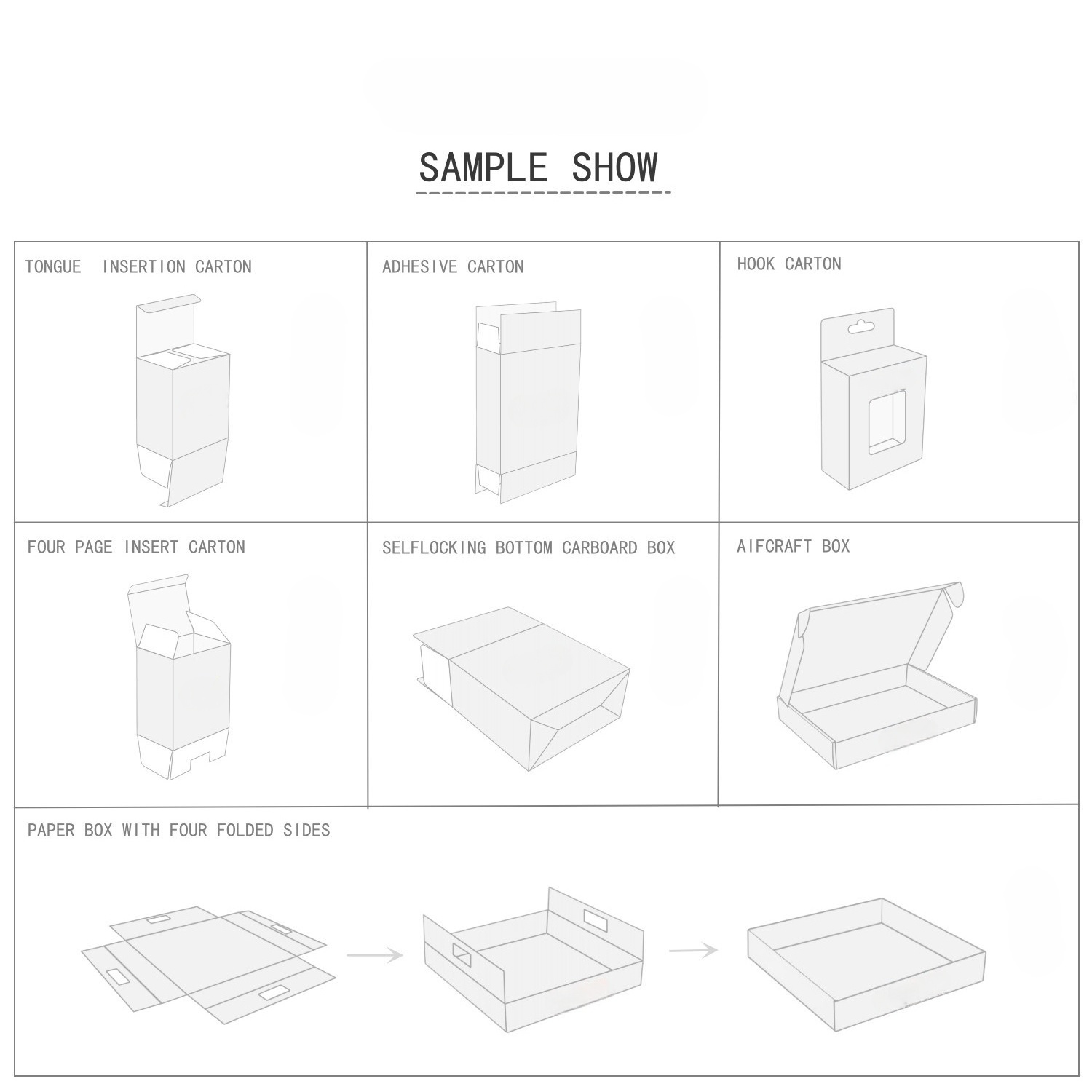

Product View 2

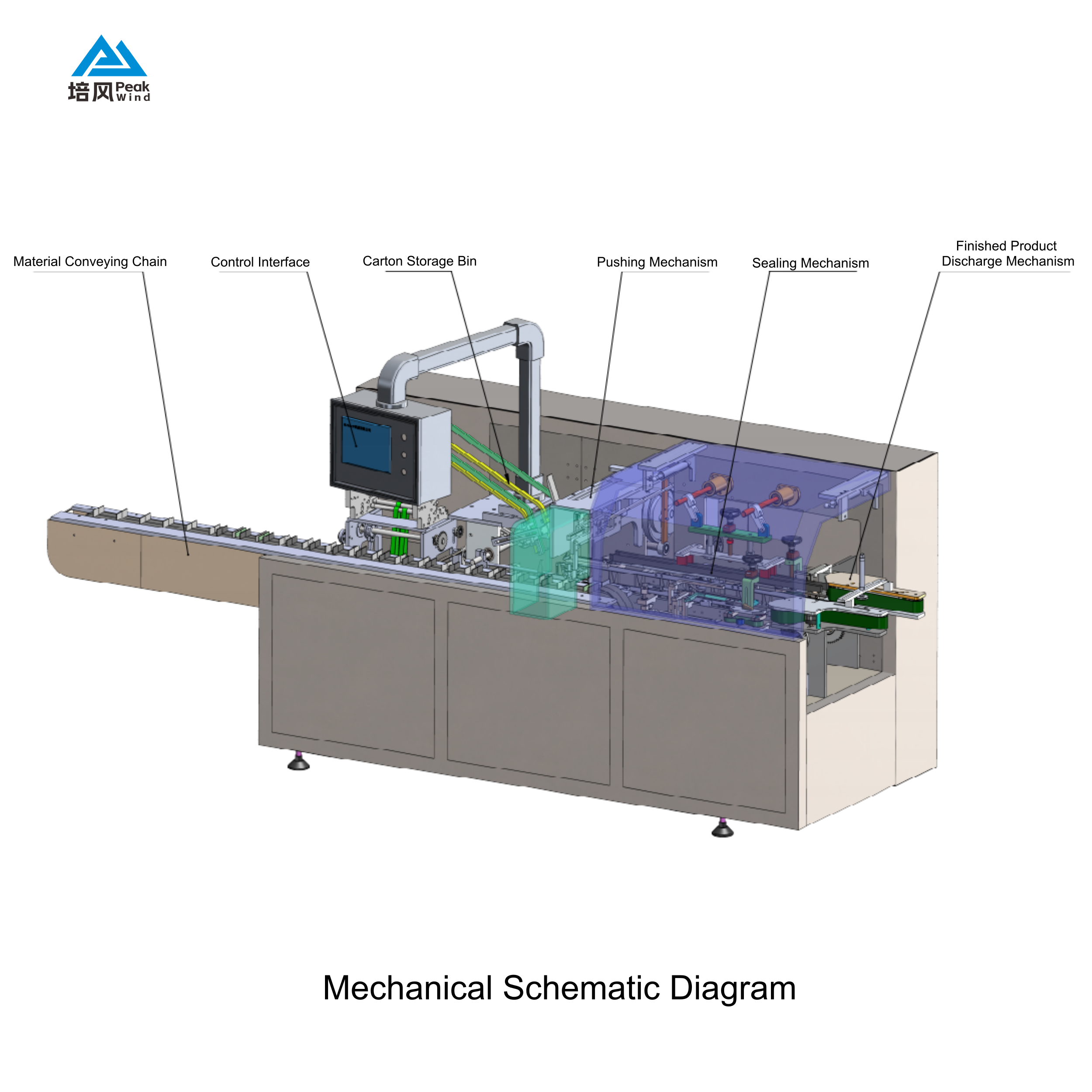

Product Diagram
Machine Details

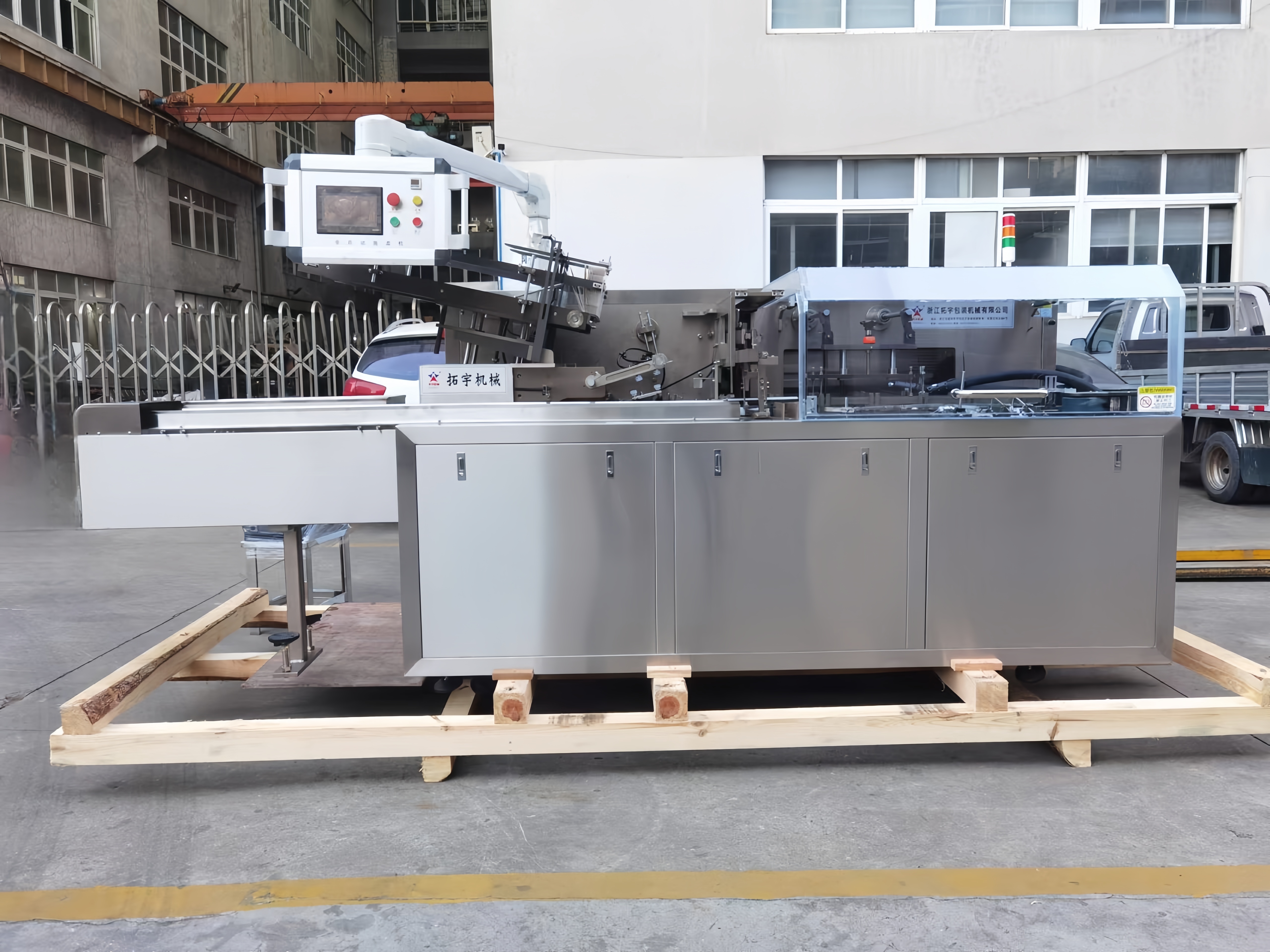

Machine Detail 1

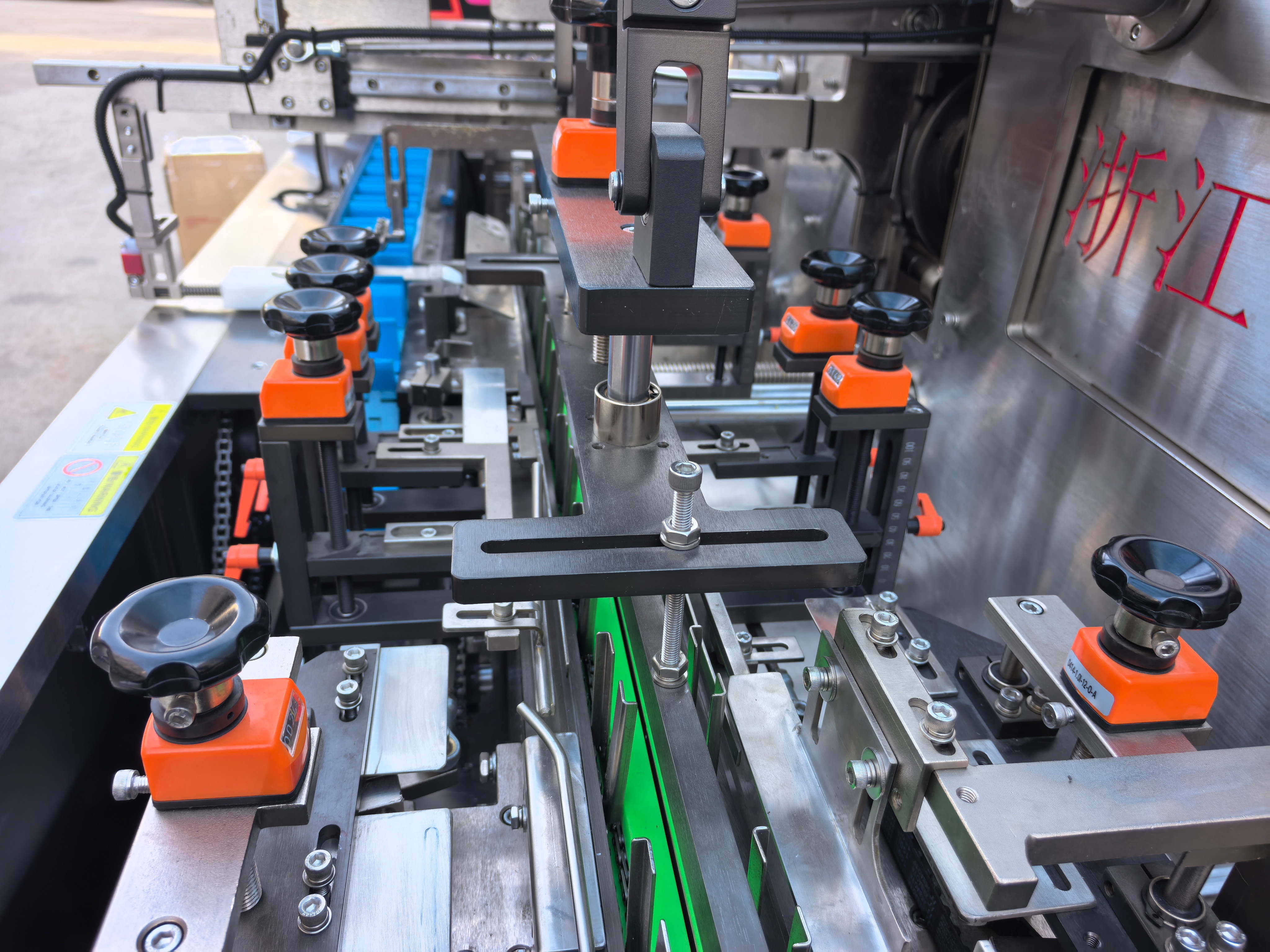

Machine Detail 2

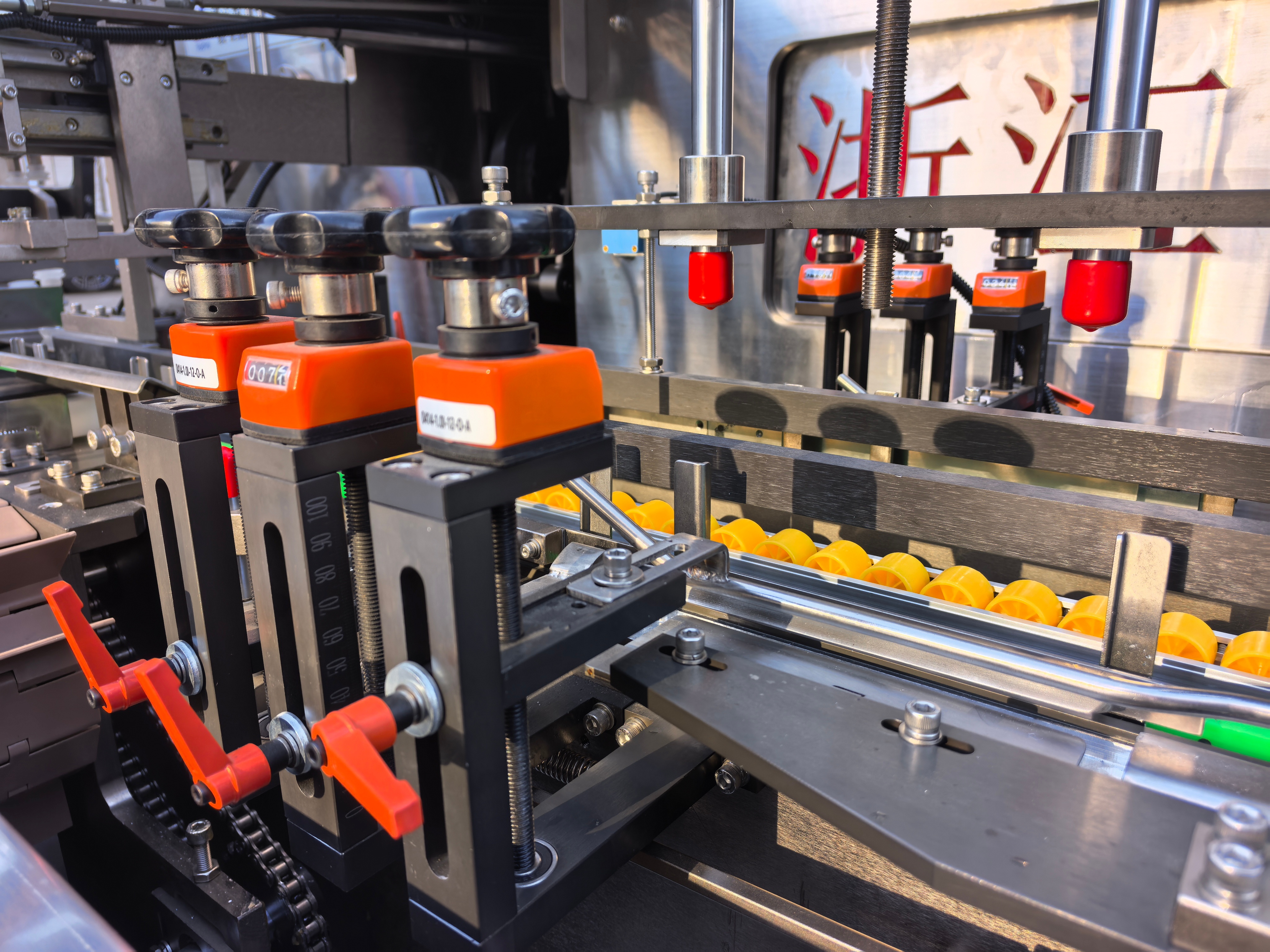

Machine Detail 3

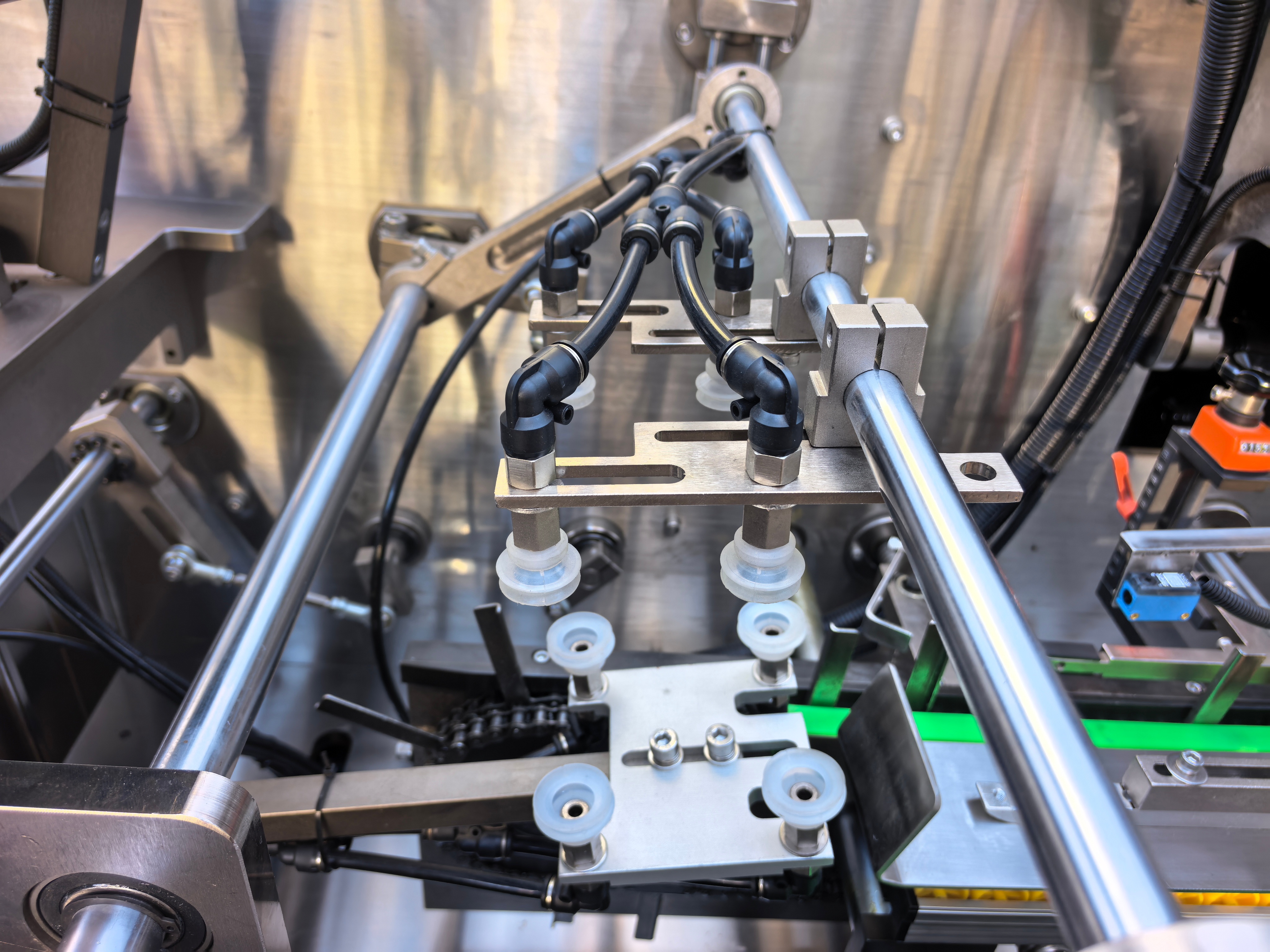

Machine Detail 4

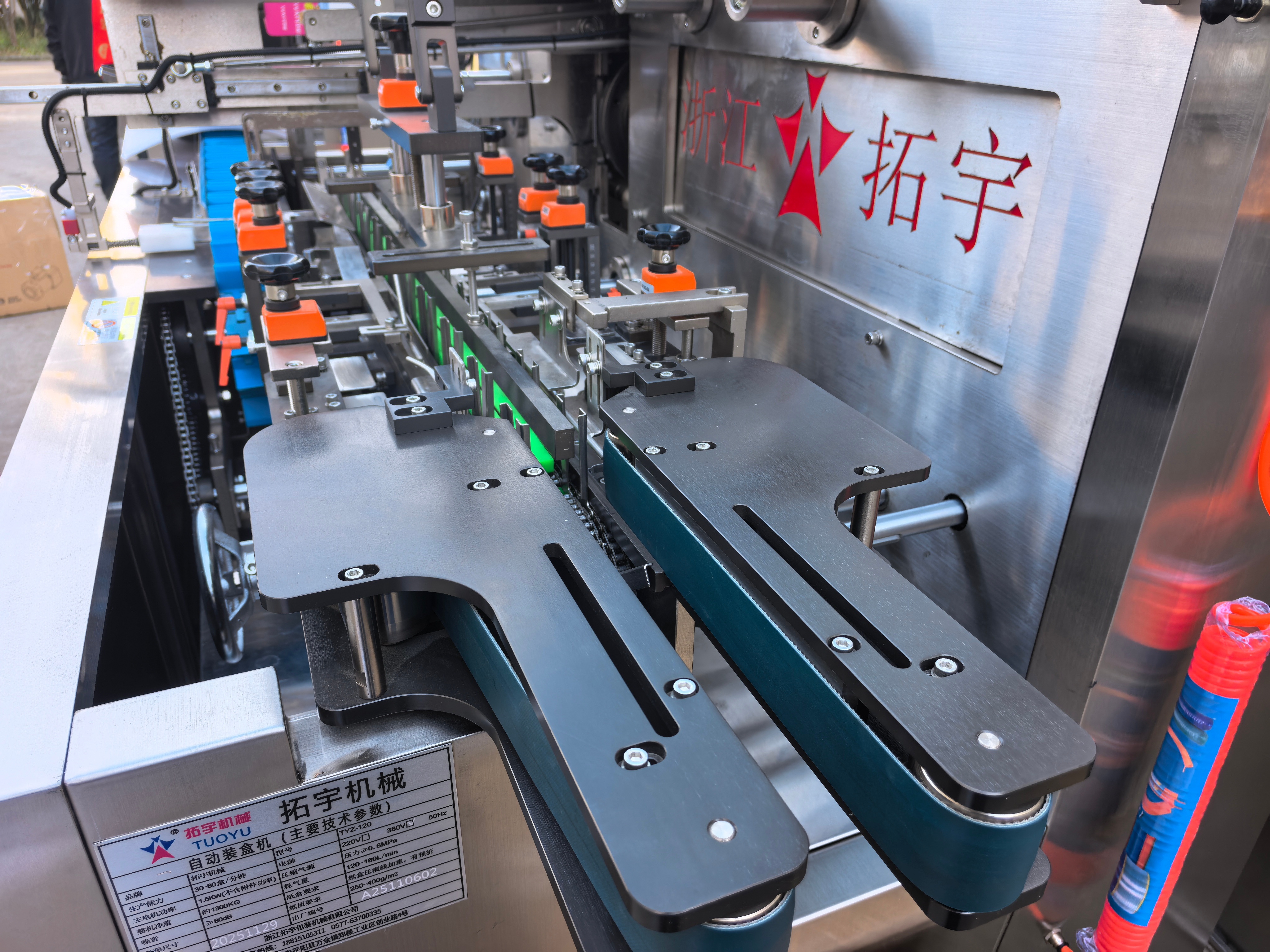

Machine Detail 5
Performance Structure Features
  • We adopt automatic feeding, opening, entering, sealing, and outputting with a compact and reasonable structure, alongside simple operation and adjustment.
  • Adopting servo/stepping motor, touch screen, and PLC programmable control system; the human-machine interface offers clearer and easier operation with a high degree of automation.
  • Adopting a photoelectric eye automatic detection tracking system, ensuring no box is absorbed if there is no product, maximizing the savings on packaging materials.
  • Large packaging range, easy adjustment, and quick conversion between various specifications and sizes.
  • Changing specifications can be achieved by adjustment only, without needing to change molds.
  • When there is no product or the product supply is not in place, the machine idles without pushing the product.
  • Runs automatically when the product is back in supply. If the product is not correctly placed in the box, it stops automatically. Includes an overload protection device for the main drive motor for enhanced safety and reliability.
Technical Parameters
Item Parameter Remark
Material type - -
Cartoning speed 40-50 boxes / minute -
Carton requirements (Paper quality) 250-400g/m² Requires a flat surface that can be absorbed
Carton requirements (Size range) L(100-280) x W(200-280) x H(20-60) mm L: Length - W: Width - H: Height
Compressed air source (Pressure) ≥0.6MPa -
Compressed air source (Air consumption) 20m³/h -
Power supply 220V-380V 50Hz -
Main motor power 1.5kw -
Dimension (L x W x H) 4200 x 1550 x 1700mm Main machine size
Net weight of the whole machine 1300kg -
Details Images

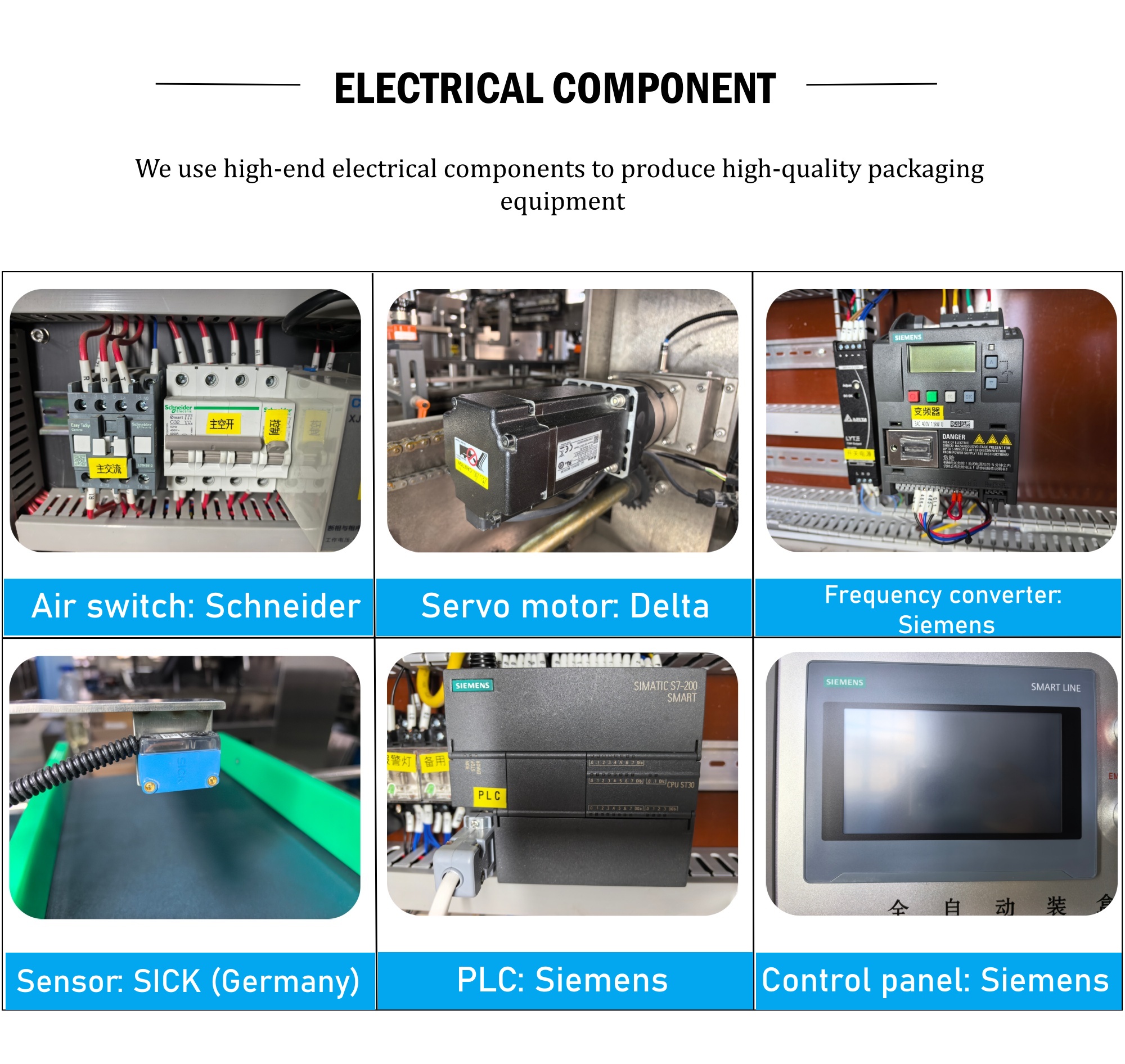

Detail View 1
Detail View 2
Detail View 3

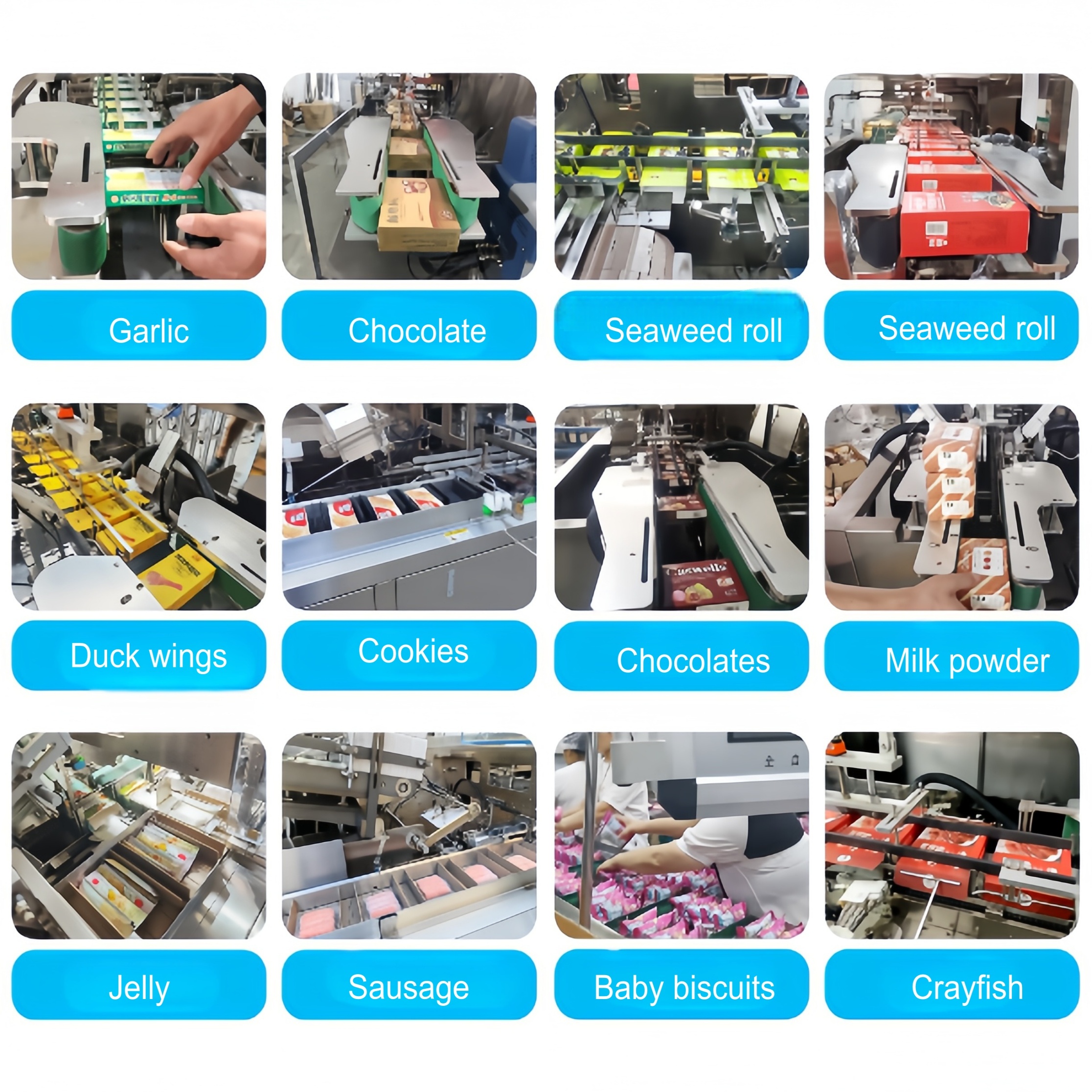

Detail View 4

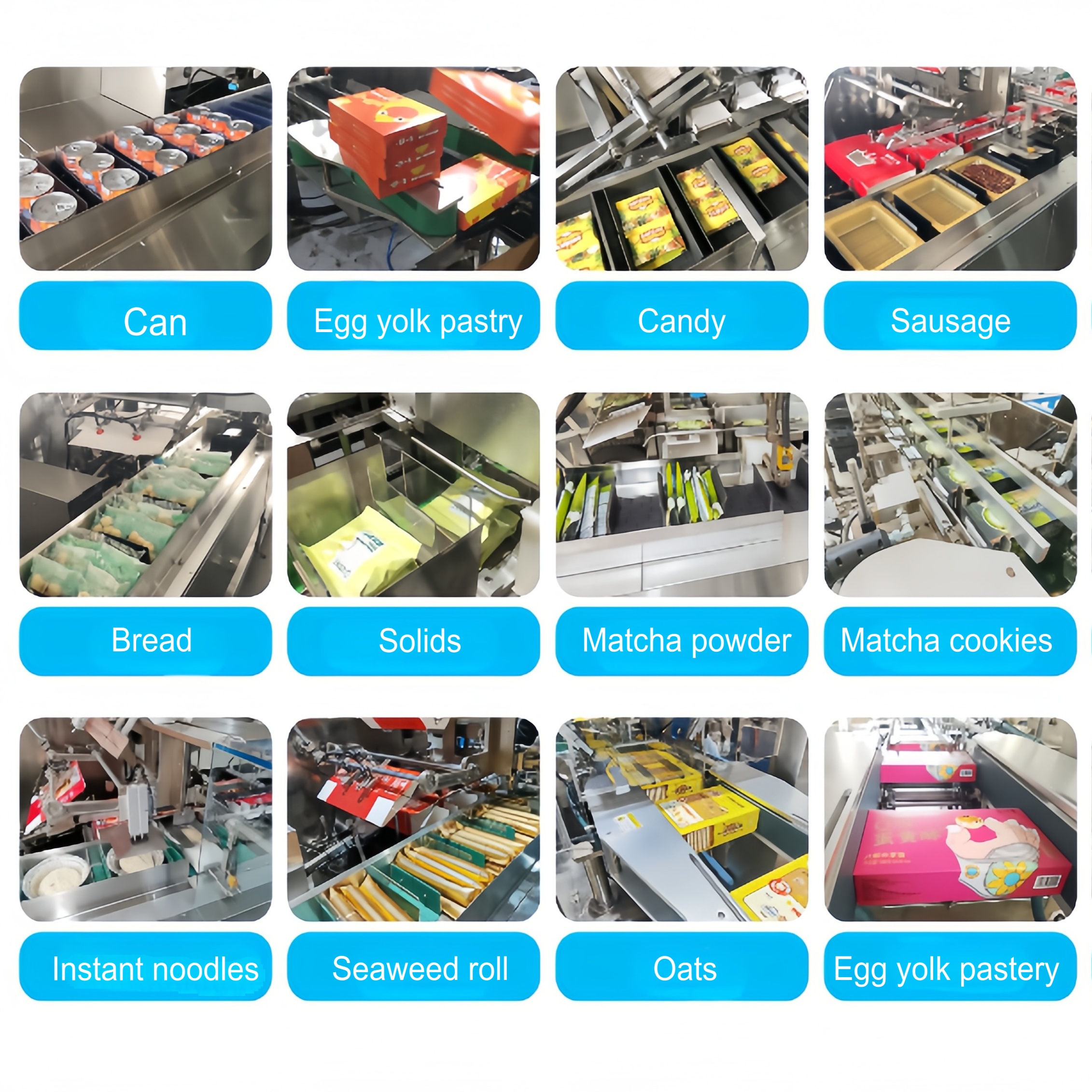

Detail View 5
Certifications
Machine Certifications
Our Advantages

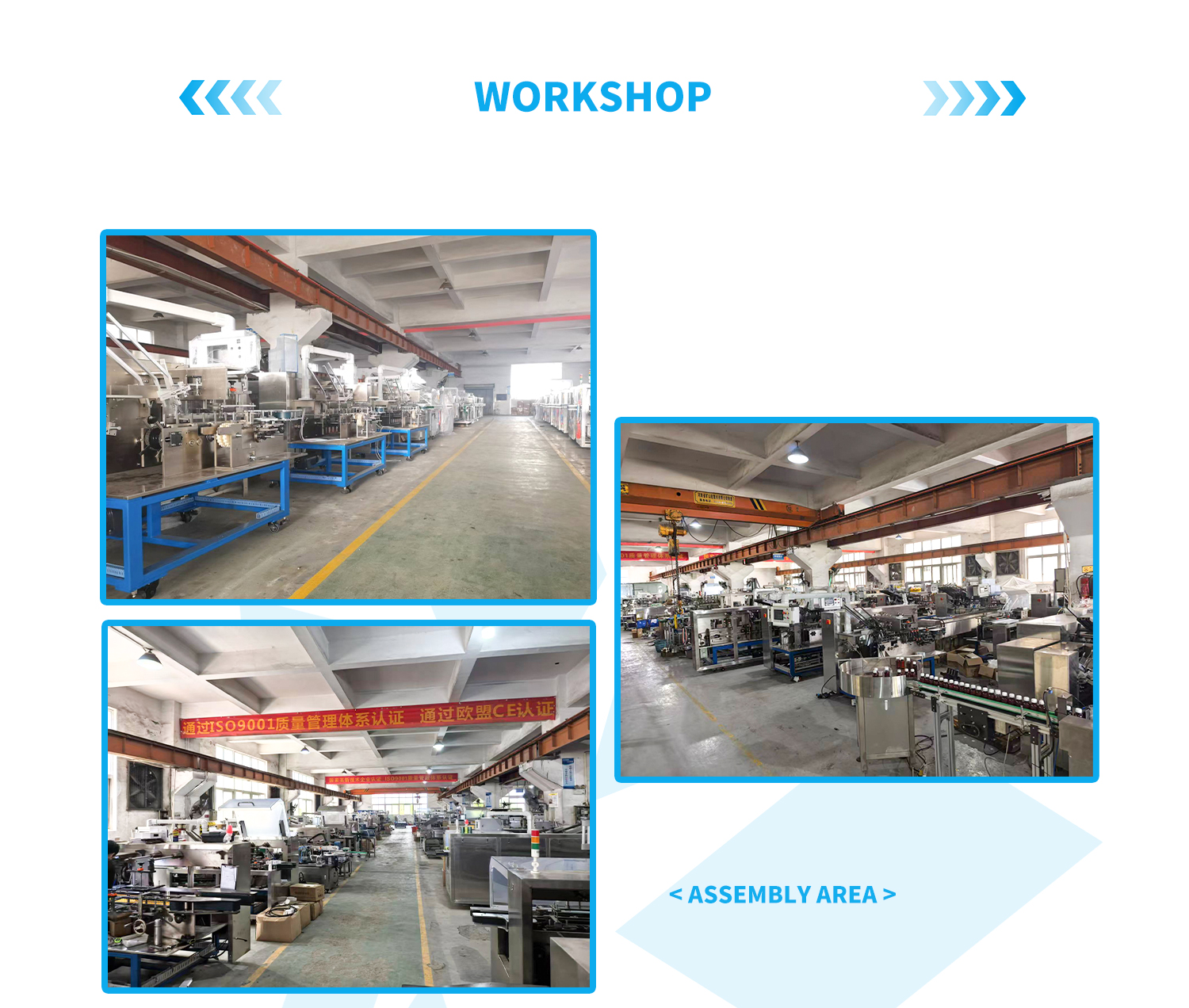

Advantage 1

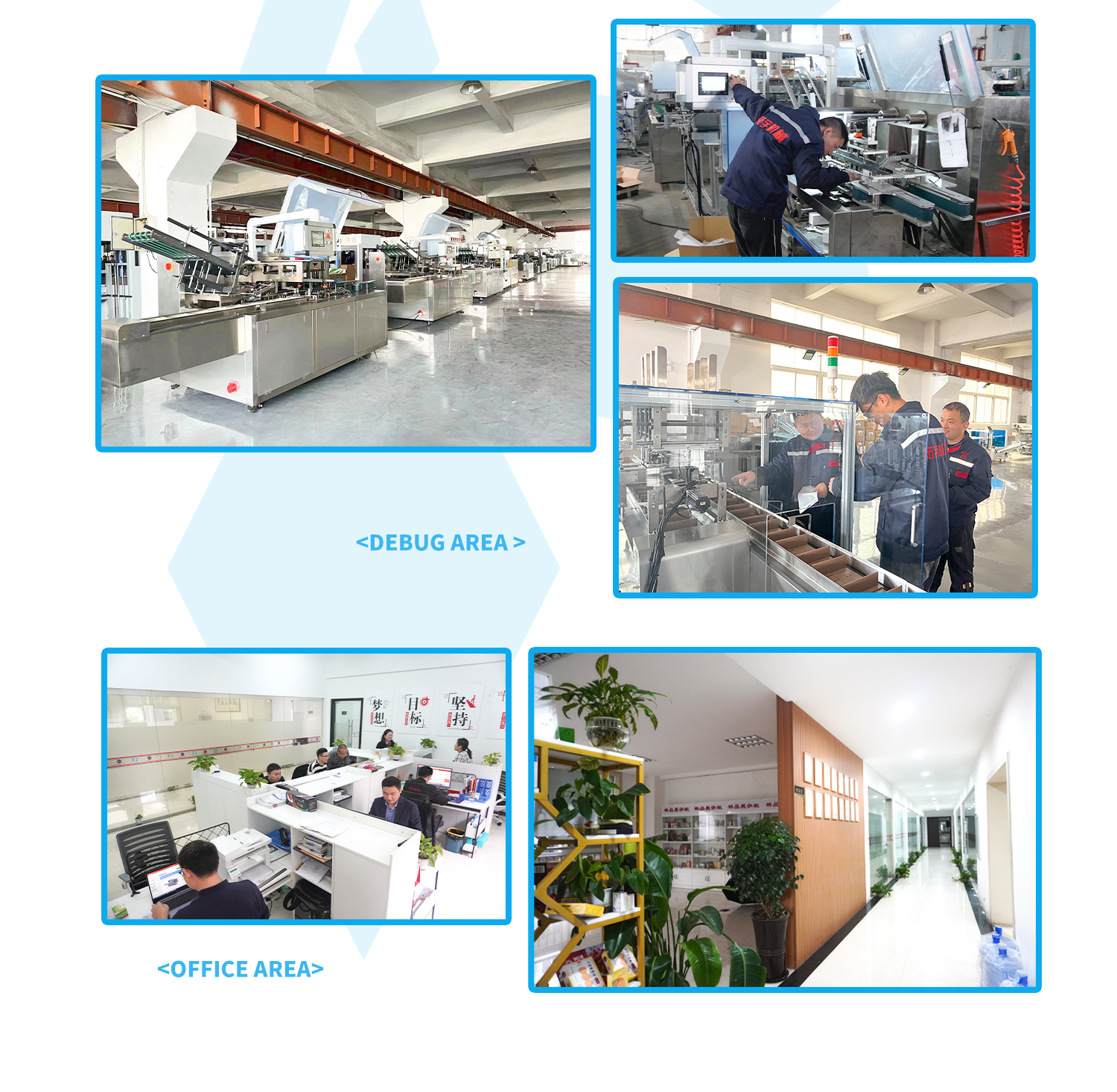

Advantage 2
Advantage 3
Exhibition
Exhibition Booth
Customer Photos

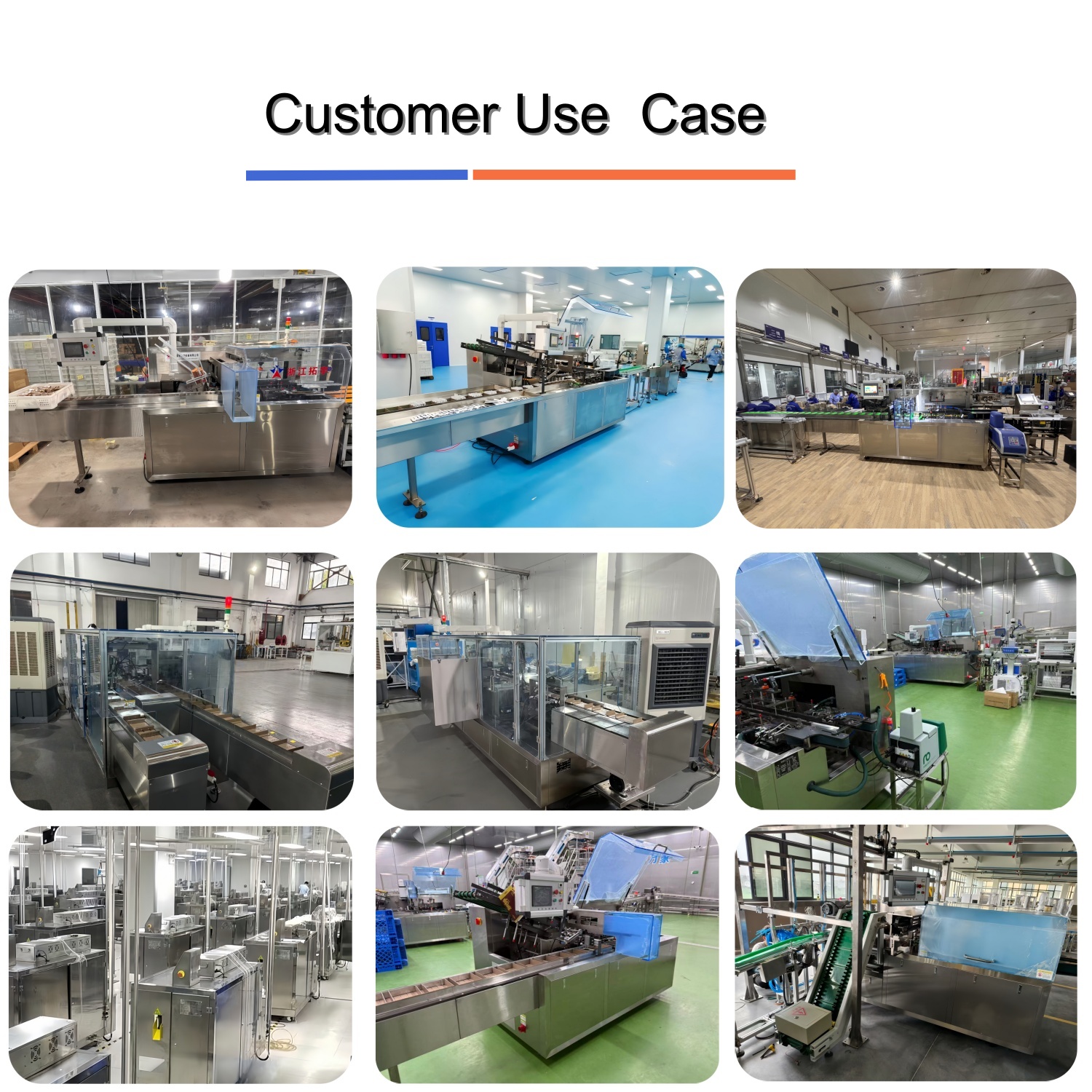

Customer Visit 1

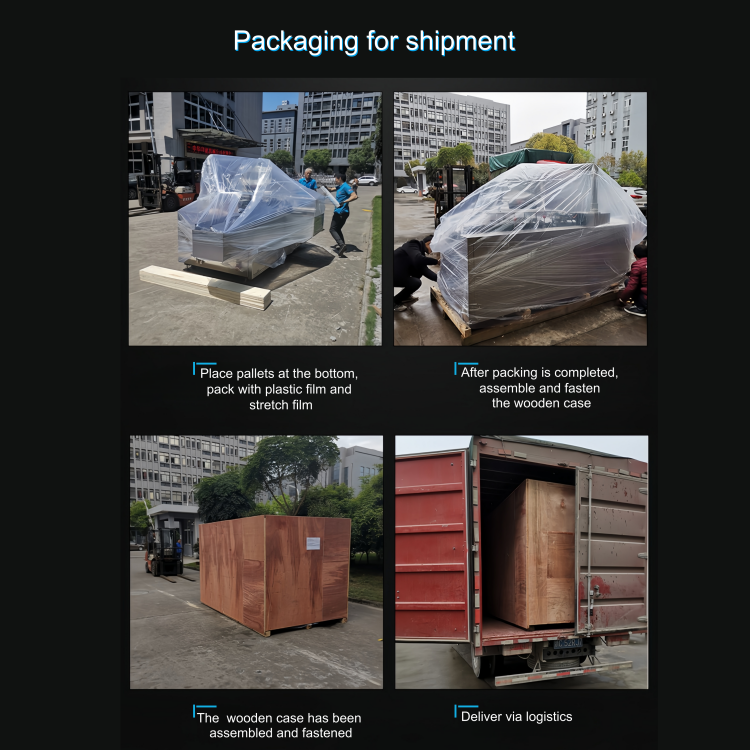

Customer Visit 2
Frequently Asked Questions
Q1 How do I find a packing machine suitable for my product?
Please provide your product details and packing requirements: 1. What product do you want to pack? 2. The weight of each bag? 3. The sizes of the bag (if you don't have, send us a sample picture or draft drawing).
Q2 Can you send engineer services overseas?
Yes, but you have to bear the cost. We also provide detailed installation videos or online video guidance from our engineers free of charge.
Q3 How do we determine the quality of the machine after payment?
Our factory has strict quality inspections. We will send you videos and photos for confirmation after passing the test and before shipping. Alternatively, you can visit our factory or commission a third-party professional inspection company to inspect the machines.
Q4 How can you guarantee I will get the machine if I pay?
We operate with a legal business license and a certificate of honest operation. Secure trade assurance methods are also supported to protect our transaction.
Q5 What are the payment methods?
We accept a 30%-50% deposit, with the remaining 50%-70% paid before shipping. Supported payment methods include T/T, L/C, DDP, Trade Assurance, and others.
Q6 What is the warranty policy?
We offer a 1-year warranty after shipment, excluding quick-wear parts.
