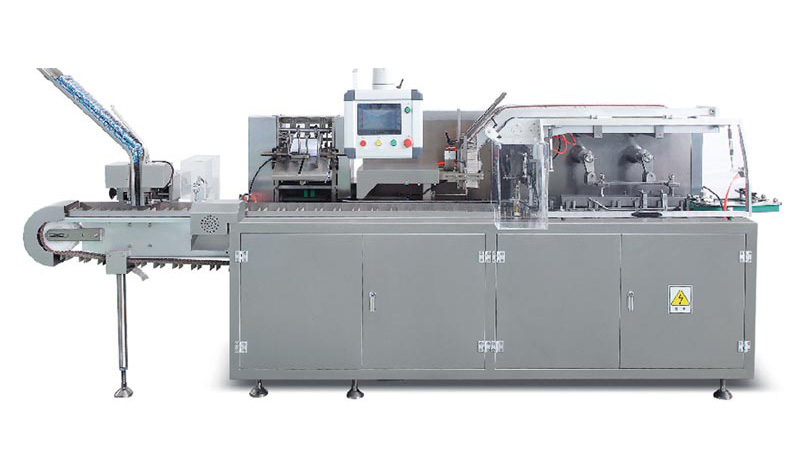

DXH-130 Fully Automatic Cartoning Machine
The machine suitable for automatic feeding and packing such as blister, bottle, plaster, granule and some similar bag type products into the carton. Automatic feeding structure adjust conveniently, randomly set the bag number in touch screen. Online products feeding and detecting, leaflet folding (1-4 folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing lot number, sealing carton with tuck-in or hot melt glue device. Automatic reject lacking of package products and leaflet, convey the finished products. This machine appearance all uses the high quality stainless steel cover, the work surface by the organic glass doors and windows closed, strictly according to the industry "GMP" standard request innovation design. The machine can be used single or joint with other equipment for a production line.
Features
- Adopt International famous brand of electrical component such as PLC, Frequency inverters, etc.
- Adopt Human-machine operation System.
- Servo feeder suitable for different specification blister and bag feeding.
- Automatically stop when machine is overloaded.
- Automatically reject lacking of package products and leaflet.
- Automatically display trouble, alarm and counting.
- Stable performance, easy operation.
Specification
| Parameters |
Value / Range |
| Encasing speed |
80-130 boxes/min |
| Box |
Quality requirement |
250-350g/m² (according with carton dimension) |
| Dimension range (L*W*H) |
(70-80)*(85-130)*(14-50)mm |
| Leaflet |
Quality requirement |
60-70 g/m² |
| Unfolded leaflet specification |
(80-250)*(90-170)mm |
| Folded leaflet specification |
1-4 folds |
| Compressed air |
Working pressure |
≥0.6mpa |
| Air consumption |
20m³/h |
| Power supply |
380V, 50Hz |
| Motor power |
3.5kw |
| Machine dimension (L*W*H) |
4600*1600*1550mm |
| Machine weight |
2000kg |
Notes: If any change of data, we will not notify further.
Other Models

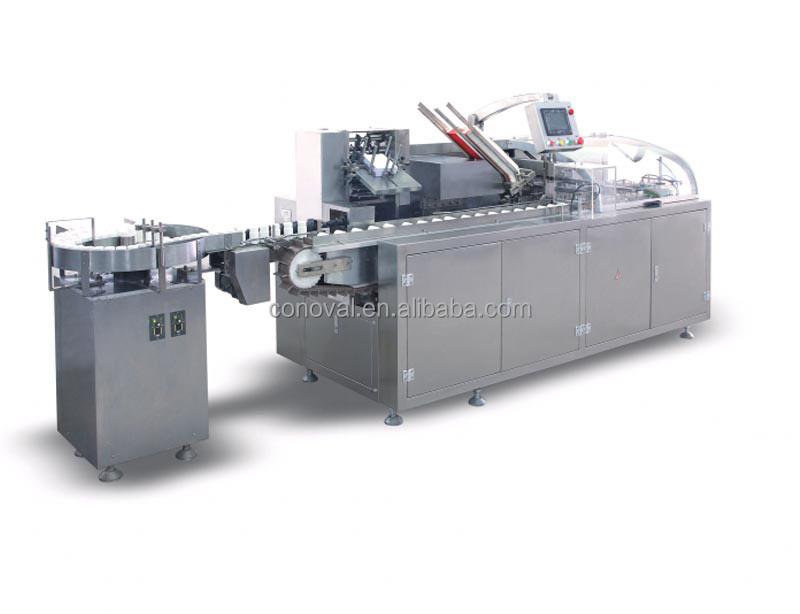

DXH-100P Automatic Cartoning Machine
Applications: The machine suitable for automatic feeding bottle (round and square shape) into carton, online bottle unscrambling and feeding, leaflet folding (1-4 folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing lot number, sealing carton with tuck-in or hot melt glue device. Automatic reject lacking of package products and leaflet and convey the finished products.
Features
- Adopt International famous brand of electrical component such as PLC, Frequency inverters, etc.
- Adopt Human-machine operation System.
- Automatically stop when machine is overloaded.
- Automatically reject lacking of package products and leaflet.
- Automatically display trouble, alarm and counting.
- Stable performance, easy operation.
Main Technical Parameters
| Parameters |
Value / Range |
| Encasing speed |
30-100 boxes/min |
| Box |
Quality requirement |
250-350g/m² (according to its dimensions to confirm) |
| Dimension range (L*W*H) |
(65-180)*(35-85)*(15-50)mm |
| Leaflet |
Quality requirement |
60-70 g/m² |
| Unfolded leaflet specification |
(80-250)*(90-170)mm |
| Folded leaflet specification |
1-4 folds |
| Compressed air |
Working pressure |
≥0.6mpa |
| Air consumption |
20m³/h |
| Power supply |
220V, 50Hz |
| Motor power |
0.75kw |
| Machine dimension (L*W*H) |
3970*1100*1550mm |
| Machine weight |
1600kg |

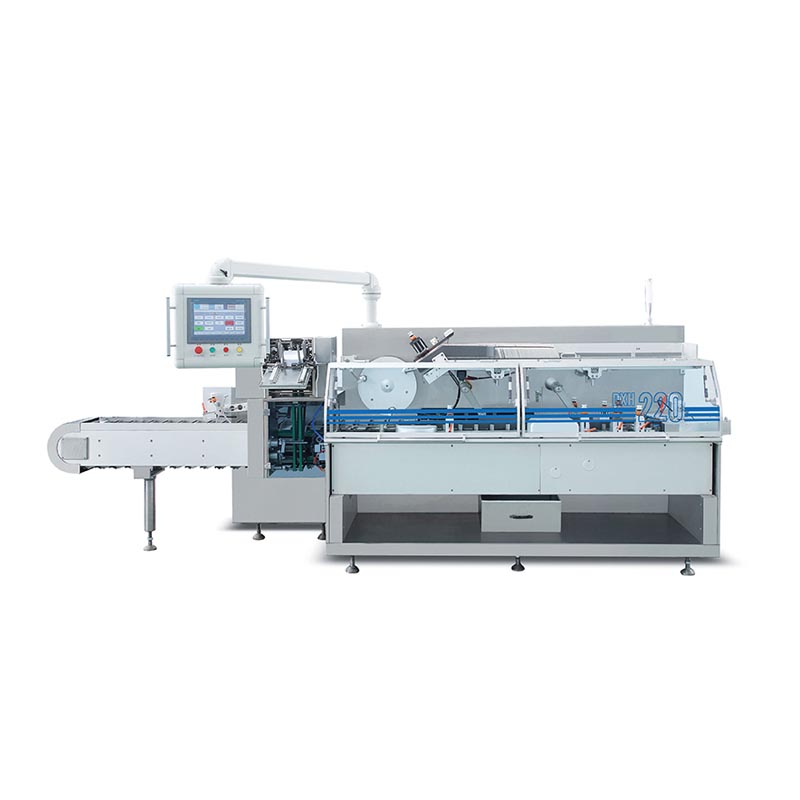

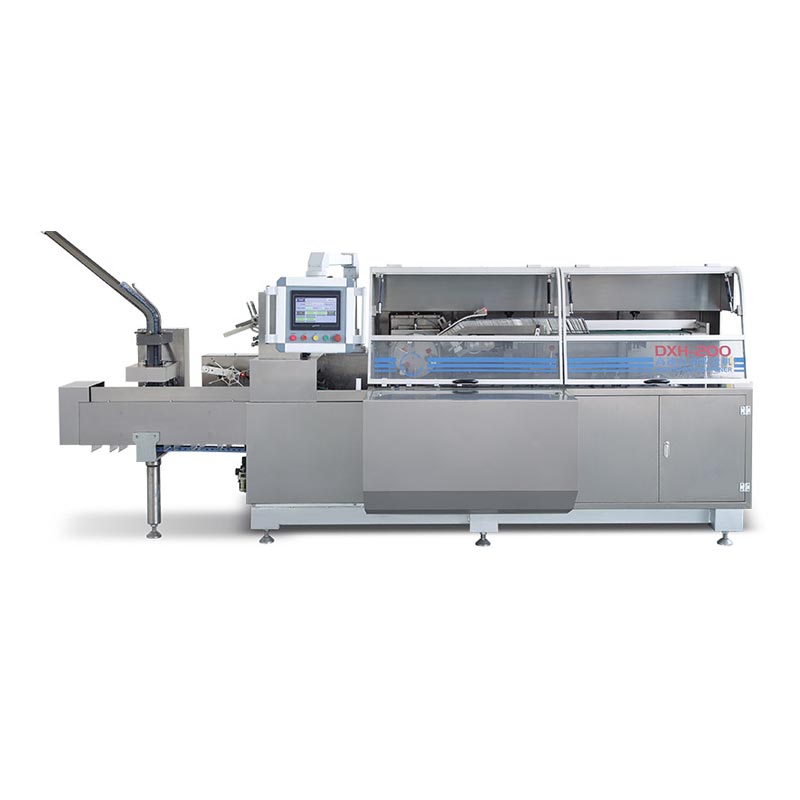

DXH-200 High-Speed Automatic Cartoning Machine
Applications: DXH-200 High-speed Automatic Cartoning Machine belongs to the continuity, high speed, incorporated pneumatic-photo-electro-mechanic high technology products. The machine is suitable for automatic feeding and packing products such as ALU-PVC Blister, bottle, cosmetics, commodity, hardware, card, and some other similar products into the carton, which can automatically finish the leaflet folding, carton opening, feeding, printing lot number, sealing, etc.
Features
- Adopt International famous brand of electrical component such as PLC, Frequency inverters, etc.
- Adopt Human-machine operation System.
- Servo feeding suitable for different specification Alu-pvc blister.
- Automatically stop when machine is overloaded.
- Automatically reject lacking of package products and leaflet.
- Automatically display trouble, alarm and counting.
- Stable performance, easy operation.
Main Technical Parameters
| Parameters |
Value / Range |
| Encasing speed |
80-200 boxes/min |
| Box |
Quality requirement |
250-350g/m² (according to its dimensions to confirm) |
| Dimension range (L*W*H) |
(70-200)*(50-120)*(14-70)mm |
| Leaflet |
Quality requirement |
60-70 g/m² |
| Unfolded leaflet specification |
(80-260)*(90-190)mm |
| Folded leaflet specification |
1-4 folds |
| Compressed air |
Working pressure |
≥0.6mpa |
| Air consumption |
20m³/h |
| Power supply |
380V, 50Hz |
| Motor power |
2.2kw |
| Total power |
5kw |
| Machine dimension (L*W*H) |
4070*1600*1600mm |
| Machine weight |
3100kg |

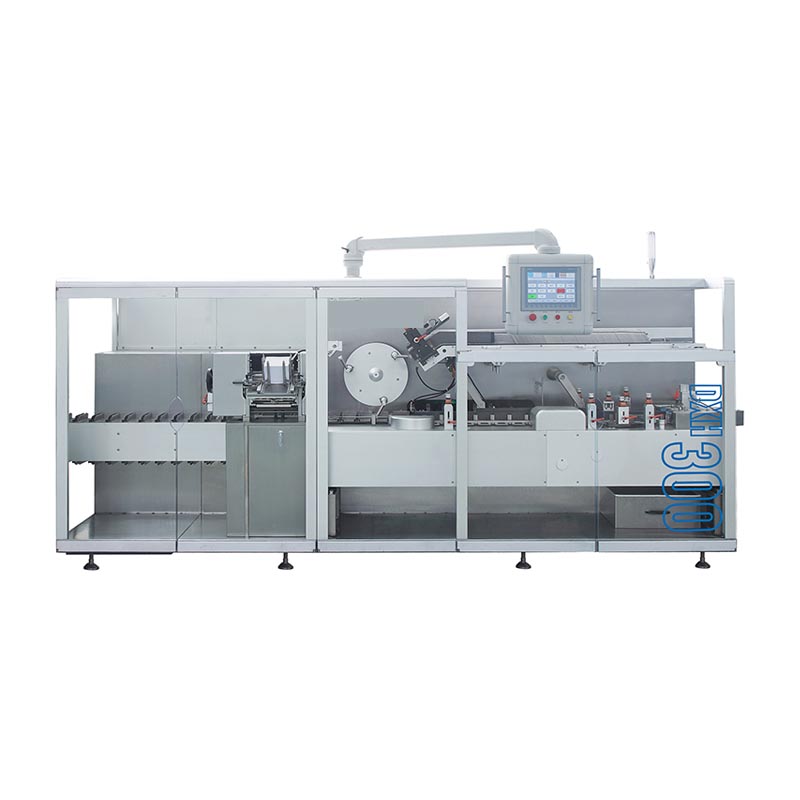

DXH-300 High-Speed Automatic Cartoning Machine
Applications: DXH-300 High-speed Automatic Cartoning Machine belongs to continuity, high speed, incorporated pneumatic-photo-electro-mechanic high technology products. The machine suitable for automatic feeding and packing products such as ALU-PVC Blister, bottle, cosmetics, commodity, hardware, card, and some other similar products into the carton, which can automatically finish the leaflet folding, carton opening, feeding, printing lot number, sealing, etc. The machine adopts PLC control, and the photoelectricity detection each parts, can automatically show the reason when the machine is stopped abnormally, easy to eliminate the failure. The machine can be used single or joint with pillow-type packing machine or other equipment for a production line.
Features
- Adopt International famous brand of electrical component such as PLC, Frequency inverters, etc.
- Adopt Human-machine operation System.
- Servo feeding suitable for different specification Alu-pvc blister.
- Automatically stop when machine is overloaded.
- Automatically reject lacking of package products and leaflet.
- Automatically display trouble, alarm and counting.
- Stable performance, easy operation.
Main Technical Parameters
| Parameters |
Value / Range |
| Encasing speed |
80-300 boxes/min |
| Box |
Quality requirement |
250-350g/m² (according to its dimensions to confirm) |
| Dimension range (L*W*H) |
(70-200)*(50-120)*(14-70)mm |
| Leaflet |
Quality requirement |
60-70 g/m² |
| Unfolded leaflet specification |
(80-260)*(90-190)mm |
| Folded leaflet specification |
1-4 folds |
| Compressed air |
Working pressure |
≥0.6mpa |
| Air consumption |
20m³/h |
| Power supply |
380V, 50Hz |
| Motor power |
3.5kw |
| Total power |
5.5kw |
| Machine dimension (L*W*H) |
4600*1500*1750mm |
| Machine weight |
3200kg |
Why Choose Us & Our Advantages
Frequently Asked Questions
What types of products can these cartoning machines handle?
Our machines are designed to package a wide range of products including ALU-PVC blisters, bottles (round and square), plasters, granules, bag-type products, cosmetics, commodities, hardware, and cards.
Does the machine automatically fold and insert leaflets?
Yes, the machines feature integrated online leaflet folding (supporting 1-4 folds) and feeding. They also include leaflet detection systems to ensure no carton goes out without a leaflet.
What happens if a product or leaflet is missing during packaging?
The system features an automatic rejection mechanism. If the machine detects a carton lacking either the product or the leaflet, it will automatically reject it before sealing.
Can these cartoning machines be integrated into a full production line?
Yes. These machines are versatile and can be operated independently or connected seamlessly with other equipment, such as blister packaging machines, bottle unscramblers, or pillow-type packaging machines.
What safety features are equipped on the machines?
Our machines are configured to stop automatically in the event of an overload. They are also enclosed with organic glass doors and windows, and are designed strictly in accordance with "GMP" industry standards.
What components are used in the electrical systems?
We use internationally recognized brands for our electrical components, such as PLC control systems and frequency inverters, ensuring stable performance, accurate counting, and easy operation.
