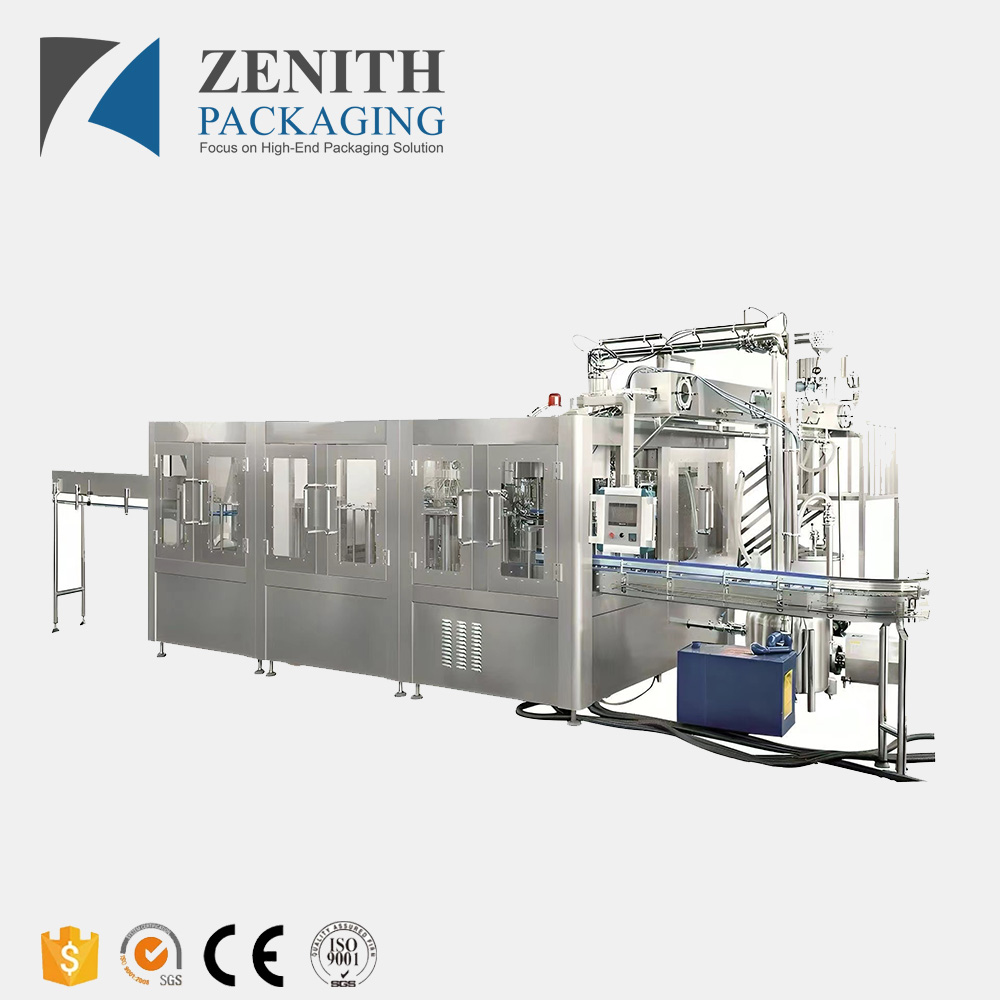

The mineral water filling machine strictly follows Chinese National GB/T 21903-2008, that the filling machine needs to meet during the production process, including safety, stability, operability, production efficiency, and other aspects. The detailed measurement and calculation methods for process parameters of the mineral water filling machine, including filling volume, filling time, filling speed, filling accuracy, are introduced. The specific steps and regulations for inspecting the filling machine, including equipment inspection, production inspection, periodic inspection, are also provided. At the same time, the standard also specifies the precautions and maintenance requirements for the use of the filling machine.

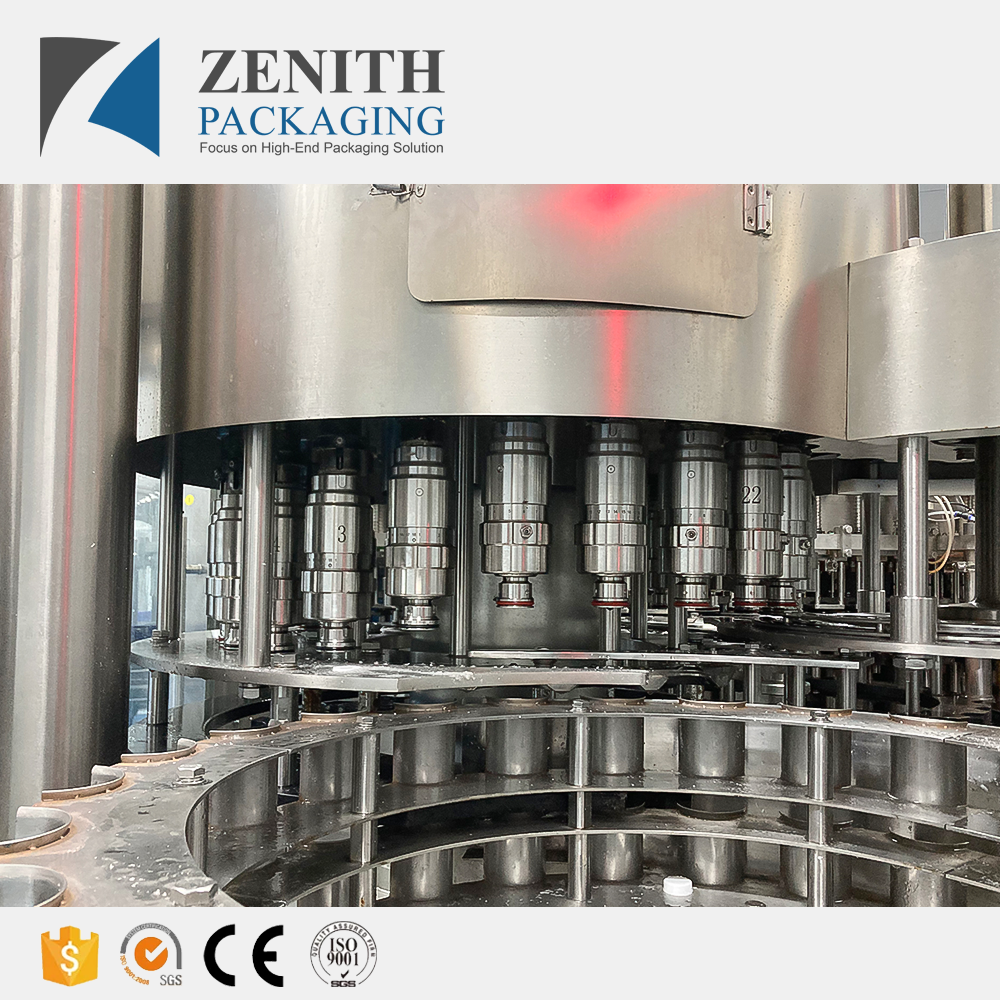

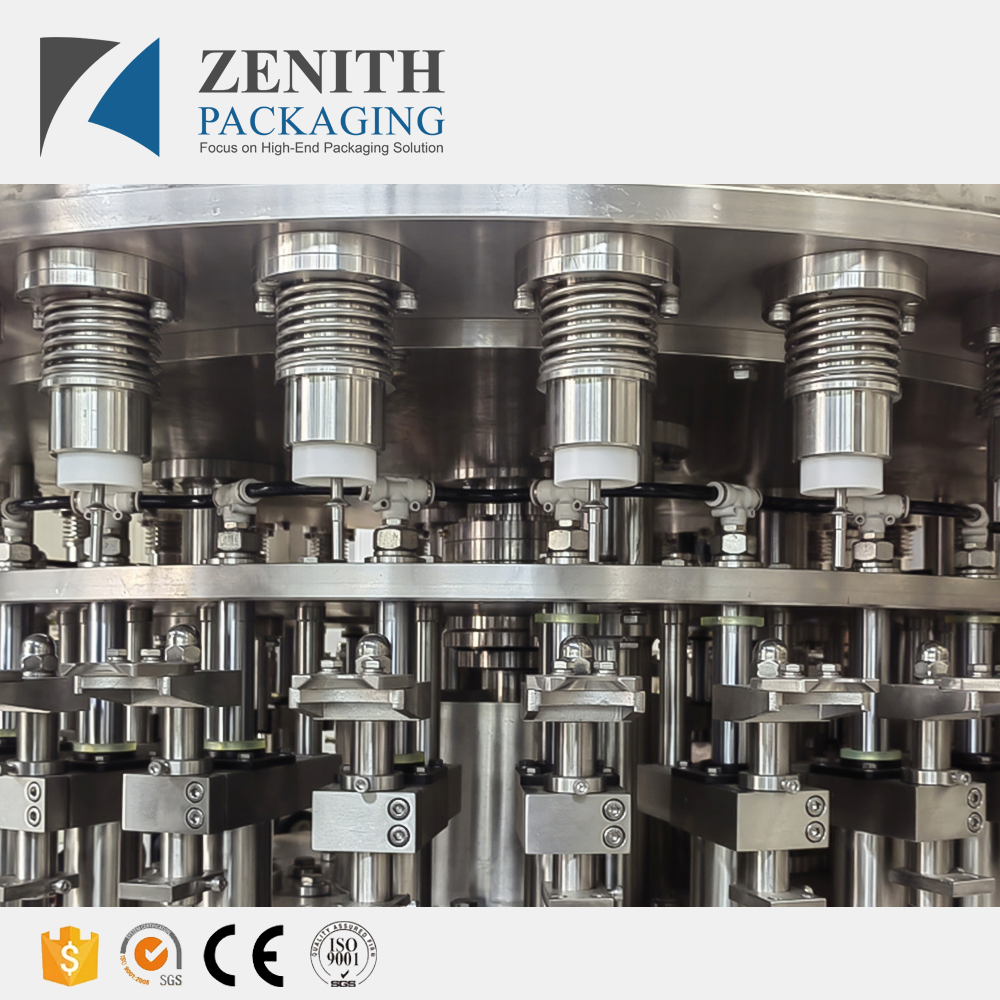

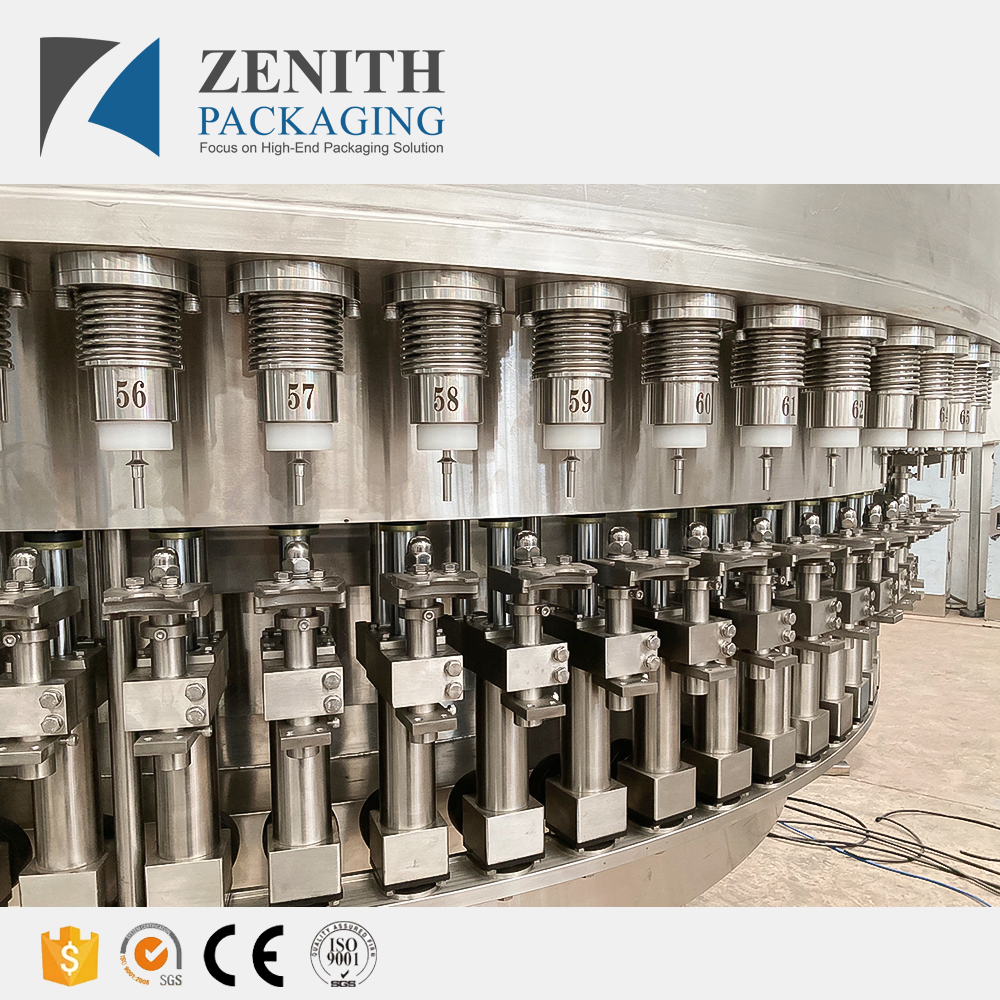

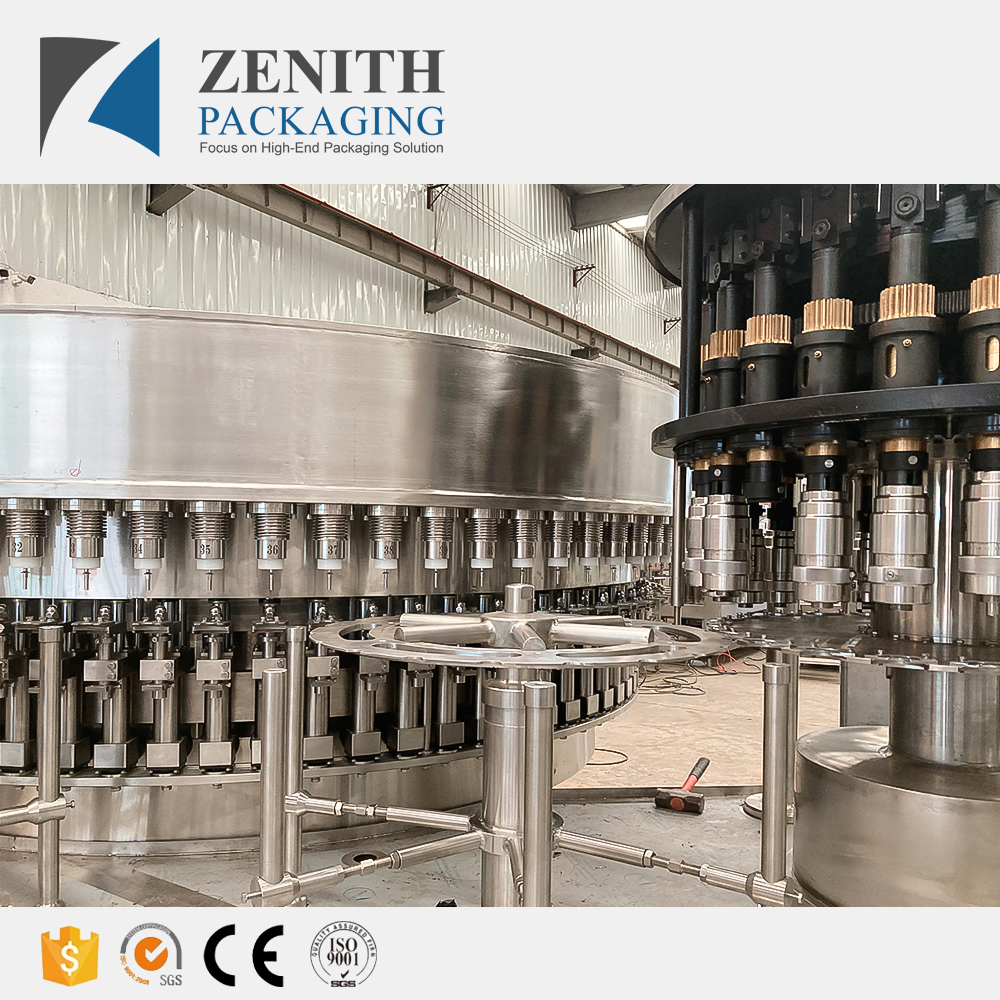

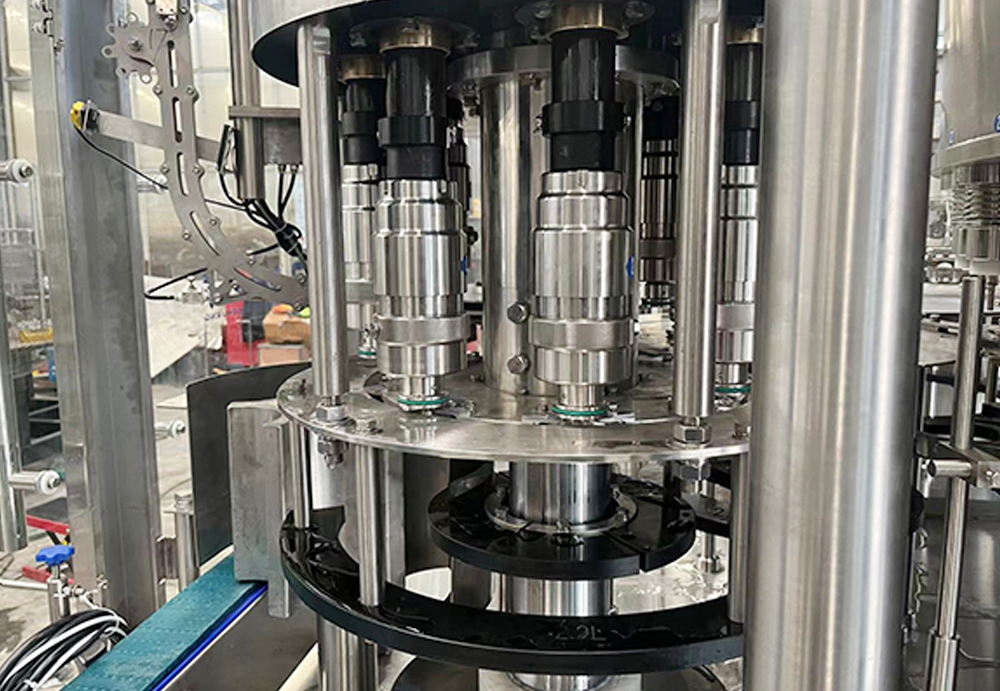

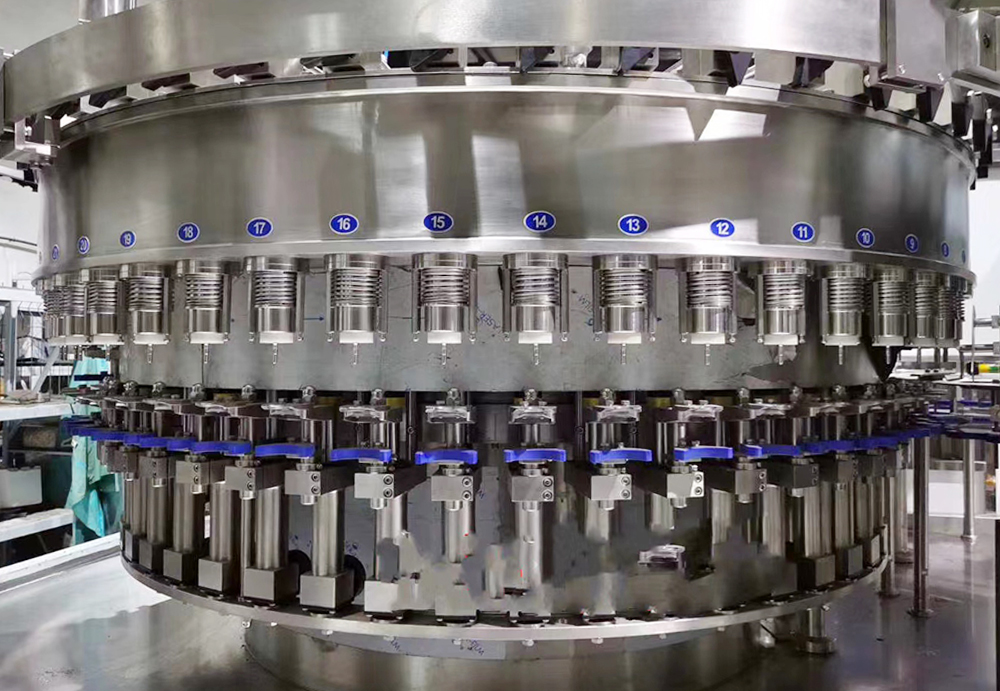

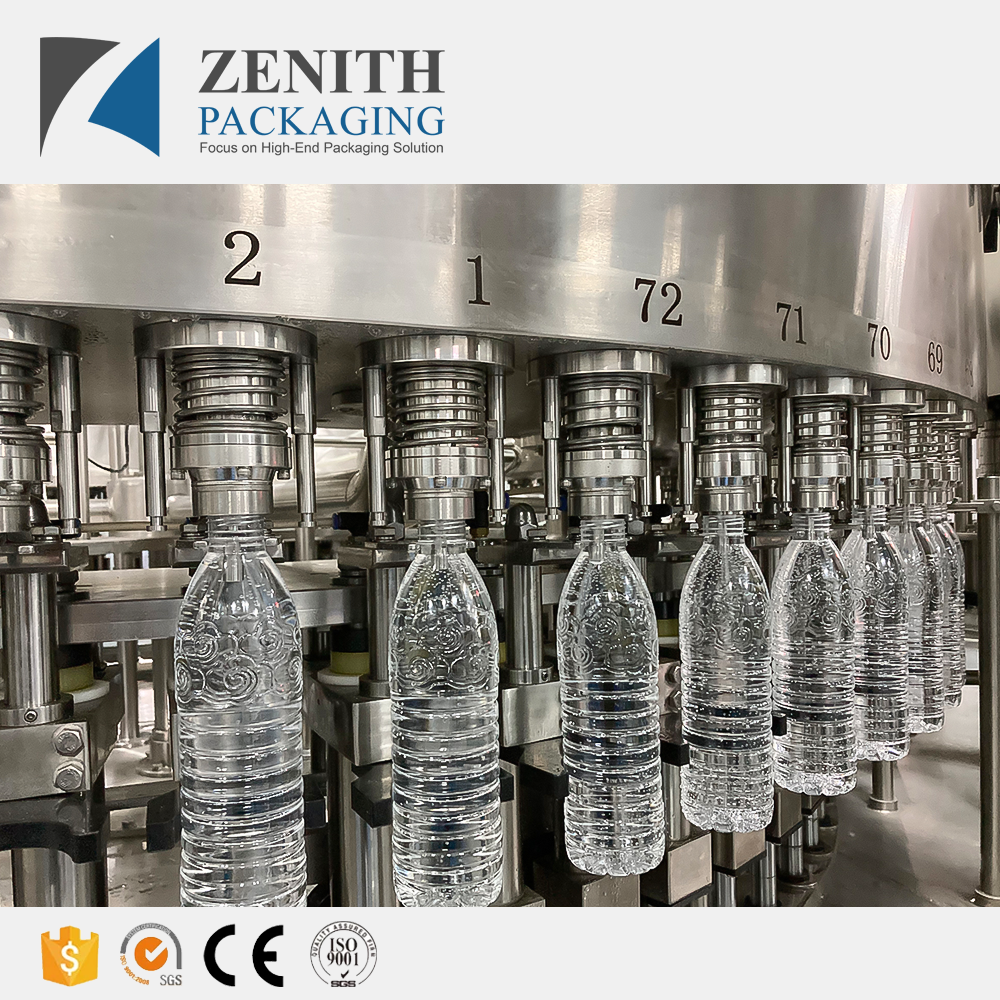

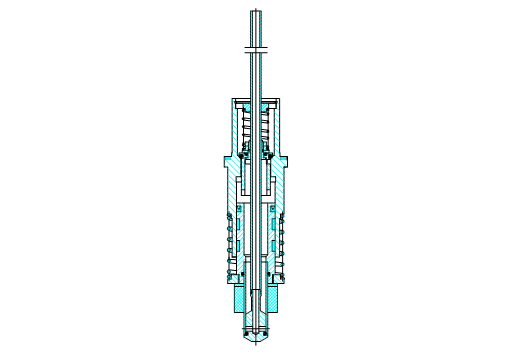

This component is specifically designed for atmospheric pressure filling without reflux. All the valves of the entire equipment are installed on the liquid cylinder. During filling, the valves remain stationary while the bottles move up and down in a straight line. During filling, the material enters the filling valve through the liquid inlet and then, after the spring is pushed against the bottle cap placed on the bottle mouth, it is injected into the bottle. This valve adopts a secondary opening valve mechanism. In the non-filling state, the filling valve achieves sealing under the action of the spring. Sealing rings are used at all possible connections with the outside in this component. If any material leakage is found during the production process, please first consider whether the sealing components are damaged.
This component is designed for precise atmospheric pressure filling. To prevent leaks and guarantee structural integrity, sealing rings are carefully applied at all necessary connections with the outer environment. The valve uses a secondary opening mechanism, utilizing high-grade spring tension to secure the bottle cap alignment and execute seamless injection. Periodic maintenance of the sealing components is recommended to sustain efficiency.
| Model: | XGF40-40-10 | Filling pressure: | 0.2-0.4 Mpa |
| Capacity: | 20000 B/H (500ml) | Flow velocity of the valve: | 120-150 ml/s |
| Bottle height: | 120-310 mm | Filling valve: | SUS304 |
| Bottle diameter: | 50-96 mm | Product reservoir tank: | SUS304 |
| Bottle mouth diameter: | 26-40 mm | Capping heads: | 15 |
| Bottle type: | PET bottle | Capping torque: | 0.6-2.8 Nm (adjustable) |
| Cap type: | Flat cap | Main motor power: | 7.5 kW AC 380V 50Hz IP55 |
| Material of the water dispenser: | Poly tetra fluoroethylene | Installation power: | 15 kW |
| Rinsing heads: | 60 | Power supply: | 380V, 50HZ |
| Rinsing time: | over 2 seconds | Consumption of compressed air: | 0.8 m³/min (0.6MPa/H) |
| Filling heads: | 60 | Consumption of aseptic water: | 0.4 m³/min (0.2-0.25Mpa) |
| Filling temperature: | normal temperature | Dimension: | 4850*3200*2800 mm |
| Weight: | 10500 Kg |
We are a leading packaging brand with over 20 years of experience, priding ourselves as a global turnkey packaging solution supplier. Strategically positioned to exceed the needs of our valued clients, our serviced continents include Africa, the Middle East, Europe, South America, North America, and Oceania.

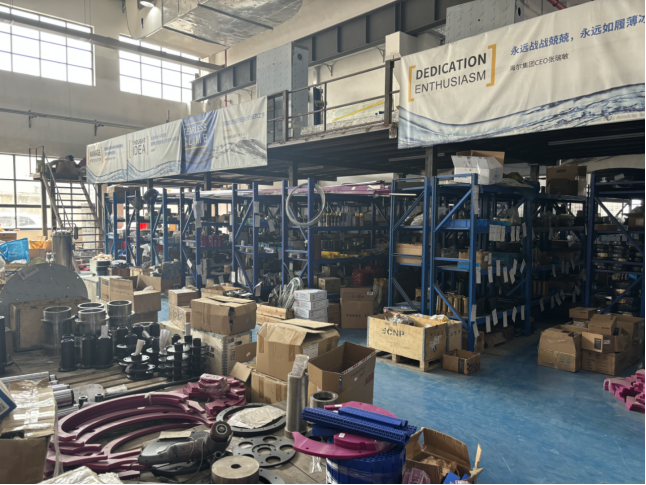

We partner with trusted, reliable auxiliary equipment manufacturers so that we can offer our customers extended service. However, we do suggest keeping spare packaging equipment parts on hand just in case. Our services also cover trained technicians, equipment installation and start-up, operator and maintenance training, machine evaluation and performance optimization, repairs, rebuilds, retrofits, and spare parts programs.
If you need one of your packaging machine parts repaired, factory-trained technicians are able to offer you on-site service or step-by-step instructions so that your staff can safely complete the parts replacement installation.
