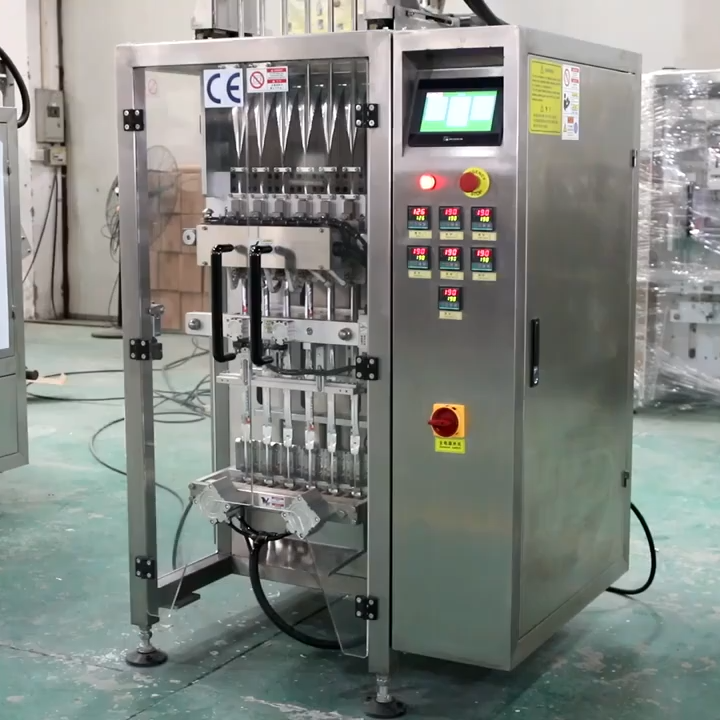

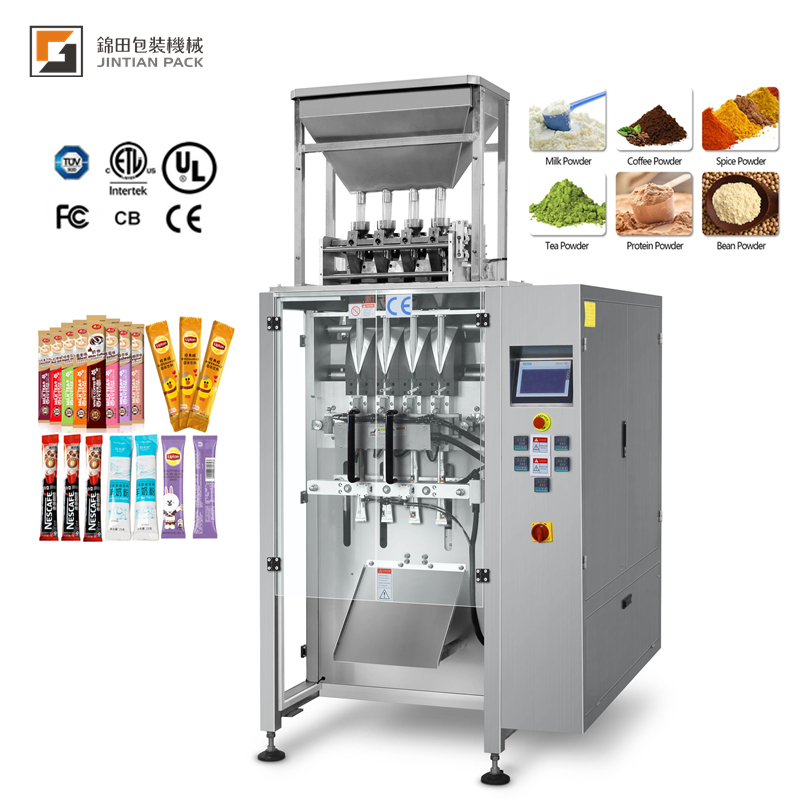

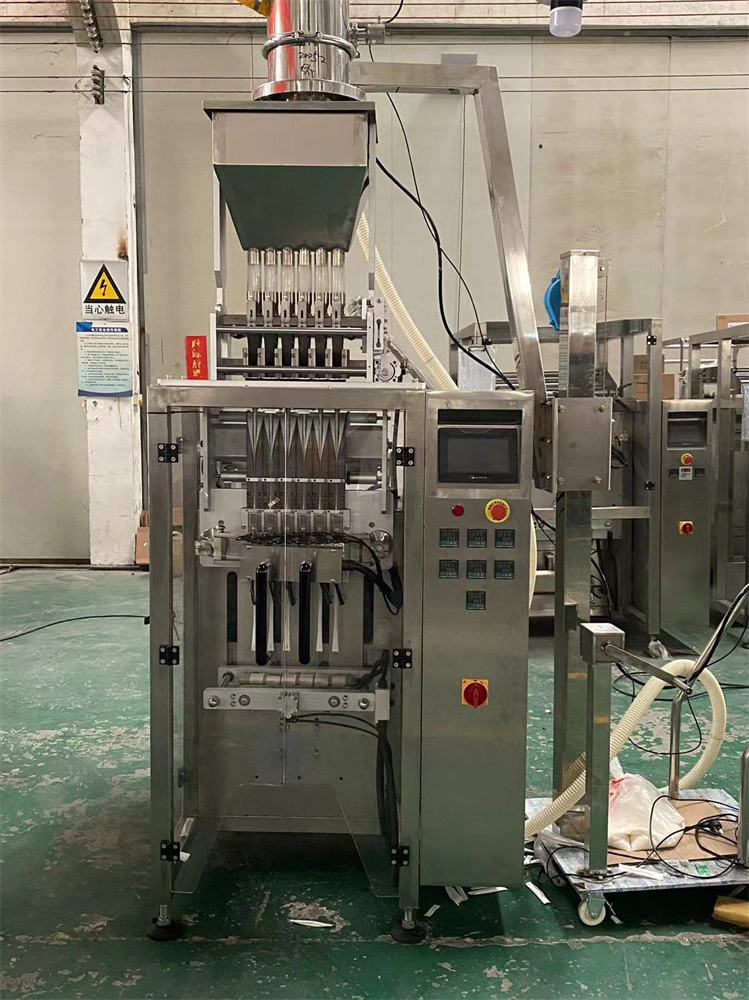

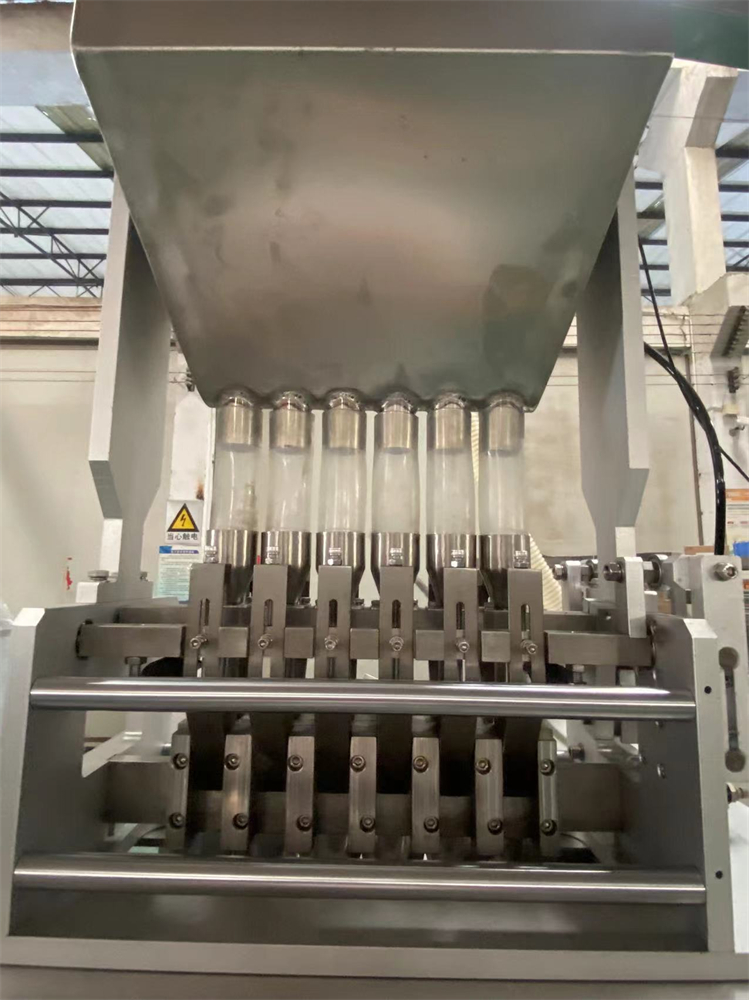

4 Lanes 6 Lanes 5g Sugar Stick Sachet Packaging Machine Multi-lanes Automatic 1g 2g 3g Packing Machine

Product Description

Products Description

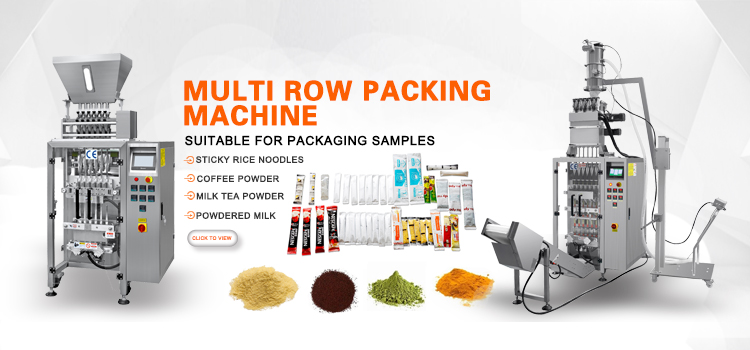

Product Overview

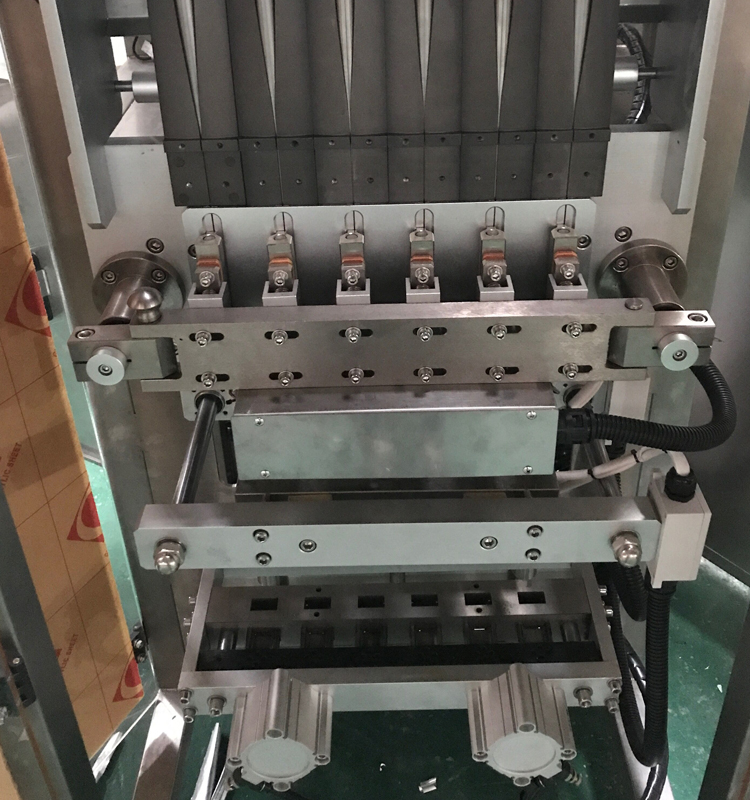

Product Detail

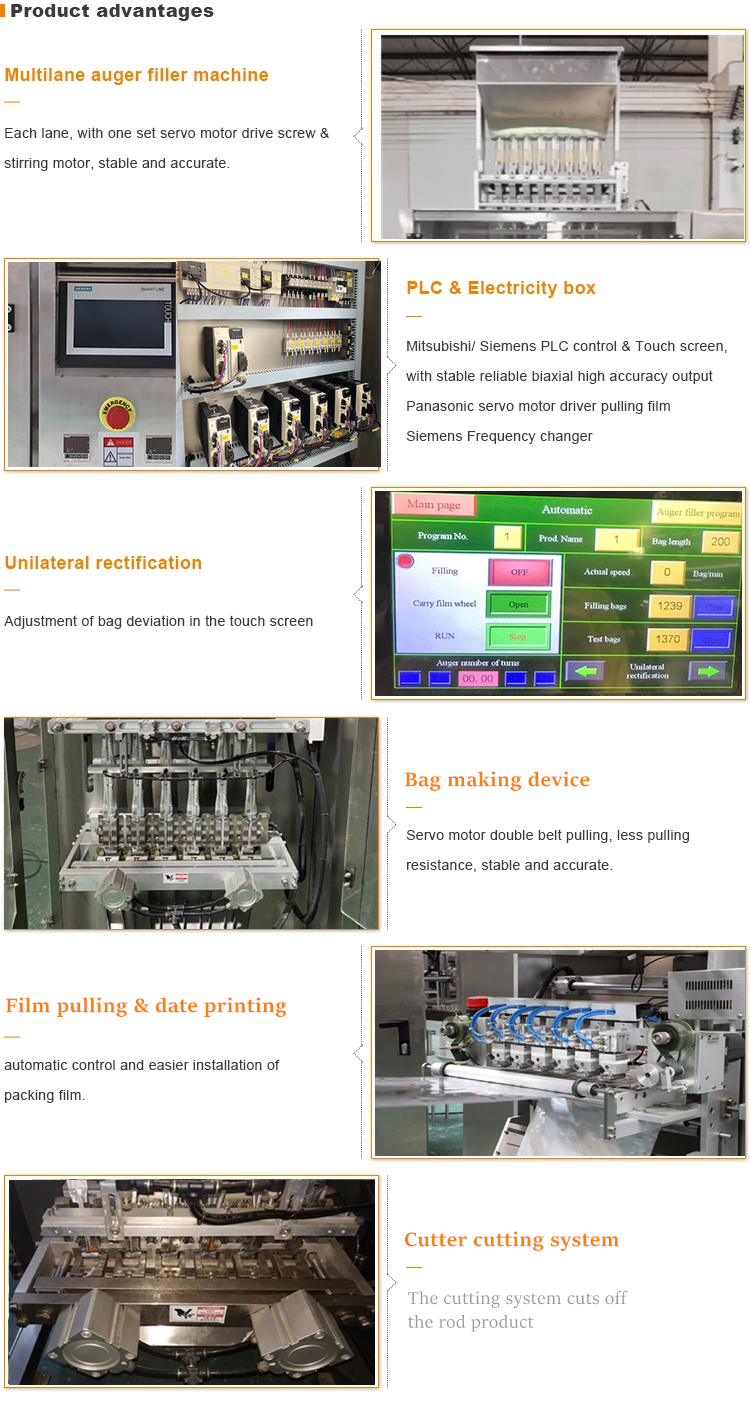

Advantages
  • Machinery passed Certifications, by ISO, CE, SGS, ROHS, EU Low Voltage, EC Machinery.

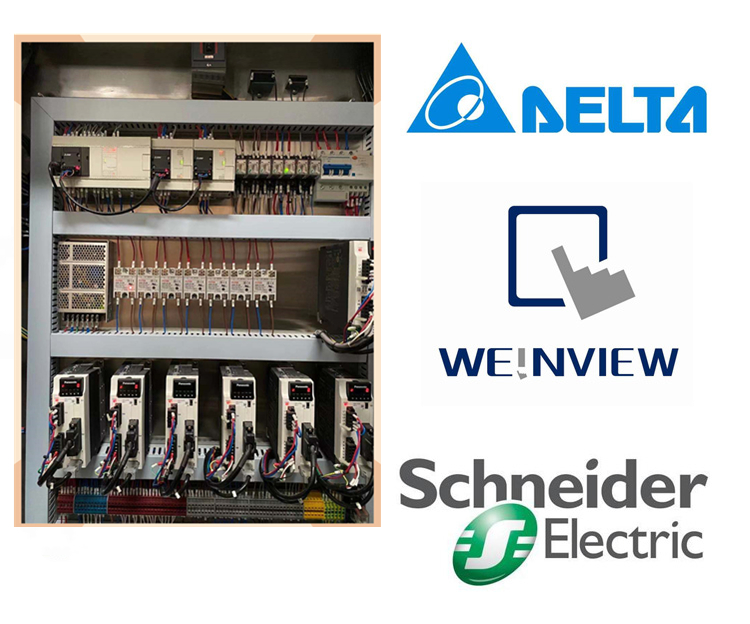

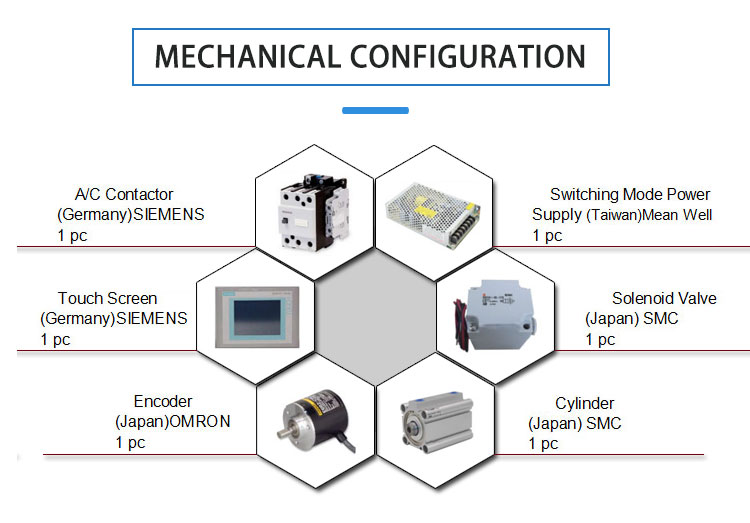

  • Use famous brand electric and pneumatic components, stable and long life circle.
  • Specific powder counting system controlled by servo motor.
  • Pneumatic system, double belt pulling film, very stability.
  • Separate electricity road, easy to distinguish, lower noise.
  • Professional vertical packing machine producer and factory supplier, since 2011.
  • Great workshop team and after-sales services.
Advantage Feature 1 Advantage Feature 2
Product Parameters
Model JT-420-4K JT-420-6K
Bag length 30-140mm 30-140mm
Bag width 10-50mm 10-32mm
Max roll film width 440mm 440mm
Packing speed 30-50bags/min/lane 30-50bags/min/lane
Air pressure 0.65mpa 0.65mpa
Air consumption 0.2m³/min 0.2m³/min
Power supply 220VAC/50Hz 220VAC/50Hz
Power 2.0 KW 2.0 KW

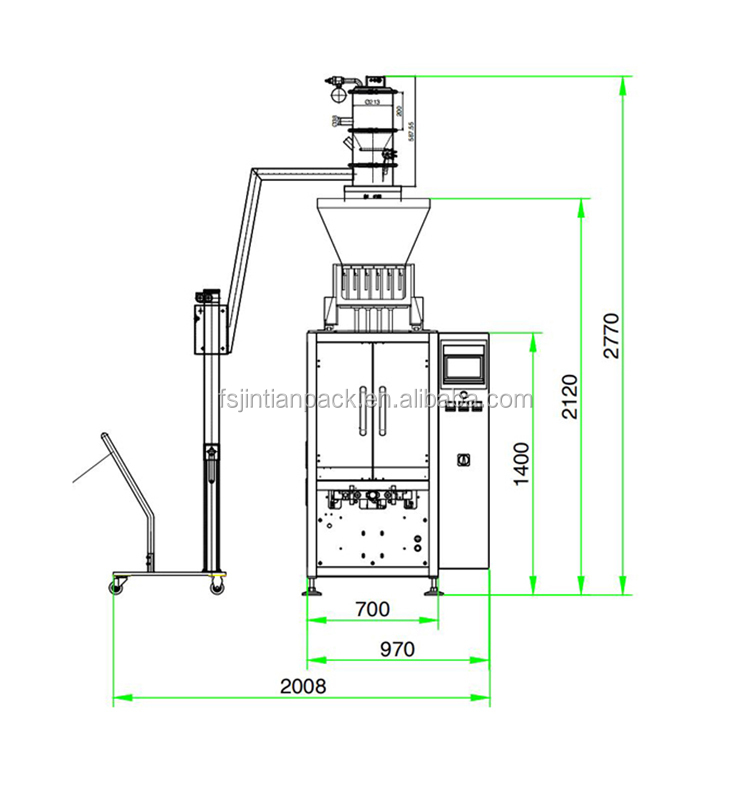

Overall size 1100*990*2100mm 1100*990*2100mm
Net weight 400 kg 450 kg
Application

Suitable for grains, such as sugar, salt, granules, pellet, powder, and etc.

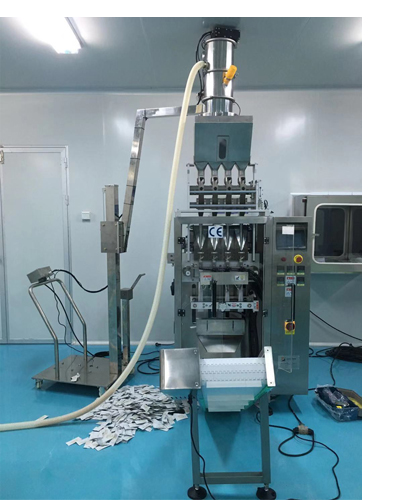

Application Samples
Company Profile
Company overview banner

Established in 2011, the manufacturer is specialized in researching, designing, manufacturing and marketing packaging machines which are widely used in different fields such as foods, chemicals, pharmacies, beverage, light industry and etc.

Our series of vertical packaging machines are sold to more than 40 different countries and regions in Europe, America, Mid-East, South Asia and etc. With high quality machines and quick professional service, we win a consistently high reputation.

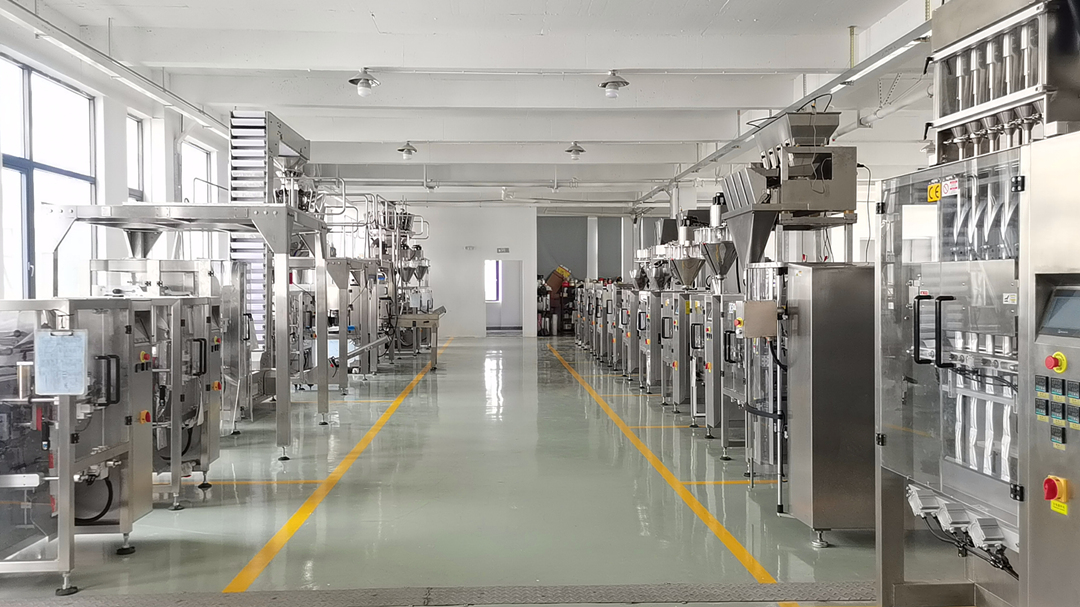

Workshop overview
Warehouse Stock 1 Warehouse Stock 2
Service
FAQ
FAQ support banner
Q1: What materials can this packaging machine handle?
A1: It is suitable for packaging various grains, granules, pellets, powder, sugar, salt, and similar products.
Q2: What certifications do your packaging machines have?
A2: Our machinery has passed multiple international certifications, including ISO, CE, SGS, ROHS, EU Low Voltage, and EC Machinery directives.
Q3: What are the main features of the film pulling system?
A3: The machine uses a stable pneumatic system and a double belt pulling film mechanism to ensure high stability and smooth operation.
Q4: How is the powder counting controlled?
A4: The specific powder counting system is precisely controlled by a high-performance servo motor for accurate measurements.
Q5: What are the bag size limits for models JT-420-4K and JT-420-6K?
A5: For both models, the bag length ranges from 30 to 140mm. The bag width is 10-50mm for JT-420-4K, and 10-32mm for JT-420-6K.
Q6: Do you provide after-sales services?
A6: Yes, we have a dedicated workshop team and offer comprehensive after-sales services to ensure your equipment runs smoothly.
