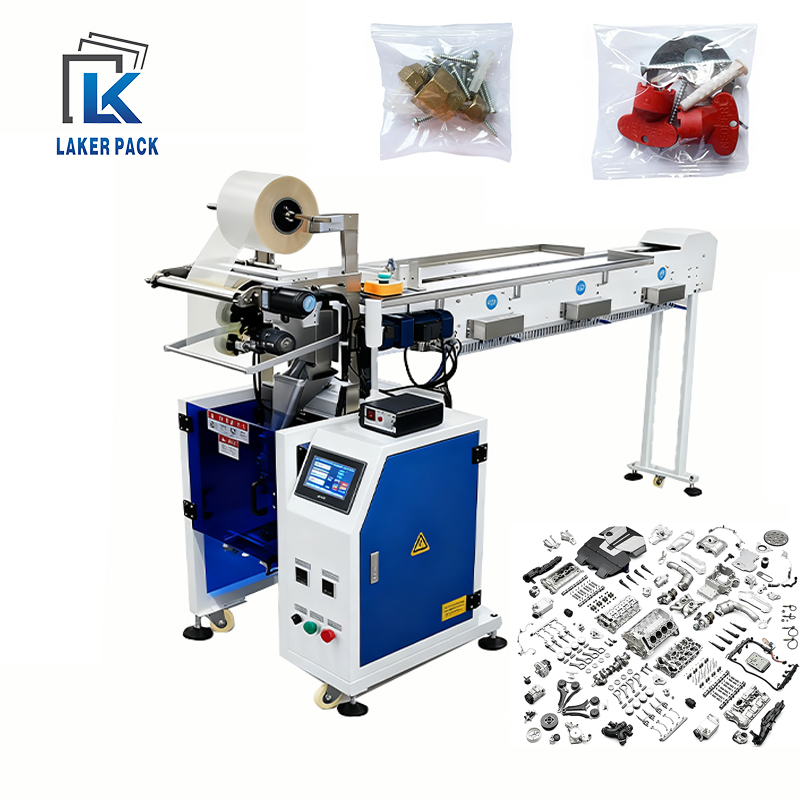

Vertical Hardware Fastener Counting Filling Sealing Pouch Bag Packaging Machines 3 Side Seal Multi Function

Product Description

Product Overview

  • Application: Screw, bolt, washer, nut and other kinds of regular shape fastener products.
  • Spacing Counting: Adopting spacing counting and fiber optics re-inspection or completed fiber optics counting, suitable to mixing packaging for 1~50 varieties of items.
  • High Efficiency & Durability: Solid sealing, smooth and elegant bag shape; can be equipped with exhaust device, printer, labeling machine, transfer conveyor and weight checker.
  • Automatic Operation: Automatic ordering, counting, packing and printing etc. Easily adjust the quantity of screws in the bag, set the quantity of bags what you need, when meet, the machine will stop automatically.

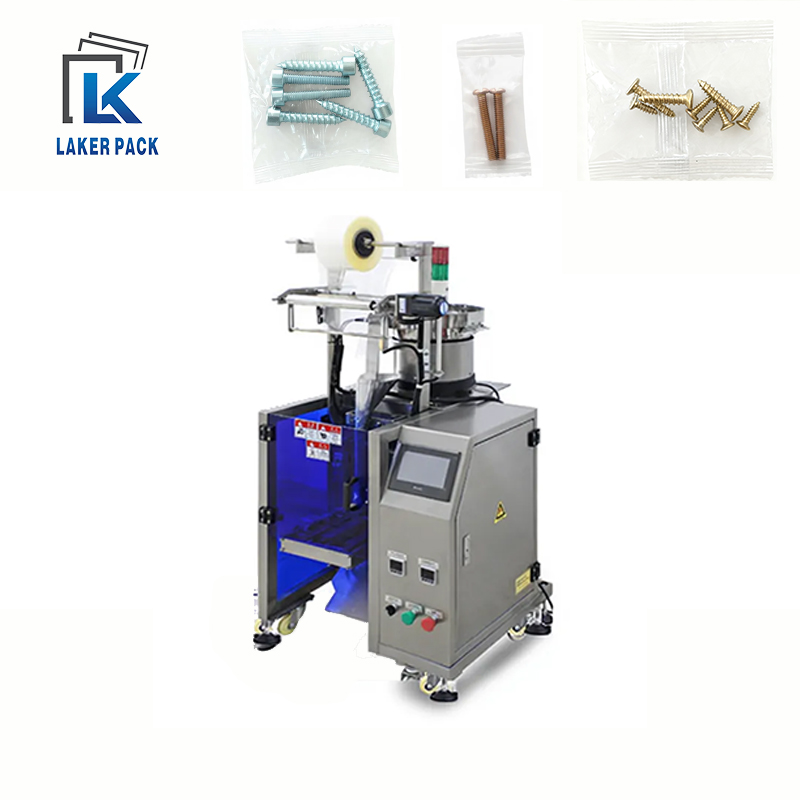

Fastener Packaging Machine Overview

Product Specifications

Model LK-300H LK-400H LK-500H LK-600H
Packing size L: 50-180mm
W: 40-140mm
L: 80-250mm
W: 40-190mm
L: 100-180mm
W: 90-240mm
L: 100-400mm
W: 100-300mm
Max film width 300mm 400mm 500mm 600mm
Packing material OPP, CPP, PA/PE, PP/CPP, PET/PE, Laminated film
Air supply 0.4-0.6 MPa
Packing speed 10-50 bag/min (Depend on the counting quantity and material size)
Power AC220V or AC 380V 2KW-6KW
Machine Size Customized
Packaging Machine Details

Products Description

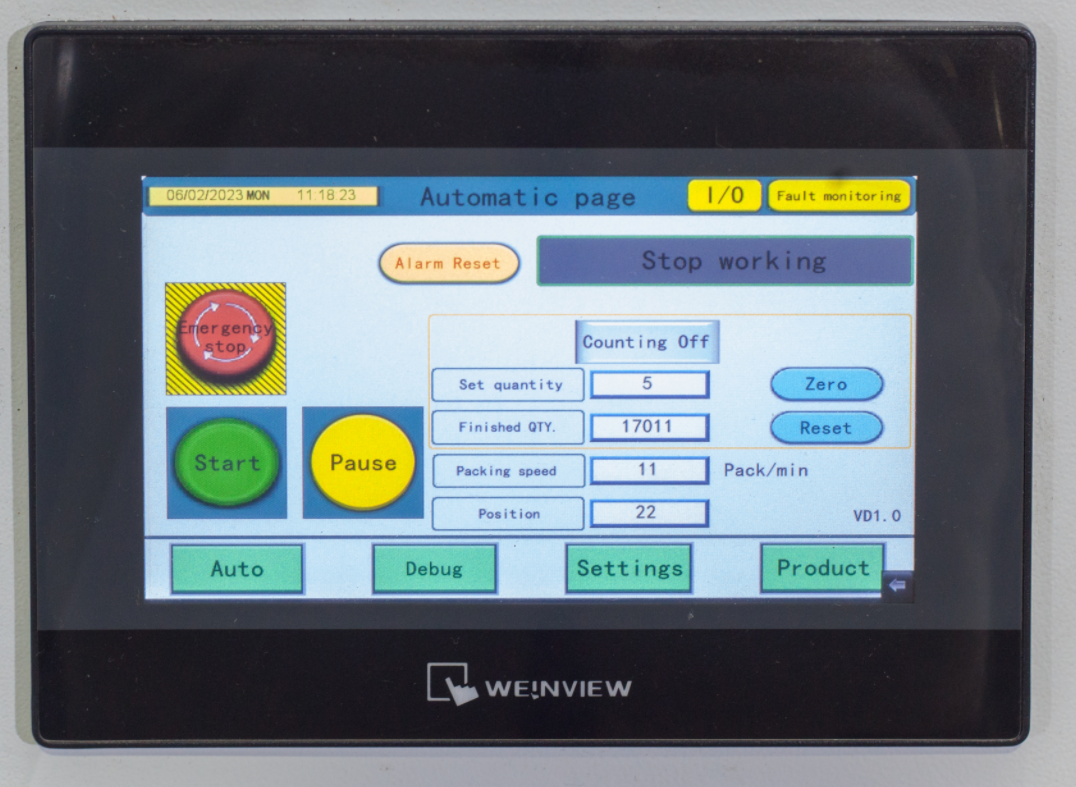

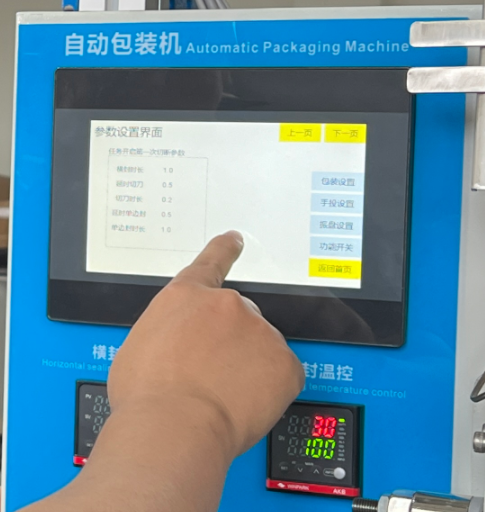

7 inch Touch Screen Control Unit Touch Screen Panel UI
7 inch touch screen, easy operation and multiple language for choice.

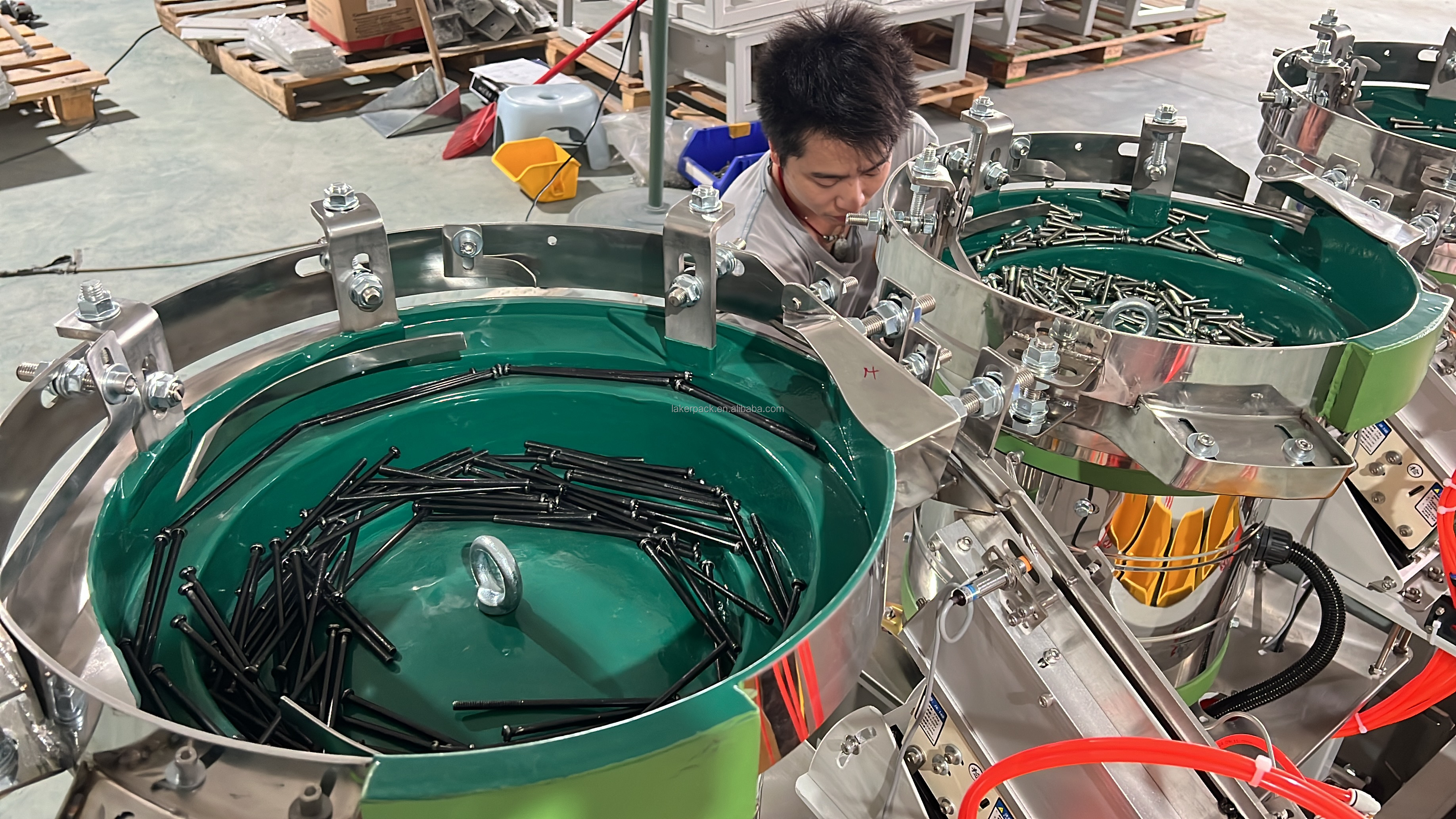

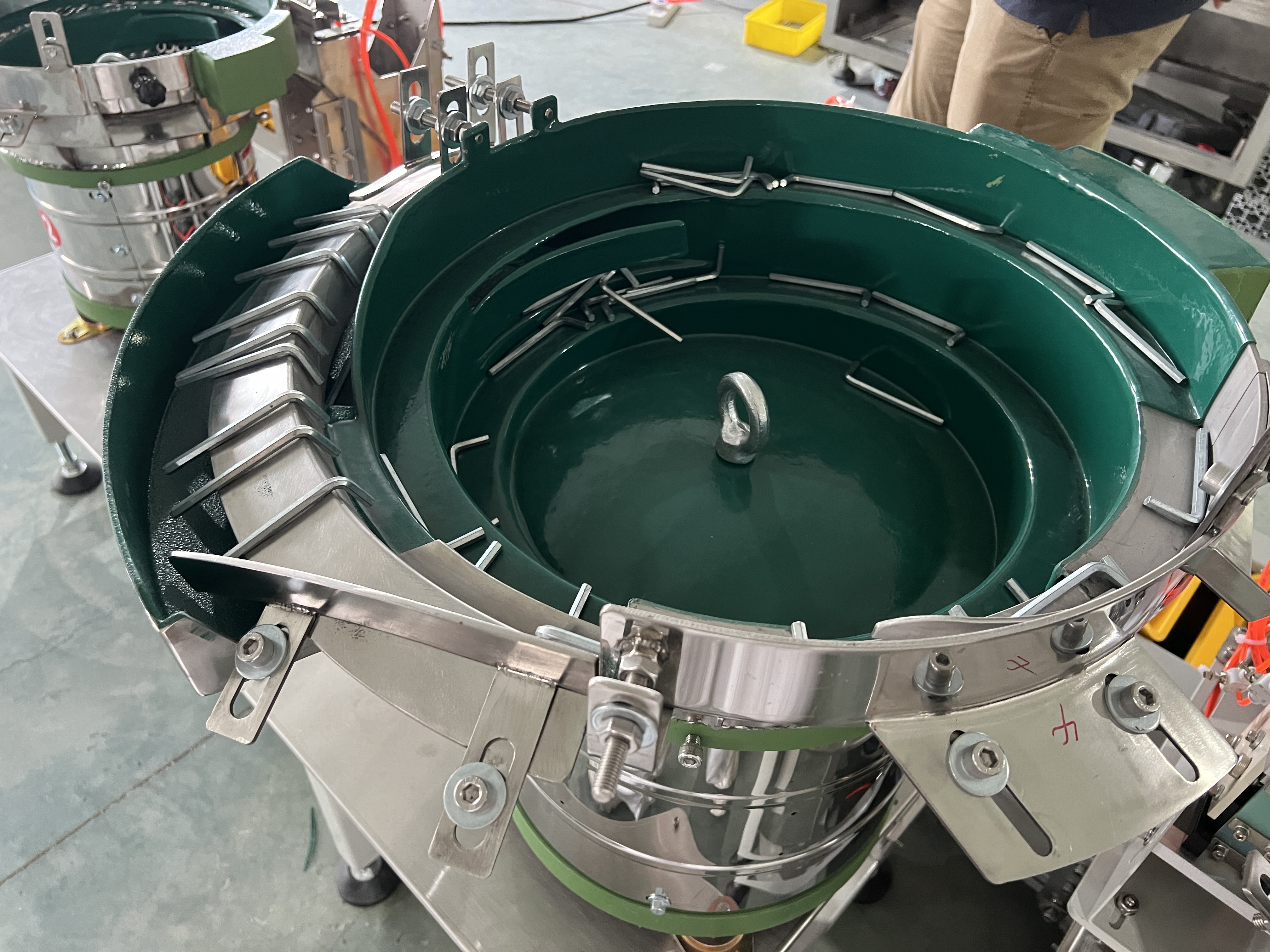

Vibrating Bowl Feed System Fiber Counting Device
Vibrating bowl with high accuracy fiber counting device (Optex).

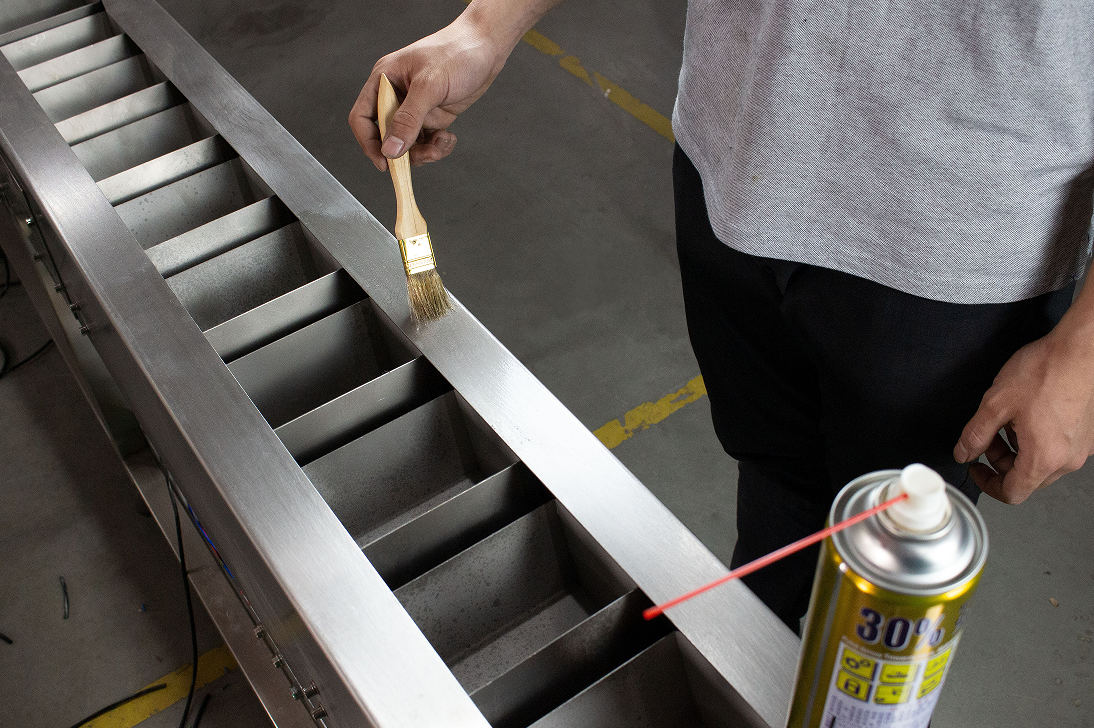

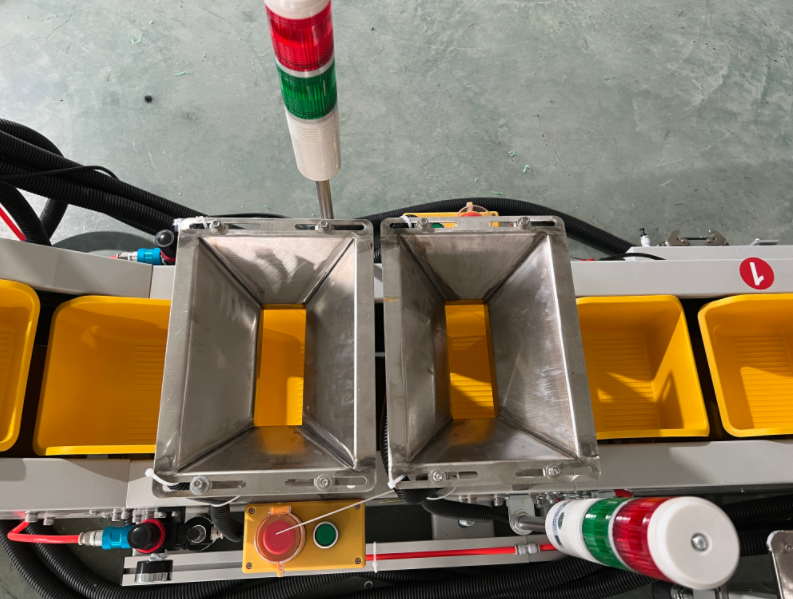

Silent Material Feed Box Silent Material Feed Box Interior
Using silent high-strength material feed box transfer the items to the machine.

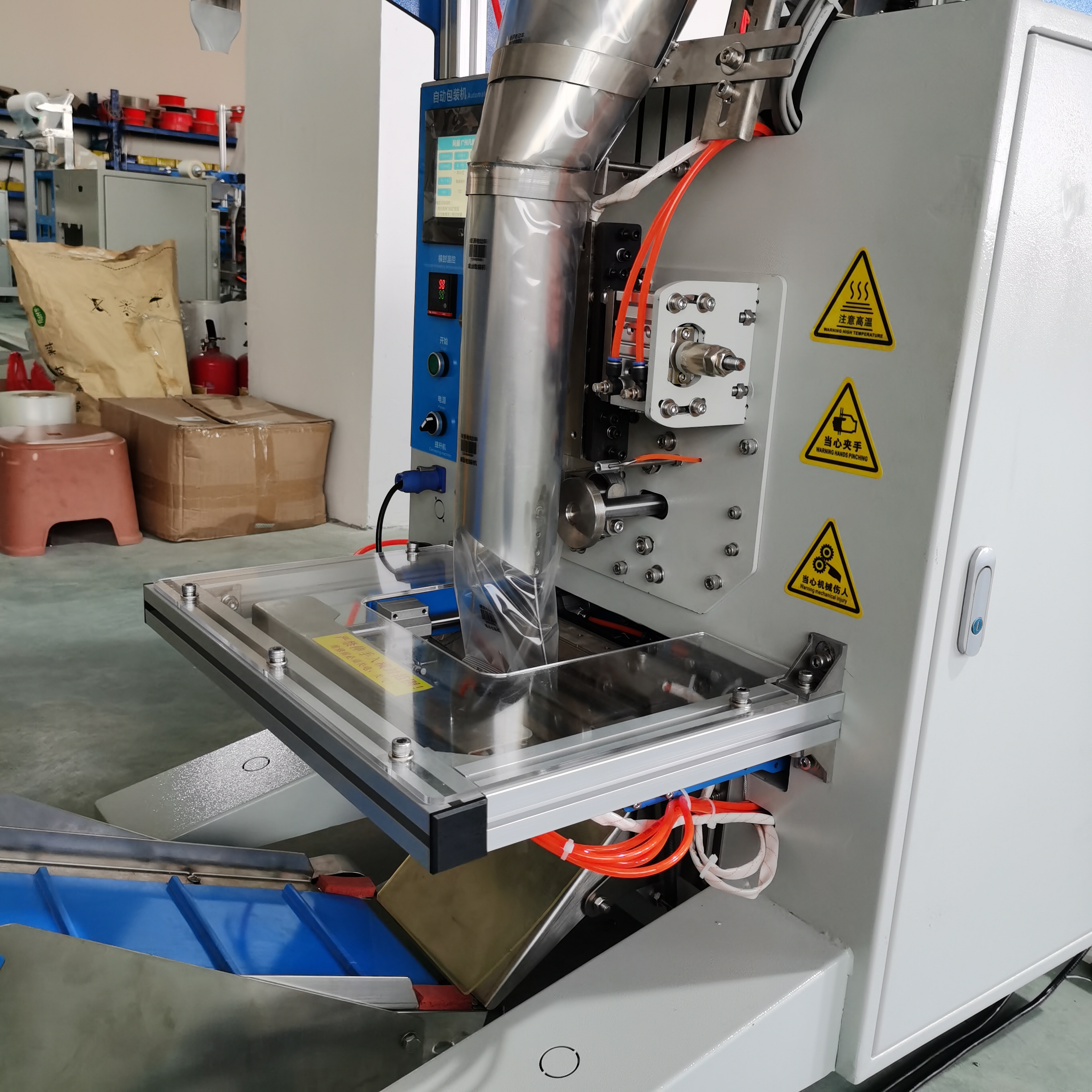

Vertical and Horizontal Sealing Framework Adjustable Stainless Steel Bag Former
Sophisticated vertical and horizontal sealing framework achieve the consistency of bag sealing. Adjustable stainless steel bag former.

Option Equipments

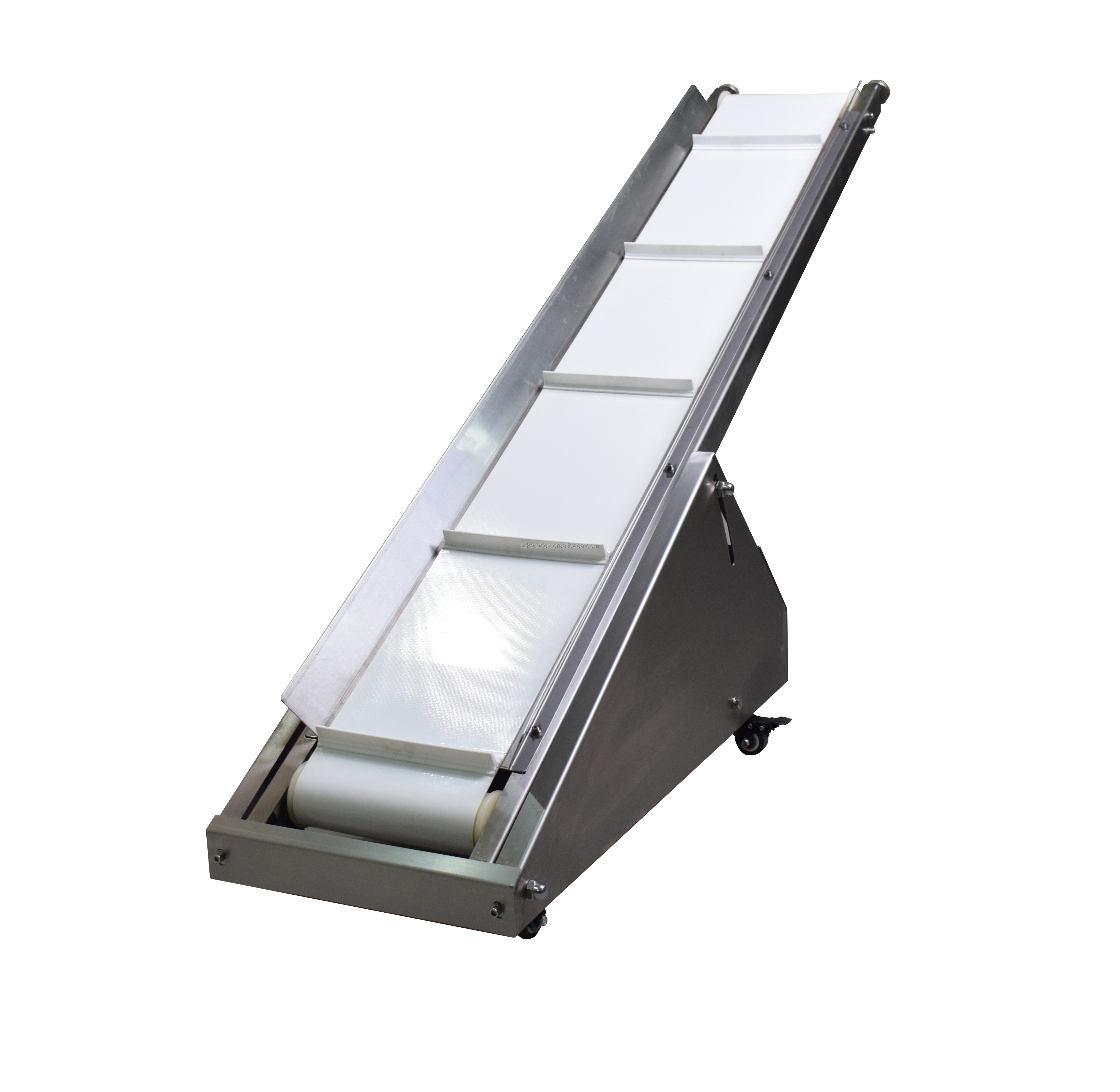

Finished Product Conveyor
Finished Product Conveyor

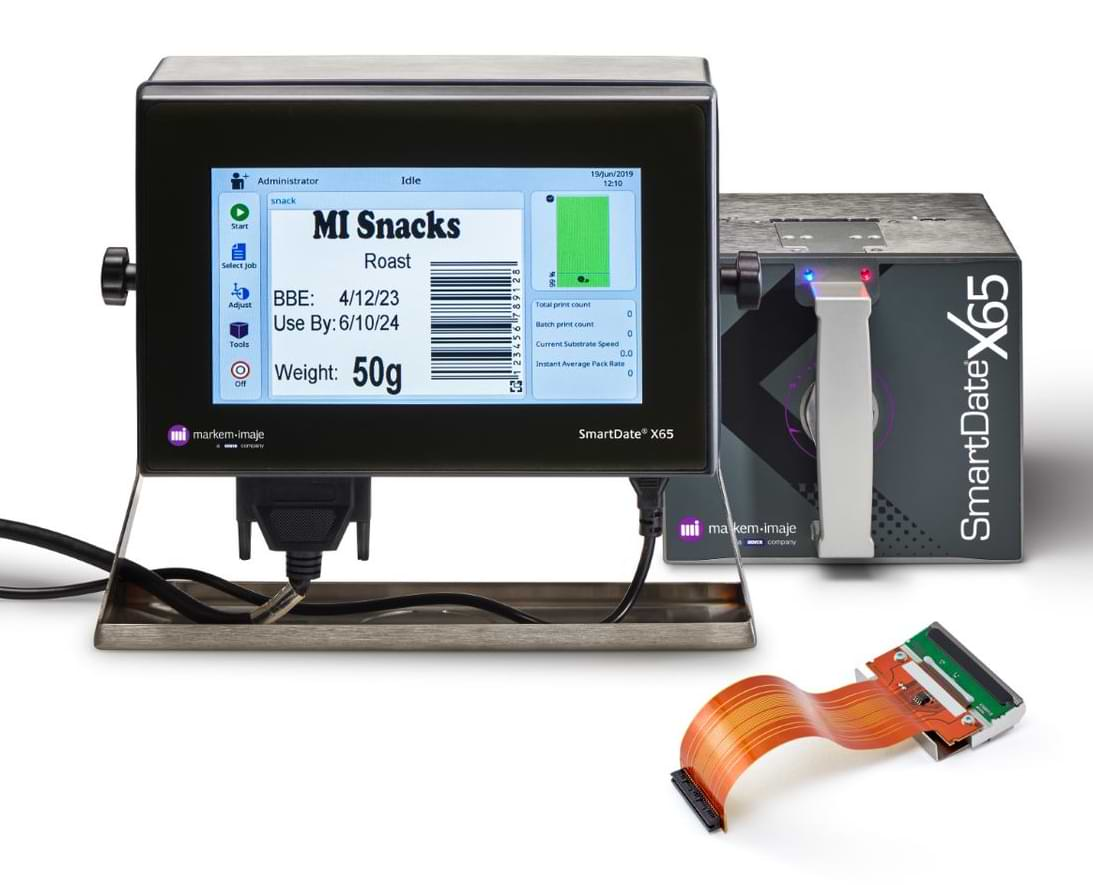

Thermal Transfer Printer
Thermal Transfer Printer

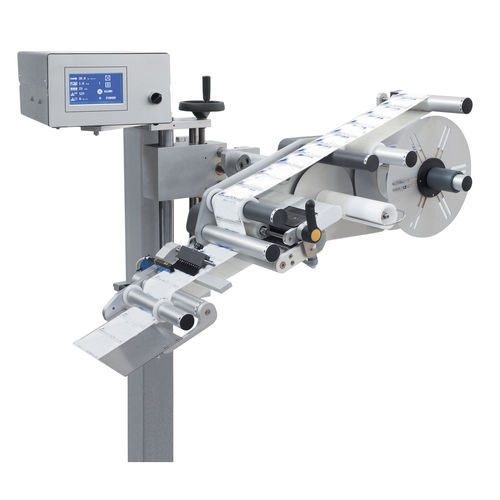

Labeling Machine
Labeling Machine

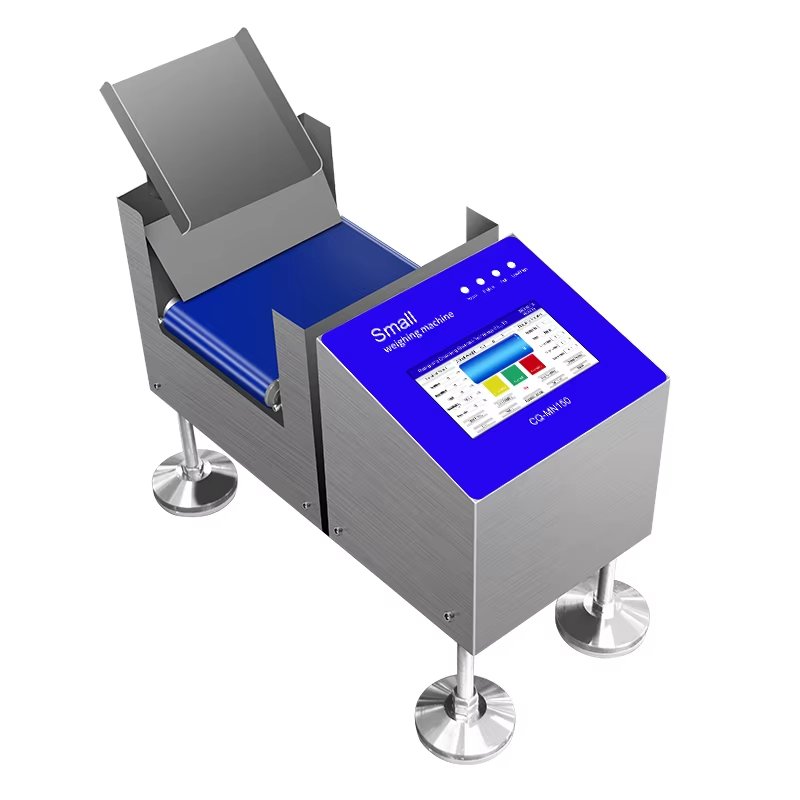

Weight Checker
Weight Checker

Sales and Service Network

Sales and Service Map

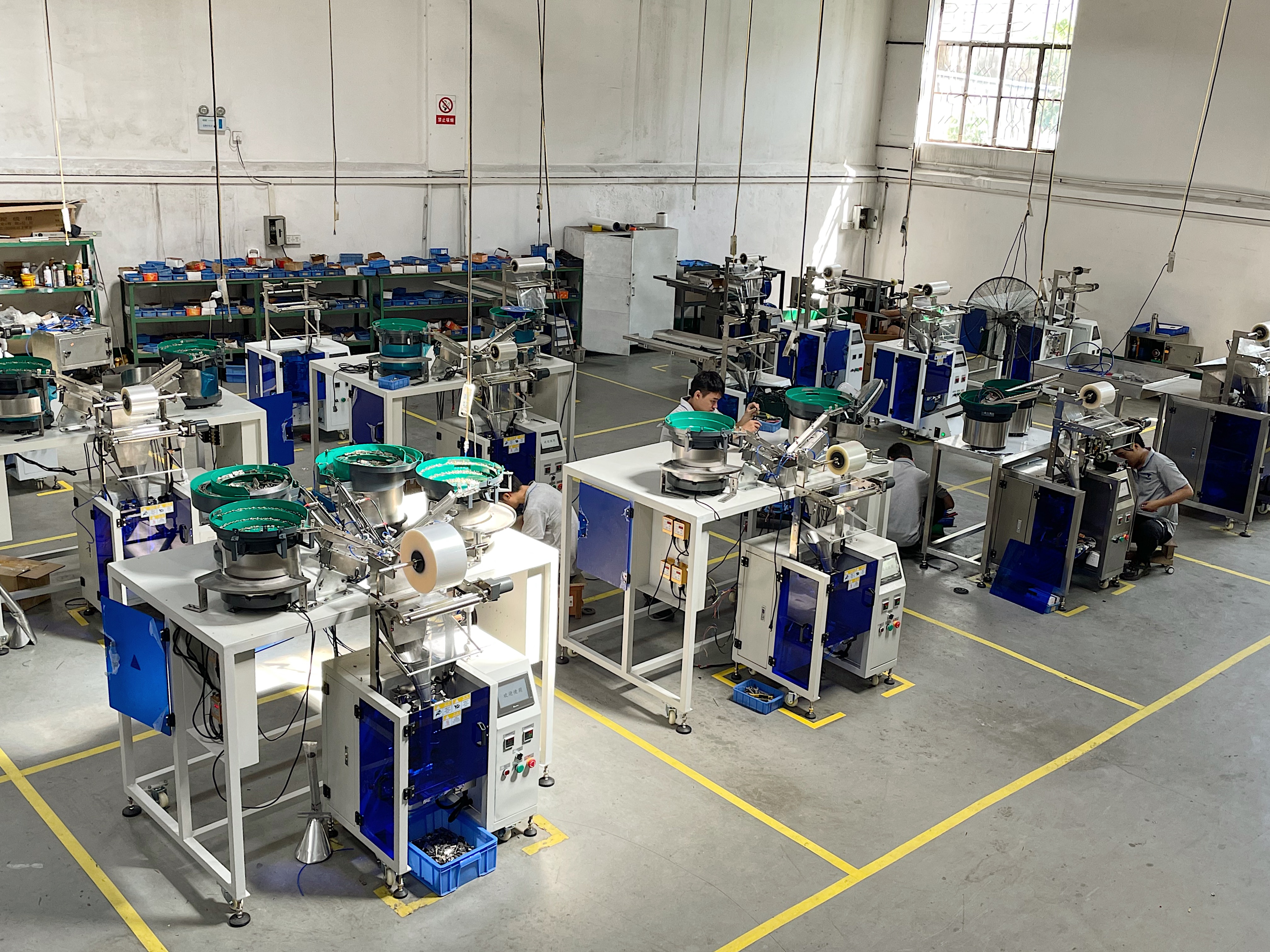

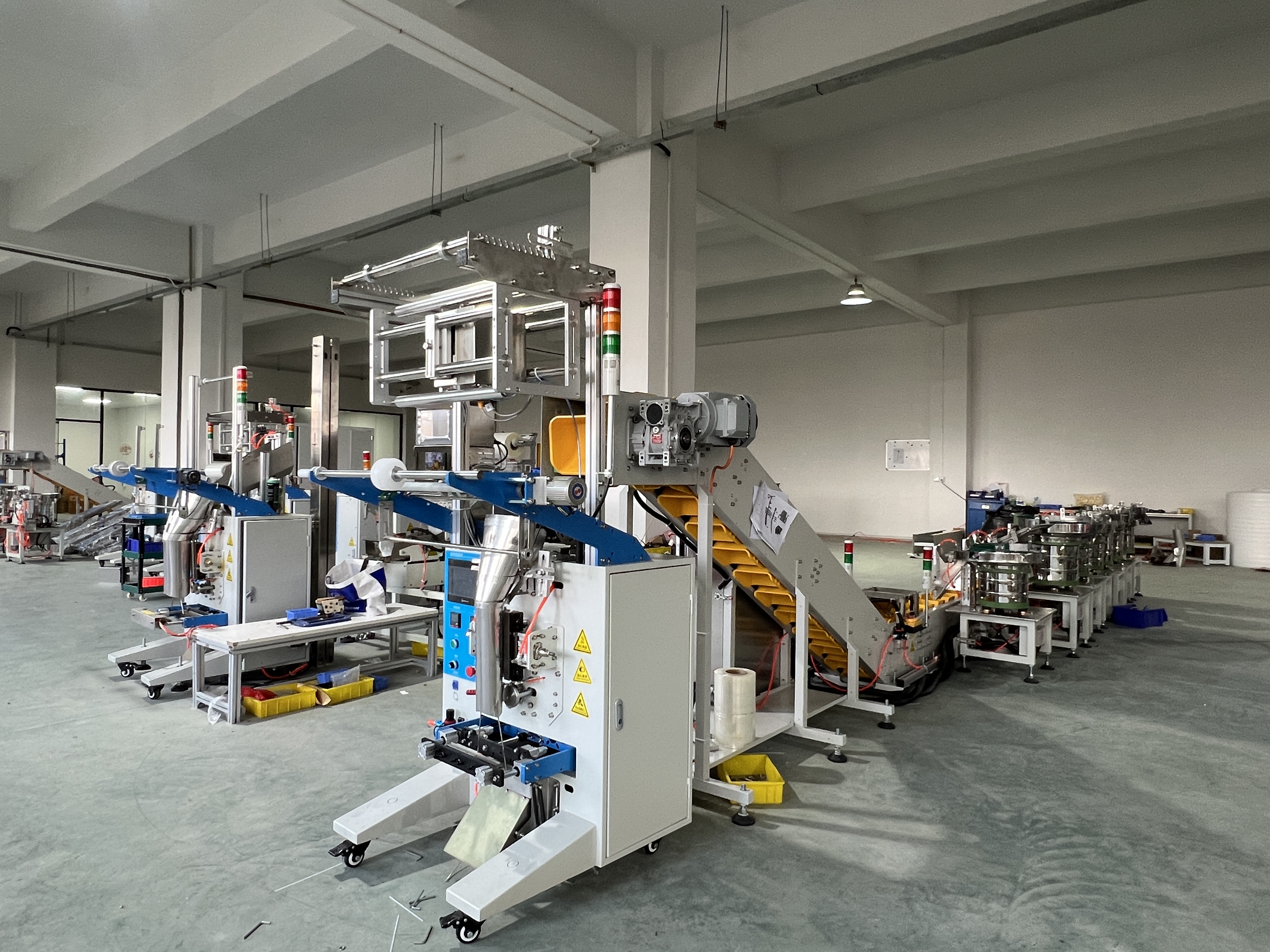

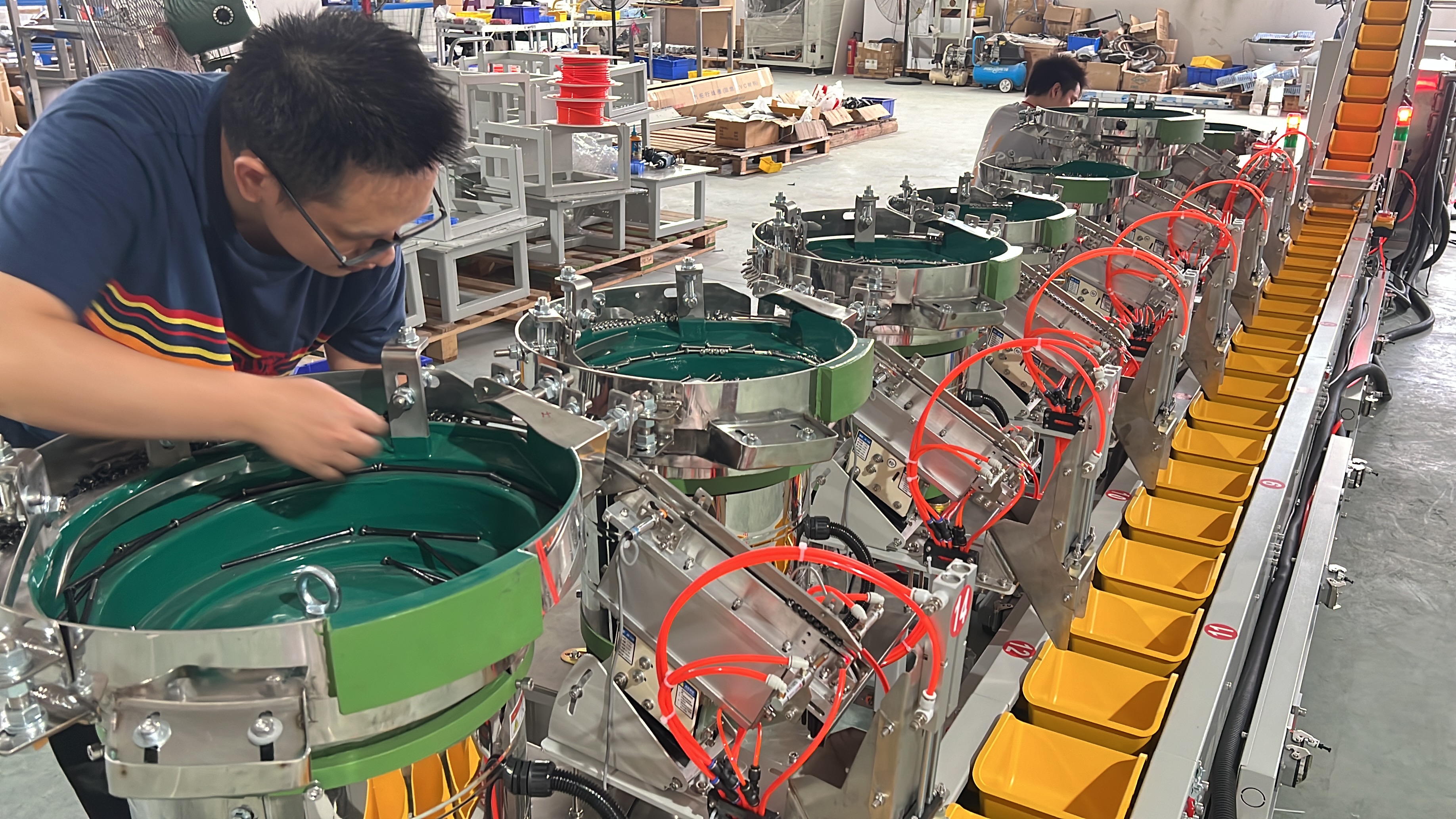

Factory Overview

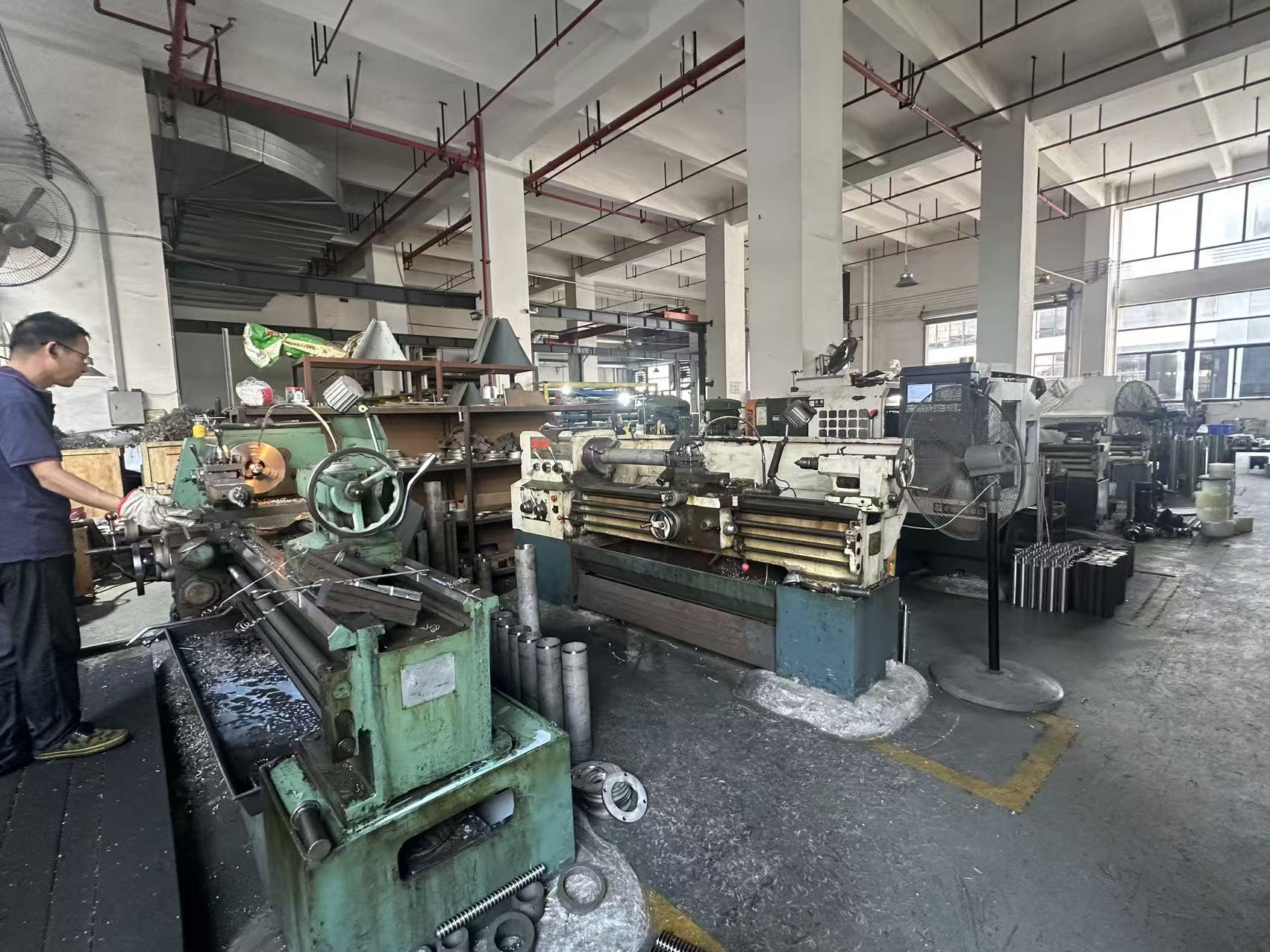

Factory Interior Area 1 Factory Interior Area 2 Factory Assembly Area
Packaging Machine Testing Area Manufacturing Line Details Ready to Ship Finished Units

We are a professional packaging machine manufacturer with more than 18 years experience. We concentrate on R&D, manufacturing, installation, commissioning and technical service. The products, including doypack machine, roll film packaging machine, hardware packaging machine and filling machine, etc., are exported to America, Russia, Europe, Middle East, South Africa, etc., more than 30 countries and regions.

The machines have been widely applied in food, agricultural products, industrial supplies, daily necessities and other enterprises. As an advanced packaging equipment manufacturer, we are committed to providing professional packaging solutions for enterprises, which can improve the production process, save labor cost, and avoid secondary pollution, so as to highly improve productivity.

Frequently Asked Questions

Q Are you a manufacturer or trader?
We are a manufacturer and we are located in China. We have our own design team for product customization and research.
Q What payment terms and trade terms do you accept?
Usually we appreciate T/T 50% deposit, with the remaining 50% balance paid before shipment. We can also accept LC at sight. We usually offer EXW prices, but we also do FOB, CIF, CFR, DAP, DDP, etc.
Q What kind of transportation could you provide? And are you able to update the production process information in time after placing our order?
We provide sea shipping, air shipping, and international express. After confirming your order, we will keep updating the production details with emails and photos for you.
Q How about your after-sale service?
  • Manuals and videos for machine installation, adjusting, setting, and maintenance are available for you.
  • If any problems happen and you cannot find solutions, telecom or online face-to-face communication is available 24 hours.
  • Our engineers & technicians can be sent to your country for services if you agree to pay the expenditure.
  • The machine will have a two-year warranty. During the warranty period, if any parts are broken (non-human damage), we will replace them free of charge. The warranty begins after shipment (on receiving the B/L).
  • We have an independent team for after-sale service. On-site repair or instructions are also available.
Q Do you accept customer Logo print and other customizations?
We provide ONE-STOP customized packaging line services, which includes logo customization. You only need to provide your requirements.
