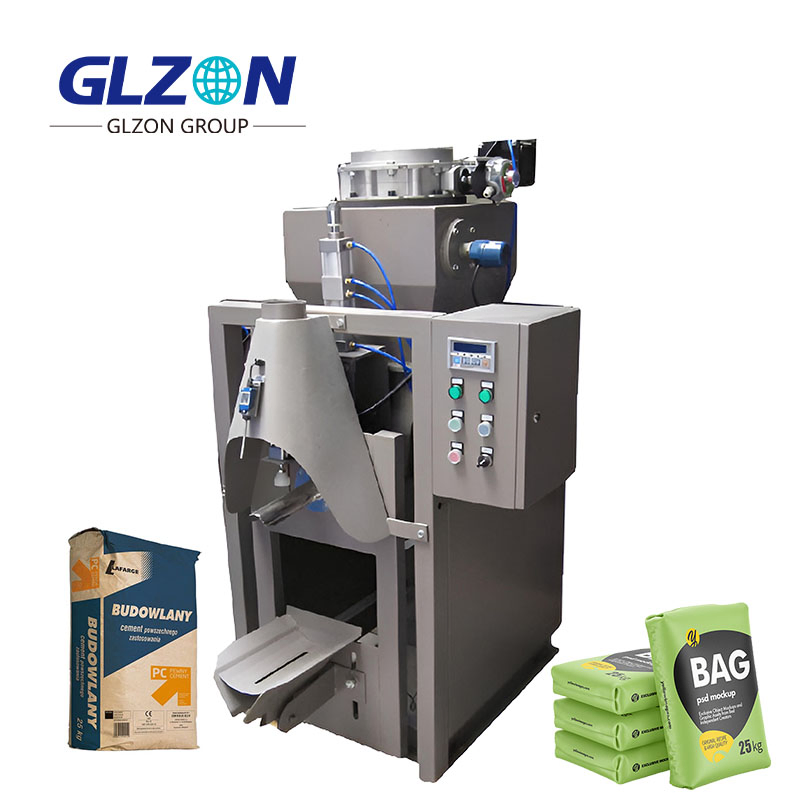

| GZM-50VGAUTO Technical Specifications | |
|---|---|
| Model | GZM-50VGAUTO |
| Suitable Material | Fluid powder or small grain (<=5mm), such as cement, sand, dry powder |
| Weighing Form | Single nozzle, gross weight |
| Weighing Range | 10-50KG |
| Accuracy Class | 1% |
| Packing Speed | 250~400 bags/hour |
| Bag Form | Valve bag |
| Gas Power | 0.4-0.8MPa |
| Work Environment | Temperature: -20ºC ~ 45ºC, Relative Humidity: 95% (non-condensing) |
| Voltage | AC220V 50Hz |
| Max Power | 0.1KW |
| Air Consumption | 0.7m³/min |
| Measurement | 650x1270x2000 mm |
| Device Weight | About 600Kg |
Powders & Mortars: Mortar, tile adhesive, gypsum mortar, putty, gypsum powder, flour, starch, PE powder, PE sheet, plastic sheet, aluminum hydroxide, bentonite, kaolin, lime, cement, talc, polyacrylamide, calcium hydroxide, Titanium dioxide, calcium carbonate, organic fertilizer, corrosion soil, potato stones, etc.
Granular Materials: Grain, corn, seeds, sesame, beans, fertilizer particles, rubber particles, plastic particles, PP particles, PE particles, inorganic salt, industrial salt, steel, coal, white sugar, mining, building materials, construction, ports, metal particles, feed.
Full Screw Type: Titanium powder, wet zirconium silicate, mica powder, precipitated barium, small particle powder, dry powder mortar, caulking agent, etc.
Semi-Screw Type: Heavy calcium carbonate, heavy barium sulfate, quartz powder, starch, zinc calcium stearate, magnesium, stabilizer, wax powder, flour, magnesium aluminum hydroxide, etc.
Specialized Powders: Precipitated silica (white carbon black), matting powder, nano-light calcium carbonate, modified ultra-fine talc powder, stabilizers, flame retardants, lubricants, various pigments, active modification, etc.
We provide professional, customized packaging and logistics solutions tailored to your operational needs, ensuring optimal machinery utilization.
Our sales and electrical engineers provide complete system evaluations, rationalization proposals, and comprehensive pre-sale testing.
We provide free replacement parts for manufacturing defects under a 1-year warranty. Free training courses are provided for technicians at our factory site.
What types of materials can be processed by these packaging machines?
The machines are designed to process fluid powders and small granular materials (under 5mm) including dry mortar, cement, gypsum, sand, starch, plastic particles, and specialized chemical powders.
What is the typical accuracy range and speed of the systems?
Accuracy ranges from ±0.2% to 1.0% depending on the model selected. Packing speeds range from 1-3 bags/minute for spiral models up to 250-400 bags/hour (6-16 bags/minute) for high-speed pneumatic configurations.
Which discharging systems are suitable for fine powders versus coarse materials?

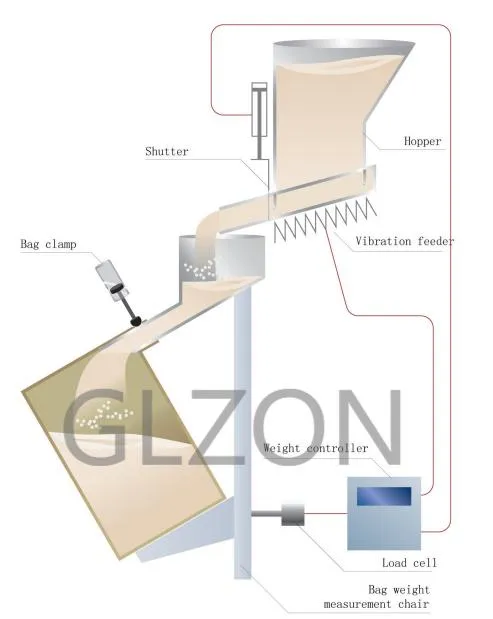

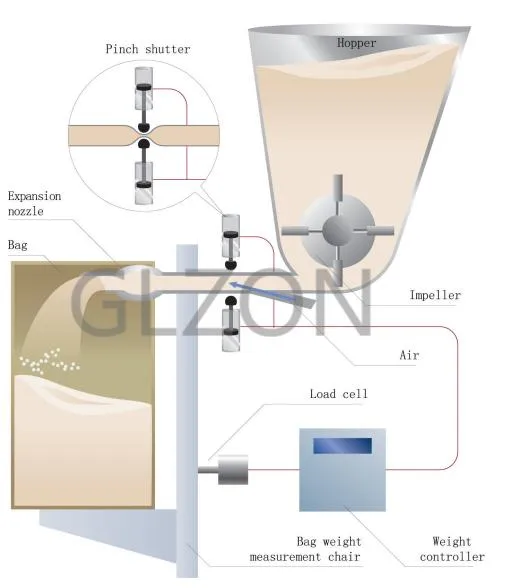

We offer three main configurations: Air flotation fluidization systems for mortars and tile adhesives; Impeller discharging systems for putty and gypsum powders; and Spiral extrusion systems for fine or non-free-flowing powders.
What optional components can be integrated into the packaging line?

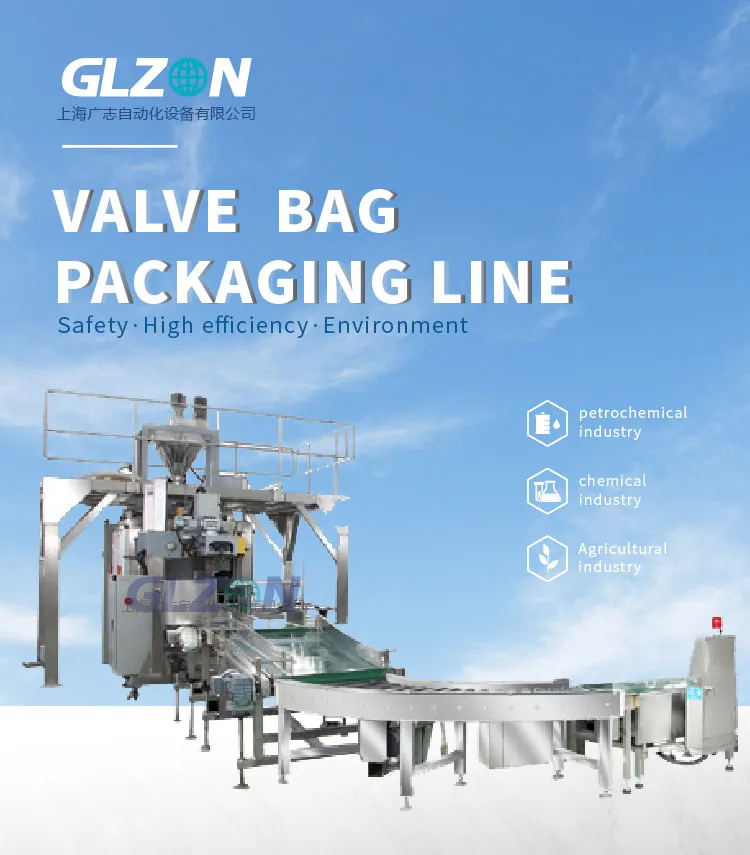

You can customize the line with automatic bagging systems, conveyor belts, bag dropping devices, ultrasonic heat sealing systems, and robot palletizers.
What material standards are used in the construction of the machines?
To ensure durability and sanitation, all contact parts on the machinery, as well as the structures of key assemblies such as the robot palletizer, utilize high-quality SUS304 stainless steel.
What kind of after-sales technical support and warranty is offered?
We offer a one-year warranty covering manufacturing defects with free parts replacement and delivery. Additionally, we provide technician training courses at our factory site to ensure smooth system operation.
