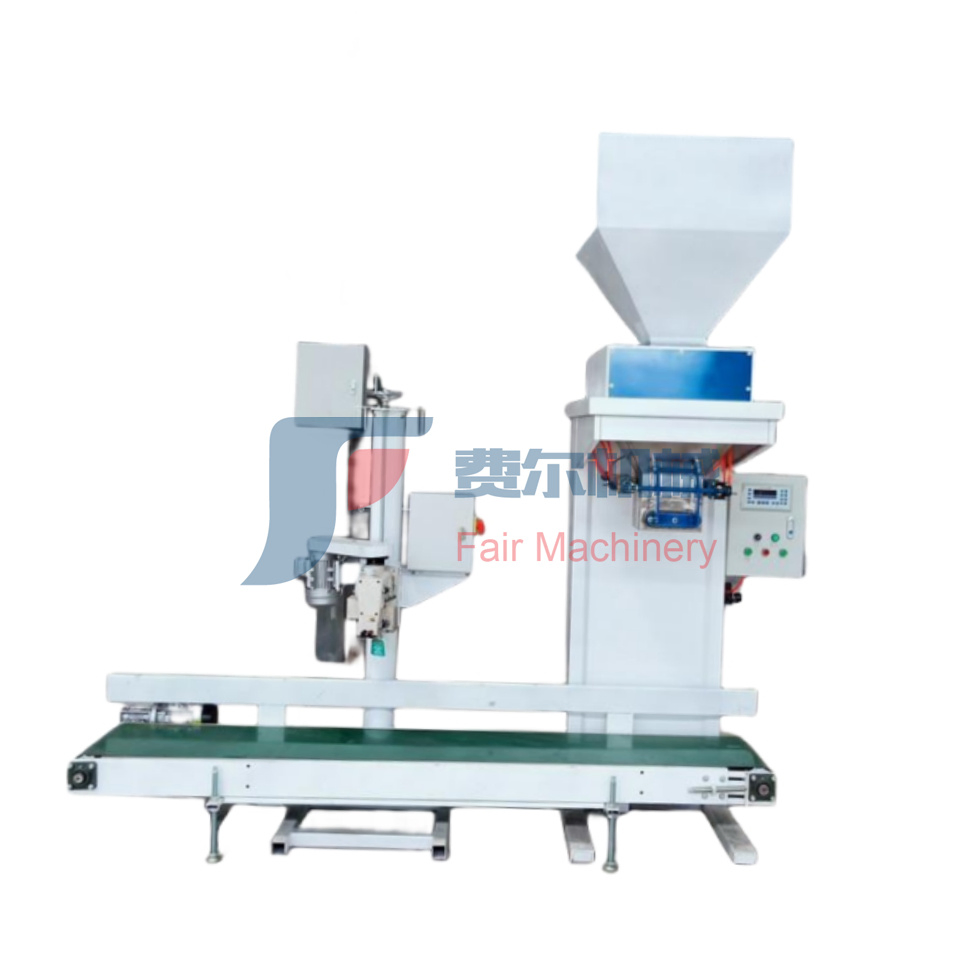

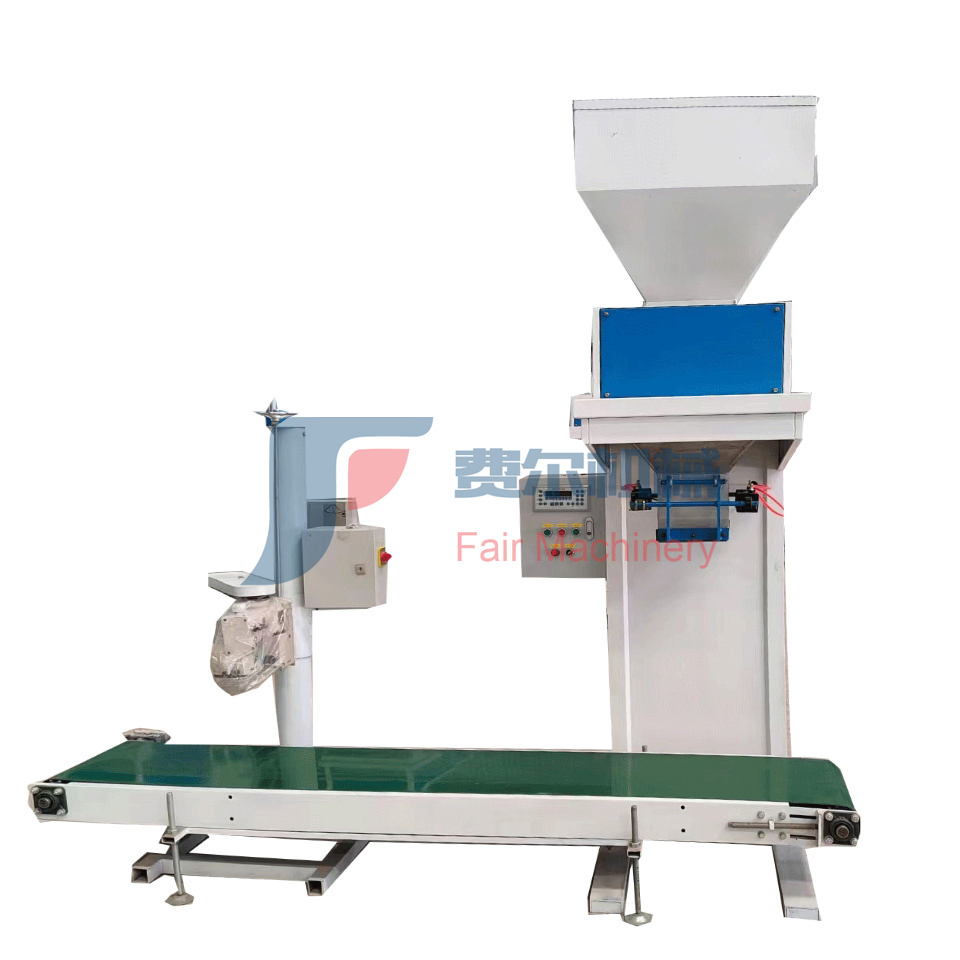

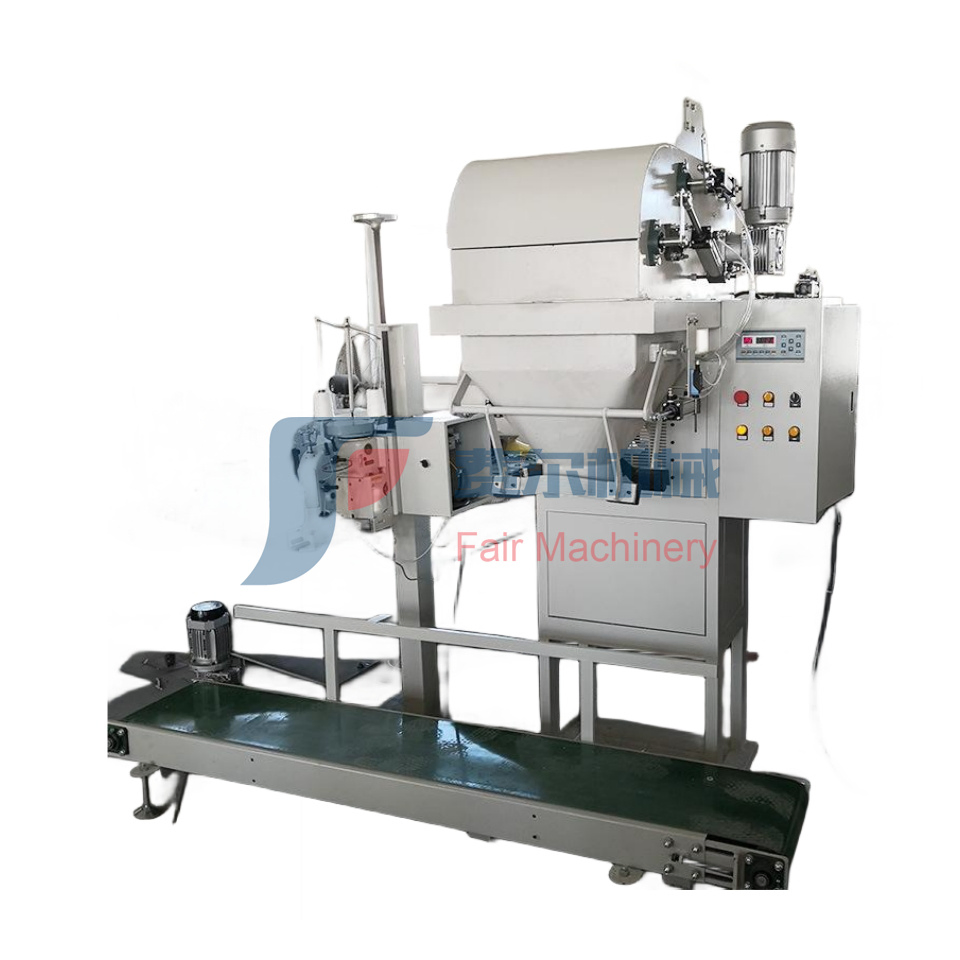

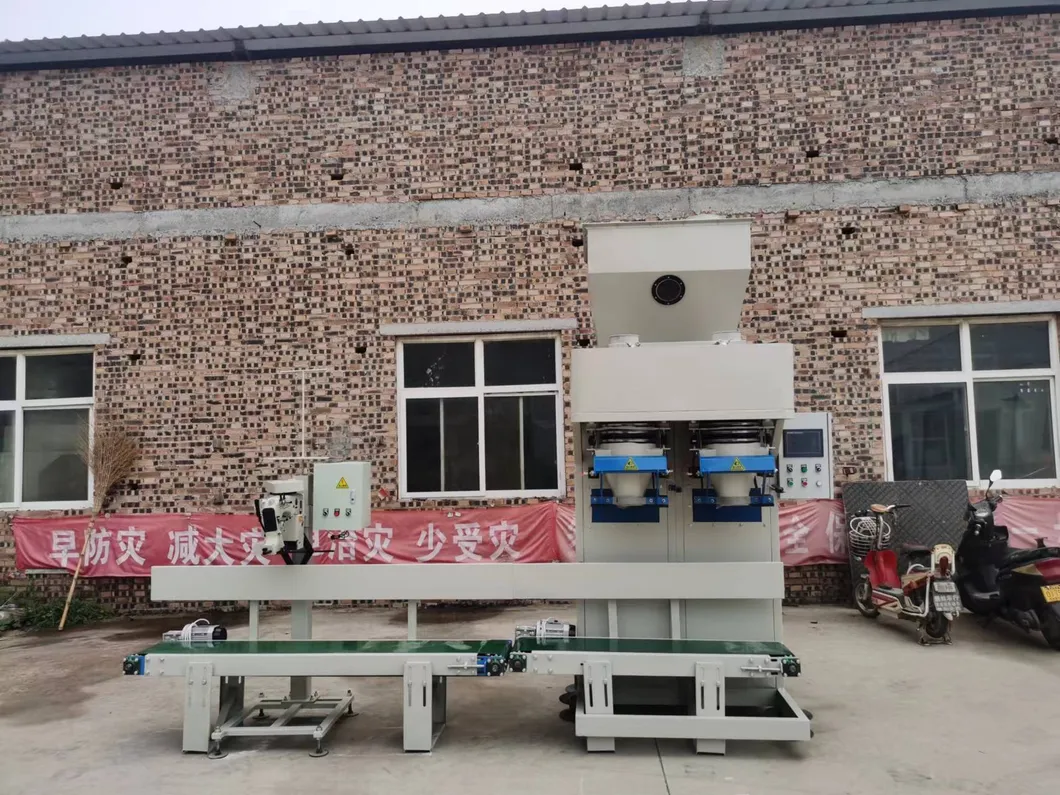

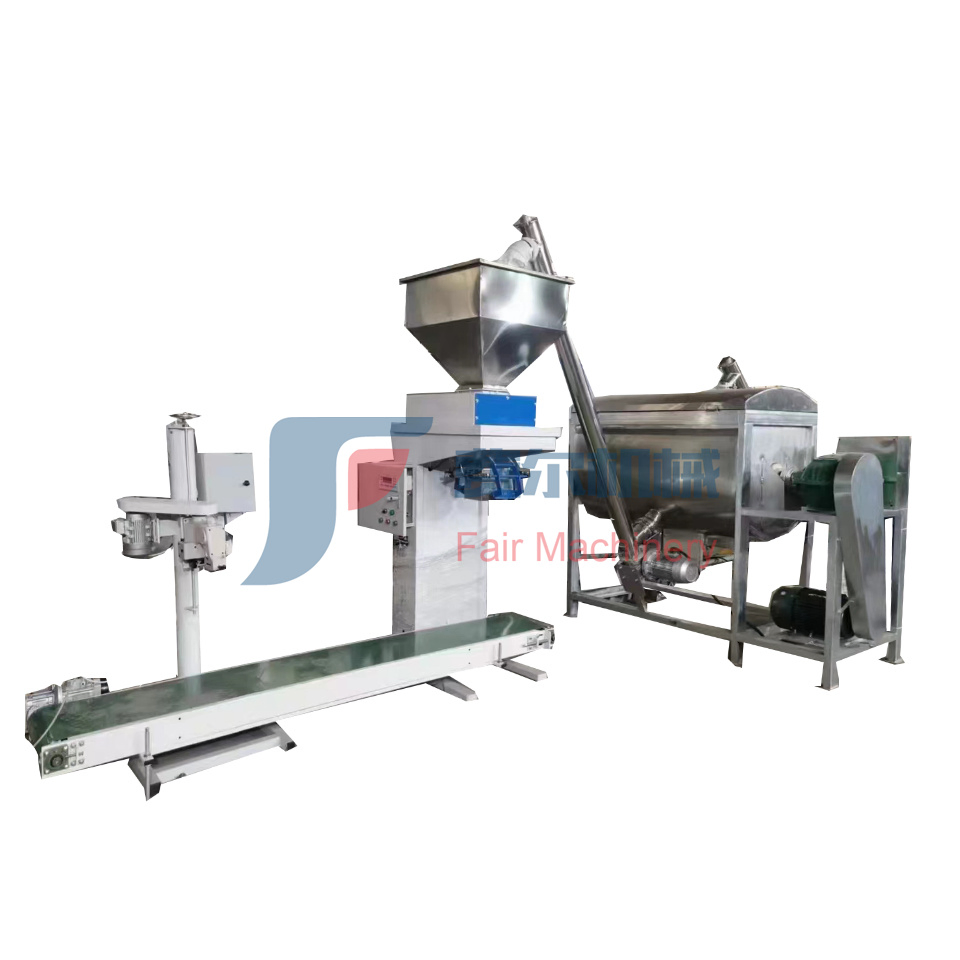

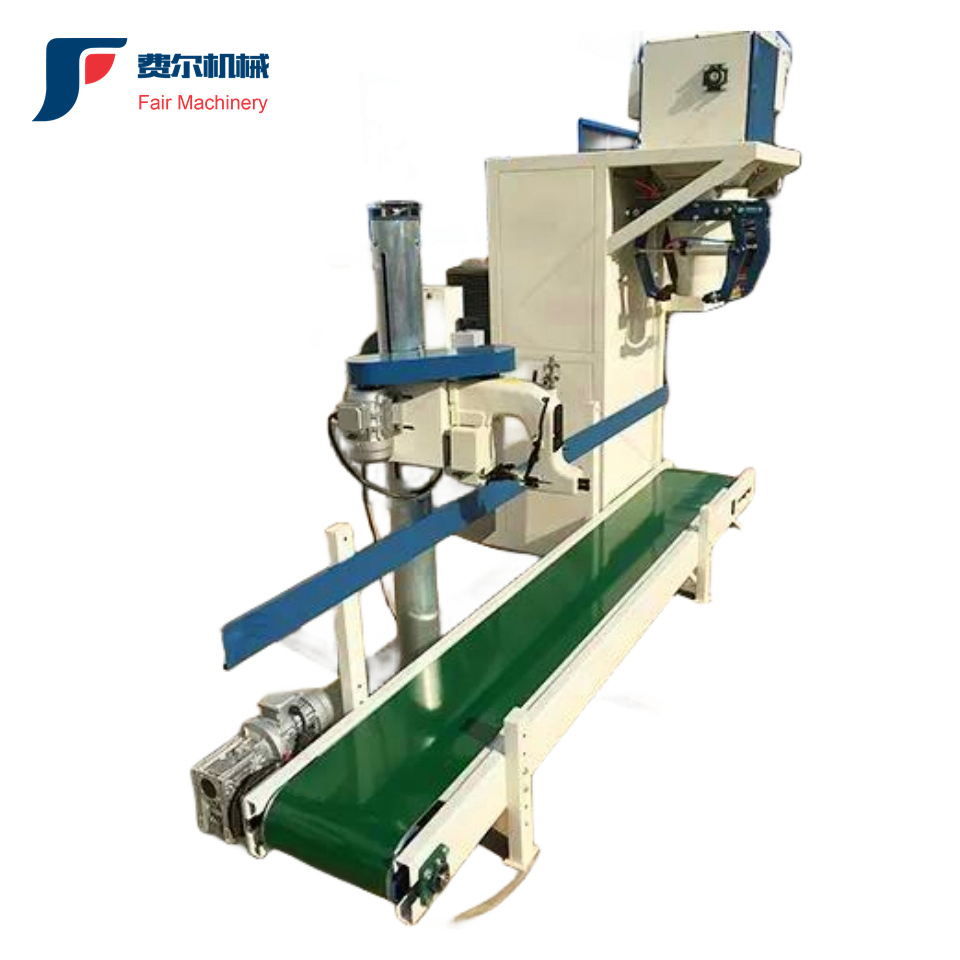

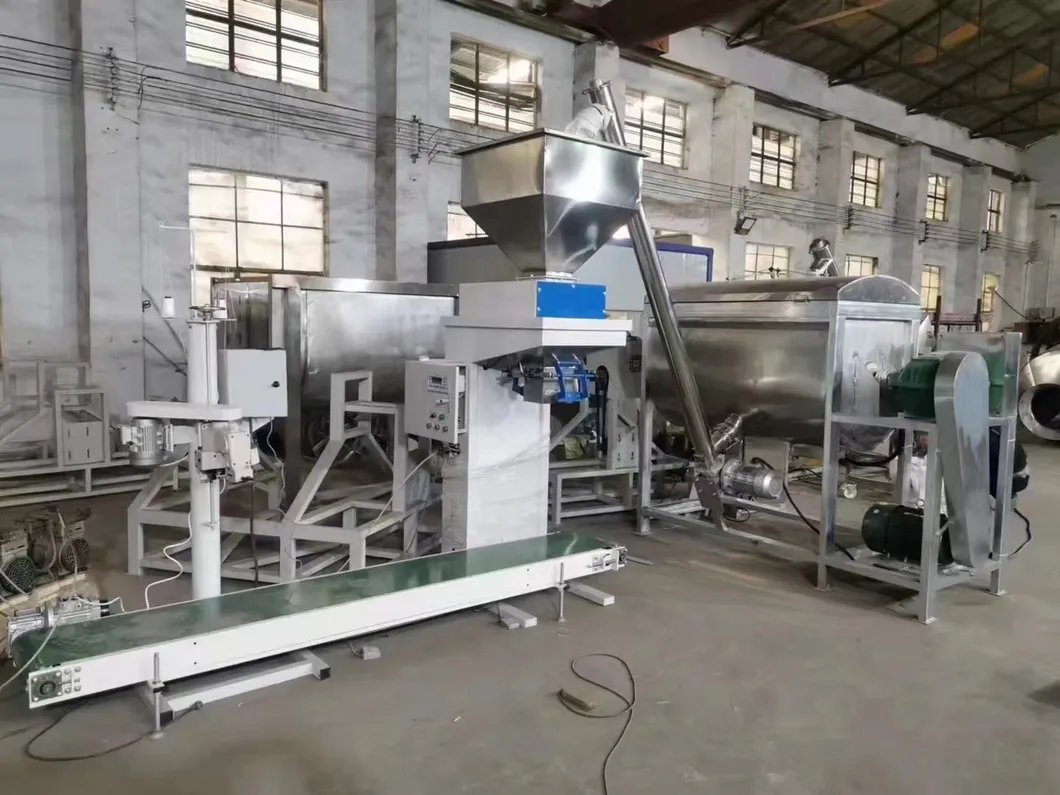

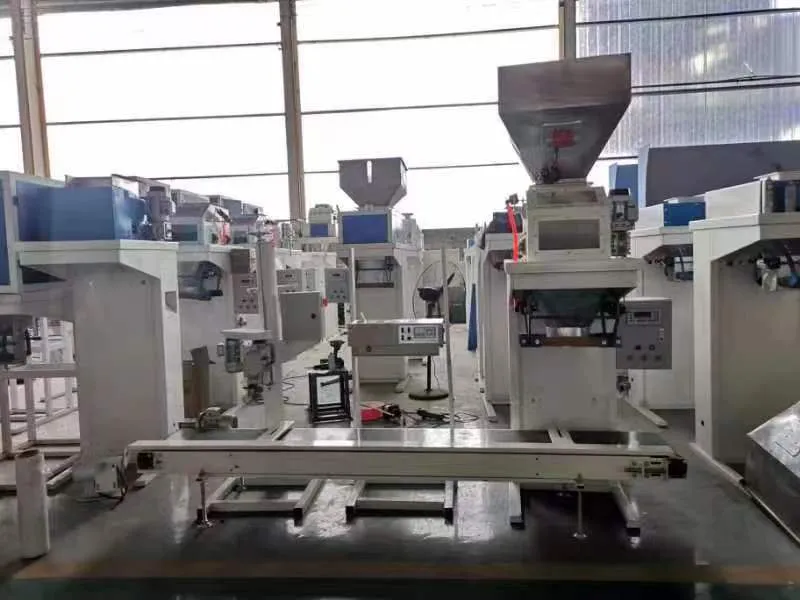

Open Mouth packing machine is a kind of packaging machine specially designed for mass production packaging. Packaging range and application range is very wide, it is not only suitable for the packaging of all kinds of particles can also be used for powder. So it can be widely used in food, pets, agriculture and other fields. The integrated structure has the characteristics of low body height, compact structure, high efficiency, low failure rate, convenient maintenance, simple installation and novel appearance.

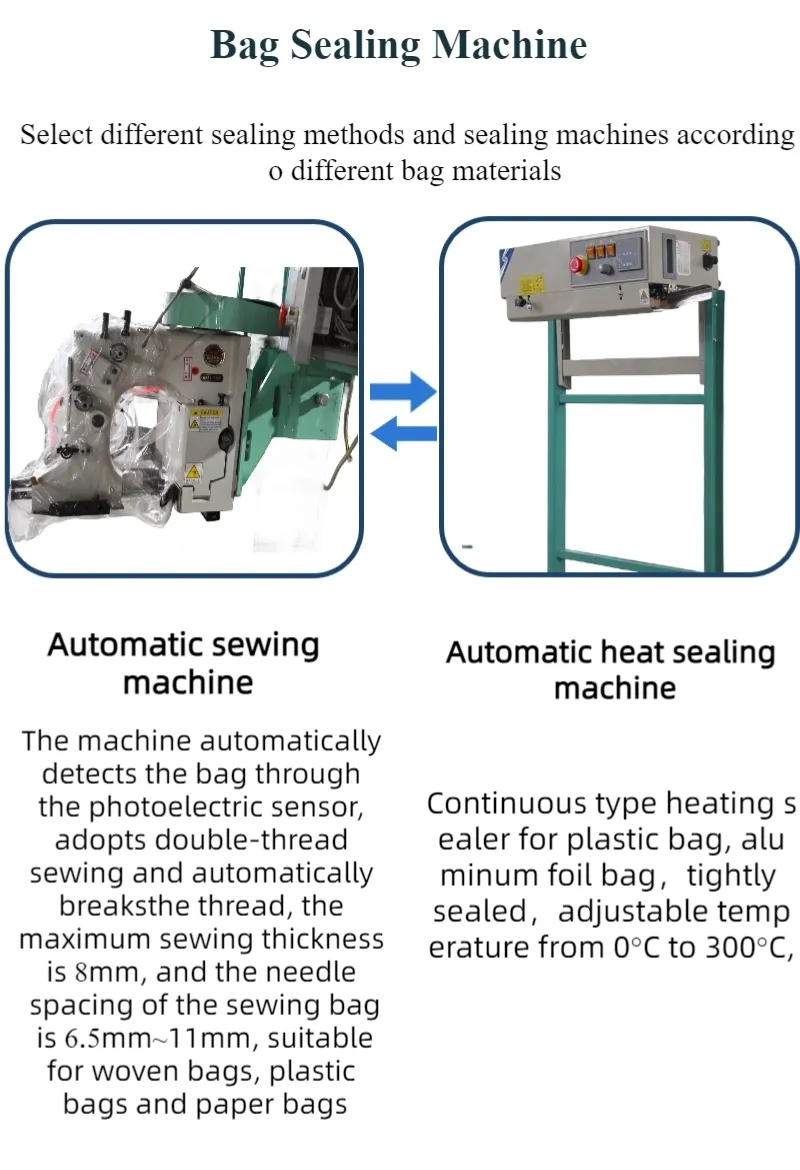

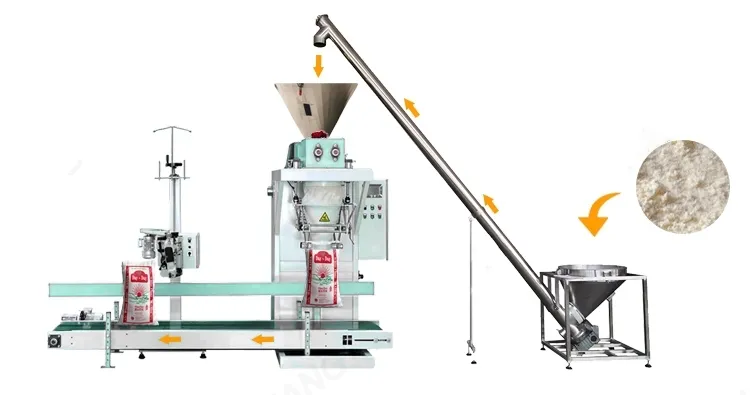

Giving the bag (loading the bag) → automatically clamps the bag → material is automatically quantitatively weighed and filled into bags → automatic bag release / bag holding / bag transfer → automatic label feeding / folding / or heat sealing / or sewing → entering the next process

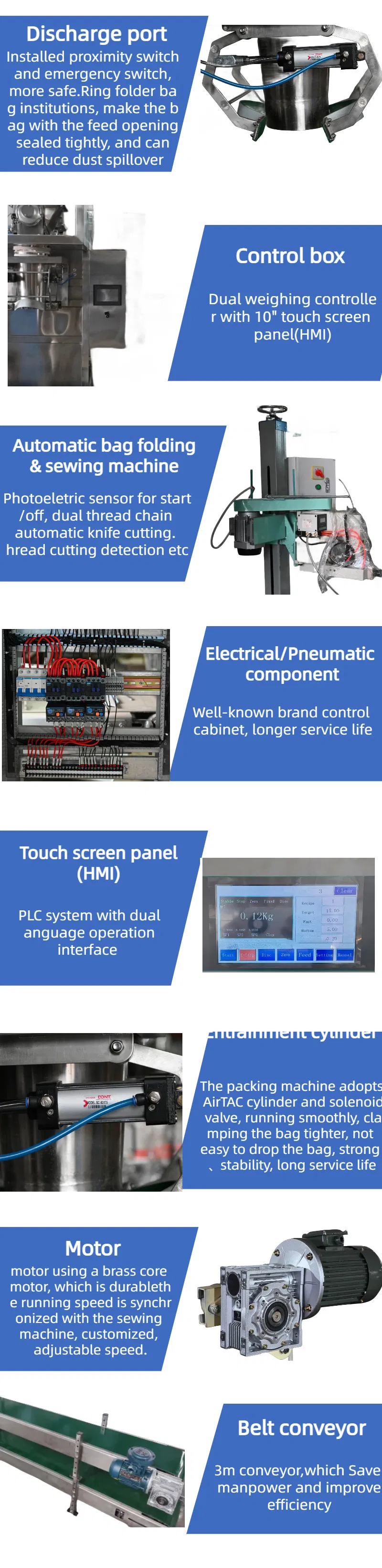

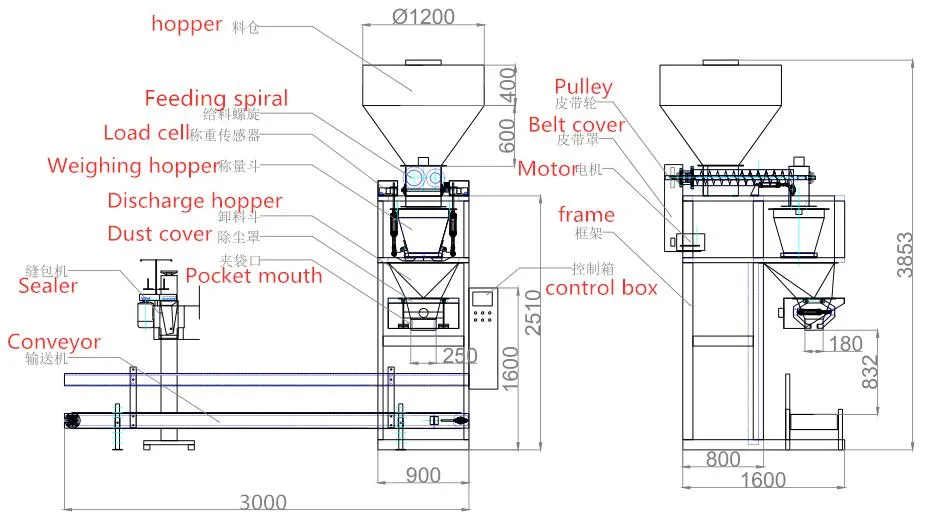

The machine consists of mechanical and electrical control. Electric control consists of pressure sensors and electric cabinet; Mechanical control consists of multistage feeding mechanism, weighing hopper, folder bag mechanism and frame, etc.

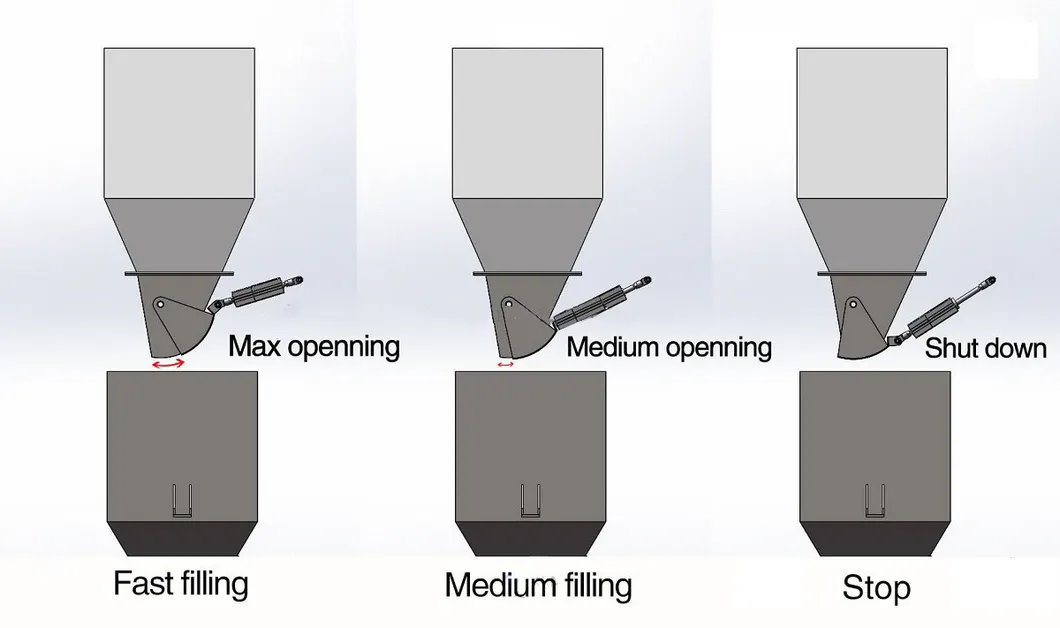

When electronic scale is working, feeding door were shut down in the first place under the control of the controller, open feeding mechanism for charging after automatic peeling and reset. Materials are putted into the weighing hopper continuously, pressure sensor converts weight into corresponding electrical signals, and then sent to the controller. Controller shows the weight of the material on the front panel window. And according to the parameters to output control signal in turns, weighing hopper were charging by the feeding mechanism in 3 flow rate ways: fastest, general fast, slow. Because of the original with a triple combination cylinder form, the machine shake seriously. Now it changed to a single set of separation and vibration feeding of blanking form, complete quantitative feeding accurately without shaking. Were not squeeze and damage to the appearance of the materials. Feeding mechanisms all closed down after the completion of the loading process, the weighing hopper opened the bottom of the feeding door first. The material being pumped into bag depend on the weight of its own. After feeding, the feeding door close, folder bag mechanism open and put down the bag. Clip bag toggle switch control folder bag institutions open and shut up, to manual bagging operations. And only when the folder bag institutions are in a state of clamp, then control signal can be sent out, then feed.
Open-mouth packing machine is applicable in the following materials: granular material, powder material, and compound material. Open-mouth packing machine is widely used in automatic weighing packaging of gypsum powder, talcum powder, ash powder, calcium carbonate powder, coarse whiting powder, calcium oxide, bentonite, kaolin, dry mortar, fly ash, coal powder, lime powder, cement, and other materials.
| Model | FM-PM-P-50 |
|---|---|
| Filling range | 10-50kg (adjustable) |
| Feeding method | screw auger |
| Filling capacity | 25kg*(7-10)bags/min |
| Power supply | 1.8Kw, AC380V, 3phase power, 50/60Hz |
| Pneumatic power supply | 0.4-0.6MPa |
| Whole machine weight | 255-460Kg |
| Machine dimension | 2400*1200*2800mm |

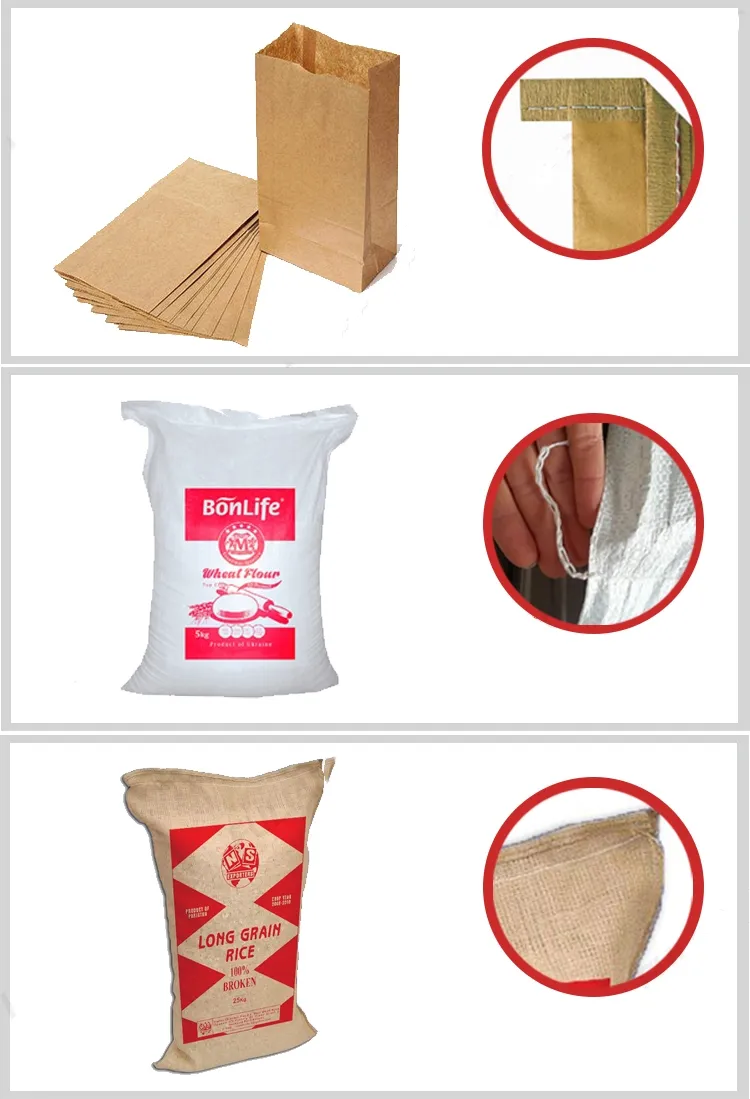

| Bags material applied | Woven bag, craft paper bags for sewing sealing; PP, PET, Compound film bag etc. for heat sealing |
| Certification | CE, ISO, SGS |

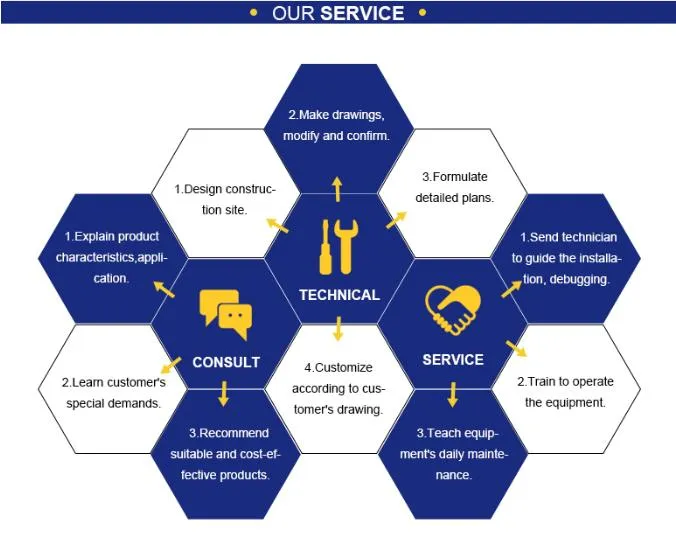

1. We provide presales service in various forms, making investment budget, manufacturing, and planning so that customers can make a reasonable plan with less cost.
2. We will first check the customer's goods and goods size, then we will recommend a suitable machine to 100% suitable.
3. We will recommend and offer machines according to the customer's use and purchase budget.
1. We will supply each manufacturing step photo for customer checking on time.
2. We will prepare packing and shipment according to the customer's needs in advance.
3. Testing the machine and making a video for customer checking.
1. We will guarantee the machine quality for 1 year.
2. We provide free training and answer customers' questions on technology in time.

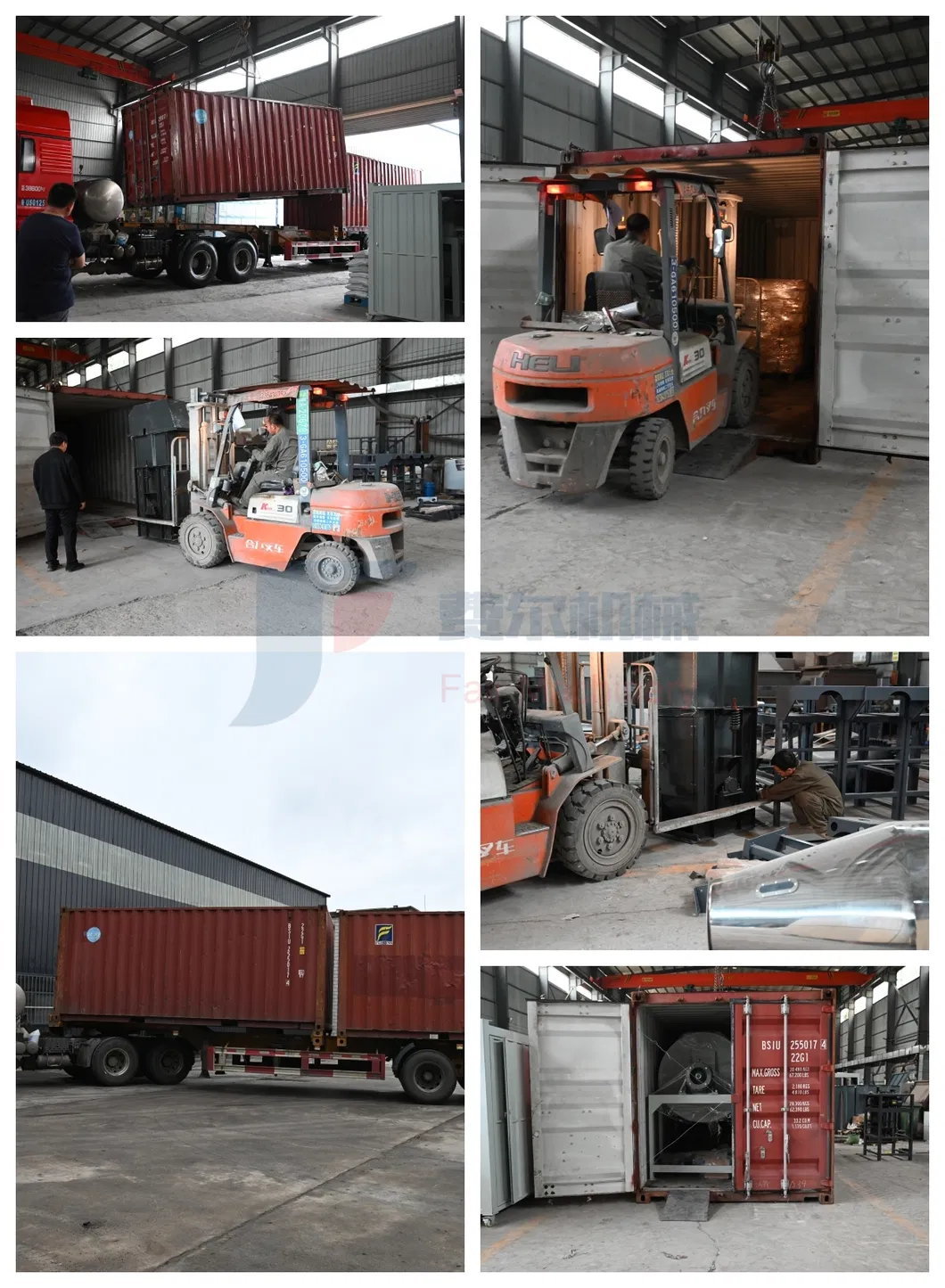

We have a long-term working shipping forwarder. We can do our best to send the machine to your port safely and sound. If you need it, we can help you do custom clearance.
Packaging Details:
Big-size equipment will be fixed by steel wire, while small ones together with spare parts will be packed into wooden boxes.
1. Outside package: Standard export wooden cases.
2. Inner package: Stretch film.
