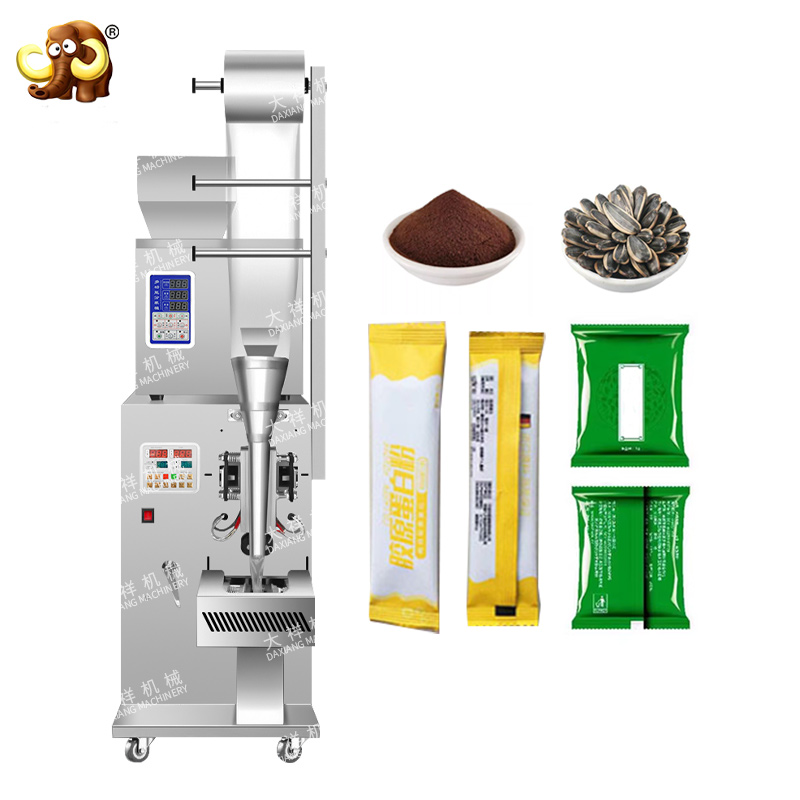

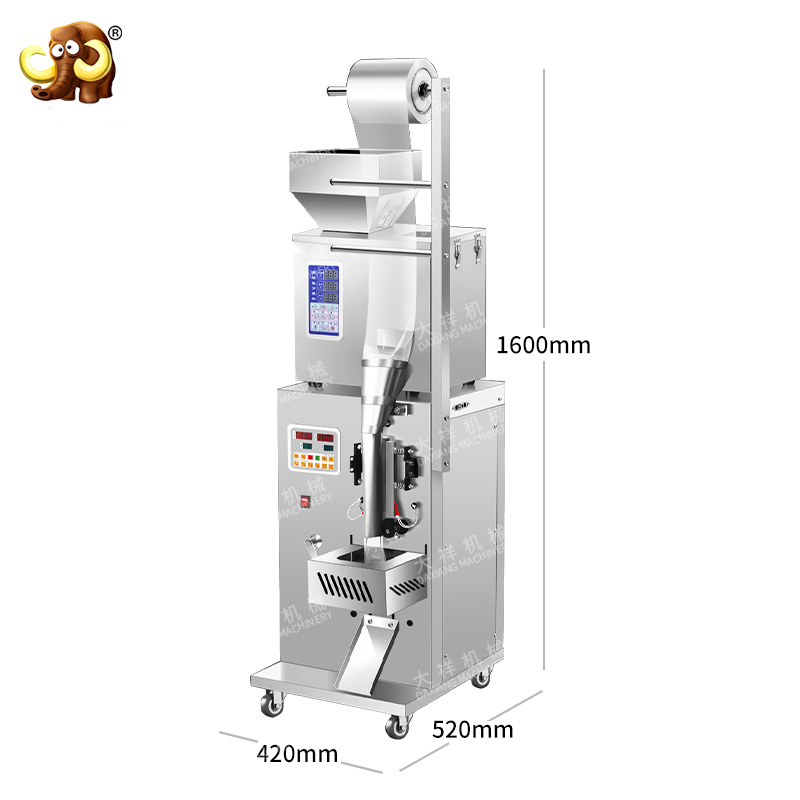

DZD-220B Hot Sale Cheap Automatic Sachet Tea Bag Packaging Powder Sugar Granule Coffee Mini Packing Machine

Product Description

Factory Banner
- Factory Area -
More than 30,000 m2 area.
- Quantity in Stock -
More than 5,000 sets.
- Team Power -
More than 100 employees.
- Monthly Yield -
More than 2,000 sets.
- Established Time -
More than 15 years.
- Monthly Sales -
More than 1,000 sets.

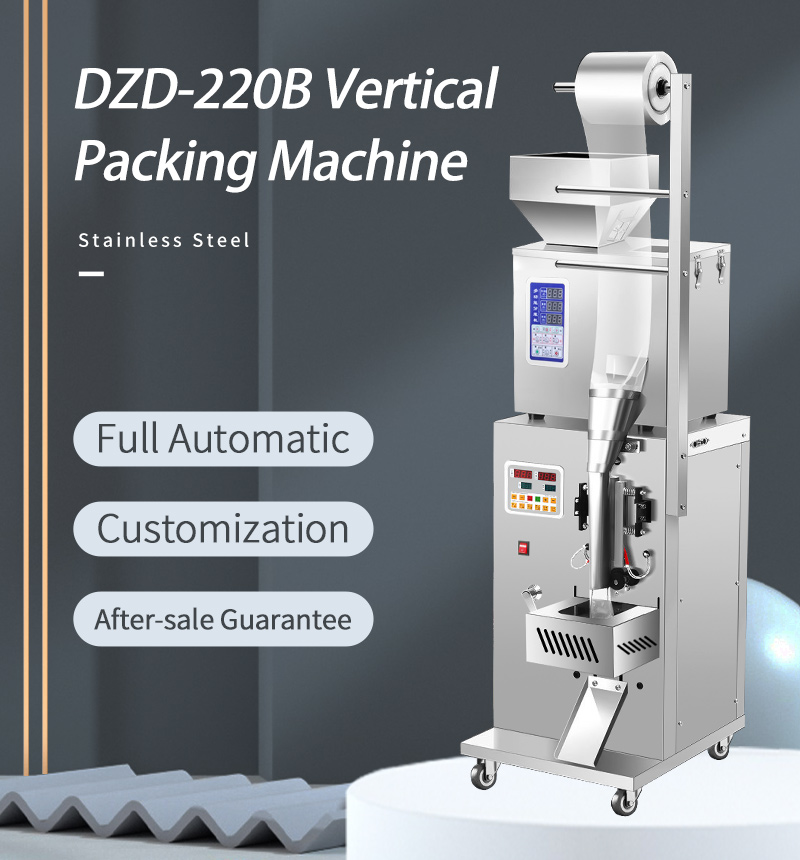

Product Banner

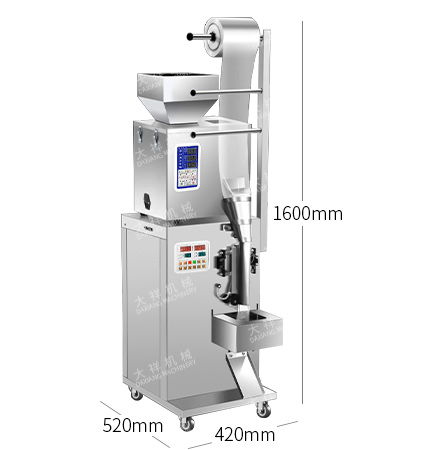

Machine Model DZD-220B
Machine Model DZD-220B
Application Particle/Powder
Production Capacity 5-20bag/min
Packaging Weight 1-20g/1-50g/1-100g
Packaging Length 0-15cm
Packaging Width 2.25-10cm (Film 6-22cm)
Packaging Accuracy 0.1-0.3g
Voltage 220V 50Hz 500W
Machine Weight 50kg
Product Application

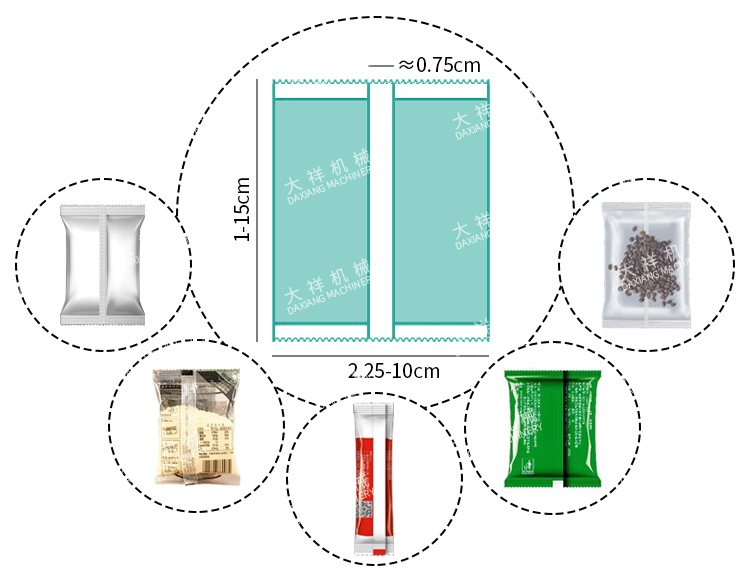

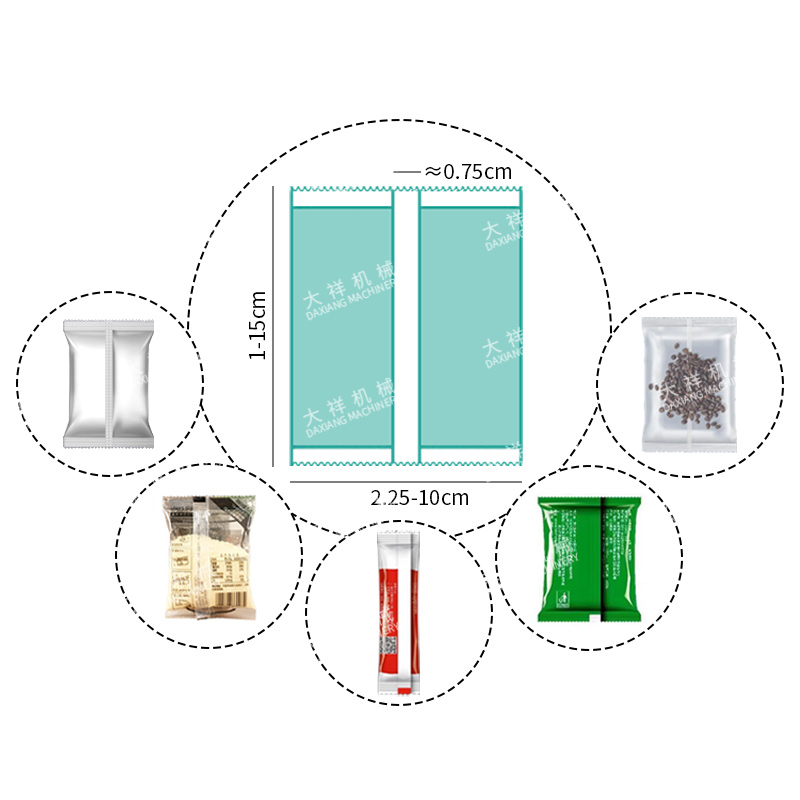

Product Application Detail Application Overview
Product Description

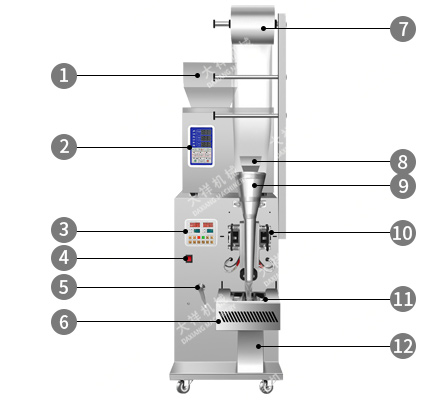

Machine Diagram
Diagram
  1. feeding storage hopper
  2. subpackage controller
  3. sealing controller
  4. switch
  5. sealing locker
  6. anti-preventing device
  7. packaging film
  8. feeder
  9. former
  10. vertical heat-seal
  11. horizontal heat-seal
  12. output

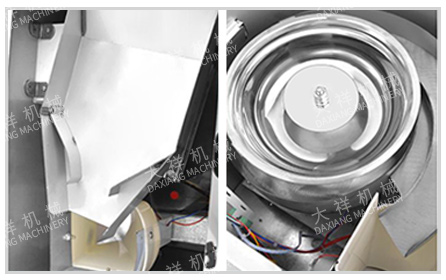

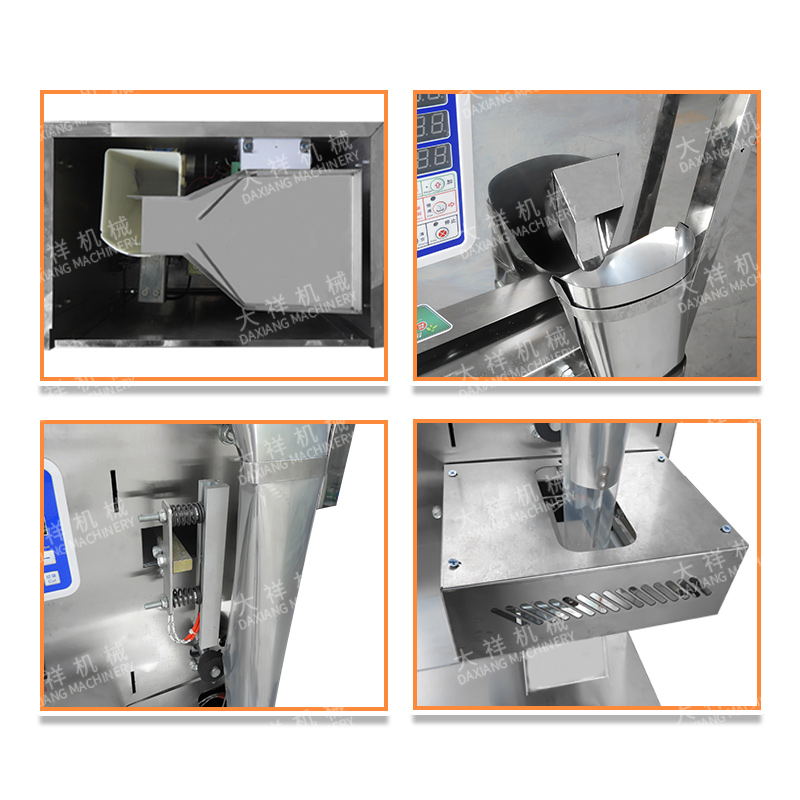

Feeding and Weighing
Feeding and Weighing:
Stainless steel material. Standard machine is equipped with electronic scale. Accurate measurement and slight error. Customization service includes screw feeding, counting feeding and other feeding types.

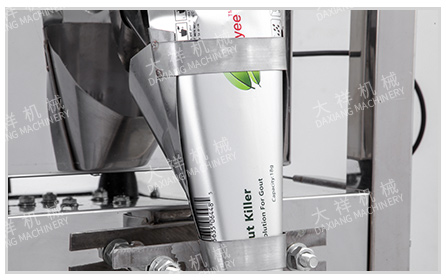

Feeder and Former
Feeder and Former:
Materials come out from the feeder after weighing. The former size can be customized. It determines the width of final product.

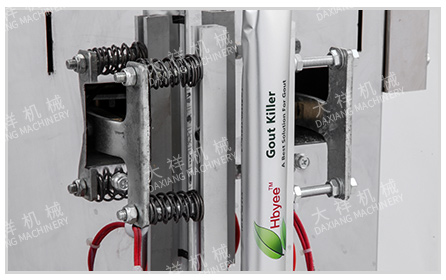

Vertical Heat-seal
Vertical Heat-seal:
Heat seal the side of the pouch automatically. Temperature can be adjusted according to different materials.

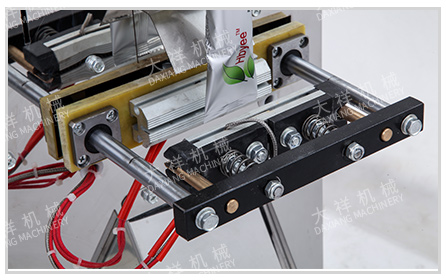

Horizontal Heat-seal
Horizontal Heat-seal:
Heat seal the top and bottom side of the pouch automatically. Temperature can be adjusted according to different materials. Then cut pouches one by one.

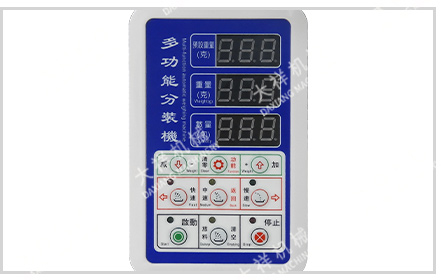

Subpackage Controller
Subpackage Controller:
Control the weight of pouch, automatic and accurate. Adjust the packing speed—fast, medium, slow.

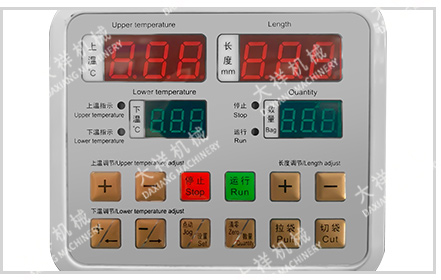

Sealing Controller
Sealing Controller:
Adjust the length of pouch. Control the temperature of sealing according to different packaging film.

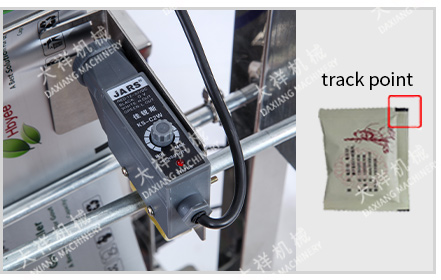

Cursor
Cursor: (optional)
If the film is blank, no need for cursor. If the film is printed, the cursor help locate the track point, so each picture will be in the right position.

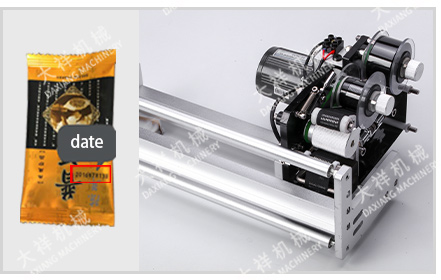

Ribbon Coding
Ribbon Coding: (optional)
Print date and batch number automatically. Printing content can be customized according to actual needs.
Series Overview
Product Parameters
Machine Model DZD-220B DZD-320B DZD-420B
Application Particle/Powder Particle/Powder Particle/Powder
Production Capacity 5-20bag/min 5-20bag/min 5-20bag/min
Packaging Weight 1-20g/1-50g/1-100g 10-500g 10-999g
Packaging Length 1-15cm 1-22cm 1-28cm
Packaging Width 2.25-10cm (Film 6-22cm) 7-15cm (Film 16-32cm) 7-20cm (Film 16-42cm)
Packaging Accuracy 0.1-0.3g 1-2g 1-2g
Voltage 220V 50Hz 500W 220V 50Hz 550W 220V 50Hz 600W
Machine Dimensions 420*520*1600mm 480*680*1730mm 500*900*2050mm
Machine Weight 50kg 70kg 90kg
Optional Cursor/Coder Cursor/Coder Cursor/Coder
Company Profile
Factory Facility

We are specialized in producing and selling packaging equipment and processing equipment for food, health care, chemical and cosmetics industries, including multi-functional packaging machine, blister packaging machine, vacuum packaging machine, grinding machine, sugar coating machine and so on.

We have been doing domestic business since 2008, and in the year 2014, we started international trade for customers all over the world. Our company has various equipment and customization service that meets customers' actual needs, such as mould, voltage, plug, product appearance and so on.

We have professional process and strong technical force to ensure that customers can be provided with best equipment that meets GMP requirements. All our products have CE and ISO certification.

We are committed to using technology to develop better equipment, sincerely welcome domestic and foreign customers to visit us and develop long time cooperation.

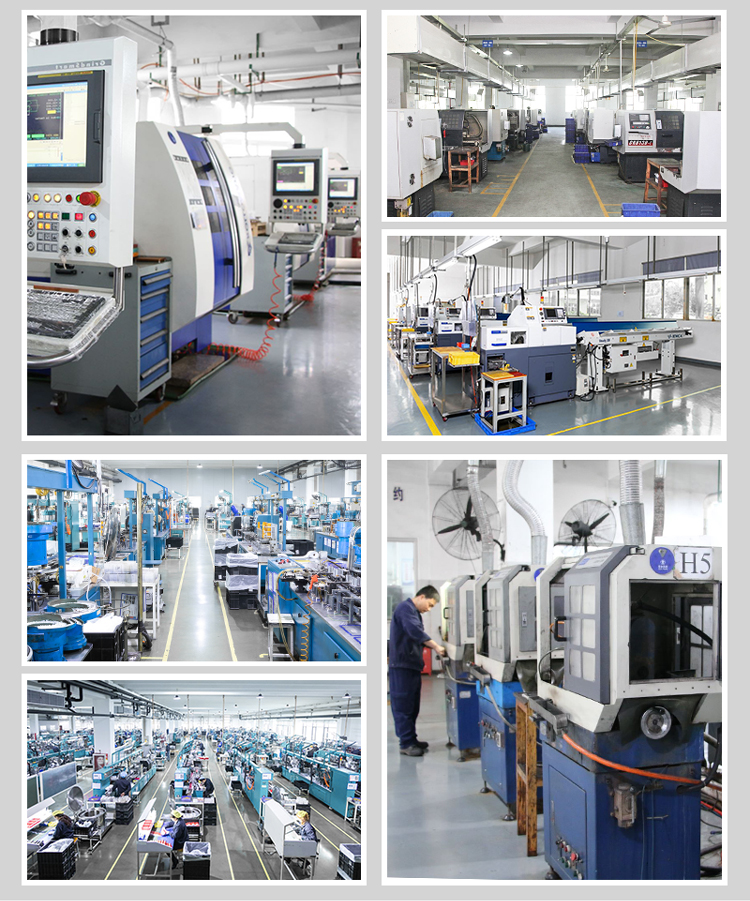

Factory Inside View
Exhibition and Certification
FAQ
FAQ Header
Q1: What are your main PRODUCTS?
We produce packaging equipment and processing equipment for food, health care, chemical and cosmetics industries.
Q2: What is your PAYMENT terms?
1) T/T 2) alibaba credit order 3) western union 4) paypal 5) all kinds of RMB payments
Q3: How about your DELIVERY time?
Most of machines are in stock, and can be delivered within 3 days. Customized machines usually need 10-30 days to prepare.
Q4: Why do I TRUST you?
We have been producing and selling machines for over 20 years. And all our machines have passed CE and ISO certification. You can visit our factory any time you like.
Q5: What is your SERVICE?
1.Customization: Most of our machines can be customized.
2.Packaging and delivery: We can pack and deliver the machine according to actual need.
3.Installation:
    1) Most of our machines are ready before delivery, no need to install.
    2) We provide operating videos and online support.
    3) Engineers can be sent to install machines and provide training services.
Q6: What is your AFTER-SALE SERVICE?
1) One-year warranty.
2) During the warranty period, any unartificial damaged parts will be replaced free of charge.
3) After the warranty period, spare parts will be provided at a certain cost.
After-sale Support Image
