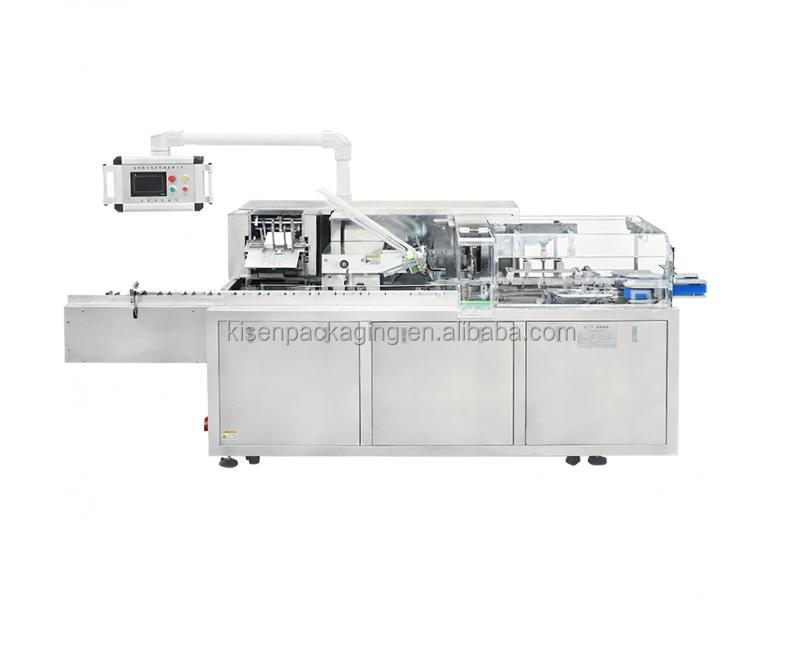

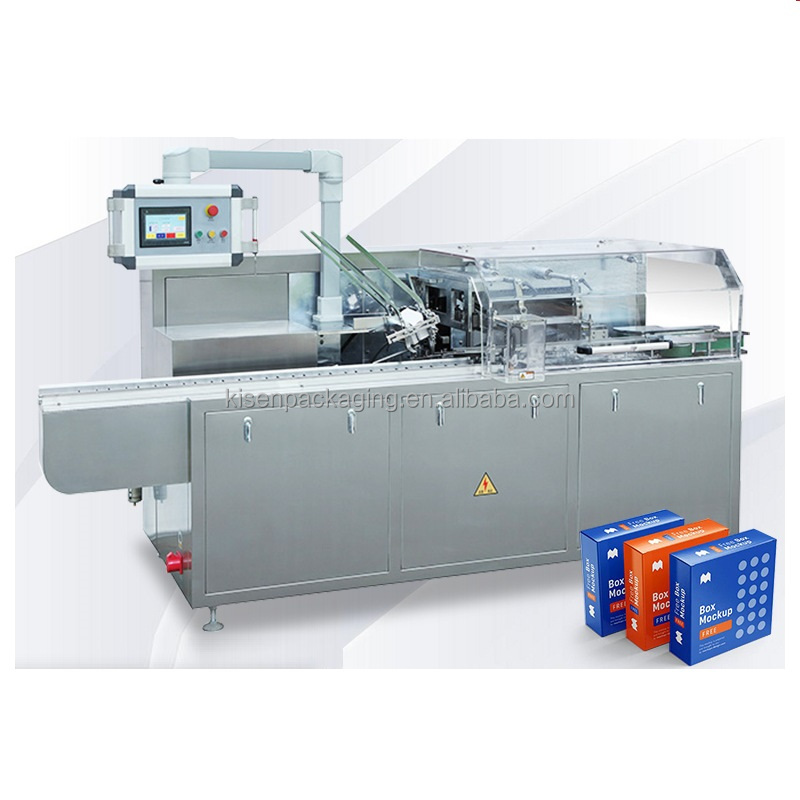

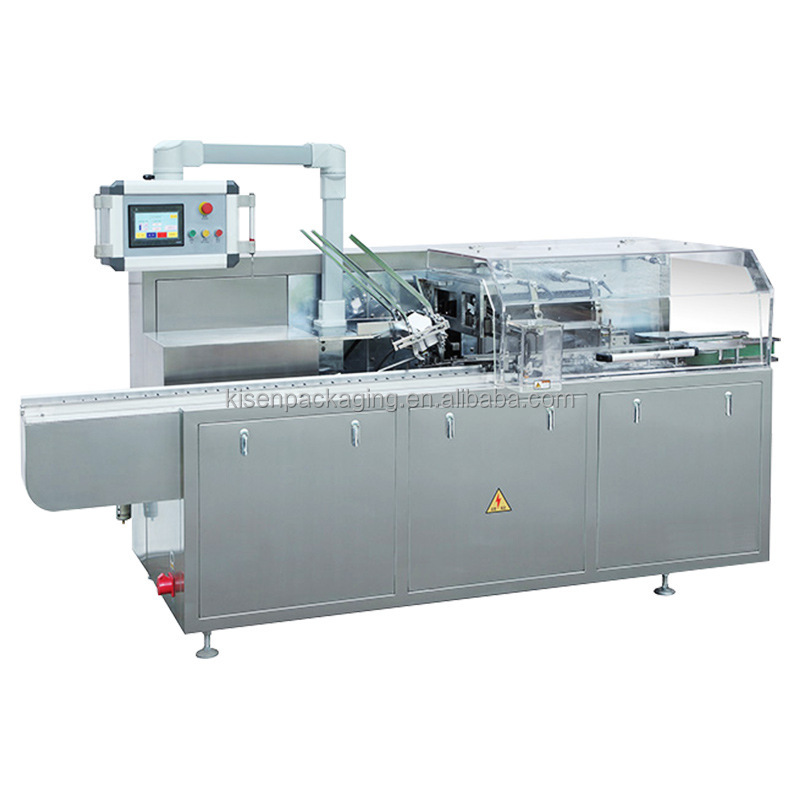

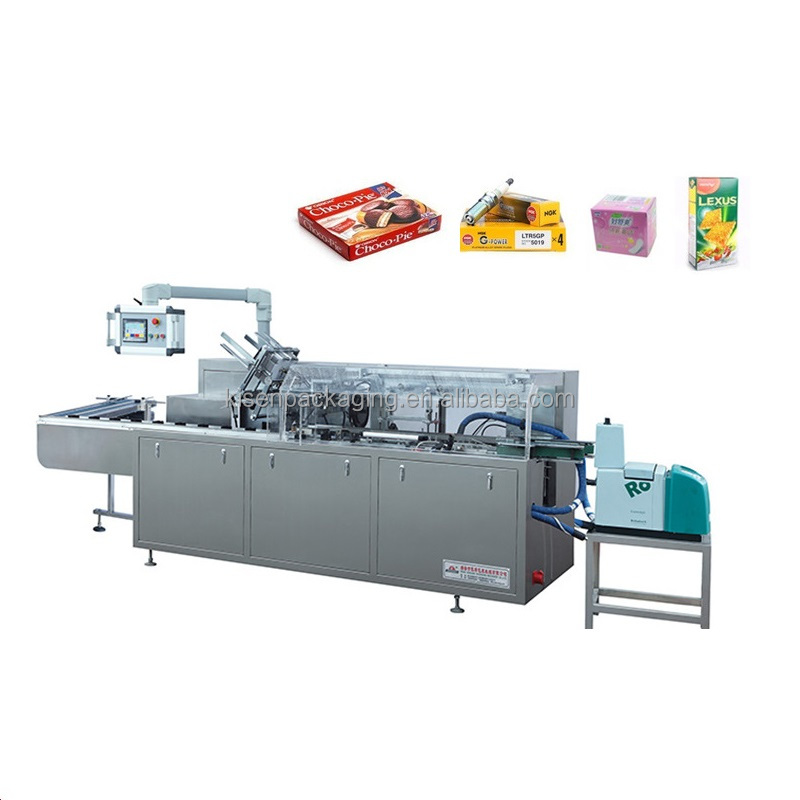

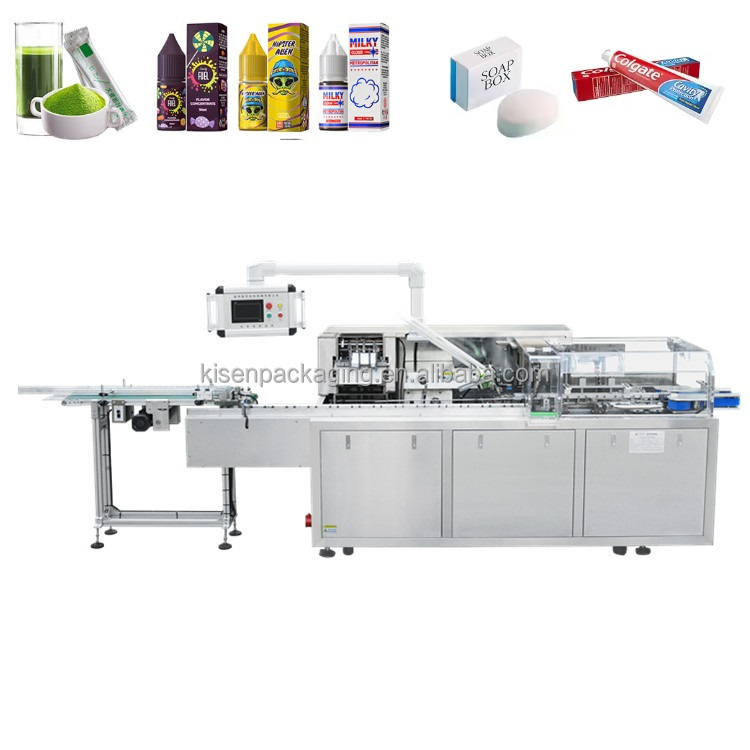

The automatic cartoning machine is a kind of horizontal type box packing machine developed after the learning of both domestic and foreign leading technologies.
It is a light, electric, pneumatic, and machinery integration. With its high-tech setting, the machine can have stronger production performance and higher working efficiency for customers' requirements of quick cartoning. Besides, the machine can keep stable and reliable even during high-speed operation.
The machine applies in fields of foodstuff, pharmaceutical industry, daily chemicals, entertainment and hardware to carton products automatically.
It is convenient to adjust the automatic feeding device and control cartoning speed on the touch screen.

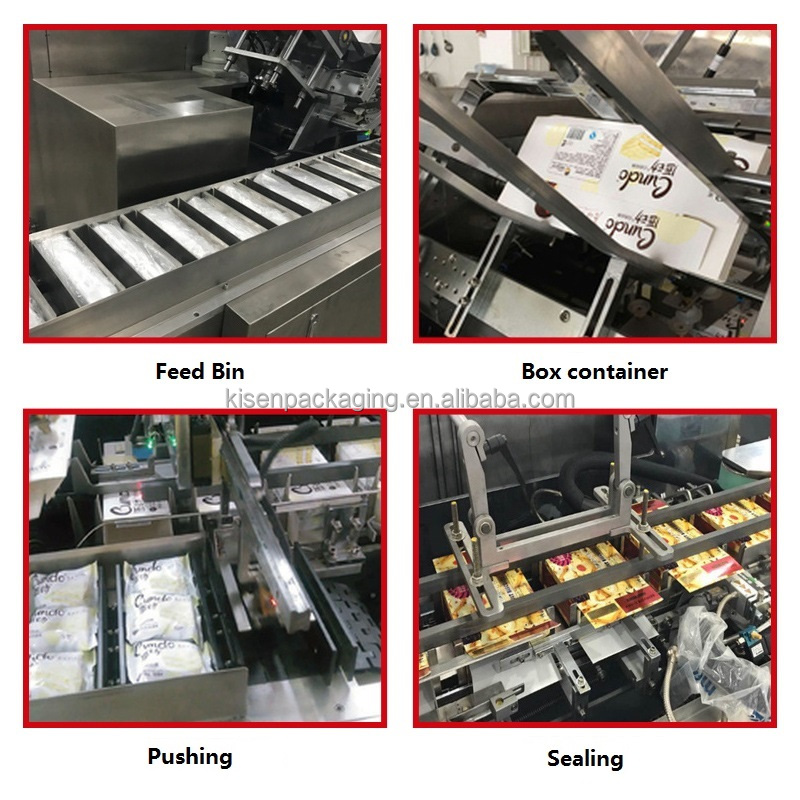

The machine can also automatically detect products online, print batch numbers, mechanically seal the cartons (or seal with hot melt glue), reject the unqualified products, and discharge the end products.
Feature of the Cartoning Machine
PLC control system, frequency converter and other electric components are all outsourced from international brands.
HMI for operation setting;
The machine can stop automatically if it is mechanically overloaded;
The machine can automatically reject cartons without products or leaflets;
The machine can display errors, alarm and count the end products;
The machine features stable performance and simple operation.
Technical Parameter
Model
KS-CT03
Desc.
Cartoning Machine
Packing Speed
30-80 boxes / min
Carton Specification
Quality: 250-450g/m² (depending on carton size) Size range: (90-240)mm*(90-180)mm*(20-90)mm
Compressed Air
Working pressure: ≥0.6mpa Air consumption: 20m³/h
Power Supply
380V, 50Hz, 1.5KW
Size
4600x1350x1900 mm
Weight
1500KG
Application

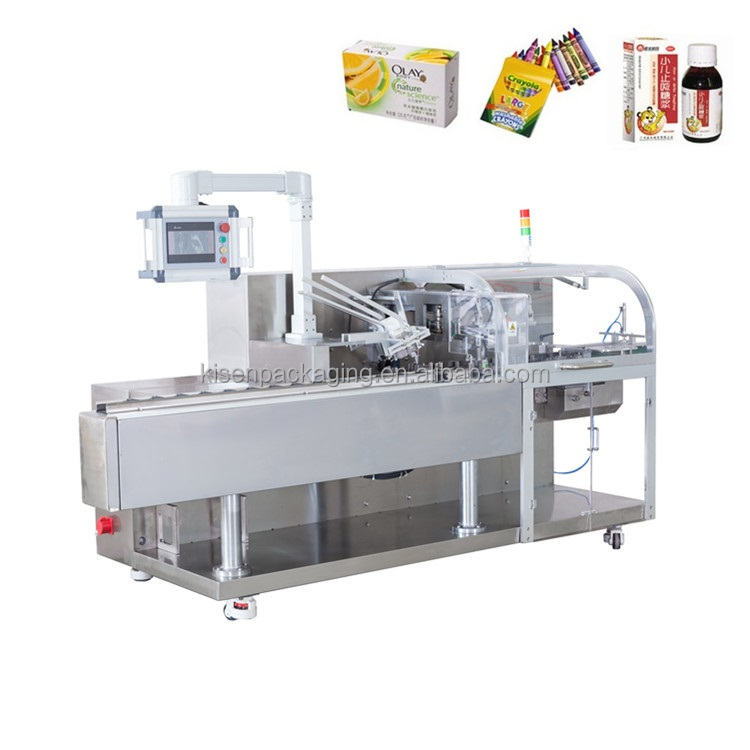

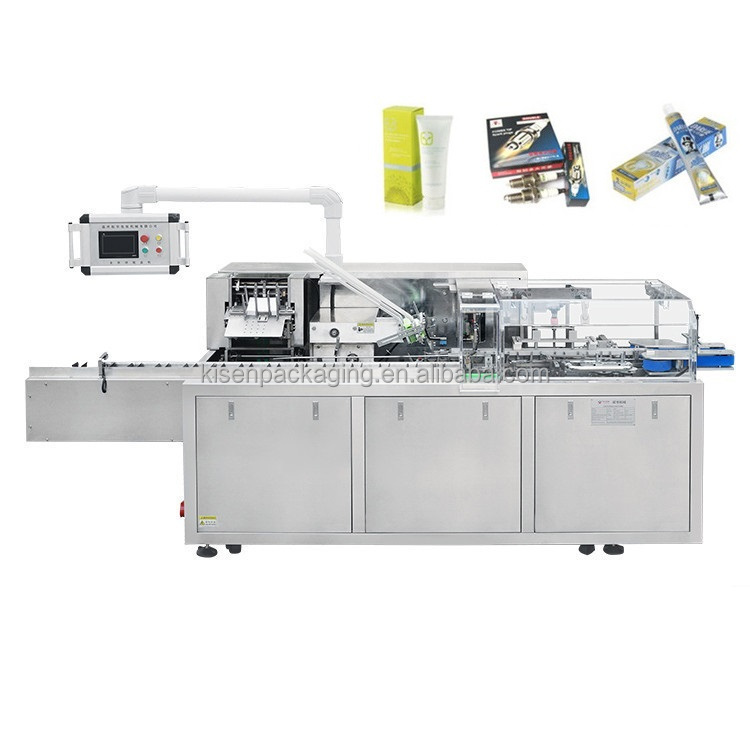

The automatic cartoning machine is widely used in the pharmaceutical industry, food industry, cosmetics industry, and auto parts industry to pack blisters, bottles, jars, sachets, bags, plastic tubes, aluminum tubes or any other product into the carton.
Packing & Shipping
FAQ
QWhat is the packing speed of the cartoning machine?
The cartoning machine has a packing speed of 30 to 80 boxes per minute, which can vary depending on the specific carton size and product characteristics.
QWhat size of cartons can the machine handle?
It supports a carton size range of (90-240)mm in length, (90-180)mm in width, and (20-90)mm in height, utilizing paper qualities of 250-450g/m².
QDoes the machine have overload protection?
Yes, the cartoning machine includes an automatic mechanical overload shutdown feature to protect the equipment and keep operation safe.
QWhat happens if a carton does not have a product or leaflet?
The machine is integrated with smart sensors to automatically detect and reject any unqualified cartons that are missing products or leaflets.
QHow are the cartons sealed on this machine?
The machine can mechanically seal the cartons automatically, and it also supports sealing with hot melt glue setups.
QWhat components control the machine?
The system runs on a high-quality PLC control system, frequency converter, and a user-friendly touch screen HMI interface for simple speed and feed adjustments.
