Collecting Table
| Model |
C-Type |
| Convey Speed |
Adjustable speed |
| Diameter |
1.2m |
| Surface Type |
Concave |
| Power Supply |
220V / 370W / 50HZ |
| Machine Weight |
100KG |
| Packaging Size |
1300mm(L) * 380mm(W) * 1300mm(H) |

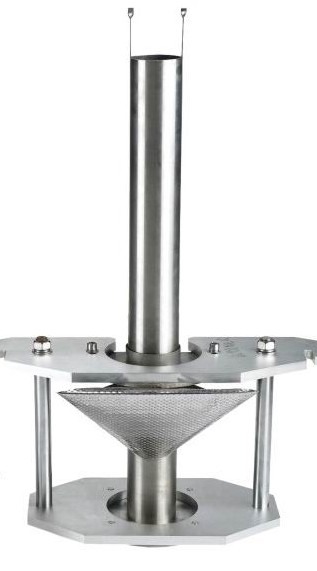

Bag Former
The packing machine includes one bag forming tube. If the bag width is fixed, no extra tube is required. For multiple bag widths, extra tubes must be purchased (e.g., if you have 3 different widths, you will need to purchase 2 extra tubes).
If only the bag length changes, there is no need for an extra tube; parameters can be configured directly on the touch screen.
Detailed Instruction

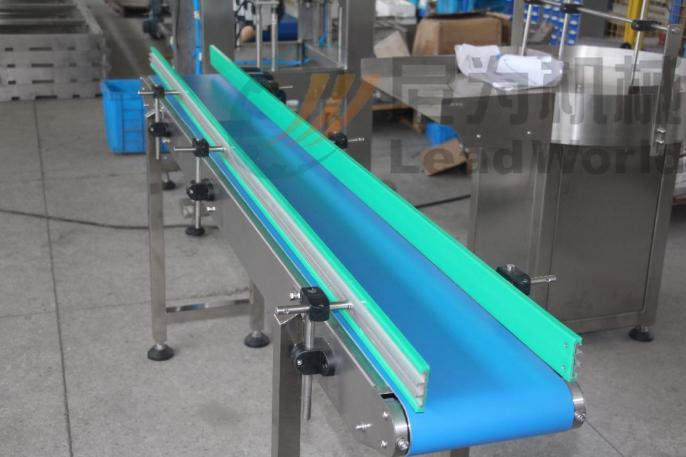

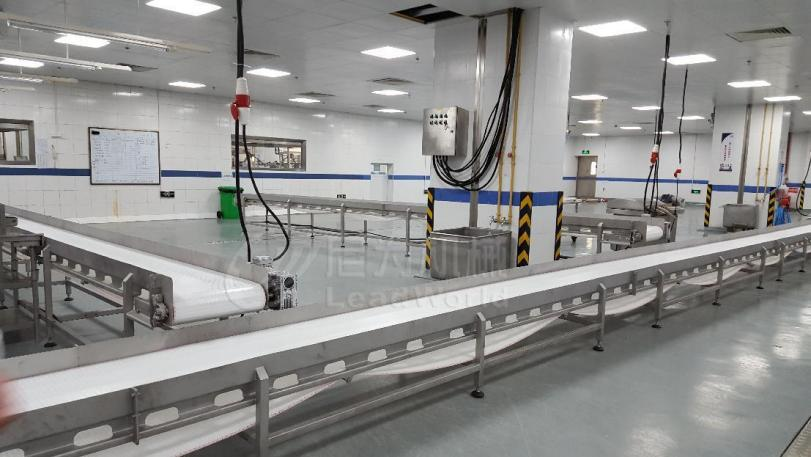

1. Conveyor Body Section:
- Main body side chain plate: Plate thickness δ2.0mm, Material: SUS304 (produced according to actual dimensions).
- Roller: Material SUS304, diameter is based on the actual load and standard tolerance.
- Riding wheel: Molded nylon processing, diameter based on the actual load.
- Bun foot: Nylon injection molding with M16 stainless steel adjusting screw.
- Guardrail: Utilizes a large C-channel aluminum track with a wear-resistant sheath.
- Connecting plate: Plate thickness δ3.0mm, Material: Stainless steel bending formed.
- Accessories: Mounted bearings, SUS304 grade fasteners/screws.
2. Conveying Carrier Section:
- Belt length: Configured to custom design requirements.
Frequently Asked Questions (FAQ)
What materials are used for the main conveyor and retort components?
Primary components, including the conveyor body frame, rollers, pot body, and connecting plates, are manufactured using high-grade SUS304 and SUS30408 stainless steel for high durability and hygienic operation.
Can the conveying speed of the collecting table be modified?
Yes, the conveyor speed on the collecting table can be adjusted to match your operational speed requirements.
Is it necessary to buy extra forming tubes for different bag widths?
Yes, the machine includes one bag forming tube. You only need to purchase extra tubes if you process different bag widths. Bag length adjustments do not require extra tubes and can be adjusted on the touchscreen.

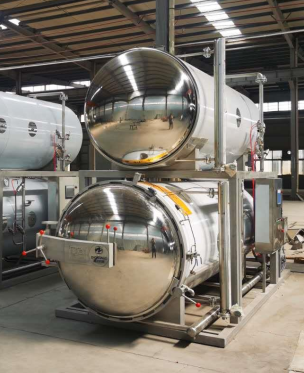

What packaging types can the double-layer sterilizer handle?
It is designed for canned food and flexible packaging sterilization. It is not suitable for glass bottles. It uses a circulating water bath for heating and direct water cooling.
How is the sterilization cycle controlled?
The system features a fully automatic computer control system that manages the entire sterilization cycle. The operator is only responsible for the loading and unloading of materials.

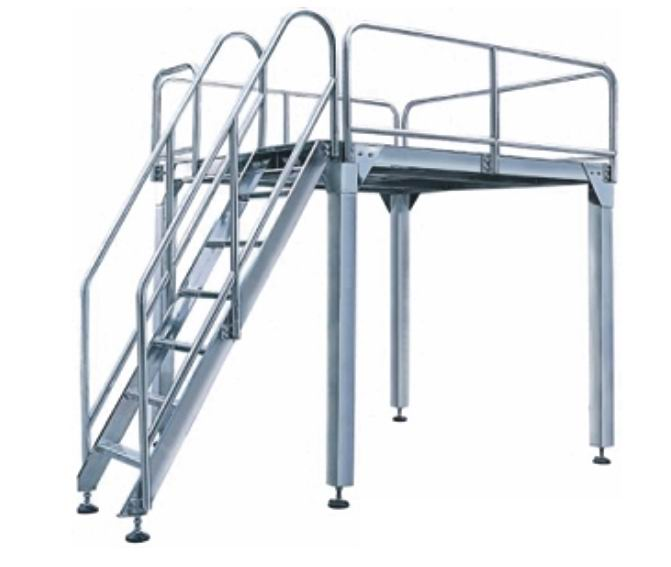

What is the load-bearing capacity of the platform?
The heavy-duty platform supports a maximum loading weight between 2 to 3 tons (2T-3T), suitable for industrial production environments.
