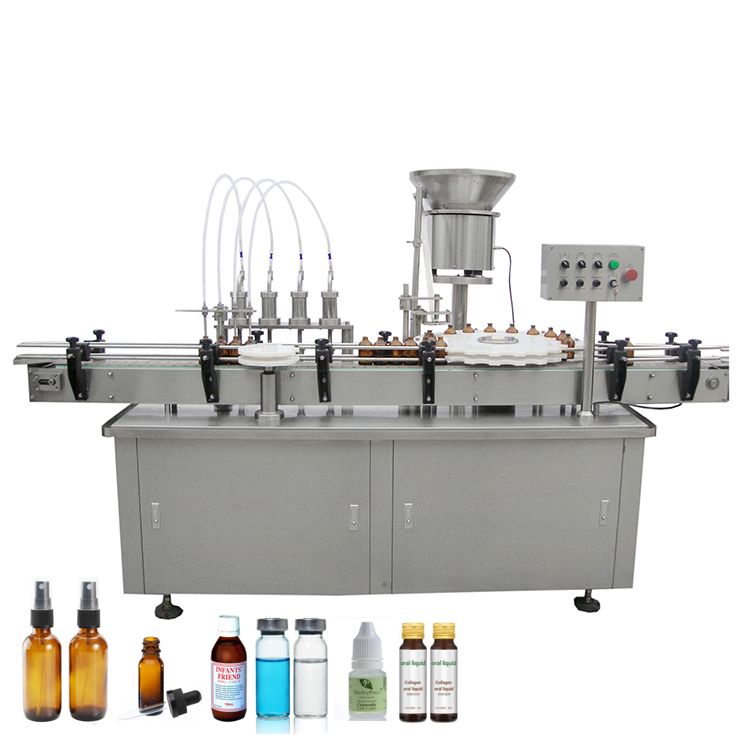

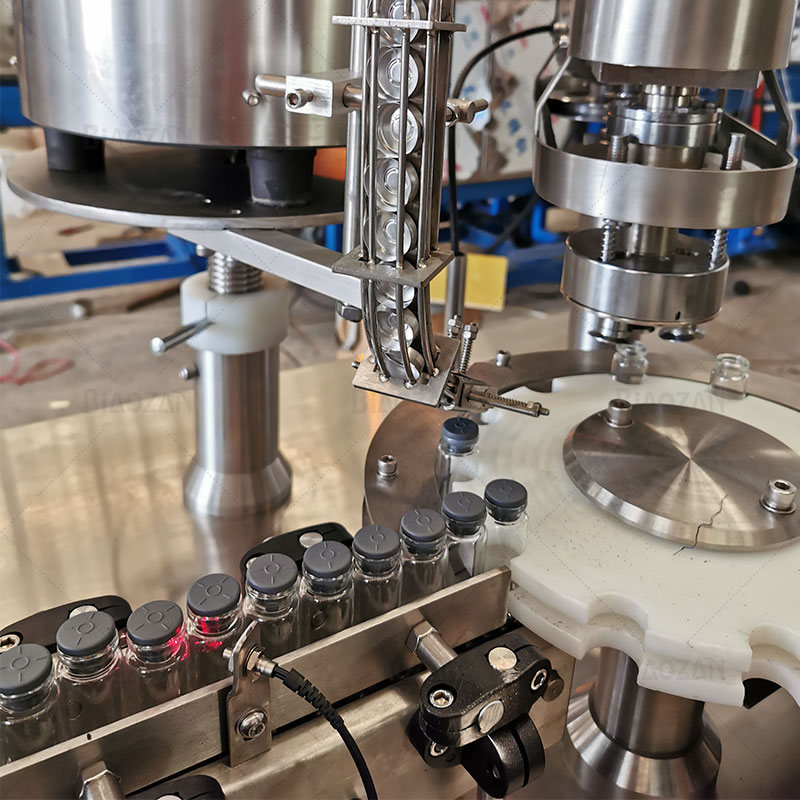

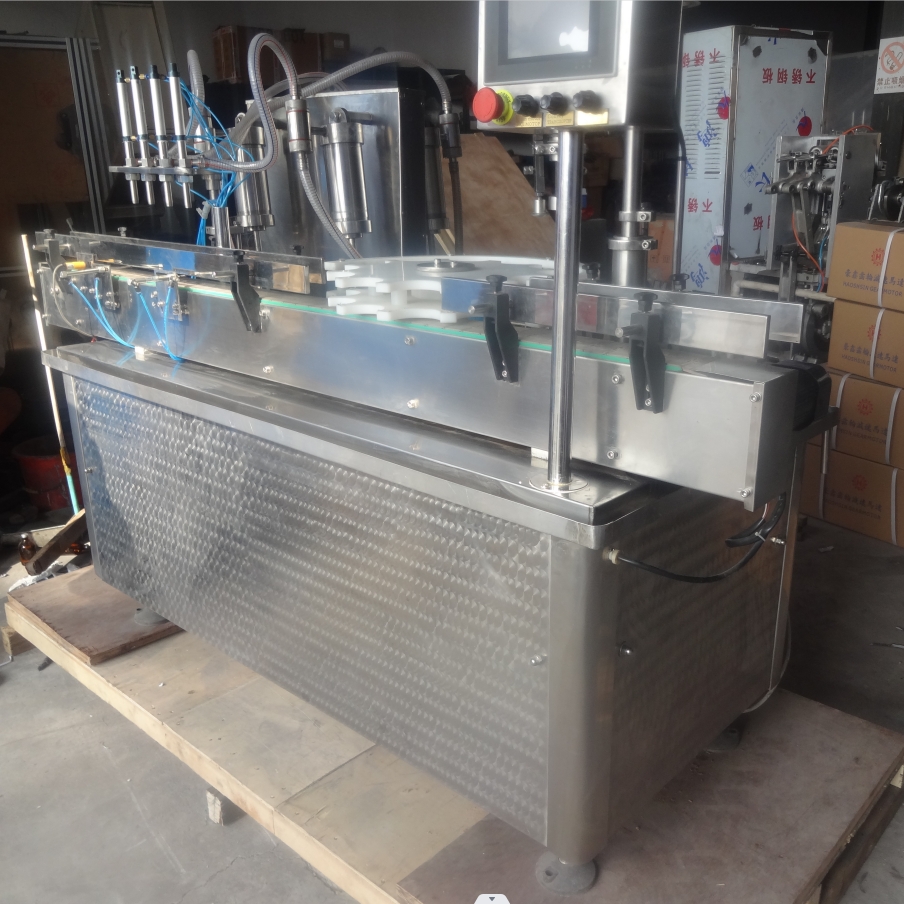

5ml 10ml 20ml Liquid Automatic Production Filler Packaging Line Full Auto Bottle Filling Capping Machine

Product Description

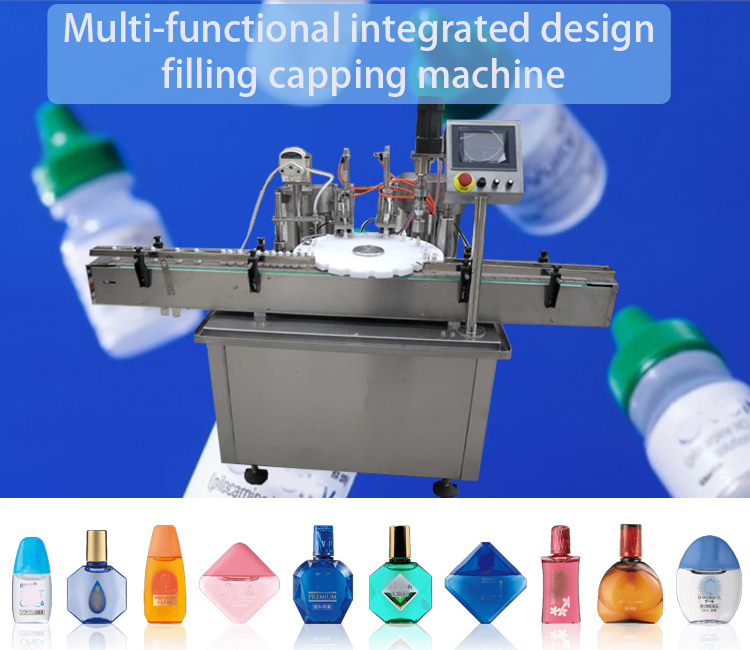

Automatic Liquid Bottle Filling Capping Machine
This Automatic Liquid Bottle Filling Capping Machine uses advanced German technology, engineering, and technical personnel independently developed specifically for liquid filling and capping. The filling part of the machine can be used 316L stainless steel injection pump filling, PLC control, high filling accuracy, easy to adjust the scope of the filling, capping method using constant torque capping, automatic slip, the capping process does not damage the material, to ensure the packing effect. The machine design is reasonable, reliable, easy to operate and maintain, and fully compliant with GMP requirements.
Specifications
Model HTGX-20 HTGX-50
Speed 30- 50 bottles/min 30-50 bottles/min
Filling volume 3- 20ml 5-50 ml
Voltage 380V 50HZ 220V 50Hz
Capping rate ≥99% ≥99%
Dimension 500mm*850mm* 1450mm 2000*1450*1650mm
Weight 500Kg 500Kg

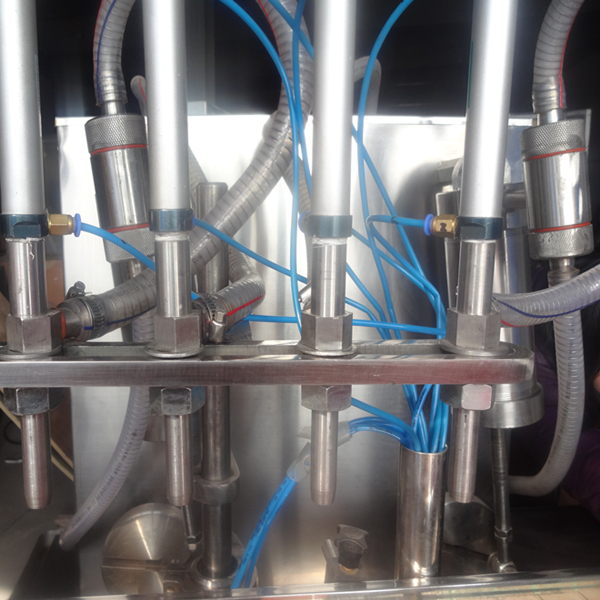

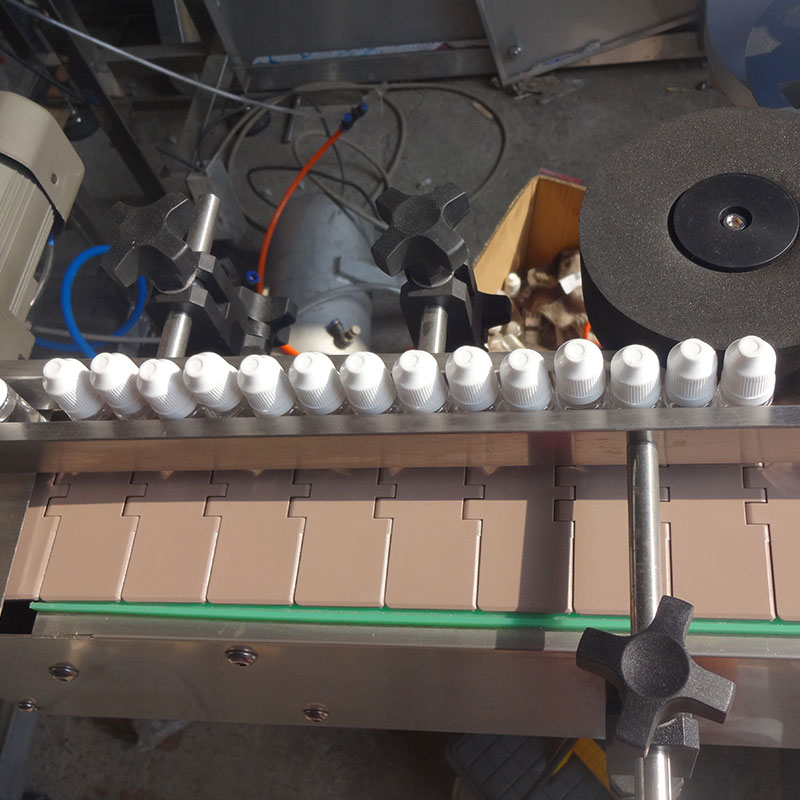

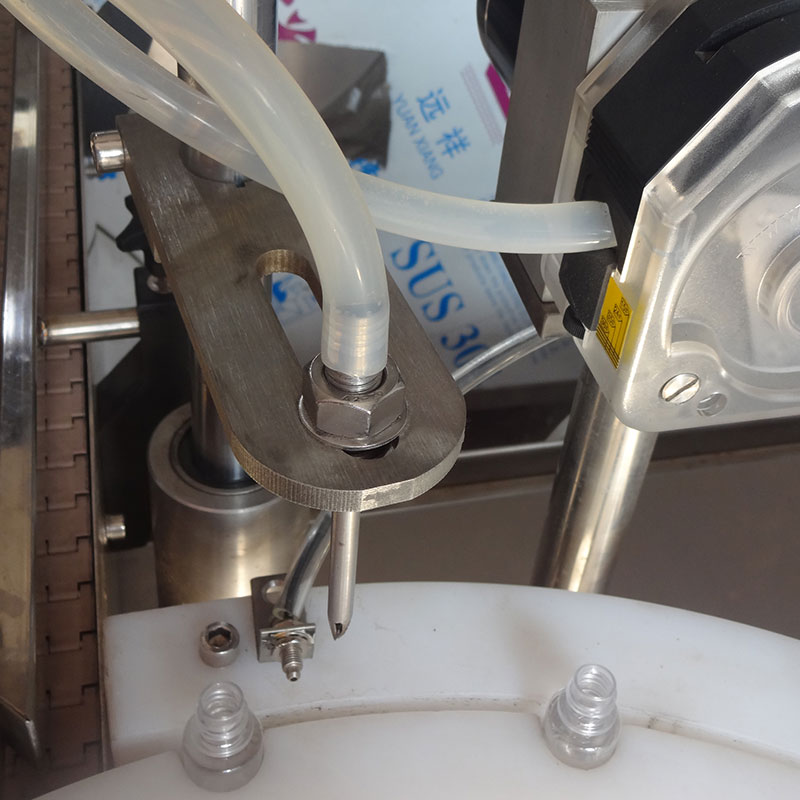

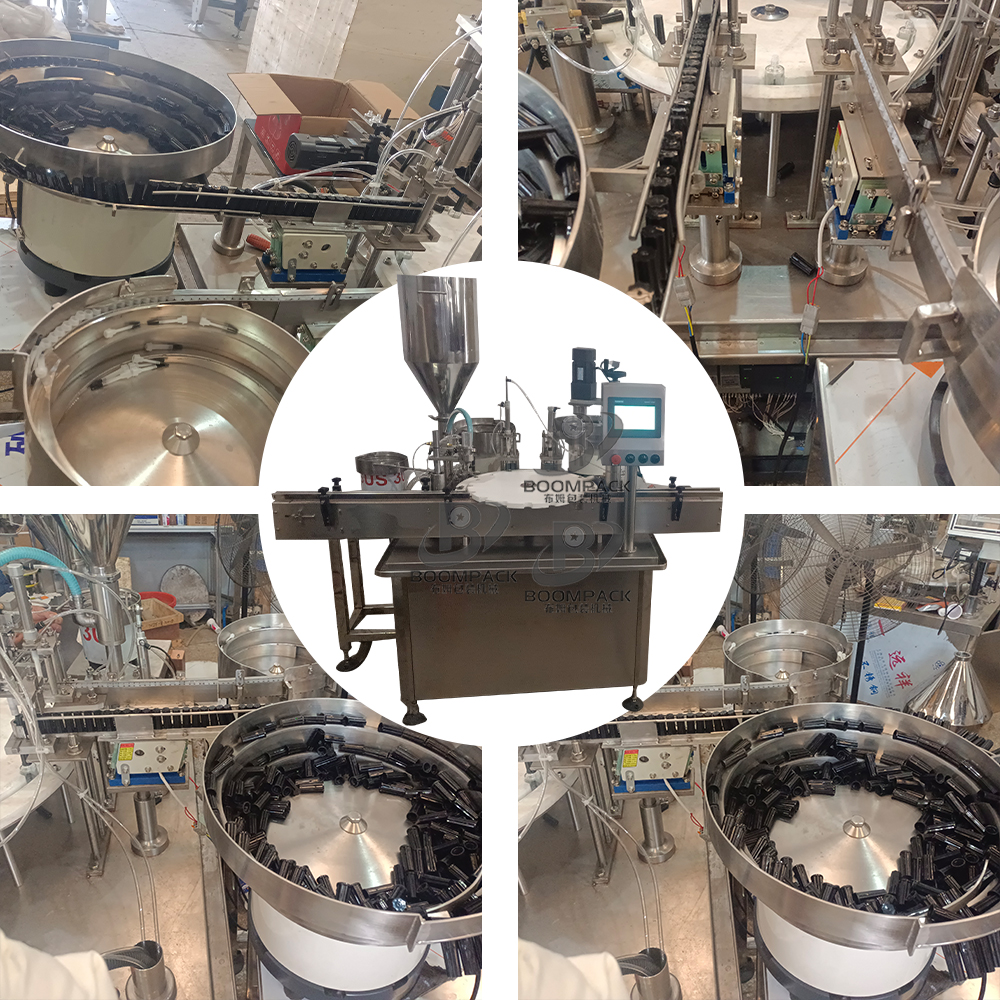

Filling Capping Machine Detail Filling Capping Machine Components Liquid Filling Process

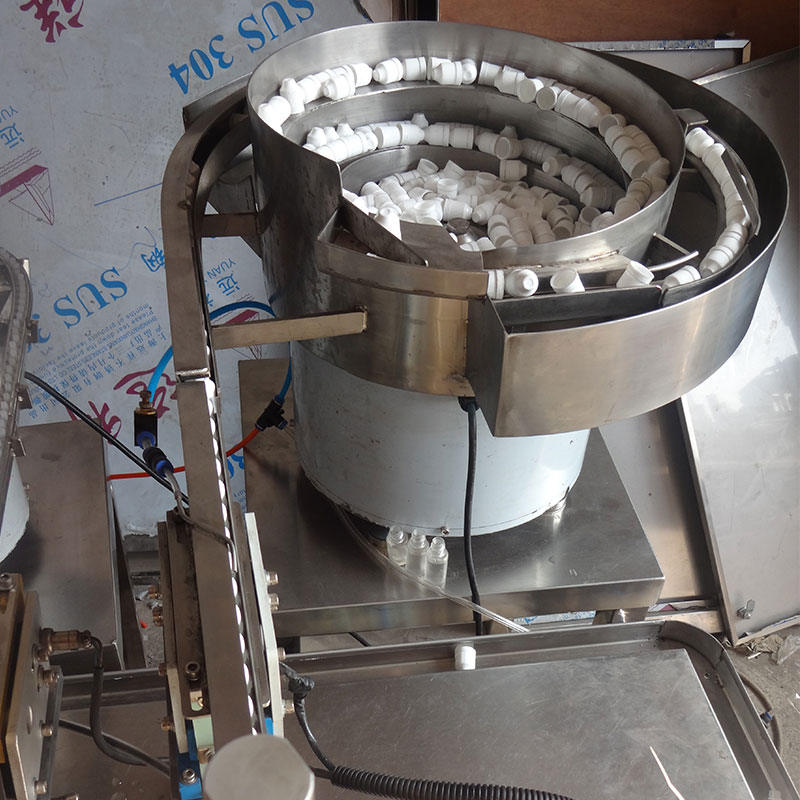

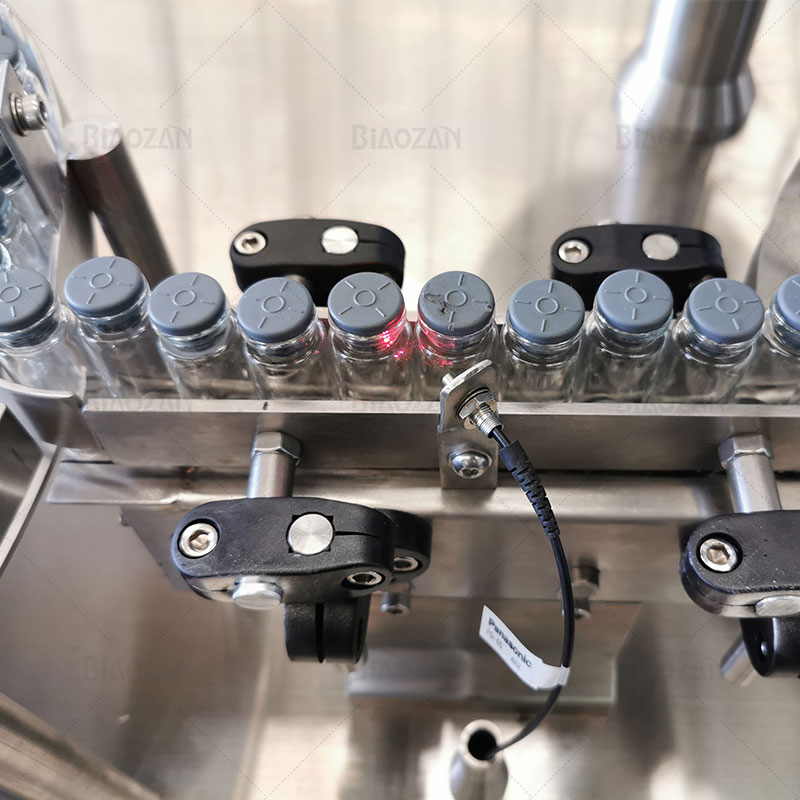

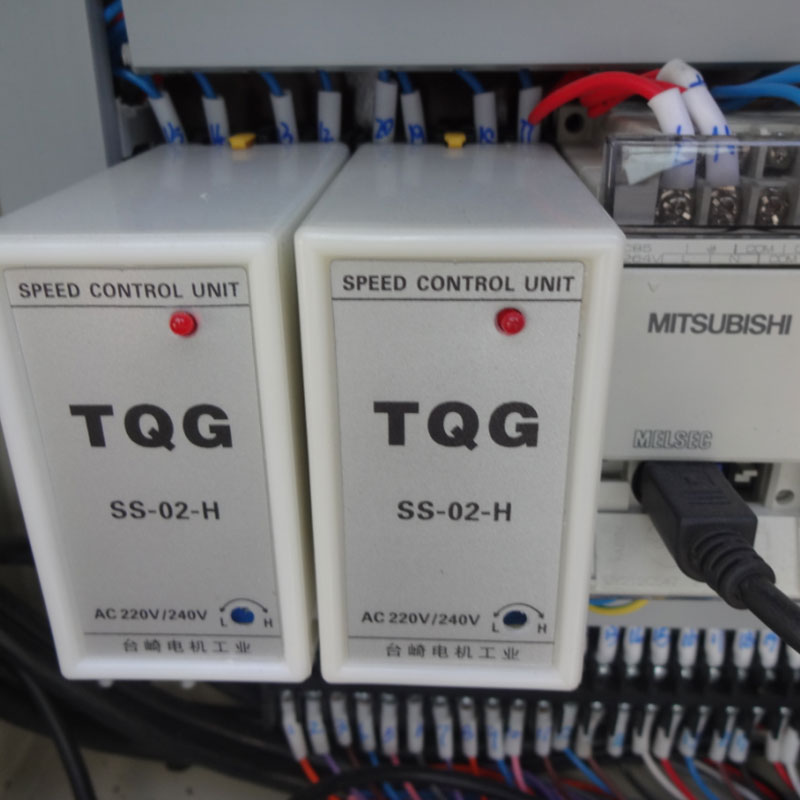

Filling Pumps Capping System Control Panel
Key Features & Benefits
The plunger type metering pump is used for filling, which is suitable for all kinds of viscous liquid/paste, etc., with high filling accuracy; The structure of the pump adopts a quick-connecting disassembly mechanism, which is easy to clean and disinfect.
Piston metering pump piston ring material is tetrafluoroethylene.
PLC control system, frequency conversion speed regulation, high degree of automation.
No bottle, no filling and automatic counting function.
It is convenient to adjust the load, adjust the filling amount of all the metering pumps at one time, and also adjust the micro-amplitude for each metering pump for convenient operation and fast adjustment.
The amount of filling machine can be adjusted to liquid level control, and the suction device can be installed.
The filling head is equipped with anti-drip, effectively preventing wire drawing and drip.
The whole machine is suitable for different specifications of bottles and is easy to adjust.

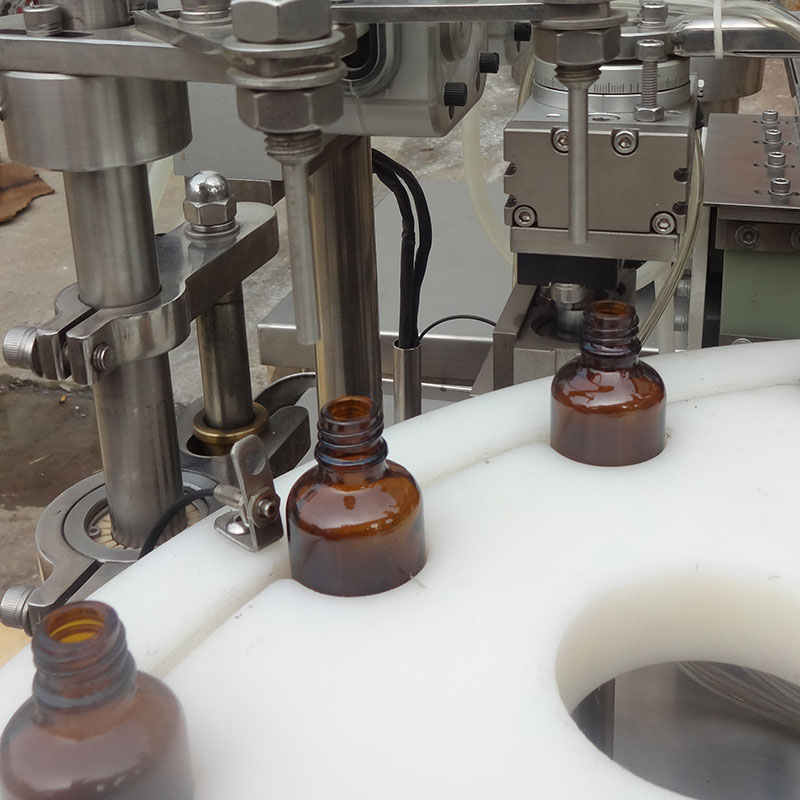

Filling Machine Inner View

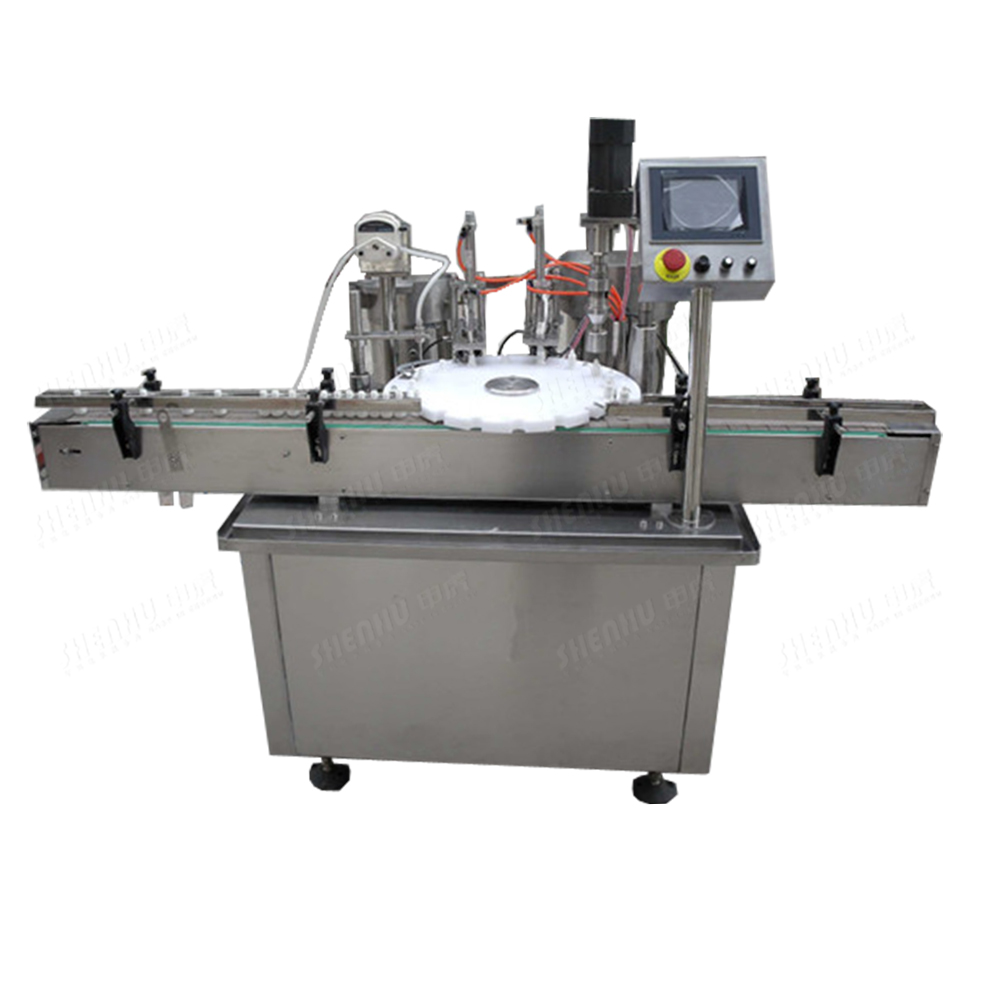

304 & 316 stainless steel
304 & 316 stainless steel
The body is made of 304 or 316 stainless steel materials, high-quality corrosion-resistant stainless, in line with GMP standards, has a long service life, and is durable.

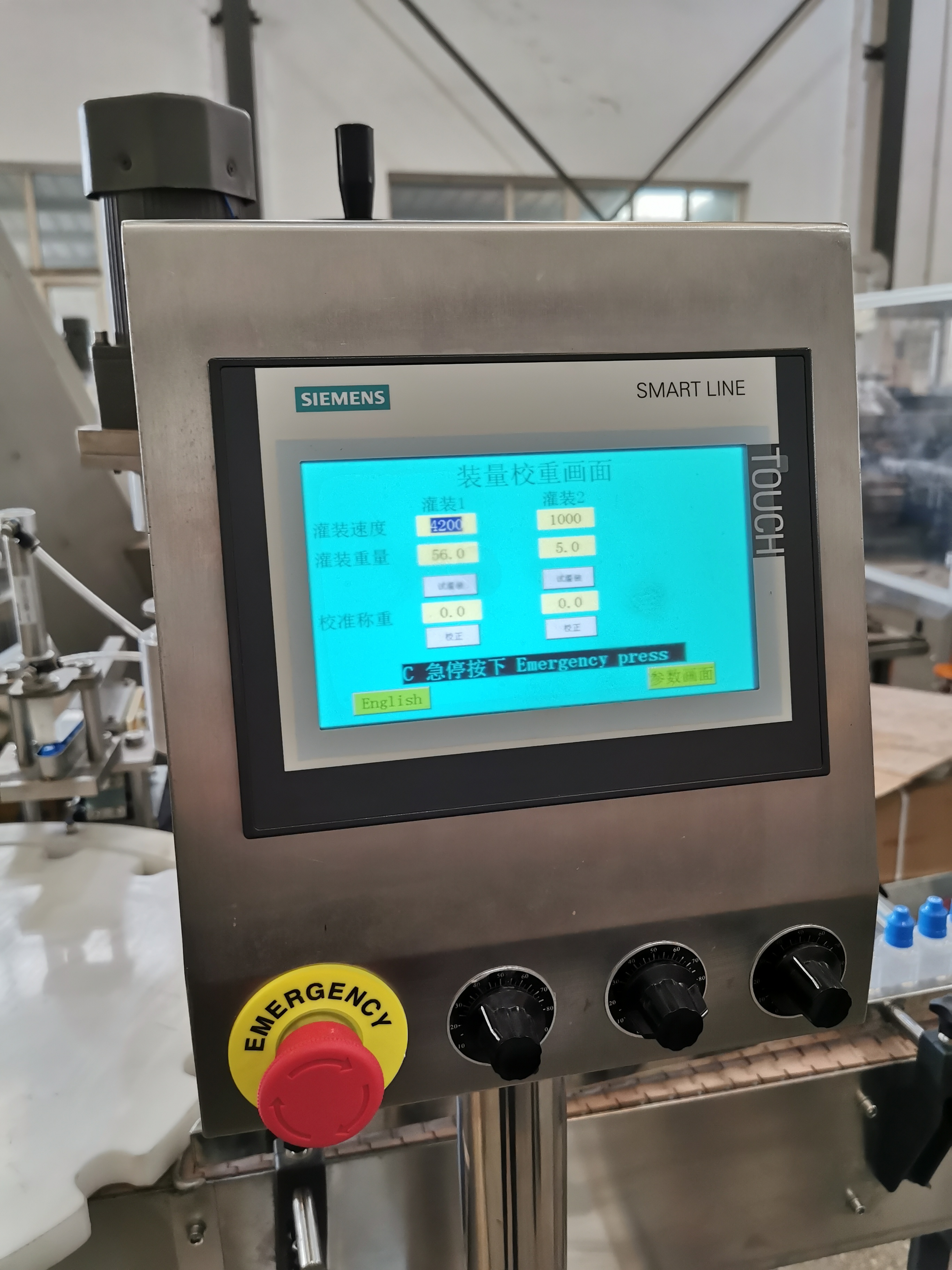

Easy To Operate
Easy To Operate
We are using an electronically controlled PLC touch screen control system, simple operation, intuitive and convenient, complete functions, stable operation, and easy to operate.

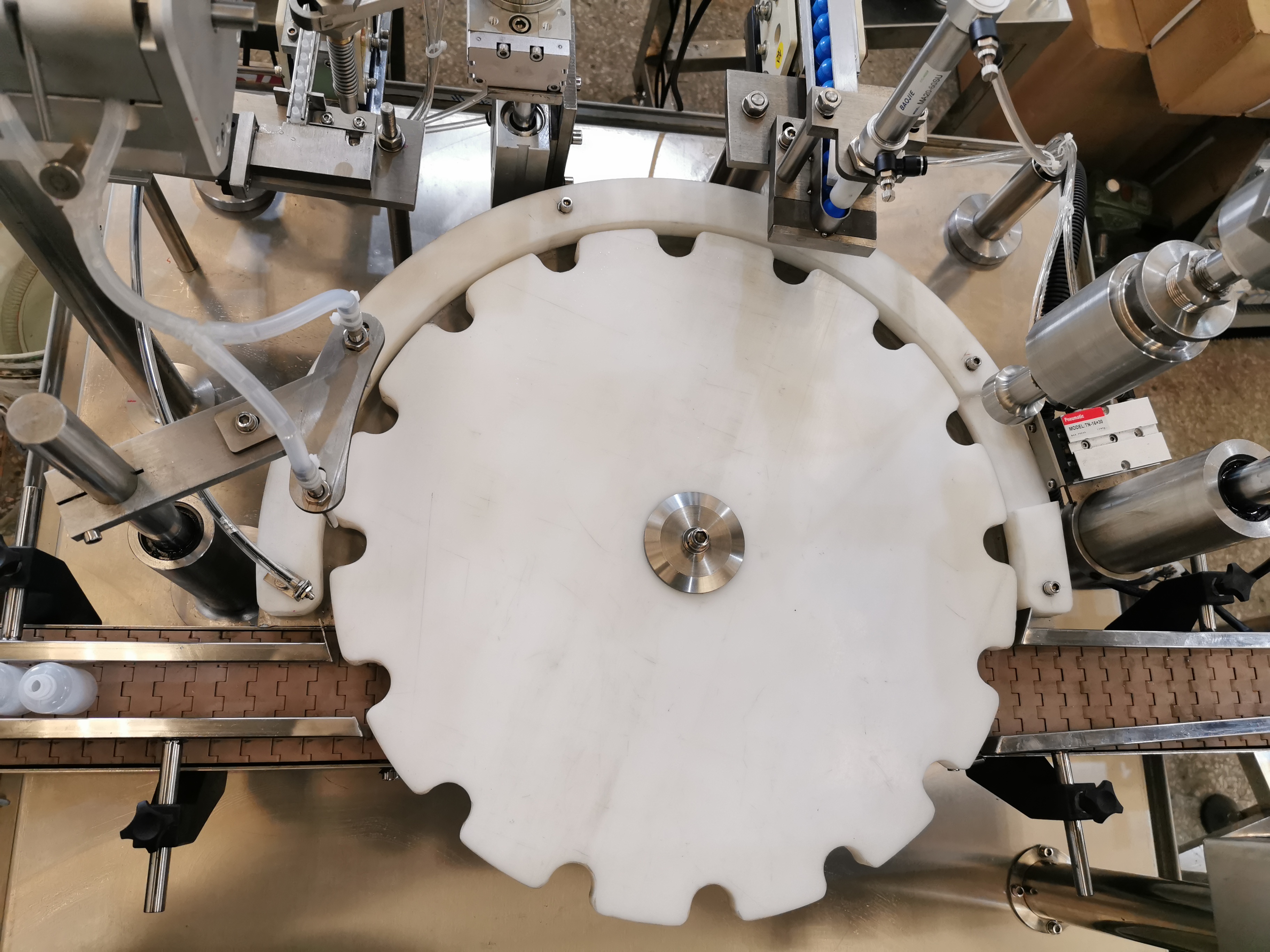

Compact Structure
Compact Structure
Multi-functional integrated design, including automatic bottle feeding, filling, capping, and bottle discharge, small body size, and small footprint.

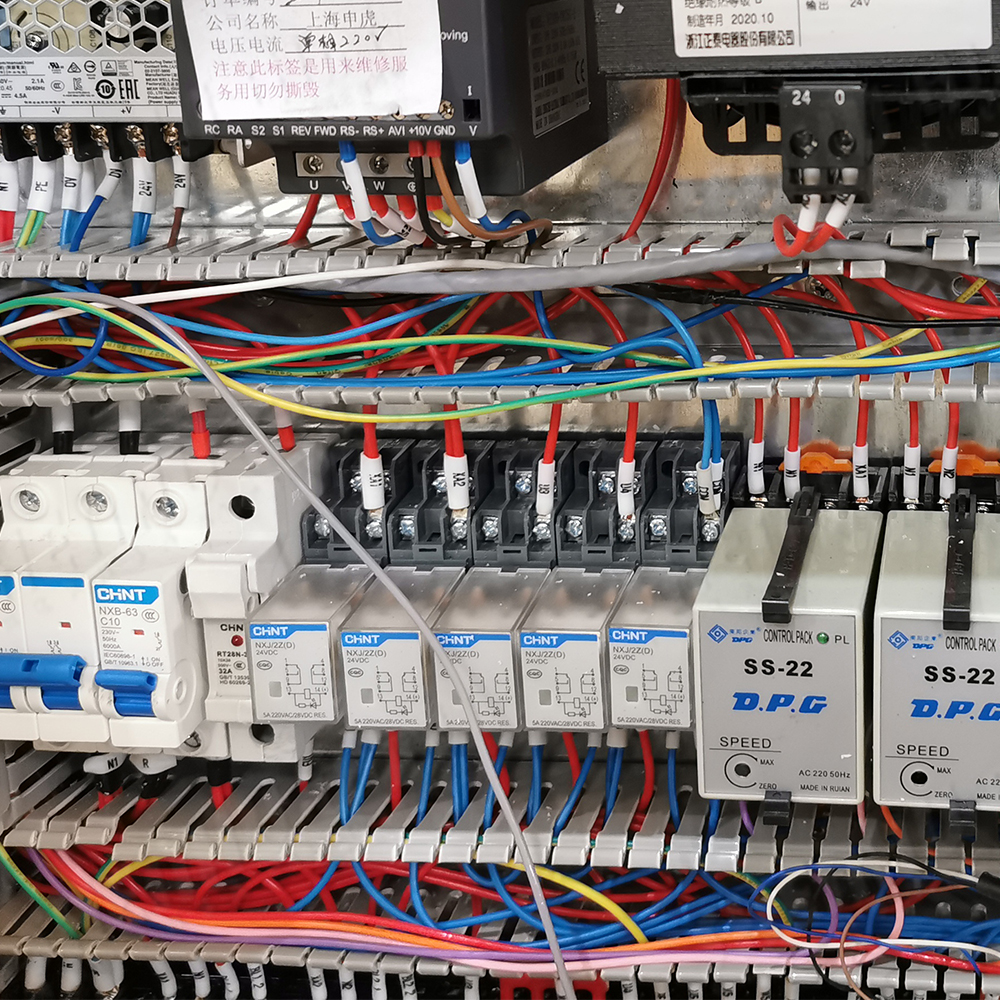

International brand accessories
International brand accessories
Electronic components using international well-known brands, stable performance, high efficiency.

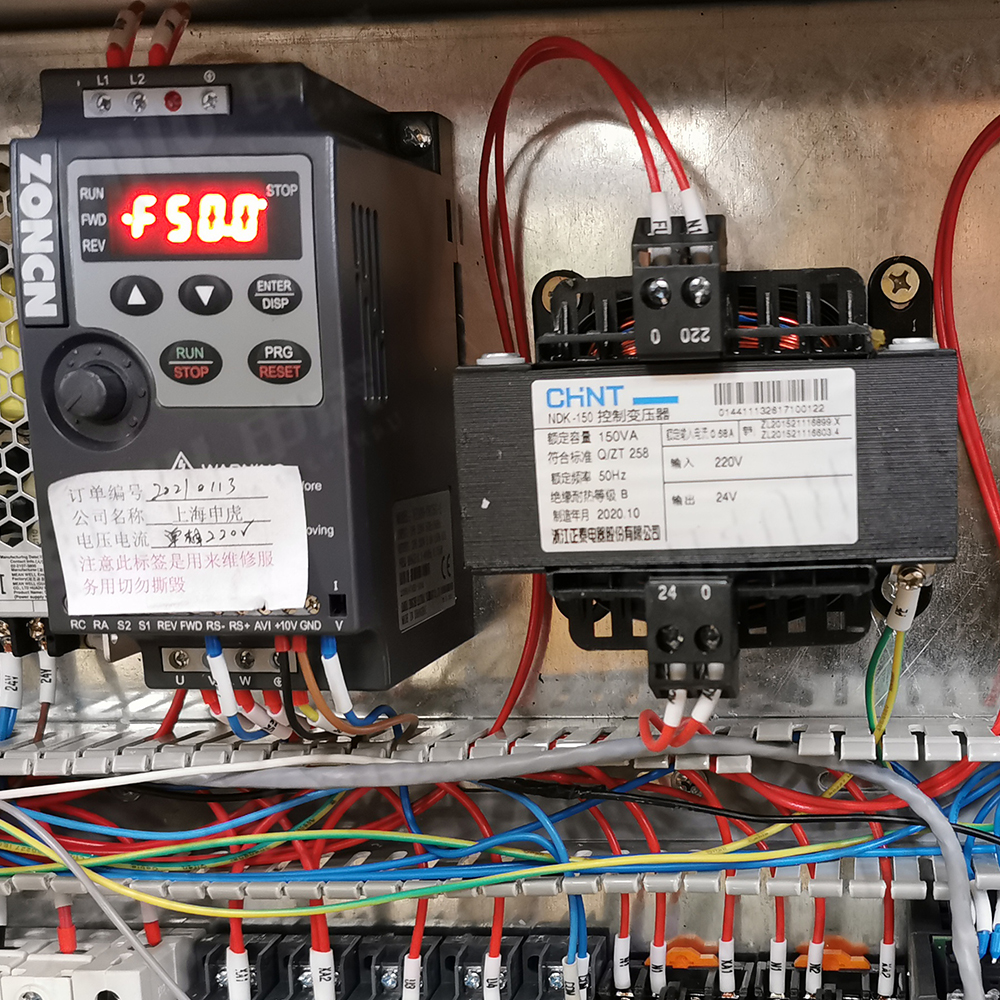

Safe and Reliable
Safe and Reliable
The power supply is provided with over-current protection, the power supply exceeds the normal use range, and the fuse will automatically fuse, to protect the machine's safety.
Factory Operations
Certification Badge 1 Certification Badge 2 Certification Badge 3 Certification Badge 4
Frequently Asked Questions
Q: Are you a factory?

A: Yes, We are a filling and packing machines factory, established in 2008.

Q: Can you send me the video to show how it works?

A: Yes, we can send all videos you need.

Q: How can I pay my order?

A: We accept payment by T/T, Western Union, Alibaba Trade Assurance.

Q: Do you have any certifications?

A: We have ISO9001/2000, CE, SGS certification, other certification can be arranged if needed.

Q: How about your warranty?

A: The warranty is 12 months. Our technicians will show you how to repair by video or go to your company if you pay the fees needed.

Q: What materials are used in the construction of this machine?

A: The body is made of 304 or 316 stainless steel materials, in line with GMP standards, and the filling pump can use 316L stainless steel.
