Product Description

Full-featured, automatic and manual. Can be used to work on the assembly line. Can be equipped with multiple filling heads, commonly used models are: single pump, double pump and four pump. It can fill most types of liquids, including highly viscous liquids. Such as: a variety of, chemicals, oils, cosmetics, food and other non-particulate liquids. The filling amount can be adjusted from 1ml to 1000ml; the adjustment is convenient.

It can be filled with the largest types of liquids, including highly viscous liquids. Such as: a variety of, chemicals, oils, cosmetics, food and other non-particulate liquids.

Instructions

• 1 Open the empty bottle and arrange it on the table in turn.
• 2 Turn on the device and plug in the foot switch; (Please read the precautions before turning on!)
• 3 Place the feeding tube in the barrel containing the material, adjust the filling time, interval time, manual/automatic speed, and adjust the manual/automatic gear to the manual position if the foot switch is needed. The interval is adjusted to zero, if you need to use the automatic file, the manual / automatic file to the automatic file, the interval time is adjusted to the appropriate time.
• 4 Step on the foot switch, the material will automatically suck up until the material is discharged. Before the formal filling, the space inside the material tube needs to be drained clean.
• 5 During formal filling, the filled liquid can be placed on the electronic scale to weigh the specific weight. If it is not reached, the desired capacity can be passed, the flow adjustment knob under the pump, appropriate fine-tuning capacity.

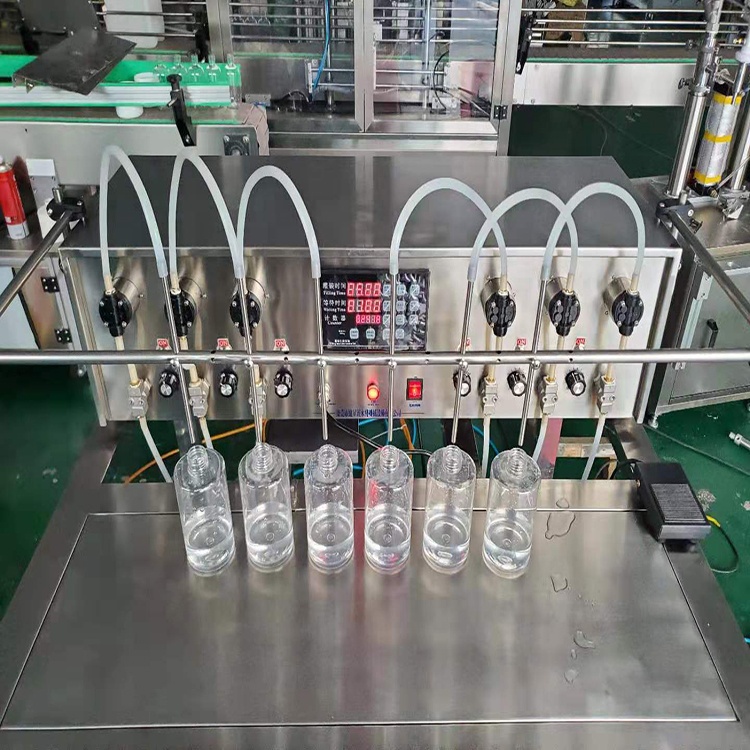

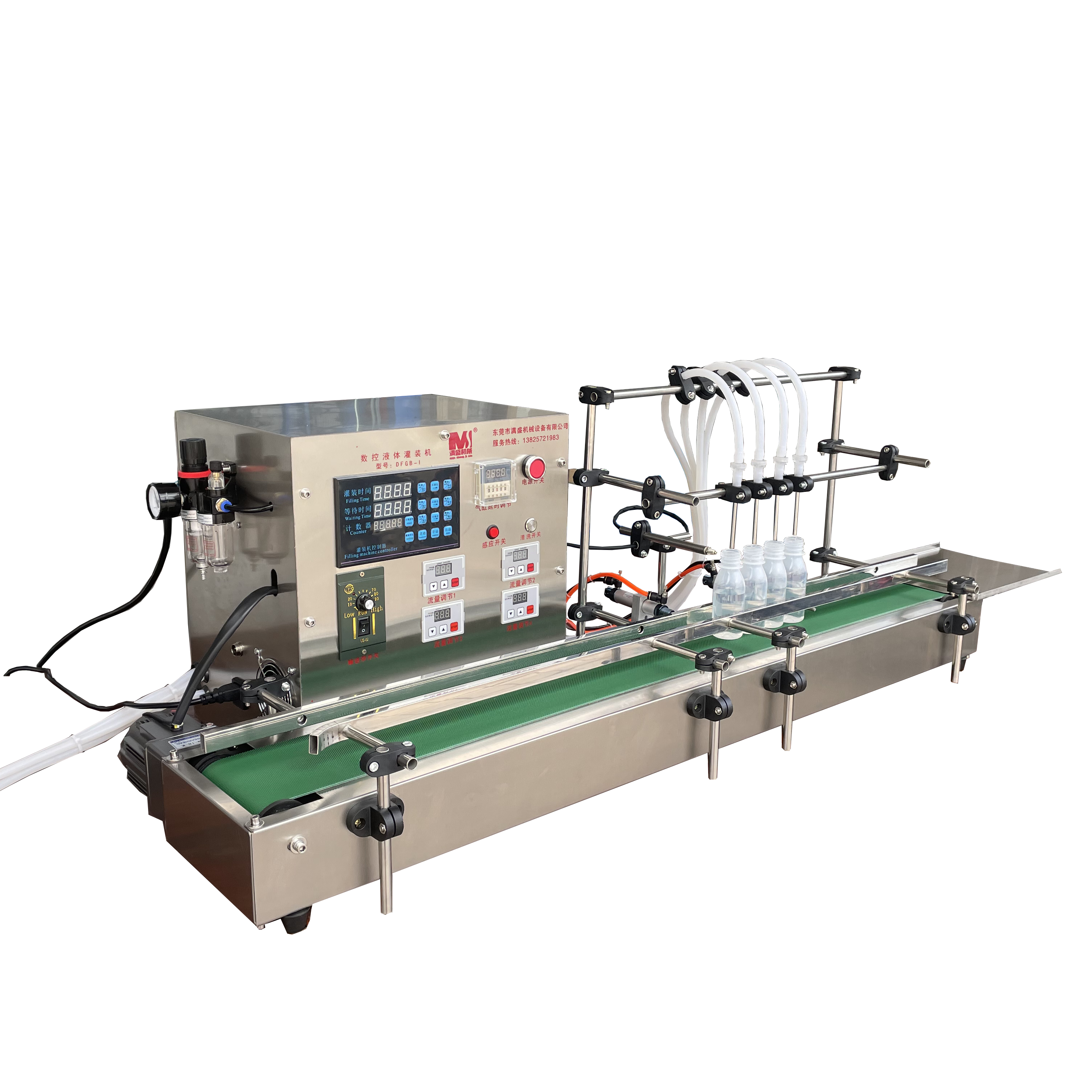

Semi-Automatic Liquid Filling Machine

If you need the semi-automatic liquid filling machine, please see the details below:

Features and Advantages

• Small size and digital control panel, easy operate and easy cleaning.
• This semi-automatic use Japan gear pump (not magnetic pump), filling error: +- 0.3%
• 6 heads filling machine has 6 pcs gear pump, one filling nozzles controlled by one pump. They can work individually or synchronously without affecting each other.
• Filling speed: 1-20ml/s (10-70ml/s need to state to the sales manager), the filling speed can be adjusted as your need.
• Stainless steel material for the machine body.
• Food class gear pump, has the ability resistant to acid and alkali corrosion.
• Filling temperature range: 1-120 degree.

Product Parameters

Method of introducing liquid into the tube and pump

• 1 The device can be put into the filling state. When the liquid is sucked into the feeding tube, the feeding tube can be lifted to allow the liquid to enter the pump, and the liquid is pumped several times.
• 2 The vacuum discharge device can be installed at the end of the discharge pipe, and the equipment is put into the filling state, and the vacuum is filled.

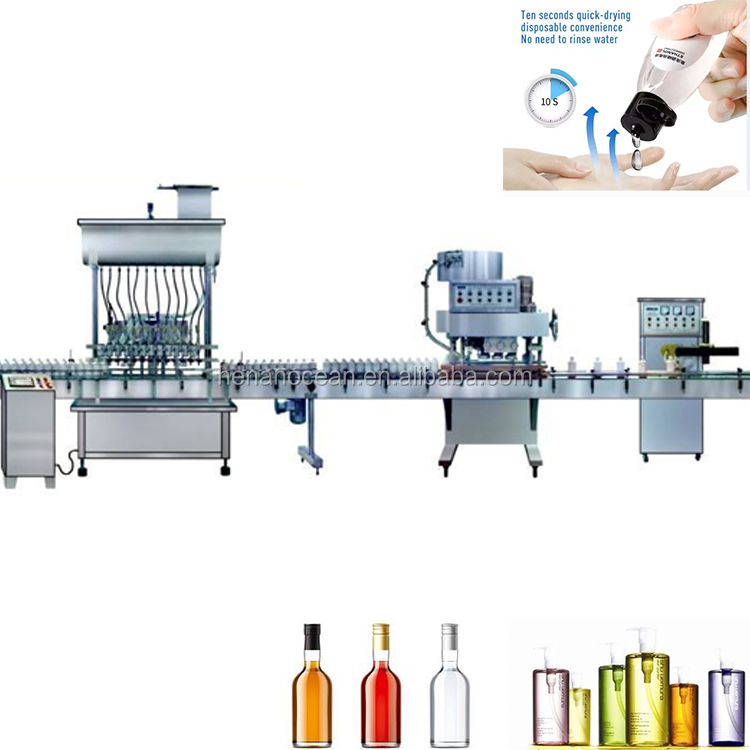

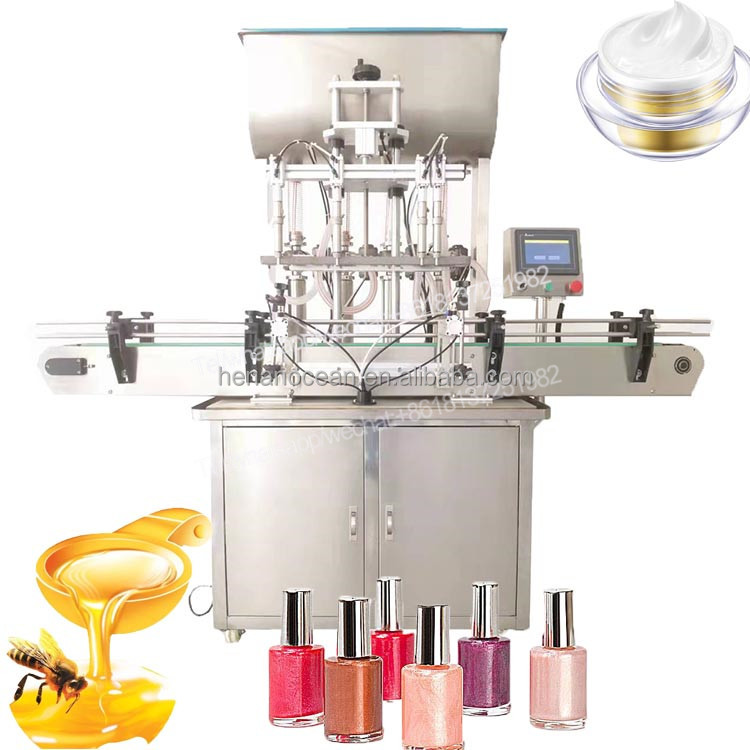

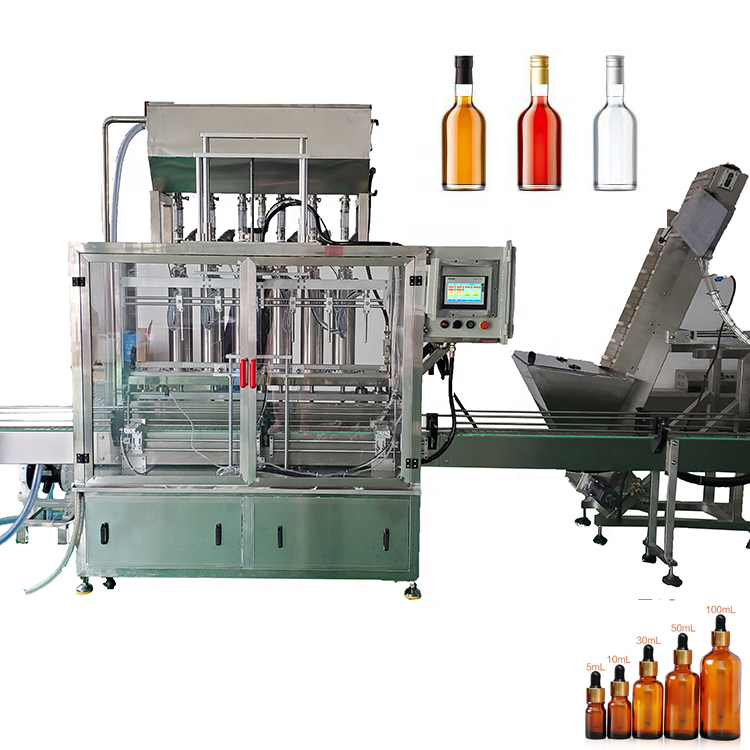

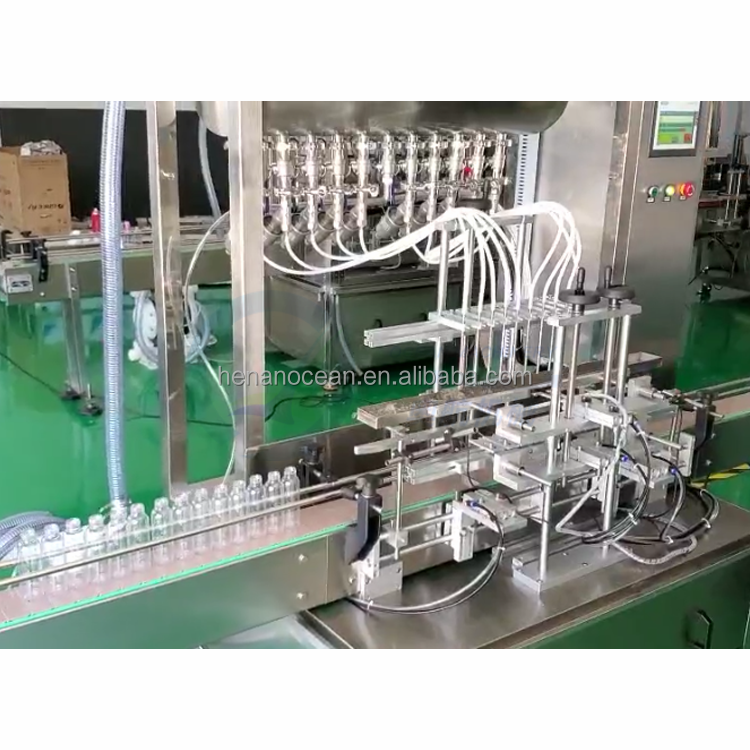

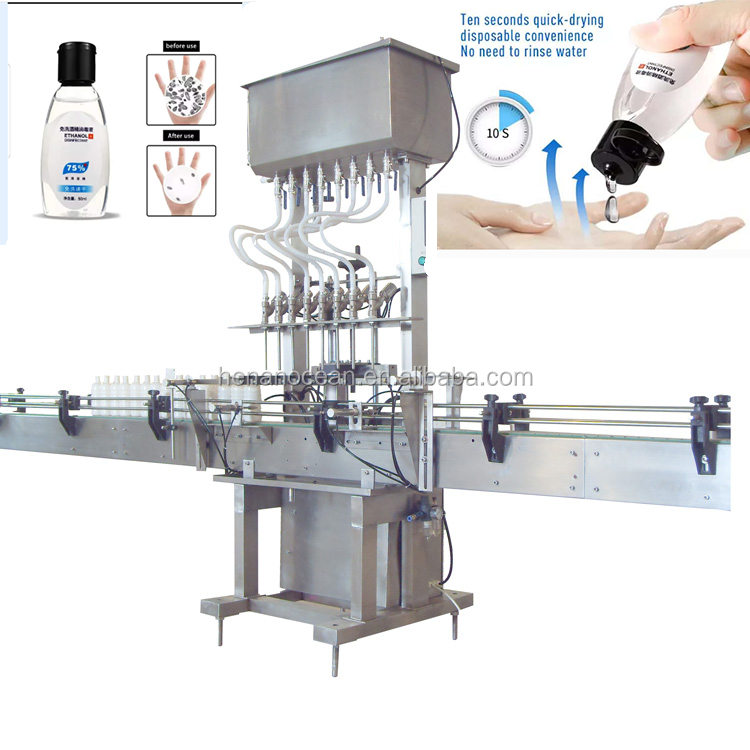

Automatic Liquid/Gel Filling Machine

If you need the automatic liquid/gel filling machine, please see the details below:

Parameters of the Automatic Filling Machine

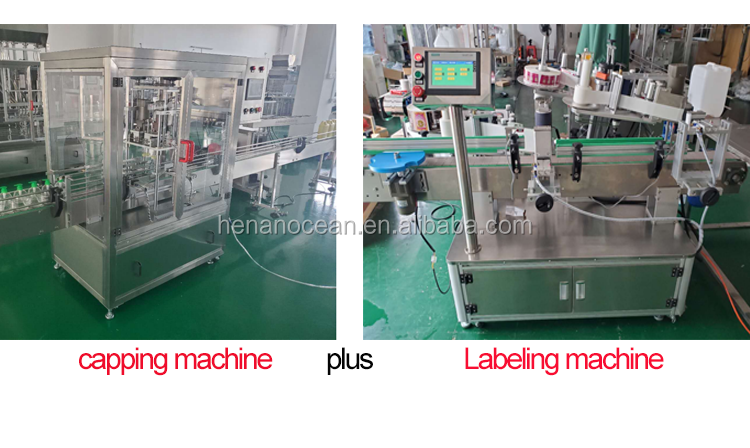

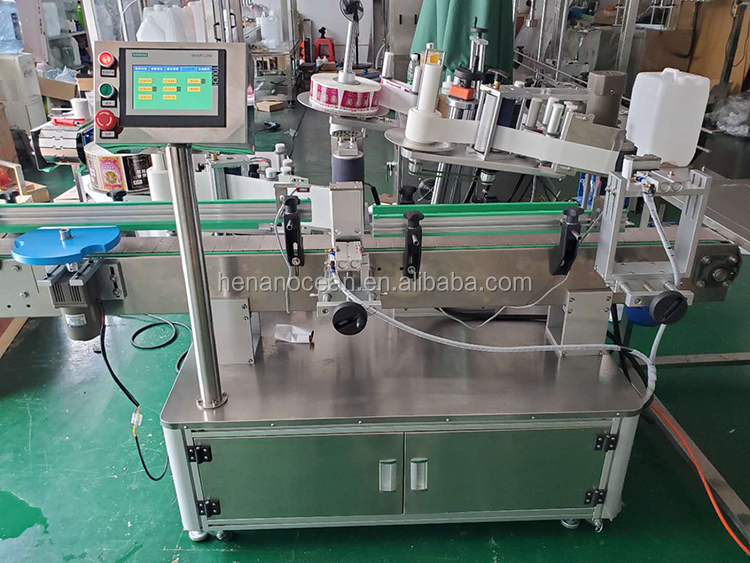

Parameters of the Automatic Capping Machine

Packaging & Shipping

• We can load container at: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou, etc.
• We provide shipping method: Courier service, Air transport, Sea Transport.
• Can accept order: Full container cargo load, Less container load.
• Our service: EXW, FOB, CIF, CNF, Door to Door, etc.
• We always choose the most economical and reliable shipping company to ensure you receive the goods on time.
• The tracking number will be provided to you once the consignment is shipped.

Service & Support

Training and Use

• We will supply with the machine operation manual in English version for installing and operation.
• We will make training video for client’s reference.
• Customer can come to our factory for free training.

Warranty and After-Sales Service

• Our warranty is within 12 months from the date when client receive the material.
• We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.
• When some problems can't be solved by customers, our engineer can go to door to support.

Why Choose Us?

• Experience: Our company is specialized in manufacturing and selling the machines for many years.
• Skilled and Professional man-power support.
• Powerful warehousing ability, ensuring quick delivery.
