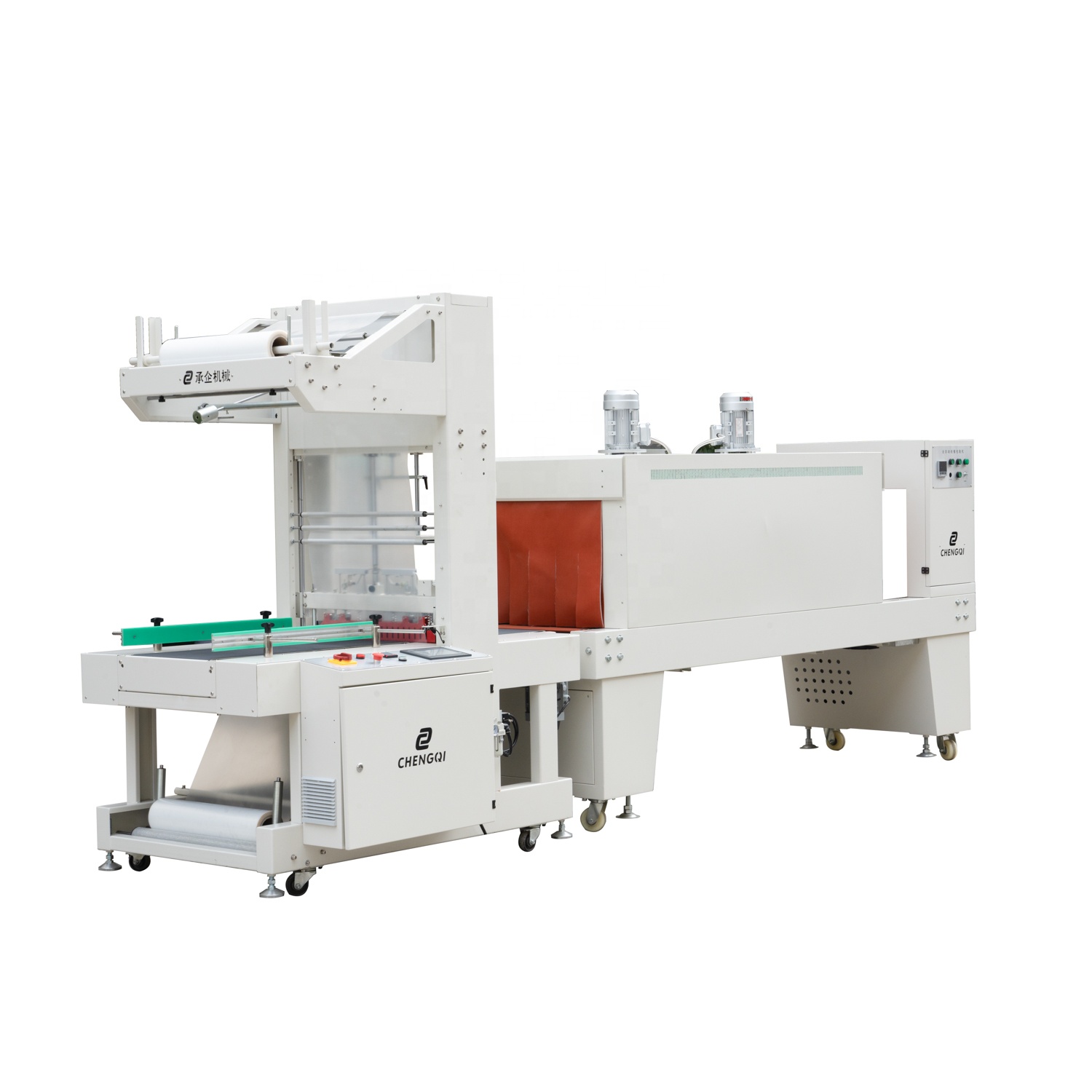

PE Film Heat Shrink Wrapping Machine

Product Description

Product Description

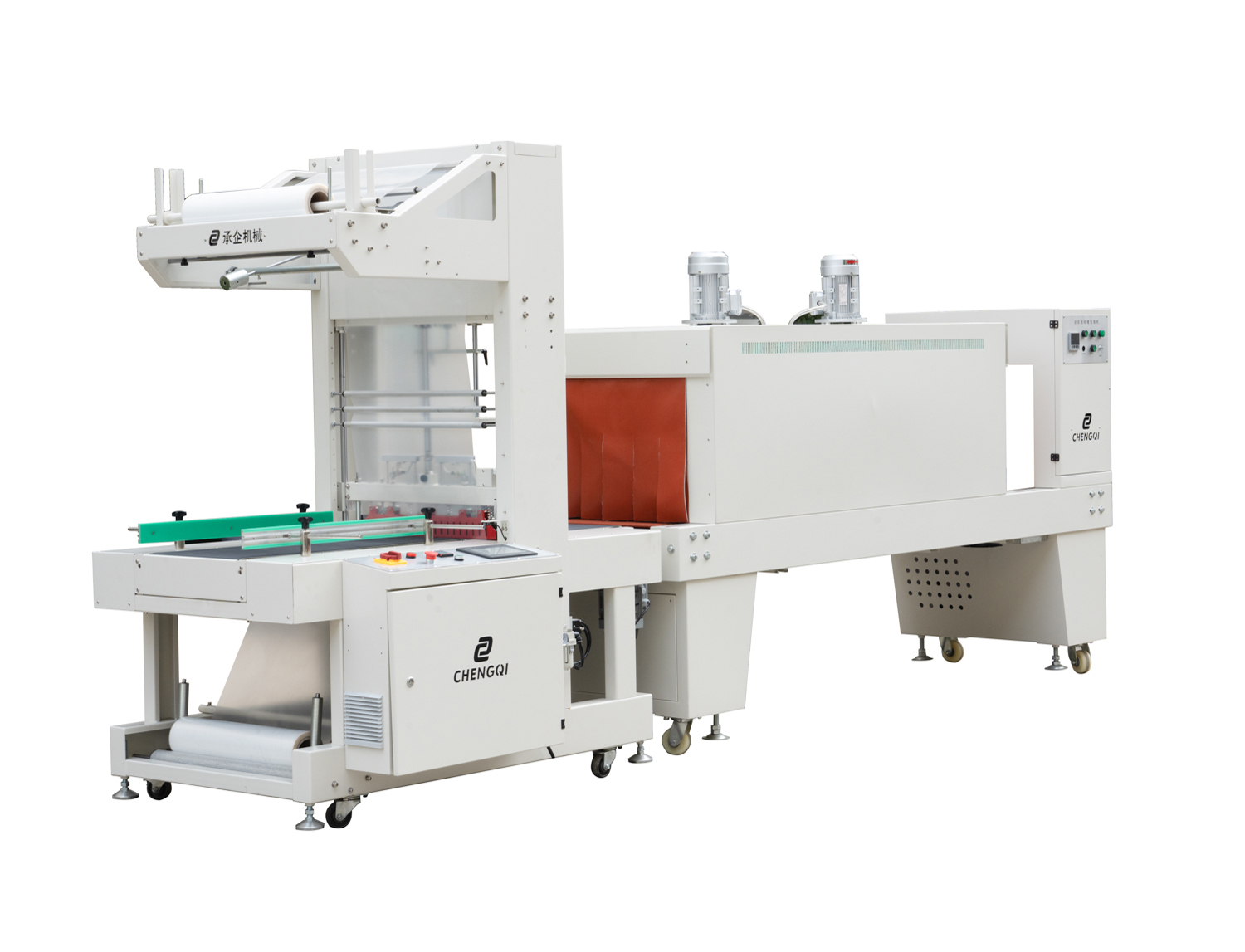

Product Description Image
Performance Features
  • TFZ6540 is fully automatic straight feeding sleeve sealer adopts straight into and out design. Especially suitable for carton or larger items collection or single shrink wrapping.

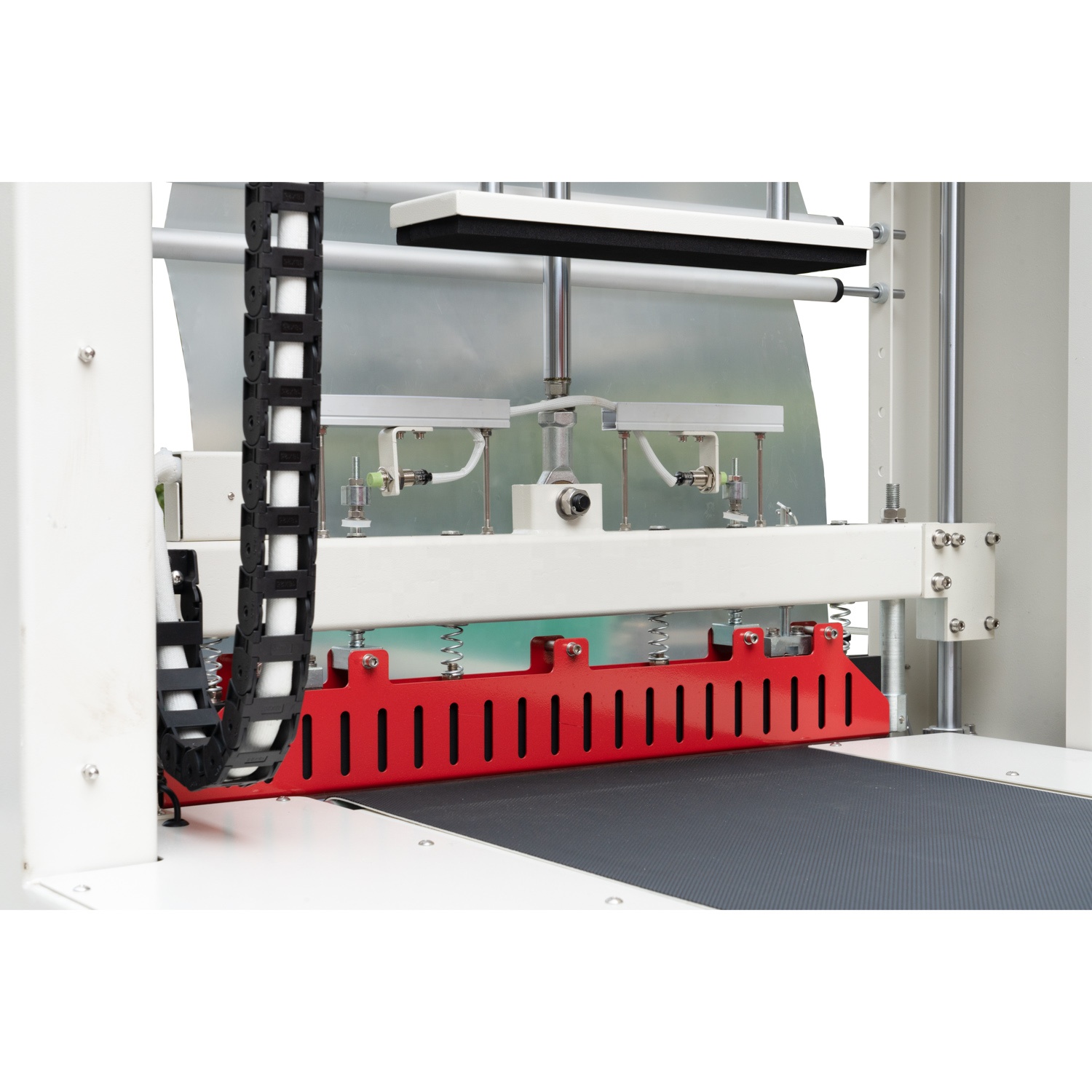

  • Sealing knife uses the special steel knife with Daikin Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking.
  • Imported photoelectric sensor, positioning accuracy, fast response.
  • Adopt Panasonic PLC programmable controller and 7-inch man machine interface, simple operation.
  • The user-friendly control box makes the operation much easier.
  • Equipped with pressure device makes sure the position is stable even for the light product during the procession.
  • The sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting.
  • The entire machine realizes unmanned operation with the production line connecting.
  • Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film.
  • BS6040PE heat shrink tunnel adopts hot air circulation motor makes the hot air in the tunnel is even, constant temperature.
  • The chain conveyor made of solid steel covered with imported durable silicone tube.
  • With cold wind equipment which play an effective role in cooling.
Technical Parameter
Sleeve Sealer
Model TFZ-6040
Power supply 220/380V/50-60Hz
Power 1.8KW
Packing Size (W)≤450mm;(H)≤380mm
Sealing Size (W)650mm
Table height 800±50mm
Packaging speed 10-15pcs/min(depend on product size)
Air source 6kgf/cm2
Shrink film PE single film
Shrink film size (W)≤550mm;(D)≤250mm;(weight)≤35KG
Sealing form sleeve type
Overall dimension L1700×W1200×H2030mm
Package size L1750×W1350×H2180mm
G./N. Weight 450/350kg
Shrink Tunnel
Model BS6040PE
Power Supply 220/380V 3PH 50/60Hz
Power 22KW
Table Height 800±50mm
Conveying Load 40KG
Conveyor Speed 0-15m/min
Tunnel Size L1800×W600×H400mm
Machine Size L2800×W850×H1400mm
Package Size L2900×W950×H1550mm
G./N. Weight 540/450Kg
Detailed Image

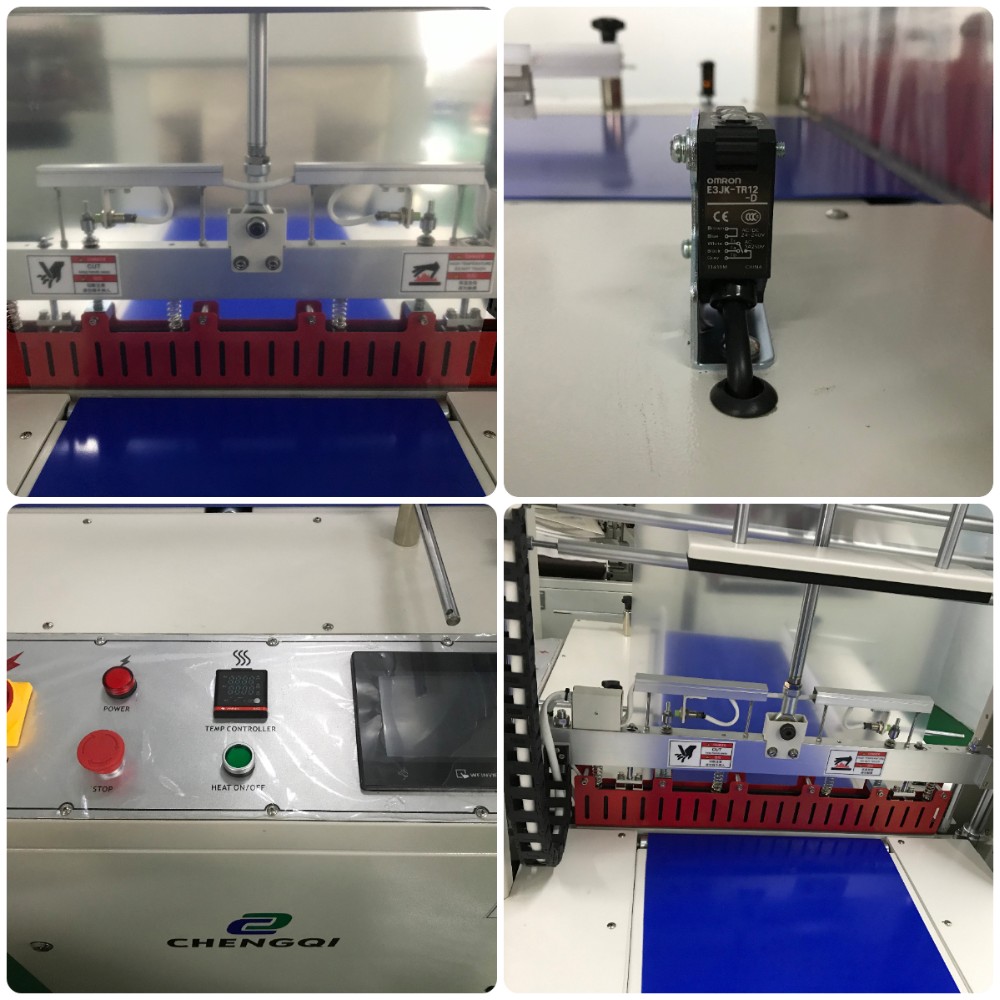

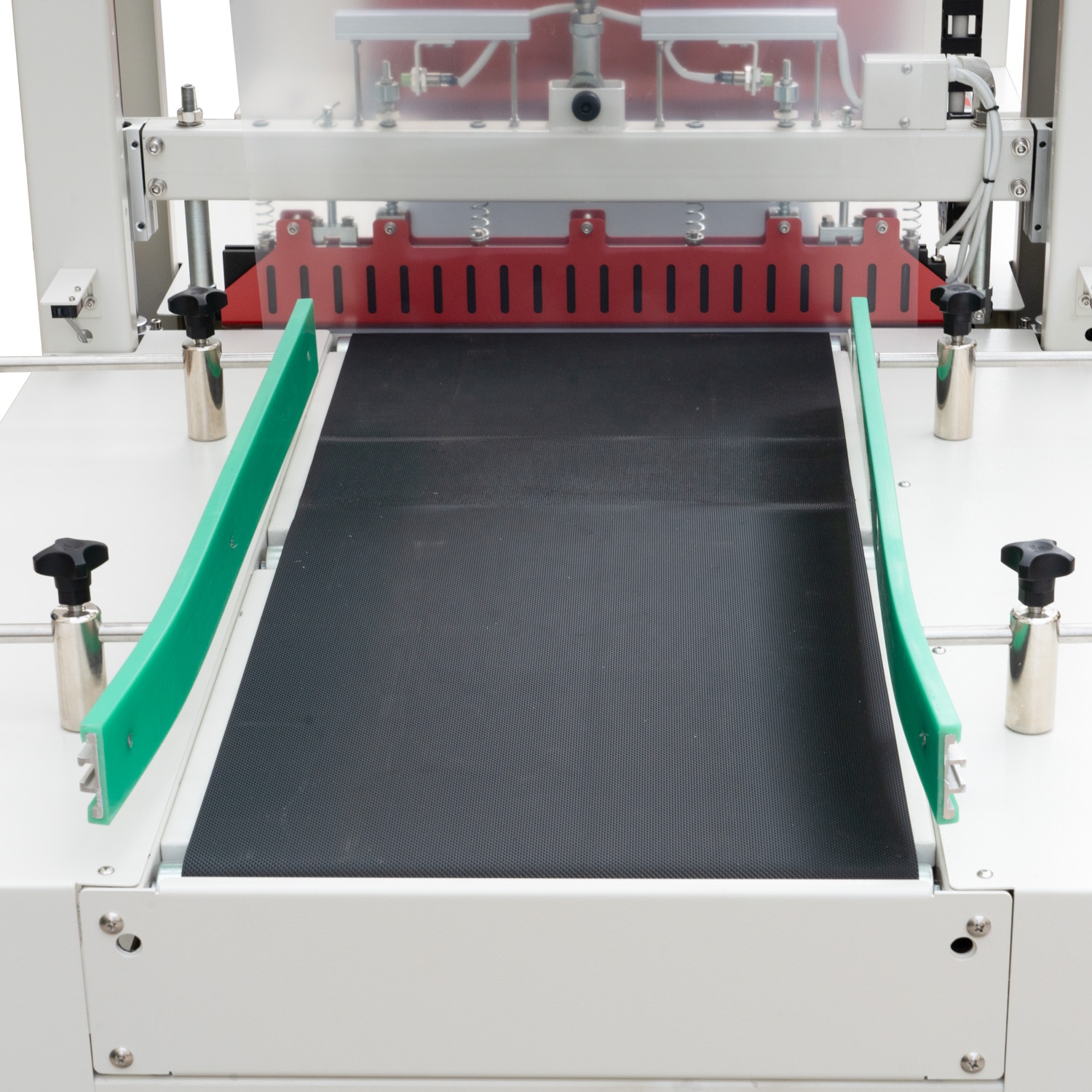

Detailed Machine Image
Application Range

Mainly for beverage, daily necessities, food, ceramics other large objects, especially for large cartons packaging.

Sample Packaging

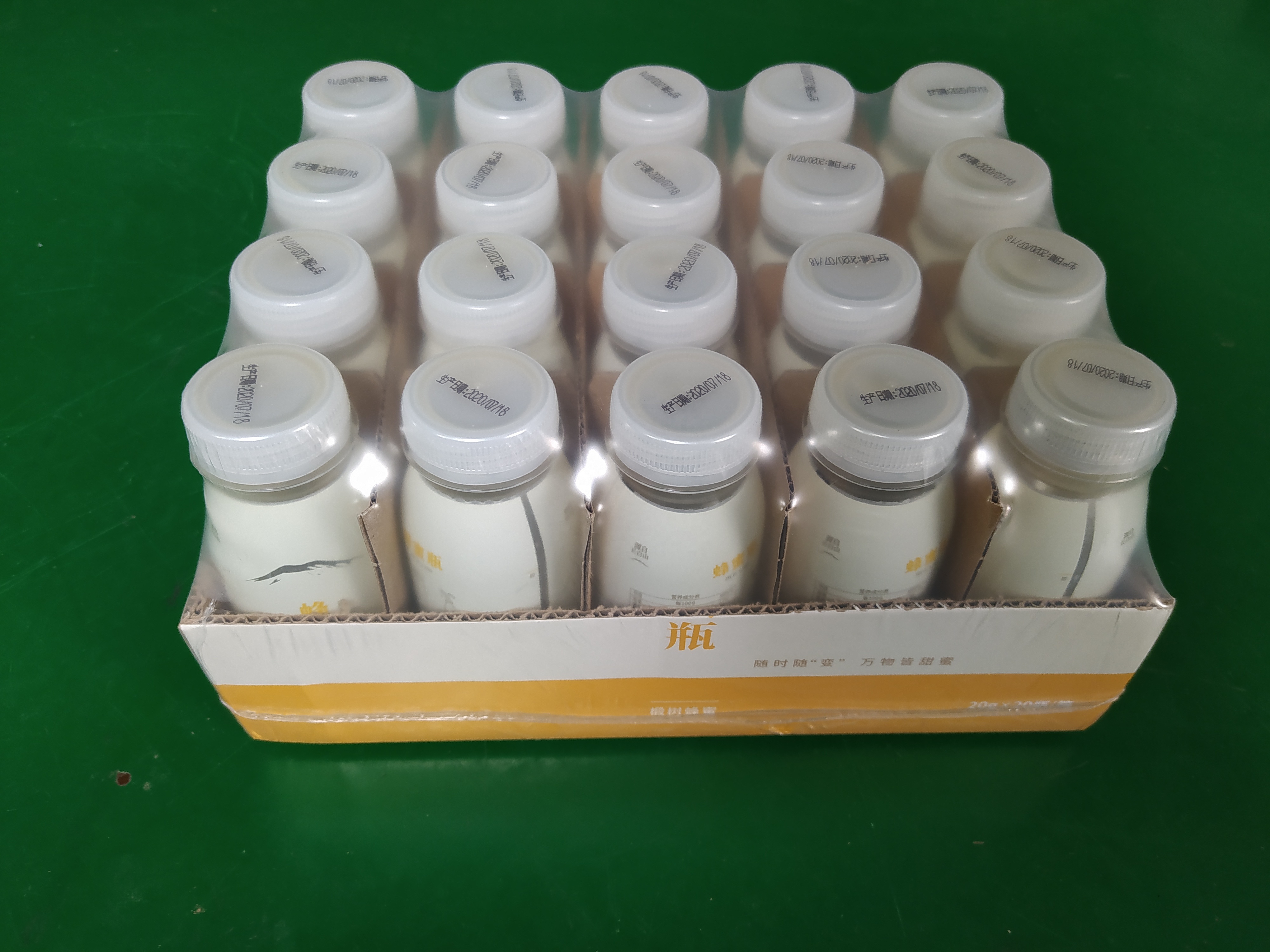

Sample Packaging 1 Sample Packaging 2
Our Company

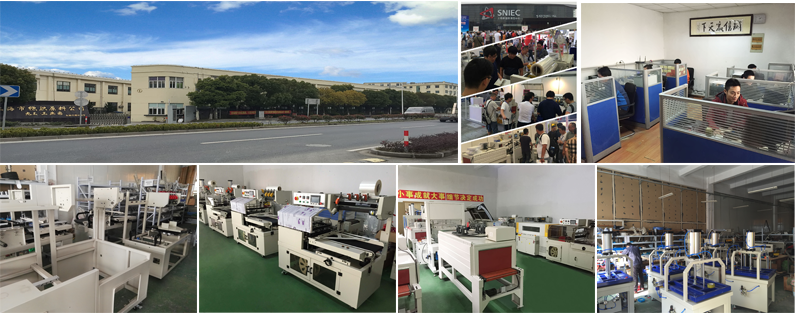

Company Display 1 Company Display 2 Company Display 3
Packing & Delivery
Packaging Details: Standard Export Wooden Box Delivery Detail: Common specifications are available in stock
Packing Image
Our Service
  • We can customize machine according to your requirements and your products.
  • One year Warranty. We will replace the spare parts for free within one year which are non-man made damage except the wearing parts. After the guarantee, we will offer you the most favorable lifelong spare parts.
FAQ
How do we test your machine?
When the machine complete manufactured, we will send video for you check , you can also come to our factory to test and learn how to operate it.
What information shall I provide you when I need your offer?
Normally, please tell us what product you plan to pack and please send me your product size(L*W*H) with weight then we can quote exactly what you need.
What kind of film material is compatible with the sealer?
The sleeve sealer is designed for PE single film. It supports film sizes with a width of ≤550mm, diameter of ≤250mm, and a maximum weight of ≤35KG.
How does the sealing knife perform under high temperatures?
The sealing knife is made of special steel coated with Daikin Teflon, which is anti-stick and anti-high temperature. This prevents the sealing process from cracking, coking, and producing smoke.
What is the warranty and after-sales service policy?
We provide a one-year warranty. Non-man-made damaged parts (except wearing parts) are replaced for free within the first year. We also offer lifelong spare parts at favorable rates.
Does this machine support custom integration into production lines?
Yes, the machine realizes unmanned operation when connected to production lines. We can customize the machine specifications based on your operational layout and specific products.
