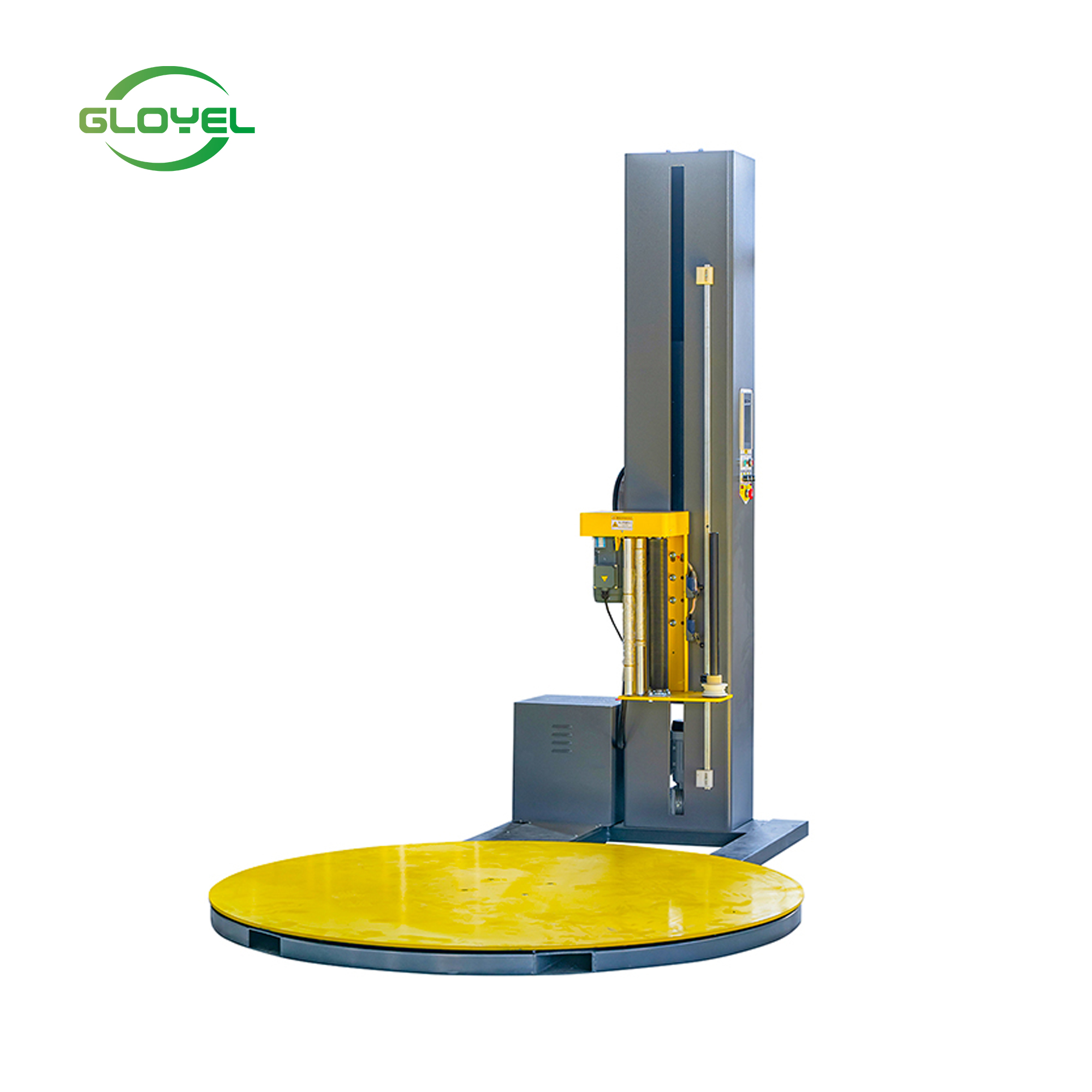

Electric Automatic PLC-controlled Motor-driven High Productivity Film Feeding Shrink Wrapping Machine For Pallet Food Beverage
Electric Automatic PLC-controlled Motor-driven High Productivity Film Feeding Shrink Wrapping Machine For Pallet Food Beverage
Electric Automatic PLC-controlled Motor-driven High Productivity Film Feeding Shrink Wrapping Machine For Pallet Food Beverage
Electric Automatic PLC-controlled Motor-driven High Productivity Film Feeding Shrink Wrapping Machine For Pallet Food Beverage
Electric Automatic PLC-controlled Motor-driven High Productivity Film Feeding Shrink Wrapping Machine For Pallet Food Beverage
1 / 5
Electric Automatic PLC-controlled Motor-driven High Productivity Film Feeding Shrink Wrapping Machine For Pallet Food Beverage
Electric Automatic PLC-controlled Motor-driven High Productivity Film Feeding Shrink Wrapping Machine For Pallet Food Beverage
Electric Automatic PLC-controlled Motor-driven High Productivity Film Feeding Shrink Wrapping Machine For Pallet Food Beverage
Electric Automatic PLC-controlled Motor-driven High Productivity Film Feeding Shrink Wrapping Machine For Pallet Food Beverage
Electric Automatic PLC-controlled Motor-driven High Productivity Film Feeding Shrink Wrapping Machine For Pallet Food Beverage

Electric Automatic PLC-controlled Motor-driven High Productivity Film Feeding Shrink Wrapping Machine For Pallet Food Beverage

Send Inquiry

Product Description

Heightened Wrapper Equipment Economical Automatic Film Feeding Wrapping Machine
Product Introduction

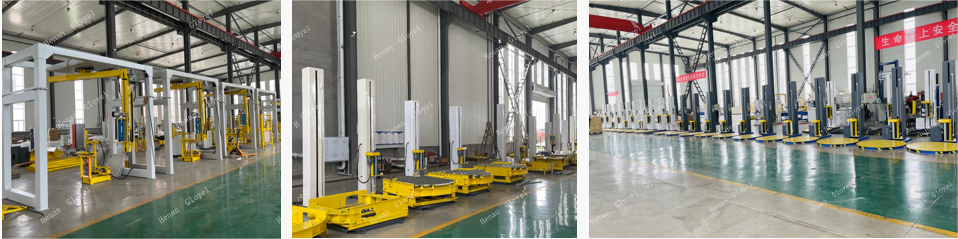

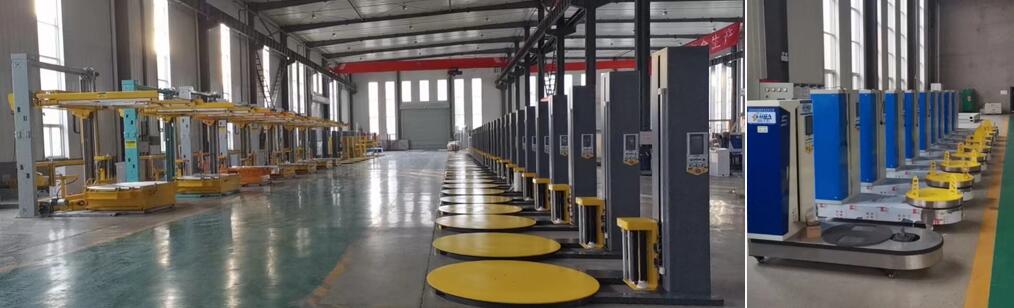

Wrapping Machine Overview Wrapping Machine Structure
1）Pallet wrapping machine is also known as pallet wrapping machine, wrapping machine, wrapping machine and so on. It is a kind of power to drive the rotation of the pallet, so that the pallet drives the rotation of the goods, to achieve the purpose of film packaging of the goods. The pallet can prevent arbitrary cargo and has a wide range of application.
2）The machine adopts the most advanced technology at home and abroad, equipped with Siemens power control system, remote operating system and touch control system, etc., easy to use, save manpower, material resources and financial resources.
Product Parameters

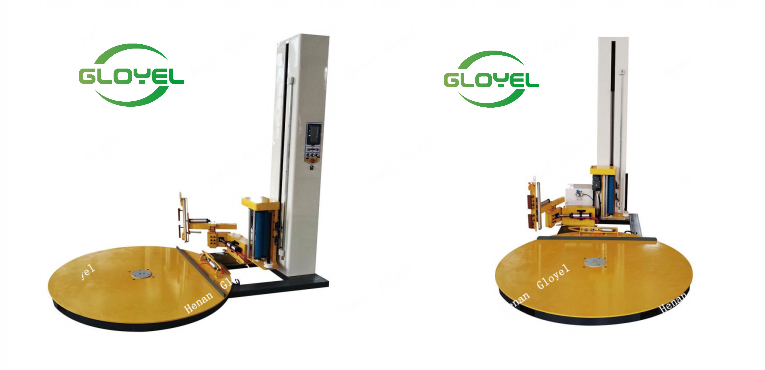

Product Parameter Diagram
Model: GY-TP1650YK Specifications
Model GY-TP1650YK
Royary table Diameter 1650mm
Wrapping specification (500-1200)mmx(500-1200)mm(LxW)
Packing height 2000mm/2400mm/2800mm
Packing Efficiency 20-40t/hour
Turntable speed 3-12rpm;Speed conversion adjustable
Turntable diameter 1650mm/1800mm/2000mm/2200mm/2400mm/2600mm
Turntable high 85mm(Chassis support:Square pipe specification100*120*4;Reinforced plate thickness10mm)
Turntable bearing 2000kg/3000kg
Mold frame system Predrawing die frame, predrawing up to 250%, automatic film feeding, frequency conversion speed regulation
Lifting column The lifting speed is adjustable by frequency conversion, and 10A double chain transmission is adopted
Control systems PLC control, touch screen display, the number of winding layers, the number of times can be adjusted, the turntable automatic reset, self-dynamic measurement of the height of the goods
Column Box Wall thickness 1.5mm; upper and lower plates 6mm; inner corner reinforcing plate 6mm; width 400mm
Total Weight 650KG
Dimensions 2550mmx1650mmx2485mm
Power/Voltage 1.5KW AC220V/50HZ
Optional Capping device/weighing device/heightening/weighting
Wrapping Machine in Operation
Details Images

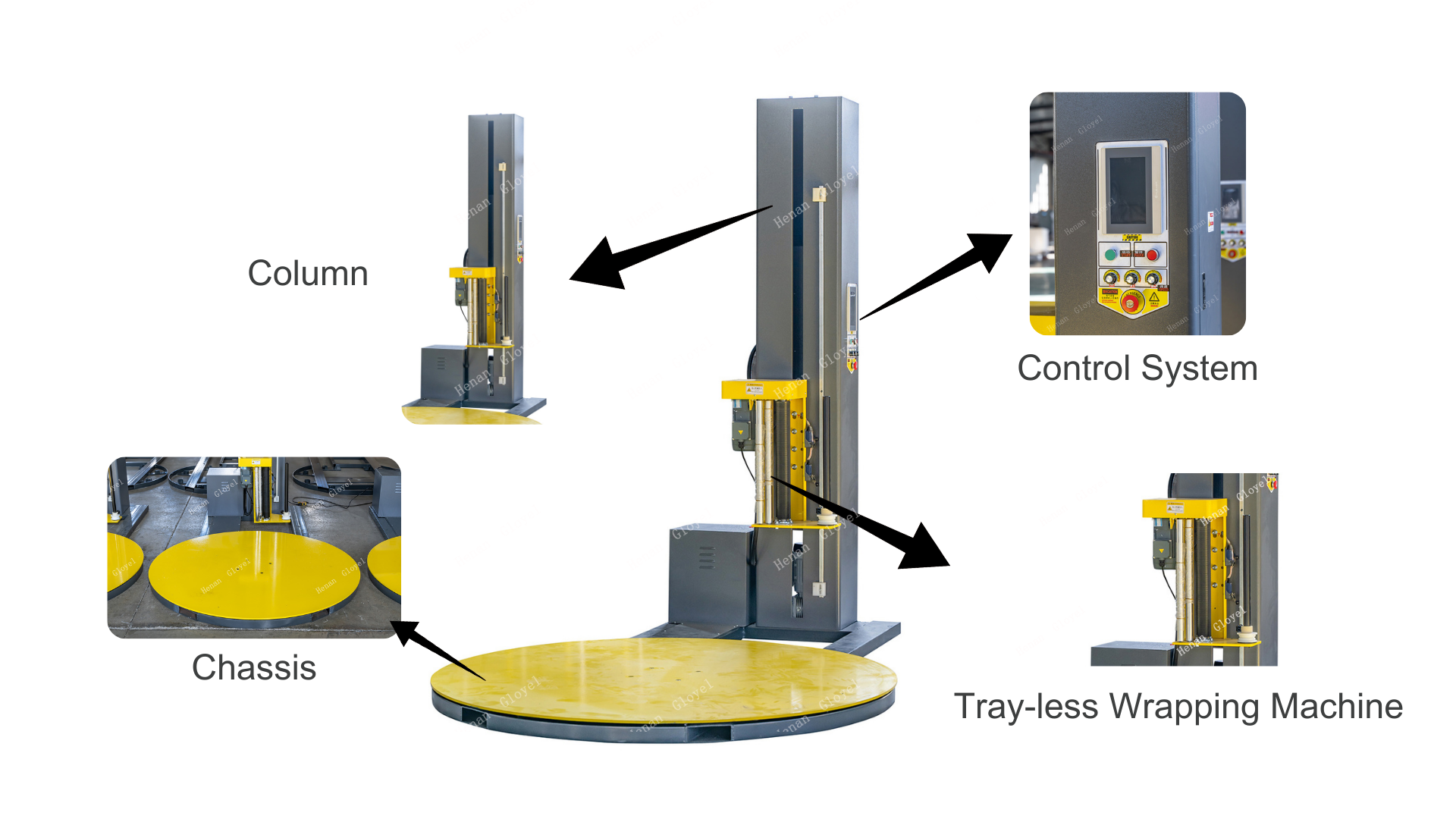

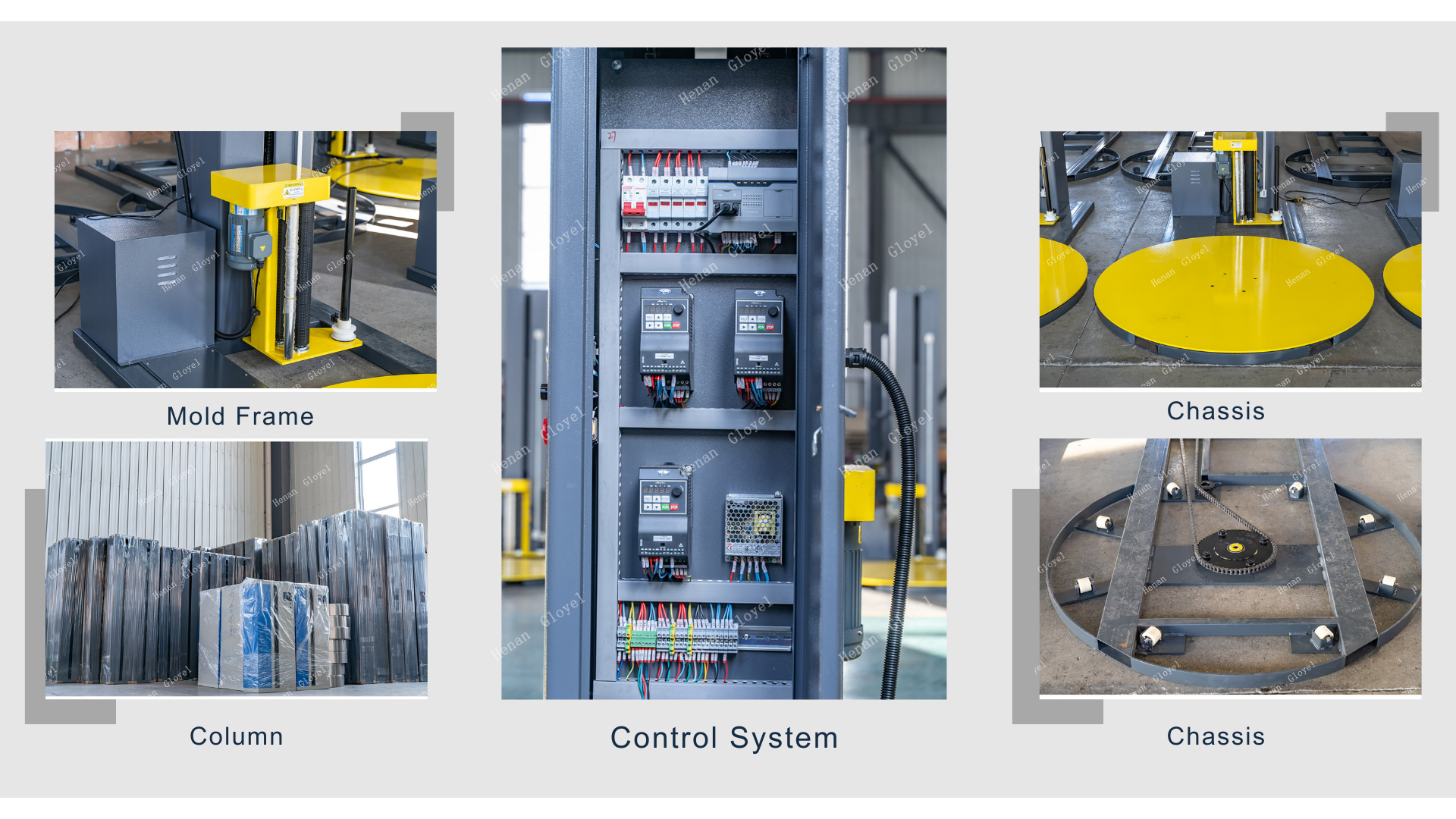

Detail Image 1 Detail Image 2
Other Different Kinds Pallet Wrapping Machine

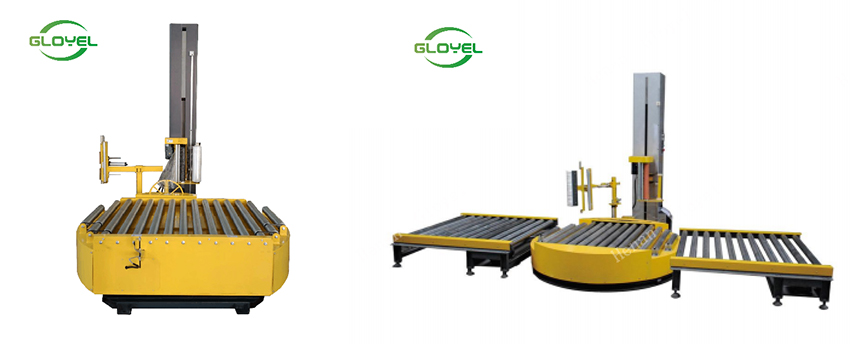

Alternative Wrapping Machine Model
Model: GY-TP2000ZX Specifications
Model GY-TP2000ZX
Royary table Diameter 2000mm
Wrapping specification 1200mmx1200mm(LxW)
Packing height 2000mm/2400mm/2800mm
Packing Efficiency 20-40t/hour
Turntable speed 3-12rpm;Speed conversion adjustable
Turntable diameter 1650mm/1800mm/2000mm/2200mm/2400mm/2600mm
Turntable high 500mm
Turntable bearing 2000kg/3000kg
Mold frame system Predrawing die frame, predrawing up to 250%, automatic film feeding, frequency conversion speed regulation
Lifting column The lifting speed is adjustable by frequency conversion, and 10A double chain transmission is adopted
Control systems PLC control, touch screen display, the number of winding layers, the number of times can be adjusted, the turntable automatic reset, self-dynamic measurement of the height of the goods
Column Box Wall thickness 1.5mm; upper and lower plates 6mm; inner corner reinforcing plate 6mm; width 400mm
Use air source 1000ml/min
Total Weight 1200KG
Dimensions 2550mmx1650mmx2485mm
Power/Voltage 3.5KW AC220V/50HZ
Optional Capping device/weighing device/heightening/weighting
Final Product

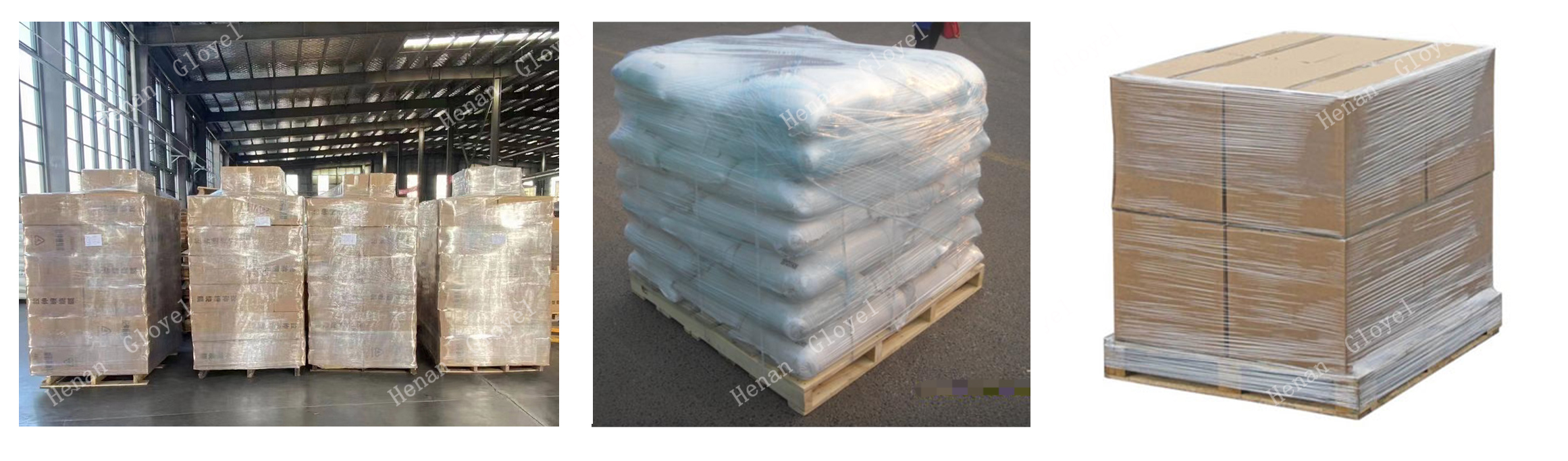

Wrapped Final Product Pallet
Packing & Shipping
Normally, we adopt wooden case or container. If export to European countries, the wooden box will be fumigated. If container is too small, we will use PE film for packing or pack it according to customers special request.

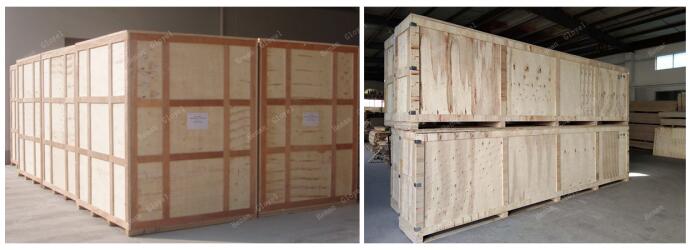

Packing and Shipping Process
Factory & Workshop

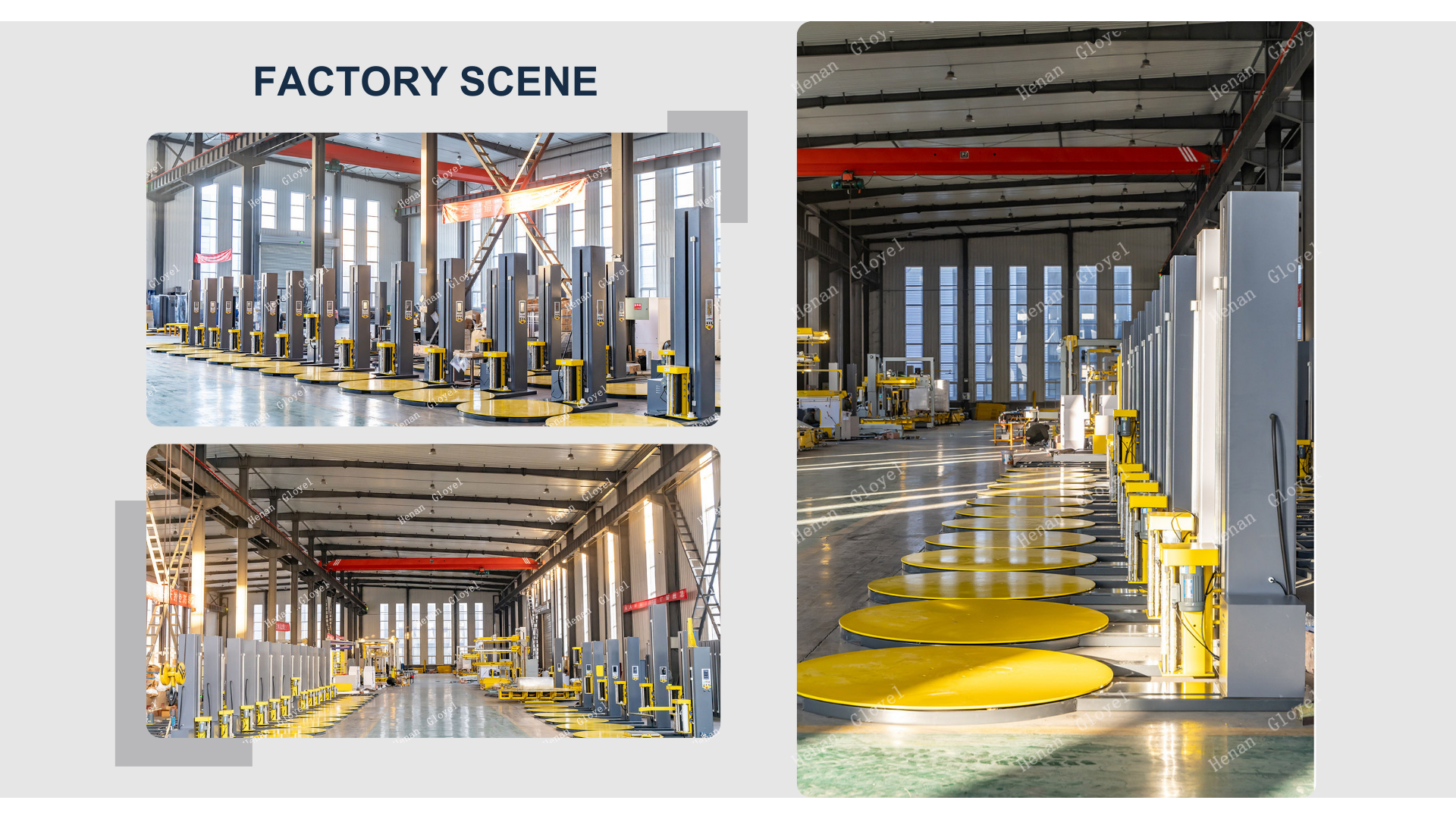

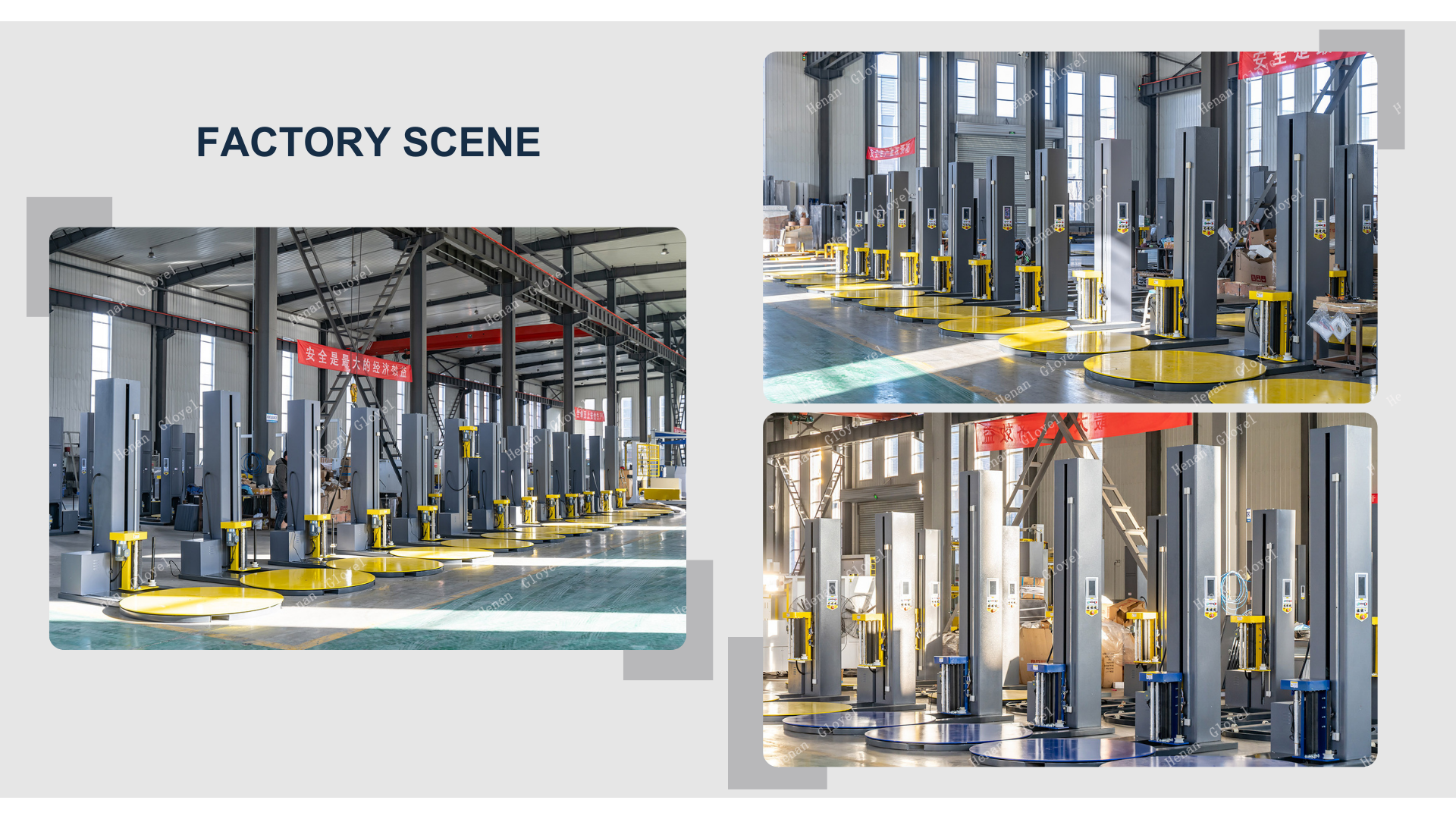

Factory Internal 1 Factory Internal 2 Factory Internal 3
Production Facility View
Our Service
  • We can provide you the one year warranty but without the spare parts.
  • The professional and timely 24 hours after-sale service.
  • The relative video of the machine installation and instruction will be provided for you.
  • We can provide you the different mould to meet your different requirements.
  • We can also meet the special voltage demand.
  • The engineer is available to service machinery oversea.
Frequently Asked Questions
Q1: What's the certification of our wrapping machine?
CE Certification.
Q2: What's the warranty of trap wrapping machine?
Warranty: 1 Year (except spare parts).
Q3: What's your payment terms?
Payment terms: T/T; L/C; Western Union; Money Gram.
Q4: Can the wrapping machine's height and turntable speed be customized?
Yes, optional specifications include heightening, weighting, capping devices, and weighing devices. The turntable speed is adjustable from 3 to 12rpm via frequency conversion.
Q5: How does the height measurement system work?
The machine features a self-dynamic height measurement system controlled via PLC and a touch screen display to automatically detect the height of the goods.
Q6: What packaging materials are used for delivery protection?
We package our equipment in robust wooden cases or containers. Standard export wooden boxes are fumigated for European destinations, and PE film wrap can be utilized for specific protection requests.
