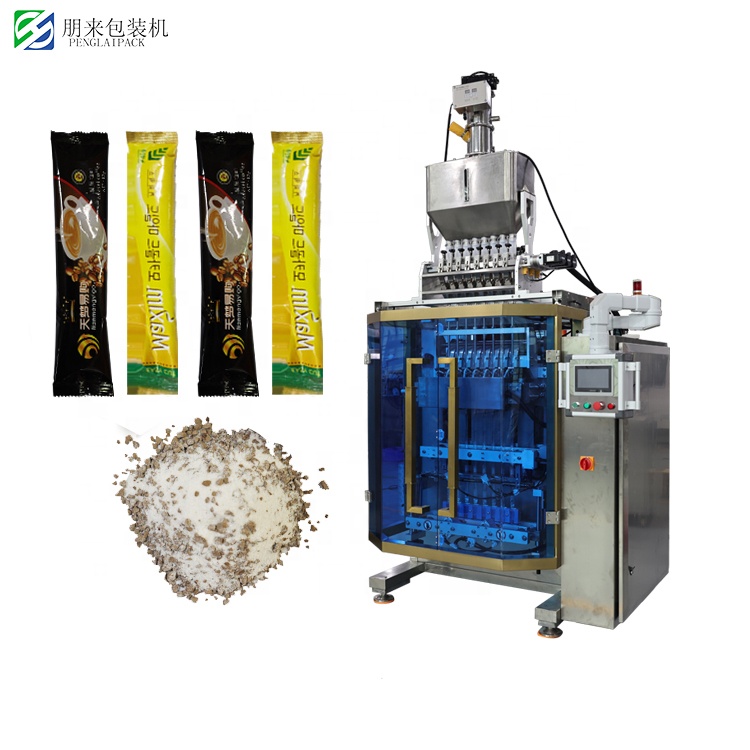

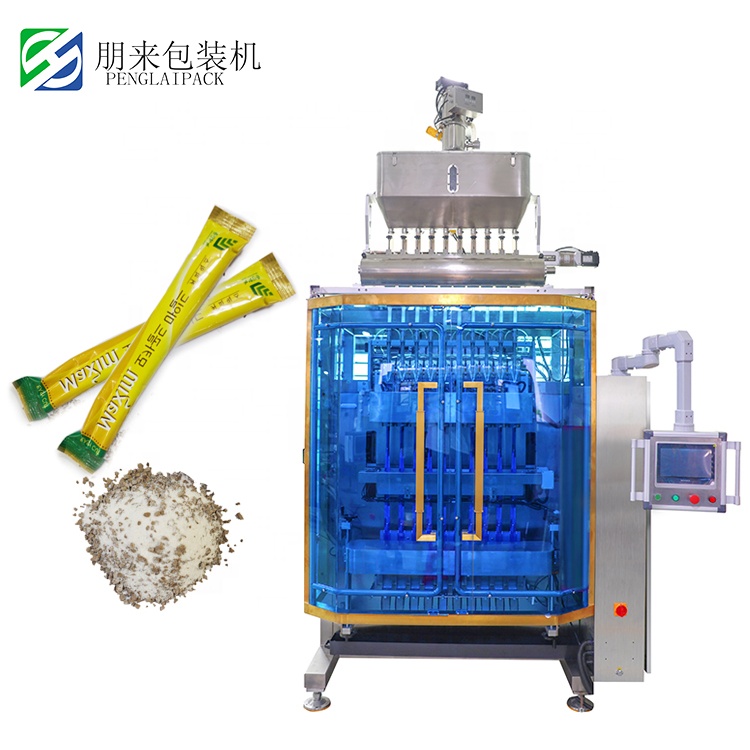

Large Production 1-10g Powder Packing Machine Coffee Sachet Bag Small Sugar Sachet Multilane Food Grade Paper Film Automatic
Large Production 1-10g Powder Packing Machine Coffee Sachet Bag Small Sugar Sachet Multilane Food Grade Paper Film Automatic
Large Production 1-10g Powder Packing Machine Coffee Sachet Bag Small Sugar Sachet Multilane Food Grade Paper Film Automatic
Large Production 1-10g Powder Packing Machine Coffee Sachet Bag Small Sugar Sachet Multilane Food Grade Paper Film Automatic
Large Production 1-10g Powder Packing Machine Coffee Sachet Bag Small Sugar Sachet Multilane Food Grade Paper Film Automatic
1 / 5
Large Production 1-10g Powder Packing Machine Coffee Sachet Bag Small Sugar Sachet Multilane Food Grade Paper Film Automatic
Large Production 1-10g Powder Packing Machine Coffee Sachet Bag Small Sugar Sachet Multilane Food Grade Paper Film Automatic
Large Production 1-10g Powder Packing Machine Coffee Sachet Bag Small Sugar Sachet Multilane Food Grade Paper Film Automatic
Large Production 1-10g Powder Packing Machine Coffee Sachet Bag Small Sugar Sachet Multilane Food Grade Paper Film Automatic
Large Production 1-10g Powder Packing Machine Coffee Sachet Bag Small Sugar Sachet Multilane Food Grade Paper Film Automatic

Large Production 1-10g Powder Packing Machine Coffee Sachet Bag Small Sugar Sachet Multilane Food Grade Paper Film Automatic

Send Inquiry

Product Description

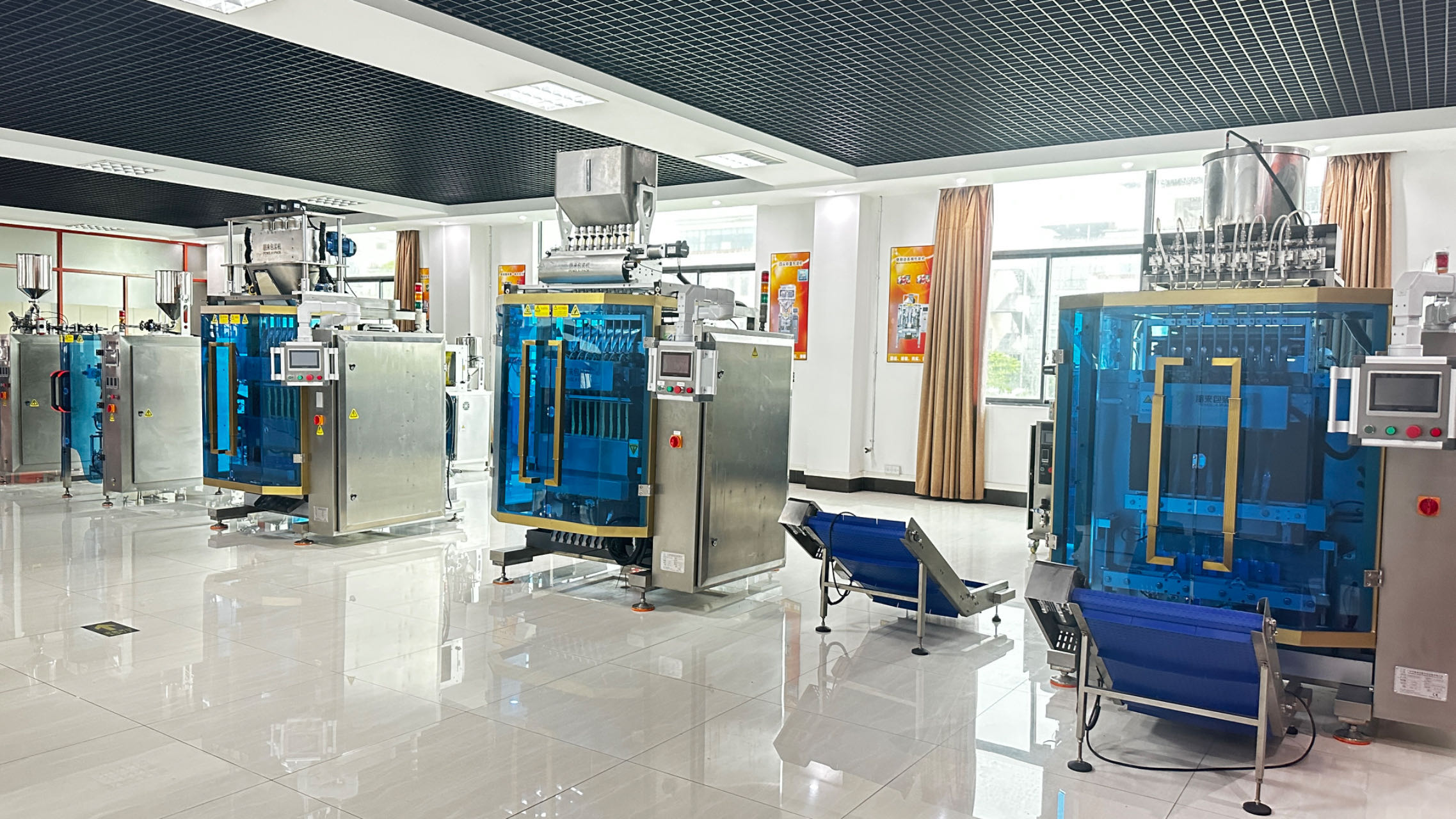

VR Showroom
Tea Bag Pack 5G Sugar Packing Machine Snus Packaging Machine Multifunctional Packaging Machines

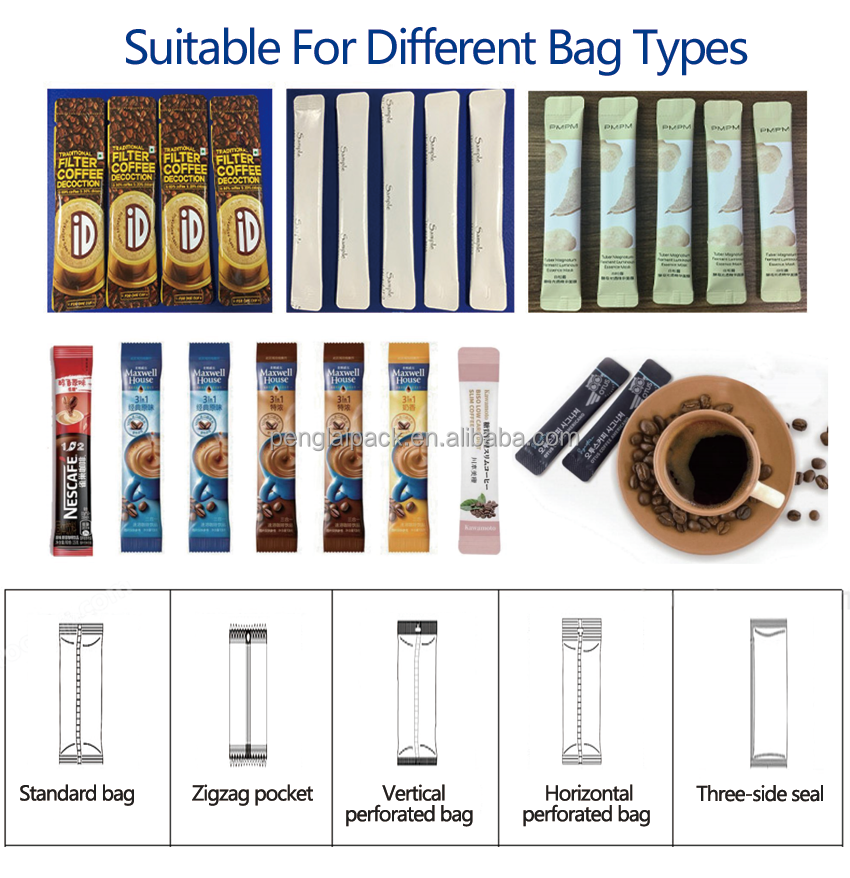

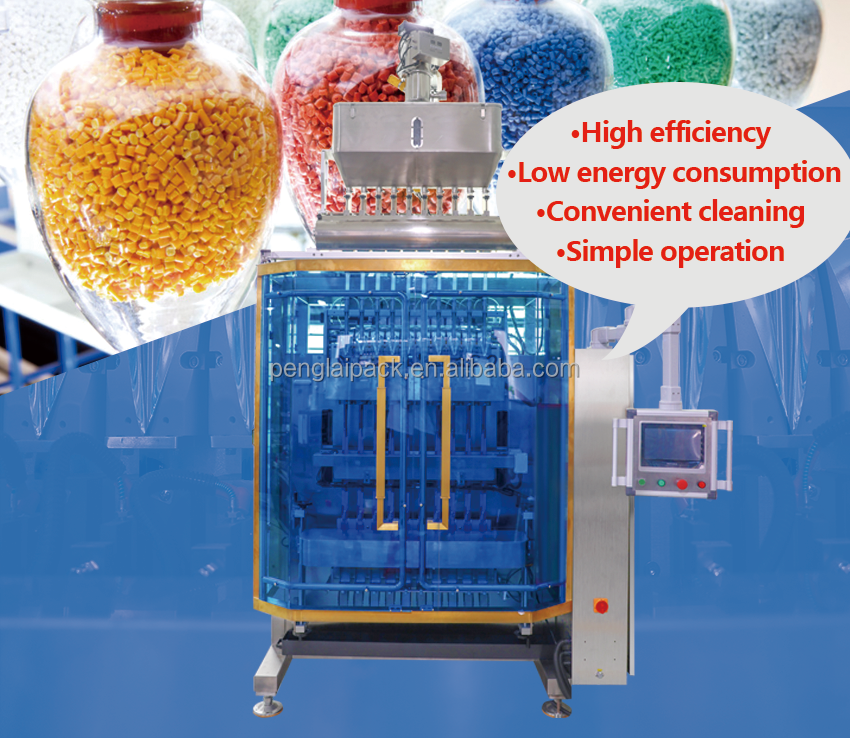

Product Display 1 Product Display 2 Product Display 3
Technical Specifications
Model PL-350 PL-550 PL-850 PL-1000
Film range ≤350mm ≤550mm ≤850mm ≤1000mm
Bag size Bag width: 16-80mm, Bag length max 170mm (Please consult to get an exact model based on actual packaging demands)
Filling Volume 1-40g, or customized according to buyer's demands.
Application For filling and packing any granule product
Package Material Any laminated plastic material
Packing Speed 30-50 cuts/lane/min (depends on real product testing)
Voltage 380V 50HZ
Power 4.5kw 5.2kw 6kw 7kw
Air source 7L/min
Final bag shape 3 side seal, 4 side seal, round corner stick, irregular shape packing etc.

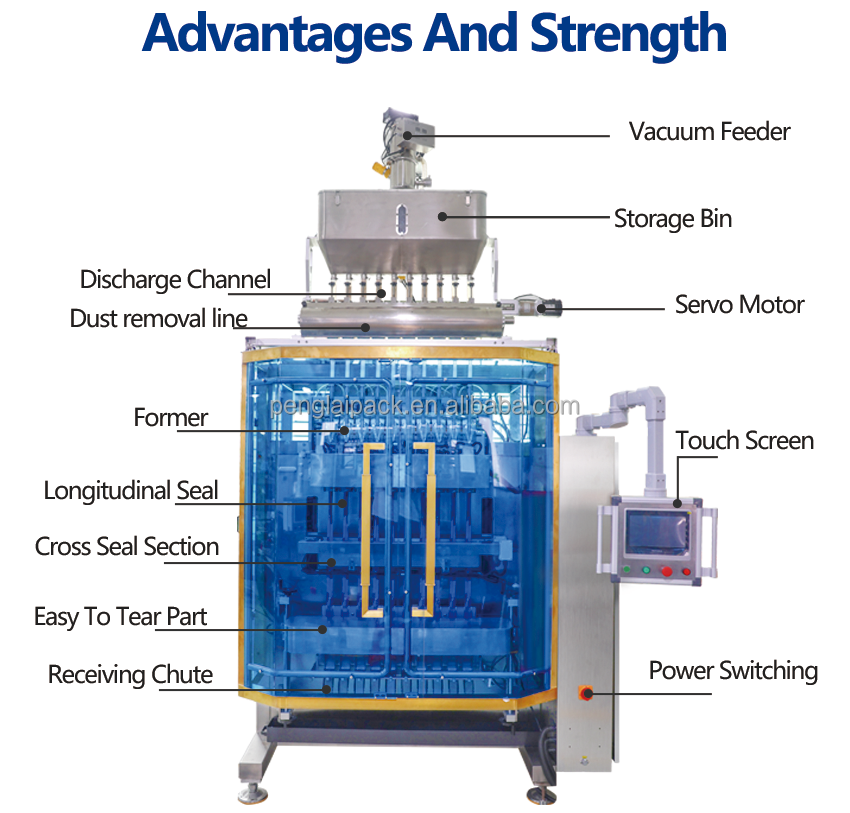

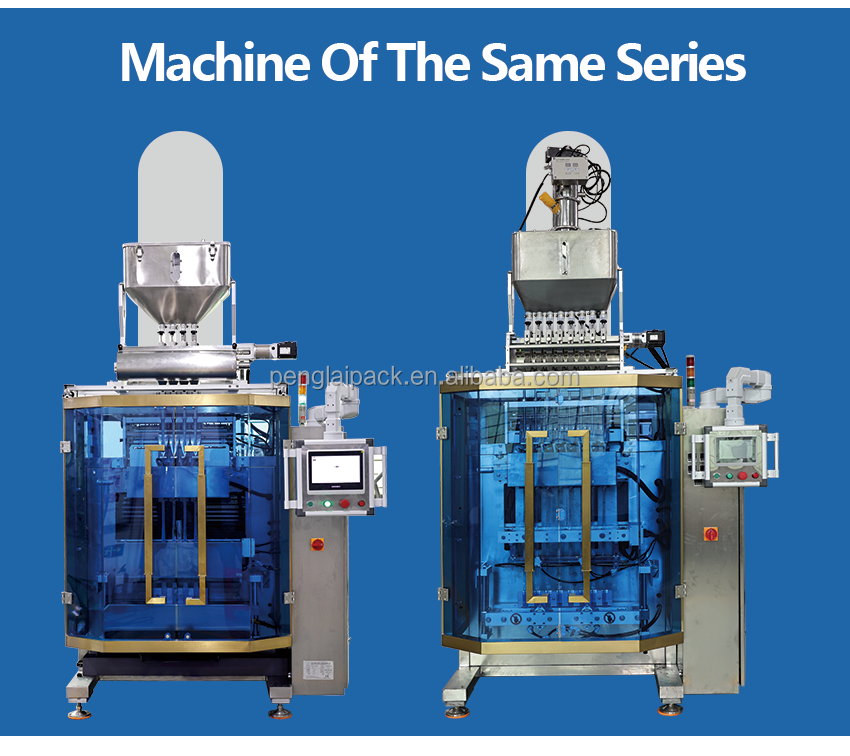

Machine Configuration 1 Machine Configuration 2
Key Machine Features

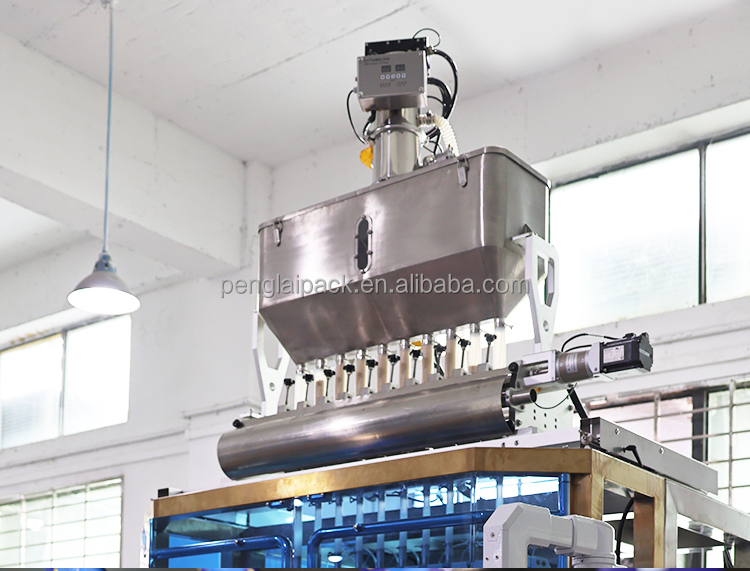

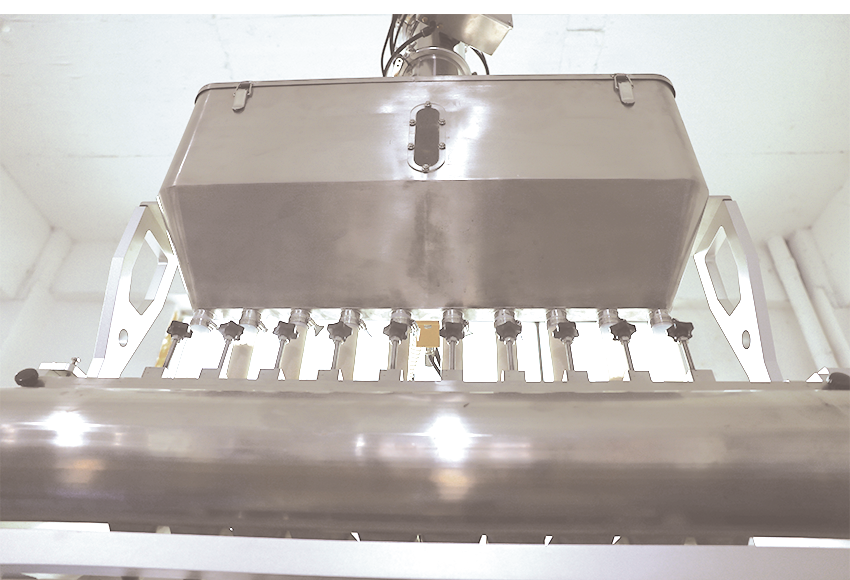

Auto Loading machine and hopper
Auto Loading machine and hopper
Vacuum feeder feeding, independent distribution pipeline and adjustable measuring cup measurement method (swing head), reserved dust removal to take over the road, the overall structure is moveable, convenient for adjustment, cleaning and maintenance.

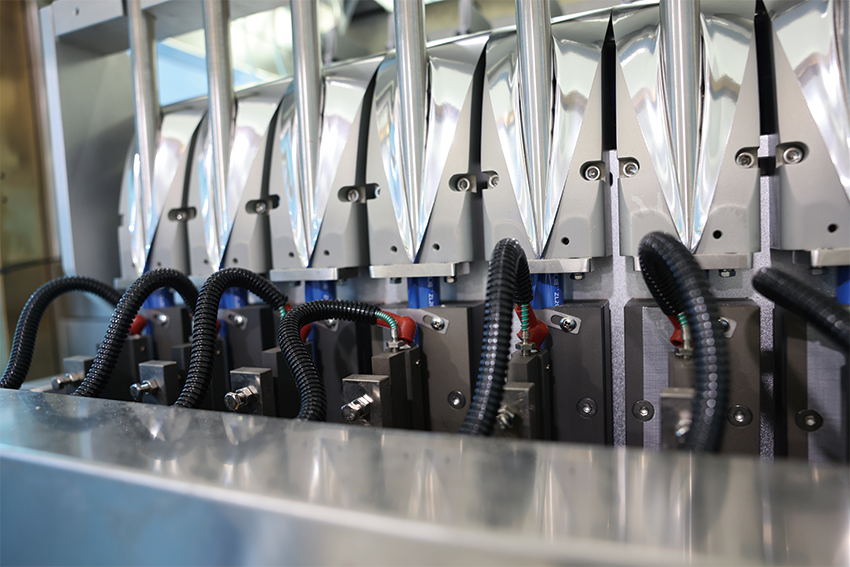

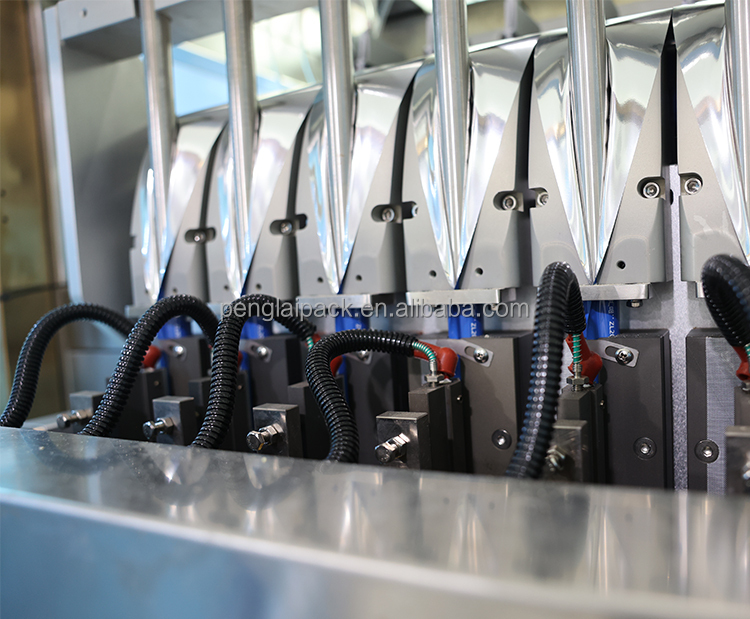

Vertical Sealing and CNC Bag forming
Vertical Sealing and CNC Bag forming
CNC manufacturing technology makes the former run more stably, accurately and prolongs lifespan. The longitudinal seam high temperature tape prolongs the mold life and reduces cleaning time.

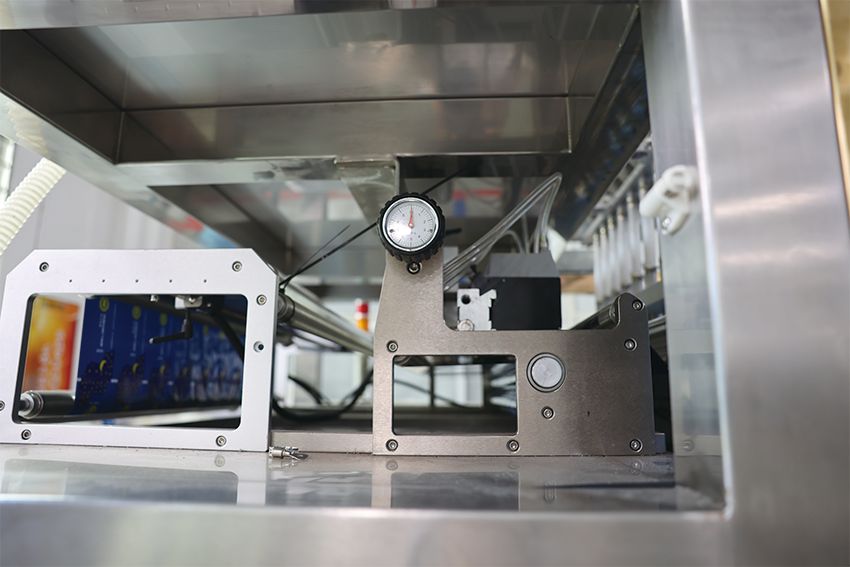

Film cutting process
Film cutting process
Pneumatic slitting packaging die cutter, can be fine-tuned left and right, slow wire cutting process, fast cutting speed, precise cutting position.

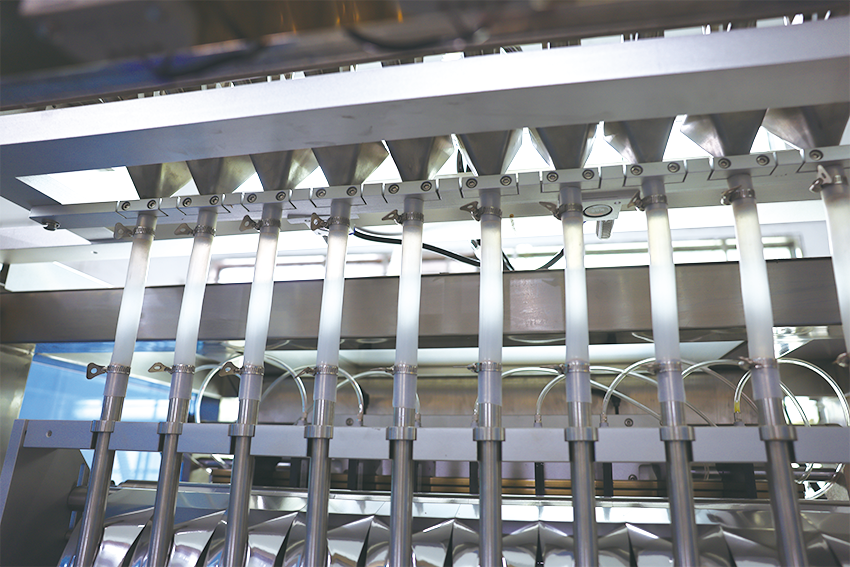

The material directly enters the discharge pipe
Discharge Pipe Structure
The tube-in-tube structure is adopted, the outer tube is formed, and the inner tube is cut to avoid contamination. The inner tube processing process is strictly controlled to ensure that no external impurities are brought in.

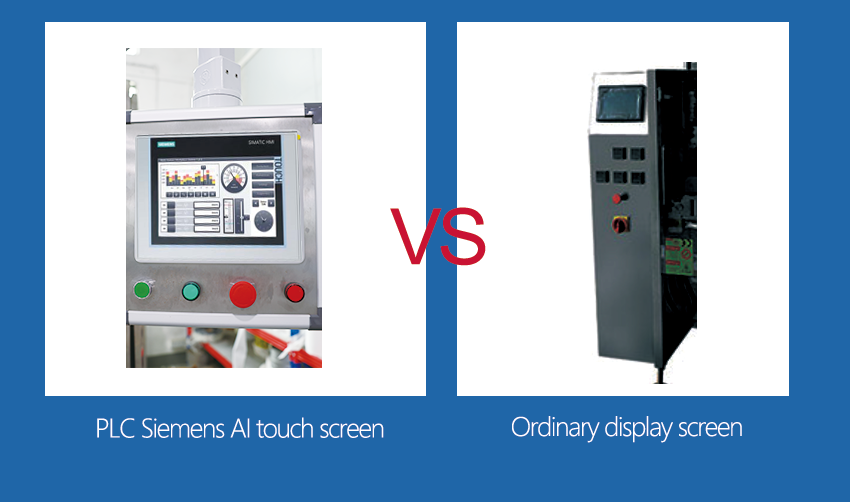

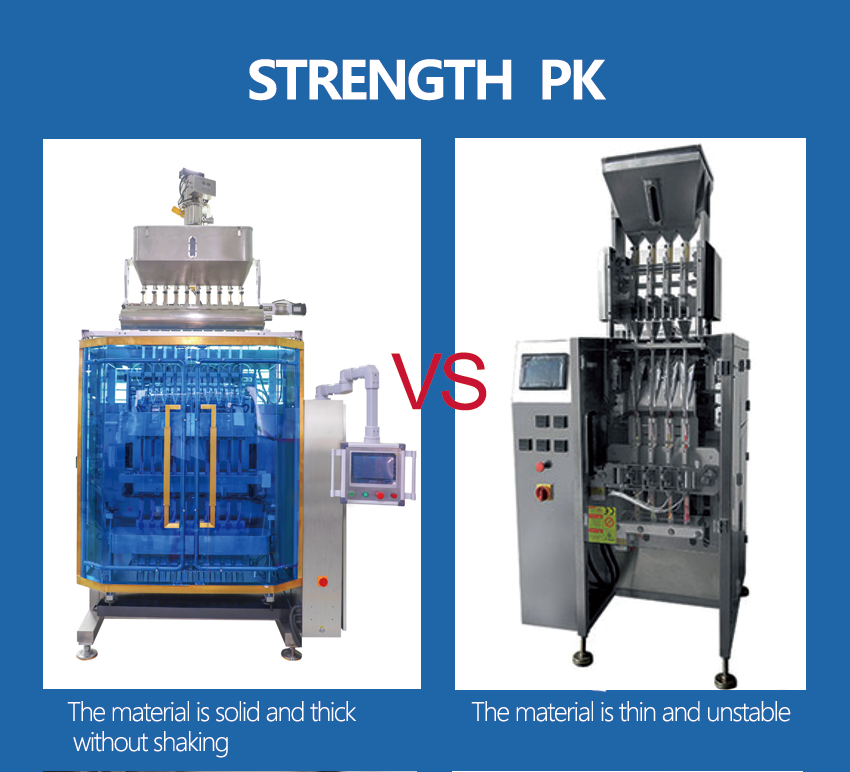

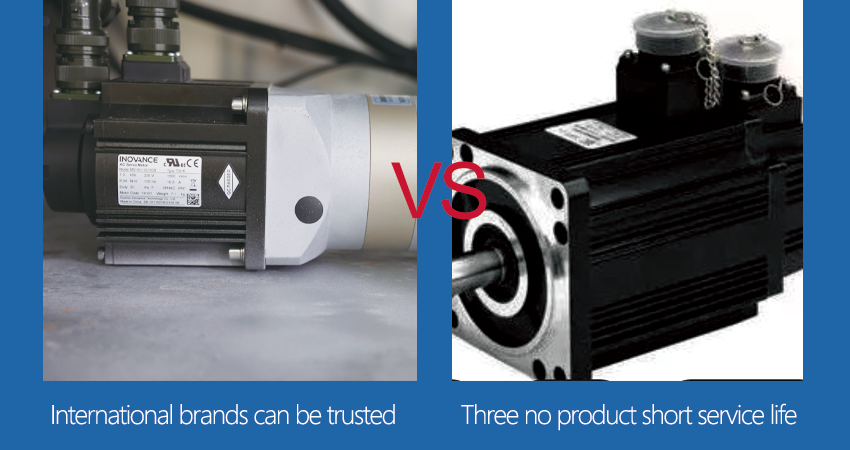

Structural Detail 1 Structural Detail 2 Structural Detail 3
Certifications
Product Certifications

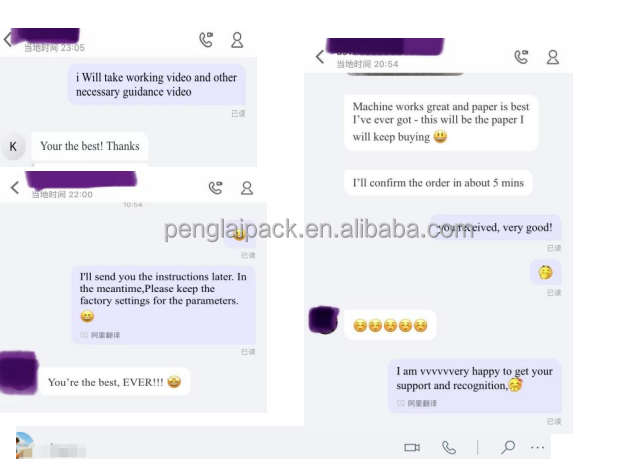

Customer Feedback

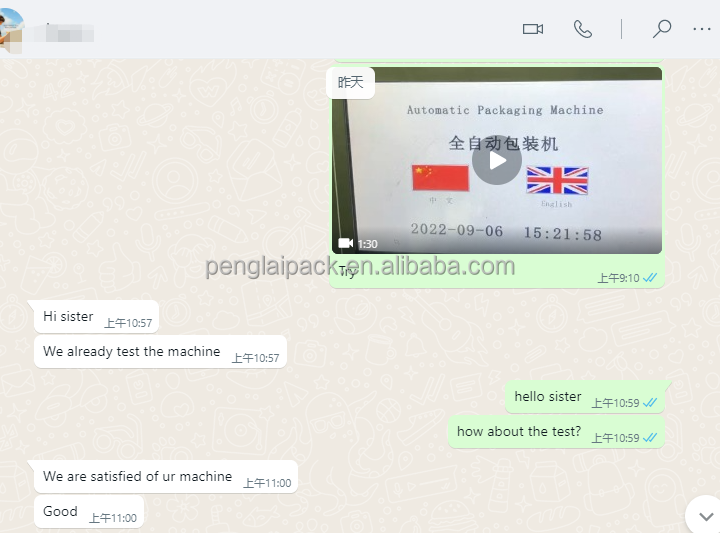

Customer Feedback 1 Customer Feedback 2

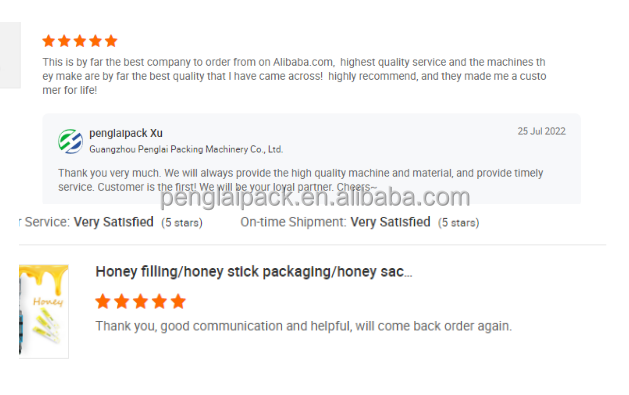

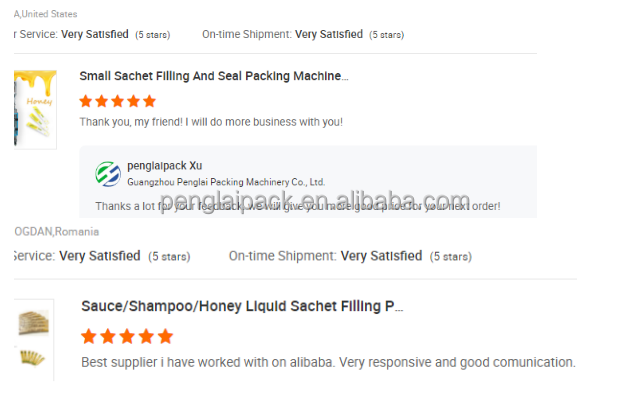

Customer Feedback 3 Customer Feedback 4
Frequently Asked Questions (FAQ)
1. What kind of products can be packaged with this machine?
This packaging machine is multifunctional and designed for filling and packing any granule products, such as tea bags, sugar, snus, and similar small granular materials.
2. What bag sizes and styles can this packaging machine produce?
The machine supports a film width range of up to 1000mm depending on the model (PL-350 to PL-1000). The bag width range is 16-80mm with a maximum bag length of 170mm. It can produce 3 side seal, 4 side seal, round corner stick, and irregular shape packaging.
3. What is the typical packaging speed of the PL series?
The packaging speed is approximately 30-50 cuts per lane per minute, which can vary depending on real product testing and materials.
4. What materials are compatible for the packaging film?
The machine is compatible with any laminated plastic material, offering flexibility in choosing packaging films.
5. How does the CNC bag forming feature improve performance?
CNC manufacturing technology ensures the bag former runs more stably and accurately, which significantly extends the machine's lifespan. Additionally, the longitudinal seam high-temperature tape prolongs mold life and decreases cleaning intervals.
6. How is material contamination prevented during discharge?
The machine utilizes a tube-in-tube structure where the outer tube is formed and the inner tube is cut. The strict inner tube processing controls ensure no external impurities are brought in, preventing any product contamination.
