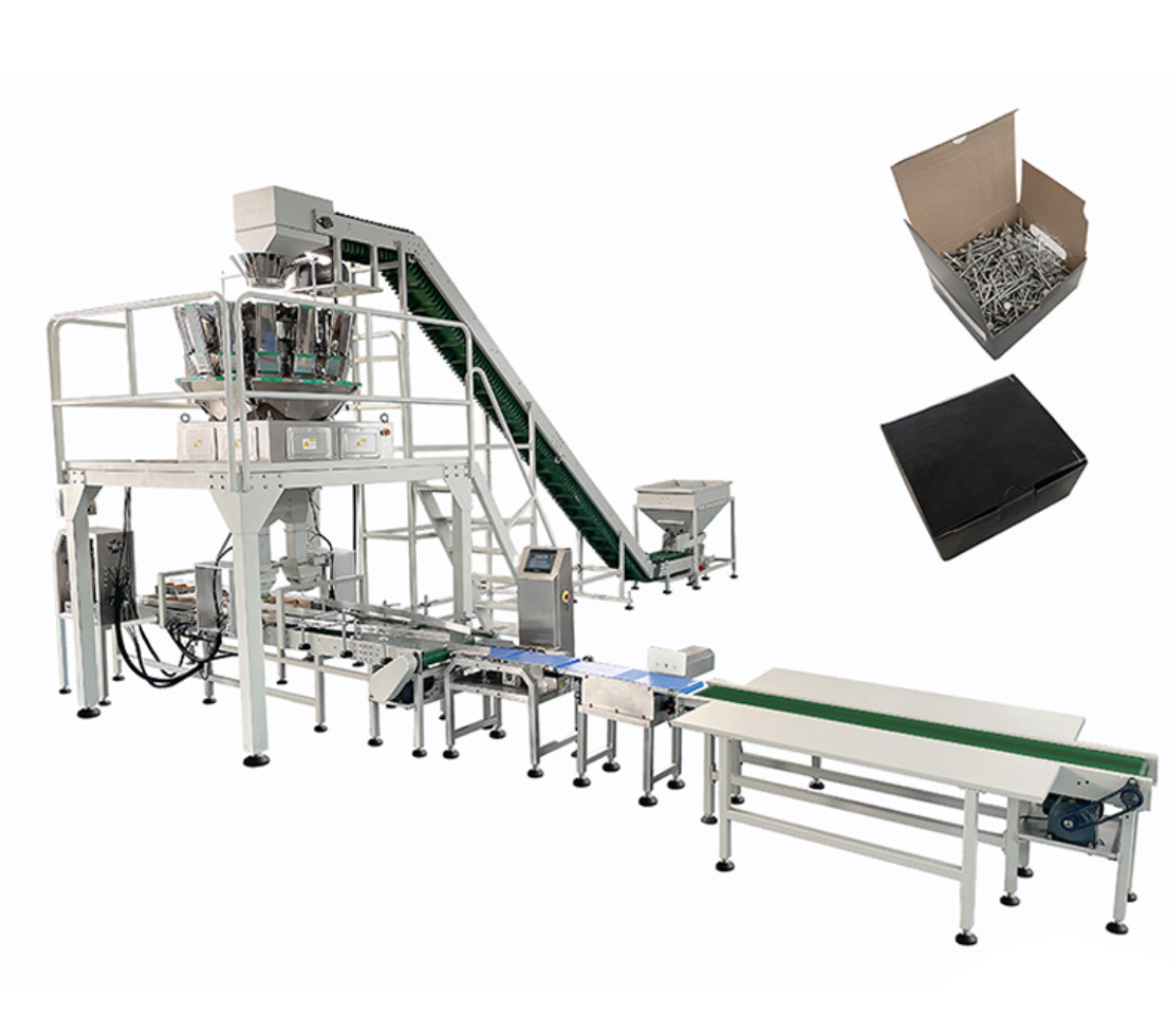

Main performance and features:
Replace manual high-speed packaging
Every product packaging ensures that 99% of the products delivered to customers meet the standards.
Supply higher precision, high-speed packaging machines to meet customer demand, with higher quality.
Saving labor costs and greatly improving production efficiency.
The entire equipment is made of stainless steel 304.

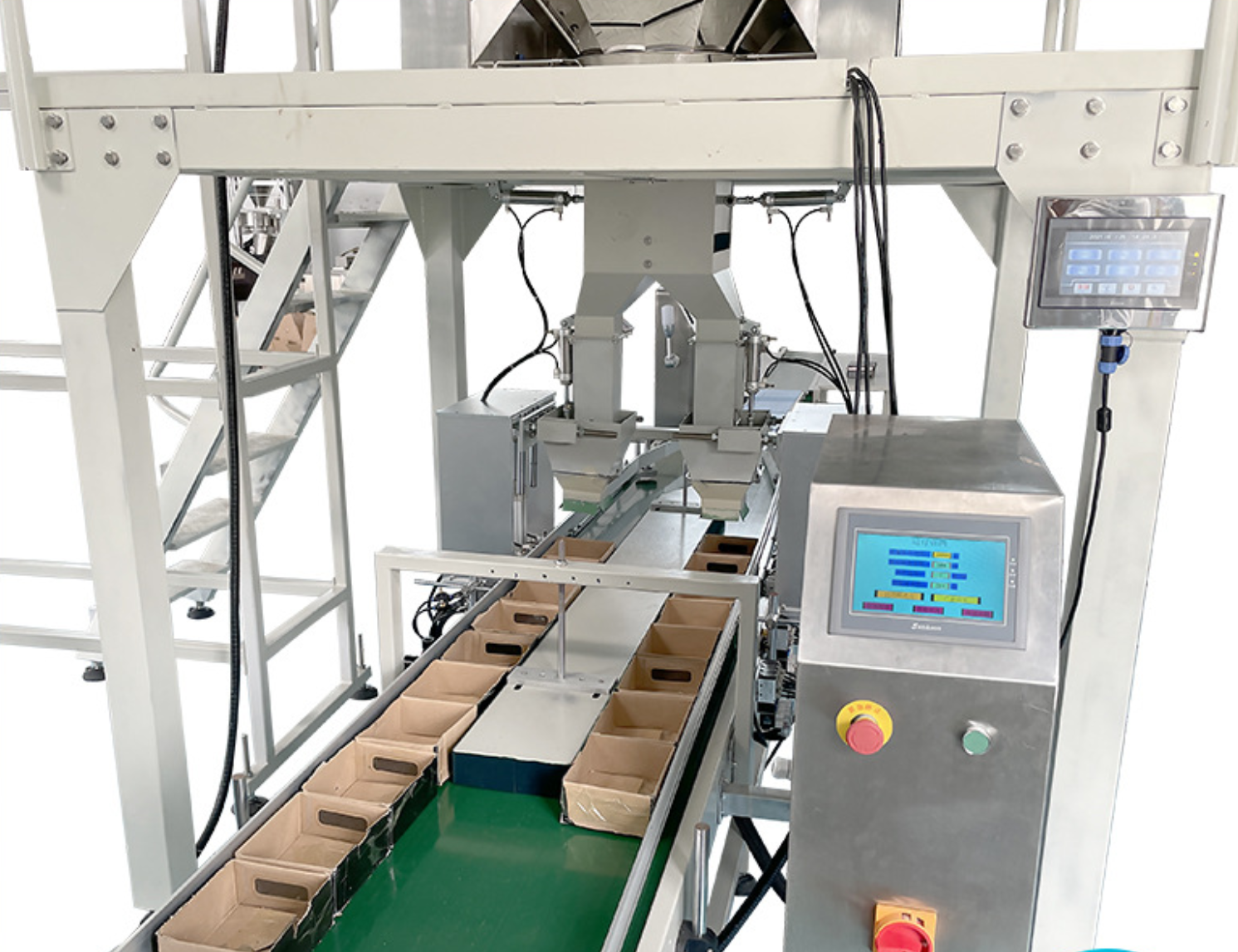

The equipment adopts advanced PLC control with touch screen operation function, and the production speed can be adjusted freely without adjusting any other parameters.
| Model | FG300-2 |
|---|---|
| Packaging speed | 20-35 PCS/Min |
| Paper box size | Customized sizes L130-300 mm W60-180 mm H0-50-70-150mm |
| Carton weight | 270-400g/m³ |
| Motor power | 0.3-0.5KW |
| Voltage | 220v 50hz |
| Noise | ≤80dB |
| Compressed air pressure | 0.5-0.7 Mpa |
| Compressed air consumption | 200L/min |

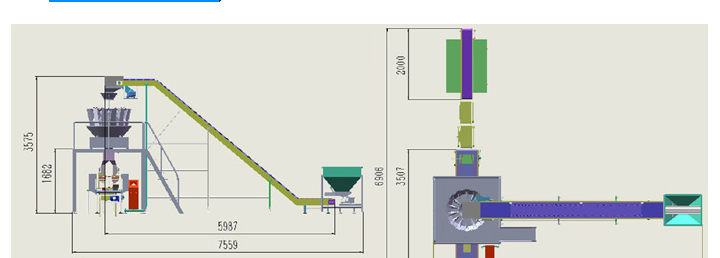

| Equipment Outline Dimensional Drawing | L7559 × W 6906× H 3575 MM |
| Weight | 1100 KG |
Packing inside is plastic films and outside is fumigation wooden case. Our wooden case is very strong, it can bear long time shipping on the sea. And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
1- We provide videos and instruction manual to show the process of installation.
2- We provide training for installation for free in our factory.
3- We can send technician to buyer's factory to install the machine and provide training service (subject to terms and daily salary requirements).
1- One year quality warranty and free lifetime technique support.
2- Free spare parts would be supplied if machine broken within warranty period.
3- After the warranty period, the spare parts for replacement are offered based on certain charge.
